TM24 - Electric hedge trimmer Vevor - Free user manual and instructions

Product Type	Manual Leaf Cutter
Brand	Vevor
Model	TM24
Package Dimensions (mm)	670 × 670 × 315
Blade Size (inches)	24
Net Weight (kg)	8.9
Gross Weight (kg)	11.13
Operating Mode	Manual (handle rotation)
Blade Material	420 Stainless Steel
Blade Edge	Straight
Container Material	201 Stainless Steel
Transmission Ratio	1:24
Warranty	1 year
Main Functions	Chop leaves, herbs, and small plants for compost or essential oils
Safety	Very sharp blade; do not put fingers near the grid; use the protective sheath when storing
Maintenance and Cleaning	Clean each part after use; store in a dry place
Spare Parts and Repairability	Contact Vevor support for spare parts

Frequently Asked Questions - TM24 Vevor

How to use the TM24 leaf cutter?

Remove the top from the base, place unpruned plants (about 40 g) on the grid, replace the top, and turn the handle clockwise for 15 to 30 turns.

What type of plants can be chopped?

This leaf cutter is designed for leaves, herbs, and small plants. It can be used to prepare essential oils or compost.

How to clean the device after use?

Disassemble the parts (top, grid, base) and clean them with clear water. Dry thoroughly before storing. The blade can be wiped with a damp cloth.

What to do if the blade is stuck?

Make sure no hard debris is jammed. If the blockage persists, stop using and contact Vevor support.

Is the blade replaceable?

Yes, the stainless steel blade can be replaced. Contact Vevor customer service to obtain a spare part.

What safety precautions should be taken?

Wear protective gloves, never put fingers near the grid while operating, and use the blade sheath when storing. Keep the device out of reach of children.

How long does it take to chop leaves?

About 30 seconds of rotation (15 to 30 turns) is enough to chop a load of about 40 g of leaves.

Can I use the TM24 for branches?

No, this leaf cutter is only intended for leaves and soft plants. Branches may damage the blade.

How to store the device?

Clean all parts, put the protective sheath on the blade, and store it in a dry place away from moisture.

Where to find the full manual?

The manual is available for free download on notice-facile.com or from Vevor support (www.vevor.com/support).

USER MANUAL TM24 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

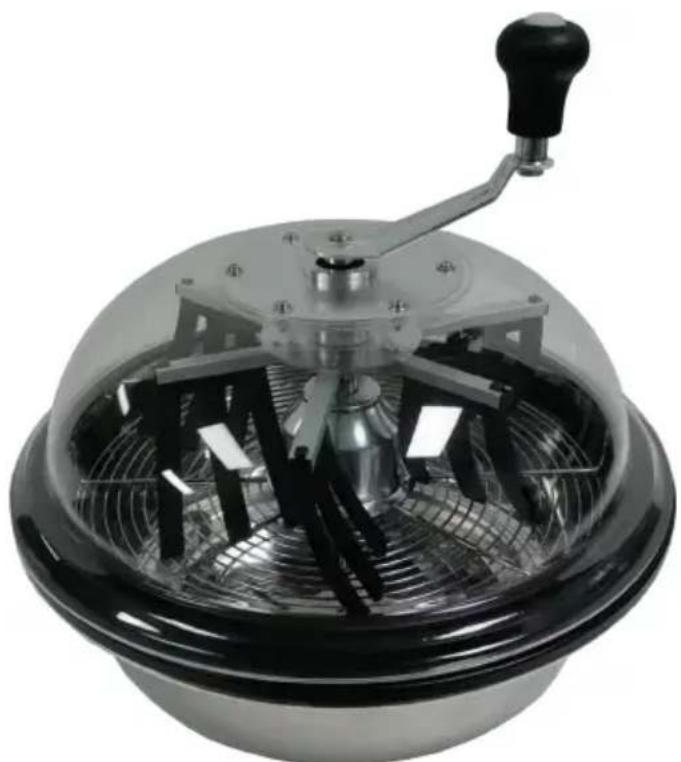

LEAF TRIMMER

MODEL: TM24

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LEAF TRIMMER

MODEL: TM24

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Read all safety warnings, instructions, illustrations, and specifications provided with this product. Failure to follow all instructions listed below may result in product damage or serious injury.

Basic Safety Information:

1. This product is for trimming leaves only.
2. The blade is very sharp. Beware of injury when using the trimmer or replacing the blade.
3. Put on the sheath for the blade if you are not ready to use it for a long time.
4. Make sure the lid is on before use.
5. Be gentle with the trimmer when using it. Violent use can result in accidental injury and damage to the trimmer.
6. Never place your fingers, gloves or any other body part in contact with the grill or the blade.
7. Do not use scissors, knives or any instrument above the grill.
8. This product is not a toy. Do not allow children to play with it.

Please Note:

The manufacturer does not accept any responsibility for damages caused to or by the trimmers resulting from inadequate use or assembly. Please use the trimmers in accordance with existing laws and regulations.

SAVE THESE INSTRUCTIONS

Basic parameters

Package size (mm)	670×670×315
Size (inch)	24
N.W (kg)	8.9
G.W (kg)	11.13
Operating mode	manual
Blade	420 Stainless steel/straight edge
Container	201 Stainless steel
Transmission ratio	1:24
Service life	1-year warranty

OPERATION

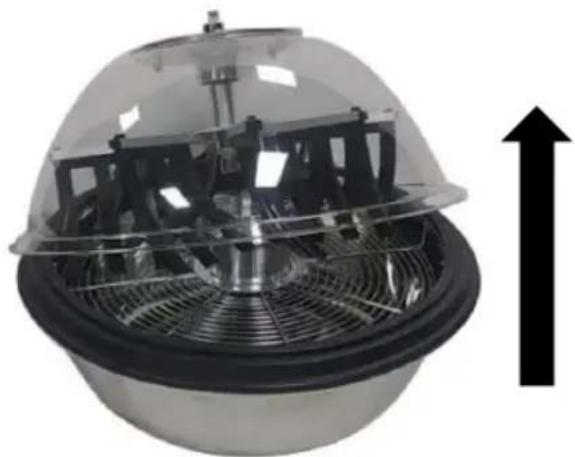

1. Remove the top from the flower trimmer's base.

Remove the top from the flower trimmer's base. The inside contains high-density rubber used to push the plant leaves into the blade grill. The cutting blades or wires are located below the grill.

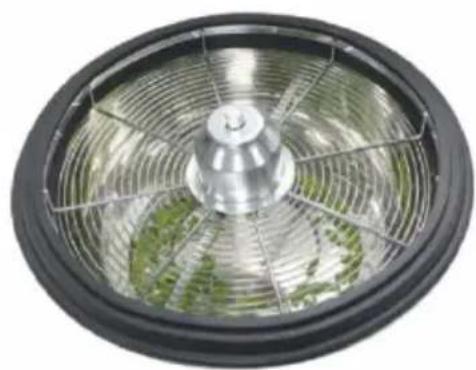

1. Place the untrimmed plants on the grill.

Place the untrimmed plants on the grill. The plants should be enough to make sure the grill surface is covered (approximately 40 dry grams).

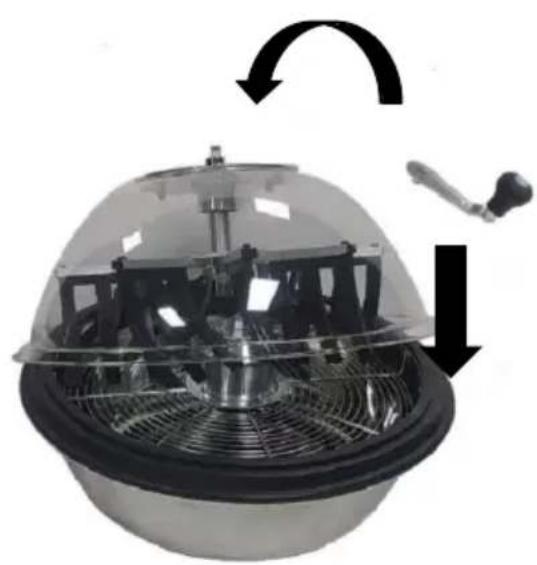

1. Place the top and handle back on the base.

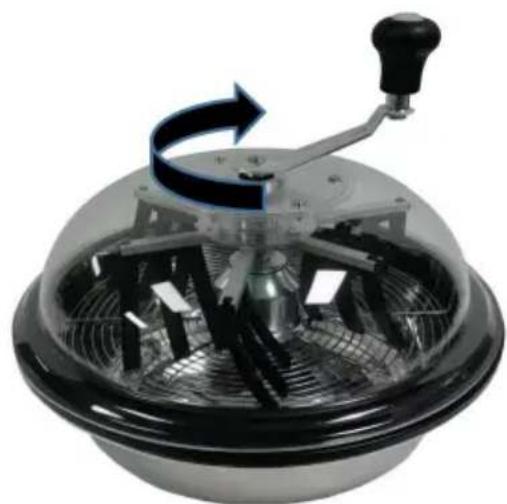

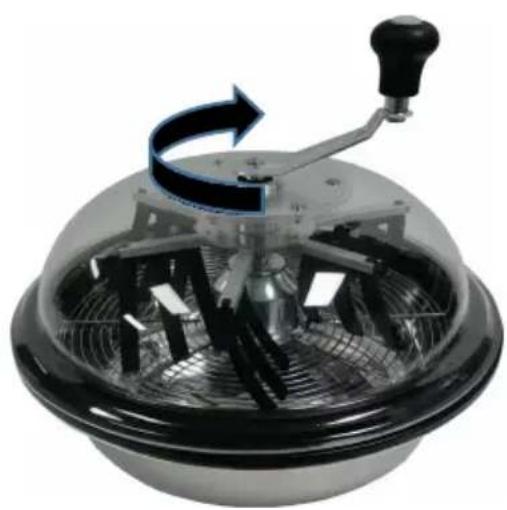

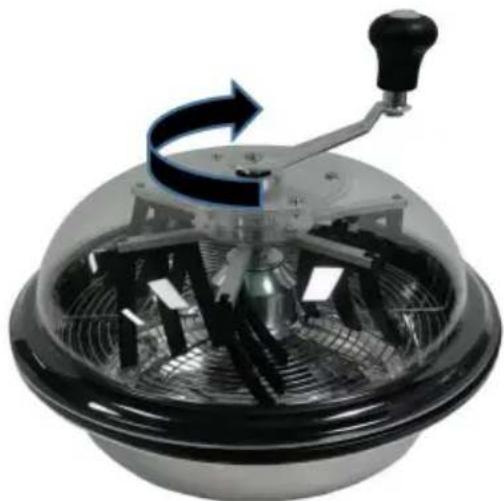

1. Turn the handle clockwise for about 15-30 rounds.

Using the handle, make 15-30 complete turns. While spinning the handle, the inside rubber twist tongues multiply the rate of the spinning plants and blades by over 30

times. A combination of the rubber tongues pressing and rolling the plants and the spinning blades can improve the cutting efficiency. Only 30 seconds can yield one hour's work.

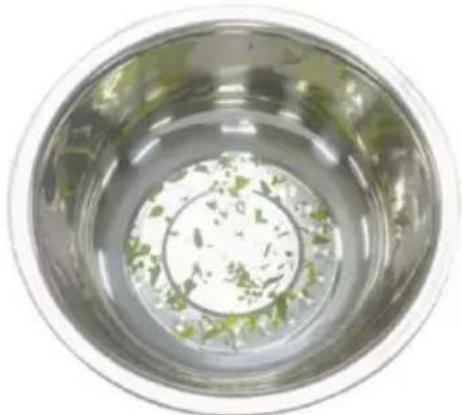

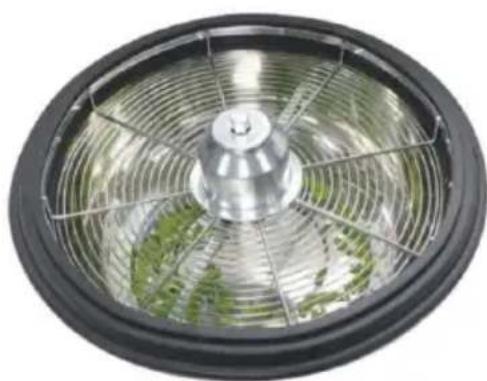

1. Remove the top and collect the plants.

Open the top and the trimmed plants and their fragmented buds/leaves can be found individually on the middle grill and in the trimmer basin. Depending on the type of plants, the trimming can be used for the preparation of plants' essential oils.

1. Repeat the process for more harvest.

If you think the leaf pieces are not small enough, keep repeating the above process as many times as you want, or until you have completed your harvest. When finished, easily clean every part of the trimmer and store it.

Sanven Technology Ltd.

Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91
