TM16 - Electric hedge trimmer Vevor - Free user manual and instructions

Product Type	Manual Leaf Shredder
Brand	Vevor
Model	TM16
Package Dimensions	480 × 480 × 205 mm
Net Weight	4.86 kg
Gross Weight	5.7 kg
Operating Mode	Manual (hand rotation)
Blade Material	420 Stainless Steel, straight edge
Container Material	201 Stainless Steel
Transmission Ratio	1:24
Size (inches)	16"
Cutting Capacity	Approximately 40 g of dry leaves per load
Cutting Time per Load	Approximately 30 seconds (15 to 30 crank turns)
Main Use	Cutting and chopping leaves for essential oils
Safety	Sharp blade, protective sheath included, do not touch the grid
Maintenance	Clean each part after use, store in a dry place
Warranty	1 year
Technical Support	www.vevor.com/support

Frequently Asked Questions - TM16 Vevor

How to use the TM16 leaf shredder?

Place the dry leaves on the grid (about 40 g), close the lid, then turn the crank clockwise 15 to 30 times. The rubber tabs push the leaves against the rotating blade. Open and collect the shredded leaves.

Can you cut wet leaves?

It is recommended to use dry leaves. Wet leaves may stick and reduce cutting efficiency. Dry them first if possible.

How to clean the device after use?

Disassemble the parts (lid, grid, container). Wash with warm water and mild detergent. Dry thoroughly before storing. Never immerse the blade in water.

What to do if the blade dulls?

Contact Vevor after-sales service for a blade replacement. Do not sharpen the blade yourself, as this could compromise safety and performance.

Is the device dangerous?

Yes, the blade is very sharp. Follow safety instructions: use the blade sheath, never put your fingers in the grid, and keep out of reach of children.

Can I cut other plants besides leaves?

This device is designed only for cutting leaves. Do not use to cut branches, hard stems, or any other material, as this may damage the blade.

How many crank turns are needed?

Perform 15 to 30 complete turns. The exact amount depends on the quantity and dryness of the leaves. Stop when the leaves are sufficiently shredded.

What is the maximum capacity of the container?

The container holds approximately 40 grams of dry leaves per load. Do not overload to avoid blade jamming.

How to store the device?

After cleaning and drying, put the blade sheath back on. Store in a dry place, away from humidity and out of reach of children.

Where to find spare parts?

Contact Vevor support via www.vevor.com/support. The replacement blade is available on request. Also check the one-year warranty.

USER MANUAL TM16 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

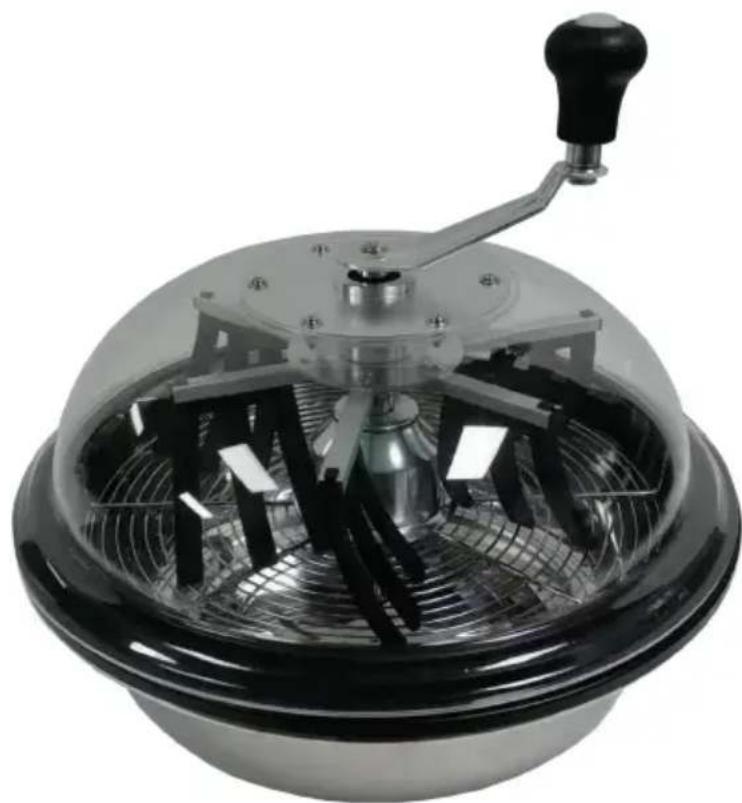

LEAF TRIMMER

MODEL: TM16

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LEAF TRIMMER

MODEL: TM16

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Read all safety warnings, instructions, illustrations, and specifications provided with this product. Failure to follow all instructions listed below may result in product damage or serious injury.

Basic Safety Information:

1. This product is for trimming leaves only.
2. The blade is very sharp; beware of injury when using the trimmer or replacing the blade.
3. Put on the blade sheath if you are not going to trim for a long time.
4. Make sure the lid is on before use.
5. Be gentle with the trimmer when using it. Violent use can result in accidental injury and damage to the trimmer.
6. Never place your fingers, gloves, or any other body part in contact with the grill or the blade.
7. Do not use scissors, knives, or any instrument above the grill.
8. This product is not a toy. Do not allow children to play with or in this item.

Please Note:

The manufacturer does not accept any responsibility for damages caused to or by the trimmers resulting from inadequate use or assembly. Please use the trimmers in accordance with existing laws and regulations.

SAVE THESE INSTRUCTIONS

Basic parameters

Package size (mm)	480×480×205
Size (inch)	16
N.W (kg)	4.86
G.W (kg)	5.7
Operating mode	manual
Blade	420 Stainless steel/straight edge
Container	201 Stainless steel
Transmission ratio	1:24
Service life	1-year warranty

OPERATION

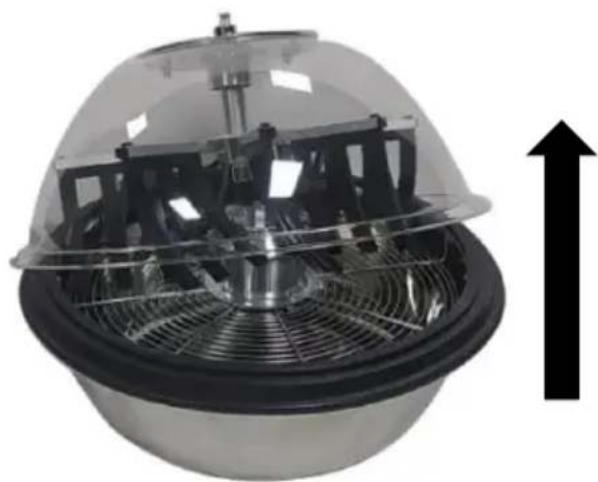

1. Remove the top from the flower trimmer's base.

Remove the top from the flower trimmer's base. The inside contains high-density rubber used to push the plant leaves into the blade grill. The cutting blades or wires are located below the grill.

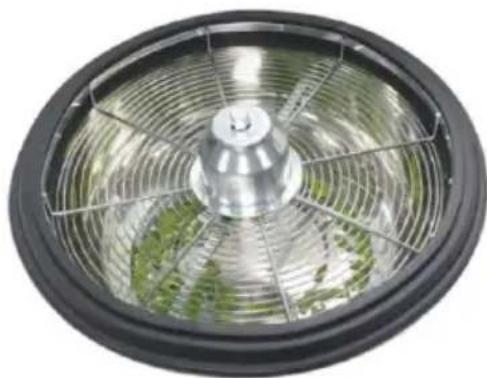

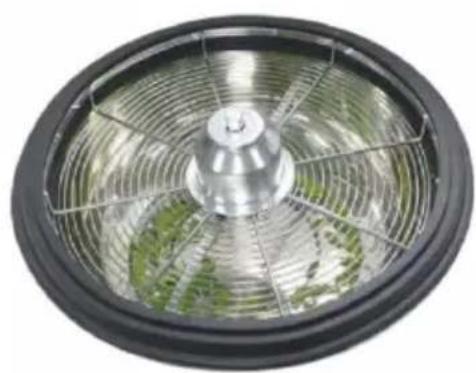

1. Place the untrimmed plants on the grill.

Place the untrimmed plants on the grill. The plants should be enough to make sure the grill surface is covered (approximately 40 dry grams).

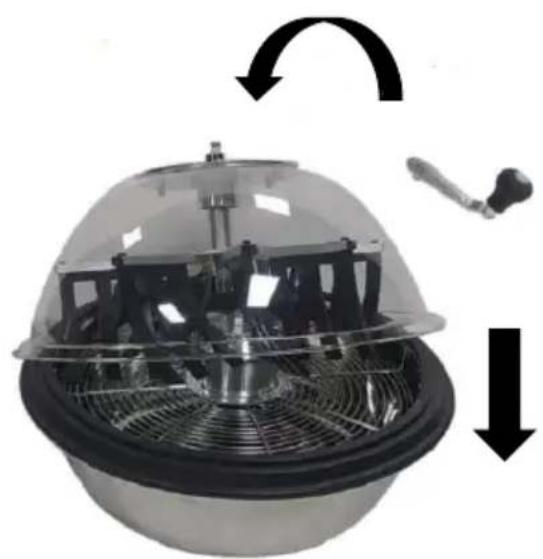

1. Place the top and handle back on the base.

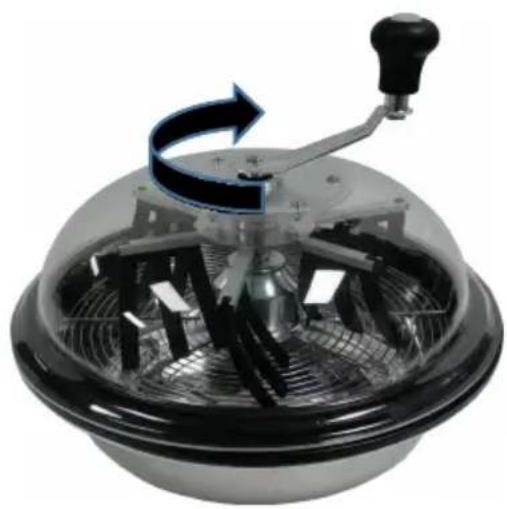

1. Turn the handle clockwise for about 15-30 rounds.

Using the handle, make 15-30 complete turns. While spinning the handle, the inside rubber twist tongues multiply the rate of the spinning plants and blades by over 30 times. A combination of the rubber tongues pressing and rolling the plants into the spinning blades can improve the cutting efficiency. Only 30 seconds can yield one hour's work.

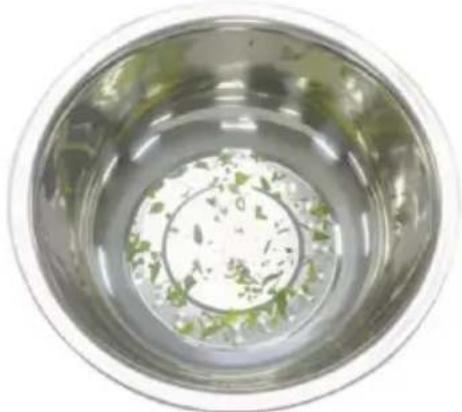

1. Remove the top and collect the plants.

Open the top and the trimmed plants and their fragmented bud/leaves can be found individually on the middle grill and in the trimmer basin. Depending on the type of plants, the trimming can be used for the preparation of plants' essential oils.

1. Repeat the process for more harvest.

If you think the leaf pieces are not small enough, keep repeating the above process as many times as you want, or until you have completed your harvest. When finished, easily clean every part of the trimmer and store it.
