USER MANUAL YOILP5035M Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

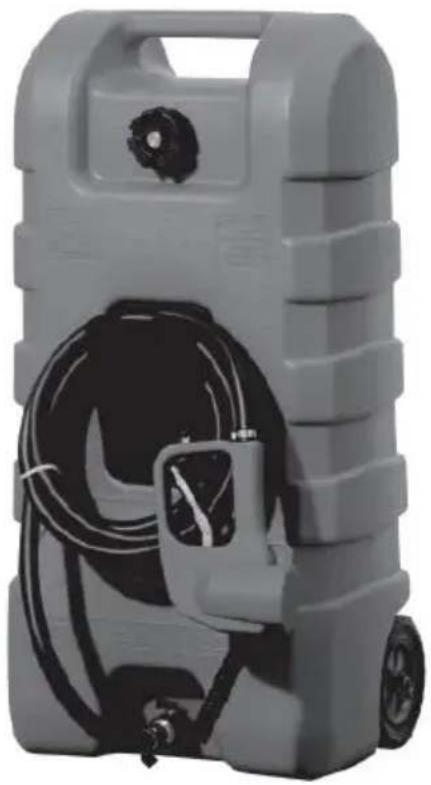

PLASTIC FUEL CADDY

MODEL: YOILP5035M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: YOILP5035M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

When using this product, basic precautions should always be followed, including the following;

• This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
• Wear proper protective equipment when installing or using this product.
• Ensure all fittings and threaded connections are tightened and leak-free before operating.

A DANGER! ▲WARNING

Fuels are extremely flammable. Keep away from heat sparks and opel flames.

• Do not use electronics or mobile communications devices such as mobile phones when pumping flammable liquids.
• Attach ground wire and bond containers that are being pumped from and into. Ground all containers to a known ground source to dissipate static electricity before pumping liquids. Dissipate any static electric from your body by touching a metal surface away from the product
• Fuel vapors can explode. Harmful or fatal if swallowed. Avoid breathing in fuel vapors.
• Do not smoke near or while using the fuel caddy.
• This product is intended for fuel transfer only and is not intended transport fuel in any vehicle or trailer.
• Always remove from the vehicle and place fuel station on the ground when filling.
• DO NOT FILL IN THE BACK OF A PICKUP TRUCK OR INSIDE VEHICLE.
• Do not modify this product.

• Do not store it in a vehicle or living space always store it in a well-ventilated area.

• Keep the container closed when not in use. Vapors are harmful to lungs if inhaled.

• KEEP OUT OF REACH OF CHILDREN.
• Not for use with racing fuel.
• Make sure the fuel station is tightly secured HORIZONTALALLY during transport.
• Do not drop or roll up and down stairs.
• If you are unaware of restricted in your area for full containers co your local authorities before use.
• If you need storage of different fuels, please clean the tank before changing. Avoid mixing different fuels together to affect the use.

A WARNING! CAUTION! ATTENTIONWARNING

• Do not use this product for prop-longed fuel storage.
• Use the caddy for one fuel type only to avoid possible damage.
• Do not overfill the container.
• Always empty the pump and hose after using the caddy. Lift the lid and turn the handle in the opposite direction to empty all remaining liquid back into the caddy.
• Caution when filling the caddy through the fill tube, Monitor closely prevent overflows or spills.
• This product is unsuitable for placing in a yacht, off-road vehicle, or another violent vibration place.

Never use the fuel caddy near open flames or heat sources. VAPORS can explode and cause a flash fire at any distance.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	YOILP5035M
Capacity	15 Gal
Suitable Fuel Oil	Gasoline / Diesel
Oil Discharge	Hand oil gun / Gravity oil deliver
Max. Flow	2GPM(Hand+gravity oil delivery: Oil gu 1m below the tank outlet)
Hose	Φ14mm(Inside Diameter)x3m
Wheels	6"
Tank Material	HDPE
Tank Color	Red

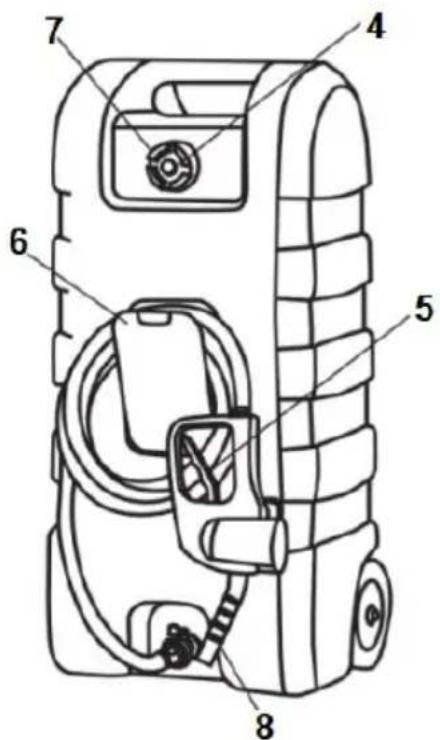

STRUCTURE DIAGRAM

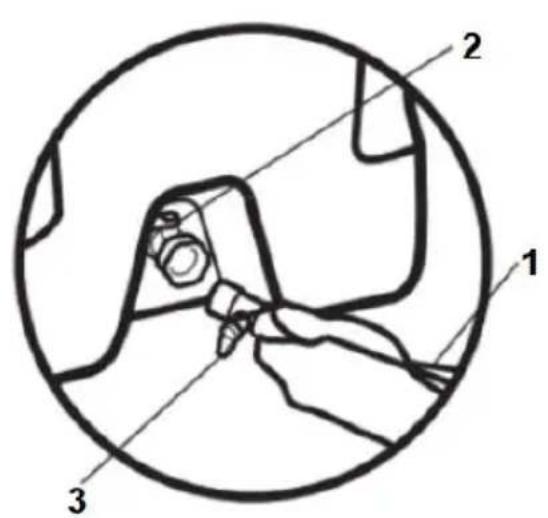

1.Hose assembly 2.Valve 3.Valve 4.Vent screw 5.Squeeze pump handle 6.Hanger 7.Fill cap 8.Nozzle

ASSEMBLY

1. Connect hose assembly (1) to tank valve (2).
   2.Tighten down (Do not over-tighten.) in a clockwise motion until it is fastened securely.

NOTE:

1. Take care to check that the seal ring is placed correctly.
2. Once secured, check for leaks by spraying or brushing a thin solid diluted foaming dishwasher detergent. Once applied, watch for air bubbles. Tighten the connection, if needed.

OPERATION

Refueling operation:

-Please choose the appropriate oil filling, do not fill with chemicals or another corrosive solvent.
-Lay the tank flat and make sure the shut-off valve (2) is closed.
- Open the fill cap(7) and fill the oil. NOTE: Fill slowly to decrease the chance of static electricity.
- During oil filling, pay attention to the filling of the tank to avoid overfilling the tank, tighten the cap and close the vent screw (4) or the cap. Place the tank in a safe place.

Pumping operation:

• Place the tank vertically and ensure that the oil level in the tank is 0.5 m higher than the fuel gun.

-Turn the Vent screw(4) counterclockwise.

-Open shut off valve (2)(3).

• It is a gravity-fed unit, so it must be higher than the tank to be Squeeze handle (5) numerous times to start the fuel flowing and hold pump handle to continue flow. Once you let go of the pump handle, flow will stop. After the oil is discharged, the switch at the handle or gun can be locked, and the oil will continue to flow out.

-As the oil level in the tank decreases, the oil flow from the oil gun decreases. Please raise the tank so that the oil level is higher than gun.

-After refueling, please raise the gun above the tank to recover the remaining oil in the long hose and return it to the tank.

-Once the fuel transfer is complete, close the vent screw (4) and shov valves (2, 3).

NOTE: The tank may not fully drain due to design.

-Rehang the hose on an attached hanger (6).

MAINTENANCE

1. Please clean the measure and filter regularly.
   2.Keep away from fire.
   3.For different types of oil, cleaning the tank before storing another ty oil is recommended.
   4.If this product is not used for a long time, it is recommended to store it in a cool and dry environment. Keep the tank away from the sunlight.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
