USER MANUAL YHM-60B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PLASTIC FUEL CADDY

MODEL: YHM-60B / YHM-120B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PLASTIC FUEL CADD

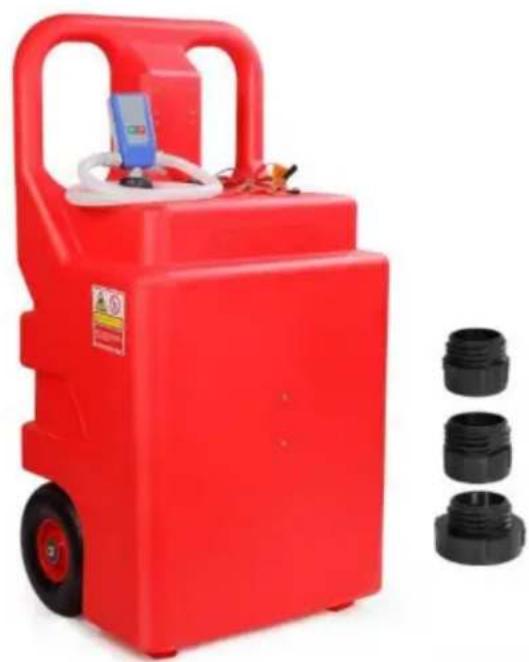

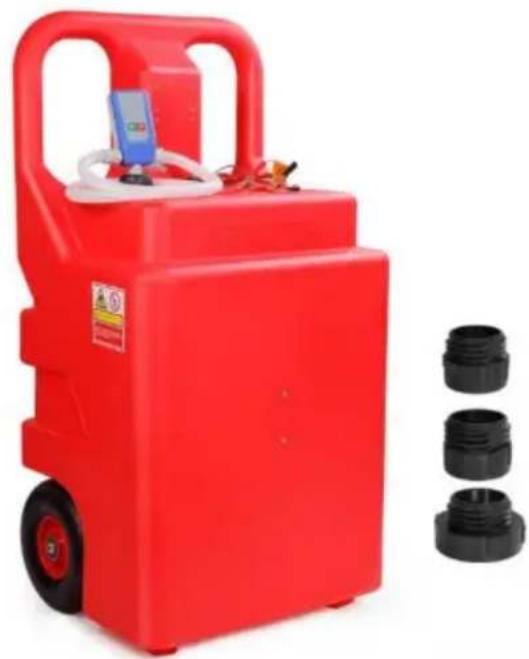

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

Red portable water heater with attached pipe and two black plastic connectors (no visible text or symbols)

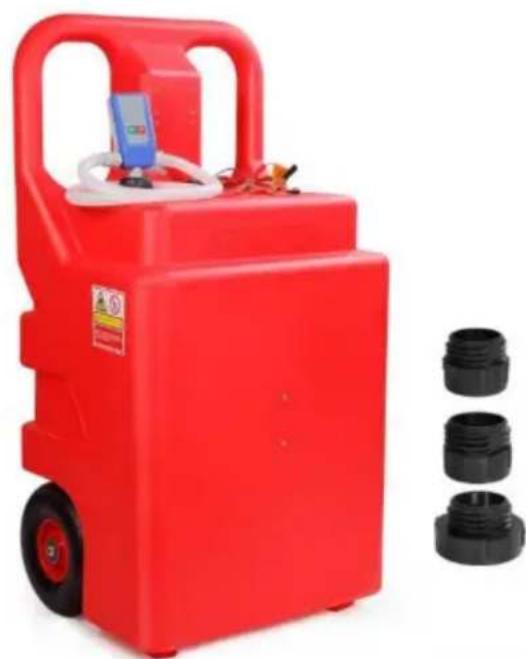

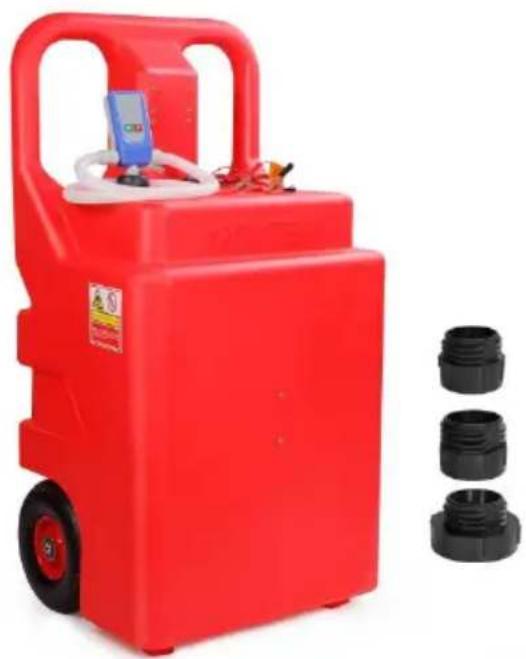

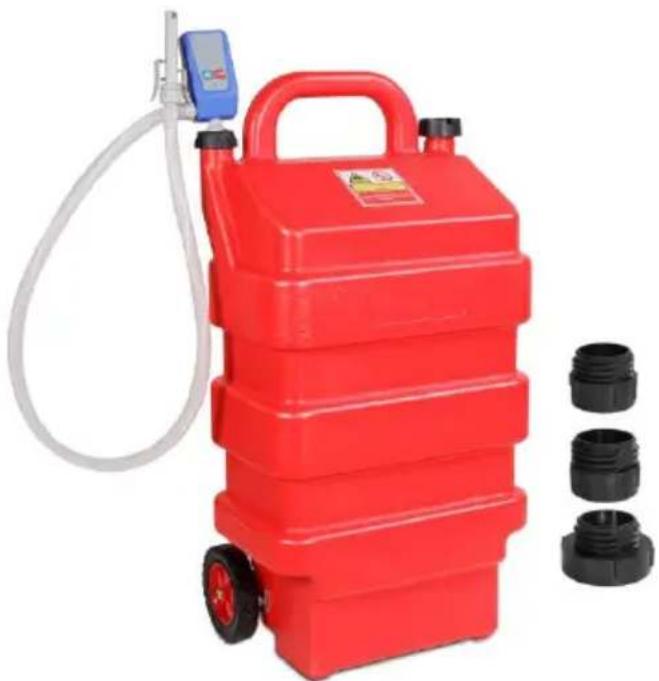

YHM-60B YHM-120B

NOTE: The image is for reference only, please refer to your purchase for configuration

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

When using this product, basic precautions should always be followed, including the following;

• This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
• Wear proper protective equipment when installing or using this product.
• Ensure all fittings and threaded connections are tightened and leak-free before operating.

A DANGER! ⚠WARNING

Fuels are extremely flammable. Keep away from heat sparks and ope flames.

• Do not use electronics or mobile communications devices such as mobile phones when pumping flammable liquids.
• Attach ground wire and bond containers that are being pumped from and into. Ground all containers to a known ground source to dissolve static electricity before pumping liquids. Dissipate any static electric from your body by touching a metal surface away from the product
• Fuel vapors can explode. Harmful or fatal if swallowed. Avoid breathing in fuel vapors.
• Do not smoke near or while using the fuel caddy.
• This product is intended for fuel transfer only and is not intended transport fuel in any vehicle or trailer.
  ● Always remove from the vehicle and place fuel station on the group when filling.
  ● DO NOT FILL IN THE BACK OF A PICKUP TRUCK OR INSIDE VEHICLE.
• Do not modify this product.

• Do not store it in a vehicle or living space and always store it in well-ventilated area.

• Keep the container closed when not in use. Vapors are harmful to lungs if inhaled.

• KEEP OUT OF REACH OF CHILDREN.
• Not for use with racing fuel.
• Make sure the fuel station is tightly secured HORIZONTALLY during transport.
• Do not drop or roll up and down stairs.
• If you are unaware of restricted in your area for full containers, co your local authorities before use.
• If you need storage of different fuels, please clean the tank before changing. Avoid mixing different fuels together to affect the use.

A WARNING! CAUTION! ATTENTION WARNING

• Do not use this product for prop-longed fuel storage.
• Use the caddy for one fuel type only to avoid possible damage.
• Do not overfill the container.
  ● Always empty the pump and hose after using the caddy. Lift the I and turn the handle in the opposite direction to empty all remain liquid back into the caddy.
• Caution when filling the caddy through the fill tube, Monitor closely prevent overflows or spills.
• This product is unsuitable for placing in a yacht, off-road vehicle, or another violent vibration place.

Never use the fuel caddy near open flames or heat sources.

VAPORS can explode and cause a flash fire at any distance.

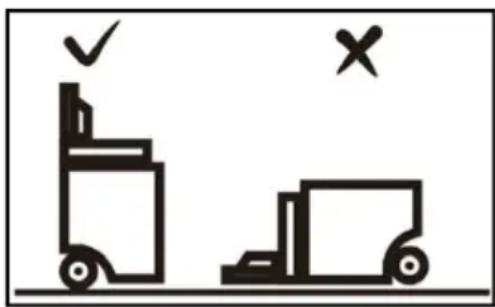

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

WARNING

Always keep the tank vertical while refuse or moving. Improper use may result in spillage or injury.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	YHM-60B	YHM-120B
Capacity	16 Gal	32 Gal
Suitable Fuel Oil	Gasoline / Diesel	Gasoline / Diesel
Input	AA x2 or 4 Batteries(Not Included) / D
Pump Power	9.6W
Max. Flow	2.5GPM
Auto-Stop	Built-in Auto-Stop System
Wheels	6"	10"
Tank Material	HDPE	LLDPE
Tank Color	Red

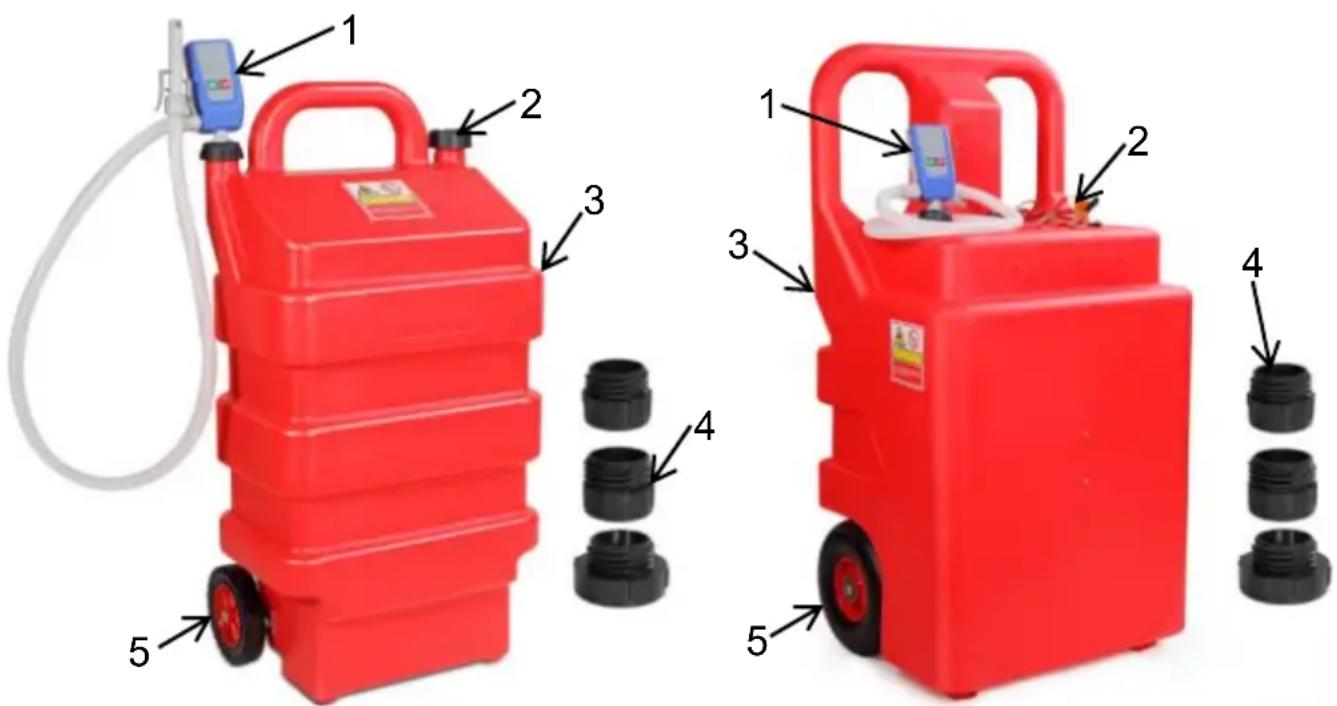

STRUCTURE DIAGRAM

Diagram of two red water purifier units with labeled components, showing gas flow and component arrangement.

1. Pump

2.Fuel

inlet

3.Tank

1. Adapters

5.Wheels

INSTRODUCTION TO PUMP

NOTE: Before filling, make sure the tank has no defects in the struc equipment.

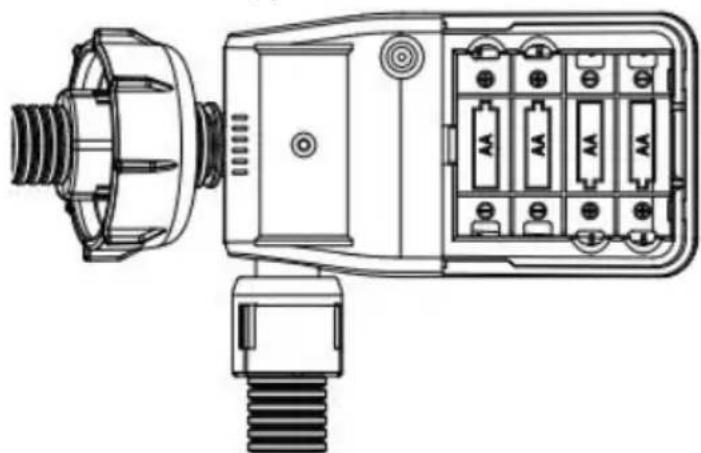

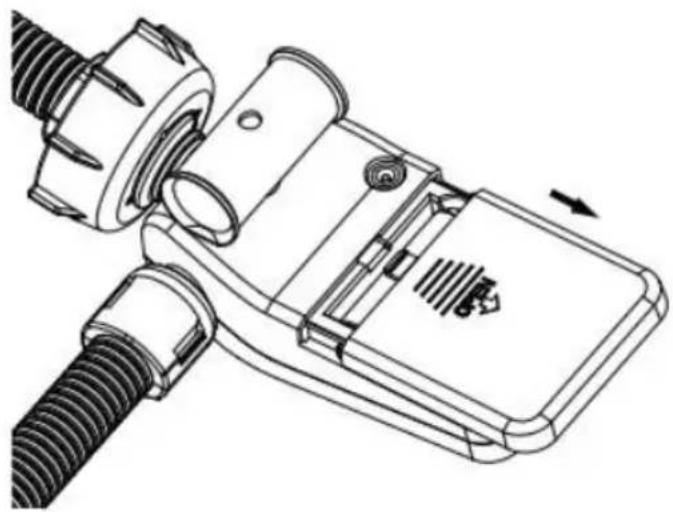

How To Open The Battery Cover: Place your thumb in the grooves shown in the picture, and push and slide the cover off in the directi arrow.

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

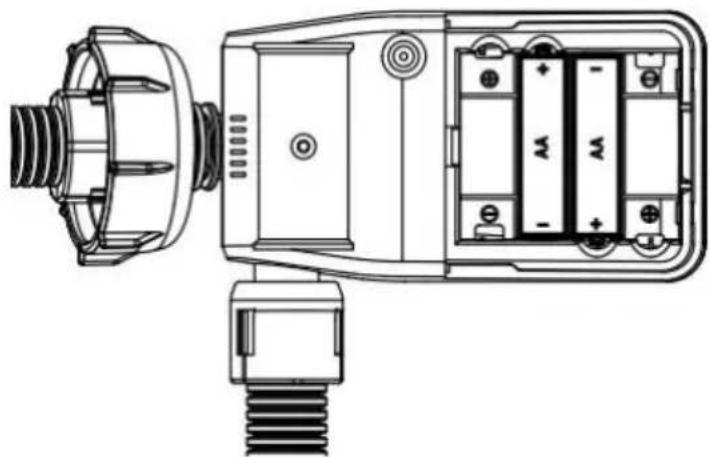

How To Place The Battery Cover: Insert 4 AA batteries according to and -signs.

Direction of batteries as indicated in the below picture.

a. Replace all 4 batteries at the same time.

b. Use the same brand/type of batteries.

Technical line drawing of a mechanical device with threaded ports and internal battery pack (no text or symbols)

EMERGENCY CASE WHEN ALL (4)BATTERIES ARE NOT AVAILABLE

It is recommended to use all 4 AA batteries when you are able, but possible to operate with 2 AA batteries during emergencies.

Can pump out approximately 50x 6 gallon fuel cans using 4 batteries with 2 batteries, can pump out approximately 25x 3 gallon fuel cans.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

WHEN TO REPLACE THE BATTERIES

1. The motor does not operate, even after pressing the ON switch, or transfer rate becomes slower than in normal operation.
2. Batteries can begin to discharge if they are stored for a long per time. Check the expiration dates of batteries.

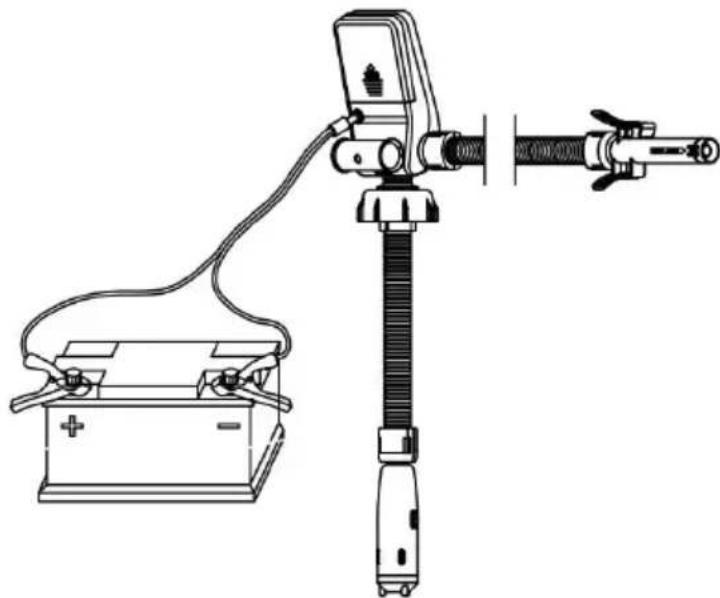

How to use the 12V battery power supply

1. Insert one end of the DC power cable terminal into the female terr the pump body, as shown in.
2. Clamp the battery in red and battery + pole connection, black and battery - pole connection (Note: +/- pole shall not be connected uneven). Otherwise the oil pump cannot work).

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

ASSEMBLY AND USE

Close-up of a black mechanical component with a central circular feature, placed on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

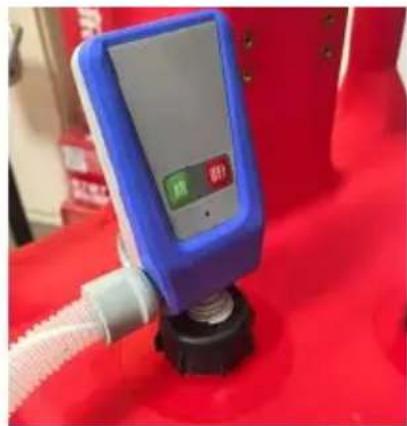

Blue medical device with attached tubing on red surface (no visible text or symbols)

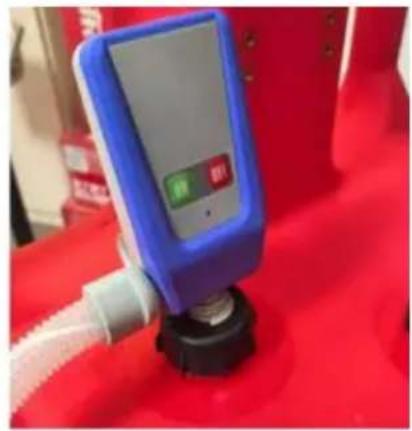

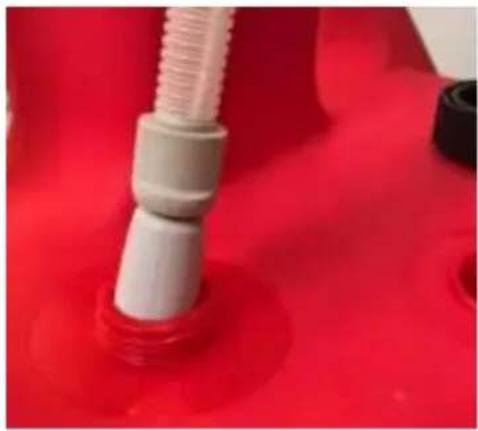

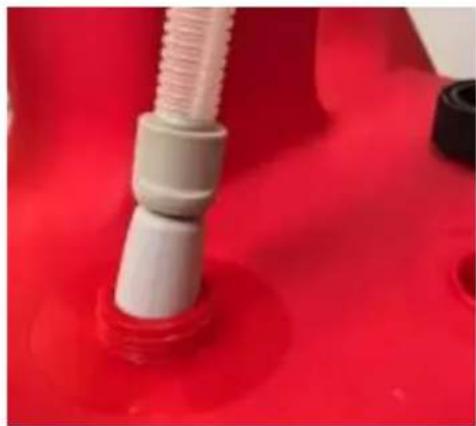

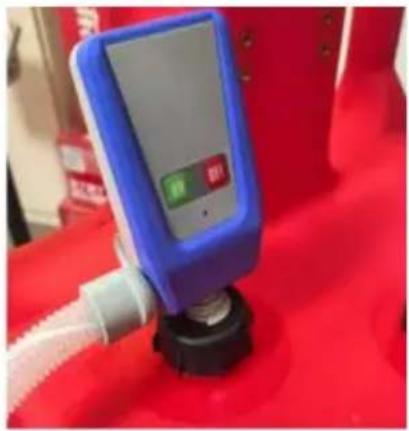

1. Open the vent cap 2. Place the pumping 3. Tighten the nuts to 1 device in the oil into the tank.

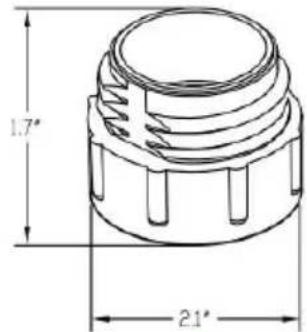

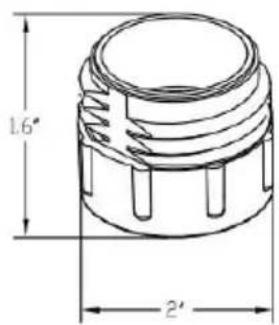

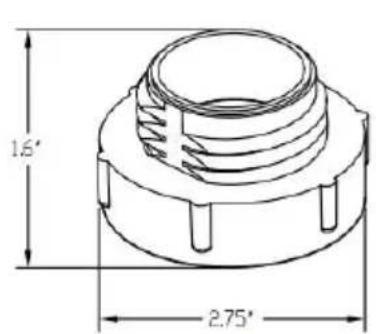

Adapters: Three adapters are extra available, which can be used for other tank connectors if appropriate.

1.6' 2.75'

A

1.7" 2.1"

B

1.6" 2'

C

Start to USE:

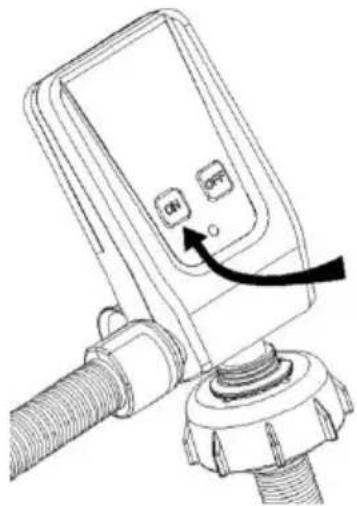

a: Start the flow of fuel by pressing the ON button. Automatically stop when the fuel reaches the stop line.

Line drawing of a handheld device with hoses and a control panel (no text or symbols)

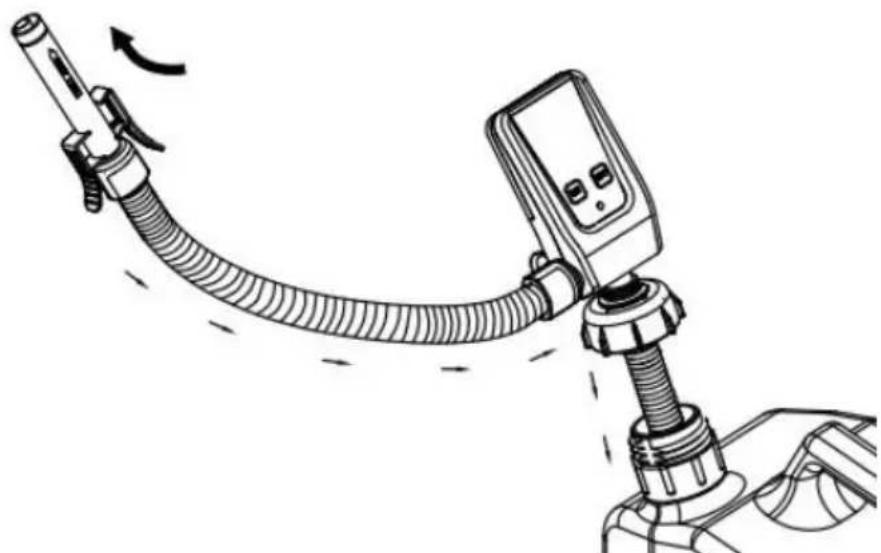

b: After automatically stopping, bring the discharge hose up above the to drain the excess fuel or liquid back into the supply tank.

Diagram of a mobile phone connected to a flexible hose, showing mechanical components and a hand holding the device (no text or symbols present)

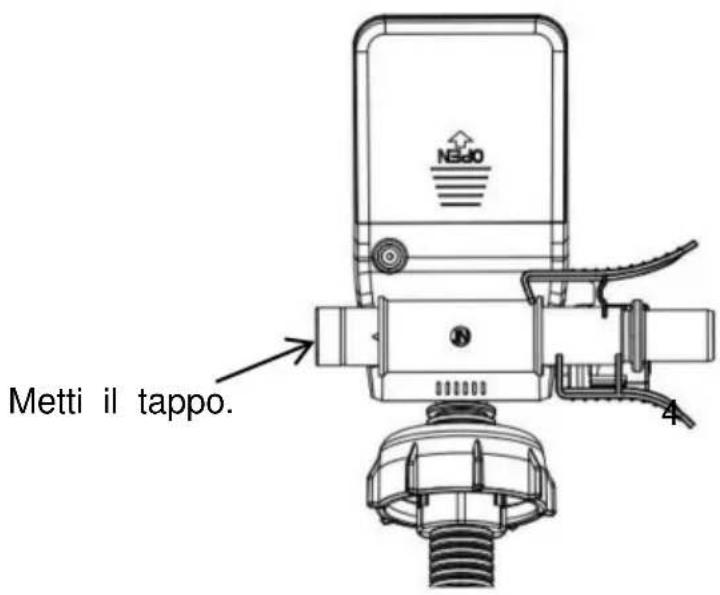

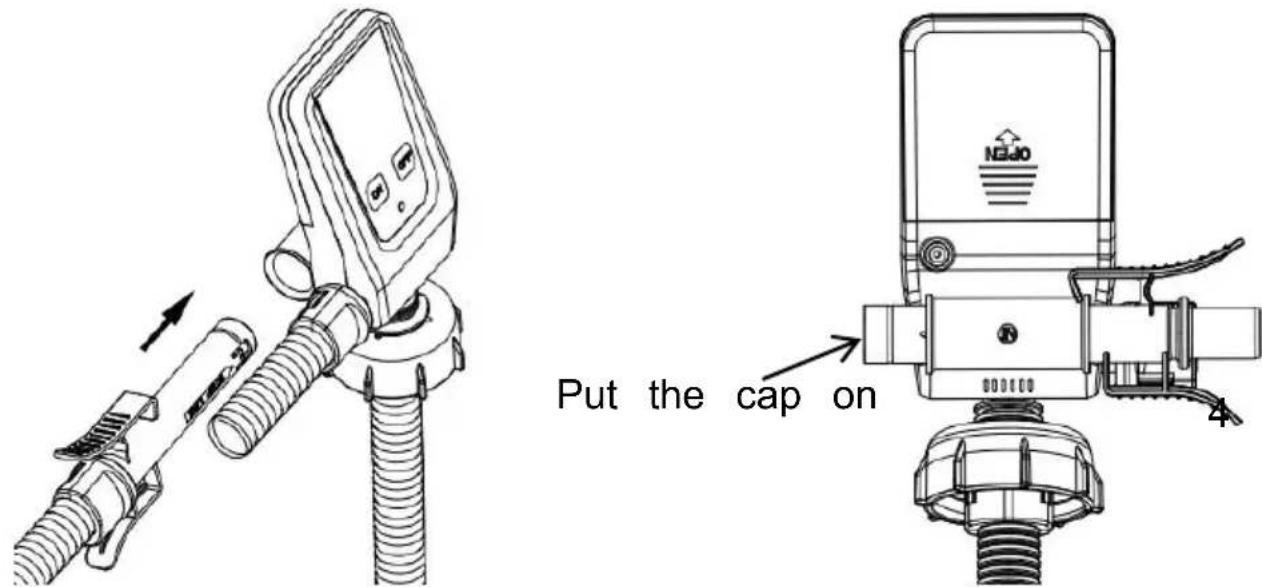

c: Put the discharge nozzle in the discharge compartment and lock it place with a clip.

! Place the discharge nozzle into the discharge nozzle compartment properly after fueling. In the event the fuel tank falls over and the d hose is not in its storage hole, the liquid can leak out.

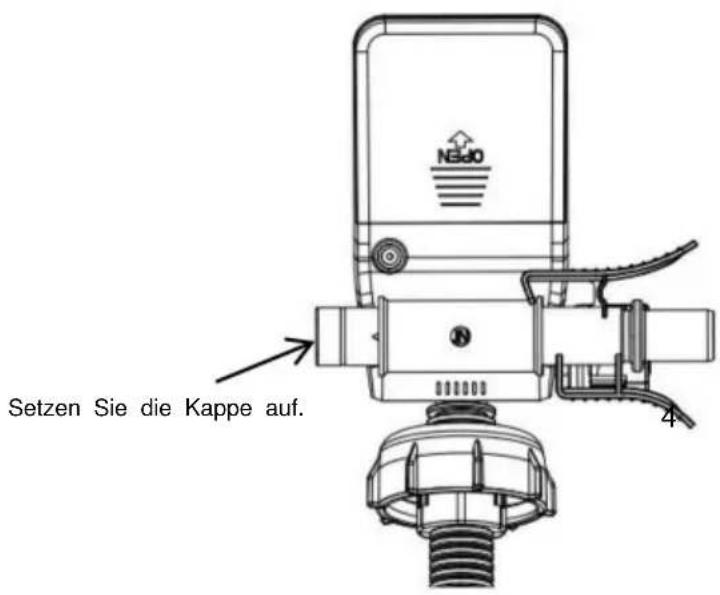

Put the cap on

WARNING

! Do not transfer fuel while the vehicle or the vehicle's heater is ON cause a fire).

! Do not leave the pump unattended (it may cause an oversupply of fire, or any accident).

! Do not run the pump 'dry' or let the pump idle without transferring cause product failure.)

! Make sure to use the pump on an even surface (If the tank falls during the liquid supply, the liquid will leak and may cause a fire or accident.)

! Make sure the pump is tightly secured to the tank before turning t on.

! Make sure to detach the tank from the pump when moving(it may leak of fuel if moved while the tank is attached).

! Make sure to remove any left-over fuel in the pump after each use cause failure of the pump if fuel remains around the sensor).

! Make sure the sensor on the discharge nozzle is vertical (it may r automatically; it could cause fuel to overflow).

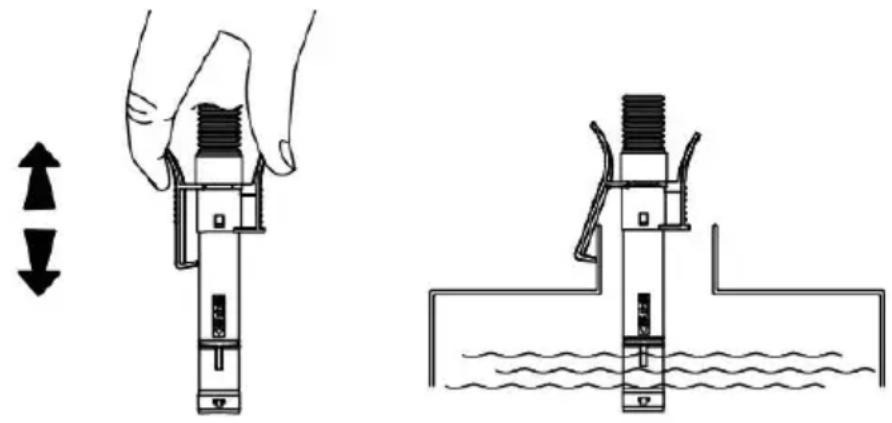

Diagram showing two mechanical components: a hand holding a cylindrical device and a water-filled container with a submerged object, both without any text or symbols.

MAINTENANCE

1. Please clean the measure and filter regularly.
2. Keep away from fire.
3. For different types of oil, cleaning the tank before storing another oil is recommended.
4. If this product is not used for a long time, it is recommended to and store it in a cool and dry environment. Keep the tank away from direct sunlight.
5. Make sure to take the batteries out before storing the pump.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC REP E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

YHM-60B YHM-120B

Red industrial water purifier with attached black plastic connectors (no visible text or symbols)

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

Diagram of red portable water purifier units with numbered components and labeled parts

Technical line drawing of a mechanical device with threaded connectors and a button, showing no text or symbols.

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

QUAND REMPLACER LES PILES

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

MONTAGE ET UTILISATION

Close-up of a black mechanical gear component on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

Line drawing of a handheld device with tubing and control buttons (no text or symbols)

Diagram of a medical or industrial device with tubing and a control panel, no visible text or symbols

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

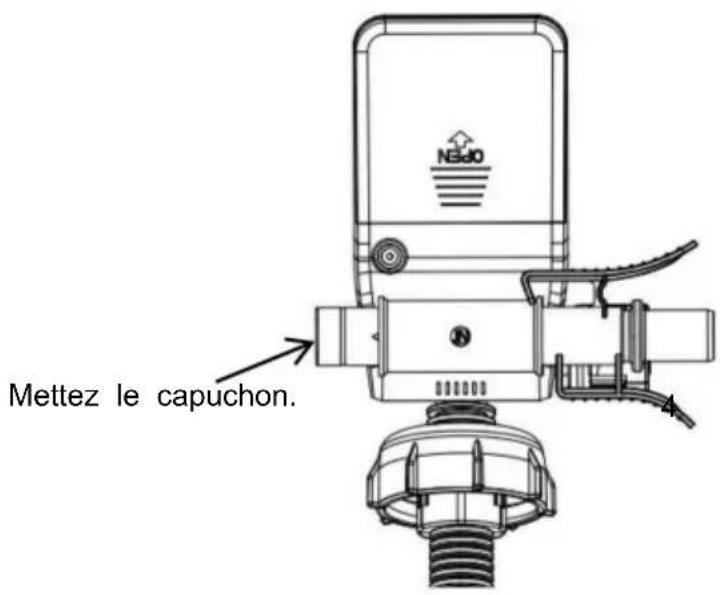

NEDO Mettez le capuchon.

WARNING

Diagram showing two mechanical or fluidic device setups with directional arrows indicating movement (no text or symbols)

ENTRETIEN

C/O YH Consulting Limited Bureau 147, Centurion House,

Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Red portable water purifier with attached hose and two black plastic connectors (no visible text or symbols)

YHM-60B YHM-120B

Red portable water heater with attached hose and two black plastic connectors (no visible text or symbols)

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

Diagram of red portable water purifier units with numbered components and labeled parts

1.Pumpe 2.Kraftstoffeinlass 3.Tank 4.Adapter 5.Räder

ANLEITUNG ZUR PUMPE

Technical line drawing of a mechanical device with threaded connectors and a button, showing no text or symbols.

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

NOTFALL, WENN NICHT ALLE (4) BATTERIEN VORHANDEN SIND

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

WANN MÜSSEN DIE BATTERIEN AUSGETAUSCHT WERDEN?

Technical line drawing of a handheld device with battery, cable, and sensor assembly (no text or symbols)

Close-up of a black mechanical gear component on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

1. Platzieren Sie die

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

Line drawing of a handheld device with hoses and a control panel, no text or symbols present

Diagram of a handheld device with tubing and a control panel, showing motion direction (no text or symbols)

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Diagram showing two mechanical components: a hand holding a cylindrical device and a water-filled base with a submerged component (no text or symbols)

WARTUNG

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

CONTENITORE PER CARBURANTE IN PLASTICA

MODELLO: YHM-60B / YHM-120B

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

Red industrial water purifier with attached control panel and two black plastic connectors (no visible text or symbols)

Modello YHM-120BModello YHM-60B

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

Diagram of a red water purifier with labeled components including pump, tank, and connectors

1. Pompa 2. Ingresso carburante 3. Serbatoio 4. Adattatori 5. Ruote

Technical line drawing of a mechanical device with threaded connectors and a handle (no text or symbols)

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

QUANDO SOSTITUIRE LE BATTERIE

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

MONTAGGIO E UTILIZZO

Close-up of a black mechanical gear component on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

Inizia a USARE:

Line drawing of a handheld device with hoses and a control panel, no text or symbols present

Diagram of a mobile phone connected to a flexible hose, showing mechanical components and a hand holding the device (no text or symbols present)

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Diagram showing two mechanical or fluidic device configurations with directional arrows indicating movement (no text or symbols present)

MANUTENZIONE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

Red industrial water purifier with attached control panel and two black plastic connectors (no visible text or symbols)

YHM-120BYHM-60B

Diagram showing two forklifts with checkmark and cross symbols indicating approval or rejection status

Diagram of a red portable water purifier with labeled components including pump, tank, and connectors

Technical line drawing of a mechanical device with threaded connectors and a handle (no text or symbols)

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

CUANDO REEMPLAZAR LAS BATERÍAS

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

MONTAJE Y USO

Close-up of a black mechanical component with a central hole, placed on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

Comience a utilizar:

Line drawing of a handheld device with tubing and control buttons (no text or symbols)

Diagram of a medical or industrial device with tubing and a control panel, no visible text or symbols

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Ponle la tapa.

Technical line drawing of a NB40 industrial device with no visible text or symbols

WARNING

Diagram showing two mechanical or fluidic device setups with directional arrows indicating movement (no text or symbols)

MANTENIMIENTO

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

YHM-60B YHM-120B

Red portable water heater with attached hose and two black plastic connectors (no visible text or symbols)

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

Diagram of a red portable water heater with labeled components including pump, wheels, and connectors

1. Pompa 2. Wlot paliwa 3. Zbiornik 4. Adaptery 5. Koła

INSTRUKCJA POMPOWANIA

Technical line drawing of a mechanical device with threaded connectors and a rectangular housing (no text or symbols)

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

KIEDY WYMIENIAĆ BATERIE

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

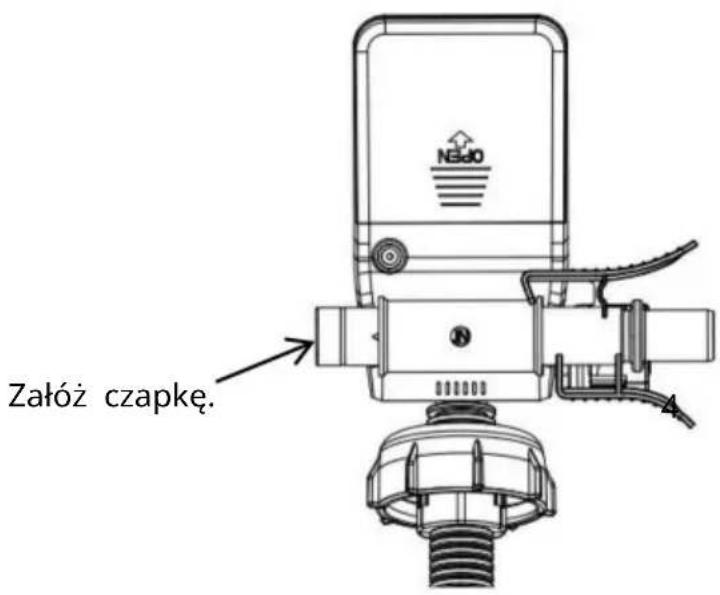

MONTAŻ I UŻYTKOWANIE

Close-up of a black mechanical gear component on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

Line drawing of a handheld device with attached tubing and control buttons (no text or symbols)

Diagram of a medical or industrial device with tubing and control panel, no visible text or symbols

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Diagram showing two mechanical or fluidic device setups with directional arrows indicating movement (no text or symbols)

KONSERWACJA

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Red portable water purifier with attached hose and two black plastic connectors (no visible text or symbols)

Red industrial water purifier with attached control panel and three black plastic connectors (no visible text or symbols)

YHM-120BYHM-60B

HULP NODIG? NEEM CONTACT MET ONS OP!

WAARSCHUWING! LET OP! LET OP!

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

Diagram of red portable water purifier units with numbered components and labeled parts

1. Pomp 2. Brandstofinlaat 3. Tank 4. Adapters 5. Wielen

INLEIDING TOT POMP

Technical line drawing of a mechanical device with threaded connectors and a button, showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

NOODGEVAL WANNEER NIET ALLE (4)BATTERIJEN BESCHIKBAAR ZIJN

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

WANNEER MOET U DE BATTERIJEN VERVANGEN?

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

MONTAGE EN GEBRUIK

Close-up of a black mechanical component with a central hole, placed on a red surface (no text or symbols visible)

Close-up of a dental implant component on a red surface (no text or symbols visible)

1. Plaats het

Blue handheld medical device with white tubing and a green control panel, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

Line drawing of a handheld device with hoses and a switch, no text or symbols present

Diagram of a handheld device with tubing and a control panel, showing motion direction (no text or symbols)

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Doe de dop erop.

WARNING

Diagram showing two mechanical components: a hand holding a cylindrical device and a water-filled base with a submerged component (no text or symbols)

ONDERHOUD

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PLASTBRÄNSLECADY

MODELL: YHM-60B / YHM-120B

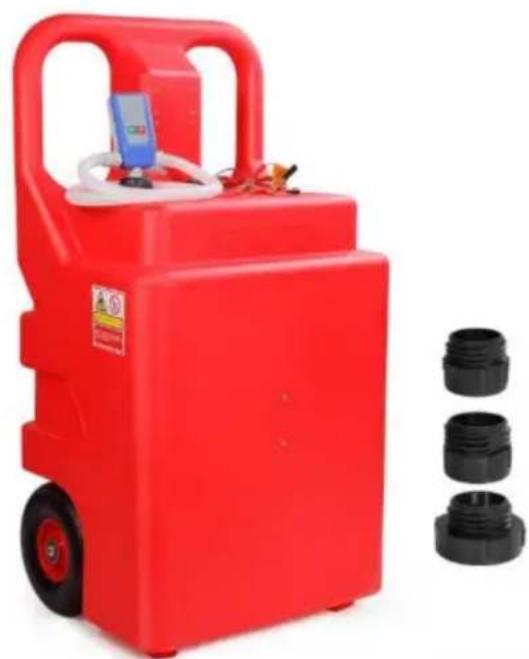

Red portable water purifier with attached hose and three black plastic connectors (no visible text or symbols)

YHM-60B YHM-120B

Red industrial water purifier with attached control panel and three black plastic connectors (no visible text or symbols)

Diagram showing two forklift icons with checkmark and cross symbols, likely indicating inspection or cancellation status.

WARNING

Diagram of red portable water purifier units with numbered components and labeled parts

1. Pump 2. Bränsleintag 3. Tank 4. Adaptrar 5. Hjul

INTRODUKTION TILL PUMP

Technical line drawing of a mechanical device with threaded connectors and a button, showing no text or symbols.

Technical line drawing of a mechanical device with threaded ports and internal components (no text or symbols)

NÖDSTOPP NÄR ALLA (4)BATTERIER INTE ÄR TILLGÄNGLIGA

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

NÄR SKA BYTAS BATTERIER

Technical line drawing of a handheld device with battery, cable, and connector (no text or symbols)

MONTERING OCH ANVÄNDNING

Close-up of a black mechanical component with a central hole, placed on a red surface (no text or symbols visible)

1.Öppna ventilationslocket.

Close-up of a dental implant component on a red surface (no text or symbols visible)

1. Placera pumpanordningen i oljeintaget tanken.

Blue handheld medical device with green control panel and white tubing, placed on red fabric (no visible text or symbols)

1.7" 2.1"

B

1.6" 2"

C

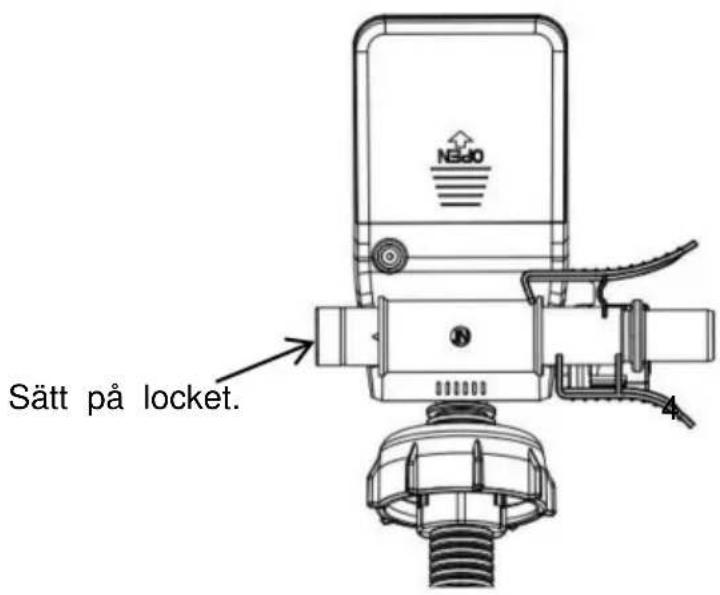

Börja ANVÄNDA:

Line drawing of a handheld device with hoses and a control panel, no text or symbols present

Diagram of a medical or industrial device with tubing and a control panel, no visible text or symbols

Technical line drawing of a mechanical device with threaded connectors and a digital display (no text or symbols)

Diagram showing two mechanical or fluidic device configurations with directional arrows indicating movement (no text or symbols present)

UNDERHÅLL

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
