USER MANUAL YL1401 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HUNTING GAME VEHICLE

MODEL: YL1401

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HUNTING GAME VEHICLE

MODEL: YL1401

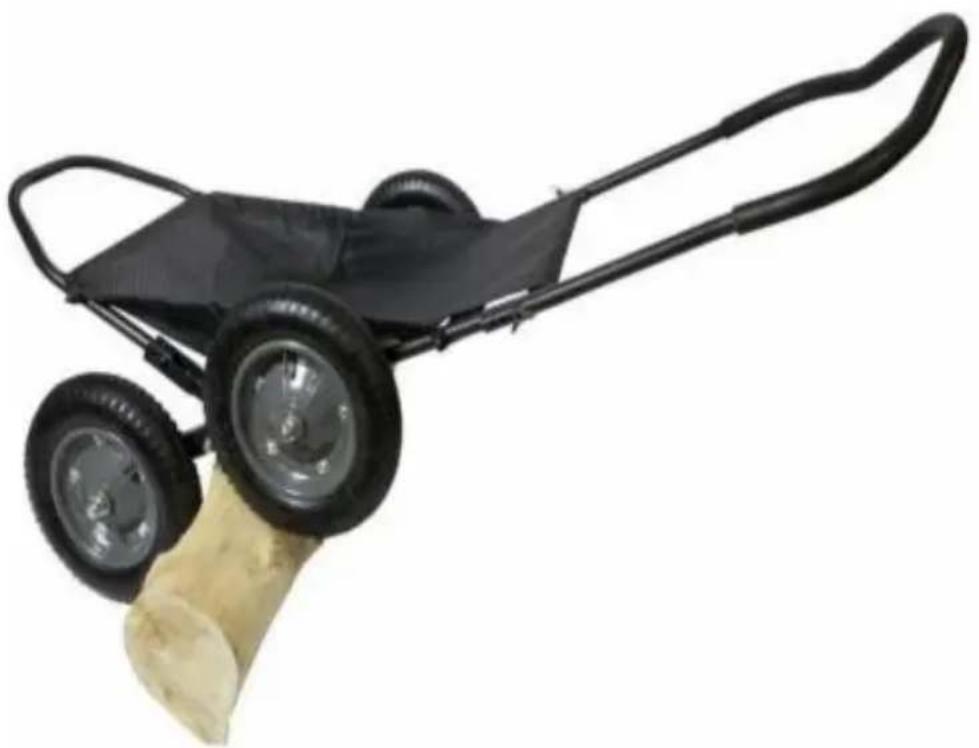

Black and white photo of a small wheeled cart with two wheels and a wooden log, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Preface

First of all, let us express our heartfelt thanks to our customers who purchased our equipment This manual is for customer service to make better Written with this equipment.Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method manual, misuse of any other methods caused by misuse The Compar does not give any guarantee of any kind, including (but not limited to) marketability offered to the Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable for errors contained in this material, or for any accidental or consequential damages resulting from the provision, actual performance or use of the manual.

This manual contains proprietary information protected by patent law. A rights reserved. Without the written consent of the Company, this man not allowed to be photocopied, copied, or translated any part into and language.

The content contained in the manual may be changed without the us notice.

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of performance of the equipment only if the assembly operation, returning improvement and maintenance are carried out by personnel approved the Company, the electrical equipment concerned conforms to national standards, and the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) are in regular use and repair condition, from manufacturing process and raw materials faults for one year from the of shipment. None of our inspections is perfect.

PRECAUTIONS

Precautions for use

Warning:

1. If the equipment feels loose, falls or is damaged, please contact a company in time;
2. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
3. Keep children and bystanders away while operating, distractions will cause you to lose control.
4. Reasonably use according to one's own situation, and do not over when the body is not in a timely manner.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Product Name	Hunting game vehicle
model	YL1401
Load bearing capacity/lb	500lbs
Shelf size	800x500mm

PRODUCT COMPONENTS

Part number	Part Name	Qty
1	Mainframe Assembly	1
2	Rear Frame	1
3	Axle	6
4	Wheel	4
5	Wheel Bar	2
6	Handle Bar	1
7	Instruction Manual	1
8	[A]1/4" x1 1/4" Hex Bolt	2
9	[B] 5/16" x 2" Hex Bolt	2
10	[C] 5/16"x 2 1/4" Carriage Bolt	2
11	[D]1/4" x2" Hex Bolt	4
12	1/4" Nylock Nut	6
13	5/16" Nylock Nut	2
14	1/4" Steel Washer	12
15	5/16" Steel Washer	4
16	5/16" Delta Nut	2
17	M16 Nylock Nut	6
18	M16 Steel Washer	6
19	Wheel Spacer	4

ASSEMBLYINSTRUCTIONS

STEP 1. Secure (2) axles to each wheel bar using (4) 1/4" x 2" he; bolts steel washers and (4) 1/4" nylock nuts. Next, secure the wheels to thewheel assemblies using (4) M16 steel washers and (4) M16 nylock nuts. (Fig. 1)

STEP 2. Insert the axles into the mainframe assembly aligning holes and sec using (2)1/4"x1 1/4"hex bolts [A], (4)1/4"steel washers and (2) 1/4'nylock nuts. Tighten securely.(Fig. 2)

STEP 3. Using (4) wheel spacers, (2) M16 steel washers and (2) M16 nyloc nuts attach the wheel assemblies to the axles. Tighten securely. (Fig.2)

STEP 4. Next, attach the rear frame to the main frame assembly using (2)5 hex bolts [B], (4) 5/16" steel washers, (2) 5/16" nylock nuts.Tighten securely.(2)

STEP 5. Secure the hopper straps to the mainframe assembly and handlebar using (2)5/16"x2 1/4"carriage bolts [C] and (2) 5/16"delta nuts. (Fig. 3)

Check to make sure you have all the required parts and hardware. If you damaged or missing parts in a newly purchased product, please return to product to the retailer for replacement.

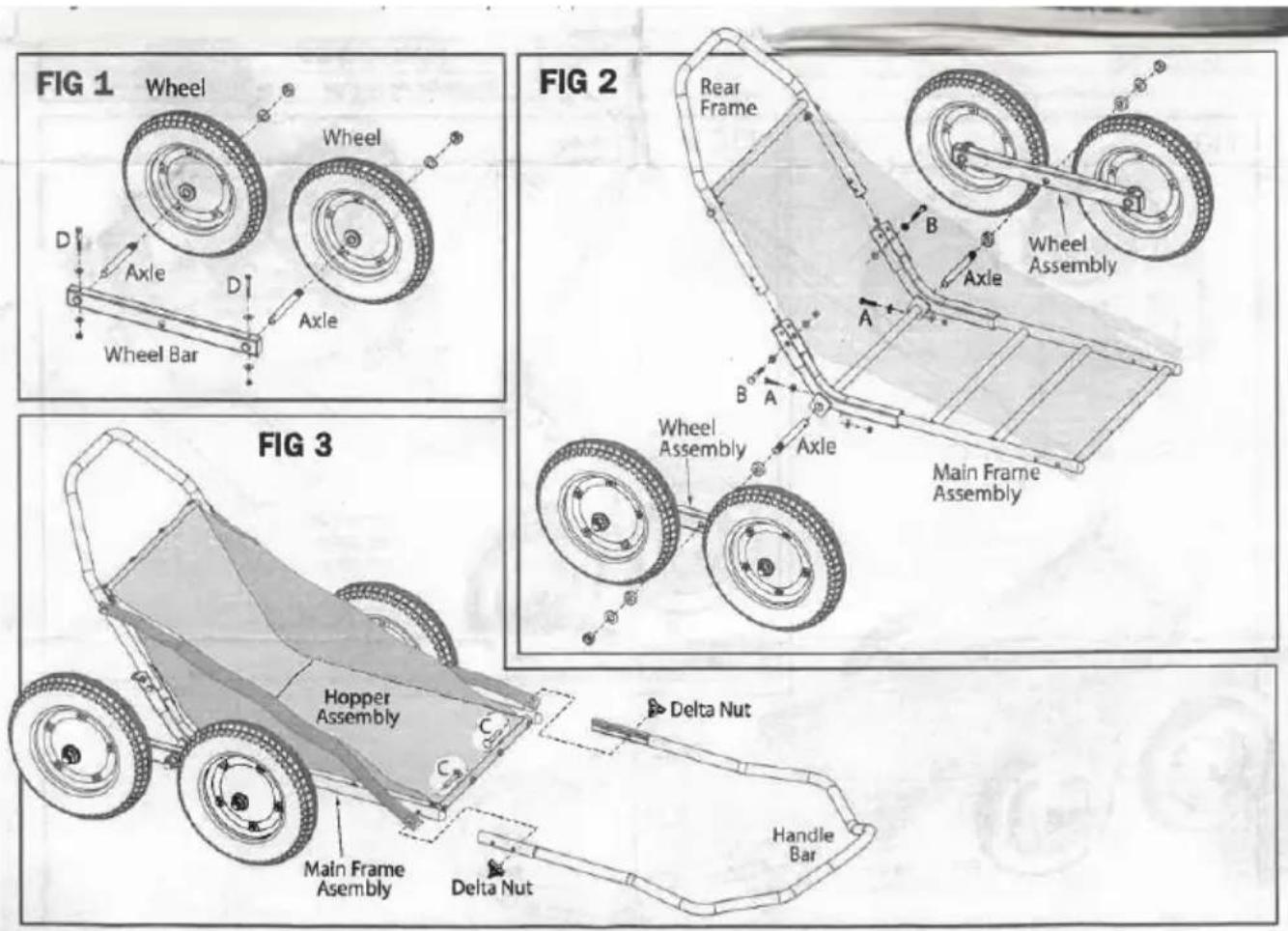

FIG 1 Wheel Wheel D Axle D Wheel Bar Axle FIG 2 Rear Frame B Wheel Assembly A B A Wheel Assembly Axle Main Frame Assembly Hopper Assembly Delta Nut Handle Bar Main Frame Assembly Delta Nut
