USER MANUAL ZXQ400 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SUBMERSIBLE UTILITY PUMP INSTRUCTIONS

MODEL: ZXQ1000-B / ZXQ500-B / ZXQ400

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Technical line drawing of a portable water pump with attached tubing and connectors (no text or symbols)

Technical line drawing of a mechanical device with two connectors and a power outlet (no text or symbols)

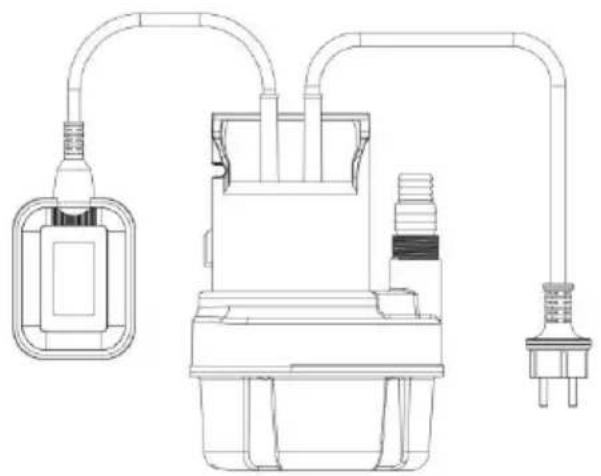

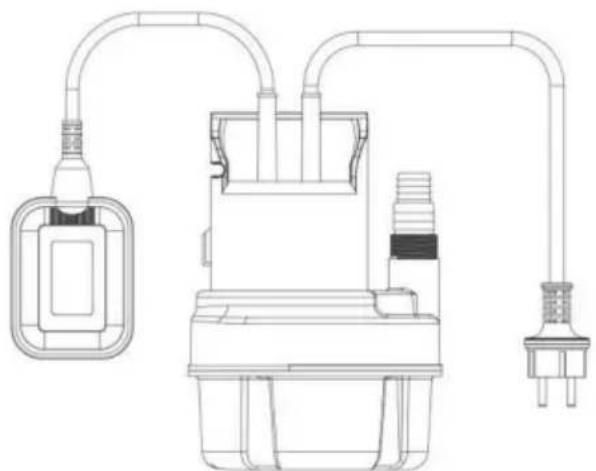

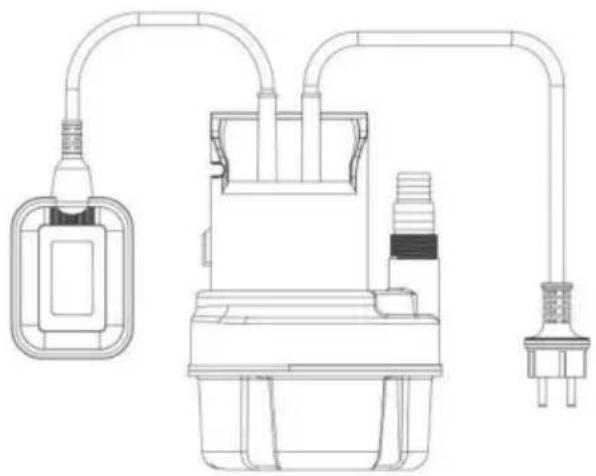

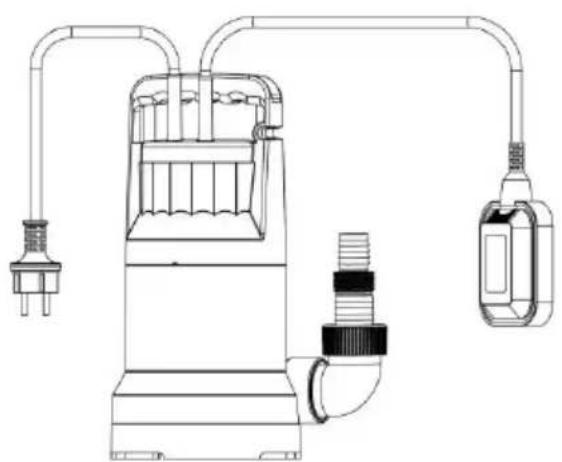

MODEL: ZXQ1000-B / ZXQ500-B MODEL: ZXQ400

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENTION

WARNING

1. The water pump must be placed upright-do not operate the device its side.
2. When the water pump works for long periods ensure that it is co submerged in water so that the water pump can be fully cooled - necessary operational condition for all submerged water pumps.
3. When the water pump is working at a low water level ensure that only used for short-term work; the water pump must not run at a l water level for a long time otherwise it will overheat.

SAVE THIS MANUAL

WARNING

Read this material before using this product. Failure to do so can result in serious injury.

SPECIFICATION PARAMETERS

Model	Input	Max Power	Max Flow	Max Lift	Waterproof Rating	Outlet size
ZXQ1000-B	AC230V 50Hz	700W	15700 L/H	10 m	IPX8	G1-1/2"
ZXQ500-B	AC230V 50Hz	500W	9500 L/H	8 m	IPX8	G1-1/2"
ZXQ400	AC230V 50Hz	320W	6000 L/H	7 m	IPX8	G1"

Before start-up, note the following:

The pump must be connected to a GFCI protected plug which has been installed according to regulations.

The plug must have a supply voltage of AC230V 50Hz.

CAUTION

This pump has been evaluated for use with water only.

IMPORTANT! For your own safety-before starting to run the pump, please have the following items checked by an expert:

1. Risk of electric shock-This pump is supplied with a grounding condu and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.

2. Risk of electric shock - This pump has not been investigated for use of swimming pool areas.

3. The electrical connections must be protected from moisture.

4. If there is a danger of flooding, the electrical connections must be taken to higher ground.

5. Circulation of caustic fluids, as well as the circulation of abrasive materials, must be avoided at all costs.

6. The pump must be protected from frost.

7. The pump must be protected from running dry.

8. Access by children should also be prevented with appropriate measu

9. To prevent death from electric shock, pump must be connected only a GFCI protected outlet

10. Do not use an extension cord with this item.

11.WARNING:The cord of this product contains lead and/or

(2-EthylHexyl)Phthalate (DEHP), chemicals are known to the State of California to cause cancer, birth defects or other reproductive harm. Wa hands after handling.

1. People with pacemakers should consult their physician(s) before use. Electro-magnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
2. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense an caution are factors that cannot be built into this product, but must be supplied by the operator.

Fluid Type

The Pump is designed for use with water with a maximum temperature 77^ F ( 25^ C). Do not use the pump for other fluids, especially not fuels, cleaning fluids, or other chemical products.

Installation

The submersible motor pump must be installed in a stationary position either:

a.A fixed pipeline or
b.A flexible hose pipe.

Power Supply

1. The pump is equipped with a shock-proof plug according to regulations. The

pump is designed to be connected to 280V 50HzGFCI protected socket.

1. Make sure that the socket is sufficiently secured and is in exceller condition.

2. When the plug is inserted into the socket, the pump will be on stan

4.WARNING: To prevent death from electric shock, pump must be connected only to a GFCI protected outlet.

5.WARNING! If the power cord or plug is damaged, do not use the The power cord or plug may only be repaired by a certified electricia

Areas of use

1. This pump is designed to pump water only.
2. This pump is designed to be used for: Removing water from flooded basements, window wells, garages, flat roofs.
3. This pump should NOT be used for: Continuous run, fountain/pond water features. Septic or sewage systems.
4. This pump can also be used to transfer water (e.g., household, farming, plumbing).

Installation Instructions

1. Place pump in water.

DANGER! Do not use an extension cord with this pump. Keep plug dry and secured away from water.

1. Attach one end of a discharge hose to the discharge port. Place the end as needed to direct the water discharge at least 3 feet away the source. Slope the discharge hose downward, away from the sourc
2. Plug Power Cord into GFCI protected outlet.

Operation

After reading these instructions, consider the following points before starting the pump:

1. Verify that the pump rests on the floor of the basin, if it is not sus by the handle.
2. Verify that the discharge pipe is properly connected.
3. Verify that the electrical connection is AC230V 50Hz
4. Verify that the electrical socket is GFCI protected and in good condition. Test GFCI protected outlet before use.
5. Verify that water and moisture cannot get near the power supply so
6. Verify that the pump is installed so as to prevent running dry.

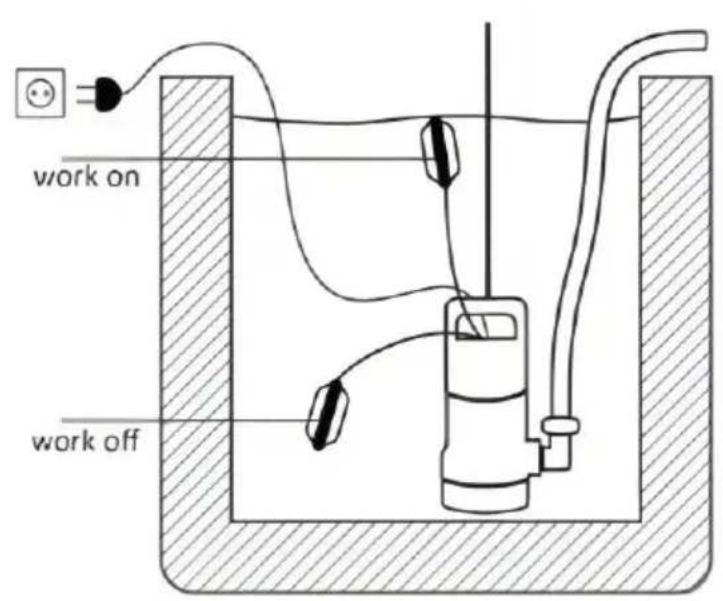

work on work off

NOTE:

1. Plug can not be put into water, need to connect leakage protea

2. The submersible pump needs water (0-35°C) to cool, and can run in a dry environment for a long time.

3. The submersible pump is a clean pump, and it is prohibited to sewage.

4. The submersible pump should be completely immersed in water (except the plug) before use, and empty the air in the pump and water pipe, otherwise the water may not be discharged.

5.ZXQ1000-B/ZXQ550-B two pumps are non-low water pump, when the water level is below 35 mm or so, it may not be able to pu water.

6.ZXQ400 model pump, when the water level is below 5 mm or s may not be able to pump water.

WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Unplug the Pump from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.

If the pump is moved during operation, flush it out with clean water at every use.

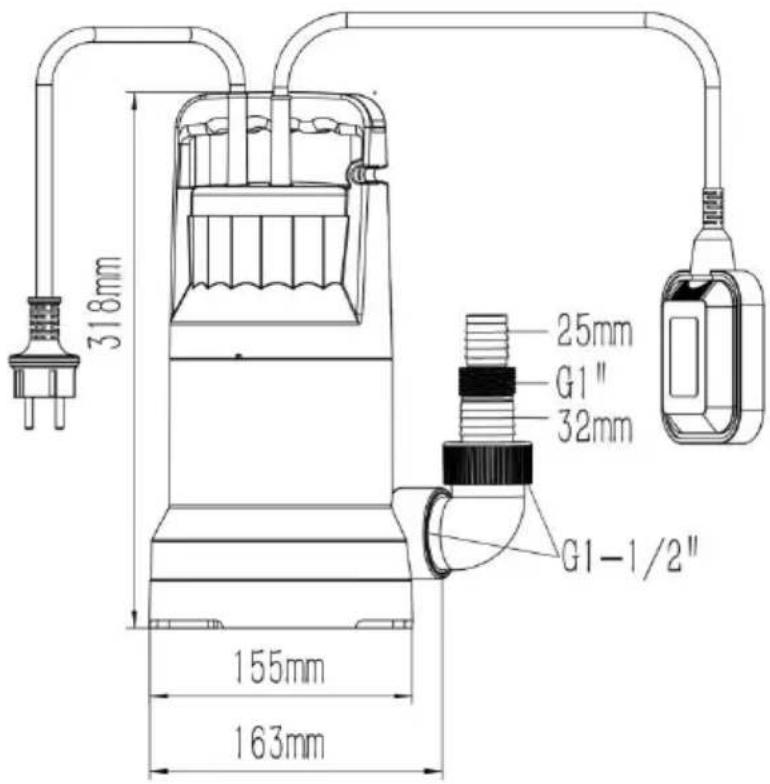

MODEL: ZXQ1000-B

318mm 25mm G1" 32mm G1-1/2" 155mm 163mm

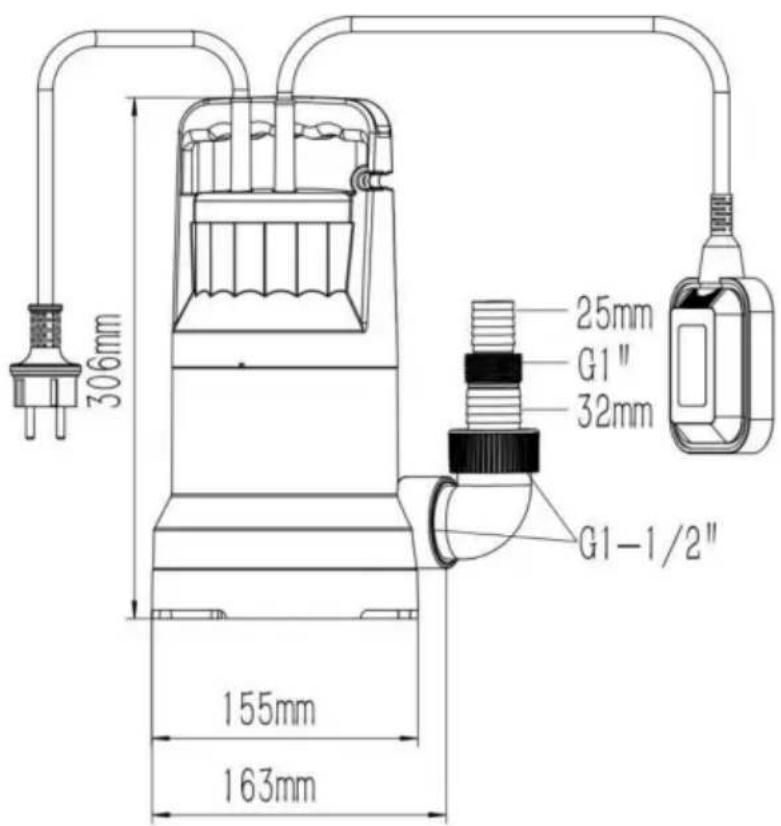

MODEL: ZXQ500-B

306mm 155mm 163mm 25mm G1" 32mm G1-1/2"

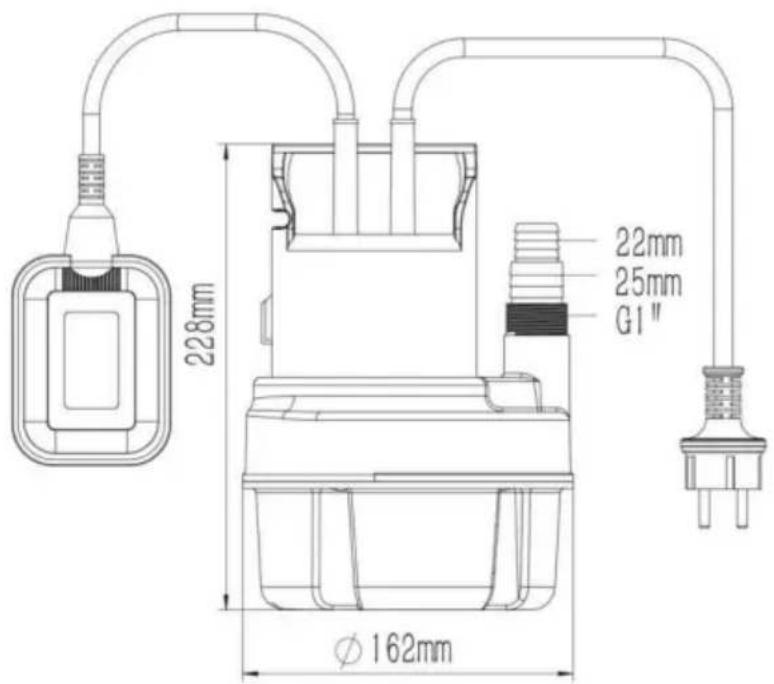

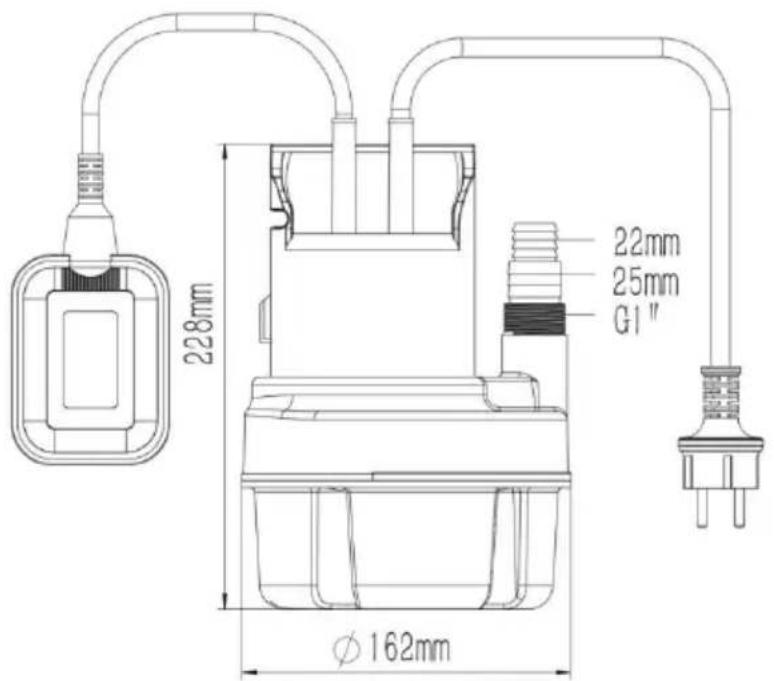

MODEL: ZXQ400

228mm 22mm 25mm G1" Ø 162mm

FAILURE RECOVERY

Incidents	Causes	Remedies
Pump does not st	-No mains supply- Floater does not switch	- Check mains supply- Bring floater in a higher pos
No flow	-Inlet sieve is clogged-Pressure hose in bent	-Clean inlet sieve water jet- Reset hose
Pump does not switch off	- Floater cannot sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet sieve is clogged- Reduced pumping capacity dirty and abrasive water	- Clean inlet sieve- Clean pump and replace worn-out parts
Pump switches off after short operatin period	-Thermal cutout stops pumps due to dirty water- Water too hot. Thermal-cut stops pump	- Remove mains plug. Clean p and shaft- Make sure that the water temperature is at the maximum 35°C is not exceed

MAINTENANCE GUIDELINES

This submersible pump is an approved and maintenance-free high-quali product, which is subject to severe final controls. We recommend, reg inspection and maintenance to ensure long equipment life and uninterrupted operation.

Important Note!

• Remove the mains plug before all maintenance work.
• In the event that the pump is often transported in the course of c it should be cleaned out with clear water after every use.
• In case of stationary installation, the function of the floating switch be checked every 3 months.
• All fibrous particles which may have built up inside the pump hous should be removed with a water jet.
• Every 3 months the shaft ground and impeller should be cleaned for mud.
• Remove deposits on the floater with clear water

Cleaning the impeller

If excessive deposits are collected in the pump case you must disma the bottom part of the pump as follows:

1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water.

Important! Do not put down or rest the pump on the impeller!

1. Assemble in reverse order
