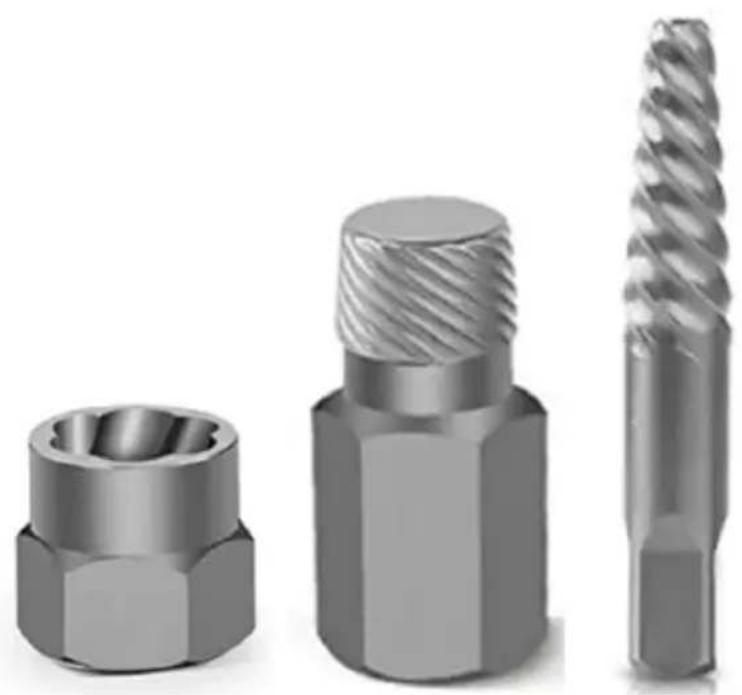

Product Type	Screw and Bolt Extractor
Brand	Vevor
Model	YM-29
Number of Pieces	29
Main Materials	Chrome-Molybdenum Steel (Cr-Mo)
Kit Contents	Nut extractors (metric and imperial sizes), adapters (3/8" square to 1/4", etc.), connecting rod
Nut Extractor Sizes	1/4" (6.2 mm) to 3/4" (19 mm) and metric equivalents
Drive	1/4" and 3/8" Square
Extraction Type	Reverse (counterclockwise) with wrench or power tool
Safety Precautions	Wear ANSI-approved safety glasses and durable gloves. Work in a clean, well-lit area.
Assembly	Assemble according to provided instructions. Do not assemble under the influence of alcohol or drugs.
Typical Use	Removal of broken or damaged screws, bolts, and nuts
Maintenance	Clean after each use. Store in a dry place.
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - YM-29 Vevor

How to use the bolt extractor?

First, check the reason for breakage. Select the appropriate drill bit according to the bolt diameter, drill a hole at the center of the crack, then insert the corresponding screw extractor. Turn counterclockwise with a wrench or power tool.

How to choose the drill bit size?

The drill bit diameter should be slightly smaller than the extractor size. Refer to the sizes listed in the kit (e.g., 7/64", 1/8", 5/32", etc.) according to the screw or bolt to be extracted.

Can I use this extractor on nuts?

Yes, the YM-29 kit includes nut extractors of various sizes. Select the extractor suitable for the nut size, place it, and turn counterclockwise.

What are the safety precautions?

Always wear ANSI-approved safety glasses and sturdy work gloves. Ensure the work area is clean and well-lit. Do not work under the influence of alcohol, drugs, or medication.

Is the kit compatible with power tools?

Yes, you can use an impact wrench or electric drill with the provided 1/4" and 3/8" square adapters. Always turn counterclockwise.

What materials are used for the extractors?

The extractors are made of chrome-molybdenum steel (Cr-Mo) for high strength and durability.

How to maintain the kit?

Clean the parts after each use with a dry cloth. Store them in a dry place to prevent corrosion. Do not use harsh chemicals.

What to do if the extractor does not grip?

Ensure the hole is centered and of sufficient depth. Use the correct size extractor. For very tight bolts, apply penetrating lubricant before attempting extraction.

Does the kit include drill bits?

No, the YM-29 model does not include drill bits. You must use drill bits separately. The YM-35 and YM-48 models include reverse drill bits.

Where to find the warranty?

The electronic warranty is available at www.vevor.com/support. Visit the site for more information on the claim procedure.

USER MANUAL YM-29 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SCREW BOLT EXTRACTOR

USER MANUAL

MODEL: YM-35/YM-29/YM-48

We continue to be committed to provide you tools with competitiveness. "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with are actually saving half in comparison with the top major brar

VEVOR

TOUGH TOOLS, HALF PRICE

SCREW BOLT EXTRACTOR

MODEL: YM-35/YM-29/YM-48

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.

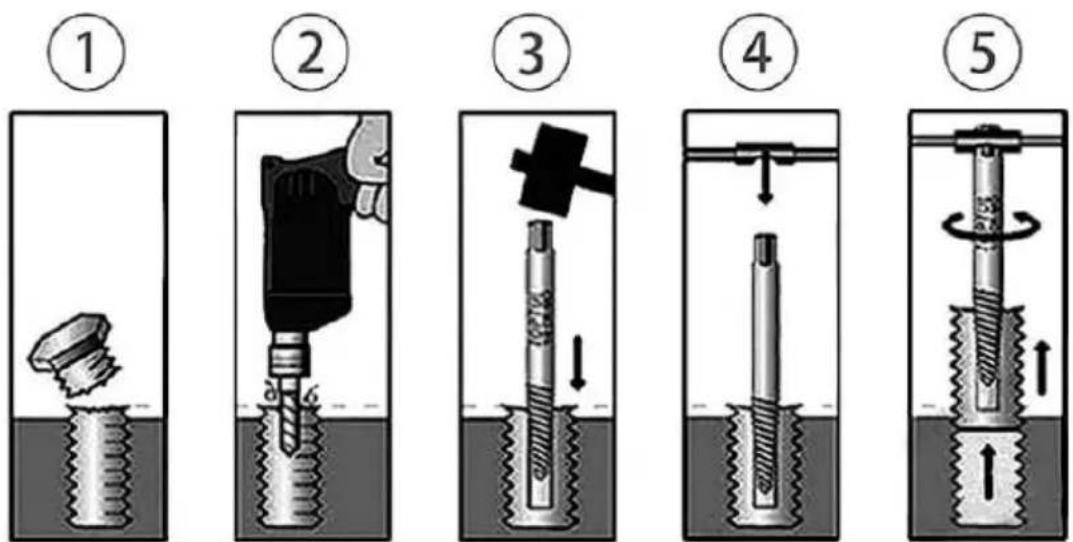

Bolt Extractor Use Steps

1. First check the bolt to determine the reason it broke off.
2. Select the proper gauge bit according to the diameter of the bolt.
3. Drill a hole in the center of the broken bolt.
4. Select the corresponding screw extractor and insert it. 5. Use an active wrench or power tool to turn counterclockwise and remove successfully.

Nut Extractor Use Steps

Clamp the hexagonal side with adjustable wrenches, spanners, and vice grip pliers for easy turning.

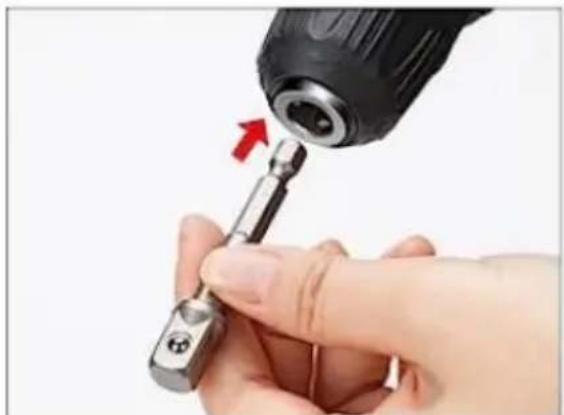

Step 1: Install the connecting rod on the electric drill bit and tighten it.

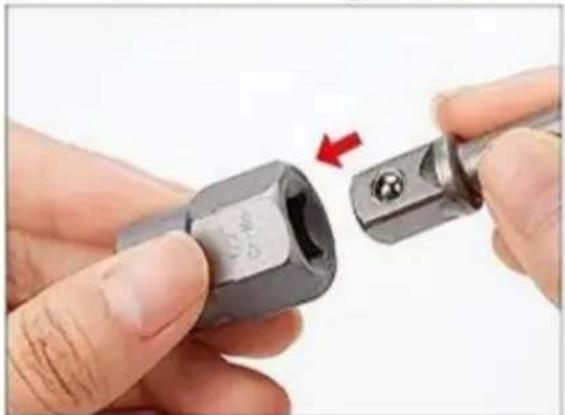

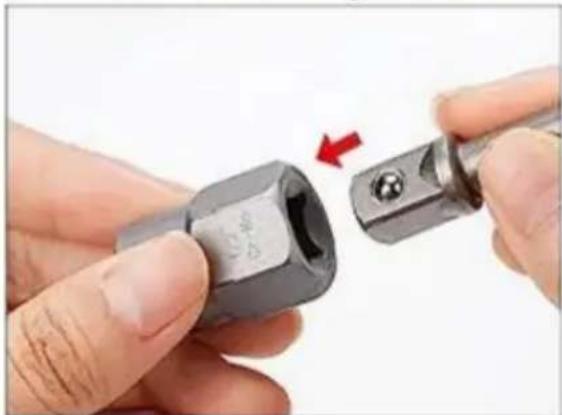

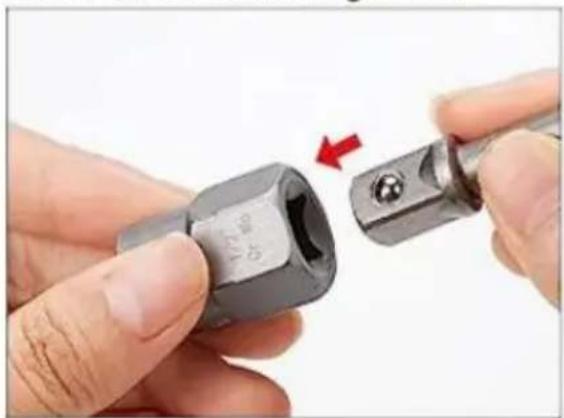

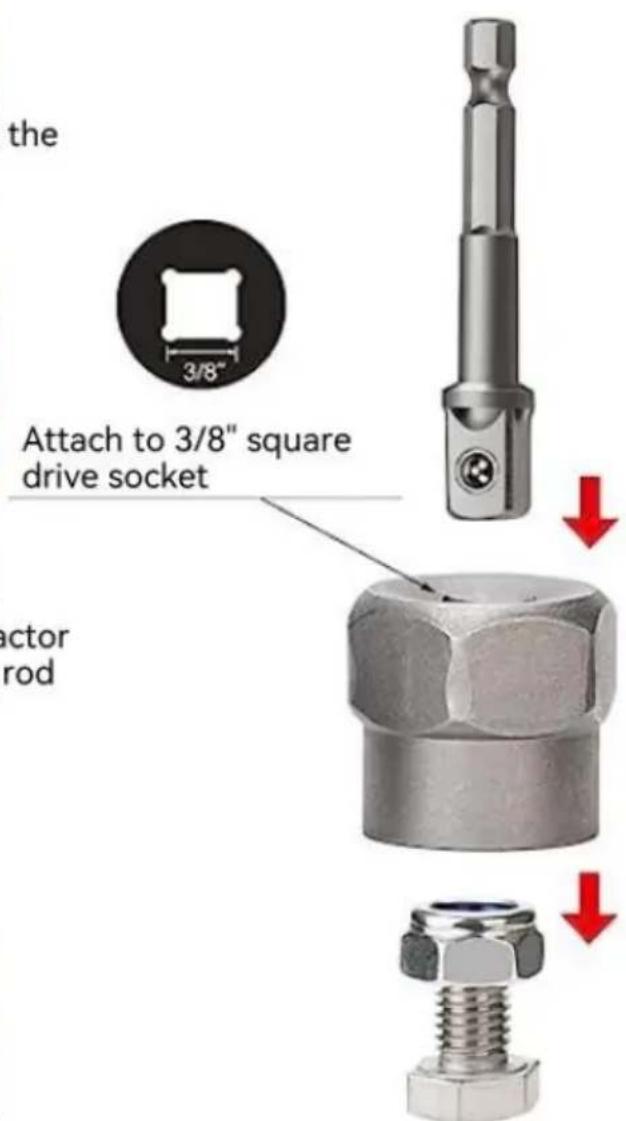

Step 2: Select the required nut extractor size and install it on the connecting rod.

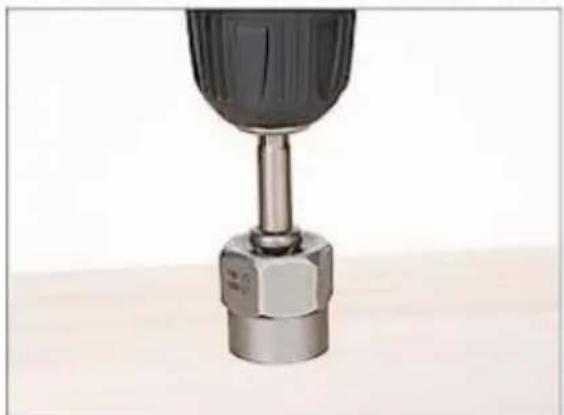

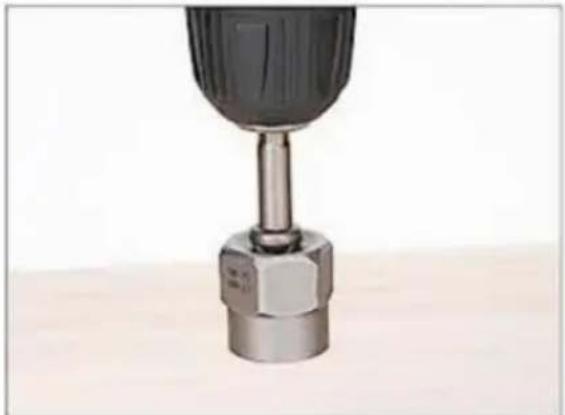

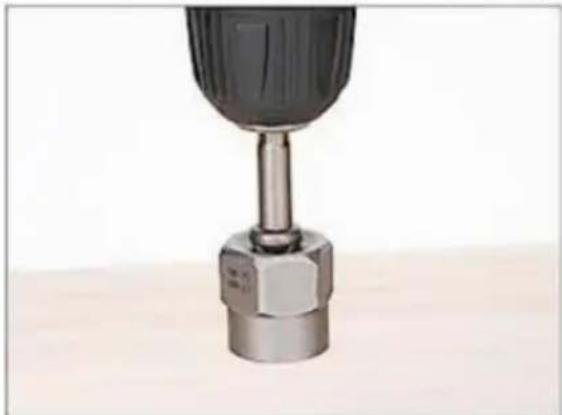

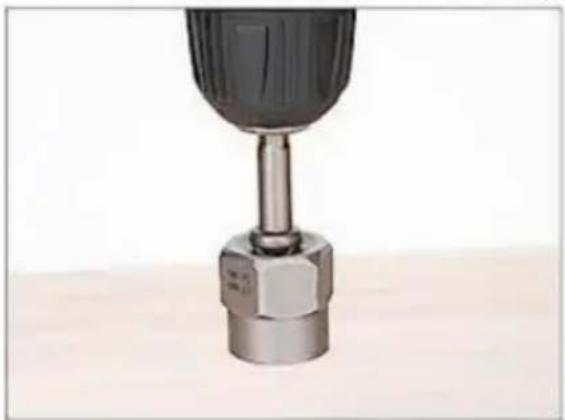

Step 3: Installation is completed

Reverse Drill Bit Use Steps

1. Select a bit thinner than the broken screw and drill a hole in the broken screw. 2. Select a suitable size hole extractor, put it into the hole, and with a wrench, rotate it counterclockwise to extract the screw.

	Items	Description
1	Name	Screw Bolt Extractor
2	Model	YM-35
3	Parameter	QTY: 35, Main materials: Cr-Mo/HSS4241
4	List	Bolt Extractor (19PCS) : #1、#2、#3、#4、#5、#6; 1/8"5/32"、3/16"、7/32"、1/4"、9/32"、5/16"、11/32"、3/8"、13/32"、7/16"、15/32"、1/2"Reverse Drill Bit (16PCS) : 7/64"、1/8"、1/8"、5/32"、37/32"、1/4"、19/64"、9/32"、5/16"、11/32"、3/8"、13/327/16"、15/32"、1/2"Give: 1、Drill Bit: 7/64"、1/8"; 2、Bolt Extractor: #1、#2
2	Model	YM-29
3	Parameter	QTY: 29, Main materials: Cr-Mo
4	List	Nut Extractor: 1/4"Square interface: 6mm、1/4" (6.2mm)6.5mm、6.7mm、9/32" (7mm)、7.2mm、7.5mm、7.7mm5/16" (8mm)、8.2mm、8.5mm、11/32" (8.7mm)、9mm9.2mm、3/8" (9.5mm)、10mmNut Extractor 3/8" Square interface: 13/32" (10.5mm)7/16" (11mm)、12mm、1/2" (12.5mm)、13mm、14mm9/16" (14.5mm)、19/32" (15mm)、5/8" (16mm)、21/32" (17mm)、11/16" (17.5mm)、23/32" (18mm)、3/4" (19mm)Give: 1、Sleeve: 3/8" square to1/4"1/4" square to3/8"2、Connecting rod: 3/8"square to1/4"、1/4"square to1

MADE IN CHINA

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Clamp the hexagonal side with adjustable wrenches, spanners, and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

NEED HELP? CONTACT US!

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

Clamp the hexagonal side with adjustable wrenches, spanners, and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Step 2: Select the required nut extractor size and install it on the connecting rod

Step 3: Installation is completed

Clamp the hexagonal side with adjustable wrenches, spanners, and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Step 2: Select the required nut extractor size and install it on the connecting rod.

Step 3: Installation is completed.
