Vevor YM-48 - Screw and bolt extractor
📄 64 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor YM-48 - page 1
1 / 64
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Screw and Bolt Extractor
Brand Vevor
Model YM-48
Number of Pieces 48 (19 bolt extractors, 16 reverse drill bits, 13 nut extractors)
Main Materials Cr-Mo (chrome-molybdenum steel) and HSS4241 (high-speed steel)
Approximate Case Dimensions Approximately 25 x 15 x 5 cm
Approximate Weight Approximately 1.5 kg
Power Supply None (manual tool)
Main Functions Extraction of broken screws and bolts, nut extraction, reverse drilling
Included in Kit Bolt extractors (19 pieces), reverse drill bits (16 pieces), nut extractors (13 pieces), adapters (3/8" square to 1/4" driver)
Maintenance and Cleaning Clean with a dry cloth, apply anti-rust oil after use, store in a dry place
Safety Wear ANSI safety glasses and sturdy gloves, keep the area clean and well-lit, avoid use when tired or under influence
Spare Parts and Repairability Individual parts are not sold separately; in case of breakage, contact Vevor support
General Information Made in China, technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - YM-48 Vevor

How to use the bolt extractor?
First check the reason for breakage, drill a hole in the center of the bolt with the appropriate drill bit, insert the corresponding extractor, then turn counterclockwise with a wrench or power tool.
Which drill bits to use for drilling before extraction?
Use the reverse drill bits provided in the kit. The diameter must match the size of the extractor. For example, for a 1/4 inch bolt, use a 7/64 inch drill bit.
Does the kit contain nut extractors?
Yes, the YM-48 model includes 13 nut extractors of different sizes (from 1/4 inch to 3/4 inch).
What safety precautions should I take?
Wear ANSI safety glasses and sturdy gloves. Ensure the work area is clean and well-lit. Do not work under the influence of alcohol or medication.
How to maintain the extractors?
Clean the parts after each use with a dry cloth, apply a thin layer of anti-rust oil, and store them in a dry place.
Can I use this kit with a power drill?
Yes, you can use a power tool to turn the extractor counterclockwise, but set a low torque to avoid breaking the extractor.
Is the YM-48 kit suitable for car bolts?
Yes, the sizes cover most common automotive bolts (from 1/4 inch to 3/4 inch). For larger bolts, specific models are available.
What to do if an extractor breaks?
Stop use immediately. Carefully remove the pieces with pliers. If necessary, drill a new hole with a larger drill bit. Contact Vevor support for replacement.
How to get the user manual?
The manual is available for free download on sites like notice-facile.com. You can also request it via Vevor support.
Is there a warranty on this product?
Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty.

User questions about YM-48 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Screw and bolt extractor in PDF format for free! Find your manual YM-48 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YM-48 by Vevor.

USER MANUAL YM-48 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SCREW BOLT EXTRACTOR USER MANUAL

MODEL: YM-35/YM-29/YM-48

We continue to be committed to provide you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used represent an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brand.

VEVOR®

TOUGH TOOLS, HALF PRICE

SCREW BOLT EXTRACTOR

MODEL: YM-35/YM-29/YM-48

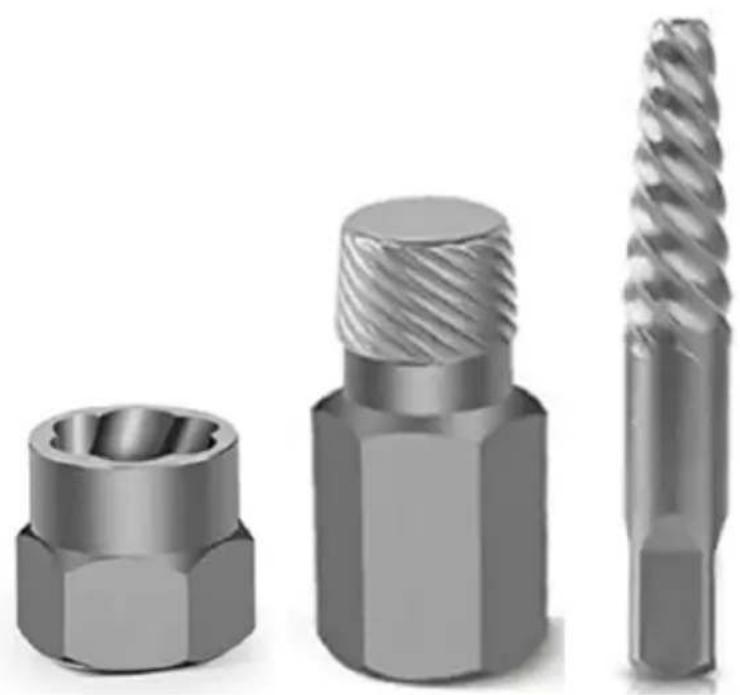

Three metallic mechanical components: a hexagonal nut, a threaded bolt with a spiral tip, and a separate drill bit. No text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
  3. Keep the assembly area clean and well lit. 4. Keep bystanders out of the area during assembly. 5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.

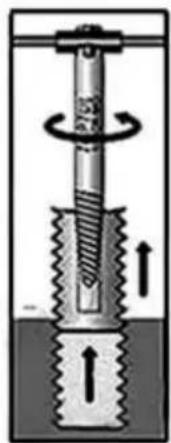

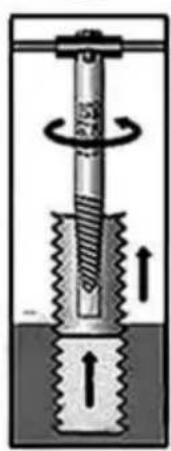

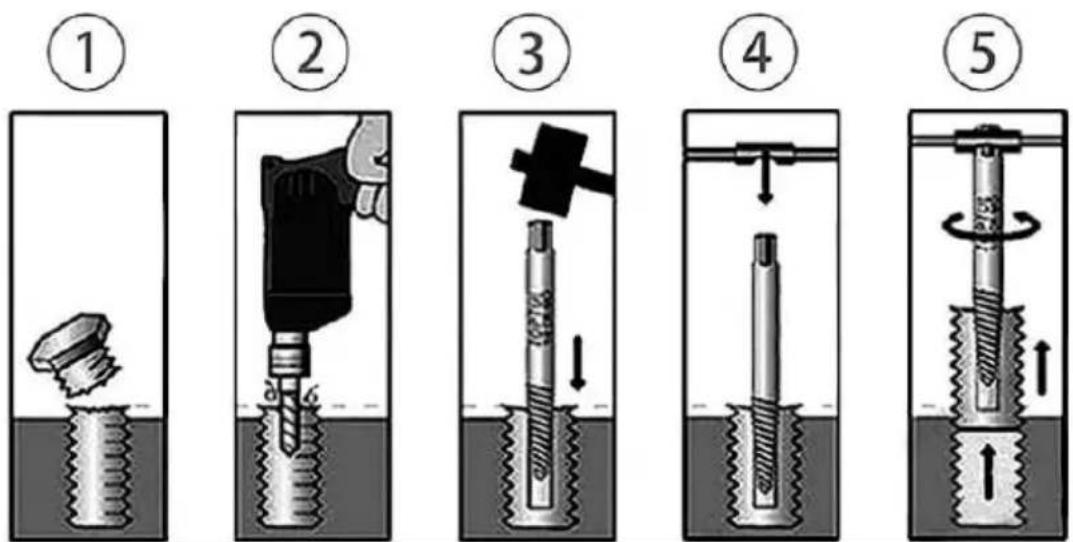

Bolt Extractor Use Steps

  1. First, check the bolt to determine the reason it broke.
  2. Select the proper gauge bit according to the diameter of the bolt.
  3. Drill a hole in the center of the broken bolt.
  4. Select the corresponding screw extractor and insert it.
  5. Use an adjustable wrench or power tool to turn counterclockwise and remove the bolt successfully.

Diagram illustrating five steps of a mechanical tool application, showing progressive assembly and rotation process.

Nut Extractor Use Steps

Close-up of a hand using a screwdriver to adjust a component. No text or symbols visible.

Clamp the hexagonal side with adjustable wrenches, spanners, or vice grip pliers for easy turning.

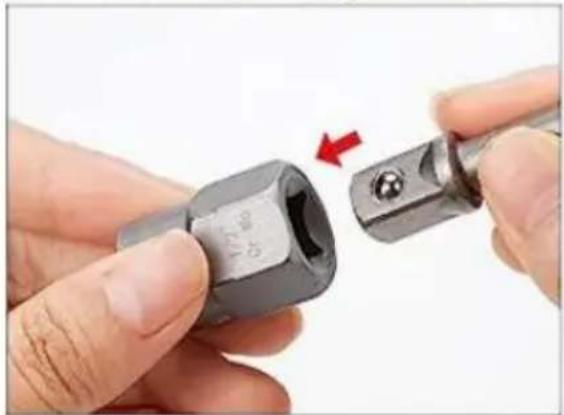

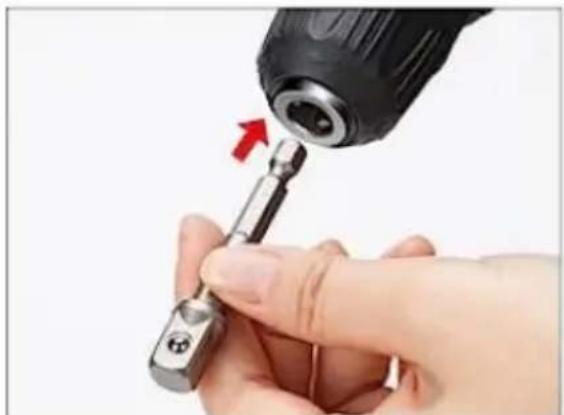

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Close-up of hands holding a mechanical component with a red arrow indicating rotation. No text or symbols visible.

Vevor YM-48 - Nut Extractor Use Steps - 3

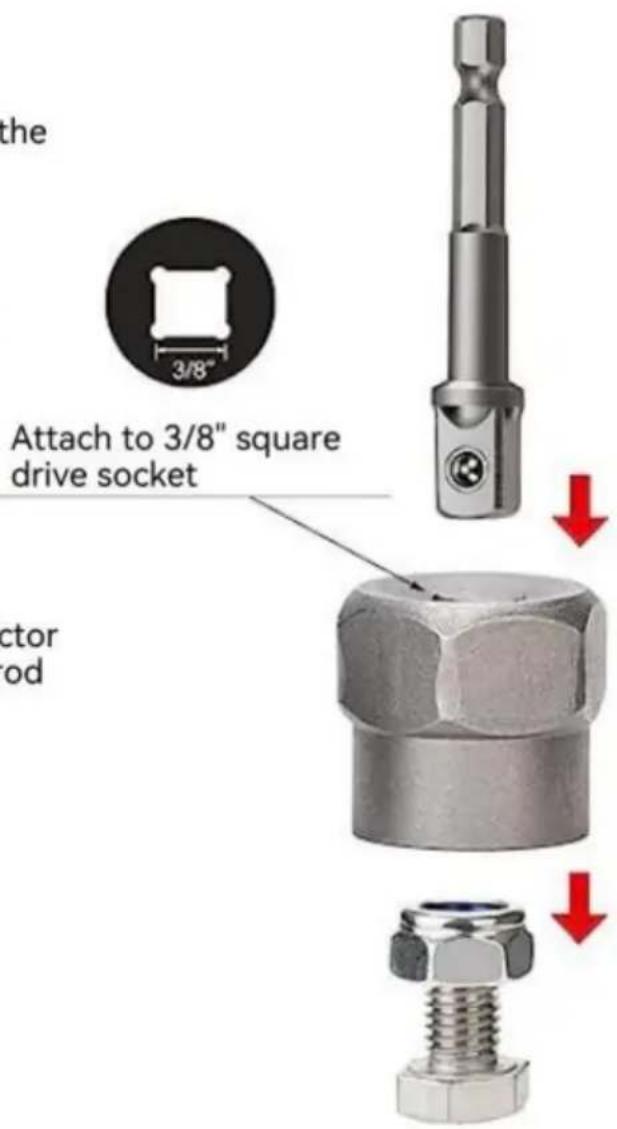

Attach to 3/8" square drive socket.

Metallic cylindrical mechanical component with a threaded shaft and mounting holes. No text or symbols visible.

Vevor YM-48 - Nut Extractor Use Steps - 5

Step 2: Select the required nut extractor size and install it on the connecting rod.

Close-up of a black and silver drill bit with a metallic shaft inserted into a hexagonal base. No text or symbols visible.

Close-up of a metallic hexagonal bolt head. No text or symbols visible.

Vevor YM-48 - Nut Extractor Use Steps - 8

Vevor YM-48 - Nut Extractor Use Steps - 9

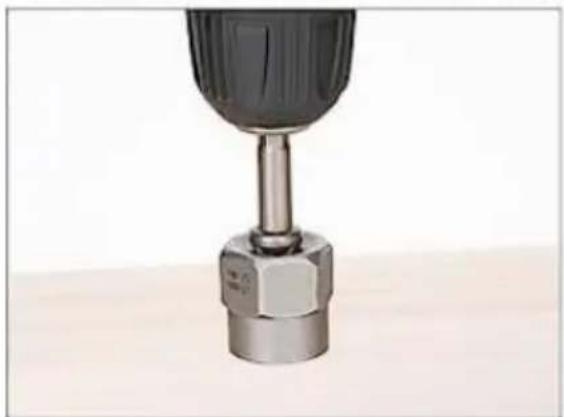

Step 3: Installation is completed.

Reverse Drill Bit Use Steps

  1. Select a bit thinner than the broken screw and drill a hole in the broken hole;
  2. Select a suitable size and hole extractor, put into the hole, with wrench, slide anti-clockwise rotation out.

Technical illustration of a screw with a threaded shaft and base. No text or symbols.

Close-up of a screw being inserted into a nut, showing thread and base assembly. No text or symbols.

ItemsDescription
1NameScrew Bolt Extractor
2ModelYM-35
3ParameterQTY: 35, Main materials: Cr-Mo/HSS4241
4ListBolt Extractor (19PCS) : #1、#2、#3、#4、#5、#6; 1/8"5/32"、3/16"、7/32"、1/4"、9/32"、5/16"、11/32"、3/8"、13/32"、7/16"、15/32"、1/2"Reverse Drill Bit (16PCS) : 7/64"、1/8"、1/8"、5/32"、37/32"、1/4"、19/64"、9/32"、5/16"、11/32"、3/8"、13/327/16"、15/32"、1/2"Give: 1、Drill Bit: 7/64"、1/8"; 2、Bolt Extractor: #1、#2
2ModelYM-29
3ParameterQTY: 29, Main materials: Cr-Mo
4ListNut Extractor: 1/4"Square interface: 6mm、1/4" (6.2mm)6.5mm、6.7mm、9/32" (7mm)、7.2mm、7.5mm、7.7mm5/16" (8mm)、8.2mm、8.5mm、11/32" (8.7mm)、9mm9.2mm、3/8" (9.5mm)、10mmNut Extractor 3/8" Square interface: 13/32" (10.5mm)7/16" (11mm)、12mm、1/2" (12.5mm)、13mm、14mm9/16" (14.5mm)、19/32" (15mm)、5/8" (16mm)、21/32" (17mm)、11/16" (17.5mm)、23/32" (18mm)、3/4" (19mm)Give: 1、Sleeve: 3/8" square to1/4"1/4" square to3/8"2、Connecting rod: 3/8"square to1/4"、1/4"square to1
2ModelYM-48
3ParameterQTY: 48, Main materials: Cr-Mo/HSS4241
4ListBolt Extractor (19PCS) : #1、#2、#3、#4、#5、#6、1/8"5/32"、3/16"、7/32"、1/4"、9/32"、5/16"、11/32"、3/8"、13/32"、7/16"、15/32"、1/2"Reverse Drill Bit(16PCS) : 7/64"、1/8"、1/8"、5/32"、3/17/32"、1/4"、19/64"、9/32"、5/16"、11/32"、3/8"、13/327/16"、15/32"、1/2"Nut Extractor(13PCS) : 1/4"、5/16"、3/8"、10mm、7/16"12mm、1/2"、13mm、9/16"、5/8"、17mm、11/16"、3/4"Give: 1、Drill Bit 7/64"、1/8"; 2、Bolt Extractor #1、#23、Connecting rod: 3/8"square to1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

②Diagram of a mechanical tool interacting with a threaded screw and liquid. No text or symbols.

③Diagram of a mechanical setup with a spring-loaded shaft and a hammer. No text or symbols.

4Diagram of a mechanical setup with a cylindrical component inserted into a liquid, showing internal threading and a downward force. No text or symbols.

5Diagram of a mechanical screw assembly with rotational motion arrows. No text or labels.

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

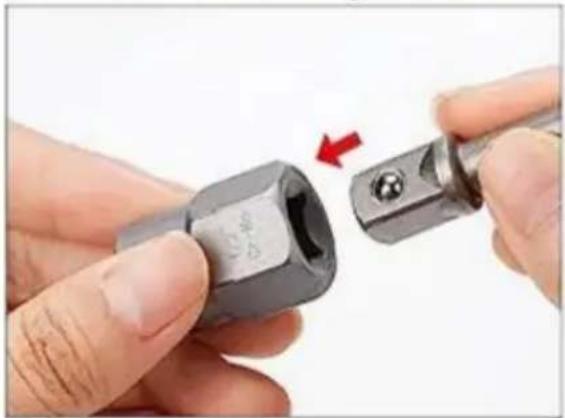

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Vevor YM-48 - TOUGH TOOLS, HALF PRICE - 6

Attach to 3/8" square drive socket

Metallic cylindrical connector with hexagonal end and mounting holes (no text or symbols visible)

Vevor YM-48 - TOUGH TOOLS, HALF PRICE - 8

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Close-up of a metallic mechanical component with hexagonal end caps (no visible text or symbols)

Vevor YM-48 - TOUGH TOOLS, HALF PRICE - 11

Vevor YM-48 - TOUGH TOOLS, HALF PRICE - 12

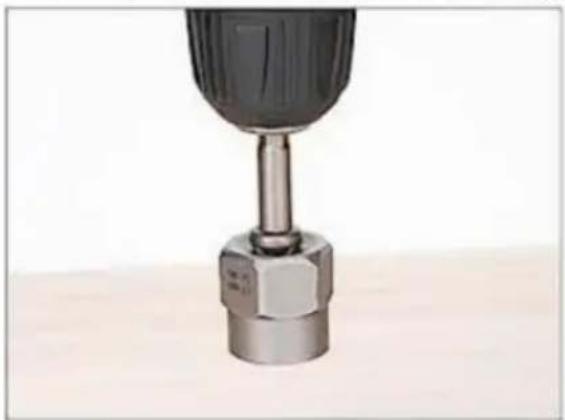

Step 3: Installation is completed

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

ElementiDescrizione
1NomeEstrattore per bulloni e viti
2Modello YM-35
3Parametri QTYÿ35ÿMateriali principaliÿCr-Mo/HSS4241
4ElencoEstrattore per bulloni (19 pezzi): #1, #2, #3, #4, #5, #6; 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Punta per trapano inversa (16 pezzi): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Fornire: 1, Punta da trapano: 7/64"ÿ1/8"; 2, Estrattore per bulloni: #1ÿ#2
2ModelloYM-29
3Parametri QTYy29yMateriali principaliyCr-Mo
4ElencoEstrattore di dadi: 1/4"Interfaccia quadrata: 6 mmy1/4" (6,2 mm)y6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16"yy8mmyy8,2mmyy8,5mmyy11/32"yy8,7mmyy9mmyy9,2 mm, 3/8" (9,5 mm), 10 mmEstrattore di dadi: interfaccia quadrata da 3/8": 13/32" (10,5 mm)7/16"yy11mmyy12mmyy1/2"yy12,5mmyy13mmyy14mmyy9/16"yy14,5 mmyy19/32"yy15 mmyy5/8"yy16 mmyy21/32"yy17mmyy11/16"yy17,5mmyy23/32"yy18mmyy3/4" (19 mm)Dare: 1, manicotto: 3/8" quadrato a 1/4", 1/4" quadrato a 3/8"2yBiella3/8" quadrato a 1/4"yy1/4" quadrato a 1/4"
2ModelloYM-48
3Parametri QTY:48, Materiali principali: Cr-Mo/HSS4241
4ElencoEstrattore per bulloni (19 pezzi): #1, #2, #3, #4, #5, #6, 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Punta per trapano inversa (16 pezzi): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Estrattore per dadi (13 pezzi): 1/4", 5/16", 3/8", 10 mm, 7/16",12mmÿ1/2"ÿ13mmÿ9/16"ÿ5/8"ÿ17mmÿ11/16"ÿ3/4"Fornire: 1, Punta da trapano: 7/64"ÿ1/8"; 2, Estrattore per bulloni: #1ÿ#23ÿBiellaÿ3/8" quadrato a 1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

②Diagram of a mechanical device with a threaded shaft and spring, no text or symbols present

③Diagram of a mechanical device with a spring and base, showing internal components and a downward arrow (no text or symbols)

4Diagram of a mechanical setup with a threaded rod inside a container, no text or symbols present

5Diagram of a mechanical screw with rotational motion and force arrows, showing thread movement and rotation direction

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

RzeczyOpis
1NazwaWyciągacz śrub
2ModelYM-35
3Parametr Ilość:35, Główne materiały: Cr-Mo/HSS4241
4ListaWyciągacz śrub (19 szt.): #1, #2, #3, #4, #5, #6; 1/8"5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8",13/32", 7/16", 15/32", 1/2"Wiertła odwrotne (16 szt.): 7/64", 1/8", 1/8", 5/32", 3/16",7/32", 1/4", 19/64", 9/32", 5/16", 11/32", 3/8", 13/32",7/16" 15/32" 1/2"Podaj: 1, Wiertło: 7/64" 1/8" 2, Wyciągarka do śrub: #1, #2
2ModelYM-29
3Parametr Ilość:29, Główne materiały: Cr-Mo
4ListaWyciągacz nakrętek: 1/4" Interfejs kwadratowy: 6 mm, 1/4" (6,2 mm), 6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm, 5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm, 9,2 mm, 3/8 cala (9,5 mm), 10 mmWyciągacz nakrętek: interfejs kwadratowy 3/8": 13/32" (10,5 mm), 7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm, 9/16" 14,5mm , 19/32" 15mm , 5/8" 16mm , 21/32" 17mm , 11/16" 17,5mm , 23/32" 18mm , 3/4" (19 mm)Podaj: 1, Rękaw: 3/8" kwadrat na 1/4", 1/4" kwadrat na 3/8"2. Korbowód: 3/8" kwadrat na 1/4", 1/4" kwadrat na 1/4"
2ModelYM-48
3Parametr Ilość:48, Główne materiały: Cr-Mo/HSS4241
4ListaWyciągacz śrub (19 szt.): #1, #2, #3, #4, #5, #6, 1/8"5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8",13/32", 7/16", 15/32", 1/2"Wiertła odwrotne (16 szt.): 7/64", 1/8", 1/8", 5/32", 3/16",7/32", 1/4", 19/64", 9/32", 5/16", 11/32", 3/8", 13/32",7/16" 15/32" 1/2"Wyciągacz nakrętek (13 szt.): 1/4", 5/16", 3/8", 10 mm, 7/16",12 mm, 1/2 cala, 13 mm, 9/16 cala, 5/8 cala, 17 mm, 11/16 cala, 3/Podaj: 1, Wiertło: 7/64" 1/8" 2, Wyciągarka do śrub: #1, #23. Korbowód: 3/8" kwadrat do 1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

②Diagram of a mechanical device with a threaded component inserted into a liquid, showing no text or symbols.

③Diagram illustrating a drill bit with labeled components and directional arrow, likely illustrating a drill or drill process.

4Diagram of a mechanical setup with a cylindrical component submerged in liquid, showing internal structure and force arrow (no text or labels)

5Diagram of a mechanical screw with rotational motion arrows indicating movement and rotation direction

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Step 2: Select the required nut extractor size and install it on the connecting rod.

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed.

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

NEED HELP? CONTACT US!

②Illustration of a mechanical tool interacting with a threaded screw and liquid (no text or symbols)

③Diagram of a mechanical drill bit with a hammer striking the tip and a downward arrow indicating force or direction (no text or symbols)

4Diagram of a mechanical device with a threaded shaft and spring, showing internal components (no text or labels)

525

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Vevor YM-48 - NEED HELP? CONTACT US! - 6

Attach to 3/8" square drive socket

Mechanical component with threaded shaft and mounting base (no visible text or symbols)

Vevor YM-48 - NEED HELP? CONTACT US! - 8

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Close-up of a metallic mechanical component with hexagonal end caps (no visible text or symbols)

Vevor YM-48 - NEED HELP? CONTACT US! - 11

Vevor YM-48 - NEED HELP? CONTACT US! - 12

Step 3: Installation is completed

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

ArtikelenBeschrijving
1NaamSchroefbout extractor
2Model Jaargang 35
3Parameter QTYÿ35, Belangrijkste materialenÿCr-Mo/HSS4241
4LijstBout Extractor (19PCS): #1, #2, #3, #4, #5, #6; 1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omgekeerde boorbeitel (16 stuks): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Geven: 1ÿBoor: 7/64"ÿ1/8"ÿ2ÿBoutenextractor: #1ÿ#2
2ModelJaargang 29
3Parameter QTYÿ29, Belangrijkste materialenÿCr-Mo
4LijstMoerenextractor: 1/4"Vierkante interface: 6 mmÿ1/4"(6,2 mm)ÿ6,5 mmÿ6,7 mmÿ9/32"ÿ7 mmÿÿ7,2 mmÿ7,5 mmÿ7,7 mmÿ5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm9,2 mm, 3/8" (9,5 mm) en 10 mmMoer Extractor: 3/8" Vierkante interface: 13/32" (10,5 mm)ÿ7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm)21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm)3/4" (19 mm)Geef: 1, Mouw: 3/8" vierkant tot 1/4"ÿ1/4" vierkant tot 3/8"2ÿDrijfstang: 3/8" vierkant tot 1/4"ÿ1/4" vierkant tot 1/4"
2ModelJaargang 48
3Parameter QTYy48, HoofdmaterialenÿCr-Mo/HSS4241
4LijstBout Extractor (19PCS): #1, #2, #3, #4, #5, #6, 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omgekeerde boorbeitel (16 stuks): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Moerenextractor (13 stuks): 1/4"ÿ5/16"ÿ3/8"ÿ10mmÿ7/16"ÿ12mmÿ1/2"ÿ13mmÿ9/16"ÿ5/8"ÿ17mmÿ11/16"ÿ3/4"Geven: 1ÿBoor: 7/64"ÿ1/8"ÿ2ÿBoutenextractor: #1ÿ#23ÿDrijfstang: 3/8" vierkant tot 1/4"

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

②Illustration of a hand using a tool to lift a cylindrical component into a liquid (no text or symbols visible)

③Diagram of a mechanical drill bit with a hammer striking the tip and a downward arrow indicating force or direction (no text or symbols)

④Diagram of a mechanical setup with a cylindrical component submerged in liquid, showing internal structure and force arrow (no text or labels)

⑤215 ↑

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Step 2: Select the required nut extractor size and install it on the connecting rod.

Step 3: Installation is completed.

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

FöremålBeskrivning
1NamnSkruvbultsutdragare
2ModellYM-35
3Parameter QTYÿ35ÿHuvudmaterialÿCr-Mo/HSS4241
4ListaBolt Extractor (19PCS): #1ÿ#2ÿ#3ÿ#4ÿ#5ÿ#6ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omvänd borrmaskinÿt 16PCSÿÿ7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Geÿ1ÿborrskärÿ7/64"ÿ1/8"ÿ2ÿBult Extractorÿ#1ÿ#2
2ModellYM-29
3Parameter QTYYÿ29ÿHuvudmaterialÿCr-Mo
4ListaMutterdragareÿ1/4" fyrkantigt gränssnittÿ6mmÿ1/4"ÿ6.2mmÿÿ6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm,9,2 mm, 3/8" (9,5 mm), 10 mmMutterdragareÿ3/8" fyrkantigt gränssnittÿ13/32"ÿ10,5 mmÿÿ7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm,9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm),21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm),3/4" (19 mm)Geÿ1ÿSleeveÿ3/8" kvadrat till1/4"ÿ1/4" kvadrat till3/8"2ÿ Vevstång: 3/8" kvadrat till 1/4"ÿ 1/4" kvadrat till 1/4"
2ModellYM-48
3Parameter QTY y48yHuvudmaterialyCr-Mo/HSS4241
4ListaBolt Extractor (19PCS): #1 y #2 y #3 y #4 y #5 y #6 y1/8" y 5/32" y3/16" y7/32" y1/4" y9/32" y5/16" y11/32" y3/8" y 13/32" y7/16" y15/32" y1/2" Omvänd borrmaskin yt 16PCSyy7/64" y1/8" y1/8" y5/32" y3/16" y 7/32" y1/4" y19/64" y9/32" y5/16" y11/32" y3/8" y13/32" y 7/16" y15/32" y1/2" Mutterdragare (13 st): 1/4" y5/16" y3/8" y10mmy7/16" y 12mmy1/2" y13mmy9/16" y5/8" y17mmy11/16" y3/4" Ge y1yborrskäry7/64" y1/8" y2yBult Extractor y #1 y #2 3y Vevstång: 3/8" kvadrat till 1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it.

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Step 2: Select the required nut extractor size and install it on the connecting rod.

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed.

Steps to use the reverse drill bit

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

ElementosDescripción
1NombreExtractor de tornillos y pernos
Modelo 2YM-35
3Cantidad de parámetros: 35, Materiales principales: Cr-Mo/HSS4241
4ListaExtractor de pernos (19 piezas): n.° 1, n.° 2, n.° 3, n.° 4, n.° 5, n.°5/32" 3/16" 7/32" 1/4" 9/32" 5/16" 11/32" 3/8"13/32", 7/16", 15/32", 1/2"Broca inversa (16 piezas): 7/64", 1/8", 1/8", 5/32", 3/16",7/32" 1/4" 19/64" 9/32" 5/16" 11/32" 3/8" 13/32"7/16", 15/32", 1/2"Proporcionar: 1. Broca: 7/64", 1/8"; 2. Extractor de pernos: n.° 1, n.°
Modelo 2YM-29
3Cantidad de parámetros: 29, Materiales principales: Cr-Mo
4ListaExtractor de tuercas: interfaz cuadrada de 1/4": 6 mm, 1/4" (6,2 m)6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm9,2 mm, 3/8" (9,5 mm), 10 mmExtractor de tuercas: 3/8" Interfaz cuadrada: 13/32" (10,5 mm)7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm),21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm),3/4" (19 mm)Dar: 1 Manga: 3/8" cuadrado a 1/4", 1/4" cuadrado a 3/8"2 Biela: 3/8" cuadrado a 1/4", 1/4" cuadrado a 1/4"
Modelo 2YM-48
3Cantidad de parámetros: 48, Materiales principales: Cr-Mo/HSS4241
4ListaExtractor de pernos (19 piezas): n.° 1, n.° 2, n.° 3, n.° 4, n.° 5, n.° 6, 1/5/32" 3/16" 7/32" 1/4" 9/32" 5/16" 11/32" 3/8"13/32", 7/16", 15/32", 1/2"Broca inversa (16 piezas): 7/64", 1/8", 1/8", 5/32", 3/16",7/32" 1/4" 19/64" 9/32" 5/16" 11/32" 3/8" 13/32"7/16", 15/32", 1/2"Extractor de tuercas (13 piezas): 1/4", 5/16", 3/8", 10 mm, 7/16",12 mm, 1/2", 13 mm, 9/16", 5/8", 17 mm, 11/16", 3/4"Proporcionar: 1. Broca: 7/64", 1/8"; 2. Extractor de pernos: n.° 1, n.° 23 Biela: 3/8" cuadrado a 1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : YM-48

Category : Screw and bolt extractor
