USER MANUAL YFRK-B36 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

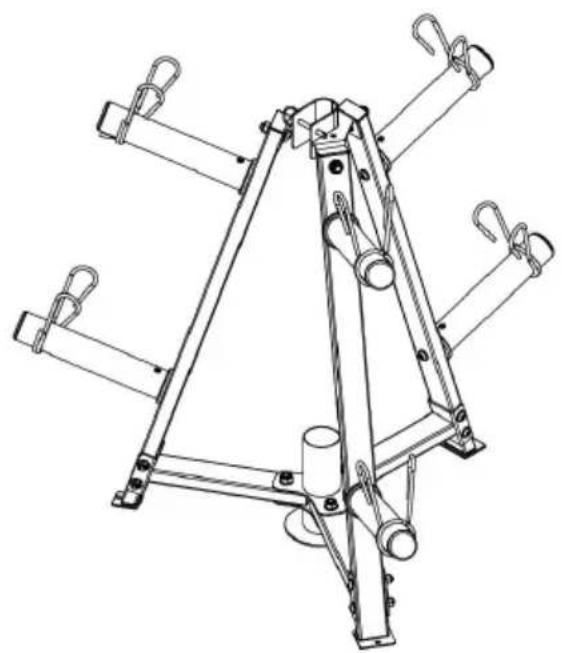

STORAGE RACK MODEL:YFRK-B36


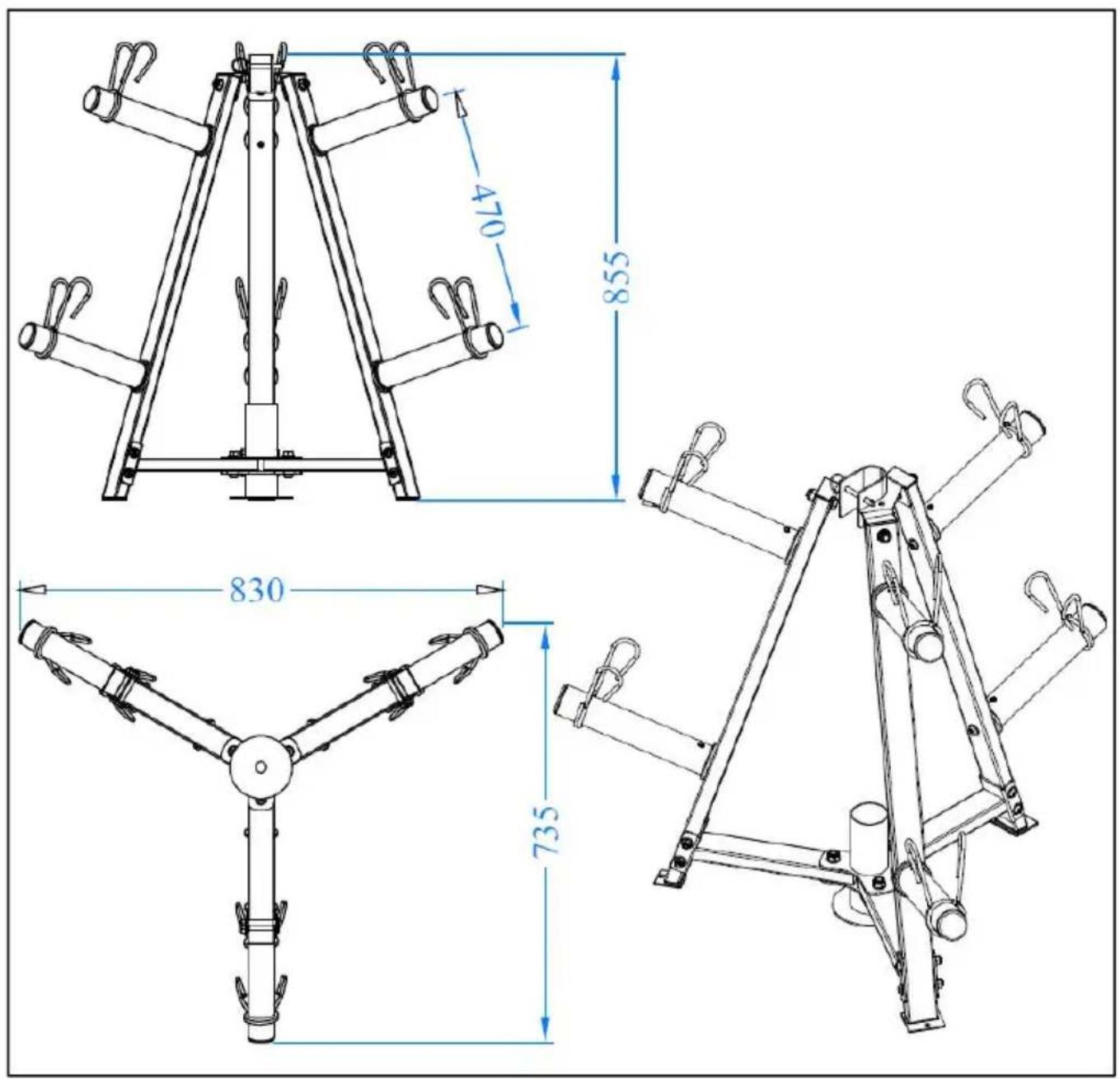

Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

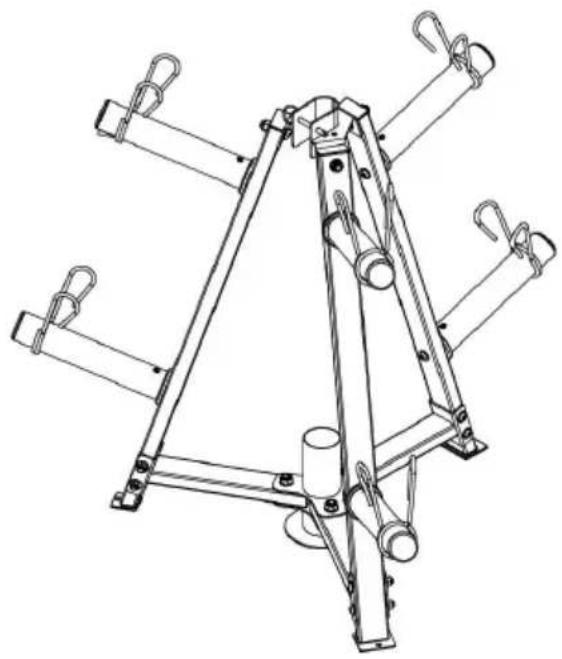

MODEL: YFRK-B36
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
Thank you very much for choosing this STORAGE RACK. Please rea of the instructions before using it. The information will help you achieve best possible results.
INTRODUCTION
SAVE THESE INSTRUCTIONS
WARNING:
Please read all instructions before using this product
It is the Owner's responsibility to ensure that all users of this
product are fully aware of all warnings and precautions.
- Children or persons with disabilities must be closely supervised.
- This product is used only as intended.
• Maximum Weight Capacity: 300 LBS total. - Do not drop or insert anything into any hole.
- Boxing stands are for family use only. Do not use this product for commercial, rental, school or institution.
- Do not use outside.
- Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.
- Keep hands and feet away from moving parts.
Model: YFRK-B36


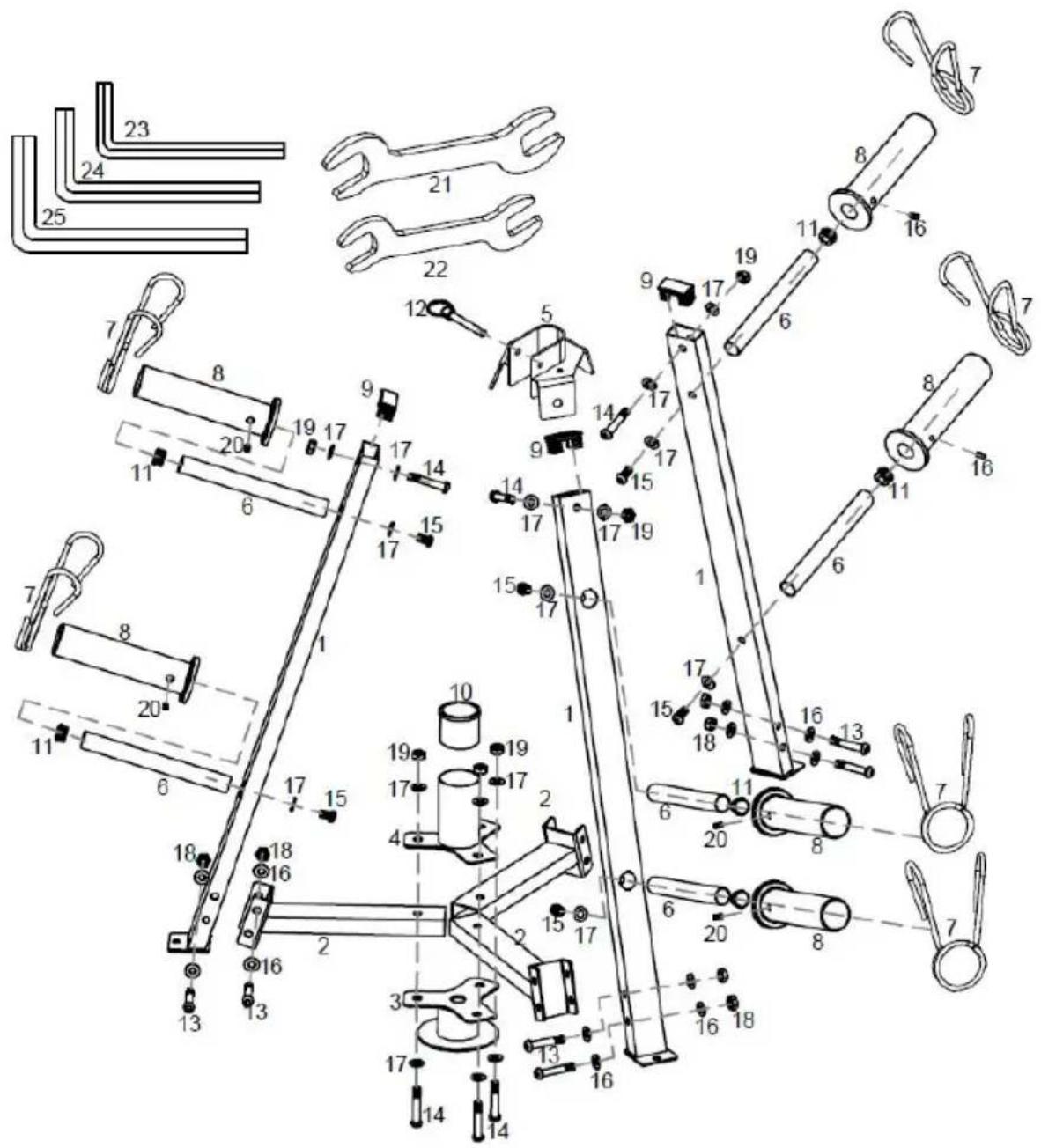

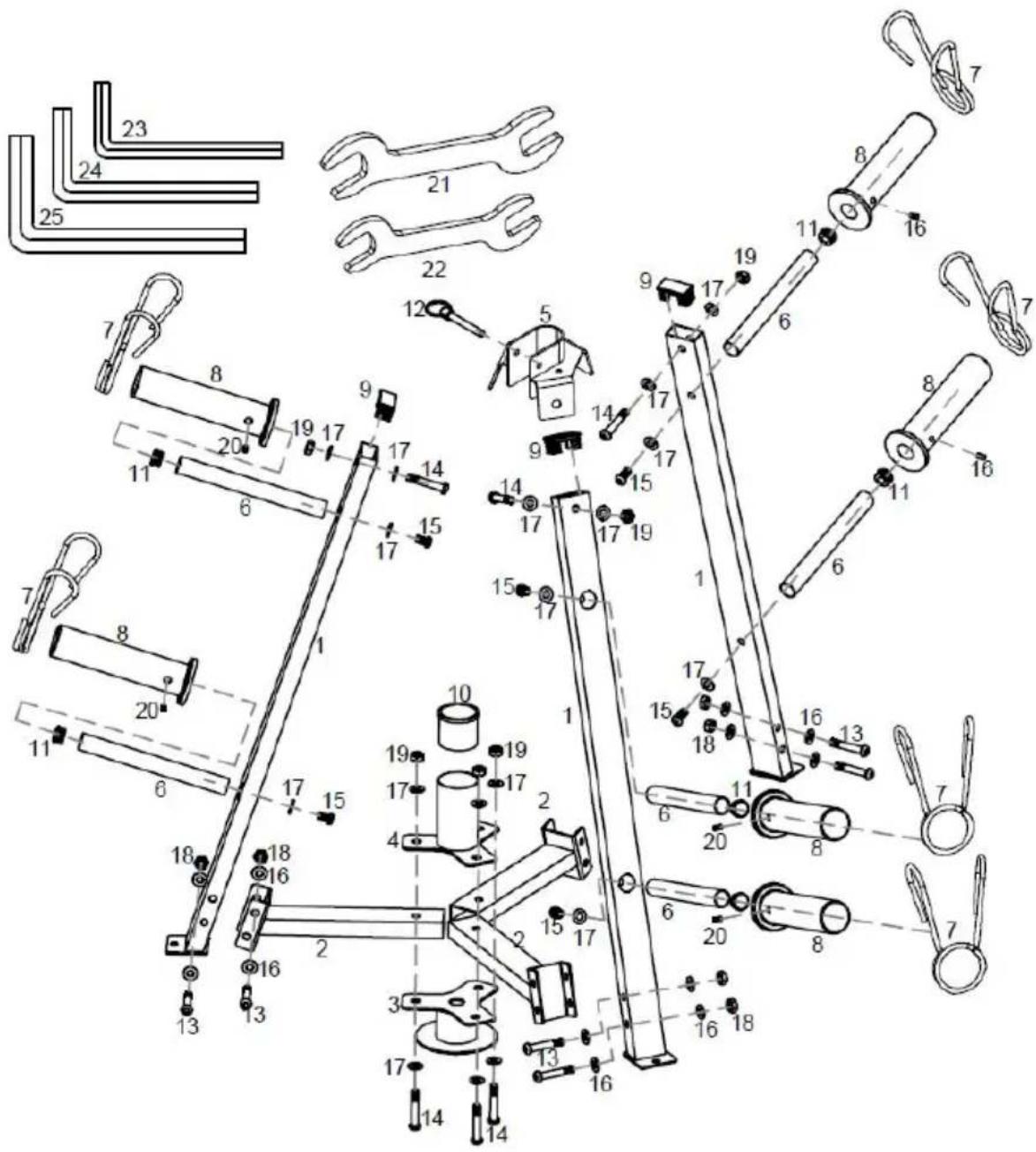

470 855 830 735| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |


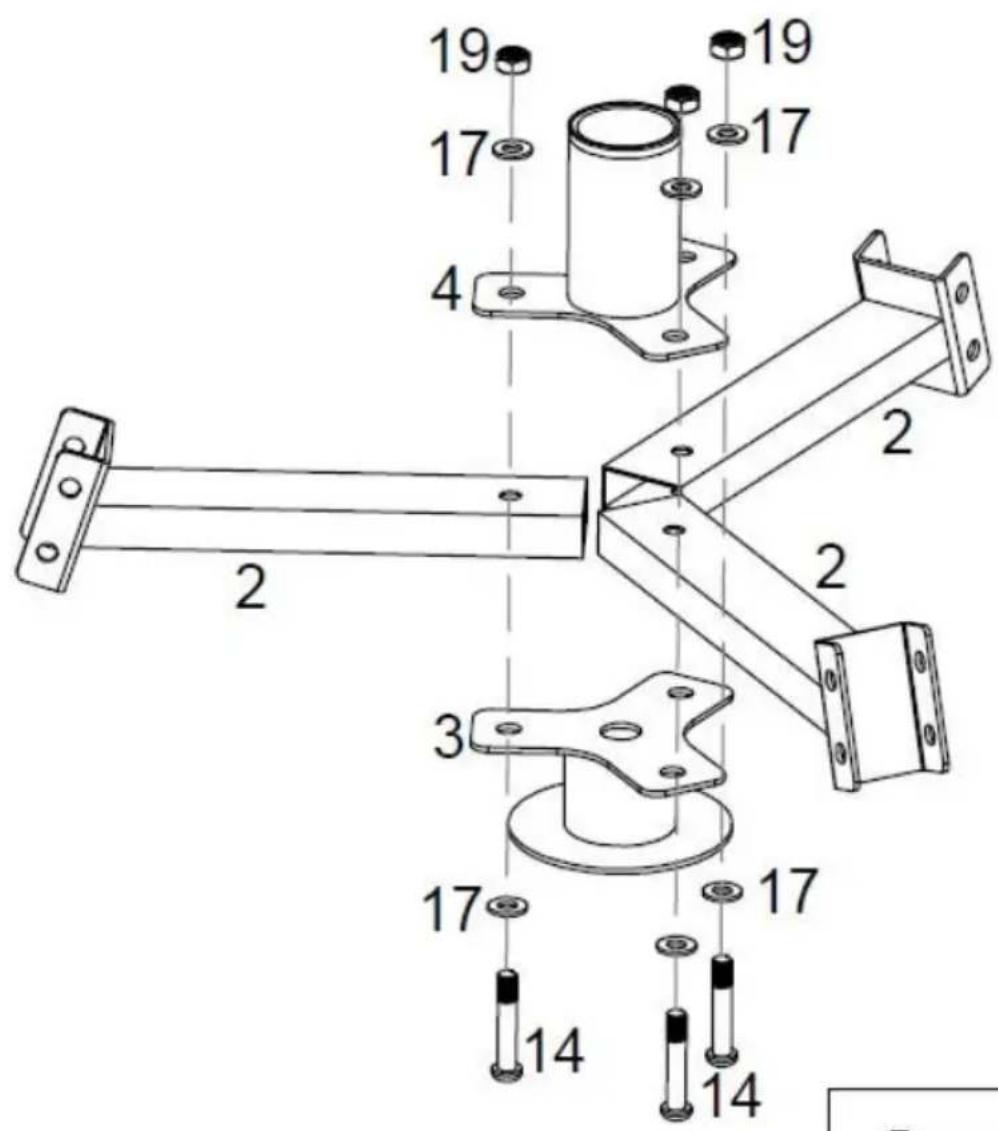

14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs


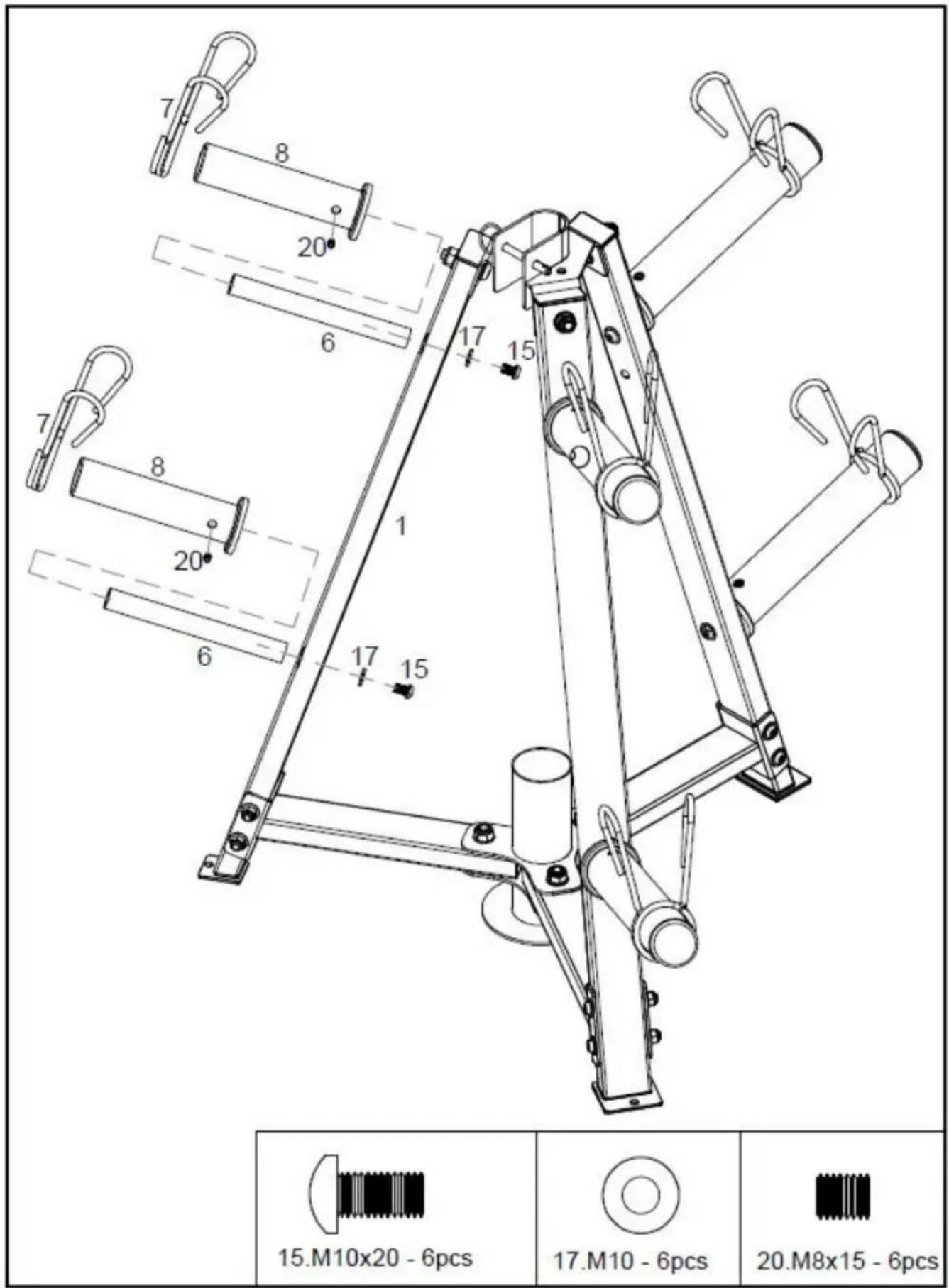

15.M10x20 - 6pcs 17.M10 - 6pcs 20.M8x15 - 6pcs
Cleaning and Maintenance
-Use a soft, clean cloth that will not scratch the surface when dustin
-This item could be cleaned with soap and water. Be sure to avoid halosolvents and abrasives.
- Periodically (every 90 days) make sure the screws are fully tightened
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)BESOIN D'AIDE? CONTACTEZ-NOUS!


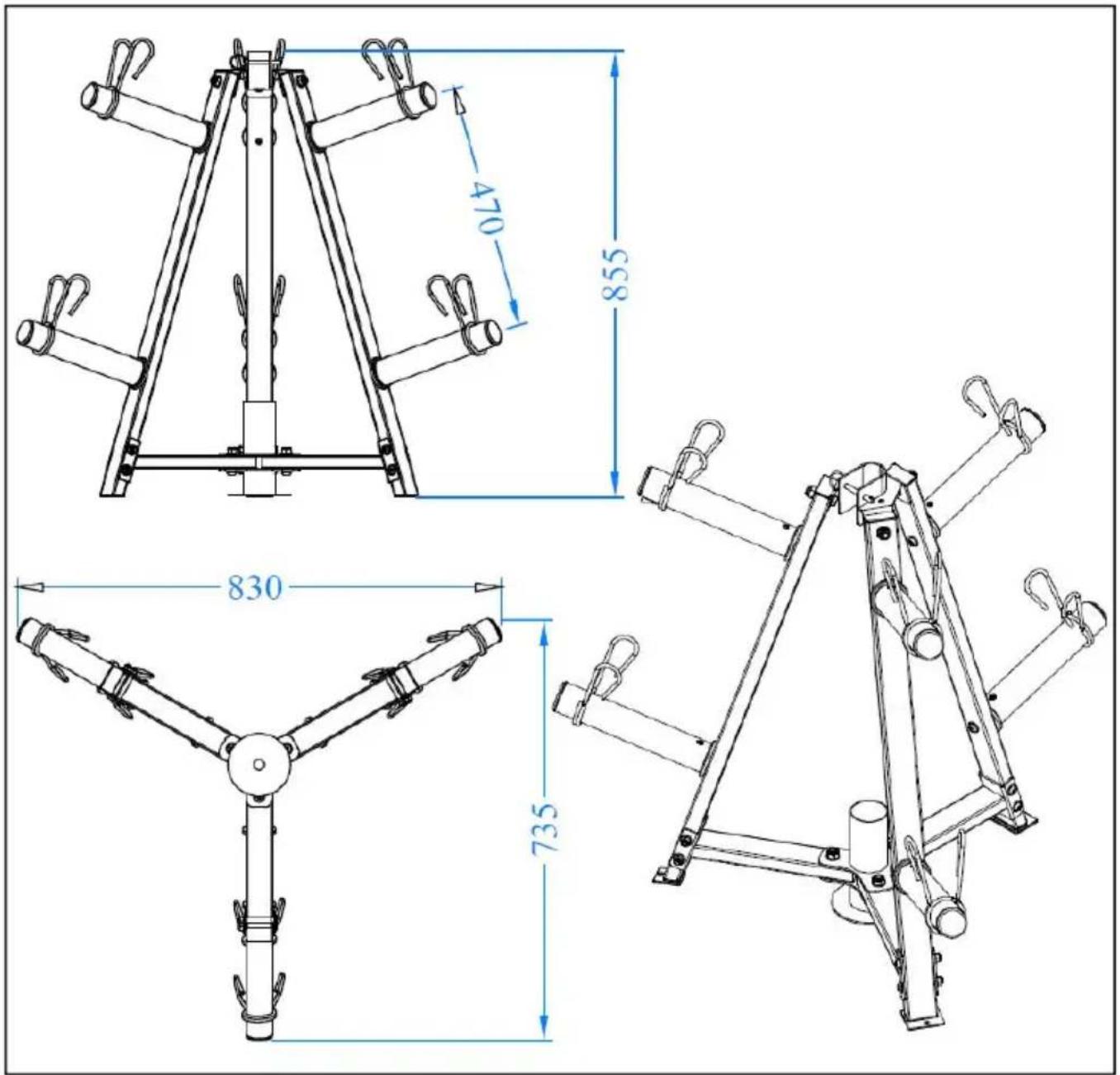

PRODUCT PARAMETER
MODÈLE : YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)natural_image
Prohibition sign showing a walking figure crossed out by a diagonal line, enclosed in a circle (no text or symbols)At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.
PRODUCT PARAMETER
MODELL : YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)natural_image
Prohibition sign showing a walking figure crossed out by a diagonal line, enclosed in a circle (no text or symbols)At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.
PRODUCT PARAMETER
MODELLO : YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)natural_image
Prohibition sign showing a walking figure crossed out by a diagonal line, enclosed in a circle (no text or symbols)At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.
PRODUCT PARAMETER
MODELO : YFRK-B36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!
PRODUCT PARAMETER
MODEL : YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
STREETEASTWOOD NSW 2122 Australia
Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support
OPBERGREK
MODEL:YFRK-B 36
Technical line drawing of a mechanical lifting device with multiple arms and mounting feet (no text or symbols)HULP NODIG? NEEM CONTACT MET ONS OP!
WAARSCHUWING: OM HET RISICO OP LETSEL TE VERMINDEREN.
BEWAAR DEZE INSTRUCTIES
WAARSCHUWING:
PRODUCT PARAMETER
MODEL : YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |


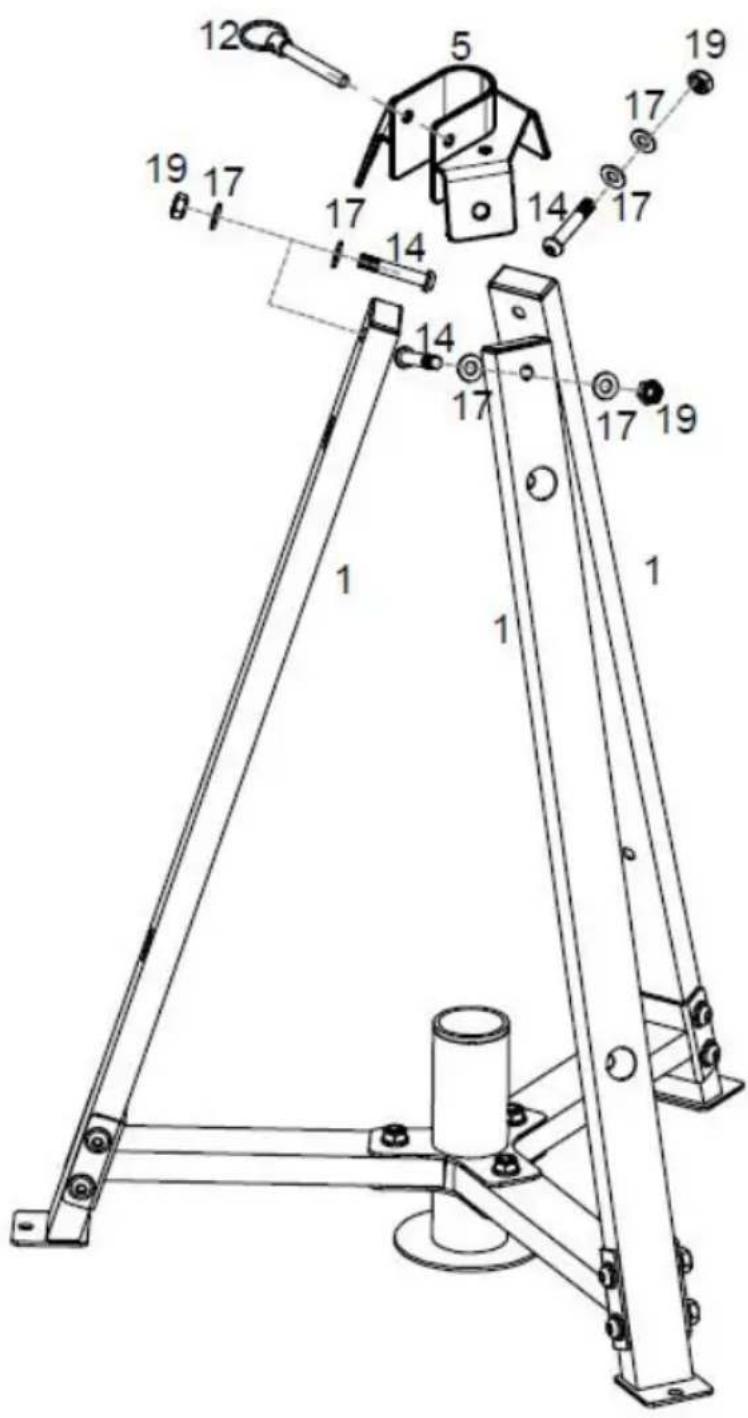

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for repair or assembly instructions.ASSEMBLY


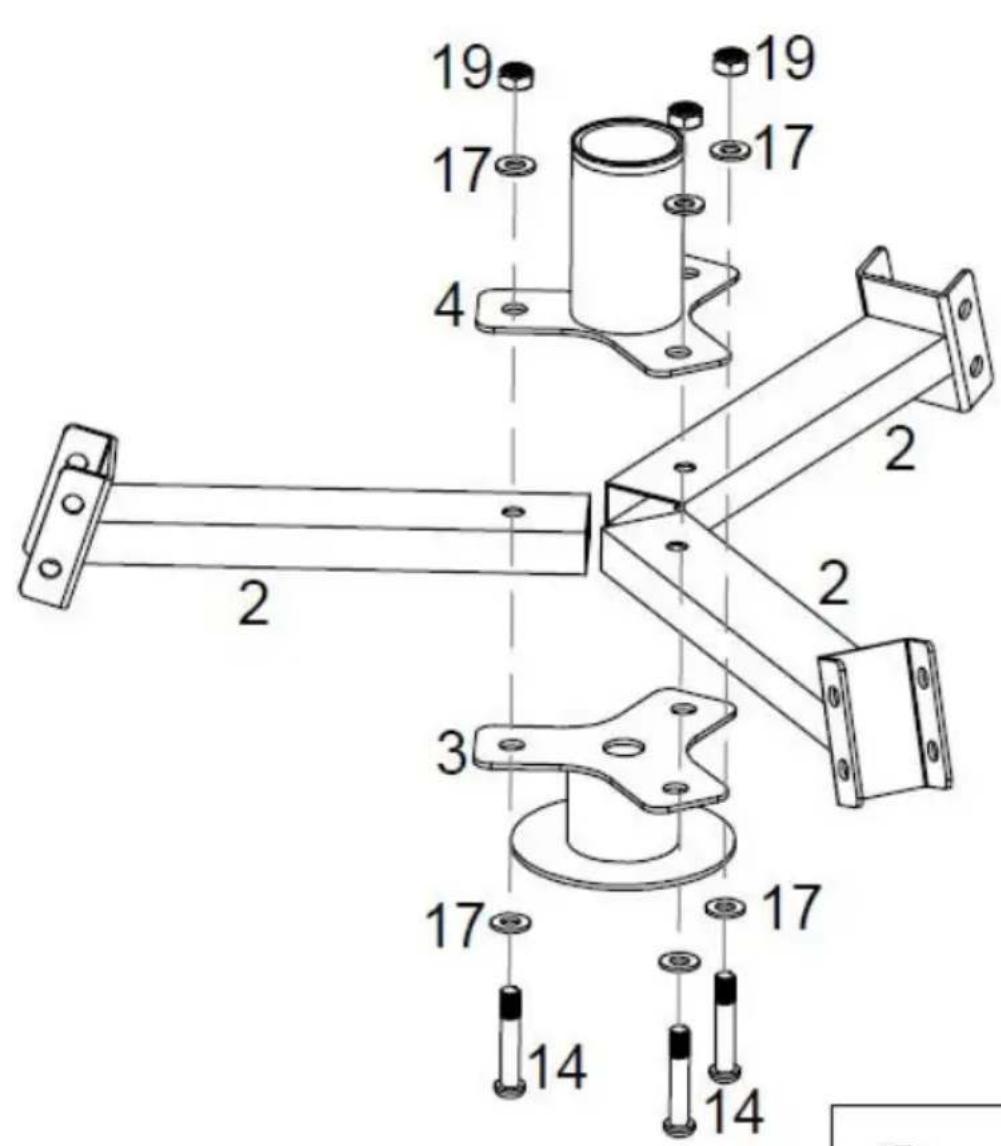

Technical diagram of a mechanical assembly with numbered components and mounting holes
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs


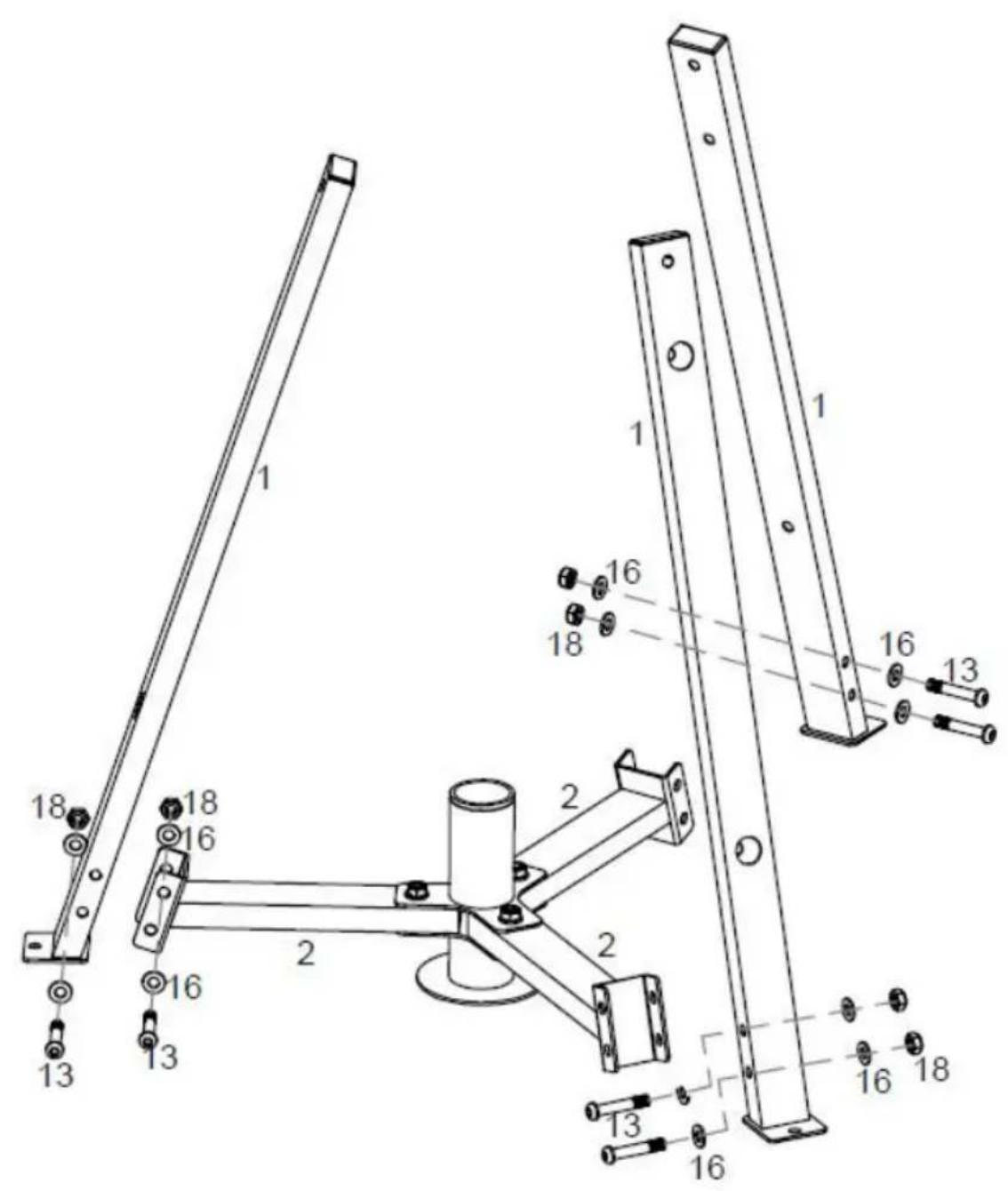

Technical diagram of a mechanical linkage system with numbered components and assembly details| 13.M8x70 - 6pcs | 16.M8 - 12pcs | 18.M8 - 6pcs |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE


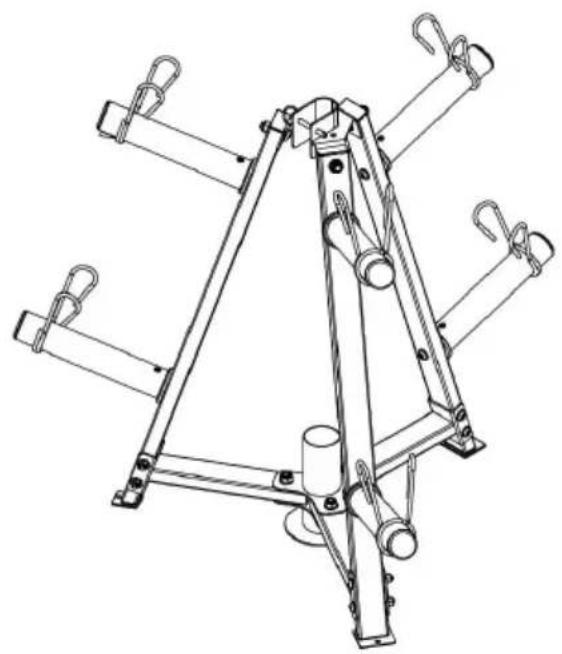

Technical line drawing of a mechanical lifting device with multiple hanging weights (no text or symbols)natural_image
Technical line drawing of a mechanical support structure with multiple arms and mounting holes (no text or symbols)BEHÖVER HJÄLP? KONTAKTA OSS!
M odel: YFRK-B 36
| NO. | Part Name | QTY | NO. | Part Name | QTY | NO. | Part Name | QTY |
| 1. | Stand Frame | 3 | 10. | Round Plastic Bushing | 1 | 19. | M10 Nut | 6 |
| 2. | Connect Tube | 3 | 11. | O25 End Cap | 6 | 20. | M8x15 Bolt | 6 |
| 3. | Base Tube | 1 | 12. | Pin | 1 | 21. | Wrench17/14 | 1 |
| 4. | Barbell Holder | 1 | 13. | M8x70 Bolt | 6 | 22. | Wrench14/13 | 1 |
| 5. | Barbell Locker | 1 | 14. | M10x45 Bolt | 6 | 23. | Allen Wrench 4# | 1 |
| 6. | 1" Weight Plate Tube | 6 | 15. | M10x20 Bolt | 6 | 24. | Allen Wrench 5# | 1 |
| 7. | 2" Spring Cilper | 6 | 16. | M8 Washer | 12 | 25. | Allen Wrench 6# | 1 |
| 8. | 2" Weight Plate Tube | 6 | 17. | M10 Washer | 18 | |||
| 9. | ☐50x25 End Cap | 3 | 18. | M8 Nut | 6 |
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
14.M10x45 - 3pcs
17.M10 - 6pcs
19.M10 - 3pcs
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
