XML3-1 - Wardrobe Vevor - Free user manual and instructions

Product Type	Foldable Storage Cabinet
Brand	Vevor
Model	XML3-1
Dimensions (L × W × H)	33 × 76 × 91 cm (13 × 30 × 36 inches)
Number of Shelves	3
Load Capacity (with casters)	259 kg (570 lb)
Load Capacity (with leveling pads)	91 kg (200 lb)
Material	Steel
Color	Black
Accessories Included	4 plastic hooks, 5 casters (including 2 with brakes), 5 leveling pads, 1 wrench
Key Features	Foldable, mobile with casters, modular storage
Usage	Indoor, stable flat surface
Safety	Risk of pinching during folding/unfolding; risk of collapse if overloaded; regular inspection of fasteners
Maintenance and Cleaning	Clean with a damp cloth; check and tighten screws periodically
Spare Parts	Casters, hooks, leveling pads, wrench
Repairability	Parts can be replaced individually
General Information	Manufactured by Shanghai muxinmuyeyouxiangongsi; imported to the United States and Australia.

Frequently Asked Questions - XML3-1 Vevor

What are the exact dimensions of the Vevor XML3-1 cabinet?

The dimensions are 33 cm depth, 76 cm width, and 91 cm height (13 x 30 x 36 inches).

What is the maximum load capacity?

With casters, the capacity is 259 kg (570 lb). With leveling pads, it is 91 kg (200 lb).

How to assemble the XML3-1 cabinet?

Unpack and check the contents. Place the cabinet on the floor, install the casters or leveling pads, then unfold it by holding both sides and pulling gently. Attach the hooks if necessary.

Can I use the cabinet without casters?

Yes, you can use the provided leveling pads instead of casters for stationary use.

How to clean the Vevor XML3-1 cabinet?

Use a damp cloth to clean the surfaces. Avoid abrasive cleaners. Dry thoroughly after cleaning.

Is the cabinet foldable?

Yes, it is designed to be folded easily. Follow the instructions to avoid any risk of pinching.

What accessories are included?

The package includes 4 plastic hooks, 5 casters (including 2 with brakes), 5 leveling pads, and a wrench.

What to do if a part is damaged?

Inspect the cabinet regularly. If a part is damaged, replace it with an original Vevor part. Contact customer service for replacement parts.

Can the cabinet be used outdoors?

No, it is designed for indoor use only. Exposure to weather could damage it.

How to maintain the casters?

Regularly check that the casters rotate freely. Clean them with a dry cloth and lubricate if necessary.

USER MANUAL XML3-1 Vevor

Affordable. Reliable. Home Improvement.

FOLDING-SHELF

MODEL: XML6-1 & XML4-3-1 & XML3-2 & XML4-2-1 & XML5-2

XML3-1 & XML5-1-1 & XML5-1-2 & XML5-1-3 & XML5-3-1 &

XML5-3-2 & XML4-1-1 & XML4-1-2

MODEL: XML6-1 & XML4-3-1 & XML3-2 & XML4-2-1 & XML5-2 XML3-1 & XML5-1-1 & XML5-1-2 & XML5-1-3 & XML5-3-1 & XML5-3-2 & XML4-1-1 & XML4-1-2

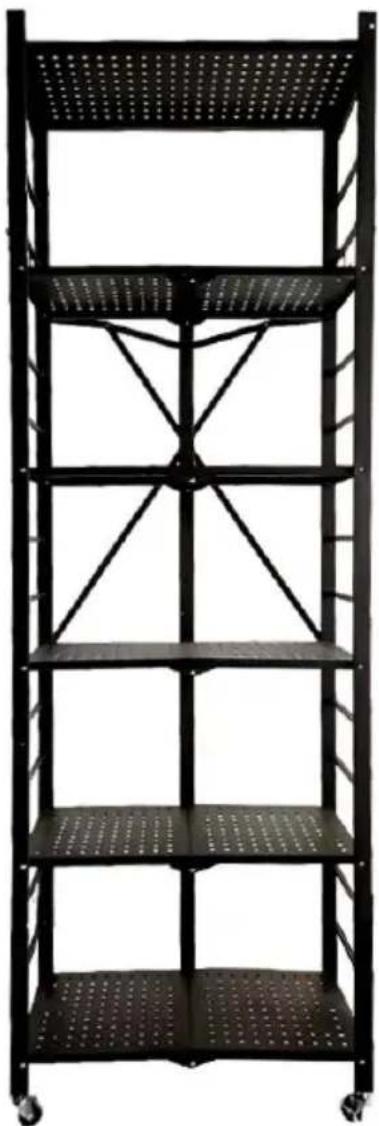

Black metal shelving unit with perforated wheels and diagonal braces (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING

1. Pinch finger: When folding or unfolding, do not insert your fingers the folded parts. If operated improperly, your fingers may get caught between the folded parts and suffer a cut.
2. Accidental collapse: When placing or taking items, if the force is strong or colliding with the shelf, it may lose its balance and collapse
3. Regular inspection: regularly check whether the connecting parts of storage rack are loose, and tighten them in time if they are loose; I the storage basket and frame for damage, and repair or replace the in time if there is a problem.

OPERATION

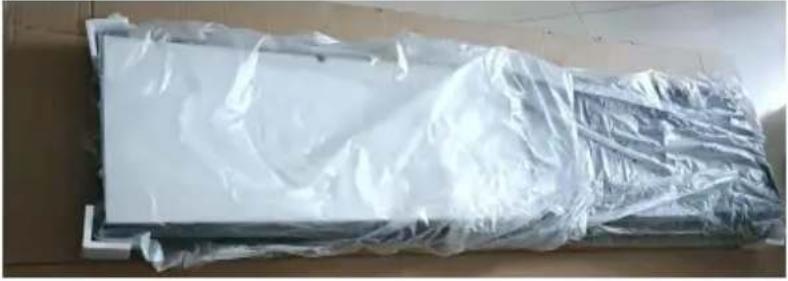

	1. Preparations: Unpack and check whether the storage rack is complete and damaged.

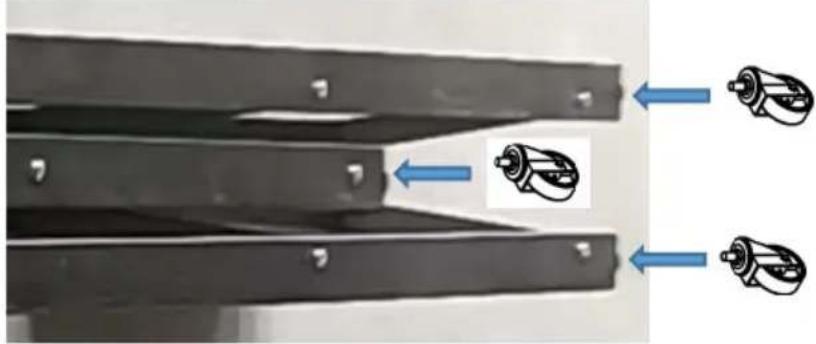

	2. Place the shelf flat on the ground and install casters or foot cups.

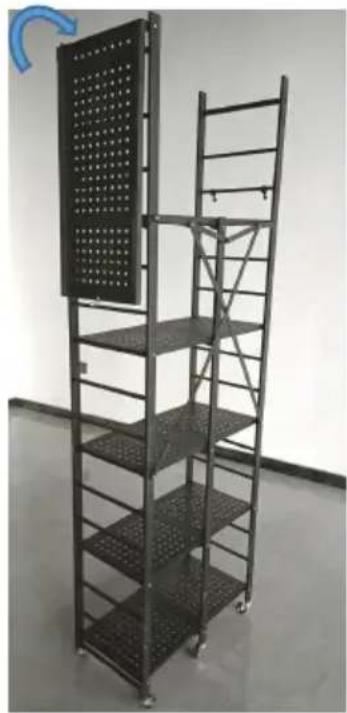

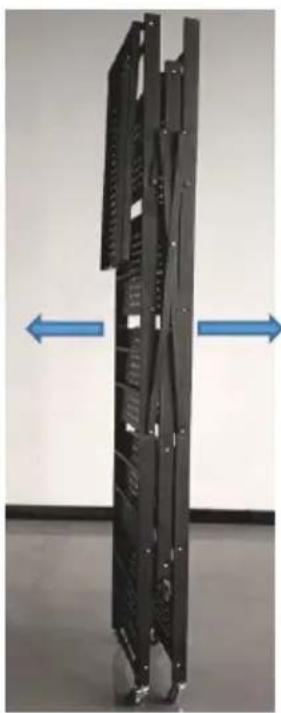

3. Unfold: Hold both sides of the shelf with both hands, in the opposite direction of folding, smoothly and forcefully pull apart	4. After the transportation process completed, put down the material and hold,then the mouth of the device will be open,so that you remove the device.

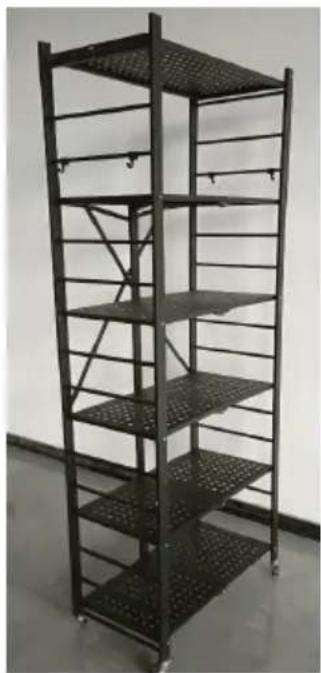

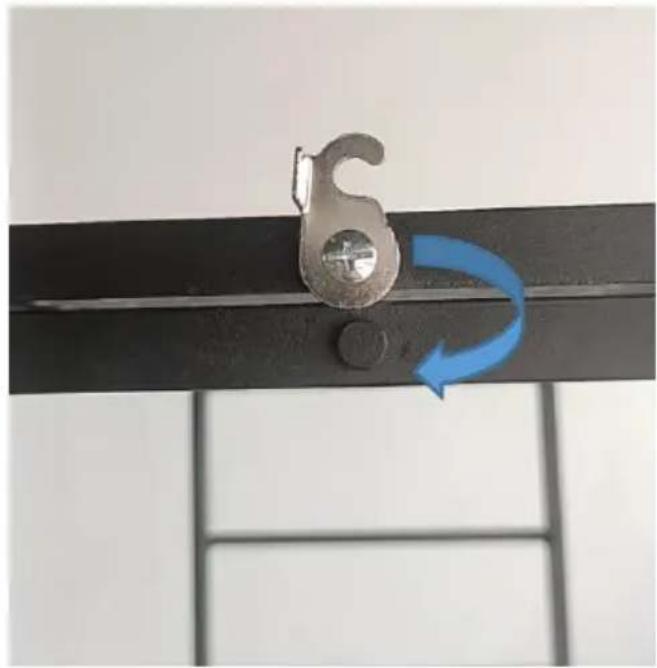

5. After the flip is completed, he the hook onto the fixed nail.	6.Now the product is ready for

ACCESSORIES

MODEL	XML6-1 & XML4-3-1 & XML3-2 & XML4-2-1 & XML5-3-1 & XML5-1-1 & XML5-1-2 & XML5-1-2 & XML5-3-1 & XML5-3-2 & XML4-1-1 & XML4-1-1 & XML5-3-1 & XML5-3-2 & XML4-1-1 & XML4-1-1 & XML5-3-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-1 & XML5-3-2 & XML4-1-2 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XML5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5 - 3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3-1 & XL5-3 - 3H7X ]
Plastic Hook	4
Castor	5(Two units with brakes)
Foot Pad	5
Open Wrench	1

PARAMETER

MODEL	XML6-1	XML4-3-1	XML3-2
Size	12*24*72 inch	13*26*46 inch	13*28*36 inch
Number Of Plies	6	4	3
Load-Bearing (Caster/Foot Pad)	750/200 LBS	750/200 LBS	570/200 LBS
Colour	Black	Black	Black

MODEL	XML4-2-2	XML5-2	XML3-1
Size	13*28*54 inch	13*28*66 inch	13*30*36 inch
Number Of Plies	4	5	3
Load-Bearing(Caster/Foot Pad)	750/200 LBS	750/200 LBS	570/200 LBS
Colour	Black	Black	Black
MODEL	XML5-1-1	XML5-1-2	XML5-1-3
Size	14*32*72 inch	14*32*72 inch	14*32*72 inch
Number Of Plies	5	5	5
Load-Bearing(Caster/Foot Pa)	750/200 LBS	750/200 LBS	750/200 LBS
Colour	Black	White	Gray

MODEL	XML5-3-1	XML5-3-2	XML4-1-1
Size	15*28*64 inch	15*28*64 inch	21*36*60 inch
Number Of Plies	5	5	4
Load-Bearing(Caster/Foot Pa)	750/200 LBS	750/200 LBS	750/200 LBS
Colour	Black	White	Black

MODEL	XML4-1-2
Size	21*36*60 inch
Number Of Plies	4
Load-Bearing(Caster/Foot Pa)	750/200 LBS
Colour	White

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
