METAL BOOKSHELVES

USER MANUAL

MODEL NO.: YJX-BS004

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal Bookshelves

MODEL NO.: YJX-BS004

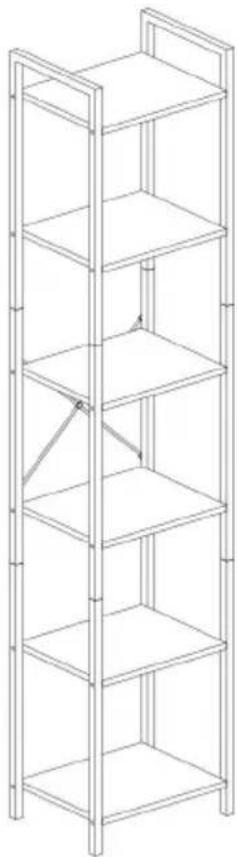

Isometric line drawing of a multi-level metal shelving unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or so updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recomme using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Metal Bookshelves.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Metal Bookshelves.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	YJX-BS004
Product Dimensions (LxWxH)(mm)	300*400*1870
Net Weight(kg)	About 10.7

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

1×2	2<2	32	4<4
5[7736]×8	6×6	7×1
AM6×12mm ×36	BM7×50mm ×24	C[280V]M4 ×1	D[2885]M6 ×4
E×2

Technical diagram showing 10 numbered structural components of a door frame assembly, with numbered parts and connection details.

ASSEMBLY STEPS

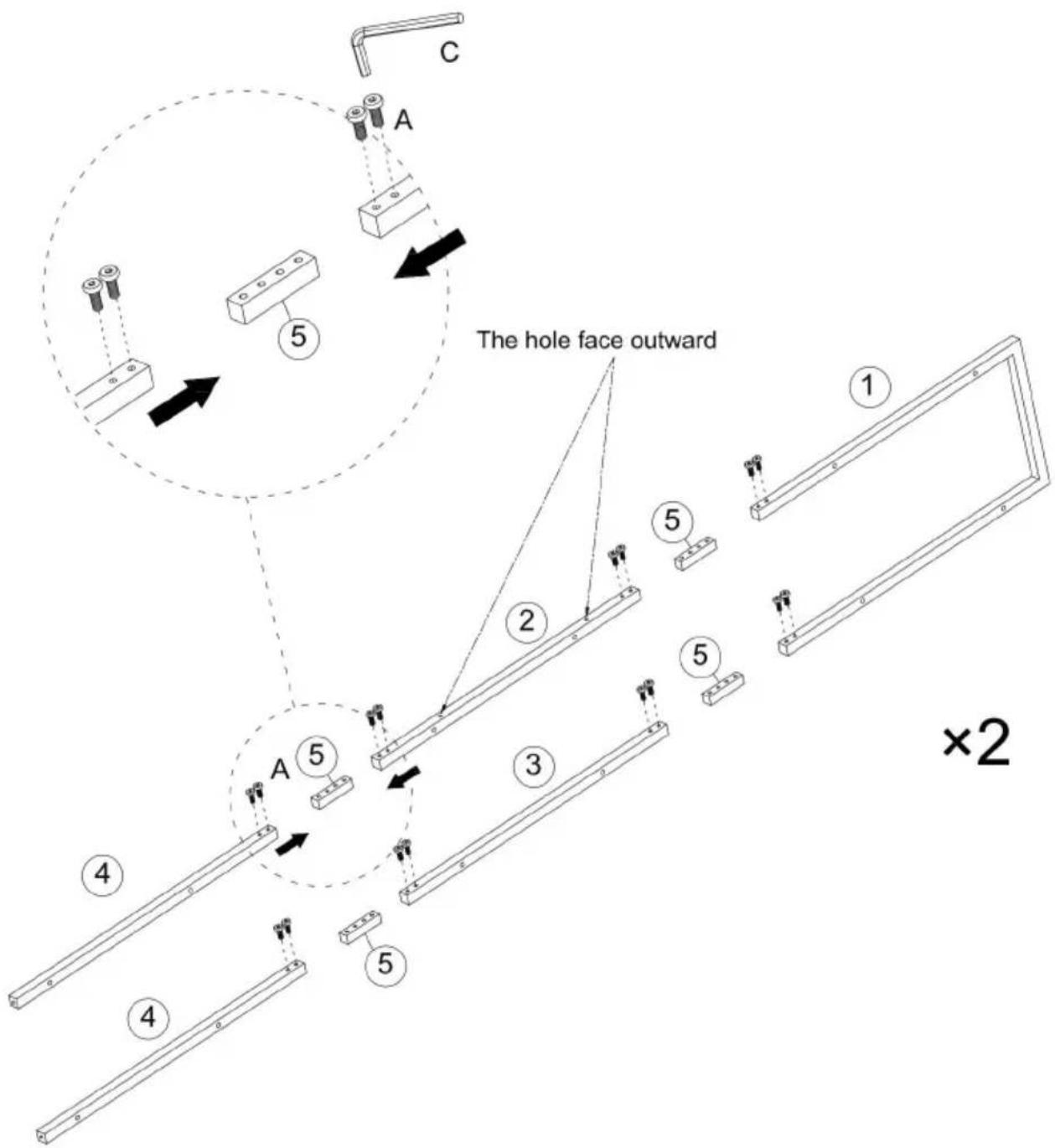

step 1

M6×12mmA × 32pcs

M4C × 1pc

C A 5 The hole face outward 1 2 5 3 4 5 ×2

step 2

_ M7×50mmB × 24pcs	M4C × 1pc
	M6D × 4pcs

M7×50mm
B × 24pcs
M4 C × 1pc
M6 D × 4pcs

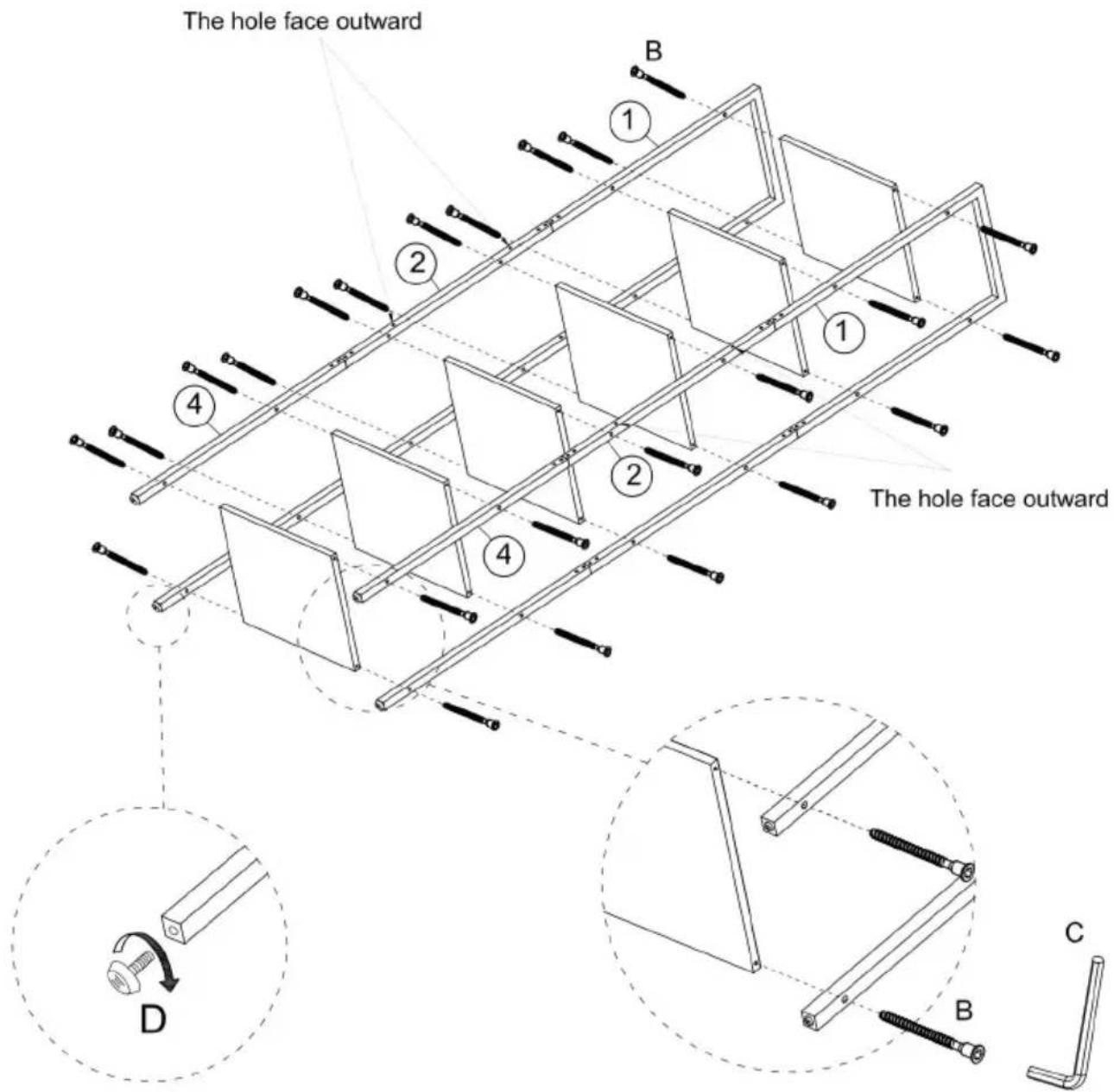

The hole face outward The hole face outward B ① ② ④ ④ ② ① The hole face outward D C B

step 3

M6×12mm	M4
A × 4pcs	C × 1pc

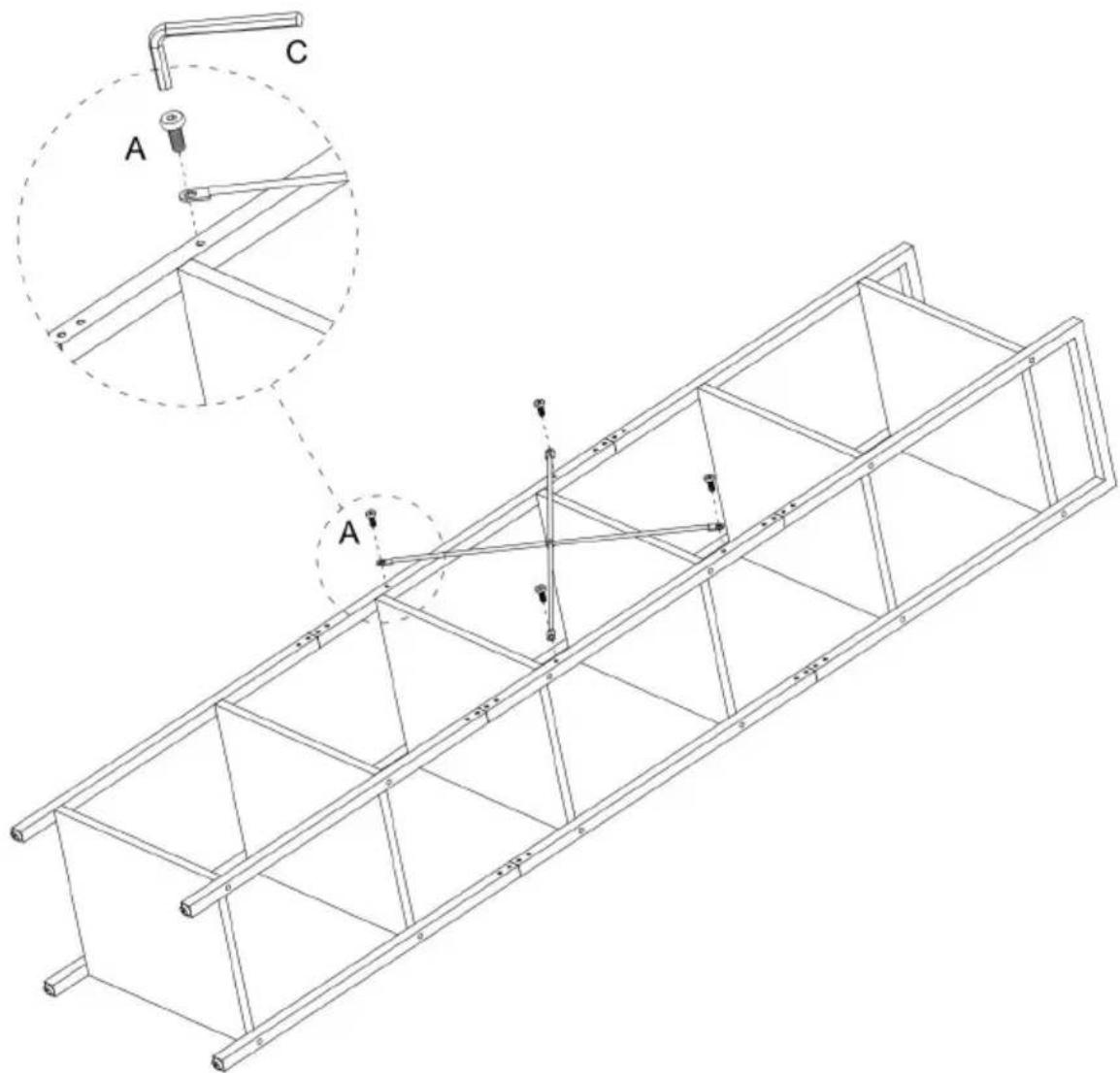

Technical diagram of a metal truss structure with labeled components A and C, showing structural connections and assembly details.

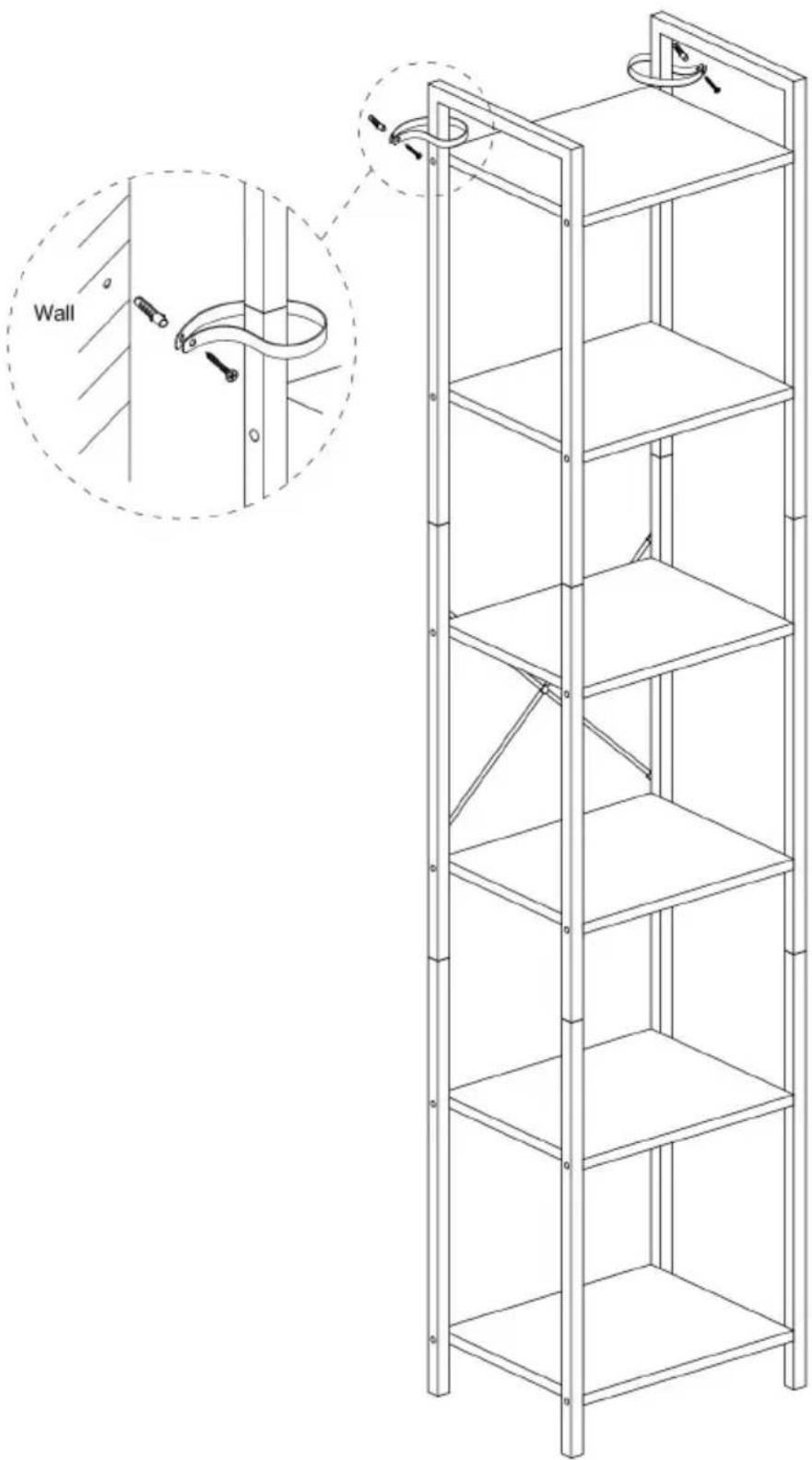

step 4

E × 2pcs

Wall

COMPLETION

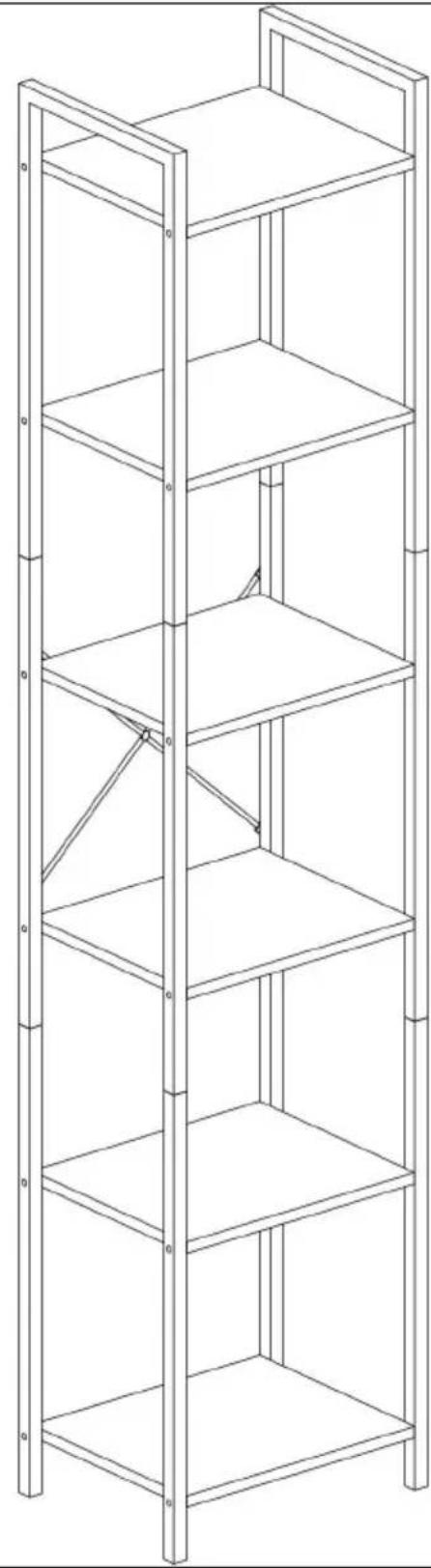

Line drawing of a multi-level metal shelving unit with no text or symbols

WARNING

Symbol of a person climbing a slope with a diagonal line, enclosed in a circle (no text or numbers present)

Children have died from furniture tipover. To reduce the risk of furniture tipover:

• ALWAYS install tipover restraint provided.
• NEVER put a TV on this product.
• NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
• NEVER open more than one drawer at a time.
• Place heaviest items in the lowest drawers.

TV

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a multi-level metal shelving unit (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recomme using the wall anchors and brackets/straps that come the package.

Technical diagram showing 10 numbered structural components of a door frame assembly, labeled with numbers and numbered sections.

ASSEMBLY STEPS

step 1

M6×12mmA × 32pcs

M4C × 1pc

C A 5 The hole face outward 1 2 5 3 4 5 ×2

step 2

M7×50mmB × 24pcs	M4C × 1pc
	M6D × 4pcs

M7×50mm
B × 24pcs
M4 C × 1pc
M6 D × 4pcs

The hole face outward The hole face outward B ① ② ④ ④ ② ① The hole face outward D C B

step 3

M6×12mmA × 4pcs

M4C × 1pc

Technical diagram of a metal truss structure with labeled components A and C, showing structural connections and assembly details.

step 4

E × 2pcs

Wall

COMPLETION

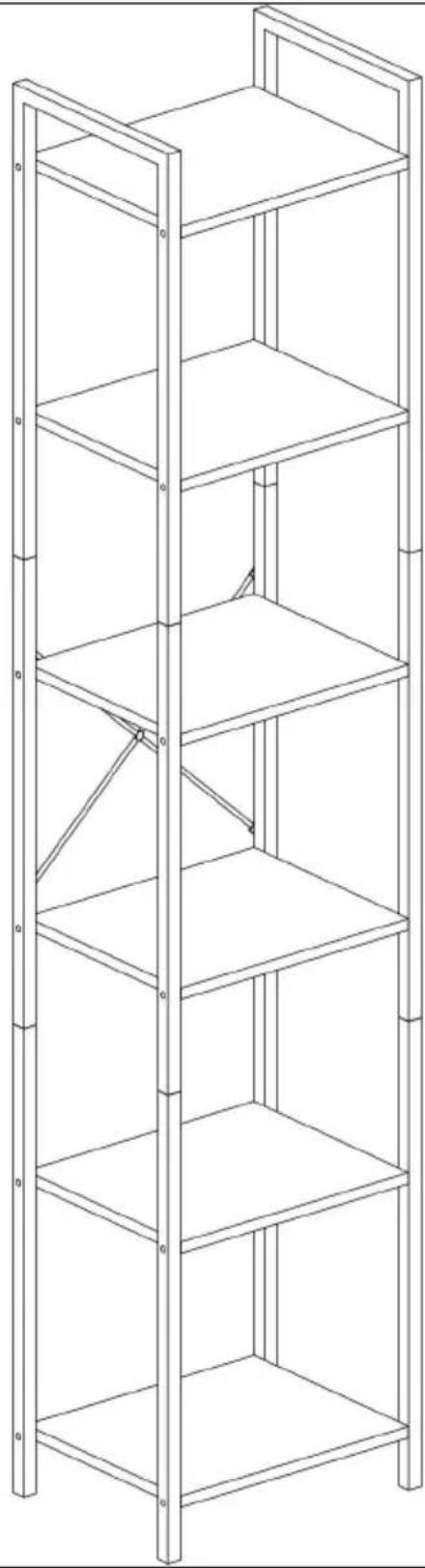

Line drawing of a multi-level metal shelving unit with no text or symbols
