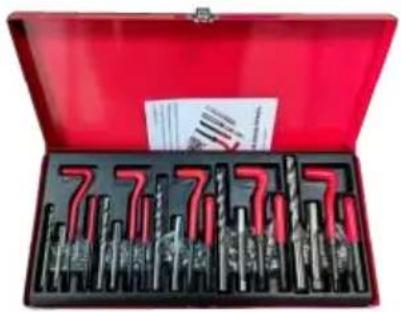

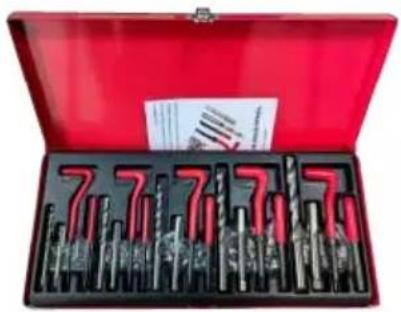

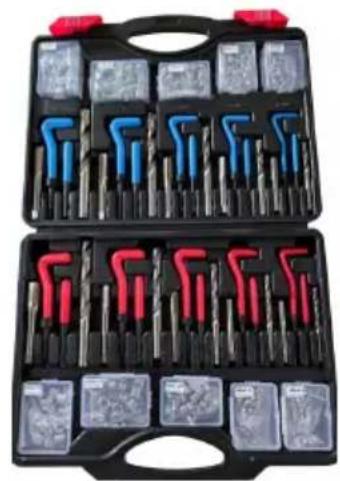

Red open case containing a collection of metal rebar and bolts, no visible text or symbols.

MODEL:XRGZ166

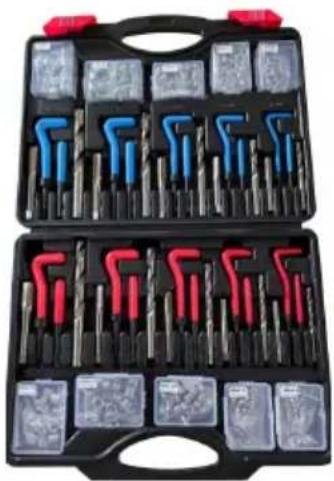

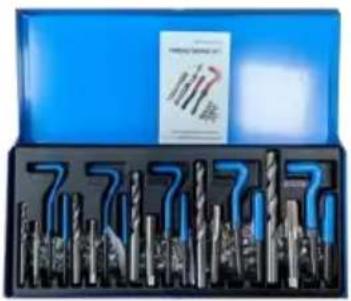

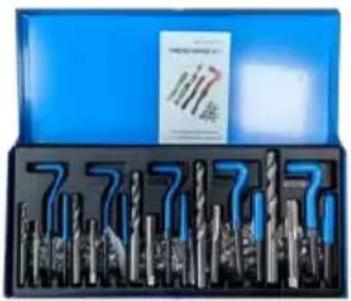

Tool kit with metal drill bit and a small package labeled '1017' (no visible text or symbols on the tool itself)

MODEL:XRYZ131

Two black tool kit cases with various metal tools and accessories, no visible text or labels

MODEL:XRGY338

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Thread Repair Kit.

- Please read all of the instructions before using it. The information you achieve the best possible results.

The products carried in this catalog may be different in color than the item.

SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.

* DO NOT use tools if damaged.
* Maintain tools in good and clean condition for best and safest performance
* If the vehicle to be worked on is raised, ensure that it is adequately supported with axle stands or ramps and chocks.
* Wear suitable clothing to avoid snagging. Do not wear loose jewellery and back long hair.
* Account for all tools and parts being used.
* If working off the vehicle, ensure that the workplace is secure and stable.
* Do Not use these tools if you are tired or under the influence of alcohol, intoxicating medication.

MODEL AND PARAMETERS

XRGZ166 : Metric, contains 166 pieces Thread Repair Kit

5pcs Screw tap ( M5x 0.8 ,M6 x 1.0, M8x 1.25, M10x 1.5 , M12x 1.75)

5pcs Installation tool

5pcs Breaking pin tool

5pcs Twist drill(5.2mm, 6.3mm, 8.3mm, 10.5mm, 12.5mm)

1pcs Hex Key

1pcs Storage Case

145PCS Wire Thread Inserts(Metric) :

35pcs M5 x 0.8 x 6.7mm
35pcs M6 x 1.0 x 8.0mm
35pcs M8 x 1.25 x 10.8mm
28pcs M10 x 1.5 x 13.5mm
12pcs M12 x 1.75 x 16.3mm

XRYZ131: SAE (inch), UNC, contains 131 pieces Thread Repair Kit,

5pcs Screw tap (1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13)
5pcs Installation tool
5pcs Breaking pin tool
5pcs Twist drill (inch 17/64, 21/64, 25/64, 29/64, 17/32)
1pcs Hex Key
1pcs Storage Case
110PCS inch Wire Thread Inserts :
25pcs 1/4"-20
25pcs 5/16"-18
25pcs 3/8"-16
25pcs 7/16"-14
10pcs 1/2"-13

XRGY338 contains all Screw tap and Installation tool, Breaking pin tool, Twist drill, Hex Key of the XRGY338 and XRGZ166, the Wire Thread Inserts as follow:

pcs-147 Metric Wire Thread Inserts:
30pcs M5 x 0.8 x 6.7mm
40pcs M6 x 1.0 x 8.0mm
40pcs M8 x 1.25 x 10.8mm
25pcs M10 x 1.5 x 13.5mm
12pcs M12 x 1.75 x 16.3mm
5pcs box
pcs-147 inch Wire Thread Inserts:
30pcs 1/4"-20
40pcs 5/16"-18
40pcs 3/8"-16

25pcs 7/16"-14

12pcs 1/2"-13

5pcs box

ASSEMBLY AND USE

DRILLING

Clear the damaged thread with a standard drill.

Up to M12 (1/2") the KITS include the correct drill.

To repair a spark plug thread, no Pre-drilling is necessary if using the special Spark Plug Tap. Please pay attention that for Fluteless Taps holes are required.

CHECK

Check that thread and pitch of the tap and the bolt match.

TAPPING

Use the special V-COIL-Taps for cutting the holding thread into the c hole. It is recommended to use a suitable cutting oil.

INSTALL THE INSERT

Place insert on installation Tool and position the adjustable ring so that insert tang is centred in the tang slot. Wind the insert in with a light downward pressure until a half turn below the surface. Don't work again thread direction as the tang could break.

TANG REMOVAL

After finishing lift the installation tool and use the tang break tool to the tang. For bigger sizes and spark plug taps use long nose pliers remove the tang. Due to the narrow and exact tolerances the new three normally is stronger than the original one.

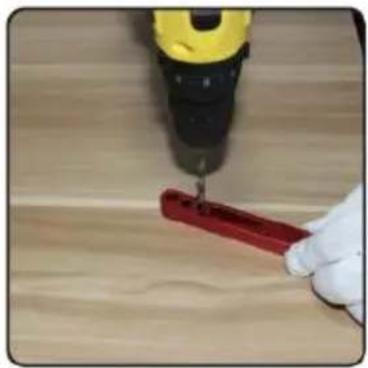

Close-up of a hand using a power tool to apply red adhesive on a wooden surface (no text or symbols visible)

1. Drill out damaged thread using correctly sized drill bit(supplied)

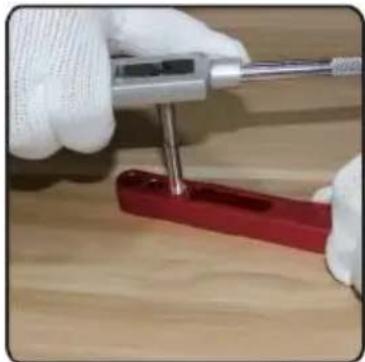

Close-up of gloved hands using a tool to apply red liquid onto a wooden surface (no text or symbols visible)

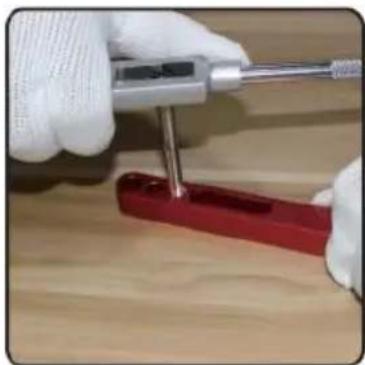

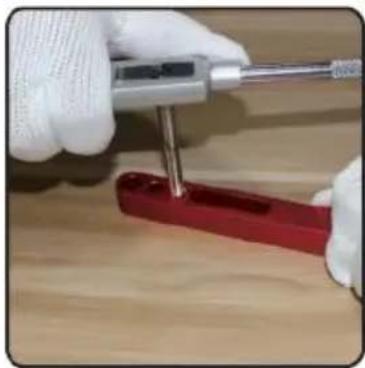

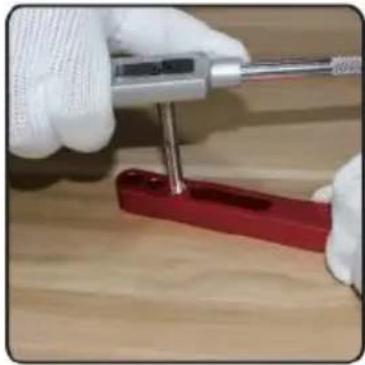

1. Tap re-drilled hole using tap supplied

Close-up of gloved hands holding a red metal component with circular holes (no text or symbols visible)

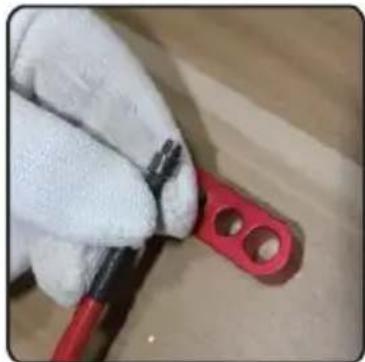

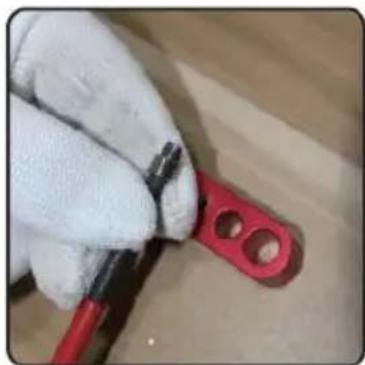

1. Load coiled insert into applicator

Close-up of a red tool applying black material to a wooden surface (no text or symbols visible)

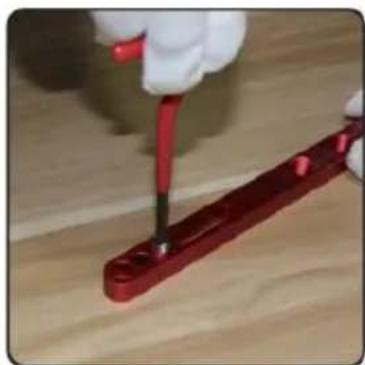

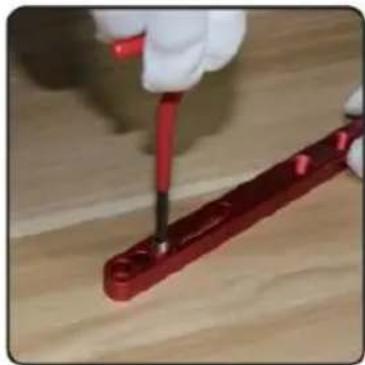

4.Screw coil into casting

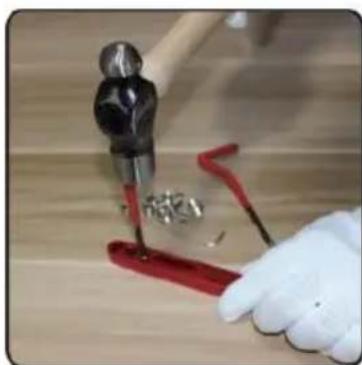

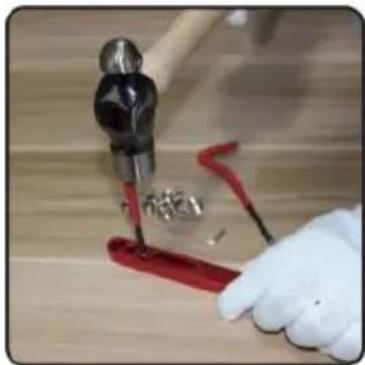

Close-up of a hand using a red tool to cut metal components on a wooden surface (no text or symbols visible)

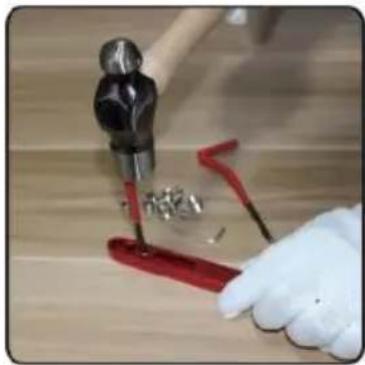

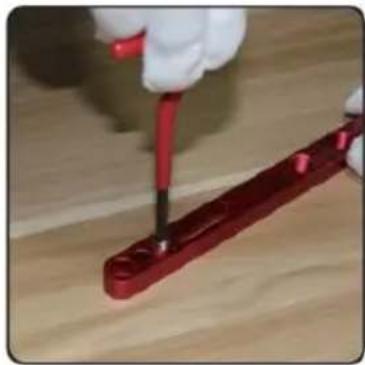

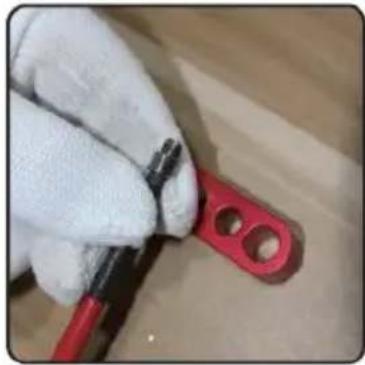

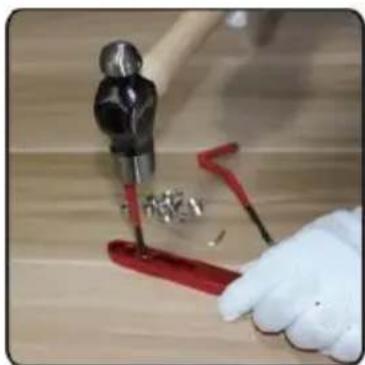

1. Using lug breaking tool, break off tag on insert

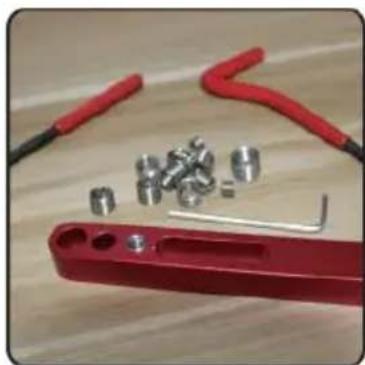

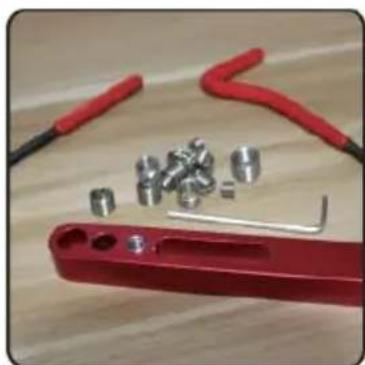

Red metal tool holder with bolts and metal fittings on a wooden surface (no text or symbols visible)

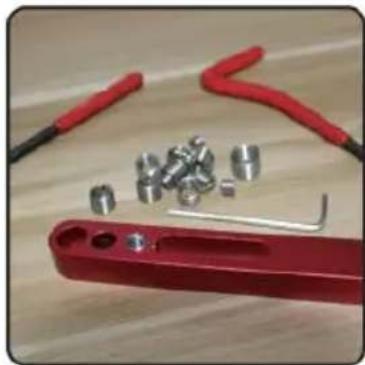

1. Thread is repaired and ready to use
