USER MANUAL XRSS061 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Thread Repair Kits

MODEL:XRSS061 / XRSS049

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Thread Repair Kits

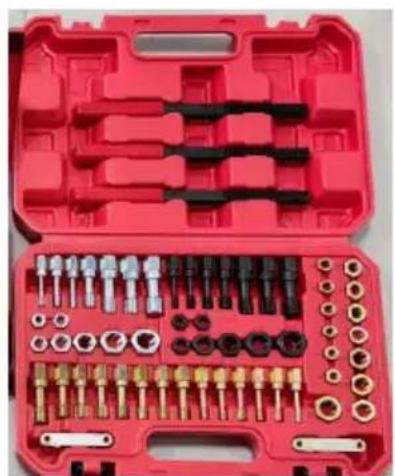

Red toolbox containing various mechanical tools and fittings (no visible text or labels)

MODEL:XRSS061

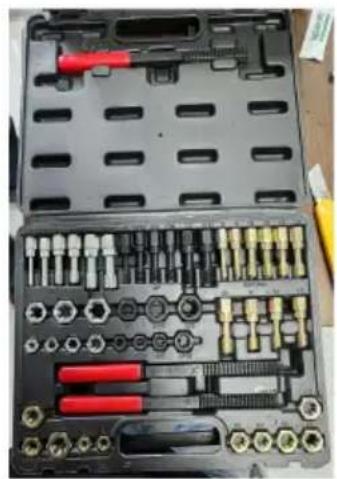

Tool kit with various mechanical components and a red tool, no visible text or labels

MODEL:XRSS049

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Thread Repair Kit.

- Please read all of the instructions before using it. The information will help achieve the best possible results.

The products carried in this catalog may be different in color than the actual SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.

* DO NOT use tools if damaged.
* Maintain tools in good and clean condition for best and safest performance
* If the vehicle to be worked on is raised, ensure that it is adequately supported with axle stands or ramps and chocks.
* Wear suitable clothing to avoid snagging. Do not wear loose jewellery and back long hair.
* Account for all tools and parts being used.
* If working off the vehicle, ensure that the workplace is secure and stable.
* Do Not use these tools if you are tired or under the influence of alcohol, intoxicating medication.

MODEL AND PARAMETERS

XRSS061 contains 61 pieces ,UNC& UNF & Metric,As follows:

7 Pc - Inch Coarse (UNC) Sizes Taps:

9/16"-12, 1/2"-13, 7/16"-14, 3/8"-16, 5/16"-18, 1/4"-20, 5/8"

7Pc - Inch Fine (UNF) Sizes Taps:

9/16"-18, 1/2"-20, 7/16"-20, 3/8"-24, 5/16"-24, 1/4"-28, 5/8"

14Pc - Metric Sizes Taps:

M14*1.5, M12*1.75, M12*1.5, M12*1.25, M11*1.5, M10*1.5, M10*1.25, M10*1.0, M8*1.5, M8*1.25, M8*1.0, M7*1.0, M6*1.25, M6*1.0

7 Pc - Inch UNC Thread Chaser: 5/8"-11, 9/16"-12, 1/2"-13, 7/16"-14, 3/8"-16, 5/16"-18, 1/4"-20

7 Pc - Inch UNF Thread Chaser: 5/8"-18, 9/16"-18, 1/2"-20, 7/16"-20, 3/8"-24, 5/16"-24, 1/4"-28

14pc-Metric Thread Chaser: M14*1.5, M12*1.75, M12*1.5, M12*1.25, M11*1.5, M10*1.5, M10*1.25, M10*1.0, M8*1.5, M8*1.25, M8*1.0, M7*1.0, M6*1.25, M6*1.0

SAE Thread File: 9 - 10 - 12 - 16 - 20 - 27 - 28 - 32; Metric Thread File: 0.75mm - 1.0mm - 1.25mm - 1.50mm - 1.75mm - 2.00mm 3.00mm; SAE Thread File: 11 - 12 - 13 - 14 - 16 - 18 - 20 - 24

XRSS049 contains 49 pieces ,UNC& UNF & Metric,As follows:

6Pc - Inch Coarse (UNC) Sizes Taps: 9/16"-12, 1/2"-13, 7/16"-14, 3/8"-16, 5/16"-18, 1/4"-20

6Pc - Inch Fine (UNF) Sizes Taps: 9/16"-18, 1/2"-20, 7/16"-20, 3/8"-24, 5/16"-24, 1/4"-28

10Pc - Metric Sizes Taps: M14*1.5, M12*1.75, M12*1.5, M12*1.25, M11*1.5, M10*1.5, M10*1.25, M10*1.0, M8*1.25, M6*1.0

7 Pc - Inch UNC Thread Chaser: 5/8"-11, 9/16"-12, 1/2"-13, 7/16"-14, 3/8"-16, 5/16"-18, 1/4"-20 7 Pc - Inch UNF Thread Chaser: 5/8"-18, 9/16"-18, 1/2"-20, 7/16"-20, 3/8"-24, 5/16"-24, 1/4"-28

Metric Thread Chaser:

M14*1.5, M12*1.75, M12*1.5, M12*1.25, M11*1.5, M10*1.5, M10*1.25, M10*1.0, M8*1.25, M6*1.0

SAE Thread File: 9 - 10 - 12 - 16 - 20 - 27 - 28 - 32;

Metric Thread File: 0.75mm - 1.0mm - 1.25mm - 1.50mm - 1.75mm - 2.00mm; 3.00mm;

SAE Thread File: 11 - 12 - 13 - 14 - 16 - 18 - 20 - 24

ASSEMBLY AND USE

● Repair Damaged Threads.
- Restore Thread Functionality.
- Clean Threaded Connection.
- Remove Nut or Bolt.

Different from a tap and die set to cut new threads a thread chaser designed for cleaning up and restoring existing threads. They remove and corrosion from threads without shaving off metal and aim to elim resistance when reinstalling and removing the bolt and avoid cross-threading.

To use a thread chaser, simply fasten it on a threaded hole or bolt would with regular bolts or nuts. Then, turn the chaser slowly down gunky or slightly damaged threads. Be gentle to avoid causing more damage.

A thread chaser set is for anyone who takes things apart and reassethem. But most importantly, it is a must-have kit for any auto mechanical chasing threads on rusty fasteners and bolt holes on cylinder heads, engine blocks, and bodies of vehicles.

MAINTENANCE

1. Avoid prolonged exposure to the sun to avoid aging

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

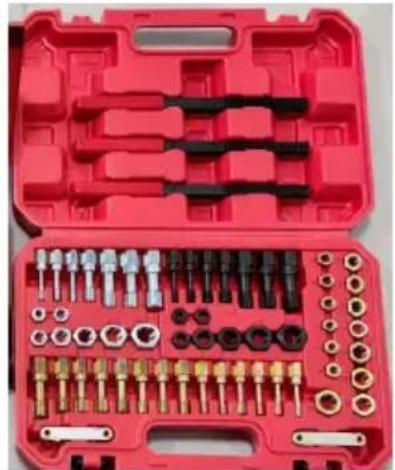

Red toolbox containing various mechanical tools and fittings (no visible text or labels)
