USER MANUAL YJX-BS003 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

METAL BOOKSHELVES

USER MANUAL

MODEL NO.: YJX-BS003

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal Bookshelves

MODEL NO.: YJX-BS003

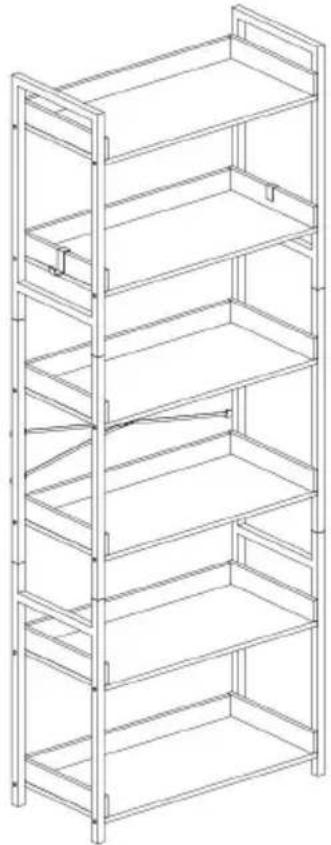

Line drawing of a multi-tiered metal shelving unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or so updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recommend using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Metal Bookshelves.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Metal Bookshelves.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	YJX-BS003
Product Dimensions (LxWxH)(mm)	300*650*1750
Net Weight(kg)	About 17.06

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

1×2	2×2	3×2	4×2
5[mm]×8	6×4	7×1	8×6
9×12	10×6
AM6×12mm ×36	BM5×50mm ×66	CM3 ×1	DM4 ×1
EM6 ×4	F[CBX8]×2

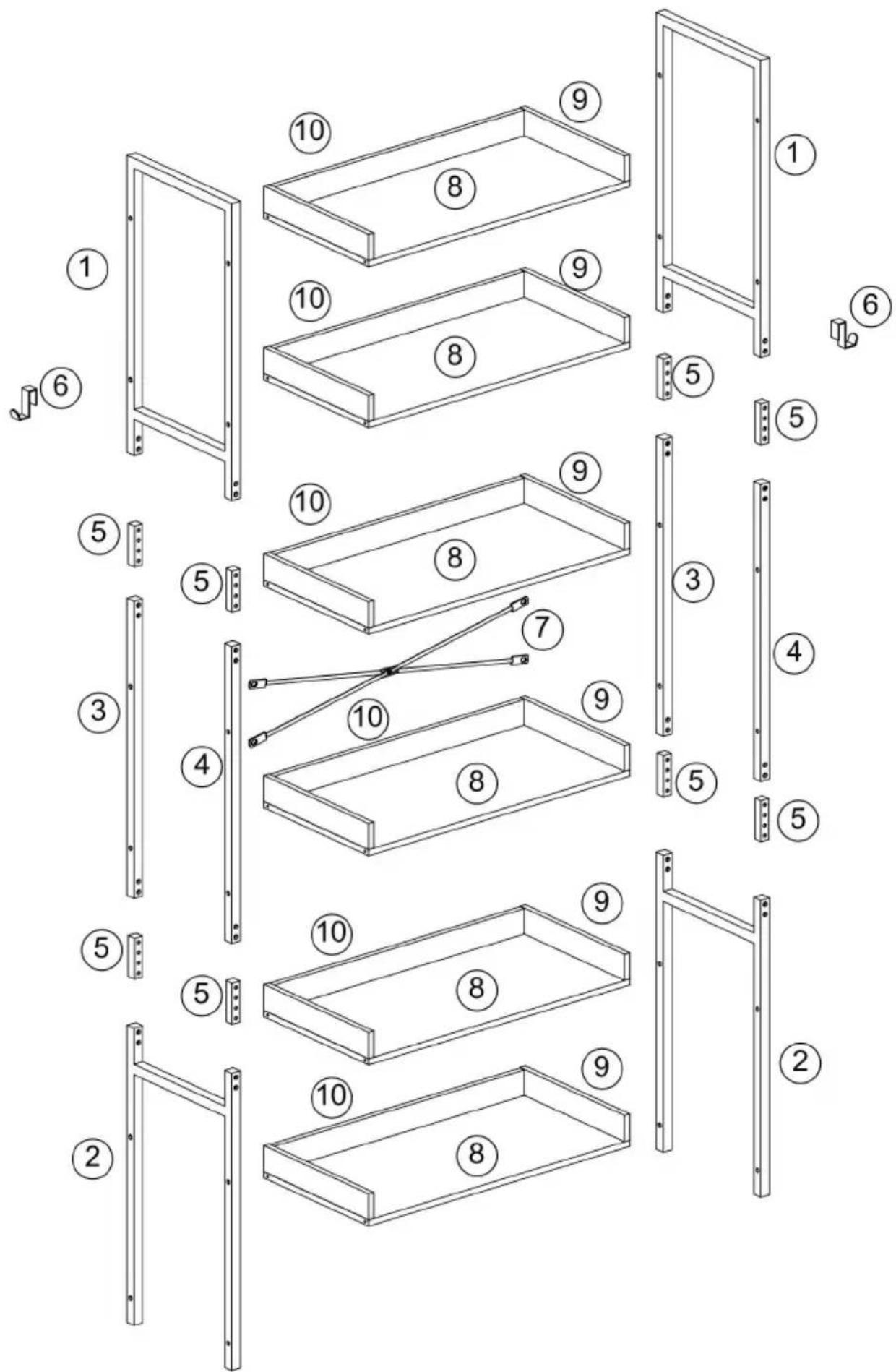

Technical diagram of a multi-panel storage or rack system with numbered components and structural connections

ASSEMBLY STEPS

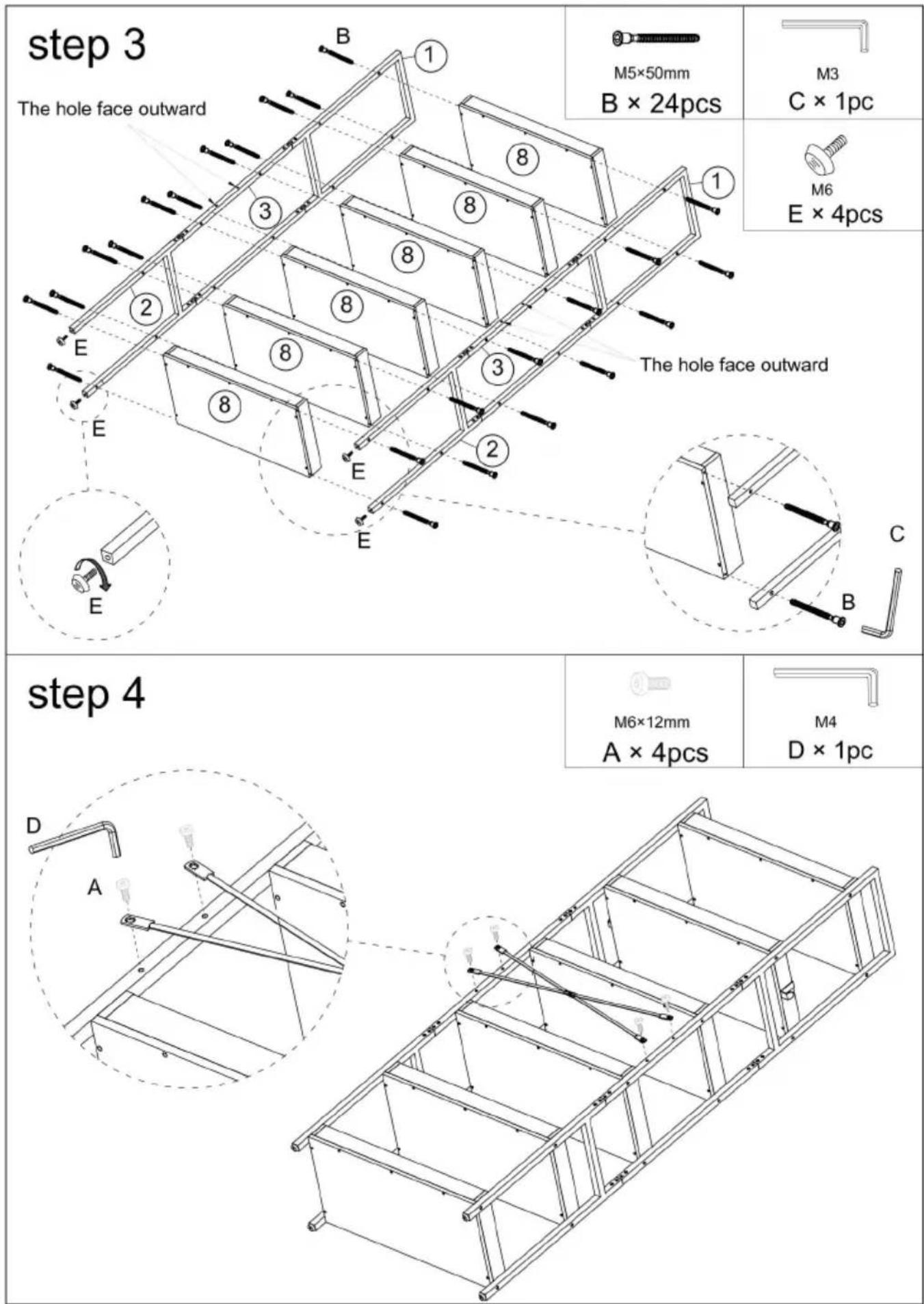

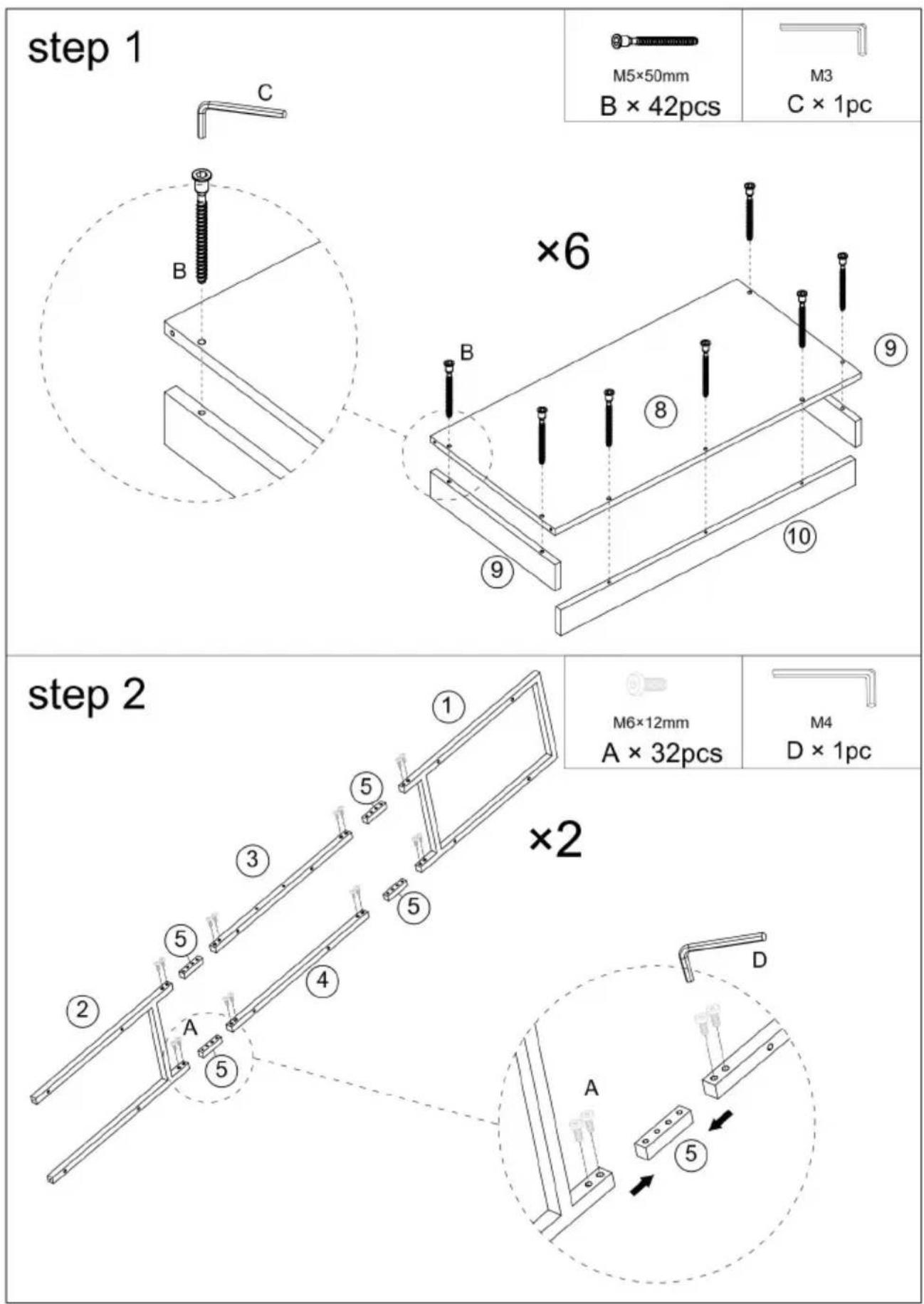

step 1 M5×50mm B × 42pcs M3 C × 1pc ×6 9 ⑨ ⑩ step 2 M6×12mm A × 32pcs M4 D × 1pc ×2 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝

step 3 The hole face outward M5×50mm B × 24pcs M3 C × 1pc M6 E × 4pcs The hole face outward C B step 4 M6×12mm A × 4pcs M4 D × 1pc

step 5

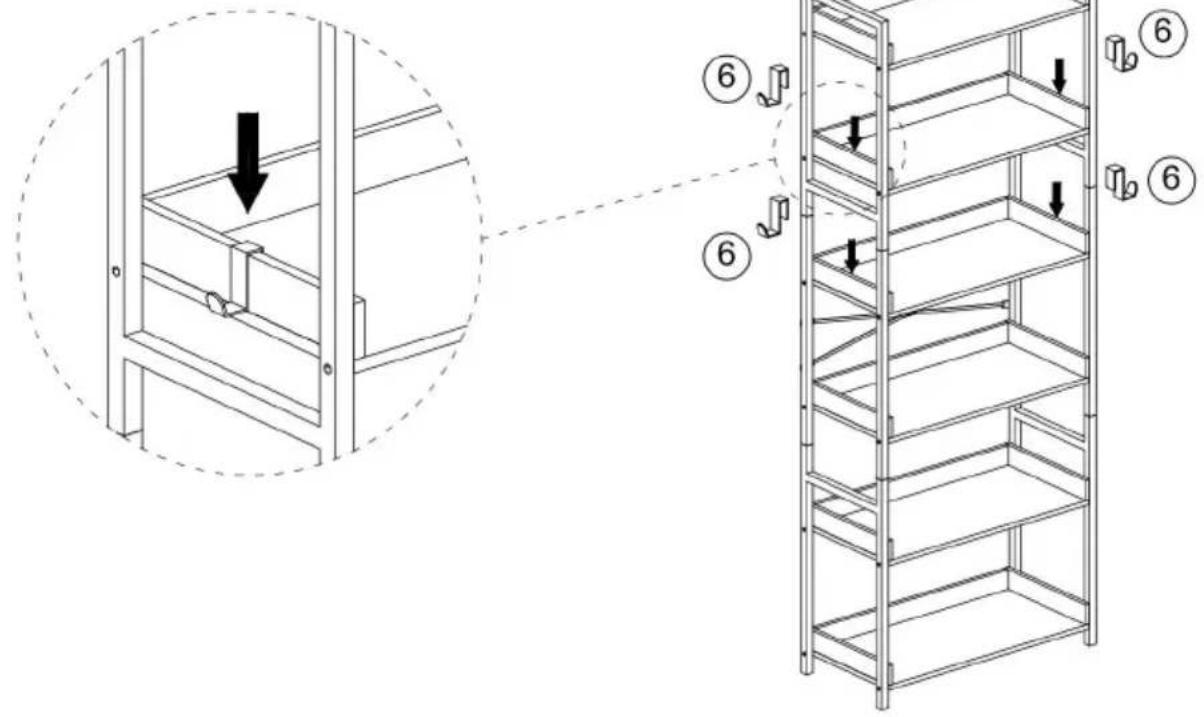

Technical diagram showing structural change of a metal shelving unit with labeled components and directional arrows

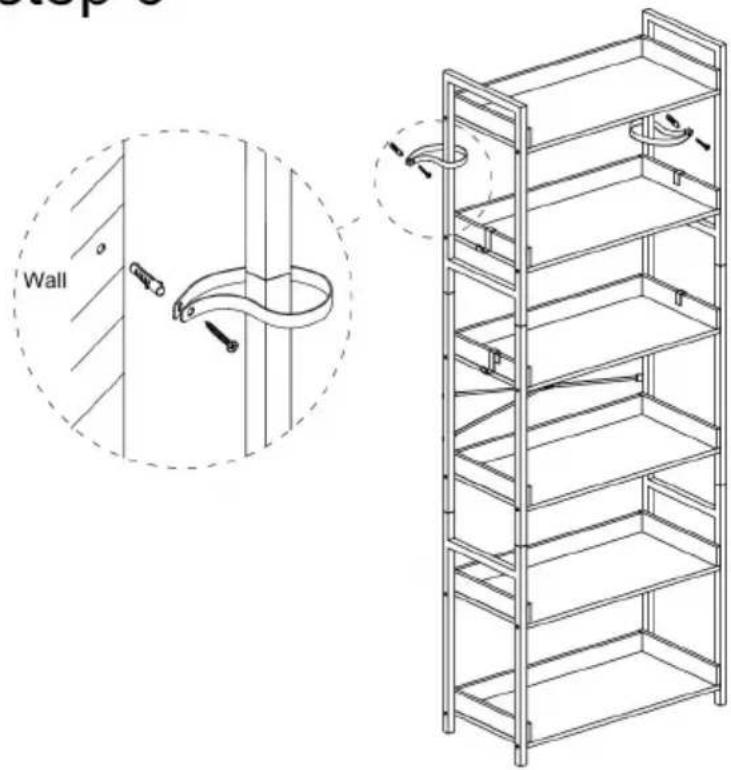

step 6

Wall

COMPLETION

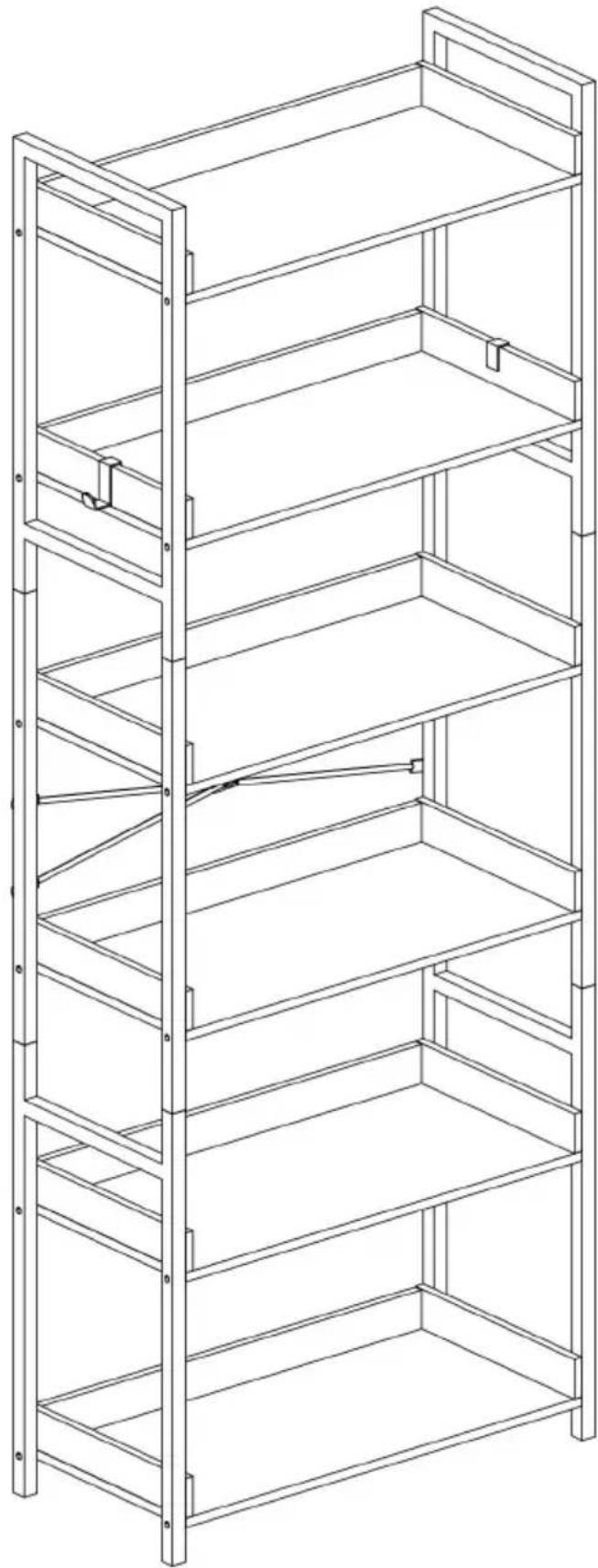

Line drawing of a multi-level metal shelving unit with no text or symbols

WARNING

Symbol of a person climbing a slope with a diagonal line, enclosed in a circle (no text or numbers present)

Children have died from furniture tipover. To reduce the risk of furniture tipover:

• ALWAYS install tipover restraint provided.
• NEVER put a TV on this product.
• NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
• NEVER open more than one drawer at a time.
• Place heaviest items in the lowest drawers.

TV

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
