Product Type	Set of 3 wood turning tools (model WD350-3)
Brand	Vevor
Contents	3 tools (rougher, finisher, detailer) + 6 carbide inserts + Allen key

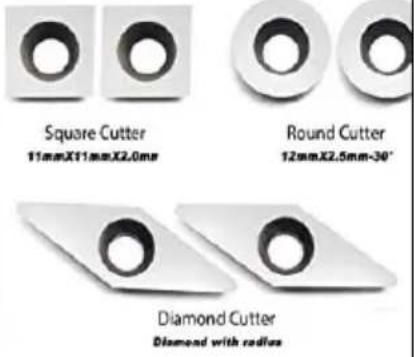

Carbide inserts provided	2 round 12 mm, 2 square 1x11x2 mm, 2 diamond VEMN160208
Total length	320 mm
Tool bar length	120 mm (4.72 in)
Wooden handle length	200 mm (7.87 in)
Handle material	Beech
Rod material	Quality alloy
Blade material	Carbide
Main functions	Roughing, finishing, detailing (V-grooves, curves, carvings)
Recommended use	Small to medium wood turning projects (pens, decorations, bowls, handles)
Ergonomic design	Curved handles to reduce fatigue
Replaceable blades	Yes, tighten/loosen with Allen key to rotate or replace
Maintenance and cleaning	Clean after each use; keep tools clean to extend their lifespan
Safety	Wear safety glasses; do not use if damaged; keep out of reach of children; clean, dry, well-ventilated workspace; do not use in flammable or explosive environment; ensure tool is securely installed; avoid excessive force
Target audience	Beginners as well as experienced DIYers
Certification	Electronic support and warranty certificate
Warranty	See Vevor support (www.vevor.com/support)
Spare parts and repairability	Replacement blades available (references provided); easy user replacement

Frequently Asked Questions - WD350-3 Vevor

How to replace a blade on the Vevor WD350-3 set?

Use the supplied Allen key to loosen the nut, then rotate the blade to a sharper area or replace it with a new insert. Tighten the nut firmly.

What types of wood can be machined with these tools?

They are suitable for a wide range of wood panels and wood products, including hard and soft woods for small to medium-sized projects.

Are the blades sharpenable or disposable?

The carbide inserts are disposable and do not require sharpening. When they become dull, simply replace them with new ones.

What is the difference between the rougher, finisher, and detailer?

The Rougher is for rapid roughing and shaping of external radii; the Finisher provides smooth and clean cuts; the Detailing tool allows complex detail work (grooves, curves, carvings).

Can I use these tools on a metal lathe?

These tools are designed for wood turning. Their use on a metal lathe is not recommended and could damage the tool or the workpiece.

How to maintain the tools to extend their lifespan?

After each use, clean the blades and handles with a dry cloth. Store them in a dry place. Replace the blades as soon as they become dull.

Are the handles comfortable for prolonged use?

Yes, the handles are ergonomically curved to fit the hand and reduce fatigue during long turning sessions.

What is the diameter of the tool shaft?

The round shaft, 120 mm long, has a standard diameter suitable for most woodworking machines and drilling devices. The exact dimension is not specified, but it is compatible with common wood lathes.

Are the carbide inserts readily available for replacement?

Yes, Vevor provides references for the inserts (round 12 mm, square 1x11x2 mm, diamond VEMN160208). You can purchase them from the manufacturer or authorized resellers.

Is this set suitable for beginners?

Absolutely. It is designed to be easy to use and suitable for both beginners lacking confidence and experienced DIYers looking for a supplementary tool.

USER MANUAL WD350-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LATHE TURNING TOOL

MODEL:WD350-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:WD350-3

Three metallic tools with brass fittings, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

VEVOR Wood Turning Tools for Lathe 3 PCS Set, Carbide Lathe To Diamond Shape, Round, Square Cutters, Turning Lathe Chisels with Comfortable Grip Handles Lathe Tools for Craft DIY Hobbyists.

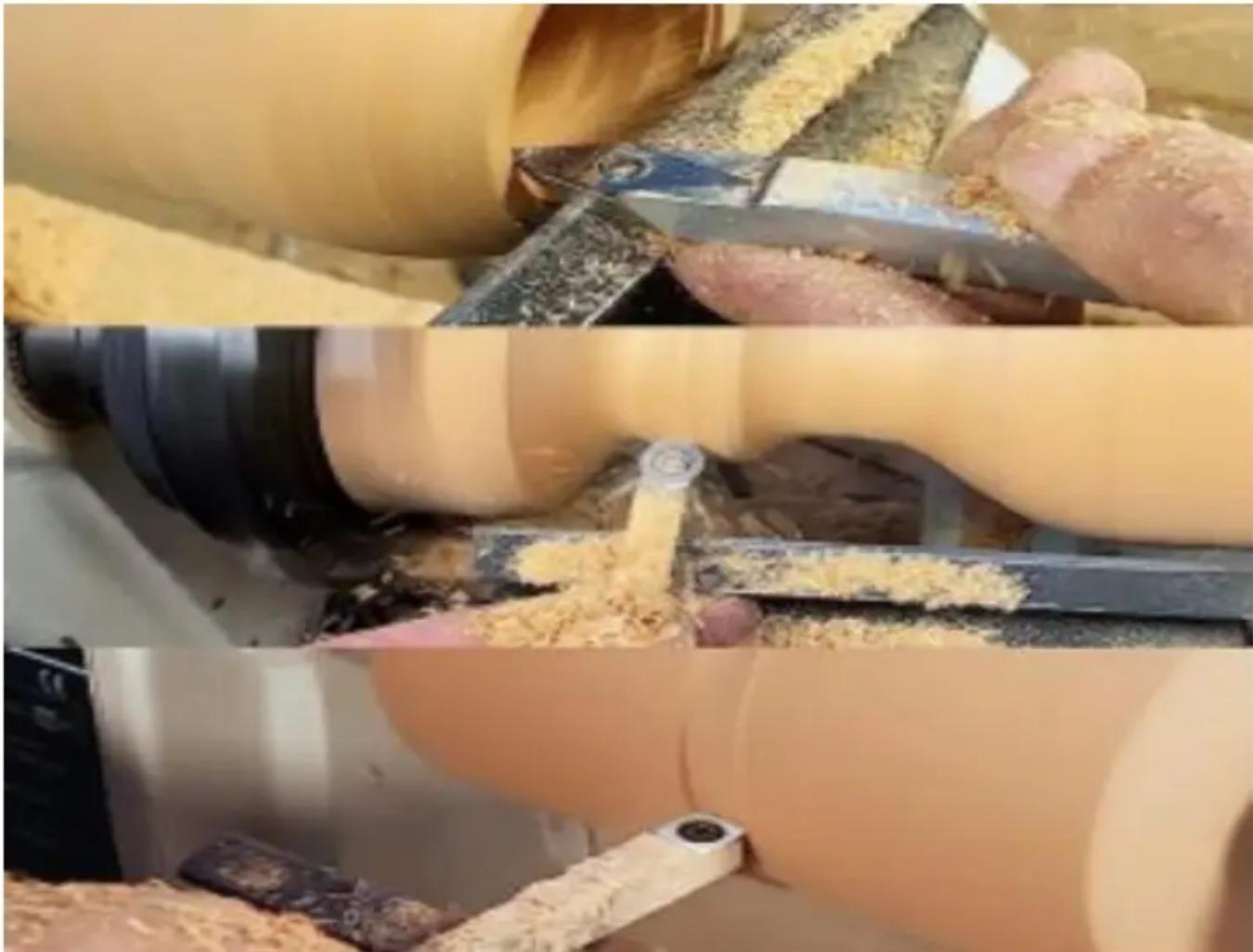

Three-panel photo collage showing hands using a cutting tool, with visible wood shavings and a small object in the foreground (no text or symbols)

Safety Notice

WARNING!

Before using this product, please read instructions carefully and understand the specifications.

• Inspect before every use; do not use if damaged.
• Keep away from children.
• When using this product, be sure to wear personal protective equipment such as protective goggles to prevent accidental injury.
• When using this product, pay attention to keep the lathe turning to clean to prolong the service life.
• When using this product, do not put your fingers or other objects the lathe turning tool to avoid injury.
• Please don't use lathe turning tool head instead of a hammer to s
• Use the product only after receiving professional metalworking training.
• Ensure that the workspace remains clean, dry, and well-ventilated during operation.
• Do not use the anvil in flammable, explosive, or damp environment
• To reduce the risk of injury when using it, Ensure that the lathe tool is securely installed and stable to prevent movement or tipping during use.
• Follow safe operating procedures when using the lathe turning tool, avoiding excessive force or incorrect techniques.
• Scope of application: This product series can be used in a variety wood panels, wood products. Round shanks are easy to install artighten, preventing drill bit slipping. The round shank fits any electromachine and drilling rig

SAVE THESE INSTRUCTIONS

• [TOUGH & DURABLE] - The lathe tools include a rougher, a finish and a detailer, which make quick work of anything on your lathe. one of them is made up of a quality alloy shaft, a beech handle sharp carbide tip, featuring long service life.
• [SHARP & ACCURATE] - The wood lathe tools set will provide small and clean cuts with 3 types of cutters together which are designed different grinding effects. Importantly, it saves you a bunch of time grinding and honing, because you can easily replace these blades when they get dull.
• [ERGONOMIC DESIGN] - The wood lathe turning tools are designed with handles of a curved shape that fits your hand well, and reli the fatigue during a long time working.

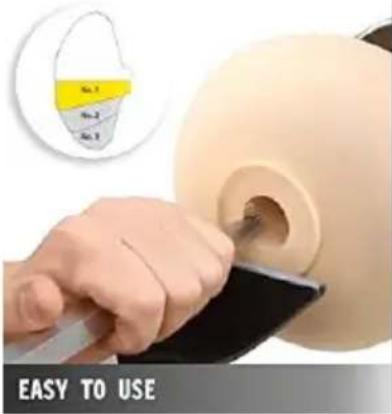

• [EASE OF USE] - The woodturning tools set ensures a good entry-level setup and use. It is made exactly for you, a beginner lacking confidence or a craft hobbyist in need of an alternative op to complement your tools.
• [WIDE APPLICATION] - The delicate wood chisels for lathe can cu v-grooves, do curves and coves, and carve lines.

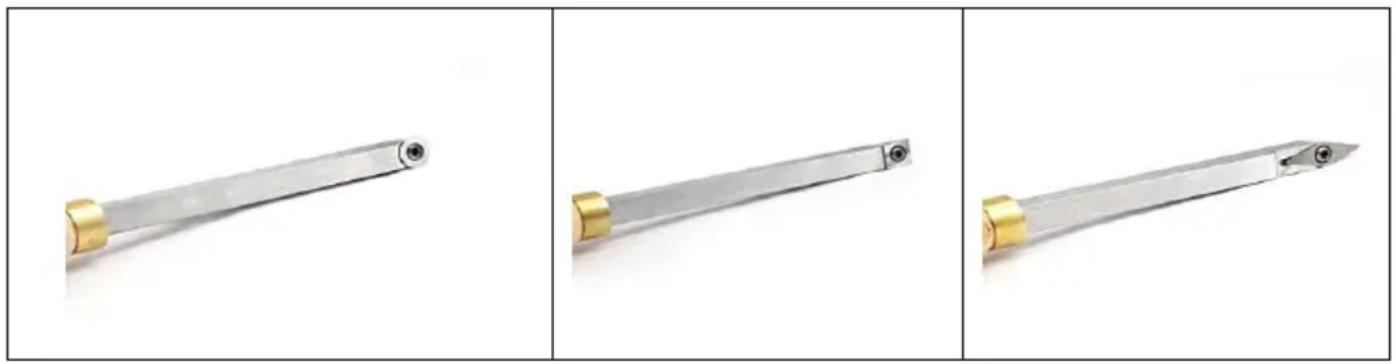

Three views of a metallic tool with gold fittings, shown from different angles (no text or symbols visible)

Turner & Hollower&Finsher-Convenient & Effective Perfect for small and mid s projects, such as pens, Christmas ornaments, bottle stoppers, handles and bowls. Quickly turned and hollowed the desired shape with this	Rougher- Make Roughing easier In addition to roughing you'll notice the Rougher is a great t for shaping the outsi radius of a bowl and for turning beads on spindle turnings. Makes roughing faster, simpler and safer	Detailer- Intricate Detal WorkAs you use this tool will soon see the wonderful small details that can added to yo turnings. It will quickly become 1 of your favorite tools and use regularlyPerfectly to small intricate detail work, w be used on every turning
Dimension: Length of Tool B 4.72"(120mm), Length of wood handle: 7.87"(200mm), Overall length 12.6"(320mm) Combo Set Include: 3 Piece Wood Turning Tools(Mini Finisher/Rougher/Detailer),Car bide Insert Cutters And Aller Key	Easy to Use The woodturning chisel set stands out for its ease of use. Take a key (included in the package) to loosen the nut, and then rotate the blade to a sharper area, o replace the blade	come with 6pcs carbio inserts2pcs Round 12mm carbide cutters2pcs Square 11 × 11 2.0mm carbide cuttes2pcs diamond VEMN160208 carbide blades

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : WD350-3

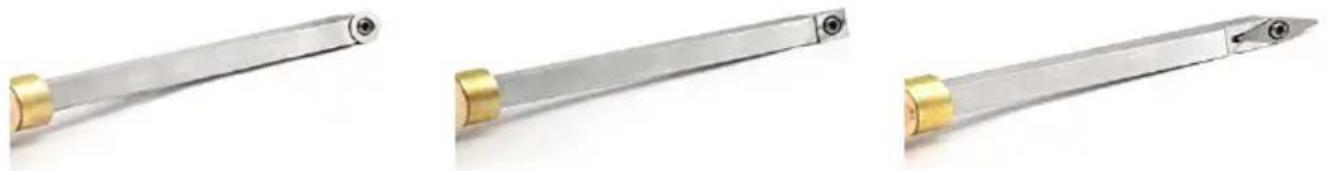

Three views of a metallic tool with brass fittings, shown from different angles (no text or symbols visible)
