USER MANUAL 3870 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
LATHE TURNING TOOL

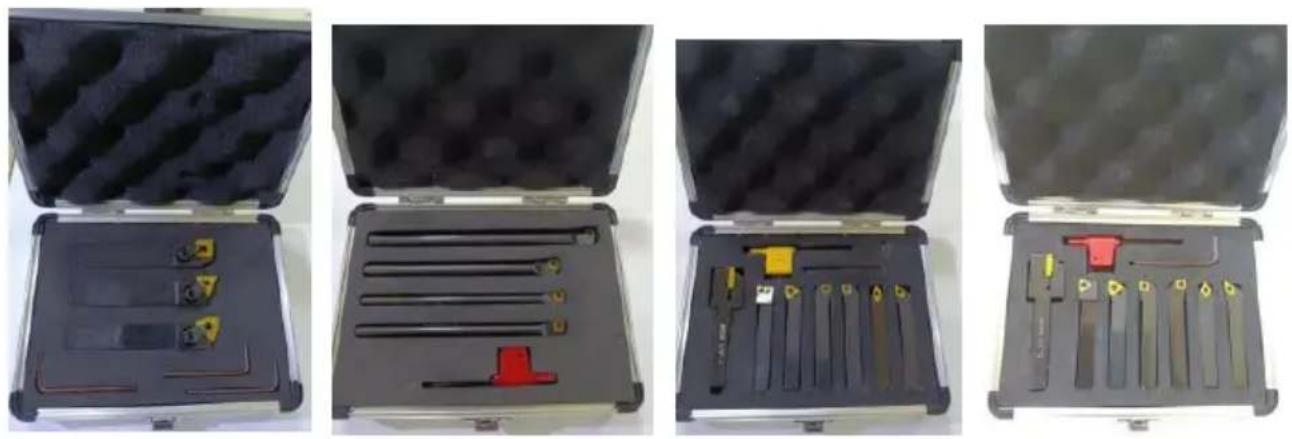

MODEL:5830/1440/1270/3870
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
LATHE TURNING TOOL
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY NOTICE
WARNING!
- Before using this product, please read instructions carefully and understand the specifications.
- Inspect before every use; do not use if damaged.
- Keep away from children.
- When using this product, be sure to wear personal protective equipment such as goggles to prevent accidental injury.
- When using this product, pay attention to keeping the lathe turning clean to prolong the service life.
- When using this product, do not put your fingers or other objects lathe turning tool to avoid injury.
- Please don't use lathe turning tool head instead of a hammer to
- Use the product only after receiving professional metalworking training
- Ensure that the workspace remains clean, dry, and well-ventilated operation.
- Do not use the anvil in flammable, explosive, or damp environme
- To reduce the risk of injury when using it, Ensure that the lathe tool is securely installed and stable to prevent movement or tipping d use.
- Follow safe operating procedures when using the lathe turning tool, avoiding excessive force or incorrect techniques.
SAVE THESE INSTRUCTIONS
| MODEL | P-type | Insert | L*H*B(mm) | Insert thickness (mm) | Material | ||
| Designation | Quantity | Designation | Quantity | ||||
| 5830 | MCLNR1616H12 | 1 | CNMG120412-T M | 1 | 100* 16*16 | 4.92 | 40Cr, GW30 25 |
| MTGNR1616H1 6 | 1 | TNMG160404 | 1 | 5.04 | |||
| MWLNR1616H0 8 | 1 | WNMG080404 | 1 | 4.91 | |||
| 1440 | S12M-SCLCR06 | 1 | CCMT06 | 10 | Φ*L : Φ 12* | 2.52 | |
| S10K-SCLCR06 | 1 | CCMT06 | Φ*L : Φ 10* | ||||
| S08K-SCLCR06 | 1 | CCMT06 | Φ*L : Φ8*125 | ||||
| S07K-SCLCR06 | 1 | CCMT06 | Φ*L : Φ7*125 | ||||
| 1270 | SCLCR1/2" | 1 | CCMT09T304 | 1 | 100* 12.7* 12.7 | 4.12 | |
| SCLCL1/2" | 1 | CCMT09T304 | 1 | 100* 12.7* 12.7 | 4.12 | ||
| SDJCR1/2" | 1 | DCMT11T304 | 1 | 100* 12.7* 12.7 | 4.19 | ||
| SER1/2"-16 | 1 | 16ER1 .5ZSO | 1 | 100* 12.7* 12.7 | 3.66 | ||
| SDNCN1/2" | 1 | DCMT11T304 | 1 | 100* 12.7* 12.7 | 4.19 | ||
| MGEHR1/2"-3 | 1 | MGMN300 | 1 | 100* 12.7*15 | 2.99 | ||
| SWGCR1/2" | 1 | WCMX06T308 | 1 | 100* 12.7* 12.7 | 4.05 | ||
| 3870 | SCLCR3/8" | 1 | CCMT060204 | 1 | 70*9.5*9.5 | 2.52 | |
| SCLCL3/8" | 1 | CCMT060204 | 1 | 70*9.5*9.5 | 2.51 | ||
| SDJCR3/8" | 1 | DCMT07T304 | 1 | 70*9.5*9.5 | 2.64 | ||
| SER3/8"-11 | 1 | 11ER1.5ZSO | 1 | 70*9.5*9.5 | 3.21 | ||
| SDNCN3/8" | 1 | DCMT07T304 | 1 | 70*9.5*9.5 | 2.5 | ||
| MGEHR3/8"-2 | 1 | MGMN200 | 1 | 70*9.5* 10 | 1.66 | ||
| SWGCR3/8" | 1 | WCMT050304 | 1 | 70*9.5*9.5 | 3.41 | ||
