USER MANUAL XRJ4LX1 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
SLUSH MACHINE

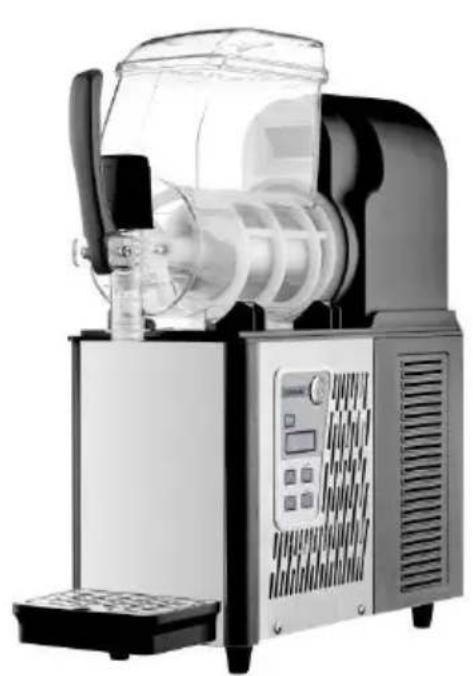

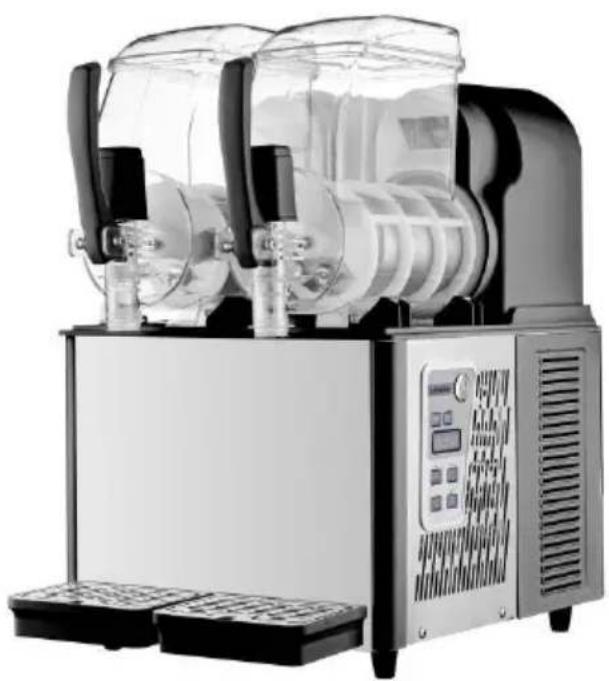

MODEL: XRJ4LX1 XRJ4LX2
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.
MODEL: XRJ4LX1 XRJ4LX2


NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.
![]() | Warning-To reduce the risk of injury,user must read instructions manual carefully. |
![]() | CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, in interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliant could void the user's authority to operate the product.Note: This product has been tested and found to comp the limits for a Class B digital device pursuant to Part FCC Rules, These limits are designed to provide reason protection against harmful interference in a residential installation.This product generates, uses and can radiate radio fre energy, and if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or tele reception,which can be determined by turning the product and on, the user is encouraged to try to correct the i by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differen to which the receiver is connected.• Consult the dealer or an experienced radio/TV technic assistance. |
![]() | This product is subject to the provision of European Di 2012/19/EC.The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union.This applies to the pro and all accessories marked with this symbol.Products m as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices |
Instructions
Thank you very much for choosing this slush machine. The slush machine is a kind of machine and equipment widely used in the food industry and catering industry. It is mainly through the frozen juice, milk or yogurt and other beverages frozen into a sorbet, and will be cut into fine particles through the scraper, made of soft taste snow ice! Please read all of the instructions before using it. The information will help you achieve the possible results.
Contents
- Introduction 1.1. Manufacturer. 1.2. Operator. 1.3. Manual distribution 1.3.1 Function and content 1.3.2 Who to read manual 1.3.3 How to keep manual
- Machine description 2.1. Usage
2.2. Main Component
2.3. Technical data
2.4. Control panel
- Safety manual
- Transportation and storage
4.1. Packing
4.2. Transportation
4.3. Storage
- Installation
5.1. Parts list
5.2. Position to install
5.3. Handling package material
5.4. Connect power
- Operation
6.1. Preparing material and stirring evenly
6.2. Starting a 1-BOWL SLUSH MACHINE Model: XRJ4LX1
6.3. Starting a 2-BOWL SLUSH MACHINE Model: XRJ4LX2
6.4. Dispensing slush
6.5. Emergency
- Cleaning and maintenance
7.1. Empty Bowl
7.2. Disassembling the dispensing tap
7.3. Move out bowl and cover
7.4. Clean and disinfect parts

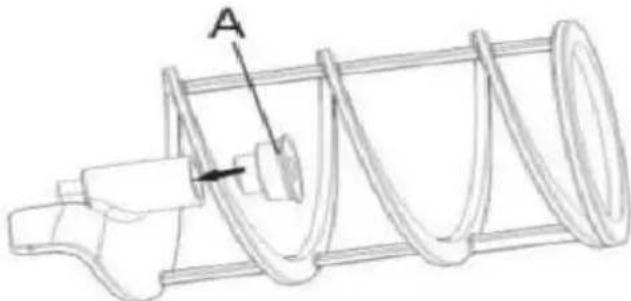

7.5. Reset cleaned parts
7.6. Clean step
7.7. Cleaning drip tray
7.8. Replace bulb
7.9. Clean condenser
7.10. Scheduled maintenance
- Waste treatment
- Troubleshooting
9.1. Fault Codes and Solutions For Slush Machine

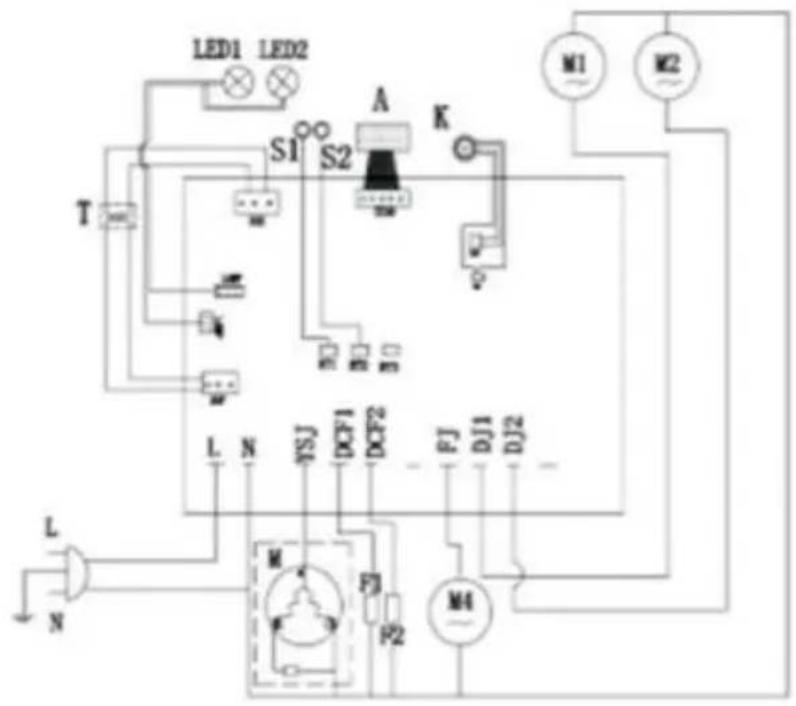

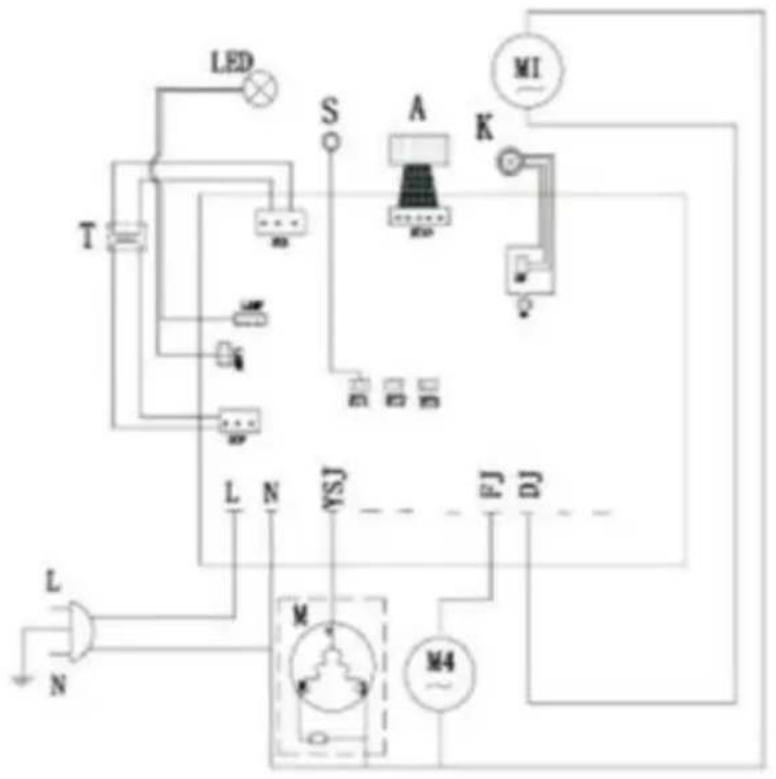

- Intelligent electronic valve system
- Slush machine explosive diagram
1. Introduction
1.1 Manufacturer
The manufacturer's details are shown on the identification plate
1.2 Operator
Based on different applications, there are two types of persons.
User
In accordance with health standards, people trained in complex techniques,
Know all to distribute slush have below ability after reading this manual
Place and change slush machine Properly dispensing the products
Cleaning the slush machine
Specialized technical people
Studied this manual and trained how to install, use and maintain this machine;
When serious fault, can repair the slush machine and know this manual well
Master all information of the manual and can explain the diagrams and graphs correctly;
Know important hygienic knowledge well, prevent accident concurring, know technical and safety standard
Have experience to serve this kind of slush machine.
Master treatment measure to emergency. ind separated safety device use the machine correctly

People are banned to use the machine who do not accord w above requirement
1.3 Manual distribution
Users have to read this manual carefully before using.
1.3.1 Function and content
Offer vital information of using and installing
1.3.2 Who should read this manual
Users and specialized technical personnel.
This manual is an integral part of the machine.
It must be handed over to the purchaser upon sale.
1.3.3 How to store the manual
The manual should be kept near the machine, intact and clean.
2. Machine description
2.1 Intended use
This machine is specifically designed for making slush. If used for other foods, the temperature of the bowl material must be tested and must comply with the machine's current regulations and standards.
2.2 Main components

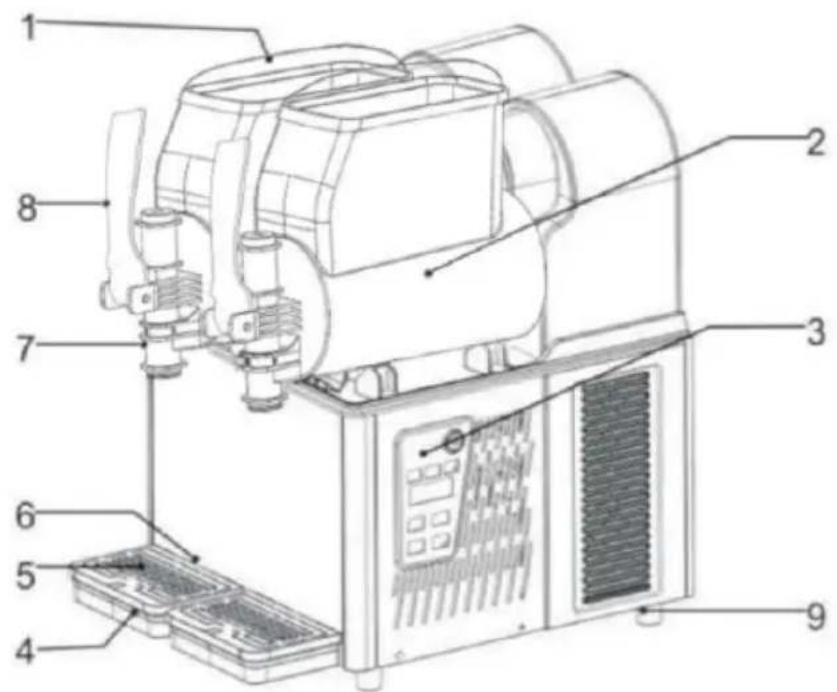

| 1.Bowl roof2.Bowl3.Control panel | 4.Drip tray5.Drip tray cover6. Drain hose | 7. Tap8. Handle9. Machine foot |

Fig. 1

In this manual, the following items are referred to:
XRJ4LX1, one-bowl slush machine
XRJ4LX2, two-bowl slush machine

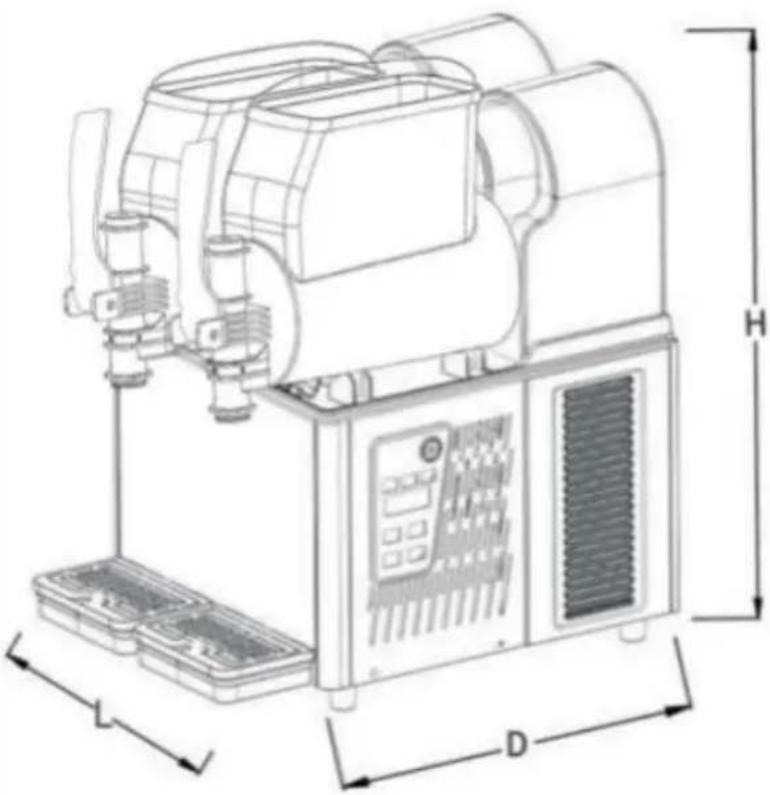

2.3 Technical specifications
| Mode | XRJ 4LX1 | XRJ 4LX2 |
| Size L*D*H (CM) | 20X49x 55 | 36X50x 56 |
| Net weight (kg) (Bowl empt) | See nameplate | |
| Power (w) | See nameplate | |
| Liquid Temperature | Min: 20°C/68°F Max: 32°C/89°F | |
| Bowl | 1 | 2 |
| Bowl (L) | 4 | 8 |
| Operating Noise | < 65 decibel | |
| Climate | N | |

The manufacturer reserves the right to make changes without prior notice.

Any changes and additions must be approved and carried out by the
manufacturer.

Fig.2

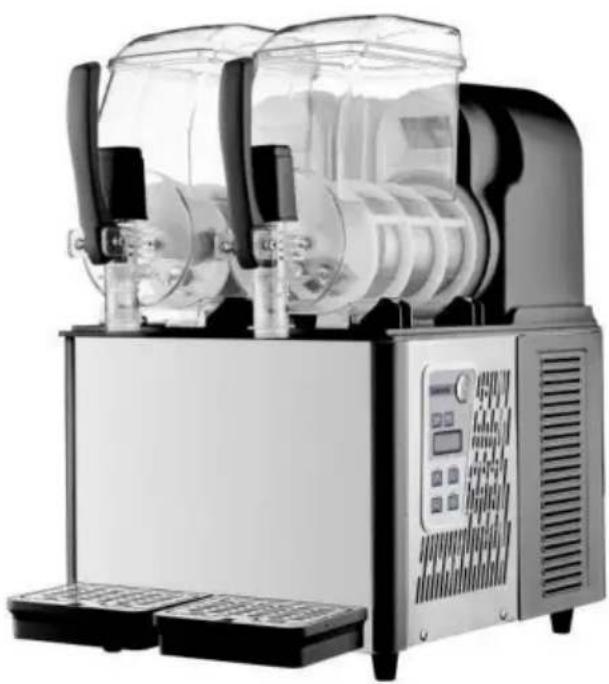

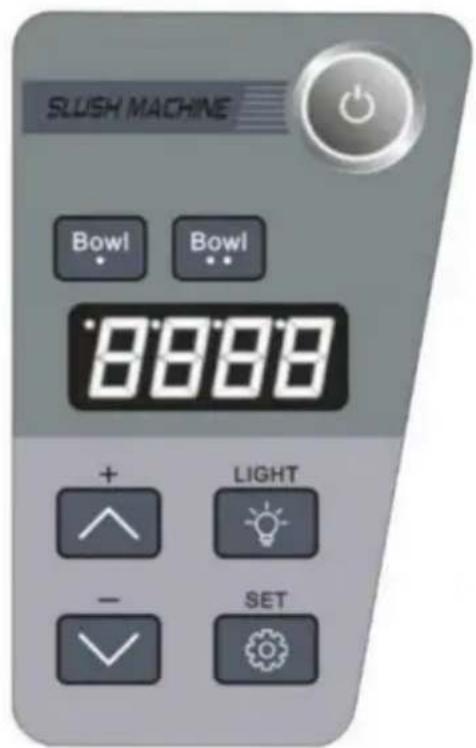

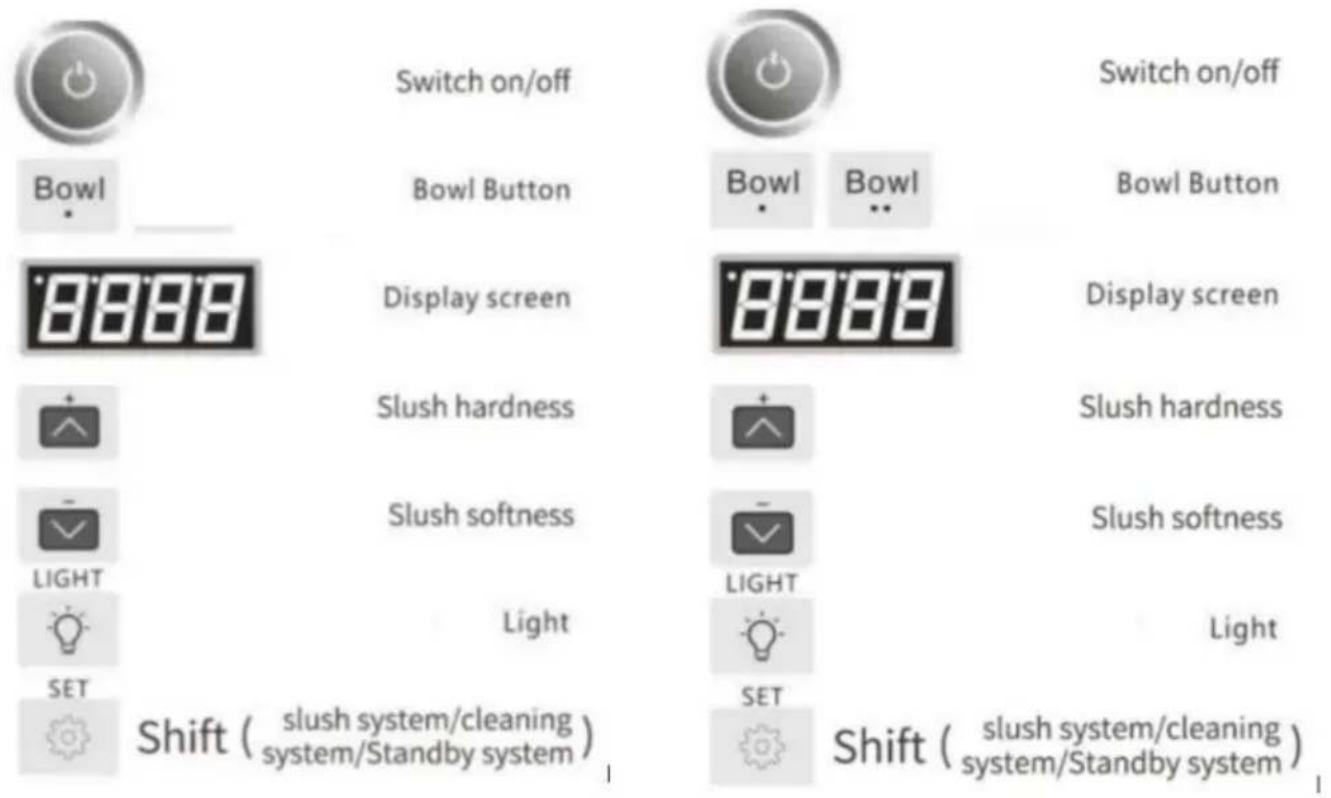

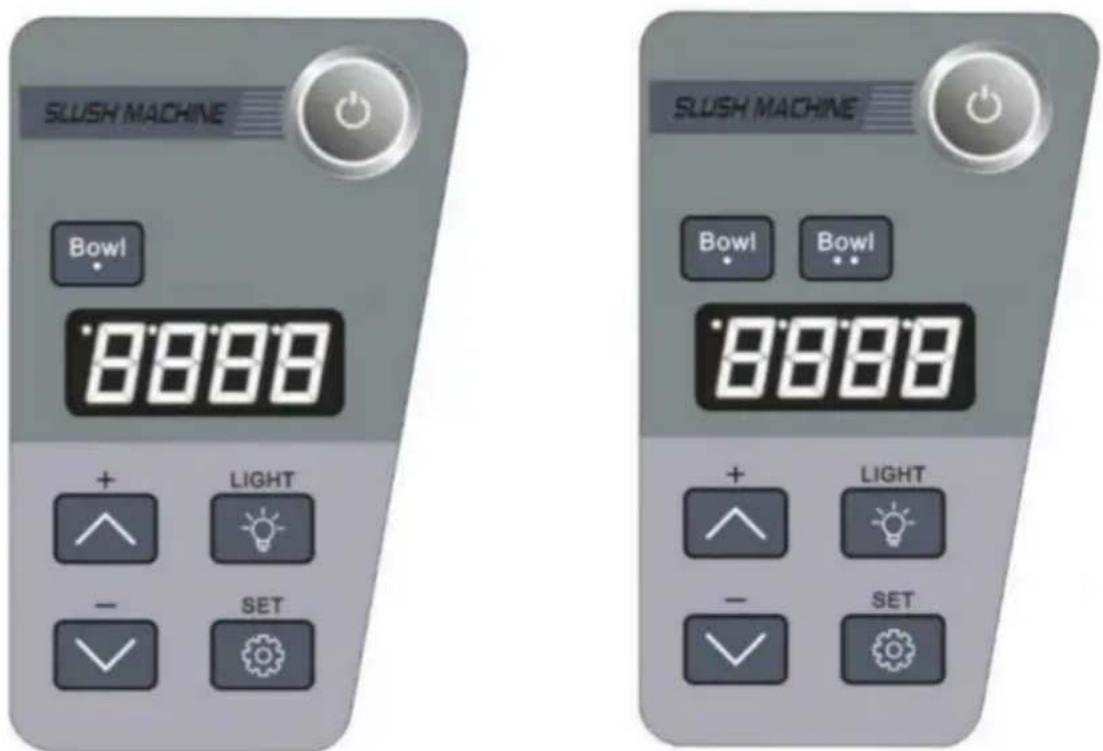

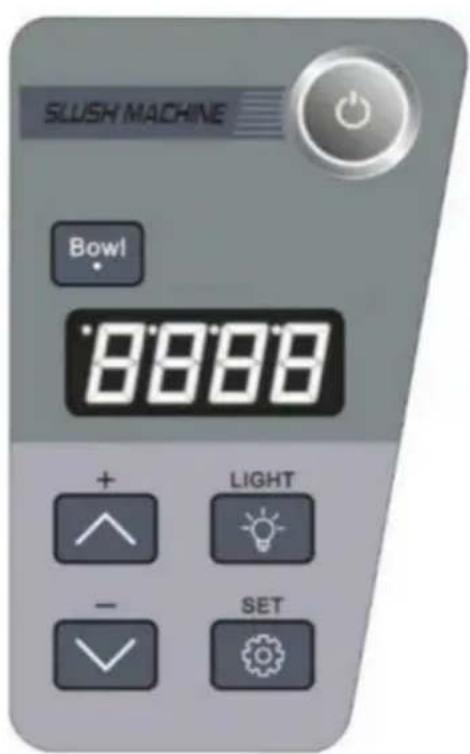

2.4 Control panel
Fig.3

3. Safety manual
Installation of slush machine parts and condenser, troubleshooting, and maintenance must be performed by qualified professionals from the manufacturer who have relevant experience. Without supervision or guidance from experienced personnel, the slush machine should not be used by individuals with disabilities, sensory impairments, mental disabilities, or those lacking experience and knowledge. Children must be supervised when near the machine. If the machine's power cord is damaged, it must be replaced by the manufacturer's professionals or qualified individuals. When the machine is scrapped, it must be delivered to and handled by the relevant authority.
4. Transportation and storage
4.1 Packing
Wooden box, contoured foam, and collective packaging.
Packing size (approximate)
| Width(L) | Depth (D) | Hight (H) | |
| XRJ4LX1 | 310mm | 700mm | 720mm |
| XRJ4LX2 | 460mm | 695mm | 740mm |

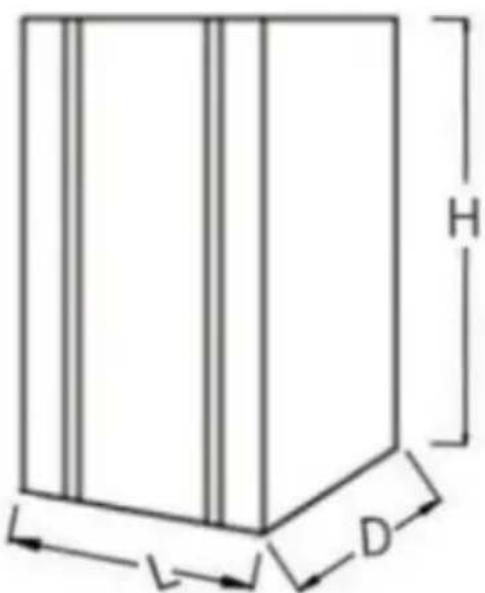

Fig.4

Remarks: Packing size and weight are approximate.
4.2 Transportation
Keep upright and carried by at least two people.
4.3 Storage
Note: do not stack more than three layers. See Fig. 5.

Fig. 5
5. Installation
The slush machine must be installed indoors on a hard, level surface with adequate lighting and ventilation (ground inclination must not exceed 1 degree).
5.1 Parts list
After cleaning and disinfecting, all indicated parts in the manual must be coated with lubricating oil.
5.2 Installation position
The installation position must be planned in advance.
The installation surface must be hard and level.
The installation area must have adequate lighting, ventilation, and cleanliness; a power socket is also required.

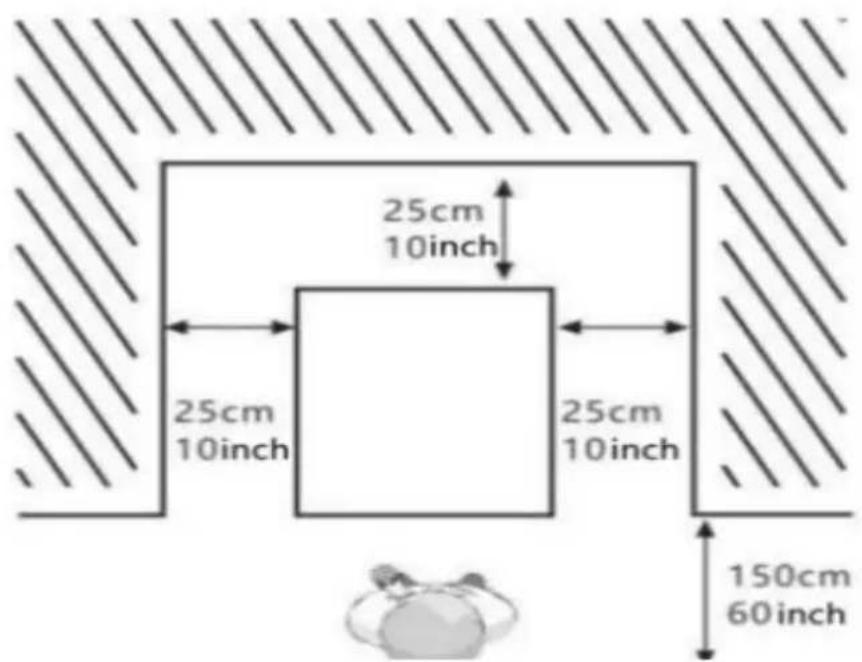

The installation distance from other objects is shown in Fig. 6 below.

Fig. 6
5.3 Handling packaging material
Handle packing material separately according to local regulations. We suggest keeping it to repack and ship in the future.
5.4 Connect power
Ensure the slush machine is off before connecting power. Then plug it in to connect power.
Data can be referred to from the machine's back nameplate.
Warning: The socket must be placed within the user's reach so that the plug can be quickly disconnected in an emergency without using other tools.
6. Operation
Warning
| Frozen DrinkPercentage of juice Powder: ≥10° | SLS 0132°F~44.6°F(0°C~7°C) |
| SlushyPercentage of sugar: ≥15% | SLS 02-SLS 0528°F~23°F(-2.2°C~-5.2°C) |
| Margarita Wine SlushPercentage of liquor: 10%-45% | SLS 06-SLS 1521°F~9°F(-6.2°C~-13°C) |
Note:
- The liquor generally refers to 40% alcohol by volume.
- The SLS xx will blink when the gear is adjusted, and the machine automatically saves the setting after 5 seconds. After that, the display flashes and the temperature of the liquid in the cylinder is displayed in degrees Celsius, e.g., xx°F.
- When the temperature inside the bowls is very low, there will be frost on the outside of the bowls, which is normal.
- At low temperatures, the spout may freeze. Just cast a brush toward the spout and the slush/margarita wine slush/ice cream will flow out properly.

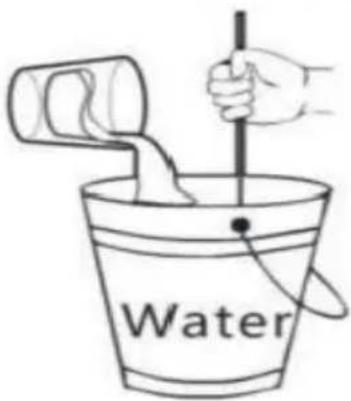

6.1 Preparing material and stirring evenly
Only water is prohibited.

Fig.7
Attention
Operate under Manufacturer direction;
Dilute and stir concentrated liquid with water in a container
Mixture sugar content should be >15%
Lower content will damage the augers and gear motors
If you need to make alcohol slush, pour appropriate percentage of all into the container according to your needs
Remove the lid as per the following steps
- Lift the top lid;
- Pour the material into bowls

Warning
Hot liquid cannot be put in (hot liquid means temperature exceeds 40°C). Material level cannot exceed maximum height level.
- Close the top lid after pouring the material

- Warning: Before connecting power or starting the machine, put material into the bowl
- Material cannot be just water.
- Warning: Do not put your hand in the bowl while the machine is operating.
6.2 Starting a 1-Bowl Slush Machine Model: XRJ3LX1

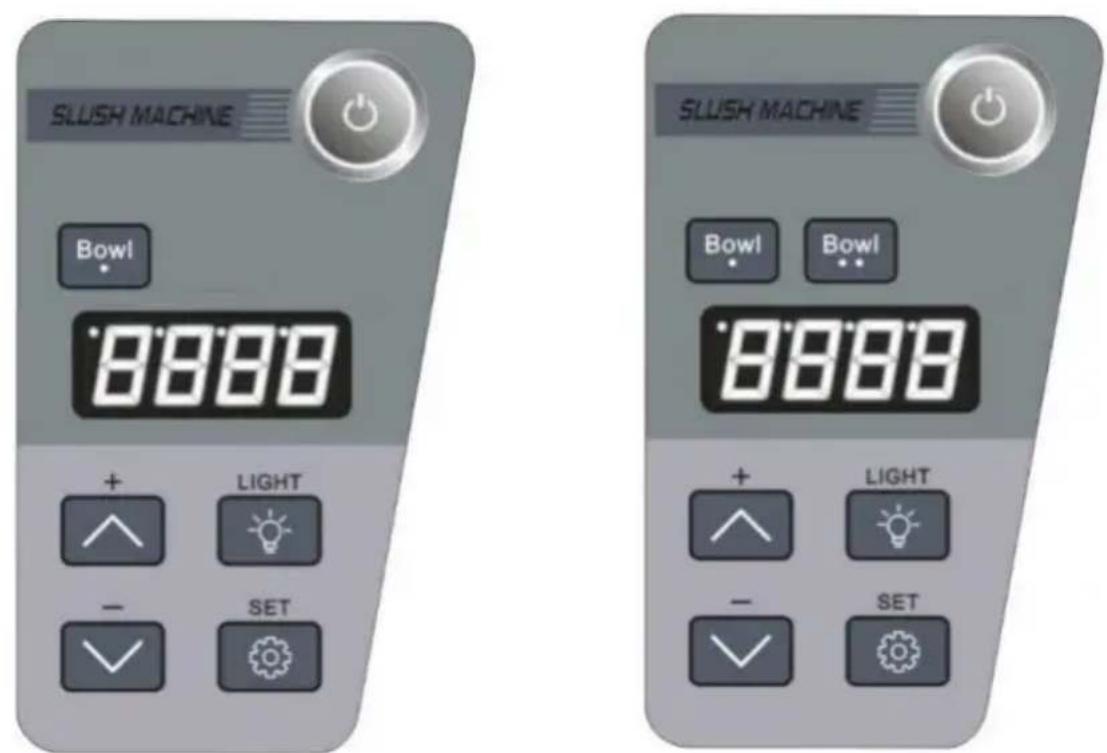

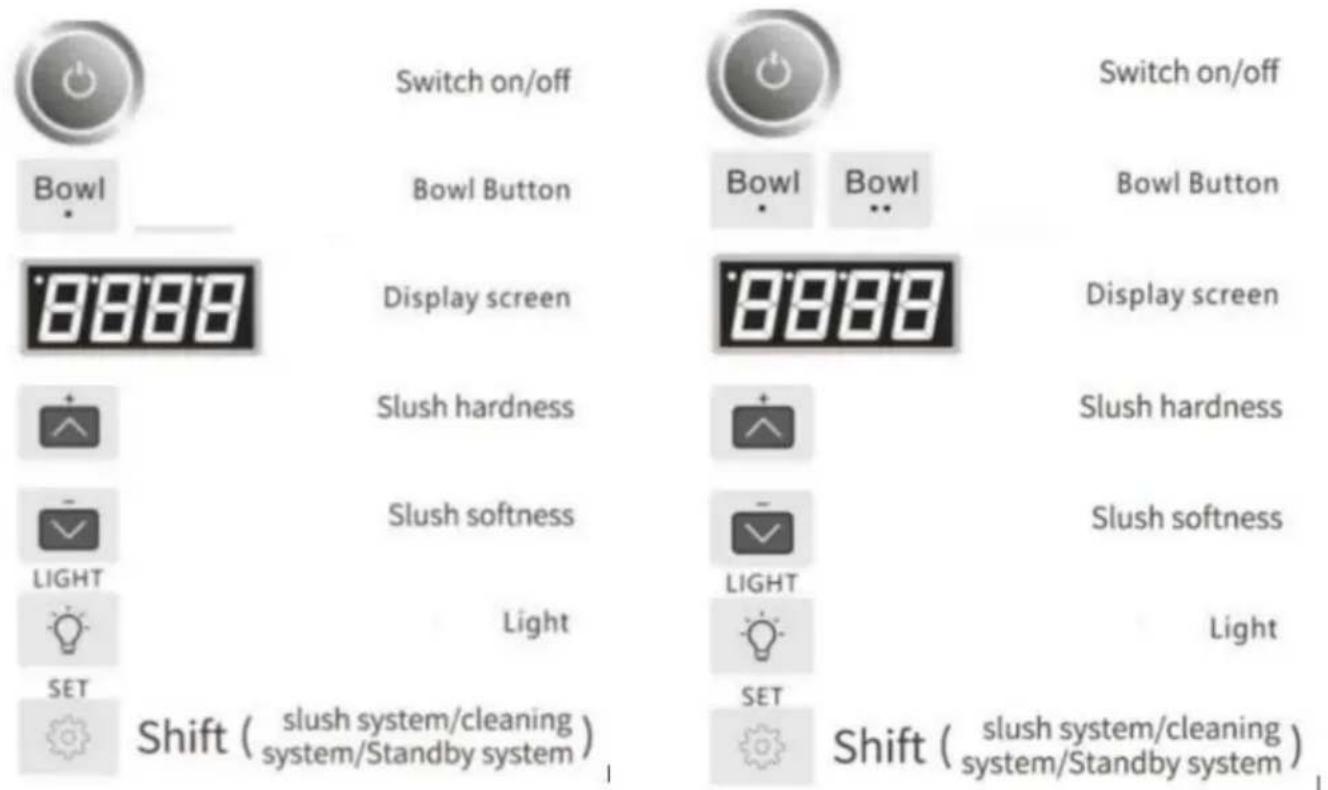

The following controls are on the panel:
A. Main Switch: It is used to switch on/off the power supply to the whole machine.
B. Light Switch: It is used to switch on/off the light.
C. Clean Function: Add appropriate water in advance, then click the "SET" switch until the display shows "CLEAN" that means open Clean System. After cleaning,
click the SET switch once more, the display shows "OFF" that means close Clean System. When the cracks aren't clean, use the provided towel to clean any remaining dirt and wipe up any water stain.
D. Slush/Margarita Wine Slush/Ice Cream/Frozen Drink Function: Keep
clicking the SET switch display shows SLS that is used to switch on Slush System.
Then you can click "+" to make slush/ice cream
harder and can also click "V" to make slush/ice cream softer. The machine will automatically save the setting after 5 seconds.
6.3 Starting a 2-Bowl Slush Machine Model: XRJ4LX2
The following controls are on the panel:
A. Main Switch: It is used to switch on/off the power supply to the whole machine.
B. Light Switch: It is used to switch on/off the light.
C. Clean Function: Add appropriate water in advance,
then click bowl 1 or bowl 2 to select the bowl you want to
operate. Then keep clicking the "SET" switch until the display shows "CLR", which means open
Clean System. After cleaning, click the SET switch once more; the display shows "OFF", which means close Clean System. Do the same for operating the other bowl. When cracks aren't clean, use the provided towel to remove remaining dirt and wipe up any water stains.
D. Slush/Margarita Wine Slush/Ice Cream/Frozen Drink Function: First
click bowl 1 or bowl 2 to select the bowl you want to operate.
Then keep clicking the SET switch until the display shows SLS, which is used to switch on Slush System. Then you can click "+" to make
slush/ice cream harder and can also click "-" to make slush/ice cream softer. The machine will automatically save the setting after 5 seconds. Do the same for operating the other bowl.
6.4 Dispensing slush
Pull down handle and slush will outflow from the bowl.

Attention: If distributing slush for the first time or after a long stop, please extrude and waste a little, and then distribute to customers.
6.5 Emergency

Warning: When emergency occurs, the machine should be turned off by the power button and cut off power.
If frozen, cut off power and ask for specialized people to handle. If fi
nearby area and ask for professionals.
7. Cleaning and maintenance

Before cleaning or maintaining external parts, please ensure the main switch is off and unplugged.
Any cleaning or maintenance protection supplies need to be worn (gloves, glasses, etc.) based on local safety standards.
When cleaning or maintaining, operate as below.
Wear protective gloves against an accident.
- Do not use solvent or flammable substances.
- Do not use tough or metal sponges to clean the machine or parts.
- Do not spray liquid to nearby areas.
- Do not wash parts in the bowl.
- Do not dry parts in a furnace or microwave oven.
- Do not immerse the machine in water.
- Do not spray water on the machine directly.
- Warm water and appropriate cleaner can be used (abiding by local laws).
After finishing, make sure that all protective covers and guards that have been removed or opened are sent back in place and properly secured. Cleanliness and hygiene have to be taken carefully and forcibly based on local standards to ensure qualified slush.

Cleanliness and hygiene must be carefully and strictly maintained according to local standards to ensure a qualified slush bowl. The bowl needs to be cleaned at least daily, in compliance with local laws and regulations. Additional cleaning times may be required depending on the products used. For more information, please consult the manufacturer. If the machine will not be used continuously,
clean the dispensing taps daily with a clean rag.
Even though the machine's components are made of stainless steel, plastic, and rubber, and are easy to clean due to their shape, it is still necessary to prevent bacteria and fungi growth caused by incomplete cleaning. Do not clean or maintain the machine when the plug is not removed or the main switch is in the down position.
7.1 Empty Bowl
Before cleaning the bowl, empty it.
If it is the first time using the machine, there is no need to empty it.
This manual explains one bowl as an example.
Other bowls are operated in the same way using their respective buttons. Set the bowl to the "clean state", then pour out the material from the bowl.

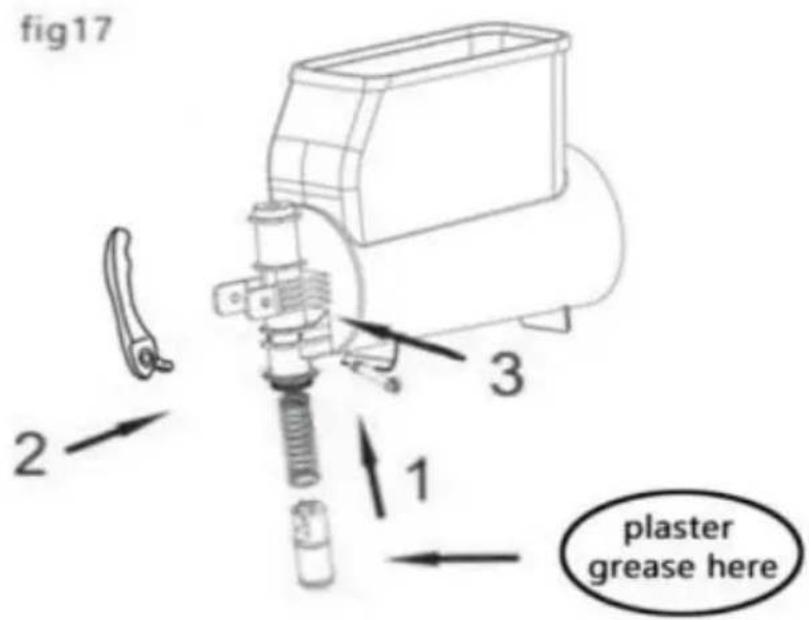

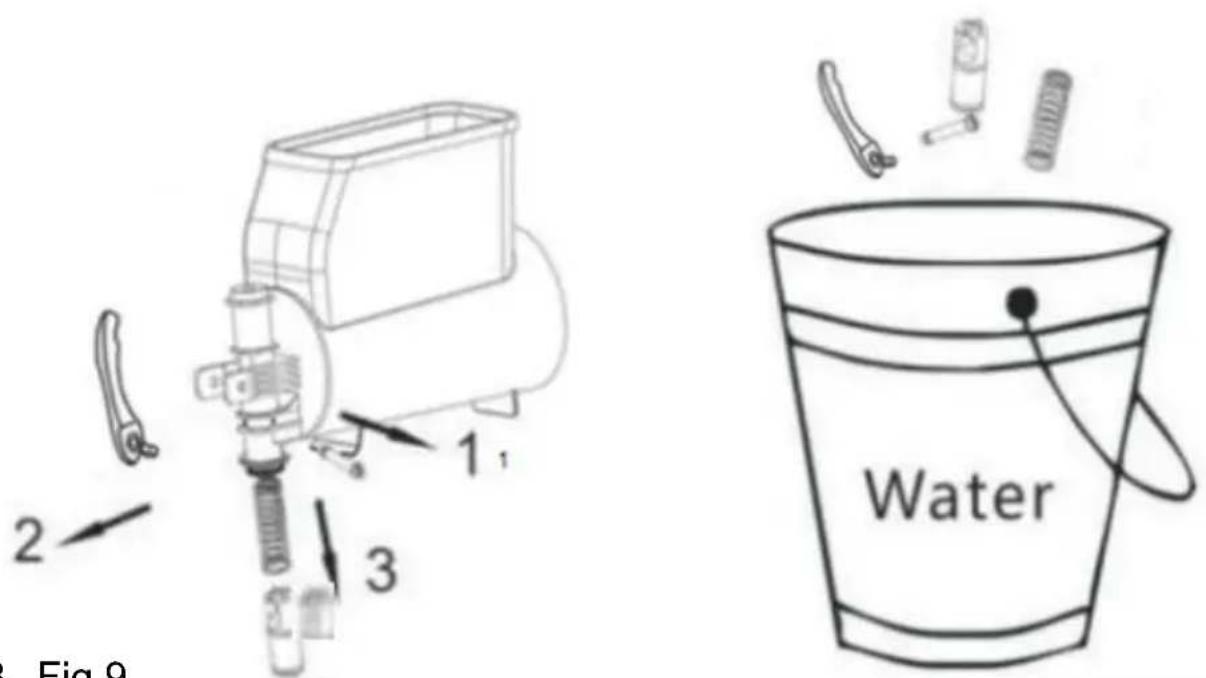

7.2 Disassembling the Dispensing Tap
Before removing the bowl, it is recommended to disassemble the tap. After cleaning, the tap must not be reinstalled until the bowl has been correctly seated. Remove the fastener with a screwdriver, then disassemble the dispensing handle by pushing it upward, then push the piston and spread it downward, and remove the o-ring. Place all spare parts in lukewarm water (around 50°C) and clean as shown in Fig. 9.

Fig. 8 Fig. 9
Do not disassemble taps when there are products or liquid in the bowl.

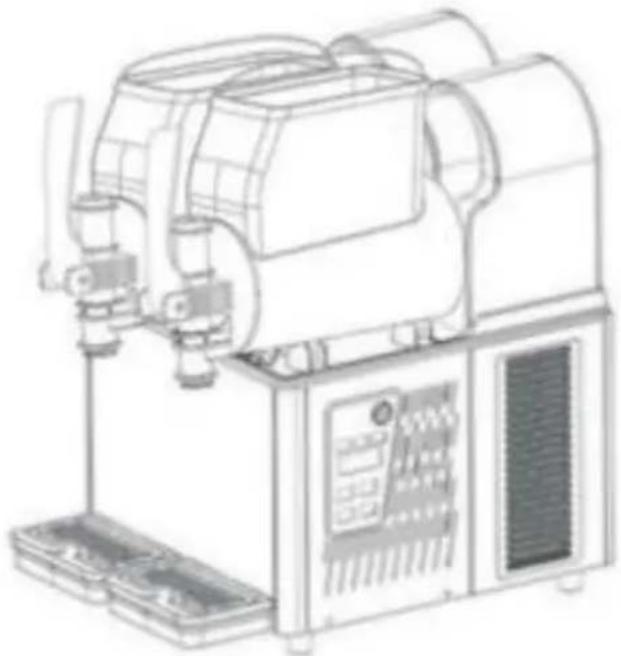

7.3 Move Out Bowl and Cover
Move out every bowl to clean the machine.
Move out the bowls following the steps below.

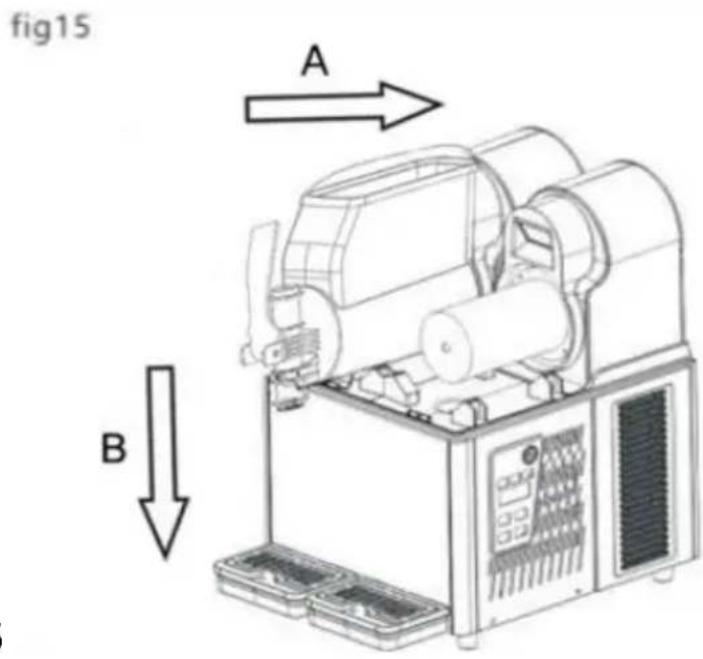

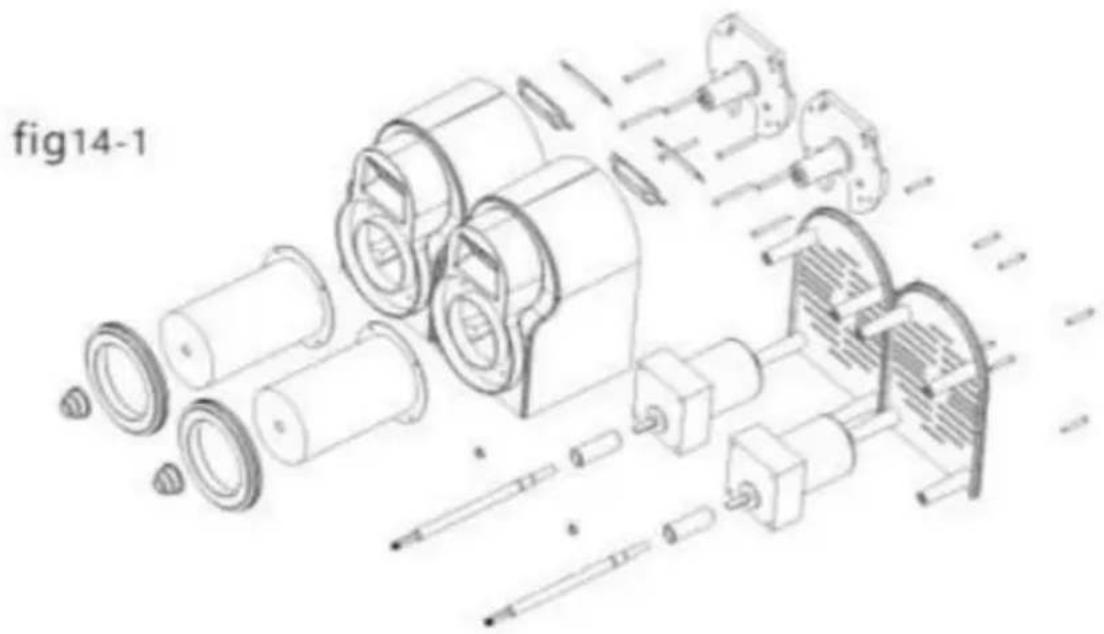

- Lift the top cover upward and take it out. Pull the tank upward to completely remove it from its seat.
2. Screwing off the nut
- Take out the stirrer and the seal of the stirrer.

Fig.10
7.4 Clean and disinfect parts
All dismantled parts should be cleaned thoroughly.

Important: Cleaning methods must comply with local current hygiene standards.
Please operate as per the instructions below:

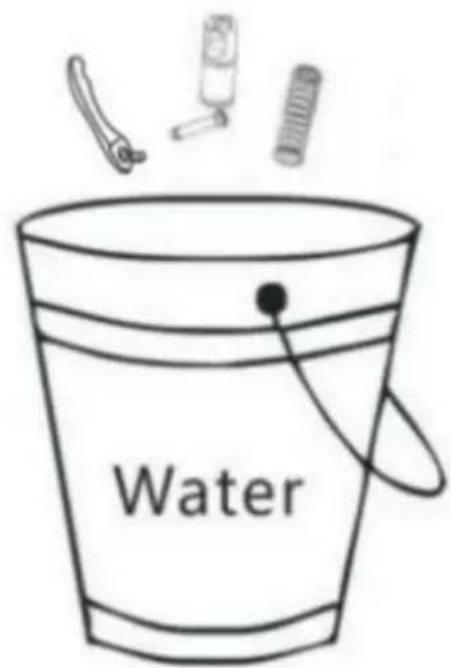

Pour water into the container. Mix sanitizer with water (add 2% sodium hypochlorite to water).
Using a sponge with sanitizer, clean the bowl, cover, and evaporator thoroughly, then rinse thoroughly with water.
Add sanitizer to another container.
Put the dismantled parts in the sanitizer for 30 minutes. Rinse thoroughly with water.
Make the parts dry.
Assemble the machine according to section 7.5 instructions.
Using a sponge with sanitizer, clean the roof and the heartstrings (the immaterial).

Fig.11
Retain 30 minutes
Clean bottom surface with water 2-3 times by the sponge. Put cover on clean area and dry it by rag
Ban cleaning by water or disinfecting before taking away the cover
7.5 Reset cleaned parts
All disinfected parts have to be reassembled carefully. Some parts need to be lubricated to work normally.
Gasket (A) on stirrer. See Fig.12
Fig.12

Importance: Check gasket regularly. If broken, replace one. Replace gasket (A) at least once a year

Fig.13

After gasket (A) is installed, coat the inside of gasket (A) with the provided grease. See Fig.13

Fig.14

Install seal (B), lubricate the entire surface with grease as arrow marks. See Fig.14

Attention: Adjust the stirrer to appropriate location.
See Fig.14-1
Replace the seal ring. When the motor part leaks, you need to replace the seal ring. Take out the motor bracket connected to the motor, and then replace the head seal ring, washer of axis, and seal of axis.
When replacing, you need to add some grease. Then install the motor bracket connected to the motor.

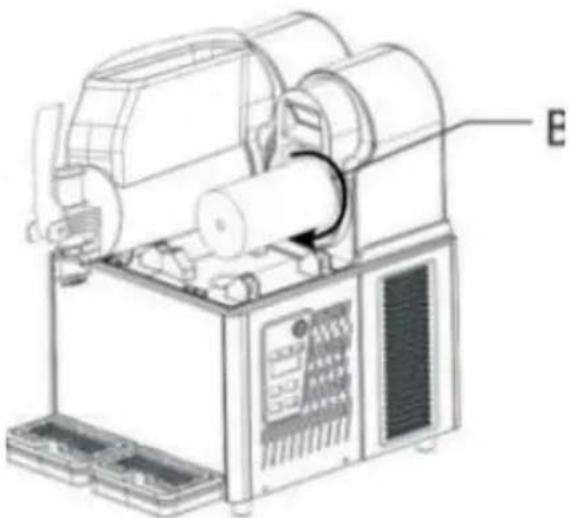

Fix the stirrer and install the bowls as

Fig.15

Attention: Adjust the bowls to the appropriate location.

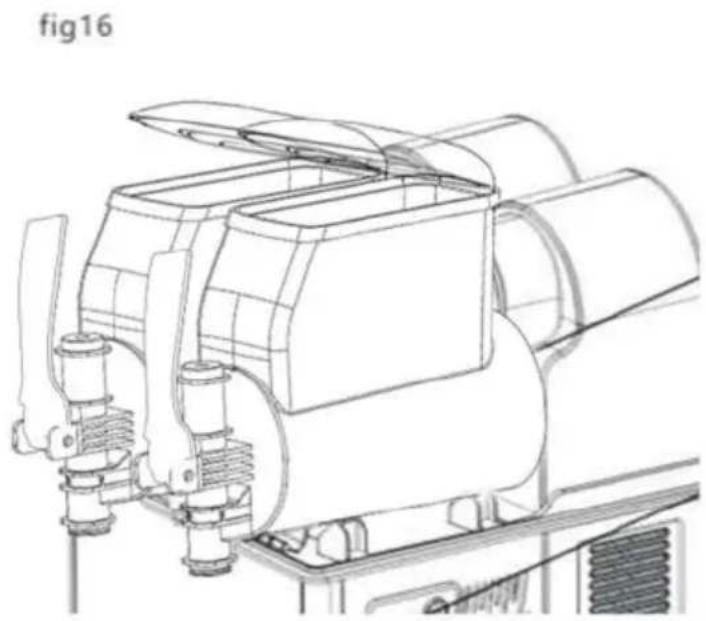

Install the roof as shown in Fig.16.

Press down the top roofs until they fit in.
Install taps as per the instructions below, as shown in Fig.17.
- Lubricate thoroughly with grease.
- Insert the screw when the taps are steady.


Attention: Install all parts according to the figure instructions. Apply grease well to prevent liquid leakage.
7.6 Cleaning steps
Before using this machine, the following cleaning steps are needed.
- Fill bowl with water fully.
- Start machine only in cleaning mode and stir for 5 minutes.
- Stop machine and open tap to clear container.
7.7 Cleaning drip tray
Drip tray should be emptied and cleaned every day.

Attention: All machine drip trays should be cleaned. Drip tray needs to be emptied and cleaned.
Take out drip tray by lifting from top.
Wash the tray and grid separately with lukewarm water. Dry all of the components. Fit the tray back in place and press to secure it. Reposition grid on top of the tray.

When machine is stopped, clean with wet rag and dry the parts.
7.8 Replace bulb

Only when machine power is off and unplugged, bulb can be replaced. According to below figure, open the small back panel, replace the LED bulb, after assembled put the panel back, confirm closed well.

Fig.19
7.9 Clean condenser
Only professionals can clean condenser. They know all operating steps well using appropriate device and abide by local law and regulation. Condenser needs to be cleaned regularly.
Warning: Machine sharp surface may appear after dismantling safety protection parts. Dirty condenser will weaken machine function.
The condenser can be seen after removing the safety protection parts.
Even if only one panel (front, back, or side) is not installed, the machine is prohibited from use. The operator is prohibited from cleaning the condenser. Protection parts must be positioned using screwdrivers.

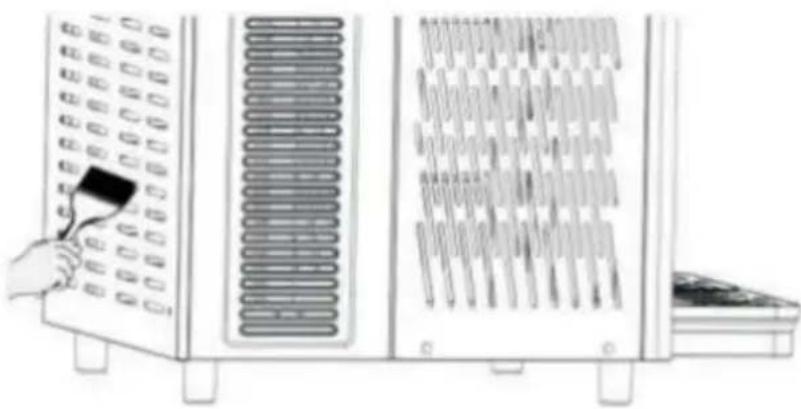

7.9.1 Cleaning the condenser of a one-bowl slush machine
Safety protection parts require screwdrivers to fasten and dismantle.
- Loosen the side panel screws.
2. Remove the side panel.
- Dismantle the safety protection parts. Brush dust from the condenser surface with a dry brush as shown in Fig. 21.

Fig. 21
After cleaning the condenser, reposition the safety protection parts.

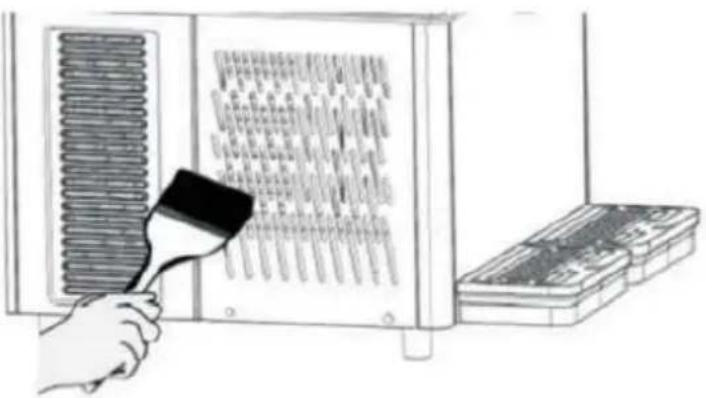

7.9.2 Cleaning the condenser of a two-bowl slush machine. Follow the instructions below:
- Loosen the 3 screws of the back plate.
- Loosen the 5 screws of the side plate.
- Remove the side panel.
Dismantle safety protection parts.
Brush dust from condenser surface with dry brush as below.

Fig.22
7.10 Scheduled maintenance
This machine needs to be maintained by professionals regularly (at least once a year).
Regular maintenance can ensure the machine and its parts are in good safety state.
Any broken parts must be replaced with original manufacturer parts. When any parts of the machine are malfunctioned or broken, the machine is banned from use. The user cannot maintain the machine himself.
8. Waste treatment

Electronic waste needs to be handled according to 2002/96/EC.
But wastes need to be dismantled and classified, and useful parts should be recycled.
The above rubbish bin reminds people to classify rubbish. Treating wastes correctly protects our environment.
9. Troubleshooting
| Trouble | Potential problems | Solution |
| Can not turn on the machin | No input power | Insert the plug into appropriate socket |
| Not pressed the switch | Press the switch | |
| Outlet leaking | Outlet without Vaseline | Add Vaseline on ou |
| Outlet broken | Change the outlet | |
| Bowl leaking | The bowl not be installation suitable position | Check the bowl position |
| No Vaseline on bowl's seal | Add Vaseline on se ring | |
| Bad seal ring | Change the seal ri | |
| The stirrer no working | Not turn on the main swit | Turn on the main switch |
| Bowl inside freezing | Run off the main switch and let the melting | |
| The machine not making slush | not turn on the main swit | Turn on the main switch |
| Not turn to the"SLS"mode | Turn to the"SLS"mode" | |
| Heartsickness is not suitable | Adjust the slush thickness | |
| Condenser too dirty/poor ventilation | Clean the condense | |
| Slush machine approach in hot position | Put the machine to cool position | |
| The stirrer makes noisy | Stirrer's seal ring installation badly | Check and replace the seafaring |
| No Vaseline on seal ring or ring broken | Add Vaseline or change the seal rim | |
| No slush coming out from the outle | Bowl inside freezing melting | Turn off the main switch and let ice r |
9.1 Fault Codes and Solutions For Slush Machine
9.1.1. When the temperature sensor is not connected, "LL" is displayed. Check whether the temperature sensor is installed well or the connect wire is damaged or broken; replace the temperature sensor.
9.1.2. The temperature sensor is short-circuited and it displays "LL". Check whether the temperature sensor is installed properly, or the connecting wires are damaged and connected together, or the temperature measured by the temperature sensor exceeds 60°C. Replace the temperature sensor.
9.1.3. When the grid voltage is too high, the machine stops working and generates an alarm code "E1 Err".
9.1.4. When the grid voltage is too low, the machine stops working and generates an alarm code "E2 Err".
1: It is recommended that customers buy a voltage stabilizer, so that the voltage can be used within a reasonable range.
2: Change the voltage alarm parameters without generating voltage alarm. I. In the power-on state, long press the "Settings" button for 3 seconds to enter the setting menu, and the window flashes as
II. Then click the "Settings" button, the window flashes as
III. Then click the "Slush softness" button to set the value to 0. IV. Wait until the display does not flash, indicating that the setting is successful.
9.1.5. The measured motor current is too high. The current channel generates an alarm and protects the shutdown. The display code is E3Err.
- If the mixing shaft is blocked and the shutdown protection is caused, it will automatically restart after 5 minutes.
- If the motor is broken and rotates very slowly or cannot rotate, you need to replace a new motor.
- Or change the motor current alarm parameters and stop if no alarm is generated, and then check whether the motor is rotating.
I. In the working state, long press the "Setting" button for 3 seconds to enter the setting menu. The window flashes as
II. Then click the "Setting" button, the window flashes as
III. Then click the "Setting" button, the window flashes as
IV. Then click the "Slush softness" button to set the value to 0. V. Wait until the display does not flash, indicating that the setting is successful.
10. Intelligent electronic valve system
Electrical diagram-XRJ4LX1
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve

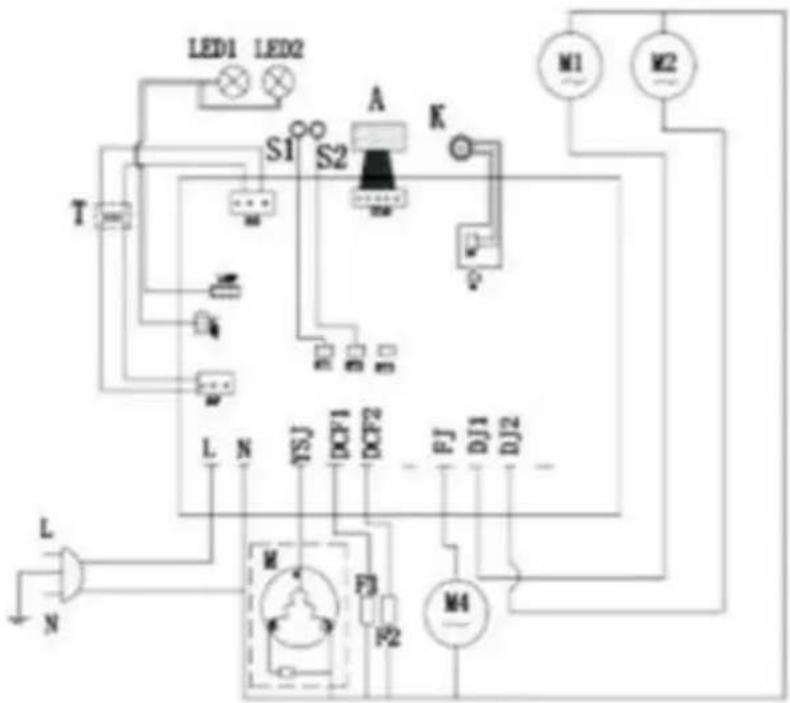

Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor

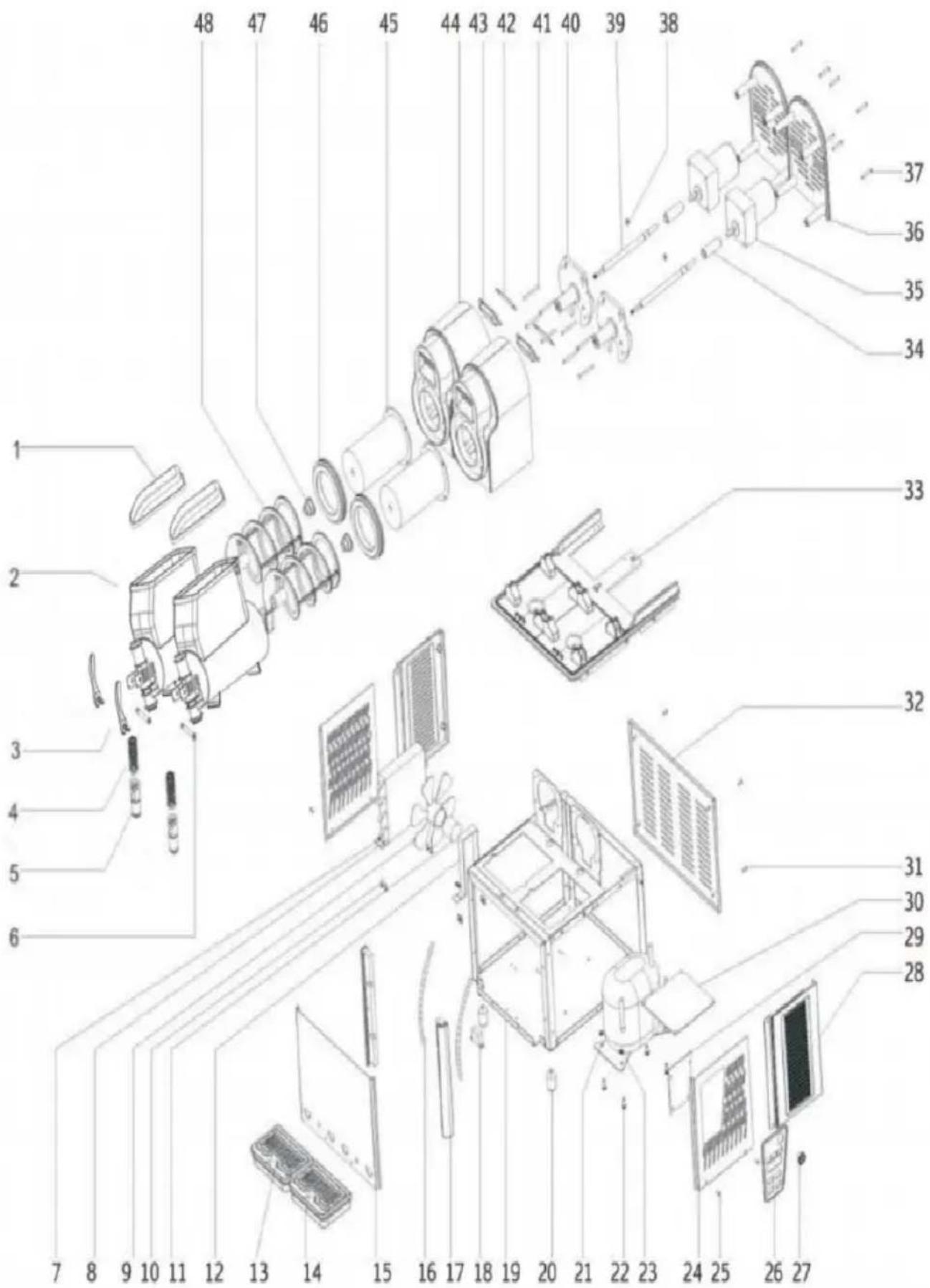

11. Slush machine explosive diagram
| Code | Parts Name | Code | Parts Name |
| 1 | Roof | 25 | Side plate fixing screw |
| 2 | Tank | 26 | Control panel |
| 3 | Handle | 27 | Switch |
| 4 | Spring | 28 | Plastic side panel |
| 5 | Plunger | 29 | PCB board |
| 6 | Pin of the handle | 30 | Main board |
| 7 | Hex nut | 31 | Plate nut |
| 8 | Condenser | 32 | Backboard |
| 9 | Fan | 33 | Base panel for 2 tan |
| 10 | The fixed bolt for fan n | 34 | Copper bush |
| 11 | Fan motor | 35 | Motor |
| 12 | The holder for fan mot | 36 | The back panel for mo |
| 13 | The roof of Water tray | 37 | Back mounting screw |
| 14 | Drip tray | 38 | Spring |
| 15 | Front panel | 39 | Stirring Rods |
| 16 | Pipe | 40 | The holder of motor |
| 17 | Jambe | 41 | Motor fixed screw |
| 18 | Transformer | 42 | The main board for lig |
| 19 | Main body frame | 43 | Lampshade |
| 20 | Rubber fool | 44 | The holder for stirrer |
| 21 | Compressor | 45 | Evaporator |
| 22 | The screw of compressor | 46 | Tank seal ring |
| 23 | The Nut of compressor | 47 | Seal of mixing auger |
| 24 | Panel | 48 | Mixing auger |
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!
Fig.1

Fig.2

Fig.8 Fig.9
Fig.10
Fig.11
Keep for 30 minutes

Fig.13

Fig.14


Fig.19
Fig.21
Fig.22
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED light board
Temperature sensor
Electromagnetic valve
Electrical diagram-XRJ4LX2
Compressor
Cooling fan
AC geared motor M1/M2/M3
Main switch
Touchpad
Transformer
LED light board LED1/LED2
Temperature sensor S1/S2

Fig. 1

Fig. 2


Fig. 10




7.9 Clean the condenser
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
electronics www.vevor.com/support
GRANITE MACHINE
MODEL: XRJ4LX1 XRJ4LX2

Figure 1

Figure 2


Figure 10
7.4 Clean and disinfect the parts All the
Figure 11
Keep for 30 minutes

Figure 13

Figure 14


Figure 19
Figure 21
Figure 22
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor
electronics www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE

Figure 1

Figure 2
2.4 Control panel Fig.3




Figure 8 Figure 9
Figure 10
Figure 11
Keep for 30 minutes

Figure 13

Figure 14


Figure 19
Figure 21
Figure 22
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor

NEED HELP? CONTACT US!
Fig.1

Fig.2


Fig.10
Keep for 30 minutes



M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor

NEED HELP? CONTACT US!
Figure 1

Image 2


Image 10
Image 11
Hold for 30 minutes
Image 13

Image 14


Image 19
7.9 Cleaning the condenser
Image 21
Image 22
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor
www.vevor.com/support
SLUSH MACHINE
MODEL: XRJ4LX1 XRJ4LX2

NEED HELP? CONTACT US!
Manual distribution
1.3 Manual distribution
Fig.1

Fig.2
2.4 Control panel
Fig.3

3. Safety manual
Clean system. After cleaning,
Fig. 10
Fig. 11
Keep for 30 minutes

Fig. 13

Fig. 14


Fig. 19
Fig. 21
Fig. 22
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED LED light board
S Temperature sensor
F Electromagnetic valve
Electrical diagram-XRJ4LX2
M Compressor
M4 Cooling fan
M1/M2/M3 AC geared motor
K Main switch
A Touchpad
T Transformer
LED1/LED2 LED light board
S1/S2 Temperature sensor
www.vevor.com/support
