GUN RACK

USER MANUAL

MODEL:WZ002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GUN RACK

MODEL:WZ002

Technical line drawing of a rectangular frame with scalloped edges and corner brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to

contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble should be only according to these instructions. Improper assembly can result in hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. The product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely sup the Gun Rack.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. THIS PRODUCT IS NOT A TOY. DO NOT ALLOW CHILDREN TO PLAY WITH OR NEAR THIS ITEM.
3. DO NOT EXCEED WEIGHT CAPACITIES.
4. USE ONLY ON A FLAT, LEVEL, HARD AND SMOOTH SURFACE CAPABLE OF SAFELY SUPPORTING A FULLY LOADED GUN RACK.
5. USE AS INTENDED ONLY.
6. INSPECT BEFORE EVERY USE; DO NOT USE IF PARTS ARE LOOSE OR DAMAGED.

SAVE THIS MANUAL

PARTS LIST

Pure geometric line drawing of a wavy pattern with two small dots at the bottom (no text or symbols)

① x1

Pure geometric pattern of repeating wavy lines with dots at endpoints (no text or symbols)

② x1

0 0

③ x1

Blank rectangular frame with two small vertical markers on the left side (no text or symbols)

④ x1

Close-up of a single nail with metallic texture and pointed tip (no text or symbols visible)

⑤×13

Yellow plastic component with stepped handle and central slot (no text or symbols)

⑥ x3

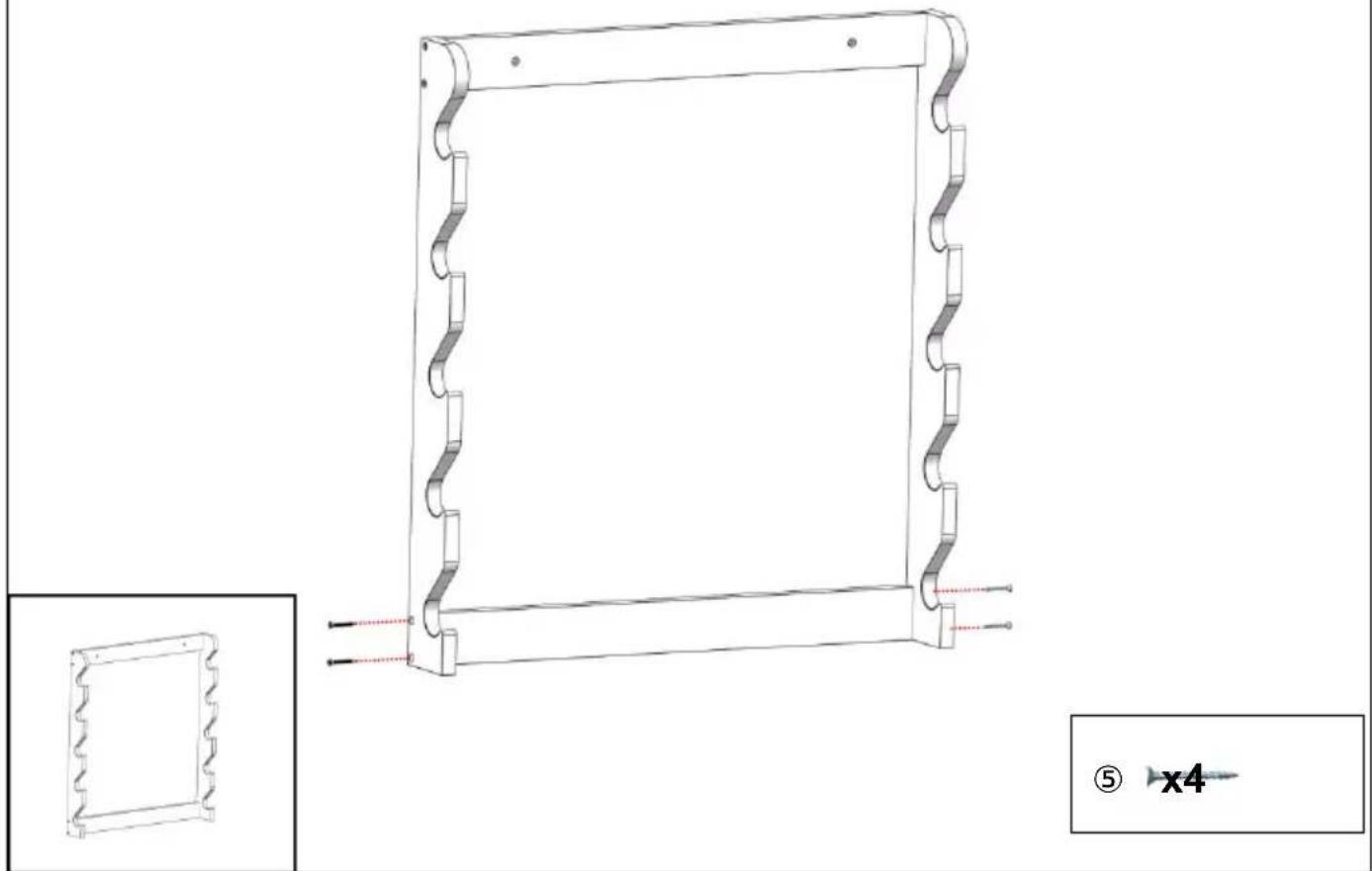

ASSEMBLY STEP

STEP 1

⑤ x4

⑤ x4

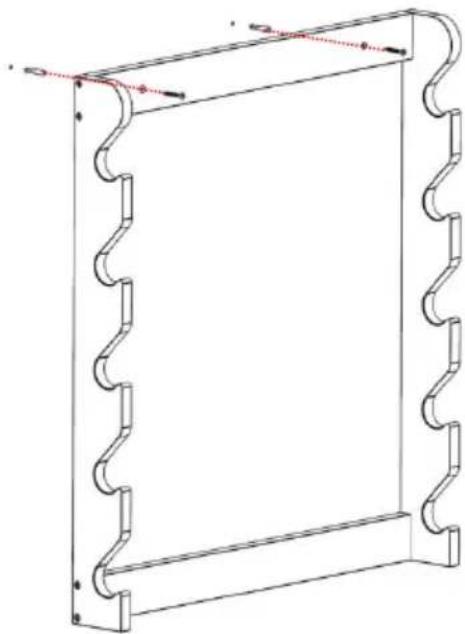

STEP 3

Technical line drawing of a rectangular frame with serrated edges and mounting holes (no text or symbols)

Simple line drawing of a rectangular frame with jagged edges (no text or symbols)

Push the wall anchor gently into pre-drilled hole. Install the Gun Ra and tighten the screw.

⑤ x2
⑥ x2

⑤ x2 ⑥ x2

PRODUCT PARAMETER

Model WZ002
Safe Loading Weight 60kg
Product Size 840*765*100 mm
Net Weight 2.25 kg

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai 200000CN.

ImportedtoAUS:SIHAOPTYLTD.1ROKEVASTREETEASTWOODNSW2122

Australia

ImportedtoUSA:SanvenTechnologyLtd.Suite250,9166AnaheimPlace,

RanchoCucamonga,CA91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with scalloped edges and corner brackets (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Pure decorative line pattern with wavy ends and dots at bottom (no text or symbols)

Pure geometric line pattern with repeating wavy shapes and dots at bottom (no text or symbols)

x1 x1

0 0

a
b

x1

x1

Close-up of a single nail with visible teeth and central body (no text or symbols)

x13

Yellow plastic component with stepped handle and central slot (no text or symbols)

x3

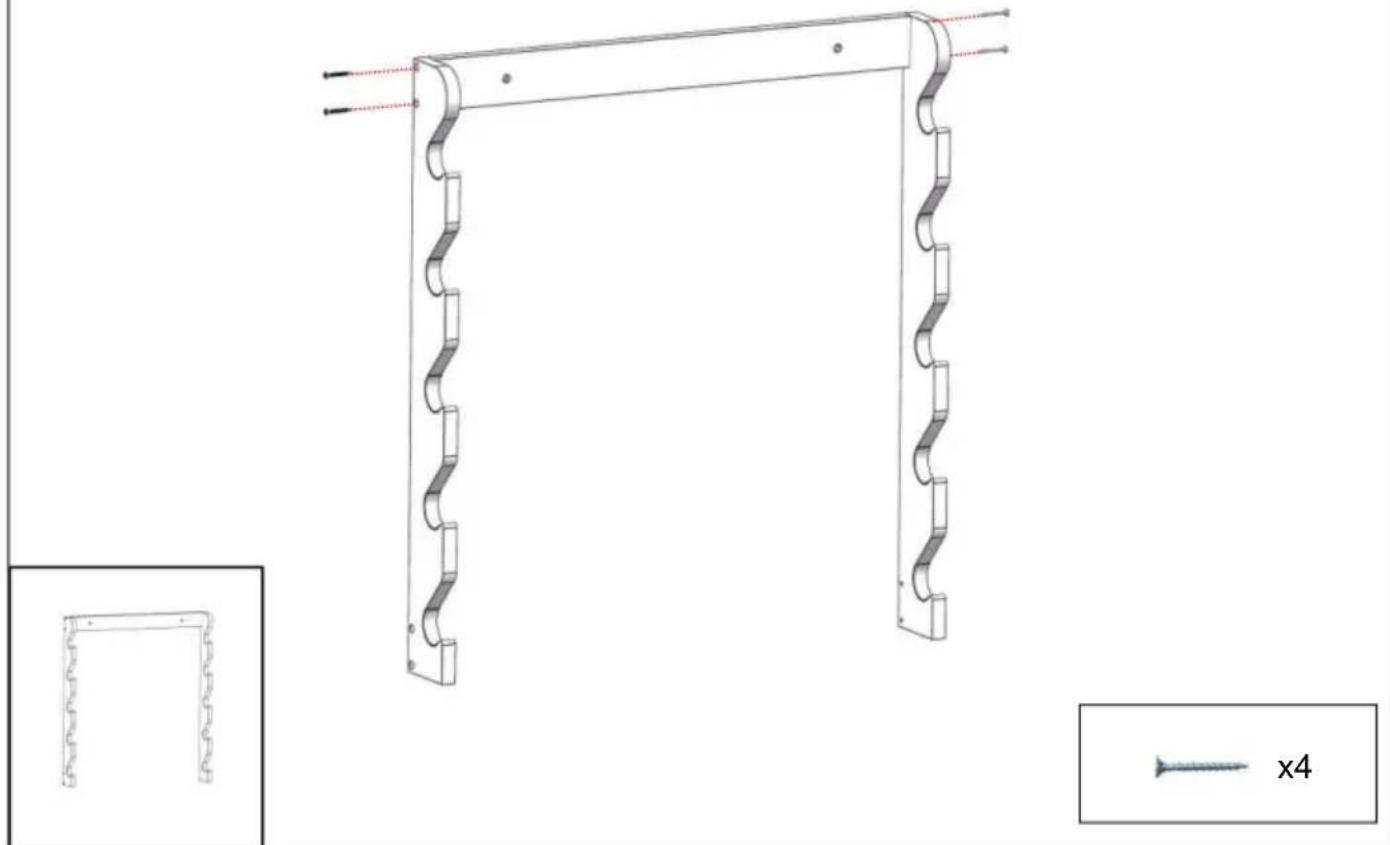

ÉTAPE D'ASSEMBLAGE
