USER MANUAL YC1351LY Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

SINGLE PULL OUT

TRASH CAN

MODEL: YC1351LY

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: YC1351LY

Technical line drawing of a mechanical assembly with a bucket and frame structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user m appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there are any technology updates on our product.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in the manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do not let children and minors get close to or touch the machine
2. Do not immerse the appliance in water or any other liquid.
3. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
4. Do not apply this unit to any other purposes than the indicated u
5. Do not use it outdoor or for commercial purposes.
6. Never leave it unattended while in use.
7. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the machine alone. Cleaning and user maintenance shall not be made by children without supervision.

PRODUCT PARAMETERS

Model No.	Product Size	Garbage can capacity
YC1351LY	18x11x21.1 inch(456x279x535mm)	35L

LOADING CAPACITY

Model No.	Loading Capacity
YC1351LY	Max 110.2 lb (50Kg)

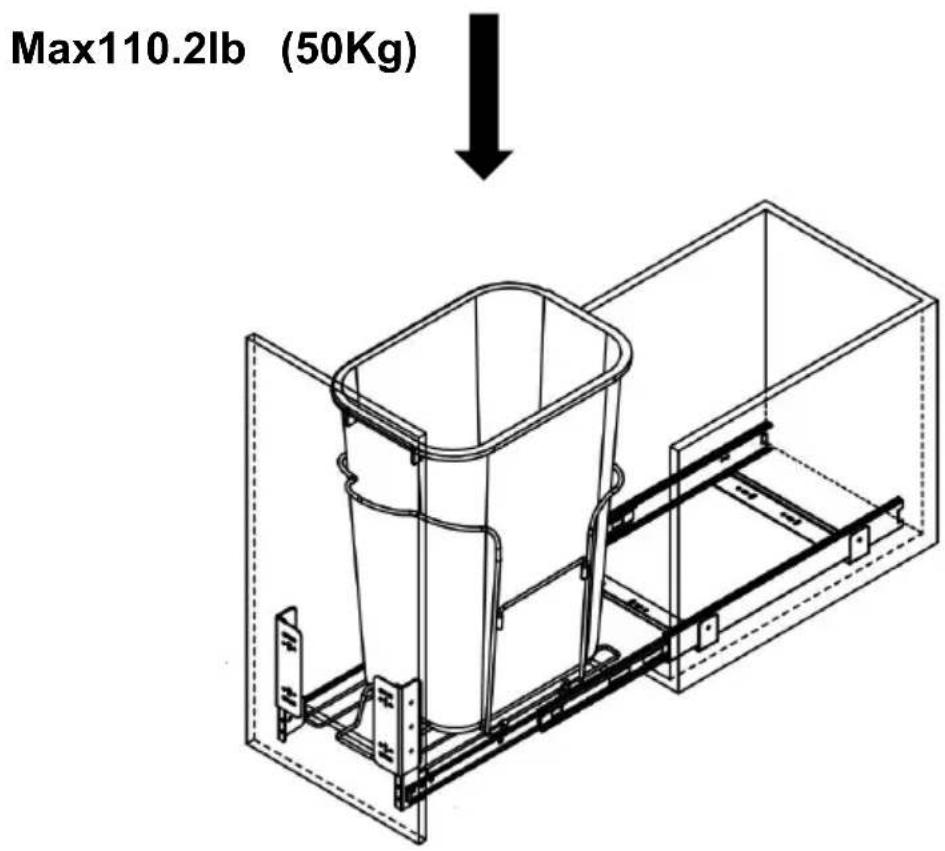

ATTENTION!

1. Do not exceed the listed weight capacity. Be aware of dynamic lo The sudden load movement may briefly create an excess load, causir product failure.

Max110.2lb (50Kg)

PRODUCT COMPONENTS

ATTENTION!

1. Check all parts for completeness before beginning assembly.

2. To avoid accidents or sharp edges injuries please assemble and use carefully.

3. Please wear safety protective equipment: gloves and goggles.

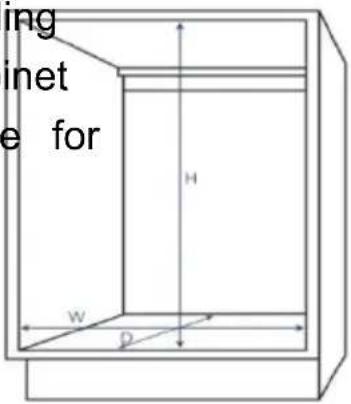

4. Check the installation size of the corresponding model of the pull basket, and select the cabinet consistent with or close to the installation size for Installation.

ing inet e for H W D

No.	Diagram	Part name	Qty
A		Base frame	1
B		Handle wire	1
C		Bin wire	1
D		Connecting wire	2
E		Plastic trash bin	1
F		DoorAccessories	1
H		M5X10	4
I		ScrewST4x16	12
J		Spanner	1
K		Screw driver	1

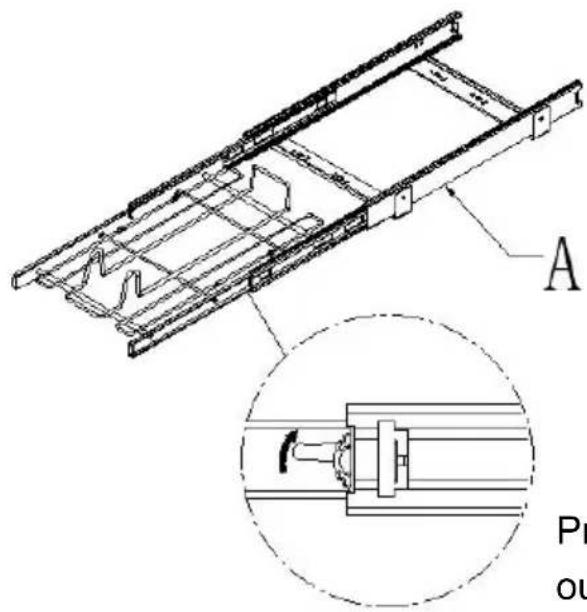

STEP1

A Pr ou

Press the bolt and tal out the frame.

1. Take out the frame from the b

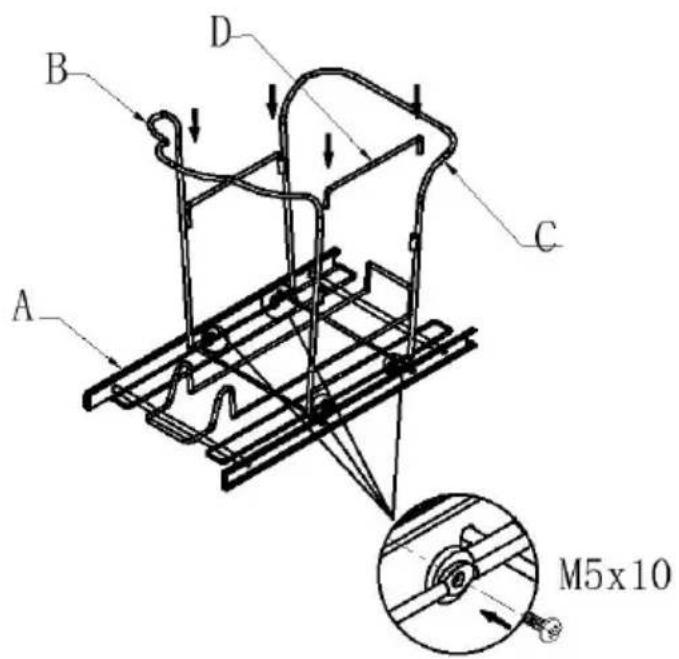

STEP2

1. Fix the handle wire and bin wire on the frame with screws M5x10(4PCS), then fix the connecting wire as following picture.

A B D C M5x10

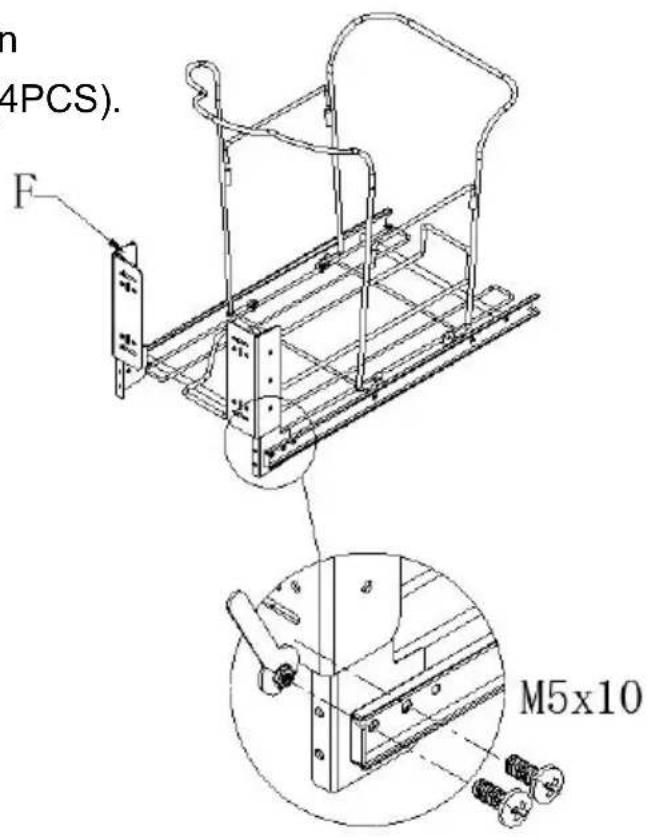

STEP3

1. Fix the door accessories on the frame with screws M5x10(4PCS).

n 4PCS). F M5x10

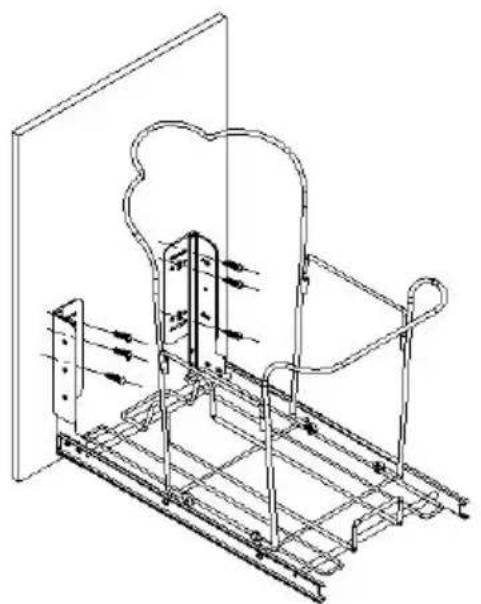

STEP4

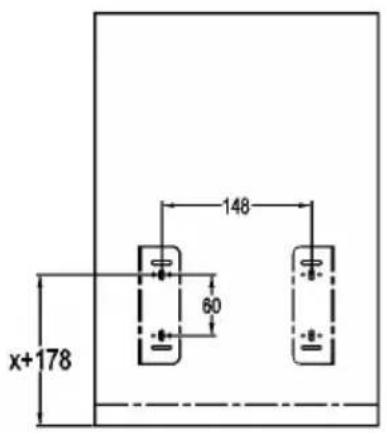

4.Fix the frame to the door with screws ST4X16(6PCS).

x+178 148 60

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

T4)

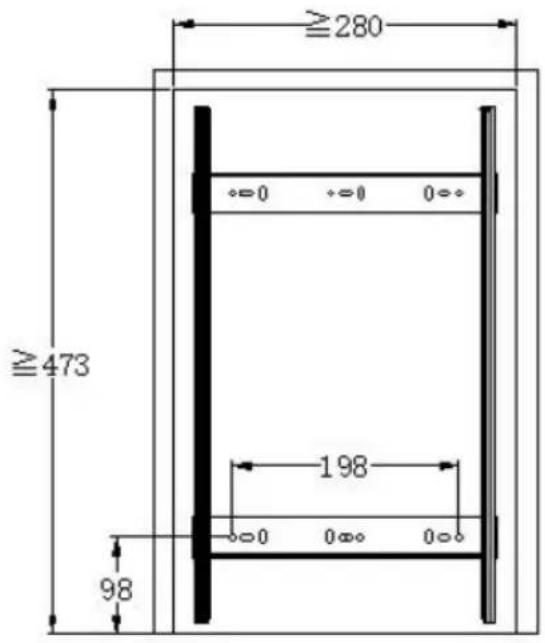

STEP5

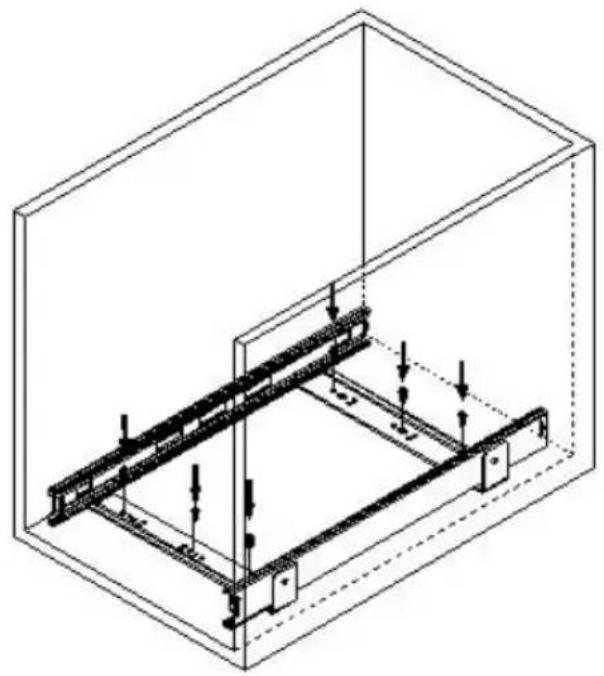

5.Fix the base in the cabinet with screws ST4X16(6PC)

≥280 ≥473 198 98

Isometric line drawing of a structural frame inside a transparent enclosure, showing internal components and load arrows (no text or symbols)

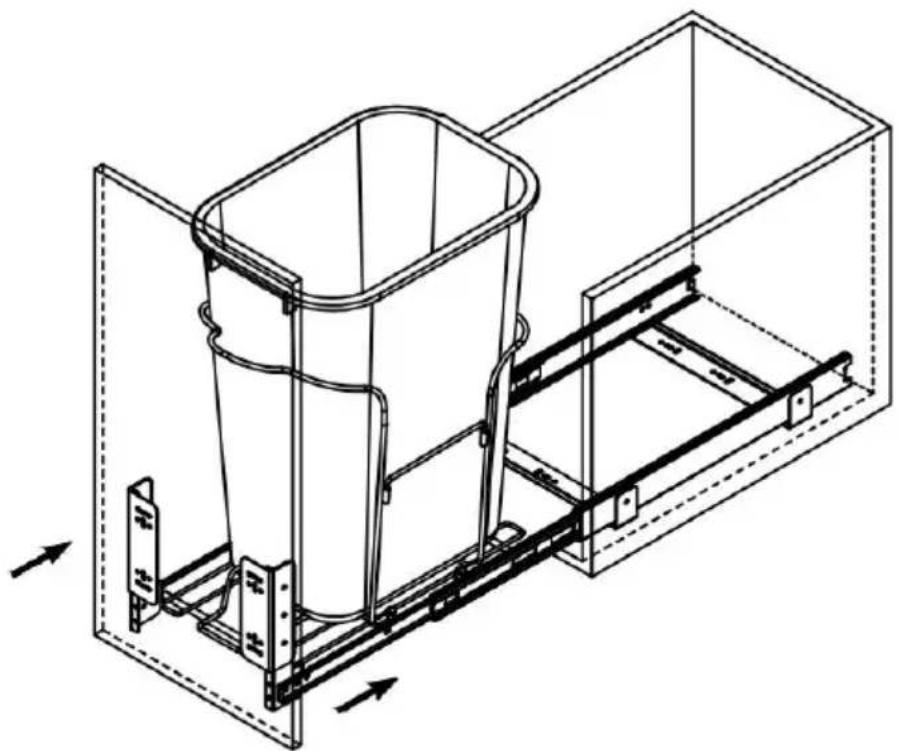

STEP6

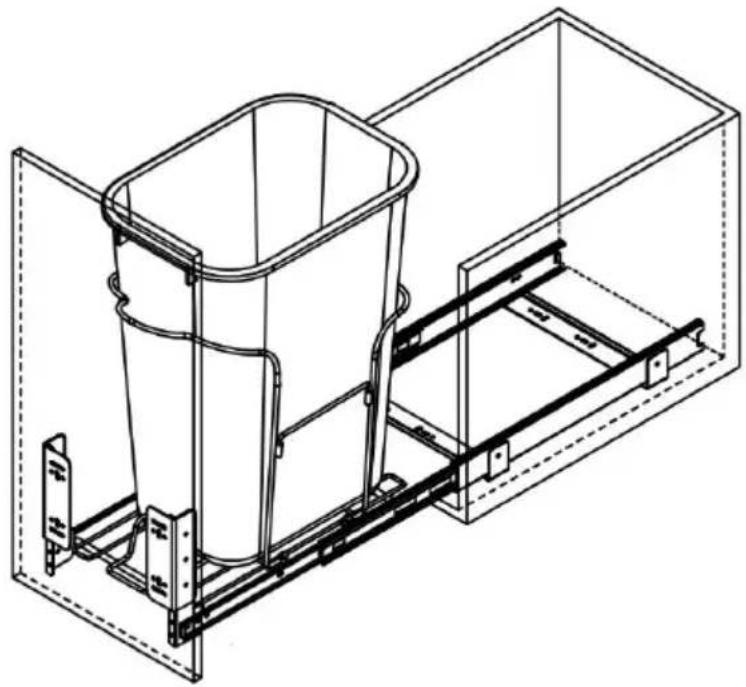

Technical line drawing of a mechanical assembly with a bucket and frame structure (no text or symbols)

1. Insert the frame to the base and put the bin in 1

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates clean and free of dust. If necessary, wipe them over with a damp c Spread over with an absorbent kitchen towel and wipe off any excess

ATTENTION!

WARNING! Keep children and pets away.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children play with the packaging materials. If the swallow the packaging materials, they will suffocate!

CLEAING MAINTENANCE AND STORAGE

1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe with a clean lint free cotton cloth.
2. Window cleaning liquid or a similar cleaning liquid can be used to the surface.
3. Store the appliance in a dry and clean area.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
