USER MANUAL WPSR-XM007 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

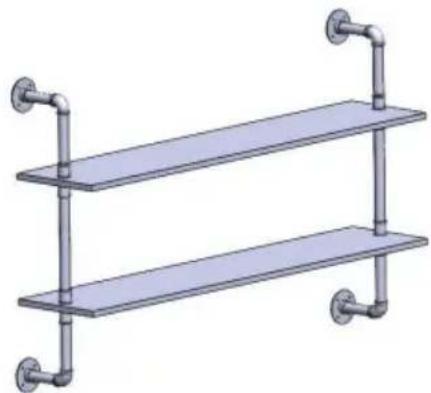

MODEL: WPSR-XM007

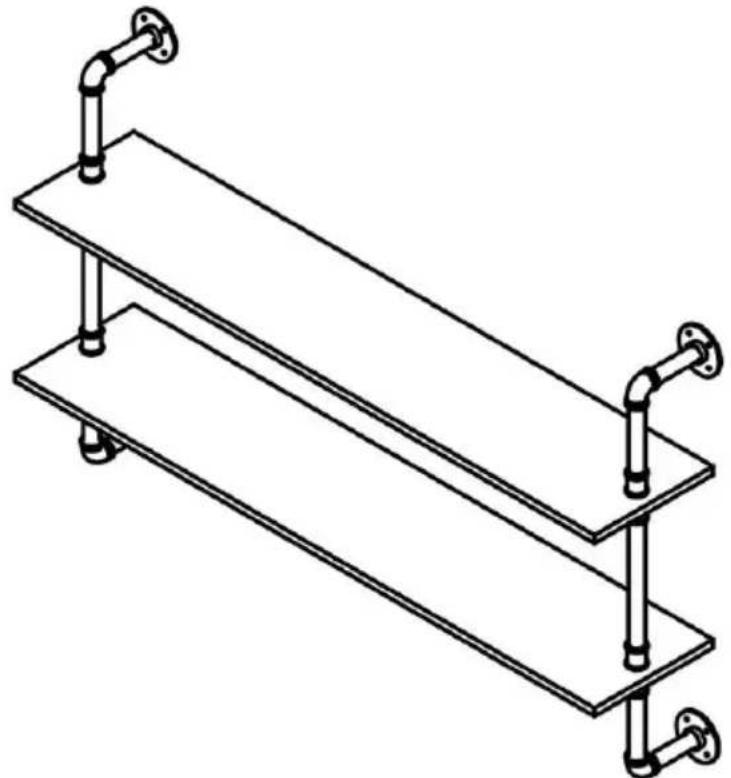

Isometric line drawing of a two-tiered rectangular platform with flanged ends and vertical supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or ev break the board, we recommend placing the weight of no more than 30lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

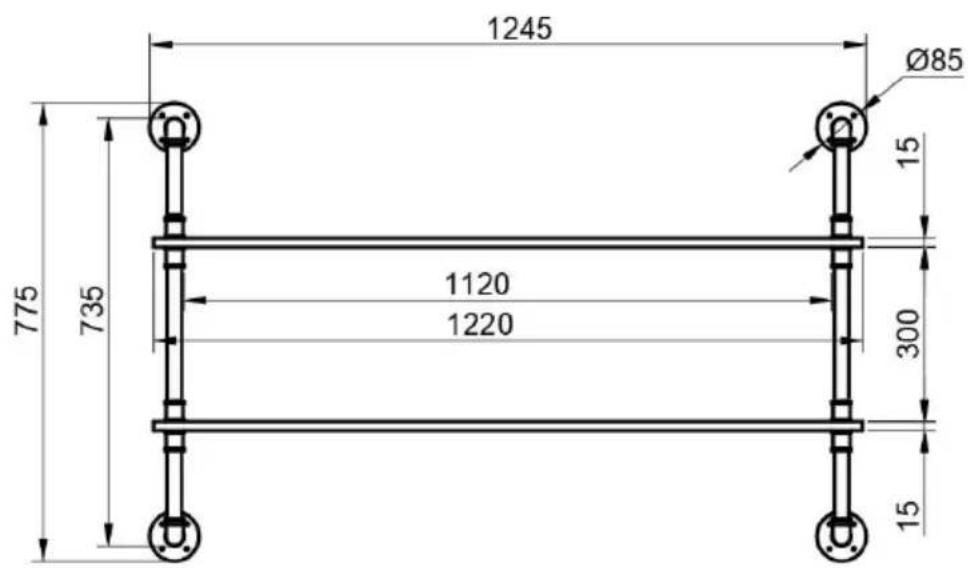

SPECIFICATION

1245 Ø85 775 735 1120 1220 15 300 15

260 250

Note: The number unit in the figure is mm.

Part List

Mark	Name	Specifications	Picture	QTY
A	Two way connector	/		8
B	elbow connector	/		4
C	Mounting flange	/		4
D	Board	/		2
E	Pipe	L=38mm		4
F	Pipe	L=146mm		4
G	Pipe	L=112mm		4
H	Pipe	L=254mm		2

Install accessories

Mark	Name	Specifications	Picture	QTY
R	Screw	M5*40mm		16
S	Plastic expansion tube	D=8mm		16

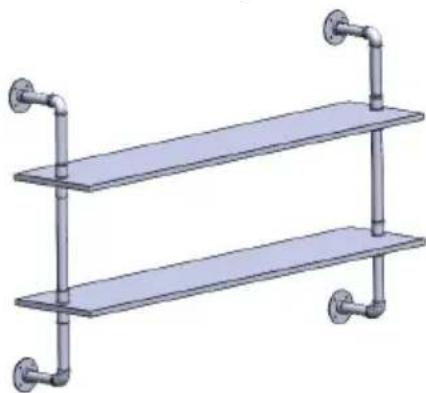

PIPE SHELVES ASSEMBLE

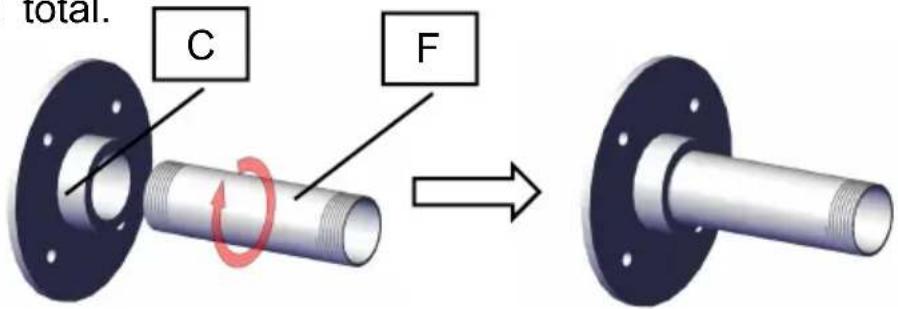

STEP1.Screw the mounting flange C together with the round pipe F. 4 groups in total.

total. C F

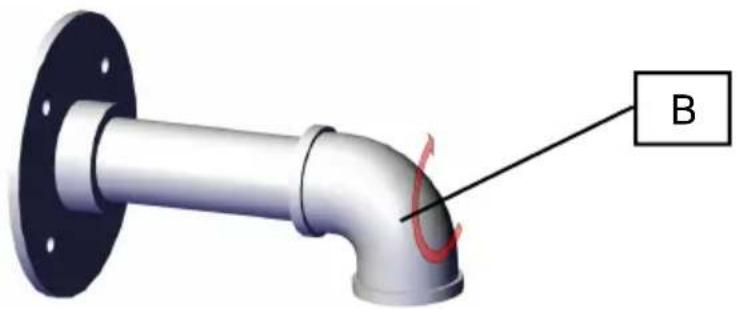

STEP2. Tighten the elbow connector B into the previous component. 2 groups in total.

3D diagram of a pipe fitting with flange and curved pipe end, showing a red curved arrow indicating rotation (no text or symbols)

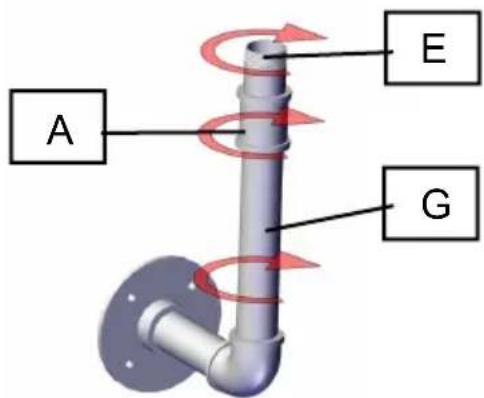

STEP3. Install pipe G, Two way connector A and pipe E.

A E G

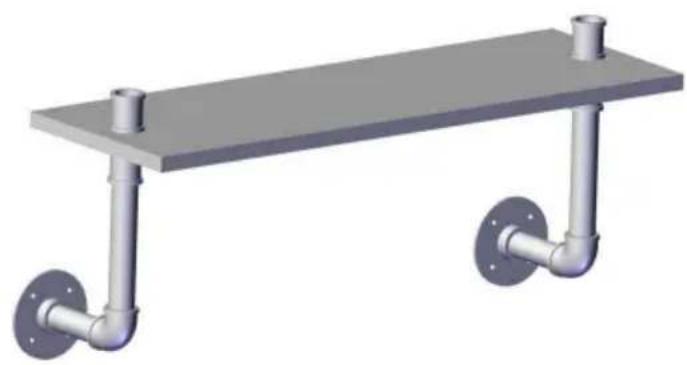

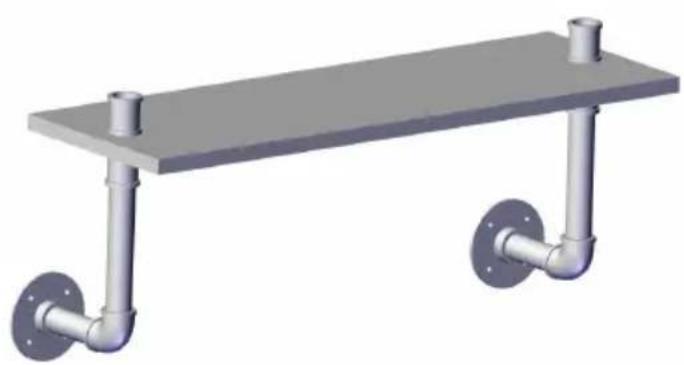

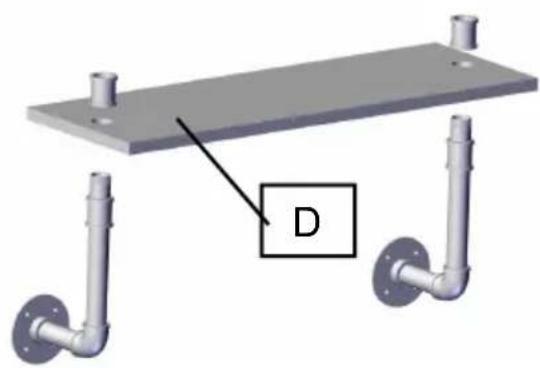

STEP4.Insert board D and secure with A.

3D diagram of a metal floor support structure with two pipe fittings and a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged ends and two cylindrical ports (no text or symbols)

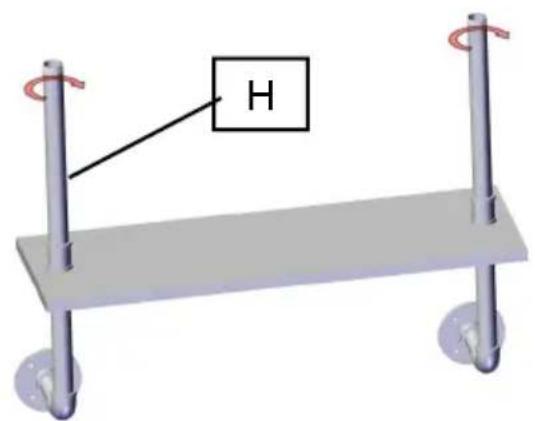

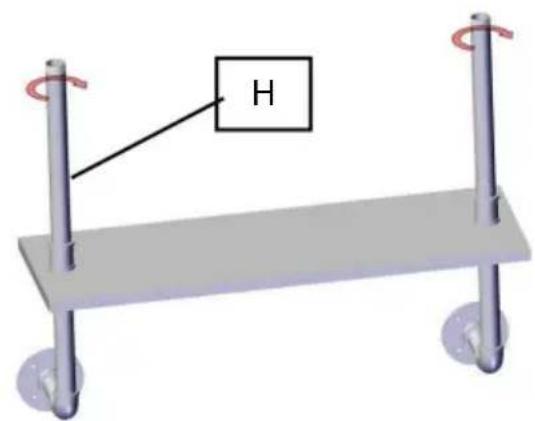

STEP5. Install pipe H.

H

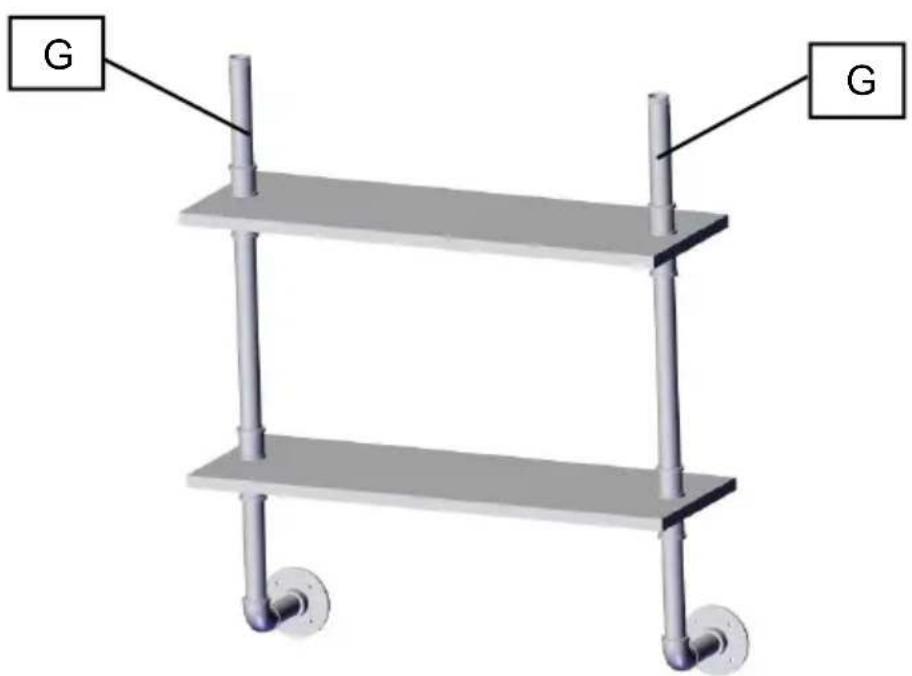

STEP6.Repeat Step4 and then screw on pipe G.

3D diagram of a two-tiered shelf with metal pipes and a wall-mounted pipe (no text or symbols)

STEP7. Install the elbow connector B.

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, showing rotational motion indicated by red arrows (no text or symbols)

STEP8. Install the component of step1.

Illustration of two parallel metal floor rails with wall connectors (no text or symbols)

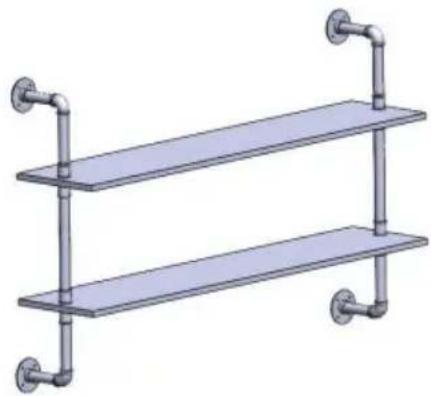

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

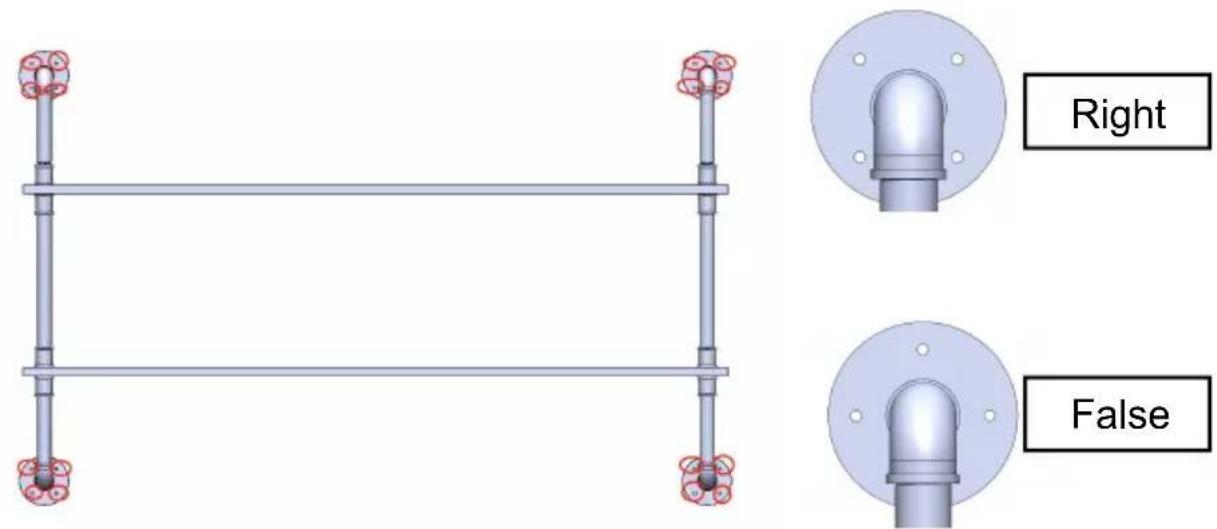

STEP1: Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.

Right False

Note: The fixed points of the flange should be distributed on both the tube for better operation to tighten the screw.

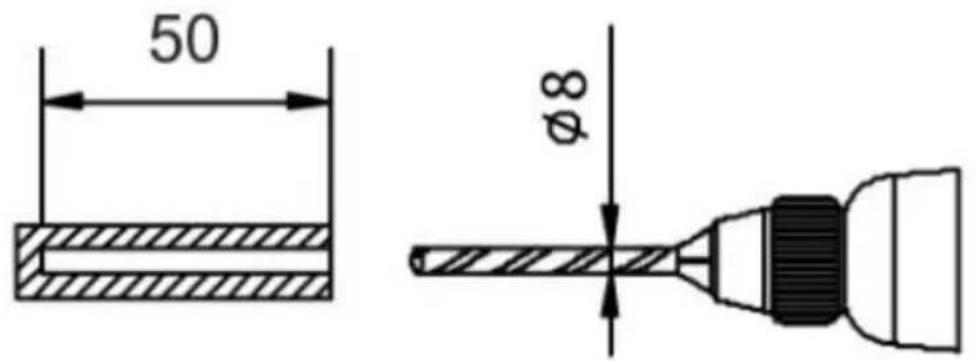

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

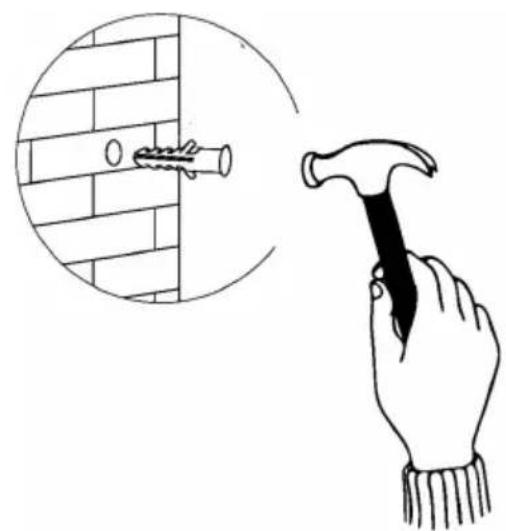

STEP3:Drive Plastic expansion tube into each hole.

Illustration showing a hand hammering a brick wall with a screw, alongside a magnified inset of the screw (no text or symbols)

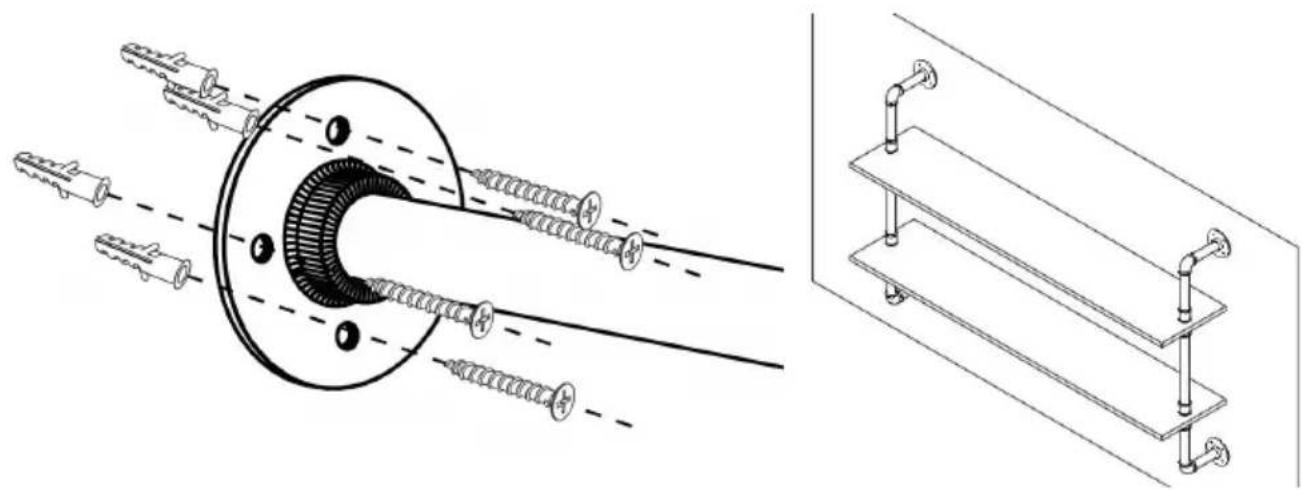

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered platform (no text or symbols present)
