CHAIRS CART USER MANUAL

Model: VV41

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Thanks for purchasing one of our products. Please read the assembly instructions carefully before installation.

Line drawing of a metal frame with wheels and support bars (no text or symbols)

Model:VV41
Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PARAMETERS

Model	Product Size/cm	Maximum number of carrying chairs	accessory
VV41	182x85.5x118	42pcs (Max:181kg)	Dust cover×1Elastic string×2

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities only apply to a who correctly assembled product.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of plate is heavy; pay attention to the installation to a hurting it, and if necessary, find someone to assist with the installation

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.

2. Use as intended only. Do not sit or stand on the product.

3. Inspect before every use. Do not use it if parts are loose or dan

4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary to whether the screw is loose to avoid the body shaking when moving.

SAVE THESE INSTRUCTIONS

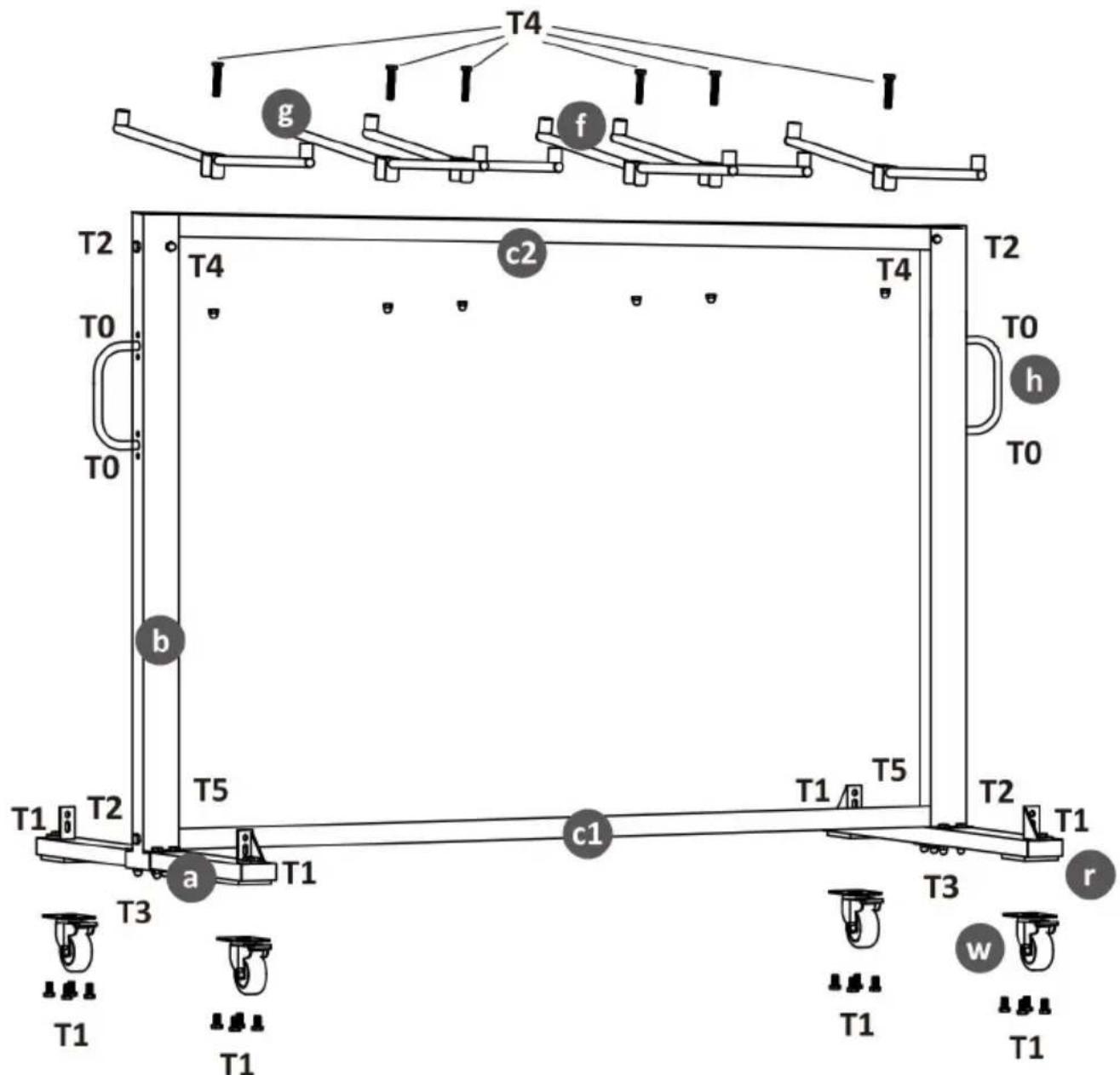

Exploded Drawing

T4 g f T2 c2 T4 T4 T2 T0 h T0 b T5 T1 T5 T2 T1 a c1 T3 r T1 T1 T3 w T1 T1

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

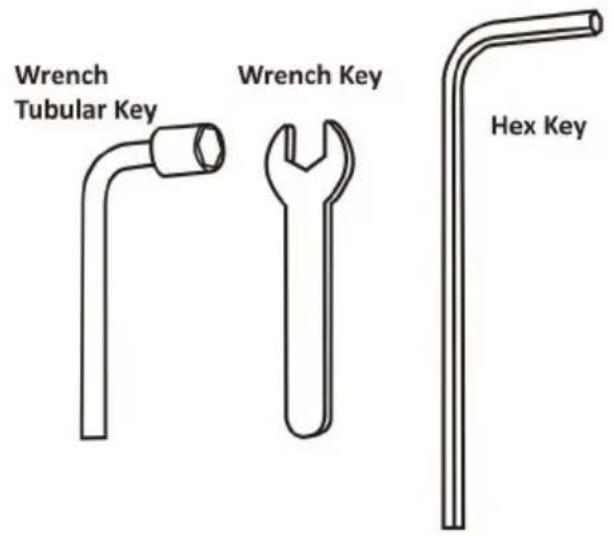

Wrench Tubular Key Wrench Key Hex Key

PARTS LIST

NO.	Description	Quantity
a	Small Bar	2
b	Vertical Bar	2
c1	Lower Crossbar	1
c2	Upper Crossbar	1
f	knob	12
g	Chair Hangers	6
r	Bottom rod	4
w	Wheel With Brake	4
T0	Hex socket cap screw(M8*10)	4
T1	Hex screw (M8*16)	24
T2	Hex screw (M8*20)	4
T3	Hex screw (M8*45)+washer+nut	8
T4	Hex screw (M8*55)+washer+nut	8
T5	Hex screw (M8*85)+washer+nut	2
h	Handle	2
	Wrench Tubular Key	1
	Wrench Key	1
	Hex Key	1

ASSEMBLY STEPS

STEP 1:

Mechanical component diagram showing a wheel and a bracket with labeled parts 'a' and 'w' (no text or symbols beyond labels)

T1

T1 r a w

I. Place the wheel (w) on one side of the small bar (a). Insert retail screw T1 (4 for each wheel). Use the wrench to tighten it in place. for each of the 4 wheels.

II. Place the bottom rod(r) on the top of small bar (a). Make sure the shape faces out. Insert two (T1) screws and use the wrench to tighten in place. Repeat for all the other 3 rods.

STEP 2:

Mechanical assembly diagram showing a T3 component with labeled parts (a, b), no readable text or symbols beyond labels

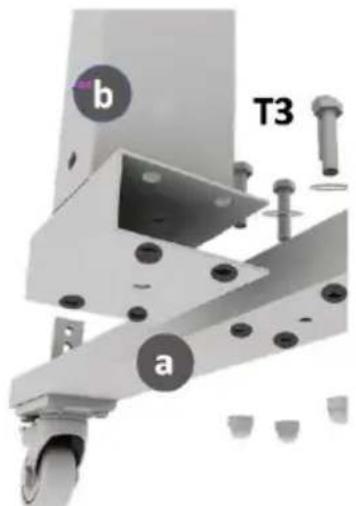

Take vertical bar (b) and place it in the middle of the small bar (a) shape facing inside as shown in figure and tighten it with four (T3) washers and nuts. Repeat for the other side.

STEP 3:

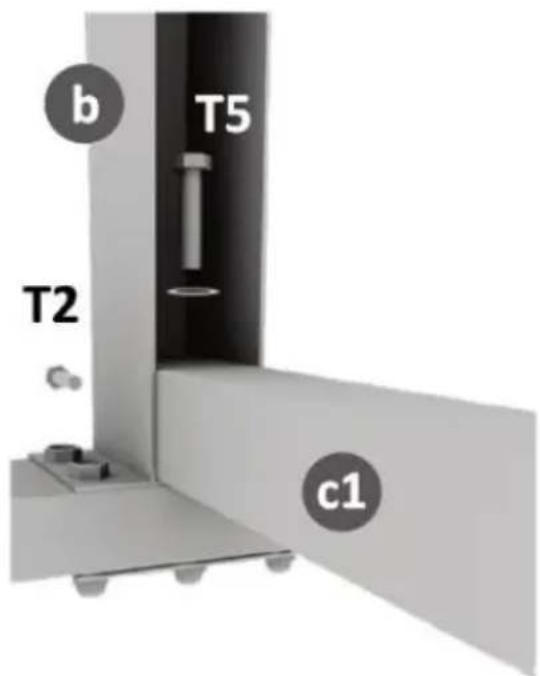

b T5 T2 c1

Slide in crossbar (c1) between the vertical bars (b) and tighten it with screws on each side (Screw (T2) from the side and screw (T5) from top)

STEP 4:

T2 T4 b c2

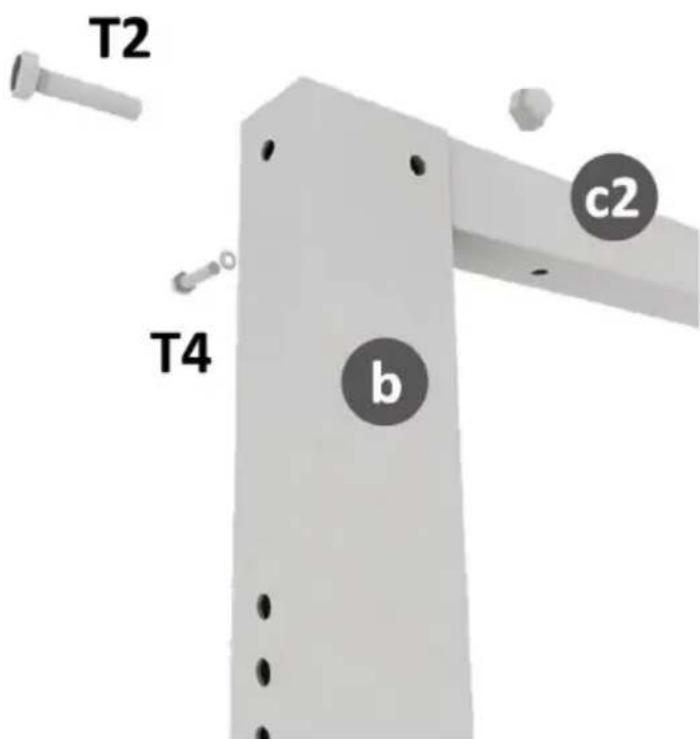

Slide in upper crossbar (c2) between the top of the vertical bars (b). Tighten it with two screws on each side (Screw T2 from the side ar T4 from the back). Repeat for the other side.

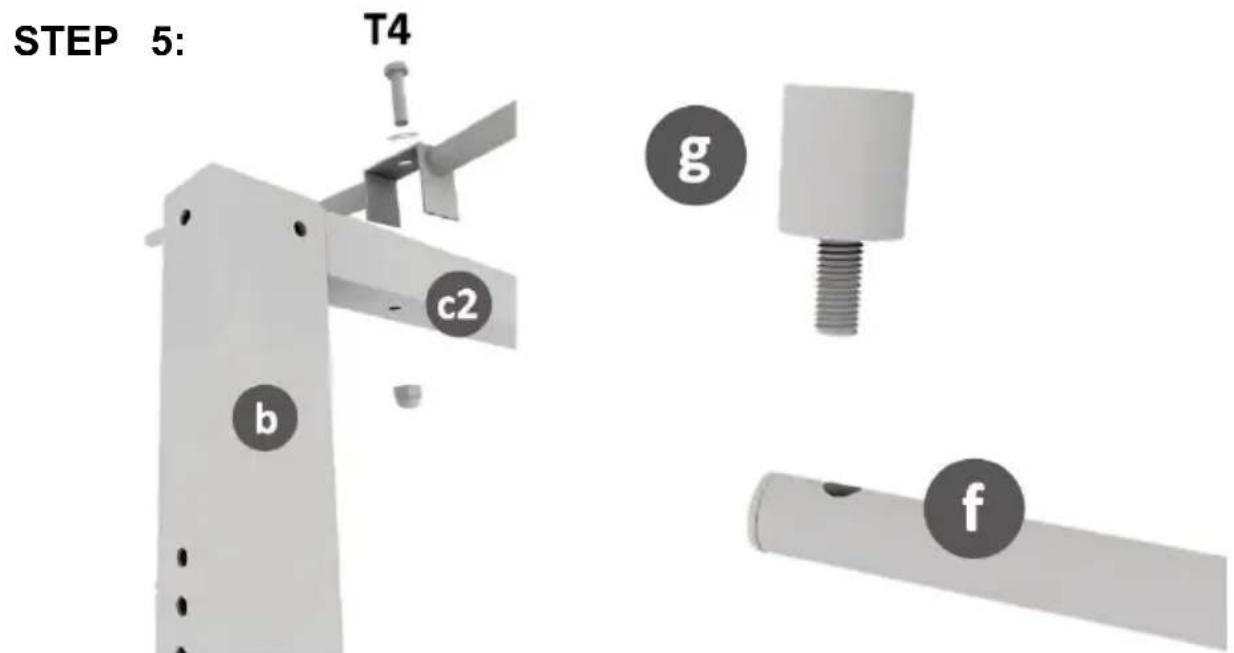

STEP 5: T4 c2 b g f

Place first chair hook on crossbar (c2). Align hooks hole with crossba hole. Insert crossbar retaining screw T4 (1 for each). Tighten screw v nut cap using metal key. Repeat for all the other 5 hooks.

Fix 2 knobs(g) on both sides of each hanger (f) as shown in figure.

STEP 6:

TO b h TO

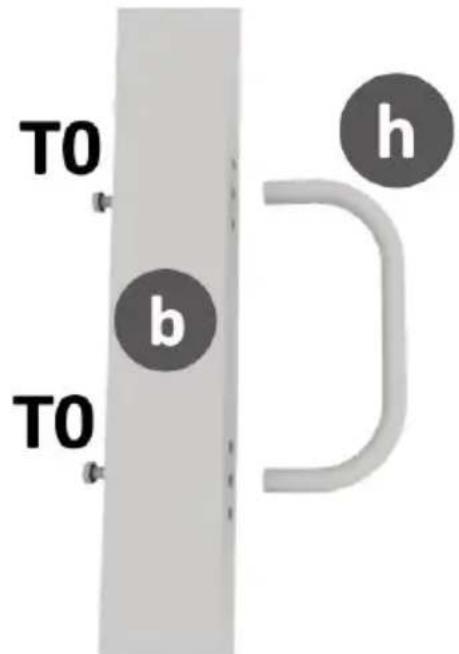

Finally attach the 2 handles on both sides of the cart on the vertical and tighten it with 2 screws (T0) for each handle(h).

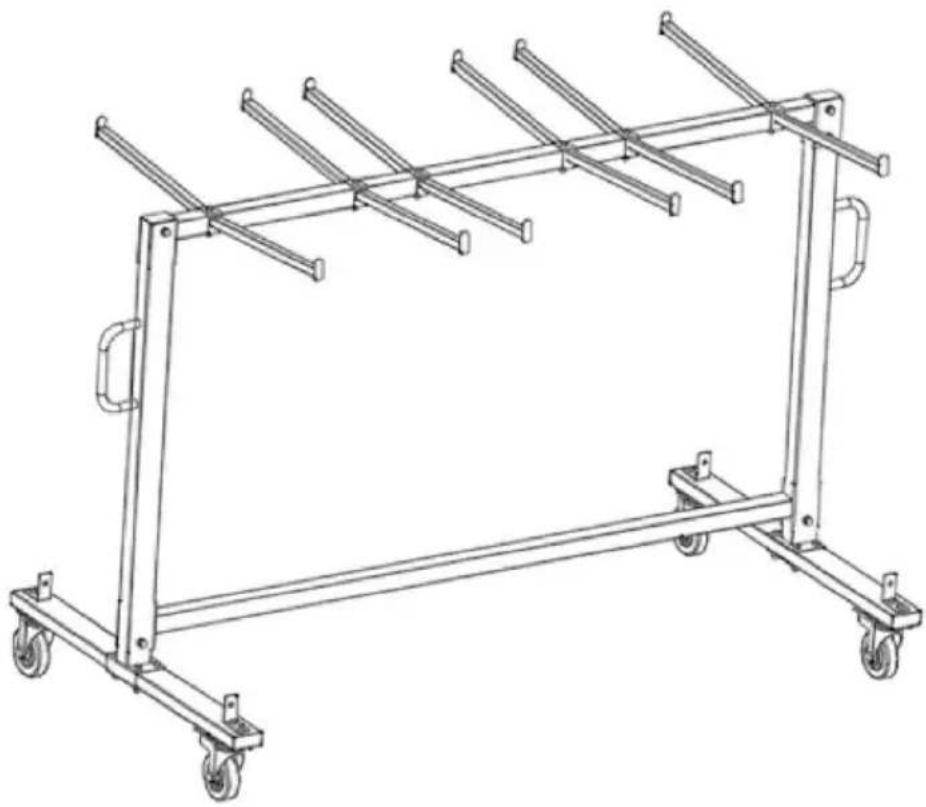

Line drawing of a metal frame with wheels and support brackets (no text or symbols)

Cleaning

-For cleaning, wipe the surface with a damp (not wet) cloth or wipe a clean lint-free cotton cloth.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMÈTRES DU PRODUIT

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

LISTE DES PIÈCES

3D mechanical component with labeled parts T2 and c2, showing bolted joints and mounting holes (no text or symbols beyond labels)

TO b h TO a

Technical line drawing of a metal frame with support poles and wheels (no text or symbols)

Nettoyage

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

STÜHLE WAGEN BENUTZERHANDBUCH

Modell: VV4 1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support bars (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUKTPARAMETER

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

TEILELISTE

Mechanical component with a wheel and a flat plate, labeled 'a' and 'w' (no text or symbols on the components themselves)

T1 a r w

3D-rendered mechanical components including a bolt and a block with circular label 'c2' (no text or symbols on main elements)

SCHRITT 5: T4 c2 b g f

TO b h TO a

Technical line drawing of a metal frame with wheels and support bars (no text or symbols)

Reinigung

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETRI DEL PRODOTTO

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

ELENCO DELLE PARTI

Mechanical component with labeled parts (a, w) and T1 pins, no readable text or symbols beyond labels

T1 r a w

Close-up of a mechanical assembly with labeled components (b and T3), no readable text or symbols beyond labels

PASSO 5: T4 c2 b g f

TO b h TO

Technical line drawing of a metal frame with wheels and support poles (no text or symbols)

Pulizia

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARÁMETROS DEL PRODUCTO

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

LISTA DE PIEZAS

NO.	Descripción	Cantidad
a	Barra pequeña	2
b	Barra vertical	2
c1	Barra transversal inferior	1
c2	Barra transversal superior	1
F	perilla	12
gramo	Perchas para sillas	6
a	Varilla inferior	4
el	Rueda con freno	4
T0	Tornillo de cabeza hueca hexago (M8*10)	4
T1	Tornillo hexagonal (M8*16)	24
T2	Tornillo hexagonal (M8*20)	4
T3	Tornillo hexagonal(M8*45)+arandela+tuerca	8
T4	Tornillo hexagonal(M8*55)+arandela+tuerca	8
T5	Tornillo hexagonal(M8*85)+arandela+tuerca	2
yo	Manejar	2
	Llave tubular	1
	Llave inglesa	1
	Llave hexagonal	1

PASOS DE MONTAJE

PASO 1:

Mechanical component with labeled parts (a, w) and pins (T1), no readable text or symbols beyond labels

T1 r a w

Close-up of a mechanical component with labeled parts (b and T3), no readable text or symbols beyond labels

3D mechanical component with labeled parts T2 and c2, showing bolted joints and mounting holes (no text or symbols beyond labels)

PASO 5: T4 c2 b g f

TO b h TO a

Technical line drawing of a metal frame with support poles and wheels (no text or symbols)

Limpieza

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

Modele: VV4 1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETRY PRODUKTU

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

LISTA CZEŚCI

Close-up of a mechanical component with a wheel and a flat plate, labeled 'a' and 'w' (no text or symbols on the components themselves)

T1 r a w

3D mechanical component with labeled parts T2 and c2, no readable text or symbols beyond labels

KROK 5: T4 c2 b g f

TO b h TO

Technical line drawing of a metal frame with wheels and support poles (no text or symbols)

Czyszczenie

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

STOELENKAR

GEBRUIKERSHANDLEIDING

Model: VV4 1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

Model: VV4 1
Foto ter referentie

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCTPARAMETERS

WAARSCHUWING: OM ERNSTIG LETSEL EN DE DOOD DOOR

KANTELEN TE VOORKOMEN:

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

Wrench Tubular Key Wrench Key Hex Key

ONDERDELENLIJST

Mechanical component with a wheel and a bracket, labeled 'a' and 'w' (no text or symbols on the components)

T1

T1 r a w

Mechanical assembly diagram showing a component labeled 'a' and 'b' with bolt holes and pins, no readable text or symbols beyond labels.

STAP 5: T4 c2 b g f

TO b h TO

Technical line drawing of a metal frame with support poles and wheels (no text or symbols)

Schoonmaak

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

STOLAR VAGN ANVÄNDARMANUAL

Modell: VV4 1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Line drawing of a metal frame with wheels and support poles (no text or symbols)

Modell: VV4 1

Foto för referens

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUKTPARAMETRAR

WARNING: FÖR ATT FÖRHINDRA ALLVARLIGA SKADA OCH

DÖDSFALL VID VÄLLNING:

T5 (2 pcs) T4 (8 pcs) T3 (8 pcs) T2 (4 pcs) T1 (24 pcs) T0 (4 pcs)

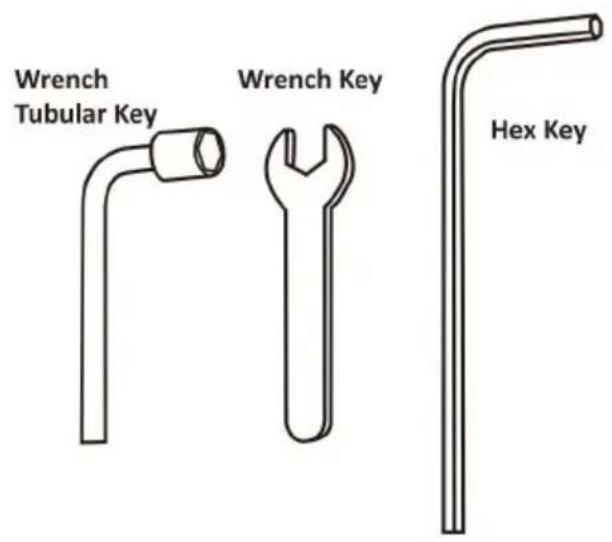

Wrench Tubular Key Wrench Key Hex Key

DELLISTA

Mechanical component with a wheel and a bracket, labeled 'a' and 'w' (no text or symbols on the components themselves)

T1

T1 r a w

Mechanical assembly diagram showing a component labeled 'a' and 'b' with bolt holes and pins, no readable text or symbols beyond labels.

TO b h TO

Line drawing of a metal frame with wheels and support bars (no text or symbols)

Rengöring

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
