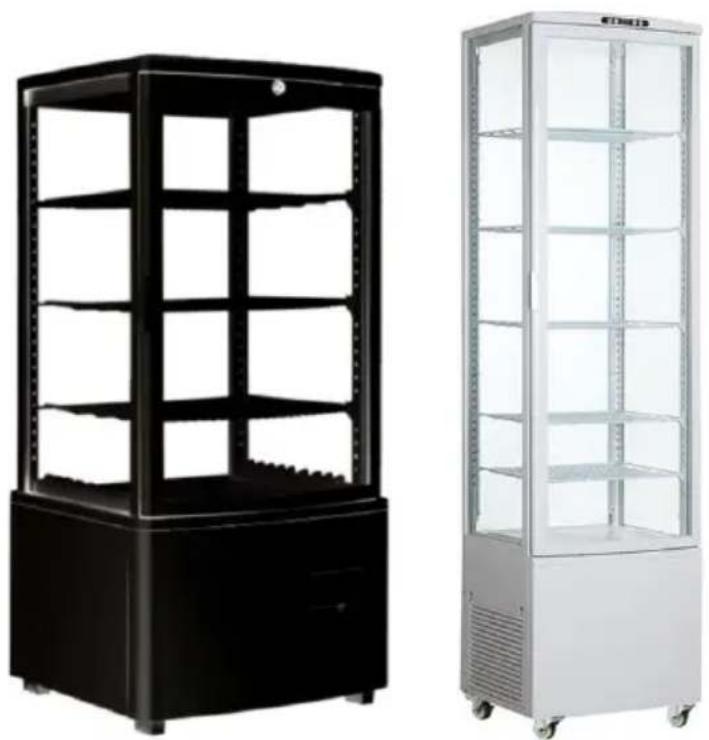

DISPLAY REFRIGERATOR

MODEL:XC-78L(1R) XC-278L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:XC-78L(1R)、XC-278L

Two black and white laboratory glass cabinets with internal compartments, one black and one white, displayed against a plain background (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

General

1. Top brand fully enclosed compressor is used on the desk-top refrigerator. The refrigerant R600a or R290 is of an environmentally friendly agent features a rational configuration of refrigeration system with blower force air cooling. The temperature is quite even inside the refrigerator.
2. Double hollow transparent glasses are used on door and body. It features an artistic and elegant appearance, perfect perspective and access.
3. It has a wide application in department store and house as well as meeting room and sitting room

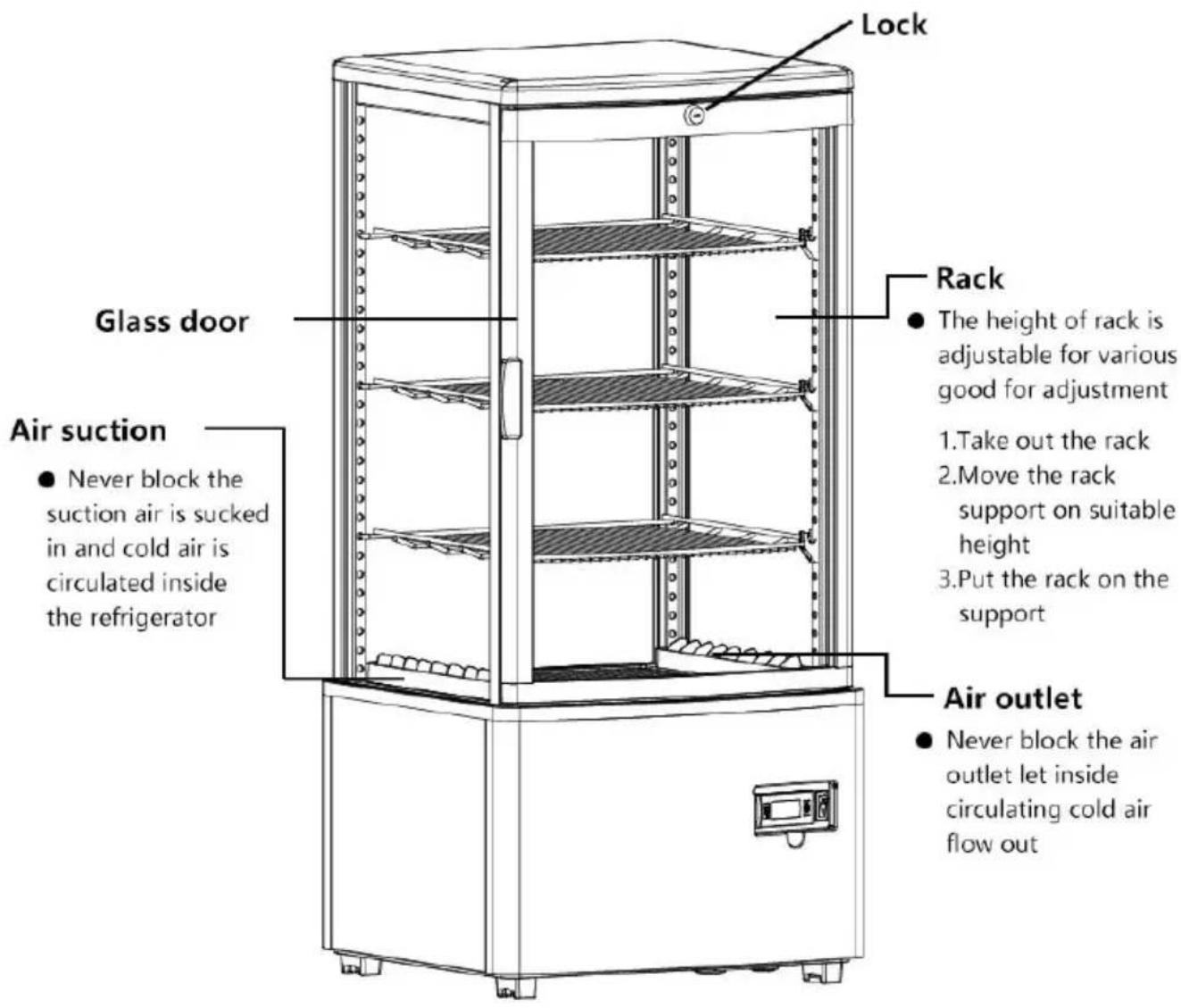

Structure and Parts

Lock Glass door Air suction ● Never block the suction air is sucked in and cold air is circulated inside the refrigerator Rack ● The height of rack is adjustable for various good for adjustment 1.Take out the rack 2.Move the rack support on suitable height 3.Put the rack on the support Air outlet ● Never block the air outlet let inside circulating cold air flow out

Handle and Erection

Handle with careUnplug the wall socket first. Never tilt it over 45 degree o handling
Dry placeAlways locate the refrigerator dry place.
Sufficient spaceThe distance from both sides back of refrigerator to wall or substance must be not less than 10cm. The refrigeration capability might be decreased if its surround space is too small to circulate
Well ventilationAlways locate the refrigerator a place with fine ventilation. For first time use, wait for 2 ho after handling and then plug wall socket and start it.
Far from heat sourceNever place the refrigerator directly under the sunshine .Ne locate it nearby any heat sou or heater to prevent it from reducing refrigeration capability.
No heavy loadNever put any heavy load on top of the refrigerator.
No hole makingNever make hole on the refrigerator. Never install other matter on the refrigerator.

Stable location

Unpacking and locate the refrigerator on a flat and so place.

Simple line drawing of a sad face on top of a block with wavy lines indicating water (no text or symbols)

Preparation and Power Supply

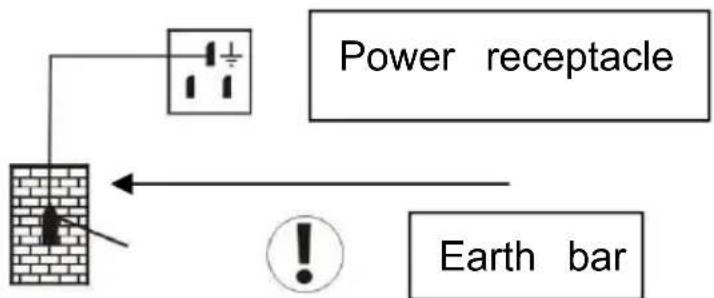

Exclusive power socket

Normally, the power supply voltage should be consistent with the nameplate requirements. The power receptacle must have a reliable ear connection.

Power receptacle Earth bar

No share on socket

Never let the refrigerator share the common socket with other appliance, otherwise the cable becomes hot and fire might be resulted.

Simple line drawing of an electrical plug with three bulbs and a fuse, emitting sparks (no text or symbols)

Protect cables

Never break or damage the cables otherwise current leakage and fire

might be resulted.

X

No water flushing

Never give the refrigerator surface a flush otherwise current leakage r be resulted.

Cartoon illustration of a sad eraser with a flying tail and the letter X, likely symbolizing a warning or toxicity.

Prevent from flammables and explosive

Never put any flammable or explosive inside the refrigerator such as gasoline, alcohol, adhesive and explosive. Never put dangerous products nearby the refrigerator.

Diagram showing a box with crossed eyes and a hand holding a pen, alongside a bottle, rolled-up boxes, and a large 'X' symbol.

No spray

To spray the flammables such as paint or coating nearby the refrigerator not allowed, otherwise fire might be resulted

Cartoon illustration showing a sad cube with a face and a spray bottle labeled 'X' (no text or symbols on the diagram itself)

After power break

After power break or unplugging the refrigerator, always wail at least minutes and then you may plug the refrigerator and start it again.

5 minutes

No medicine

No medicine is allowed to keep inside the refrigerator.

Illustration of a paintbrush, milk carton, and eraser with a large 'X' symbol (no text or labels)

Use and Caution

1. Before use:

Plug the refrigerator on exclusive socket. After the refrigerator running, put hand on the air suction to confirm it is sufficient cold. Then you make food inside the cold box.

2. Digital Temperature controller

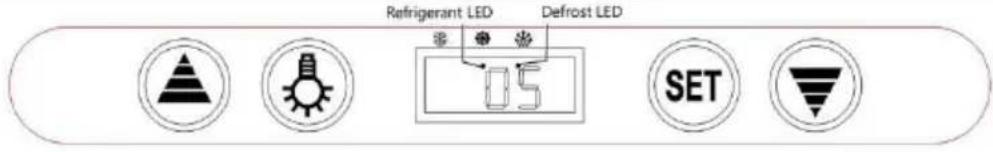

XC-78L(1R)
XC-278L

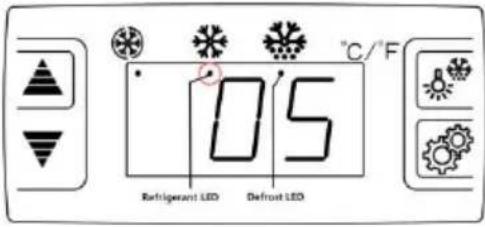

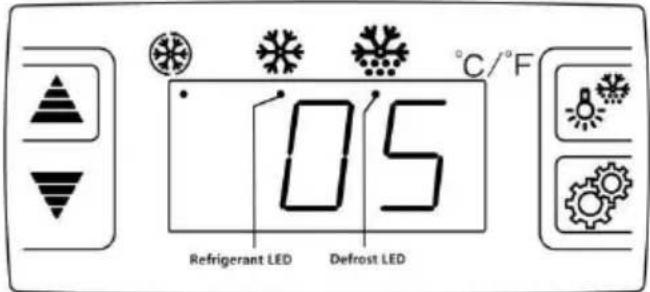

Refrigerant LED(Red circle)	Status	Meaning
	Solid on	The compressor is working,refrigeration begins.
	Flashing	The compressor is not workin no refrigeration.

When the power is just turned on or after a power outage, the co will have a 5-minute delay to start, at this time, the refrigerant LED flashing, the compressor is not working, and there is no refrigeration. the refrigerant LED is solid on, the compressor starts to work and refrigeration begins.

Features Of Function

- It is a mini-sized and integrated intelligent controller and applicable compressor of one Hp.

The main functions are: Temperature Display/Temperature Control/Manual, automatic defrost by burning off/Illumination Control/Value Storing/self Testing/parameter Locking

Front Panel Operation

1. Set temperature

Press or "SET" button, the set temperature is displayed. Press or

▼ button to modify and store the displayed value. Press or “SET” button to exit the adjustment and display the cold-room temperature. Temperature setting range: 2\~6°C (35.6\~42.8°F)

1. If no more button is pressed within 10 seconds, the cold-room temperature will be displayed.

2. Illumination: Press or button, it lights; Press again, it stops. Manual start/stop defrost: Press or button and hold for 6 seconds to defrost or stop defrost.

3. Refrigerant LED: During refrigeration, the LED is on; When the cold temp. is constant, the LED is off; During the delay start, the LED fla

4. Defrost LED: during defrosting, the LED is on; When is stops defro the LED is off, During the delay display of defrost, the LED flashes.

6."Turbo" function: long press for 3 seconds, the compressor is forced to start for 2 hours, directly enter the defrost after 2 hours; under the cooling state, long press for 3 seconds to exit forced cooling.

3. Cautions

- Shorten the door open time and reduce open frequency is good to cold temperature inside the refrigerator.

- Never block the air suction and outlet. Keep air circulation and refrigeration capability.

- Do not make food congested as it will influence the cooling effect. the rack height for proper food storage.

- Cool the hot food down to room temperature before you put it into refrigerator.

- Try to reduce the open times and keep refrigerator inside cold in power is cut off.

- Only skilled service man is allowed to repair the damaged power

with special tools.

• Never touch compressor to avoid from scald.
• This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety).
• Children should be supervised to ensure that they do not play with appliance.
• The operation manual are not suitable for the persons (including cl with reduced physical, sensory or mental capabilities, or lack of experie and knowledge.

- The maximum loading of the Shelf does not exceed 10 kg.

- The climatic class of the appliance is 4, the Units are suggested to used at 16^ - 32^ ambient temperature.

WARNING

- Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the food storage compartment the appliance, unless they are of the type recommended by the manufacturer.

Maintenance

1. Notice

Often keep the refrigerator clean and periodical maintenance is necessary. Always unplug the socket before maintenance

Never use damaged plug or loose socket to prevent from electric shock short circuit.

Never flush the refrigerator. Never use alkali detergent, soap, gasoline,

acetone or brush.

2. Clean outside

Dip soft cloth in neutral detergent(tableware detergent) to clean the out of the refrigerator and then wipe it with dry soft cloth.

3. Clean inside

Take rack out for cleaning with water

4.Shut down refrigerator for a long time

Take all food out and unplug the wall socket.

Clean both inside and outside of the refrigerator thoroughly and open door for sufficient dry.

The glass breaks easily. Keep the glass far from children.

Clean the condensate tray and wipe it dry.

Trouble Shooting

Trouble	Cause and Remedy
No refrigeration	Is the plug in socket well?Is the fuse broken?Is there no power?
Unsatisfactory refrigeration	Is it under the sunshine?Is there any heat sour nearby?Is the surrounding ventilation bad?Does the door close well? Does door open for time?Is the door seal strip deformed or damaged?Is food congested or too much?Does food block the air suction or outlet?Regulate the temperature controller.
Much noise	The refrigerator does not level.The refrigerator contacts wall or other matter.There is loose part in refrigerator.
Contact local service agent for help if simple trouble shooting solve the problems.

Note:

Following phenomena are not troubles

The murmur of water is heard when the refrigerator is working. It is normal phenomenon as the coolant is circulating in the system. In wet season, condensation might be found on the outside of the refrigerator. It is not a trouble, which is caused by high humidity. Sin cloth to wipe it.

Packing List

No.	Item	Qty	Remark
1	Display Refrigerator	1 set
2	Manual	1 pcs
3	Shelf	5 pcs	Only for XC-278L
4	Shelf	3 pcs	Only for XC-78L(1R)
5	Shelf leg	2 pcs
6	Lamp circlip	2 pcs	Only for XC-278L
7	Screw dust cover	2 pcs	Only for XC-278L
8	key	2 pcs	Only for XC-78L(1R)

Note:

1. The electric circuit diagram and parameters on the product name plate are final ones if they have been changed.
2. The design might be improved without notice.
   3.The product is serve as a counter for transactions between sales personnel and customers, the door is in the back of the appliance a

needs to be used by the sales staff, so that the sales staff can pro goods to consumers.

1. If the supply cord is damaged, it must be replaced by the manufacture of its service agent or similarly qualified persons in order to avoid a hazard.

During using, service and disposal the appliance, pay attention to symbol similar as left side, which located on rear of appliance (rear panel or compr and with yellow or orange color.It's risk of fire warning symbol. There are flamma materials in refrigerant pipes and compressor.Please be far away fire source during using, serv disposal.

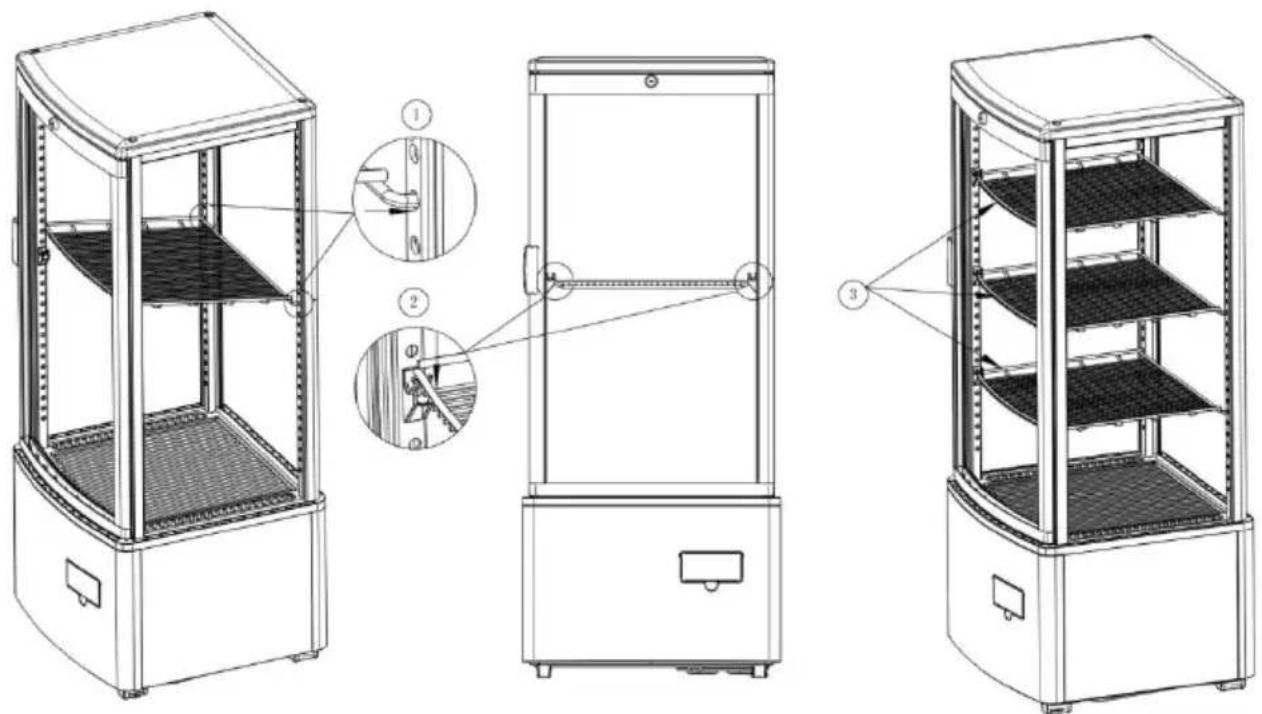

Shelves Installation Instructions

Technical diagram of a three-tiered refrigerator with labeled components and structural details

1. Insert the protruding part of the shelves frame into the rear column mounting hole, and the number of mounting hole vacancies is the sa

the number of empty positions on the front column shelves foot.

1. Place the flat end of the shelves into the card slot of the grid leg
2. Repeat the steps 1 and 2, install all the shelves frames (tip: the fi
   2 grid frame rear column installation holes are spaced one more than
   hole between the two grid legs).
