MUNICIPAL PIPELINE DETECTION ROBOT

MODEL:WR030-120, WR030-60

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MUNICIPAL PIPELINE

DETECTION ROBOT

Two industrial robotic devices: a wheeled vehicle and a multi-wheeled device with orange cable spool, both shown without any visible text or symbols.

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection inEuropean Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
	FCC Information:CAUTION: Changes or modifications not expressly approved by party responsible for compliance could void the user's authority operate the equipment!This device complies with Part 15 of the FCC Rules. Operatio subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expre approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with for a Class B digital device pursuant to Part 15 of the FCC These limits are designed to provide reasonable protection aga harmful interference in a residential installation.This product generates, uses and can radiate radio frequency and if not installed and used in accordance with the instructio cause harmful interference to radio communications. However, it is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to television reception,which can be determined by turning the pro off and on, the user is encouraged to try to correct the inter one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from which the receiver is connected.Consult the dealer or an experienced radio/TV technician for assistance.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Precautions

1. Please read the instruction carefully before use.
2. Don't drop or press.
3. Do not turn on power supply during installation, cleaning and repair.
4. If product has abnormal sound or smell during use, cut off power supply immediately.
5. Power supply box is not waterproof, keep it dry.
6. Be sure to keep hands and plug dry when plug in or plug off.
7. If the user disassembles the machine or there is loss, no warranty.
8. The operation of the product should be standardized, otherwise it will lead bad camera and cable damage.
9. If the product is upgraded, the instruction may be different from the product without prior notice.

Features

1. All-metal anti-oxidation and corrosion resistant body, IP68 waterproof.
2. With front and rear 2 megapixel, high-definition, low illumination cameras.
3. The front camera is mounted on a Pan-Tilt, which can be adjusted horizo to 360 degrees and vertically to ±90 degrees. The height of the camera is adjustable.
4. Four motor driven wheels, all-time stand by and powerful. The driving speed the machine can be adjusted in high, medium and low three levels.
5. Special shaped non-skid tire, designed according to the force in the pipeline suitable for all kinds of wet and slippery scenes.

6. Eight high-power lights (six in front and two in rear), headlight is adjustab Good lighting effect.

7. All metal winch with automatic wire winding function. With automatic meter count function, vehicle driving distance can be displayed synchronously and ca appear in the screenshot.

8. Special tensile, scratch and corrosion resistant cable.
9. Power input: 110V-220V, emergency inverter power supply can also be used
10. Real-time display when machine is moving forward, backward and turning or right.
11. With tablet, installed operating software, simple operation and easy to use
12. With photo and video functions.

Specifications

Part	Item	Specifications
		WR030-120	WR030-120	WR030-60	WR030-60
Robot	Material	High Strength Alloy Material
	Motoring Mode	Four-wheel Motoring
	Speed	Four-wheel Crawling
	Motor Power	2-25 meters/min 3 levels speed, Adjusta
	Motor Power	120W
	Camera Pixel	2 Megapixel
	Lens Rotation Angle	360 Degrees Constant Speed Infinite Rotation
	Lens Flip Angle	180 Degrees
	The Lens Material	Alloy Steel
	Light Power	40W
	Front Lens light Source	4 Main Headlights, 2 Auxiliary Lens Lig
	Rear Lens Light Source	2
	Lightness	Adjustable
	Waterproof Grade	IP68
Wire Frame	Wire Frame Material	All Metal
	Cable Length	120m	120m	60m	60m
	Cable Material	Tensile, Scratch and Corrosion Resistant Cable
	Wire Winding Mode	manual winding, automatic wiring
	Meter Count Mode	Electronic Counter
	Power Supply	110-120V	220-240V	110-120V	220-240V

Operating Environment and Conditions

Pipe diameter: >300MM

Temperature: -10 °C - +50 °C

Relative humidity: 0%-95%, no condensation.

Atmospheric pressure: 70-106Kpa.

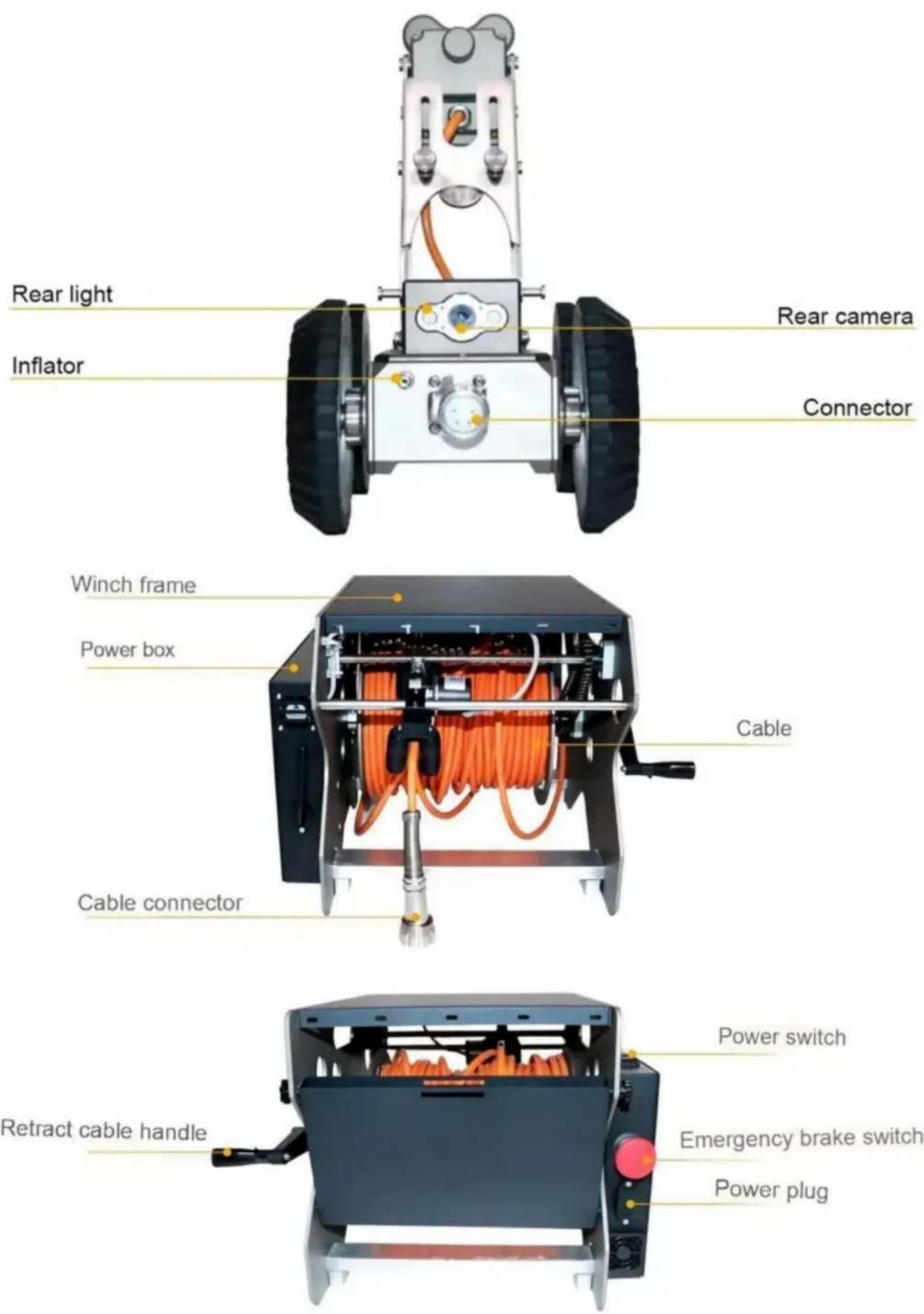

Parts Introduction

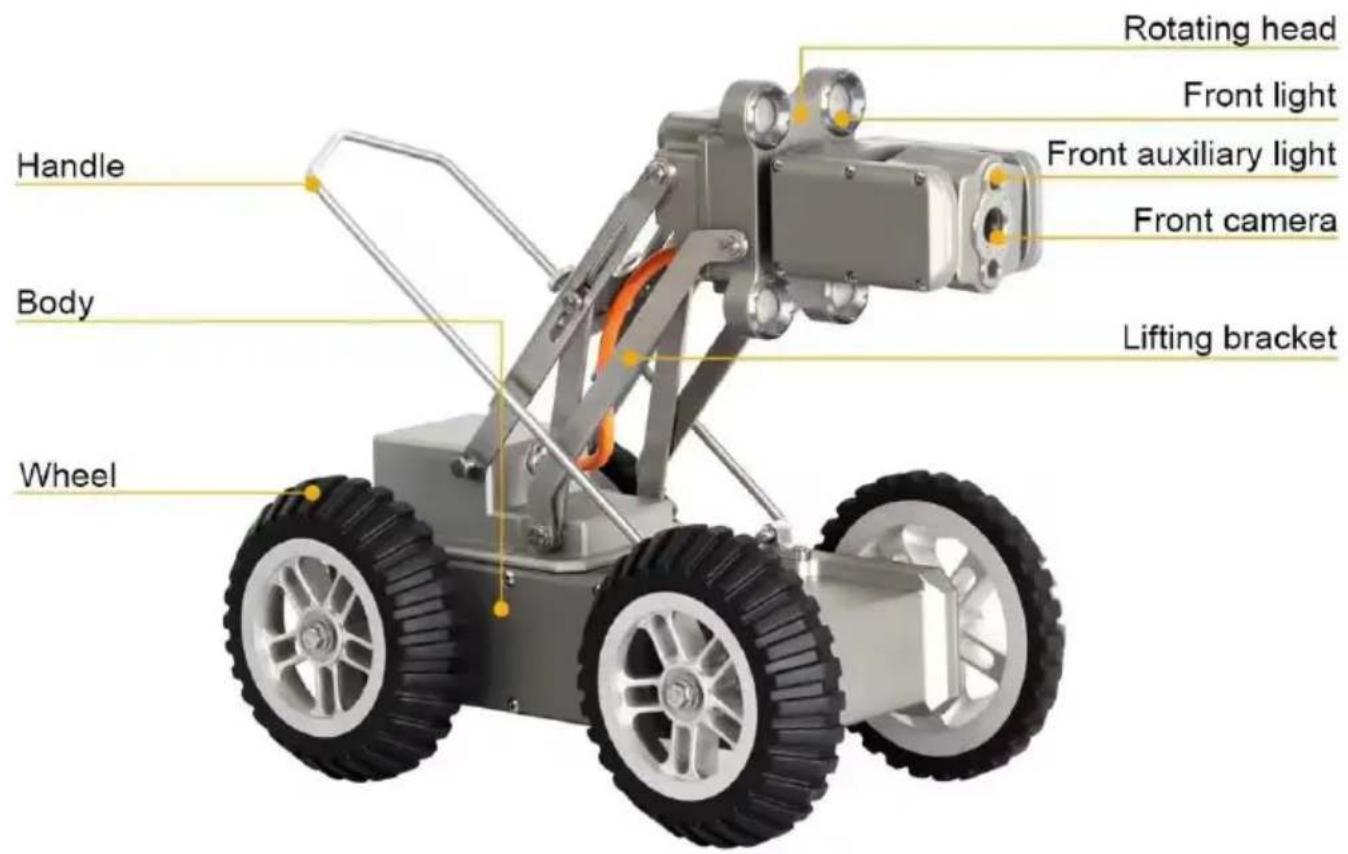

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Rear light Inflator Rear camera Connector Winch frame Power box Cable Cable connector Retract cable handle Power switch Emergency brake switch Power plug

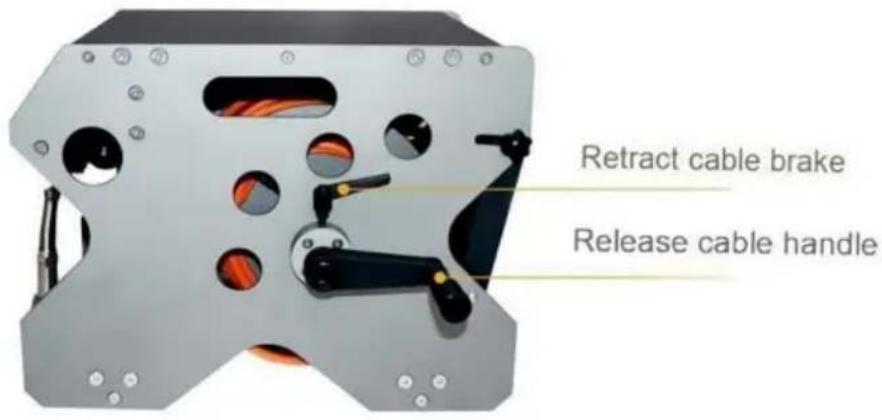

Retract cable brake Release cable handle

Tablet WIFI Connection and Control

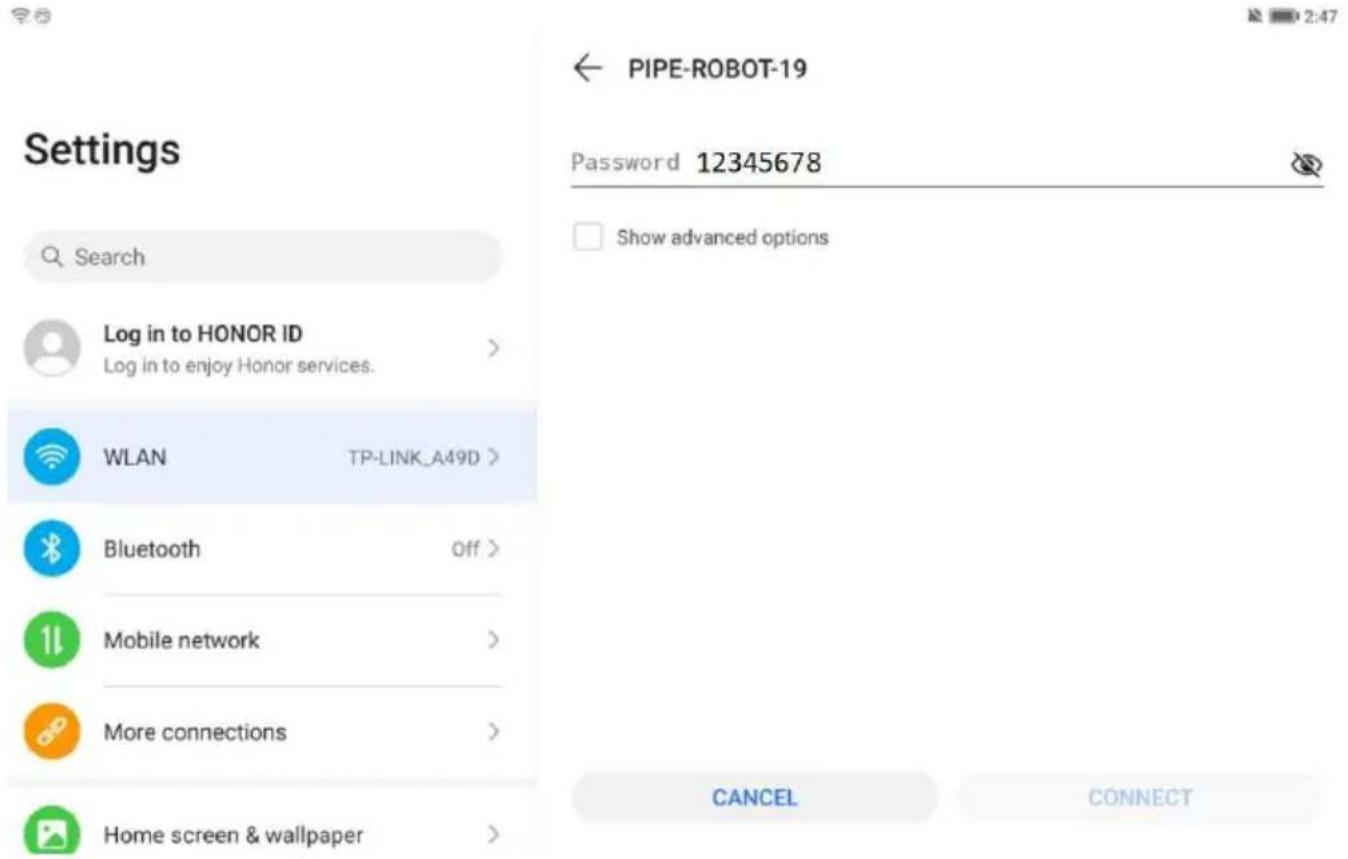

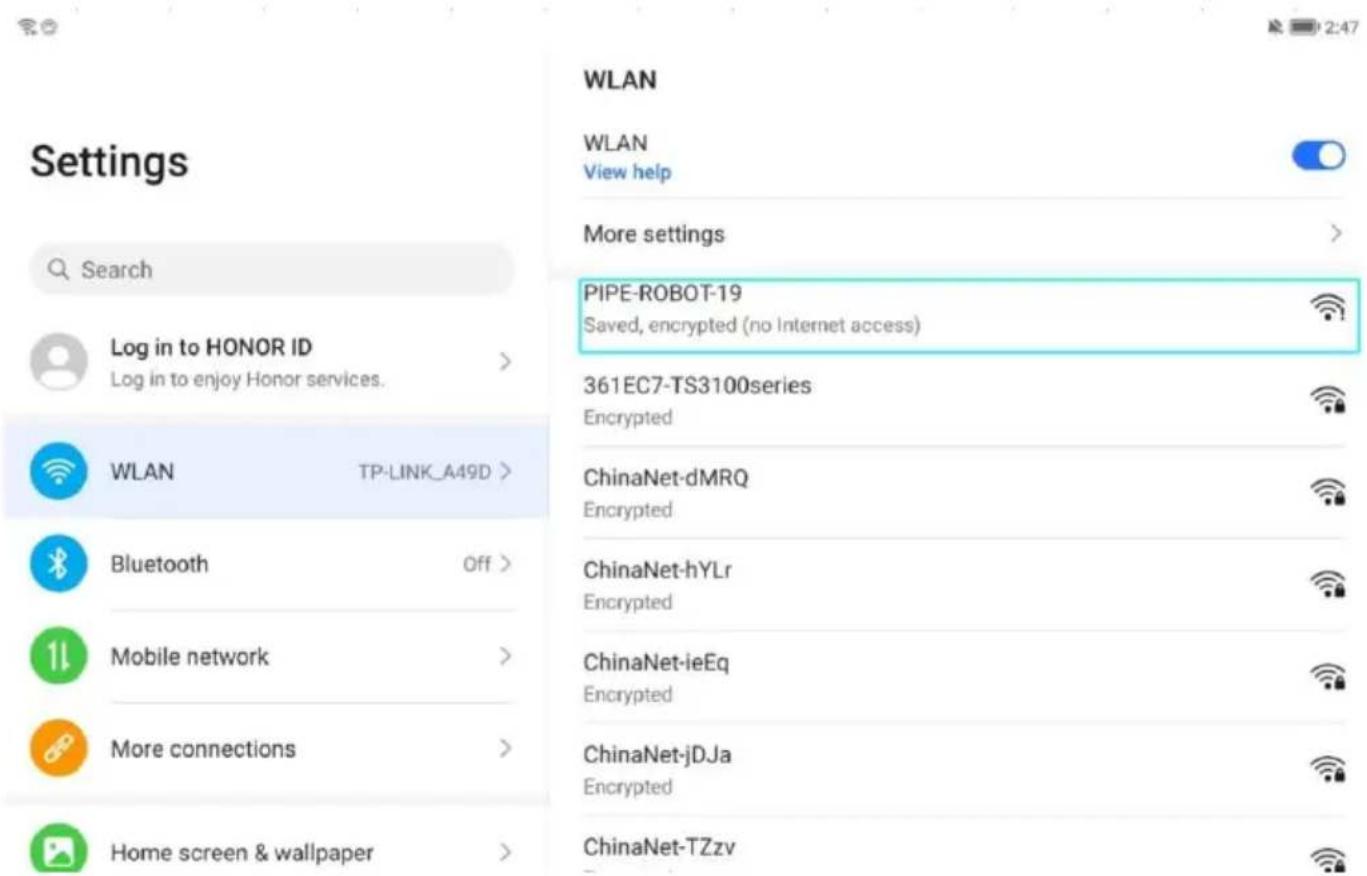

1. Tablet WIFI Connection: Open WIFI, search for PIPE-Robot-19.

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

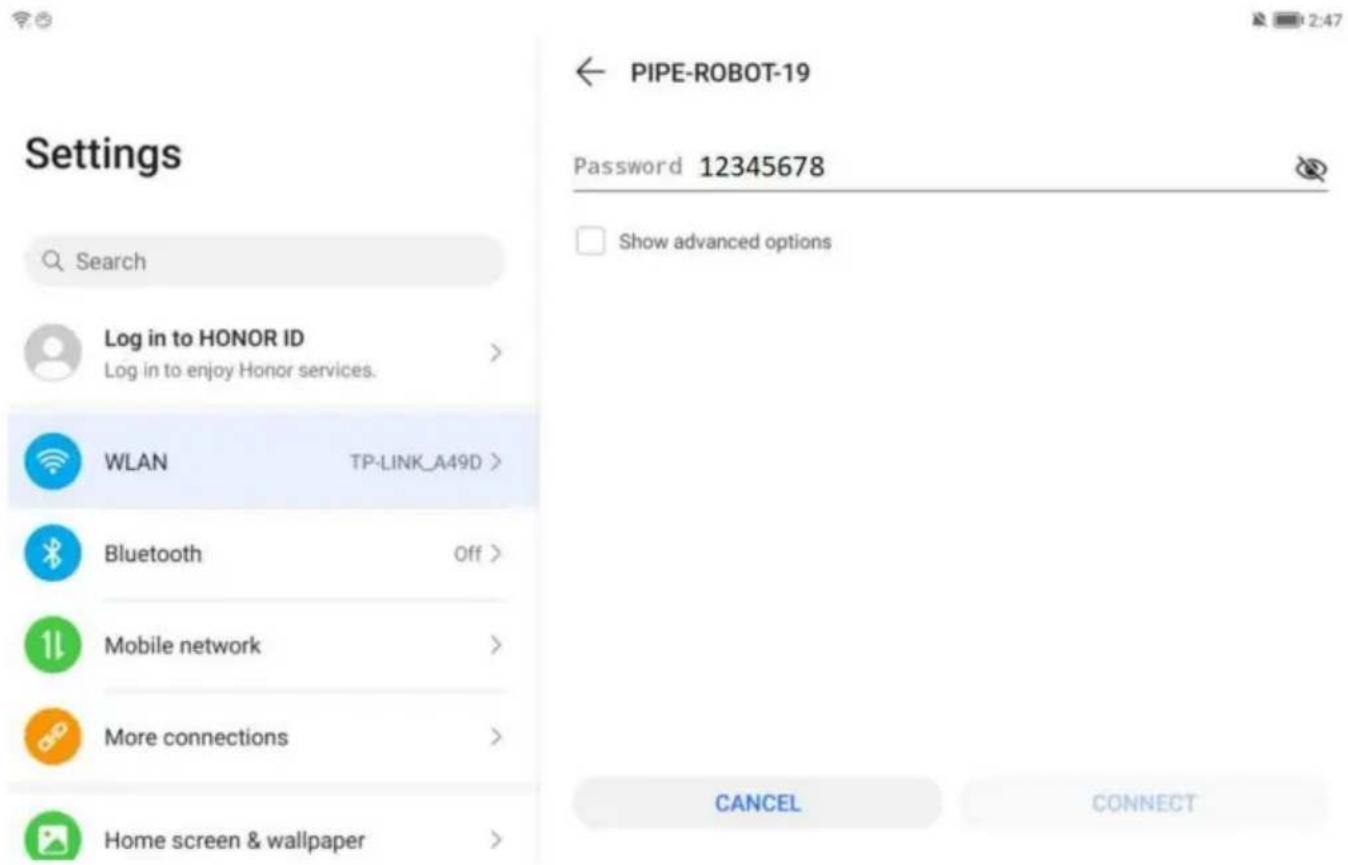

1. Enter the original password: 12345678, connect to WIFI.

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

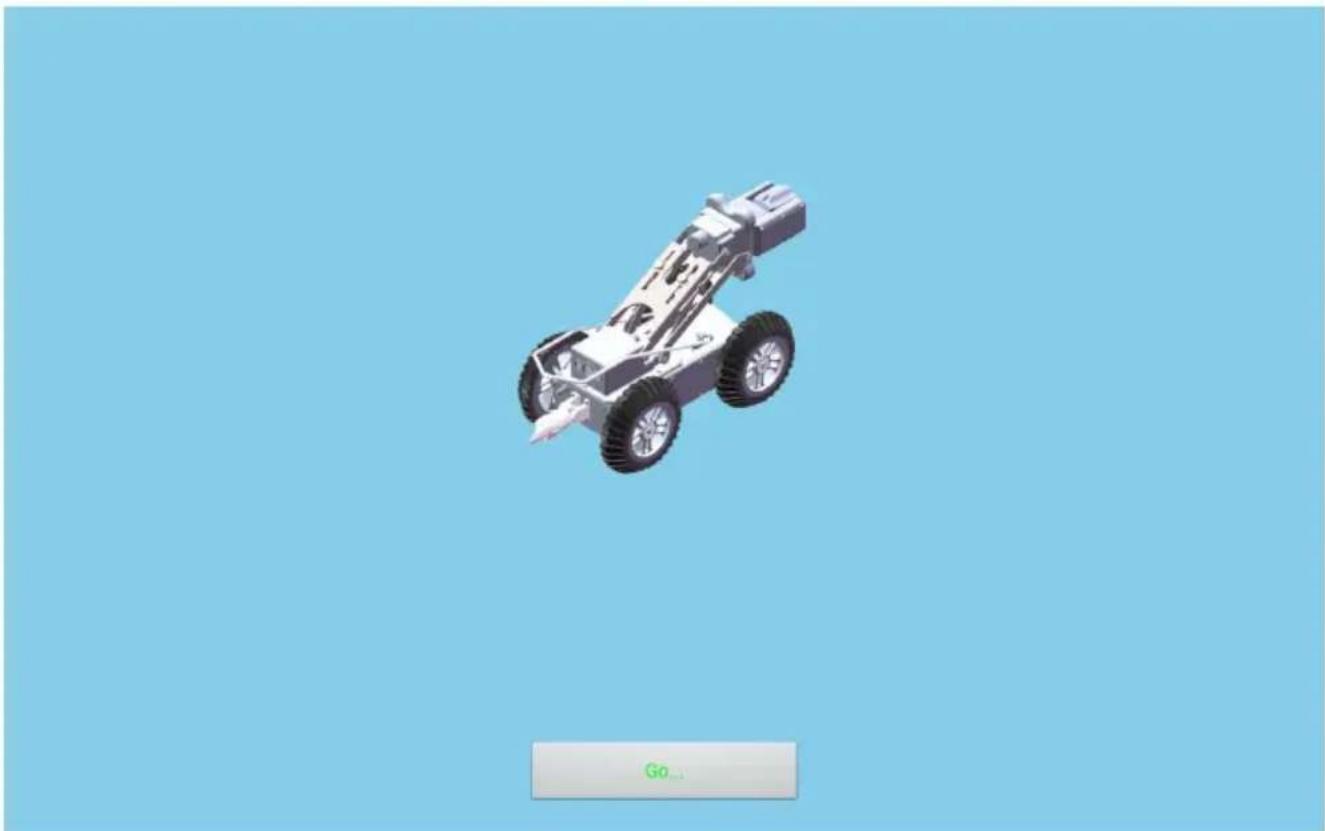

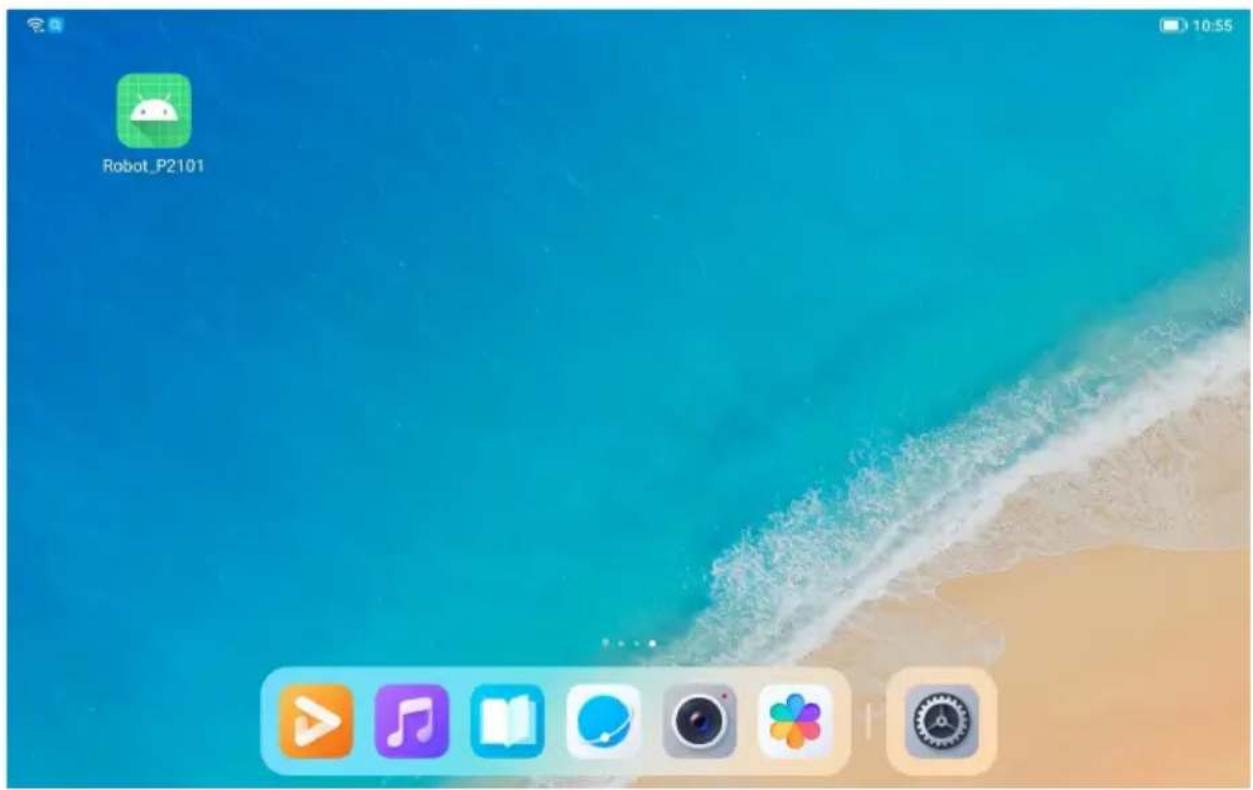

1. Enter the interface: open the icon of the installed robot program and GO to enter the control interface.

Robot_P2101

3D model of a toy car with two wheels and a pointed tip, displayed against a solid blue background (no text or symbols on the vehicle itself)

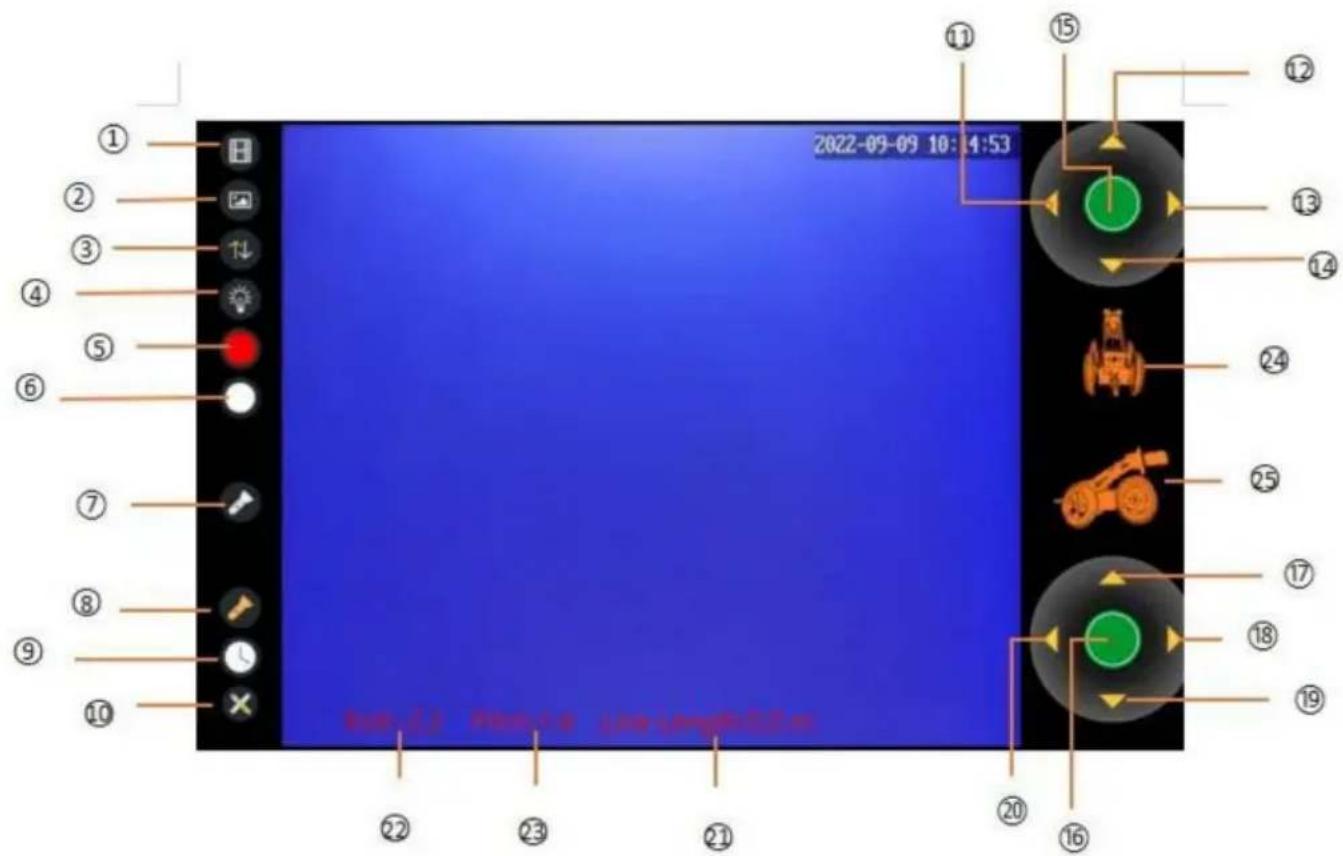

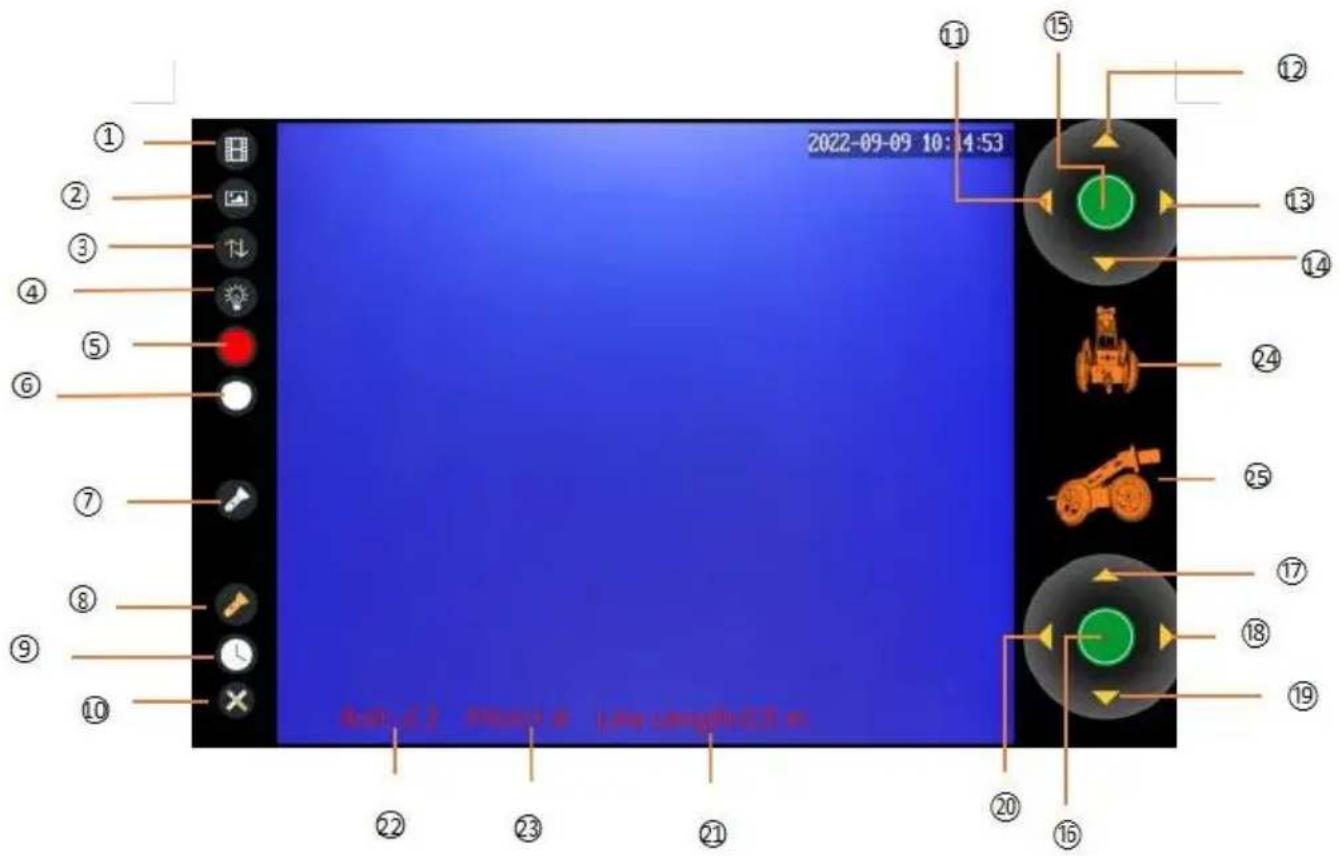

1. Key Functions:


2022-09-09 10:34:53 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟o

Recording Function:

1. Video Play 2. Album 5. Video Recording 6. Photography

Light Control:

1. Rear Light Switch 7. Front Light Brightness Adjusting Switch
2. Front Auxiliary Camera Light Brightness Adjusting Switch

180° Rotation Function of Camera:

3.Front/Rear Camera 11.Front Camera Left Rotation

12.Front Camera Upward Rotation 13.Front Camera Right Rotation

14.Front Camera Downward Rotation 15.Front Camera Reset

Moving Function:

1. High/Medium/Low Level Switch 17. Forward 18. Turning Right
2. Back word 20. Turning Left

Distance Count Function:

10.Meter Counter Reset 21.Cable Meter Display

Time Synchronization:

9.Time Synchronization Button

Wheel Tilt Angle Display Function:

22.Roll Angel 23.Pitch Angel 24.Roll Angle Three-dimensional Display
25.Pitch Angle Three-dimensional Animation Display

Operation and Use

Preparation and Inspection Before Use:

1. Connect the robot machine with the winch and lock it tightly.
2. Make sure that the front camera horizontal, axial automatic reset function zoom function is normal.
3. Make sure to switch between front and rear cameras is normal.
4. Make main light and auxiliary light are adjusted properly.
5. Make robot machine can flexibly go forward, backward, turn left and right.
6. Make cable to release and retract properly.
7. Make sure to press the emergency stop button to shut down the robot s;

Operating procedures, methods, precautions and prevention measures for errors during startup and use:

1. Hanging the robot machine to the sling, the body should be kept horizont and slowly downward, and avoid shaking and friction to damage device. Let car body horizontally and slowly landing, head up, tail down. When the body landed, remove the sling.
2. Start the control system, control the vehicle slowly forward, move the cable the pipe entrance and fix it.
3. Turn on the main light and auxiliary light, and adjust to meet the image requirements.
4. After the cable transmission is normal, the vehicle speed can be adjusted according to the detective requirements.
5. During the process, pay close attention to the state of various parameters, especially the information of vehicle tilt state, to prevent the vehicle from overturning.
6. When the vehicle is retreating, turn on rear-view camera, and the cable winding machine speed should be match with the reverse key to slow down speed and retract cable.
7. When turning in the pipe, drive slowly to prevent rollover.
8. After the inspection, stop the robot machine in an appropriate position, has the sling hanger on the robot, and slowly lift it.

System Connection

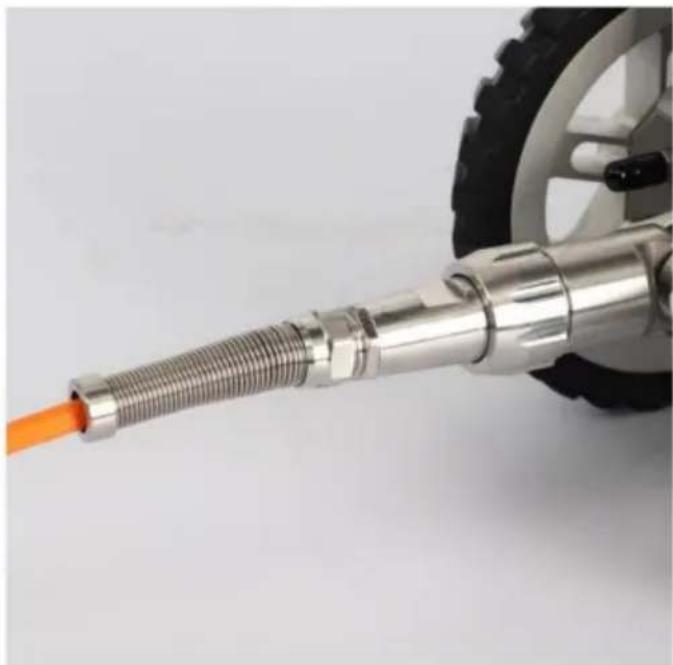

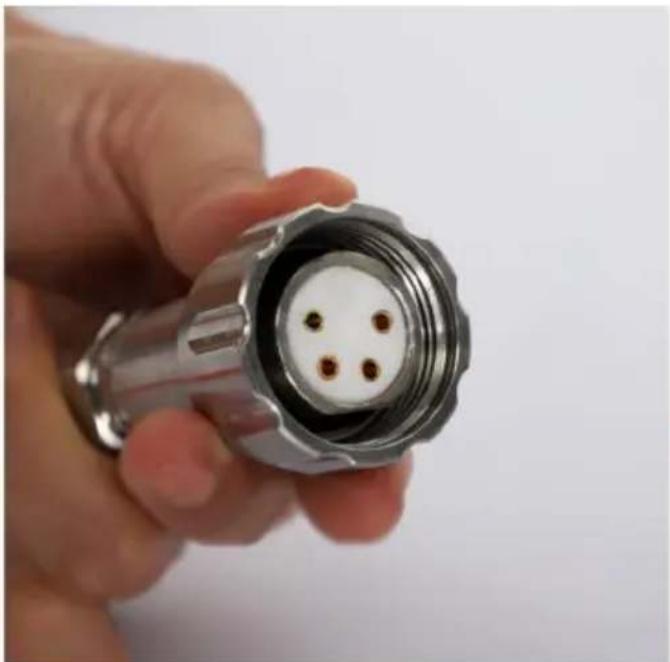

Connect cable and body connector

Note:

1. Align pinhole position
2. Check integrity of waterproof ring
3. be sure the connector is clean

Close-up of a hand holding a metallic showerhead connector with four small brown dots on its body (no text or symbols visible)

Close-up of a metallic mechanical component with threaded shaft and attached cable, no visible text or symbols

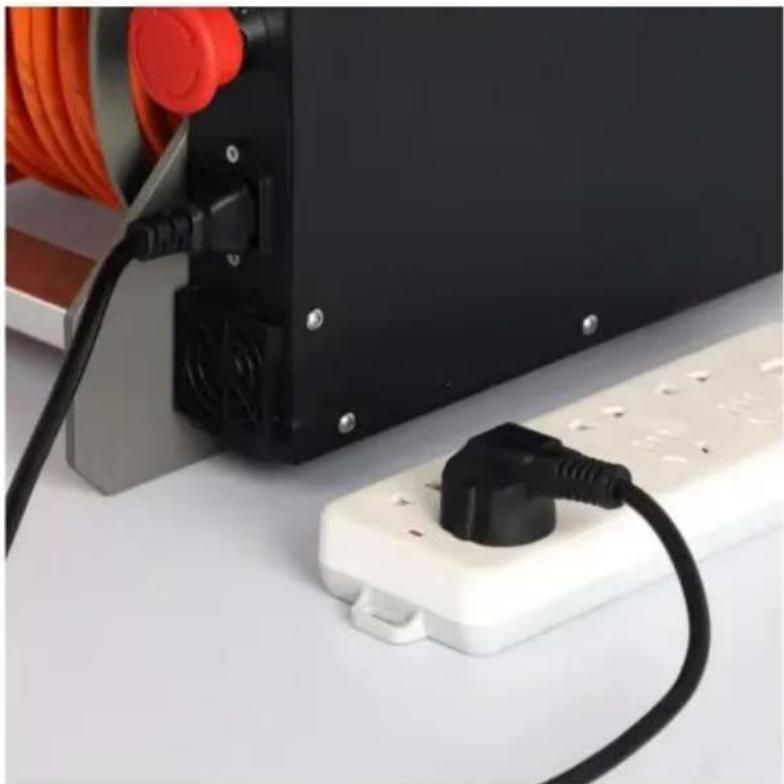

Connect the power supply(example)

Close-up of a black electrical plug with a black socket connected to a white base, next to an orange cable and black connector (no text or symbols visible)

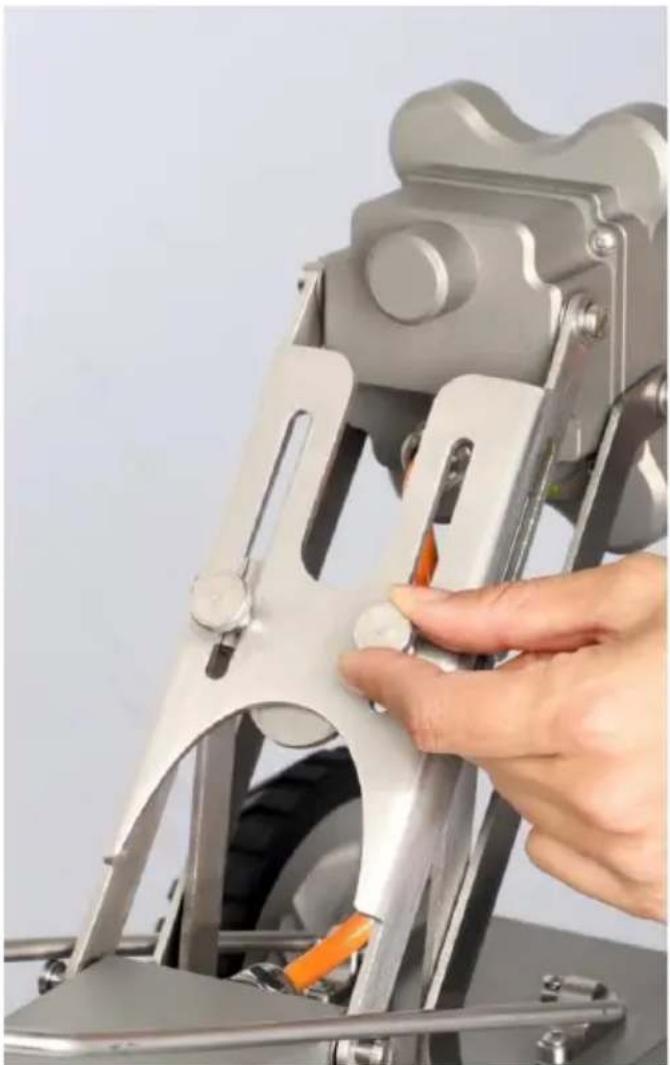

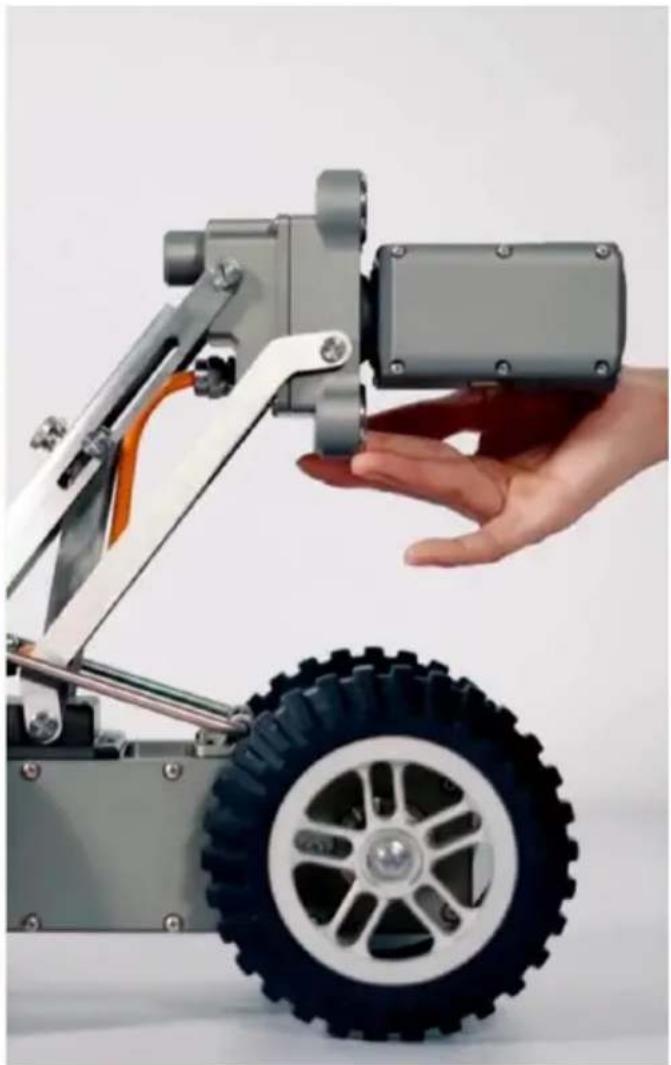

Front camera lifting:

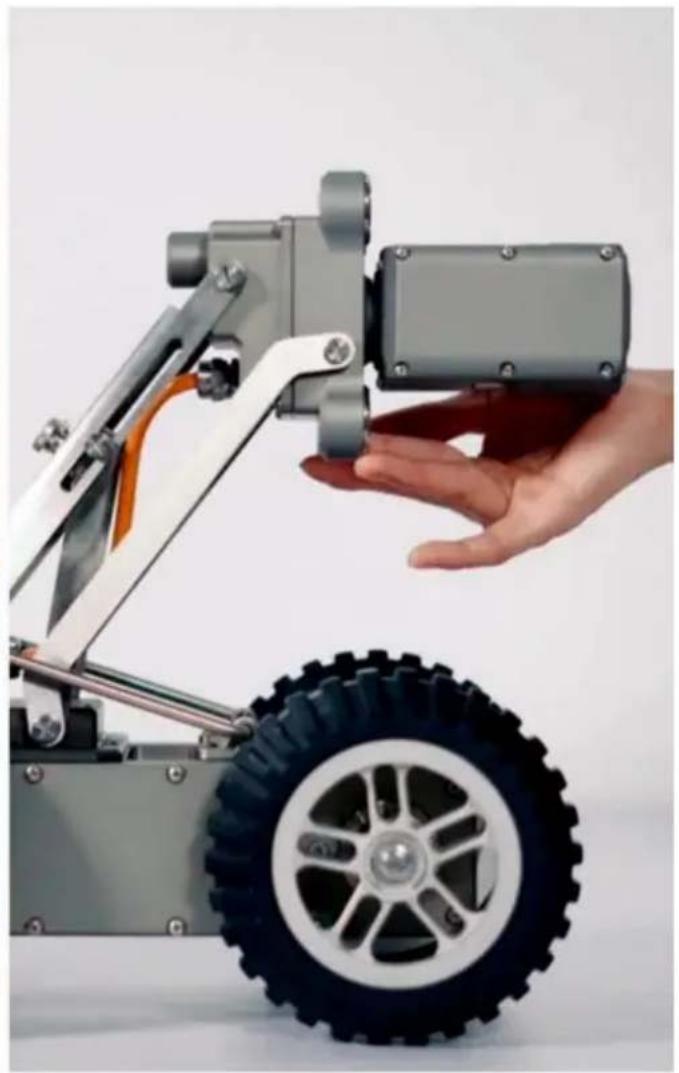

loosen the screw firstly, then adjusting the height of the camera, get a suitable position, and then tighten the screw.

Close-up of a hand operating a mechanical clamp or lever mechanism (no visible text or symbols)

Close-up of a hand holding a small mechanical component next to a toy car with visible tire and wheels (no text or symbols)

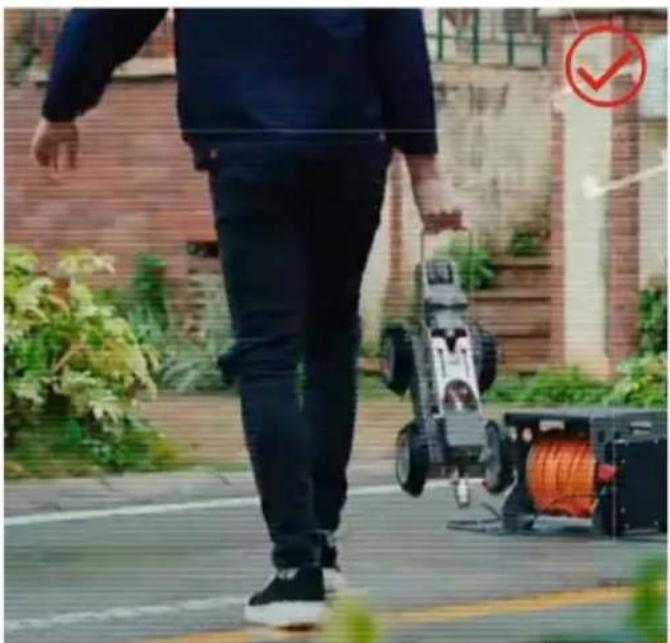

Put the device body into the demand position:

lift the handle when pulling the device body, do not lift the cable.

Person walking outdoors with a robotic device and orange pump in the background (no visible text or symbols)

Close-up of a hand holding an orange cable with a screwdriver, next to a mechanical component (no text or symbols visible)

Close-up of a black metal enclosure with red LED lights inside, showing internal components and a handle (no text or symbols visible)

Close-up of a black industrial machine with red flames and a yellow indicator light, no visible text or symbols

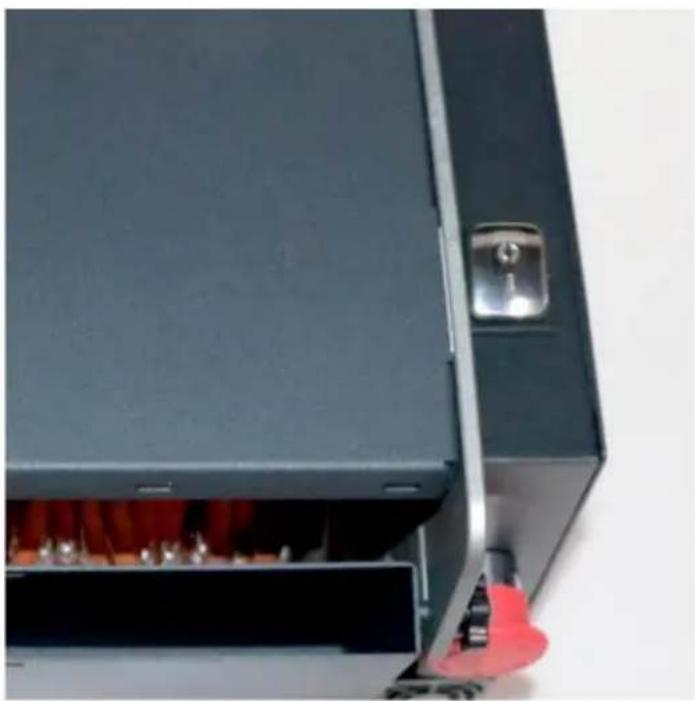

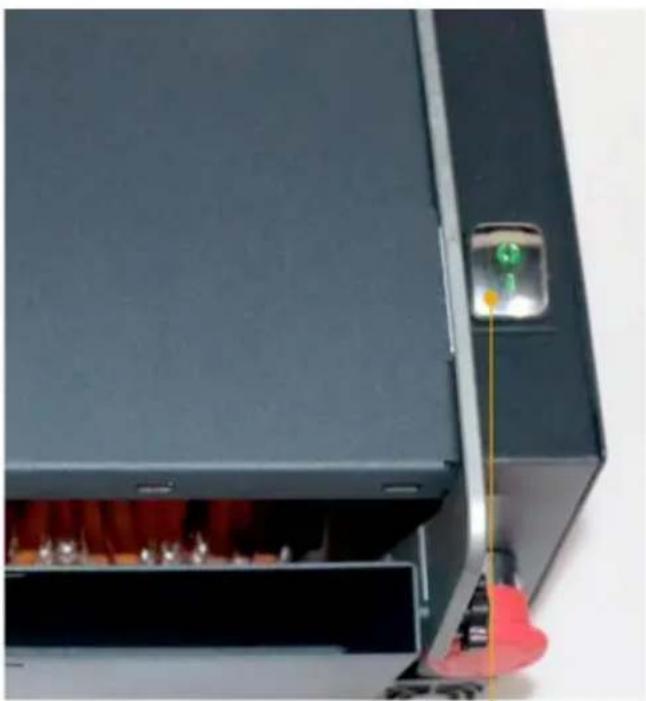

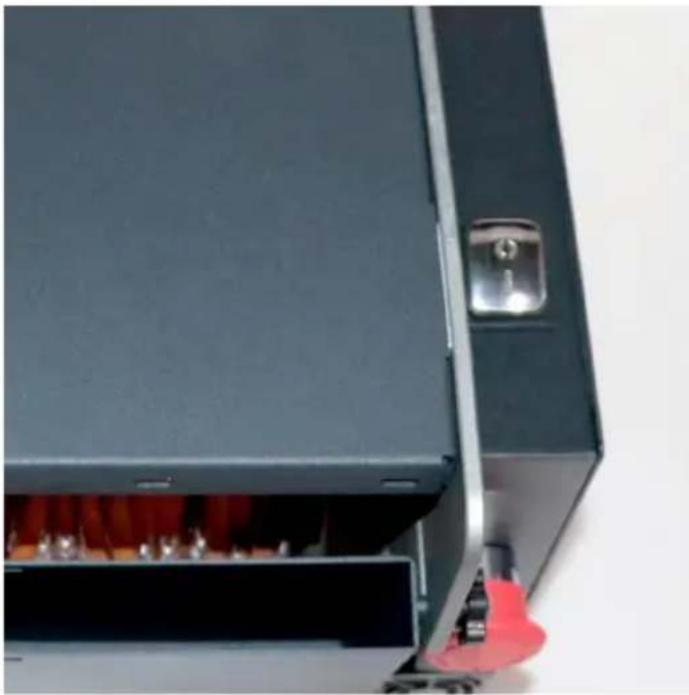

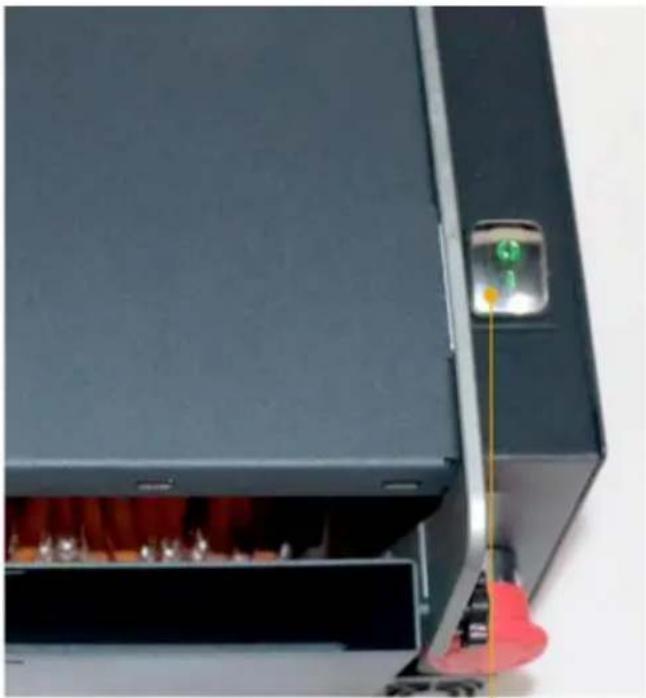

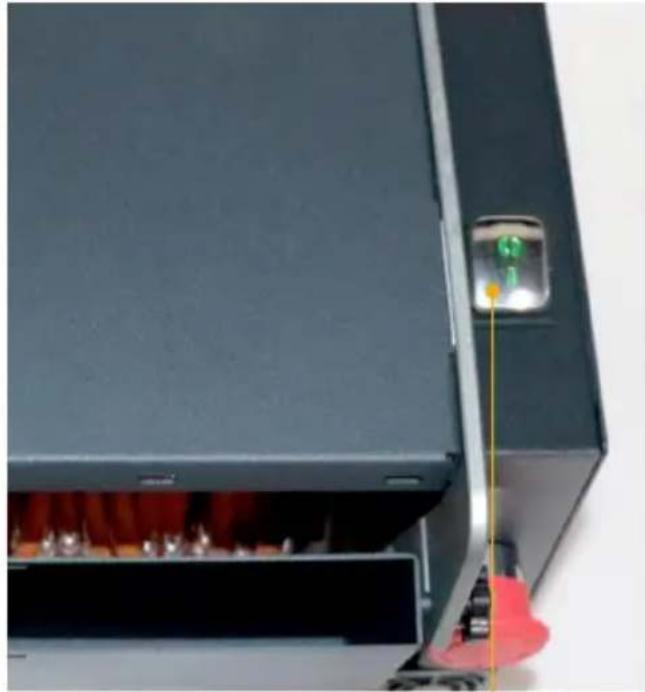

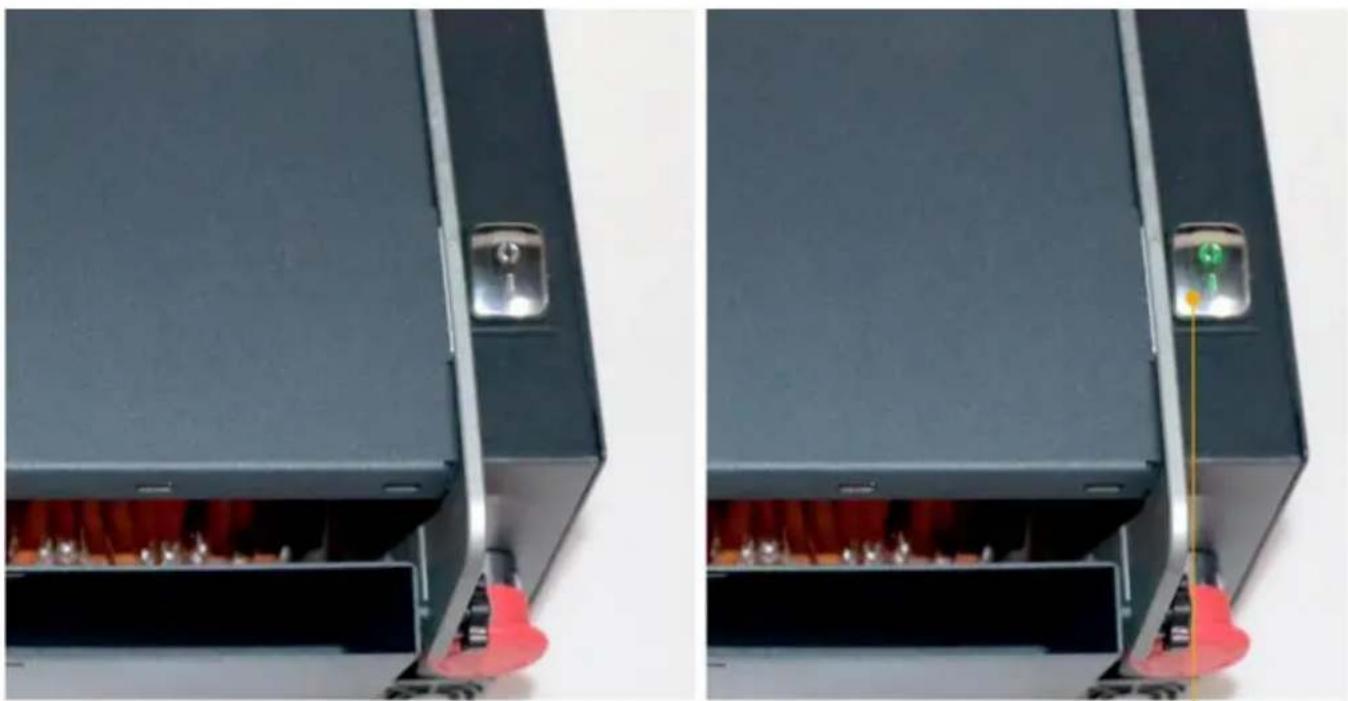

Turn on the power switch 2 (the indicator light is on)

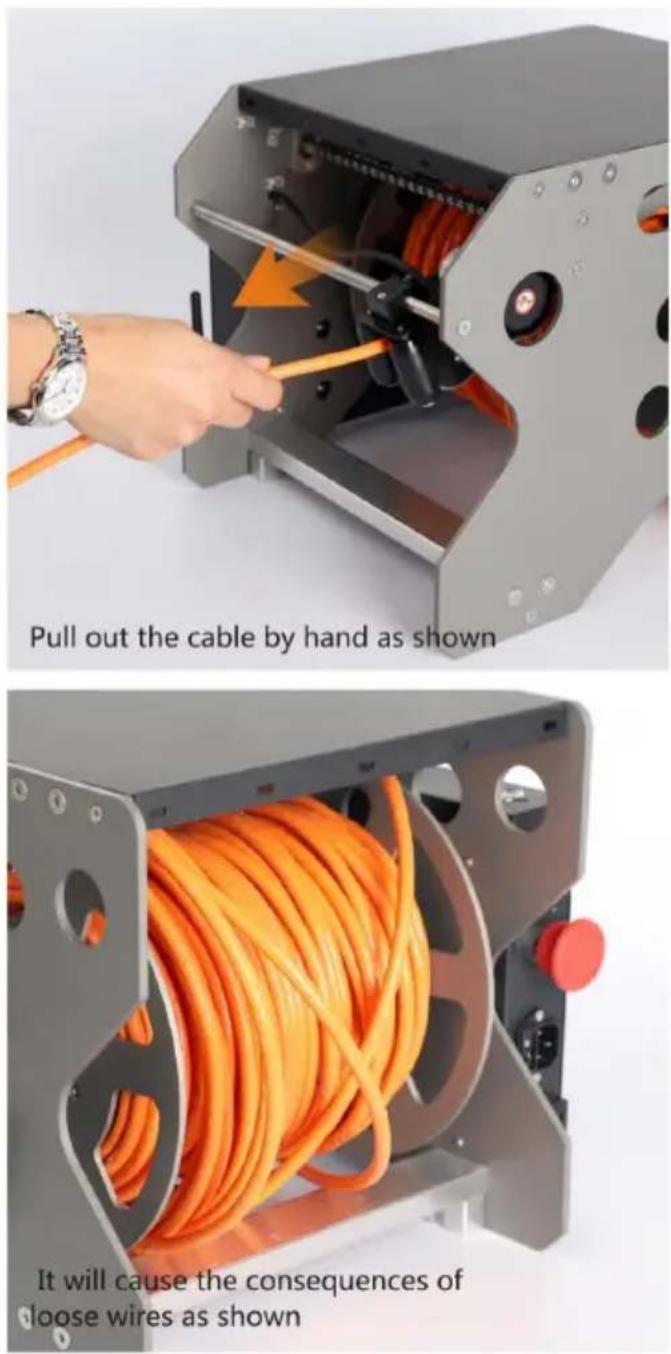

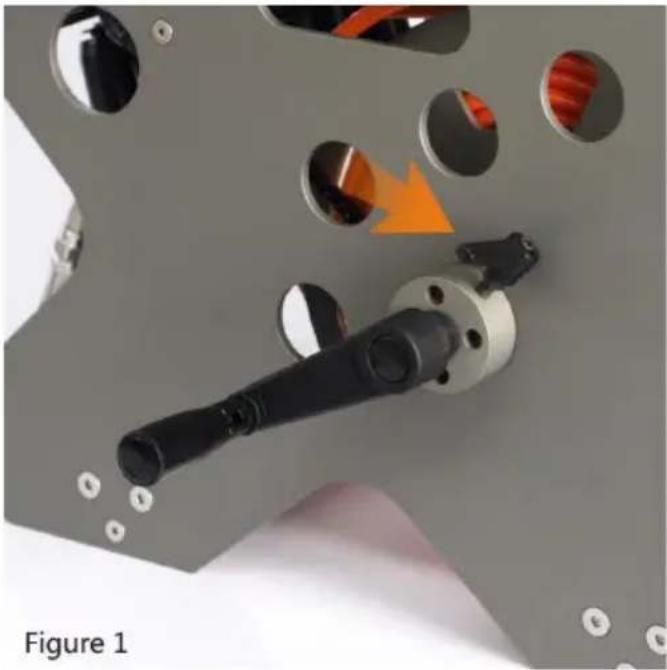

Open the cable reel brake

The power plug turns the brake lever 90 degrees from Figure 1 to 1

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a black handle, labeled 'Figure 2' (no text on the tool itself)

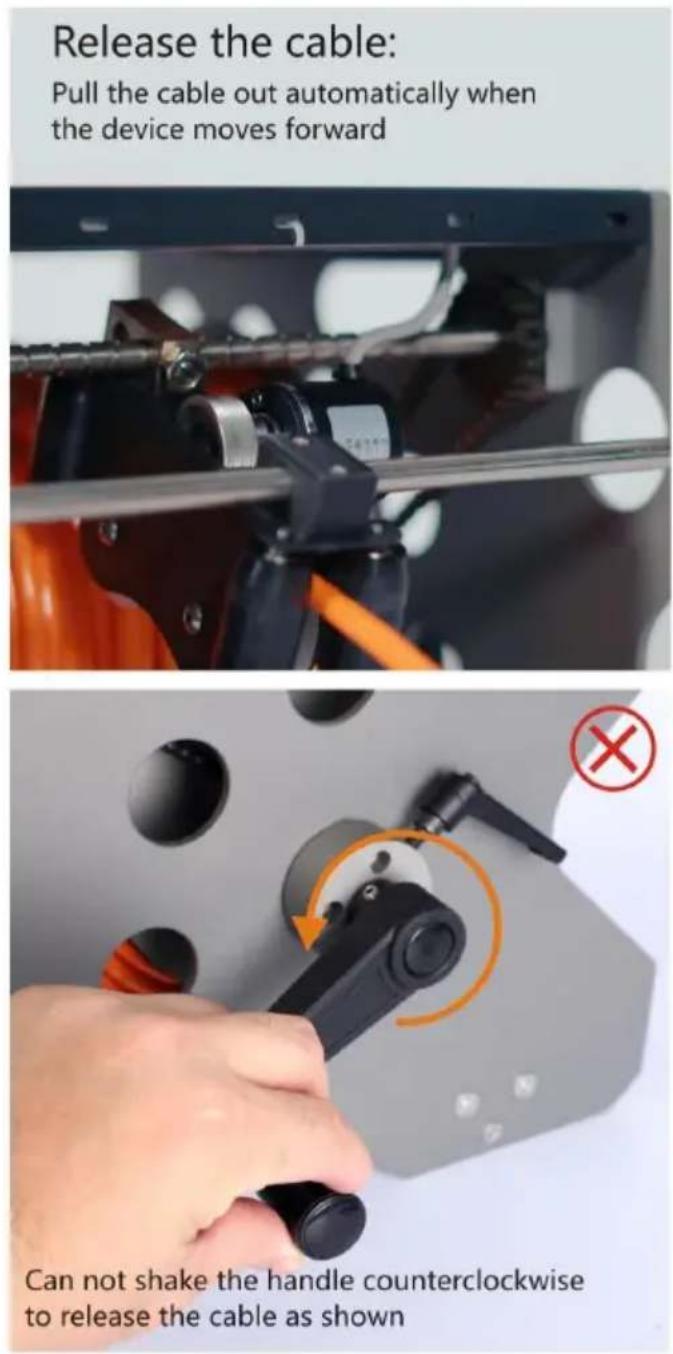

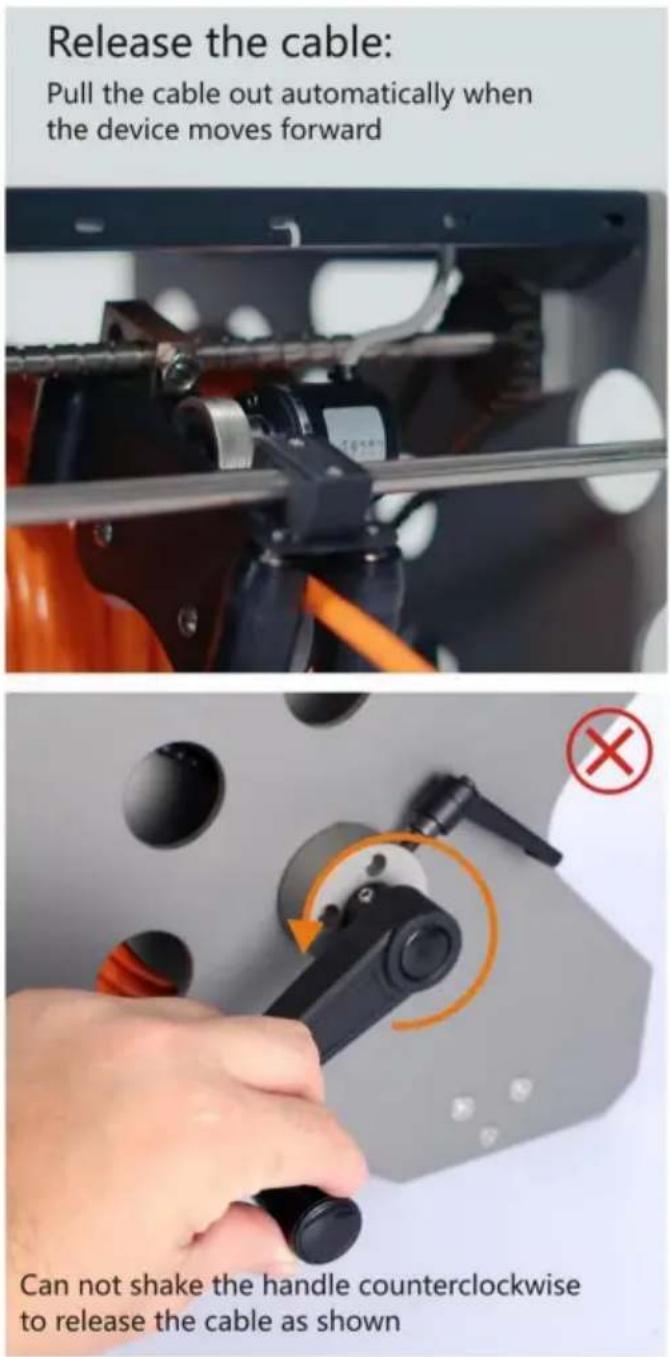

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

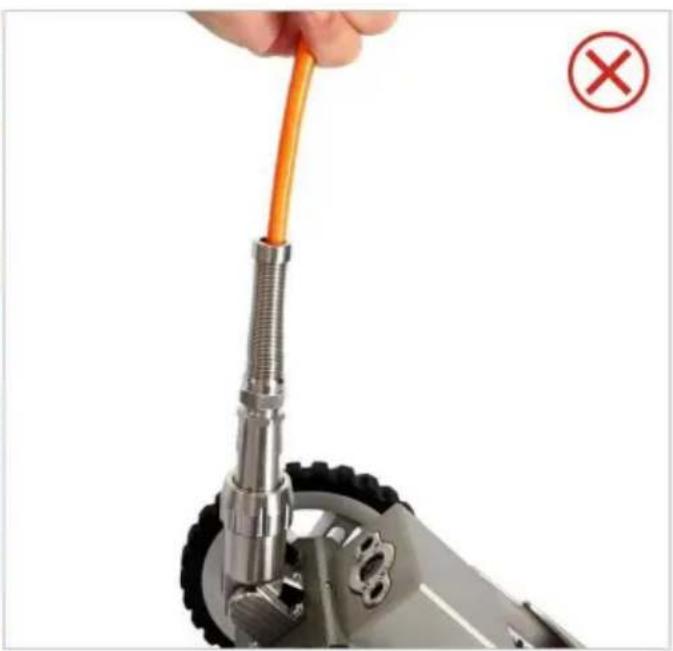

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

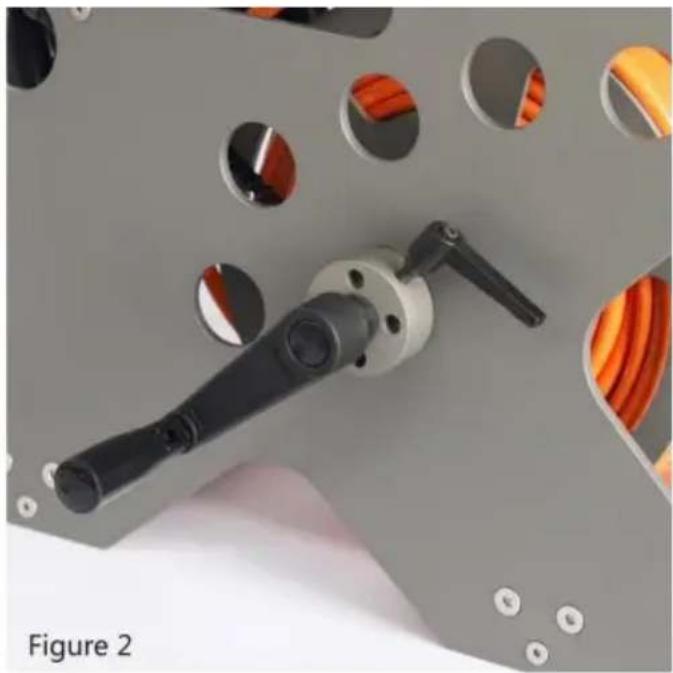

Retract cable:

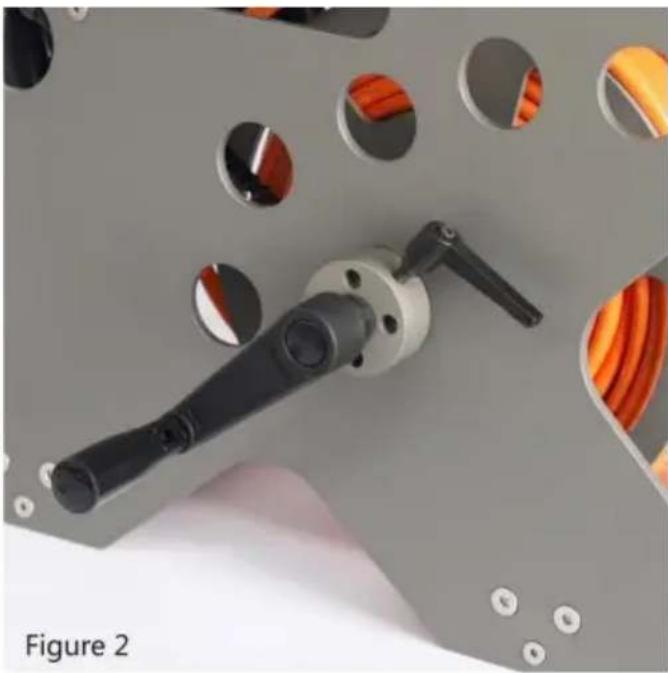

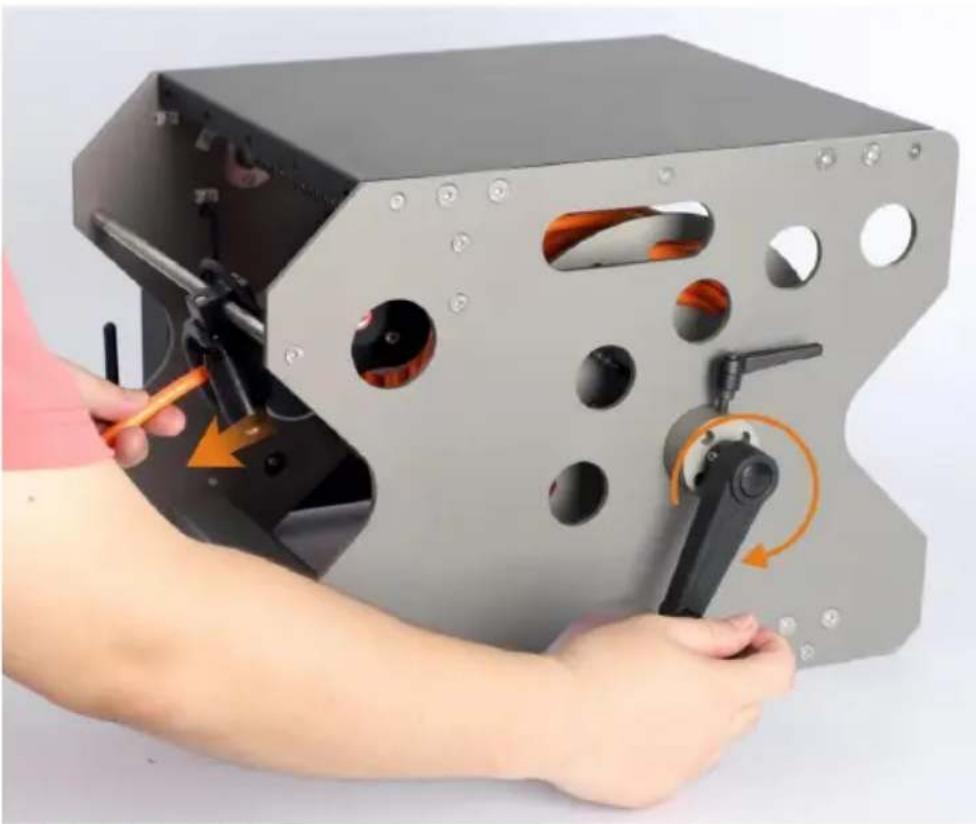

While turning the handle clockwise, slowly pull the cable out by hand ensure that the cable is closely

Close-up of a hand using a tool to adjust or install a mechanical component with orange arrows indicating motion (no text or symbols visible)

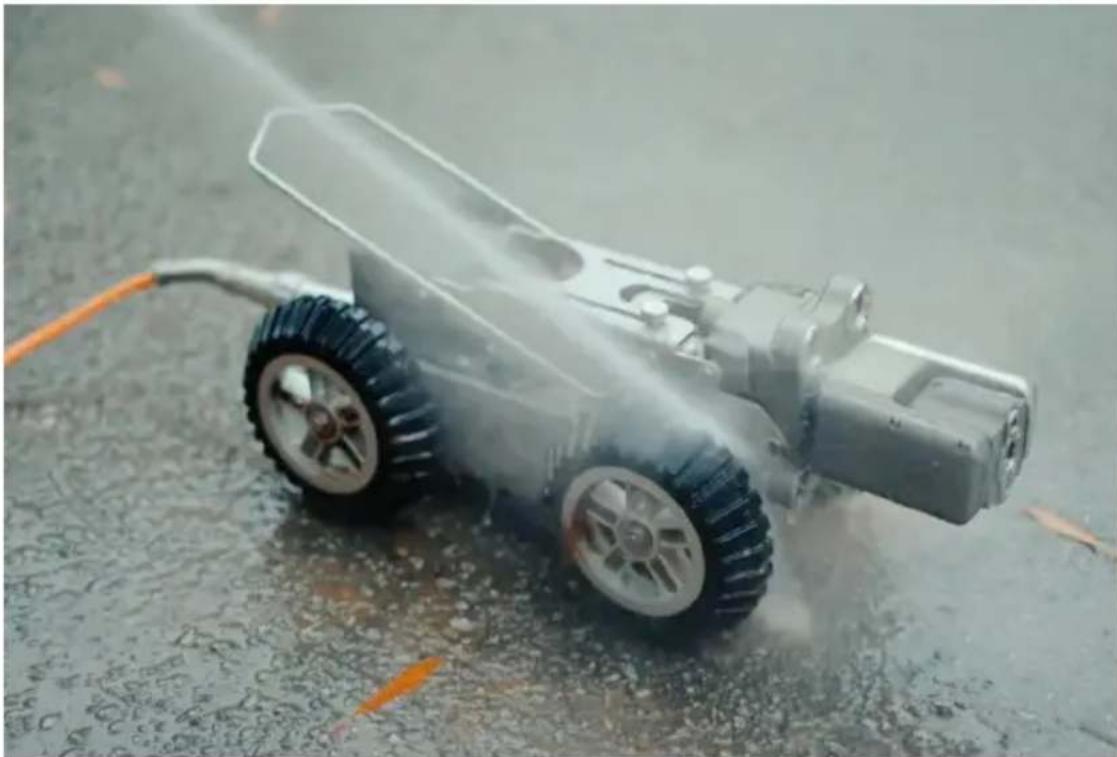

Maintenance after used:

1. Clean the body (do not pull the cable when cleaning)
2. Wipe it with a dry cloth

Model of a water spray gun on a wet pavement, spraying mist (no text or symbols visible)

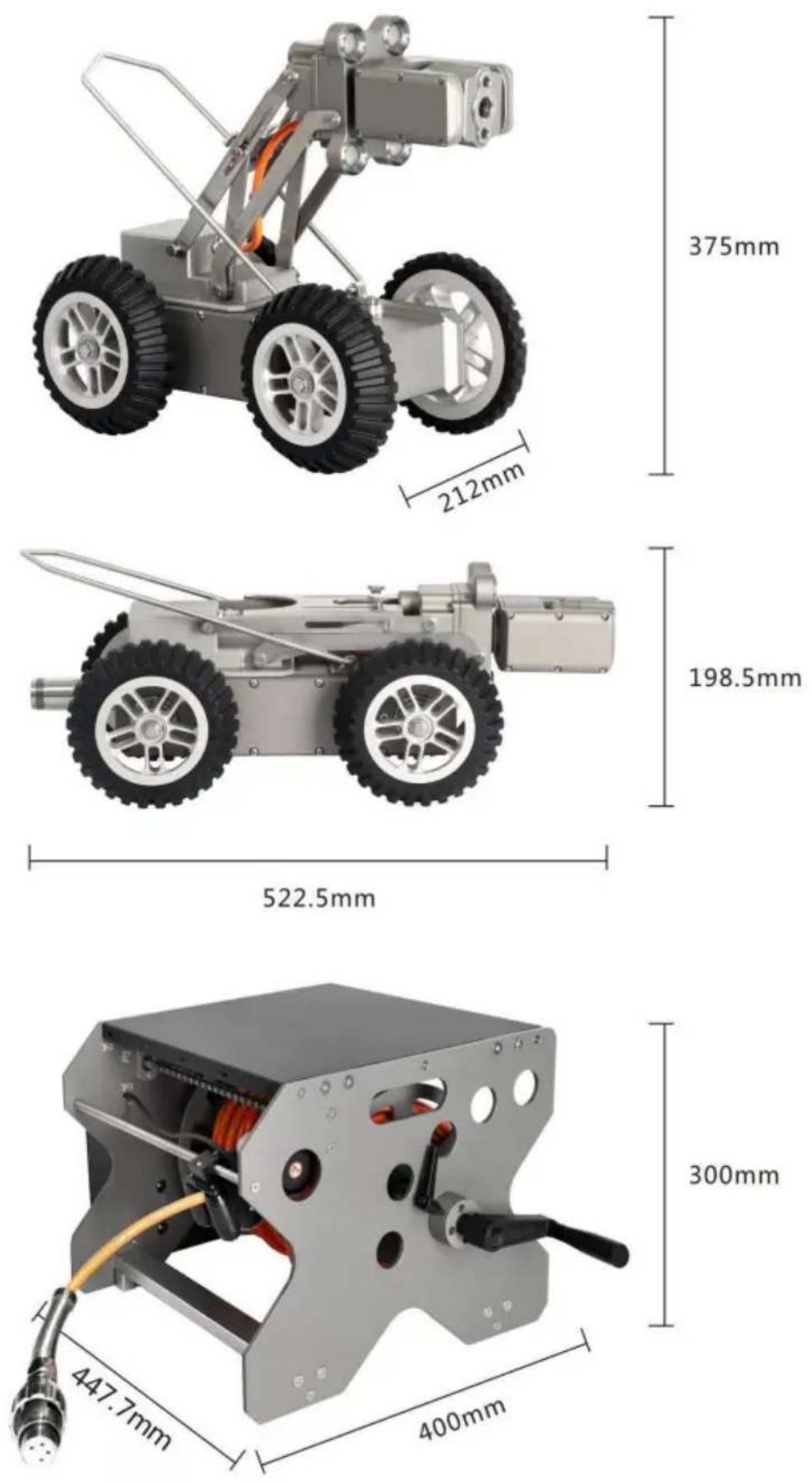

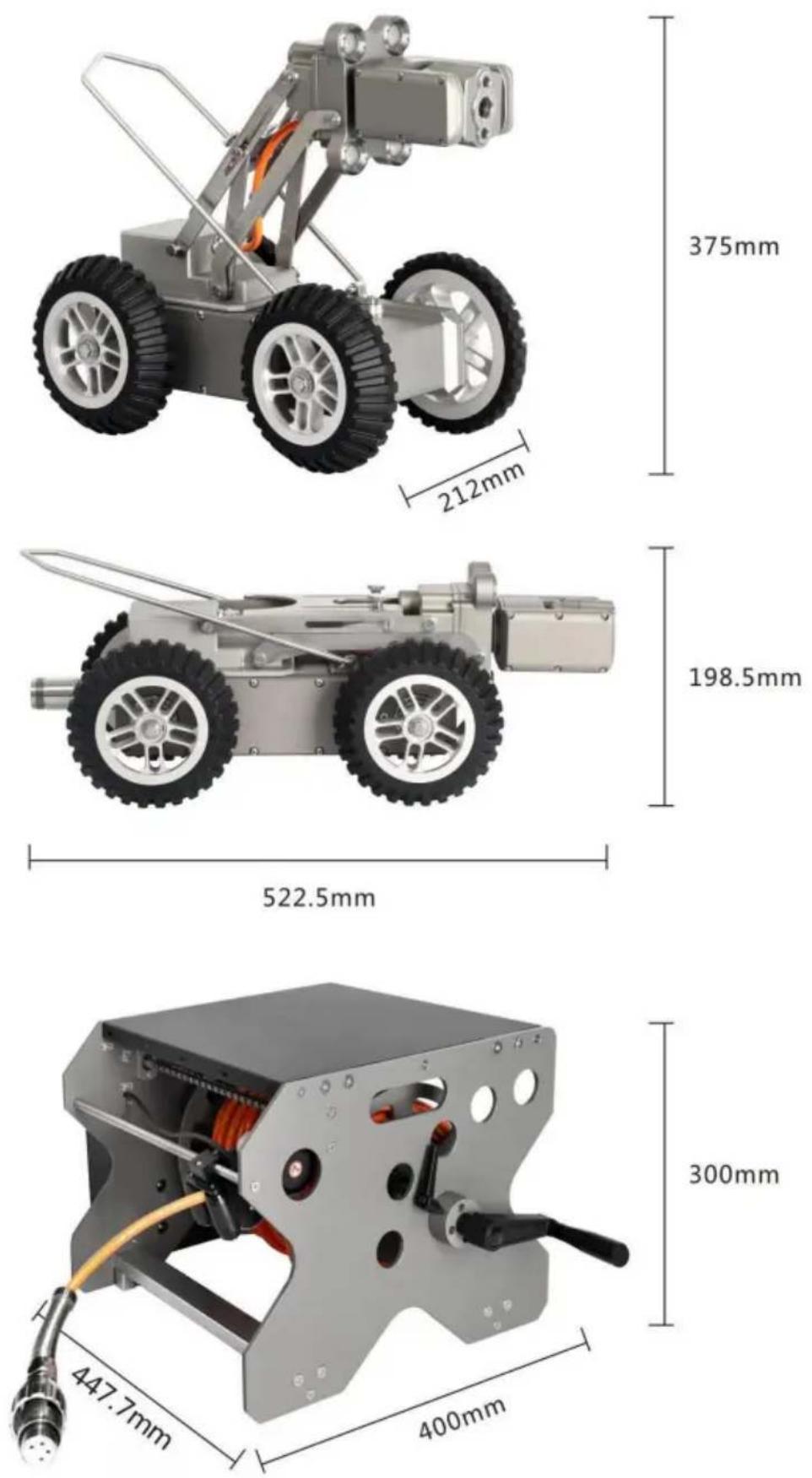

Product Size

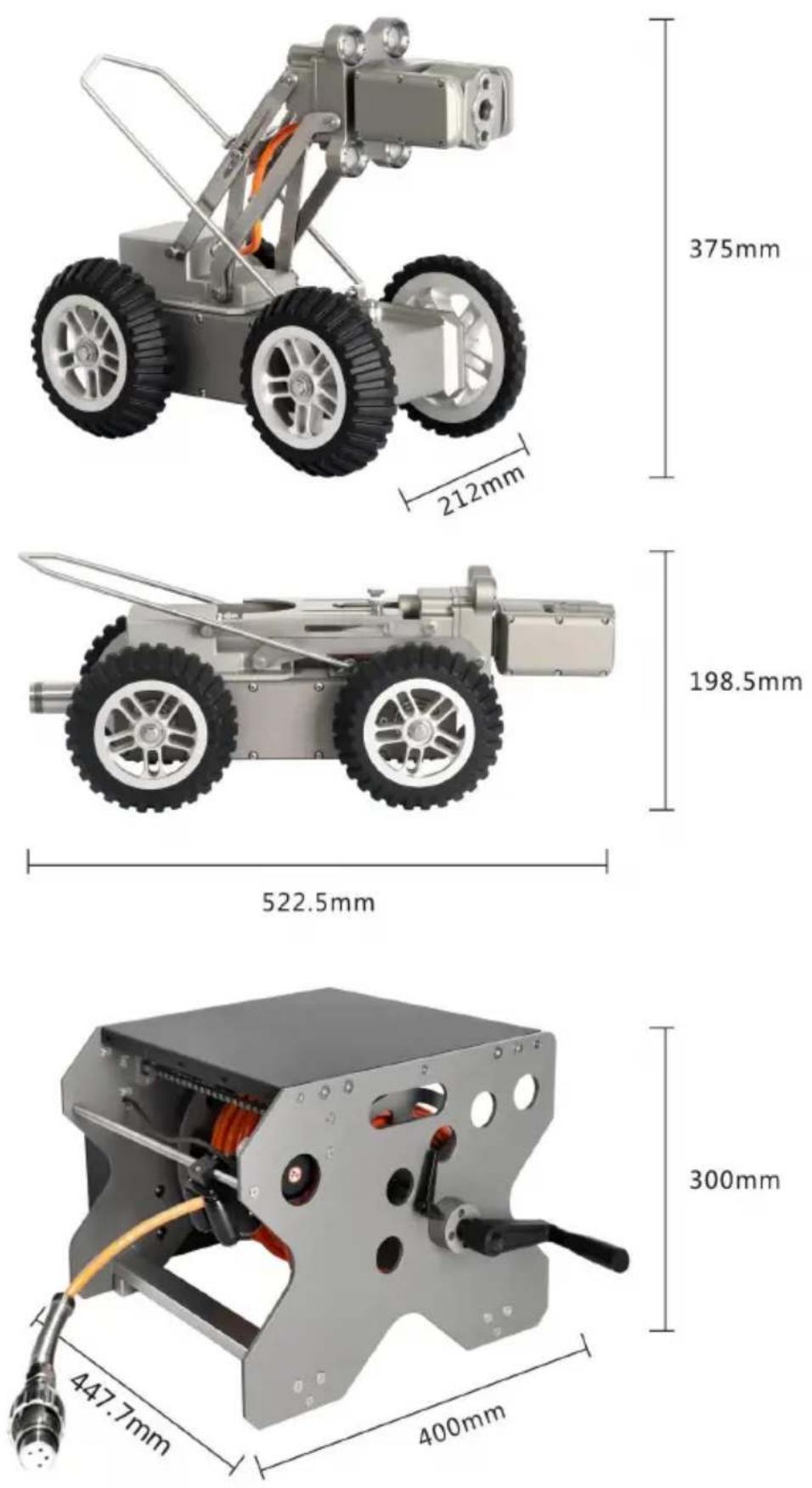

Product Size

375mm
198.5mm
300mm

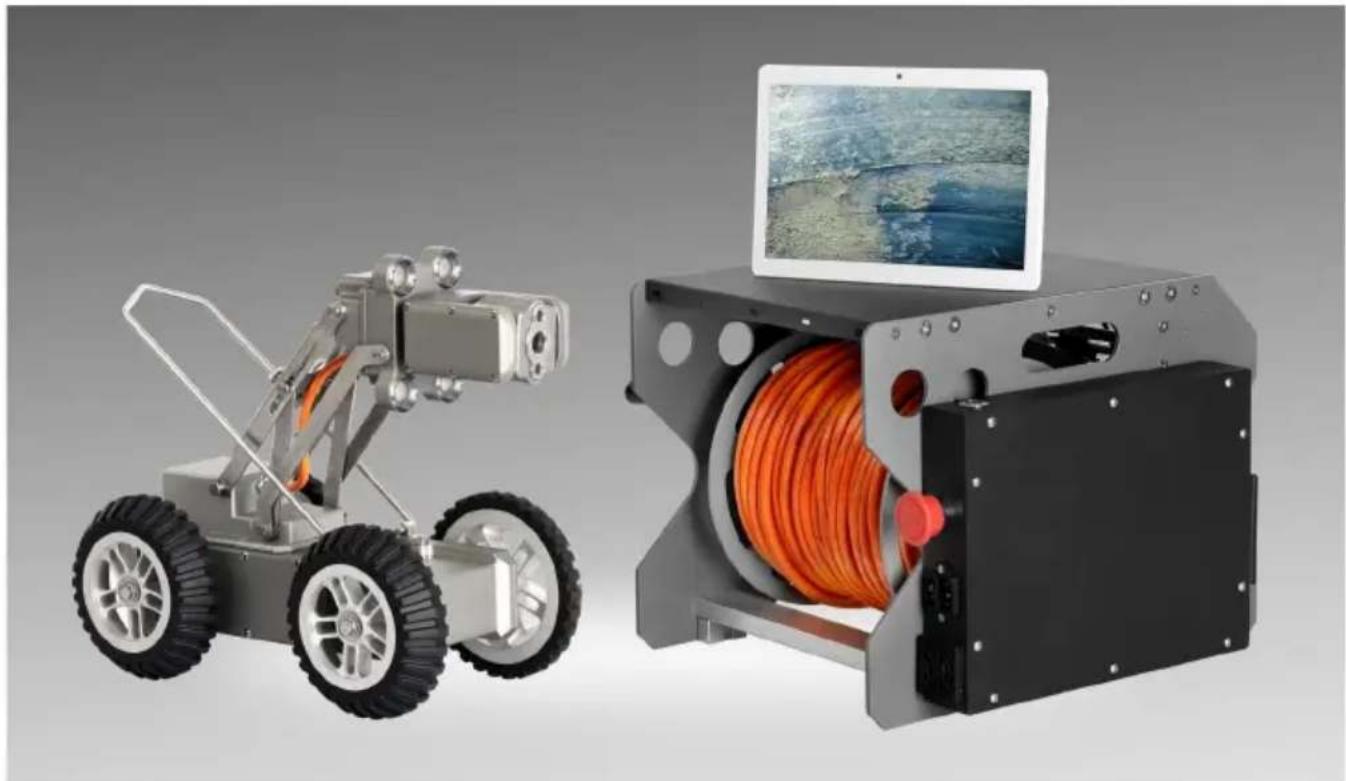

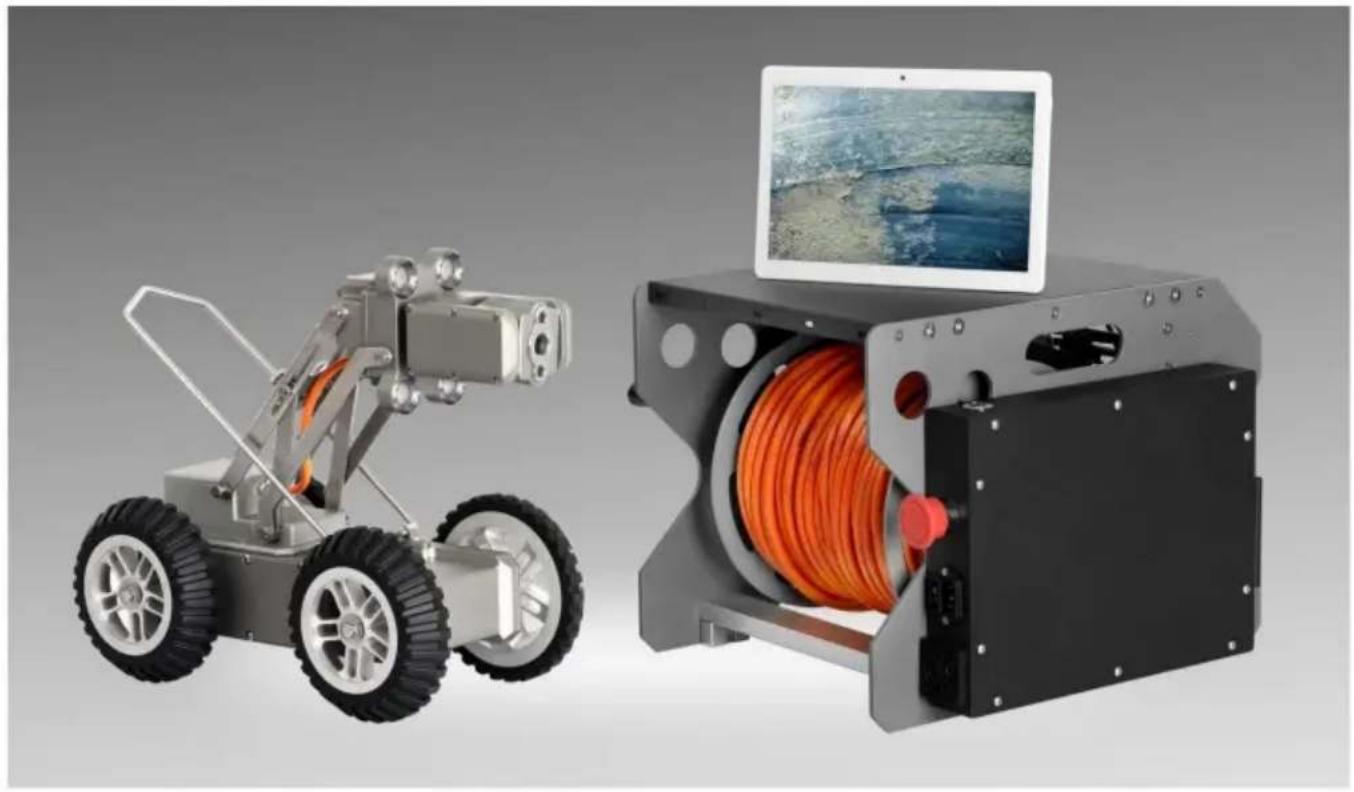

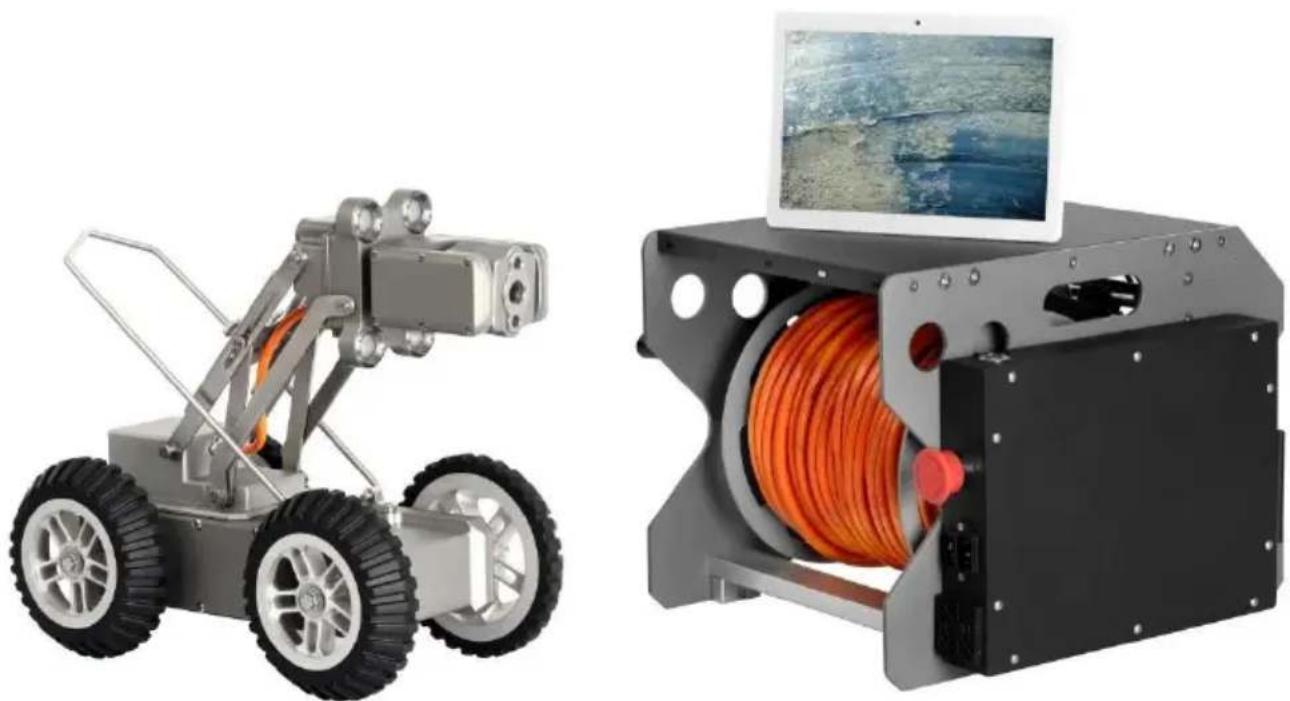

Package List

Two industrial robotic devices: a wheeled robot and a handheld device with orange cable, both shown without any visible text or symbols.

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange fiber optic cables and wiring (no visible text or symbols)

Metal frame with cable

Simple diagram of a tablet with black and gray gradient panels (no text or symbols)

Display screen

Coiled black electrical cable with a terminal connector (no text or symbols visible)

Power cable

Attention

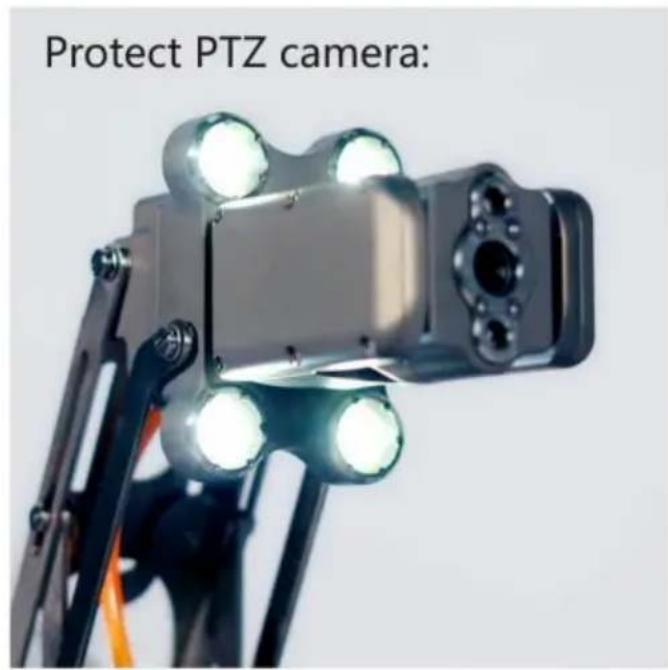

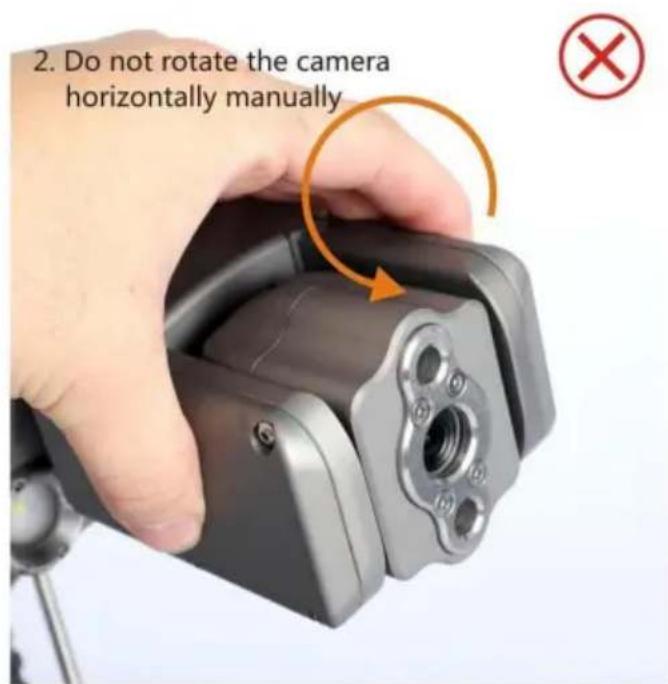

Protect PTZ camera:

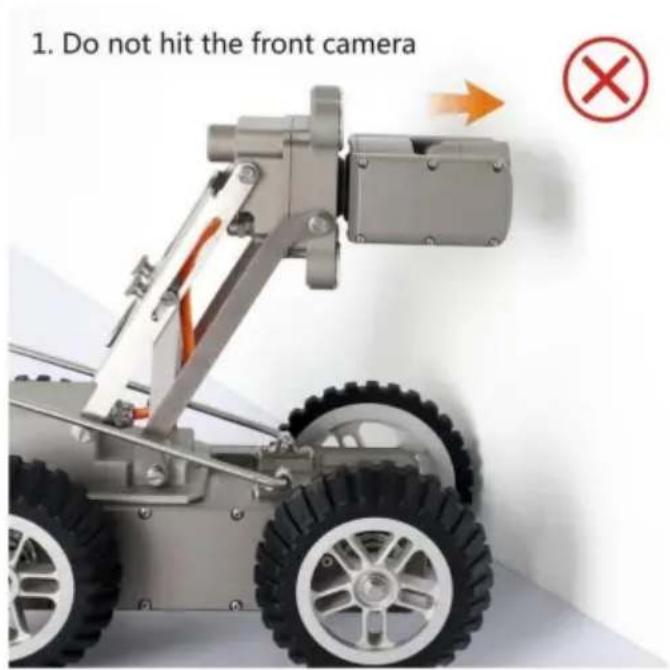

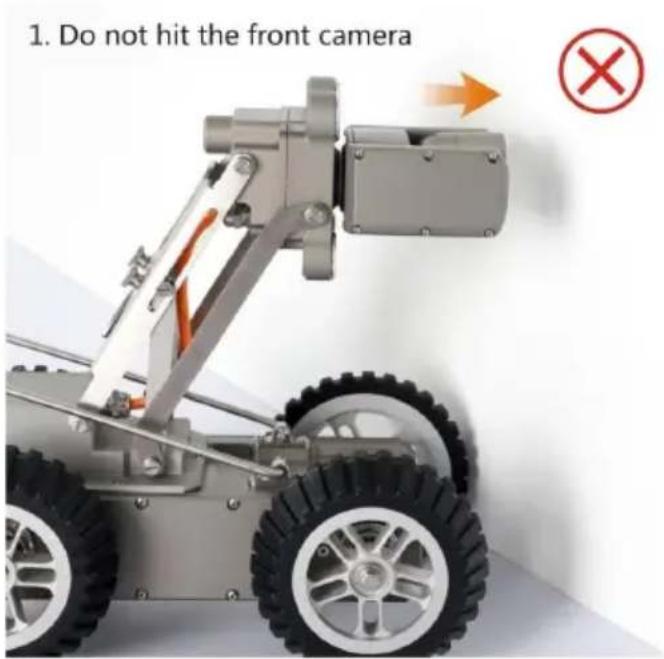

1. Do not hit the front camera ×

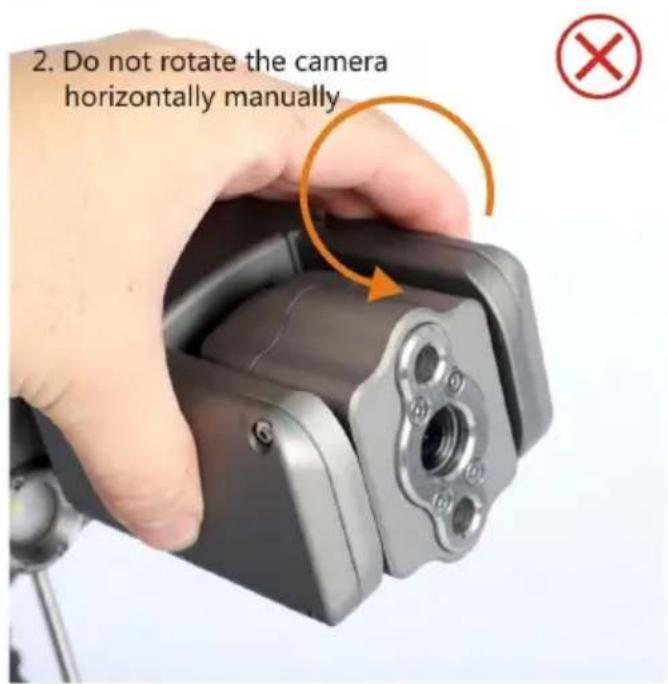

2. Do not rotate the camera horizontally manually

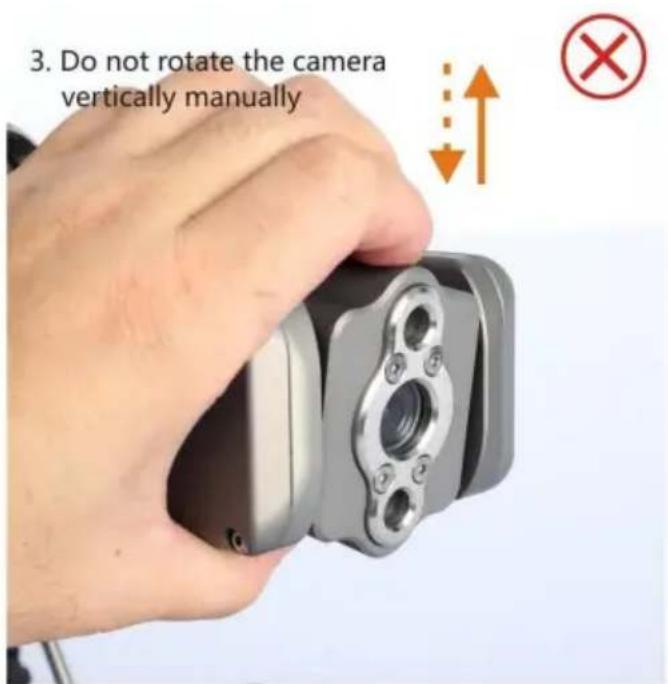

3. Do not rotate the camera vertically manually

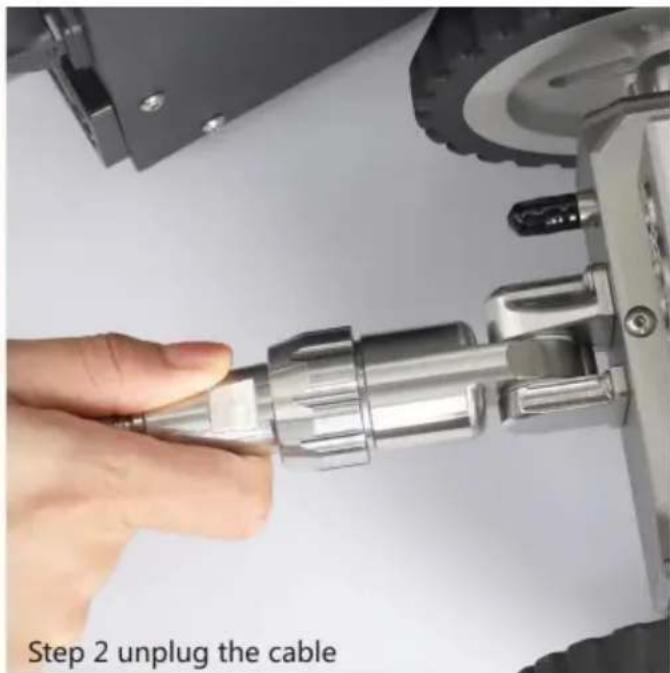

Unplug the cable connector until power off

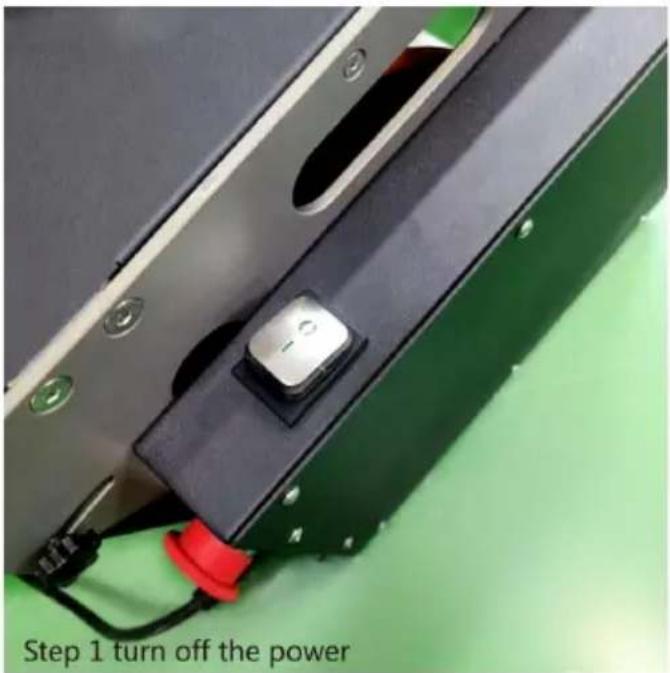

Step 1 turn off the power

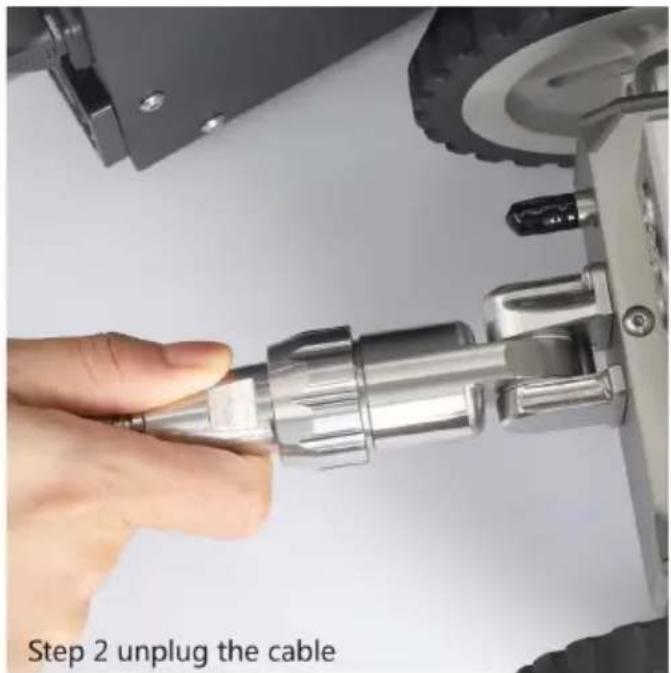

Step 2 unplug the cable

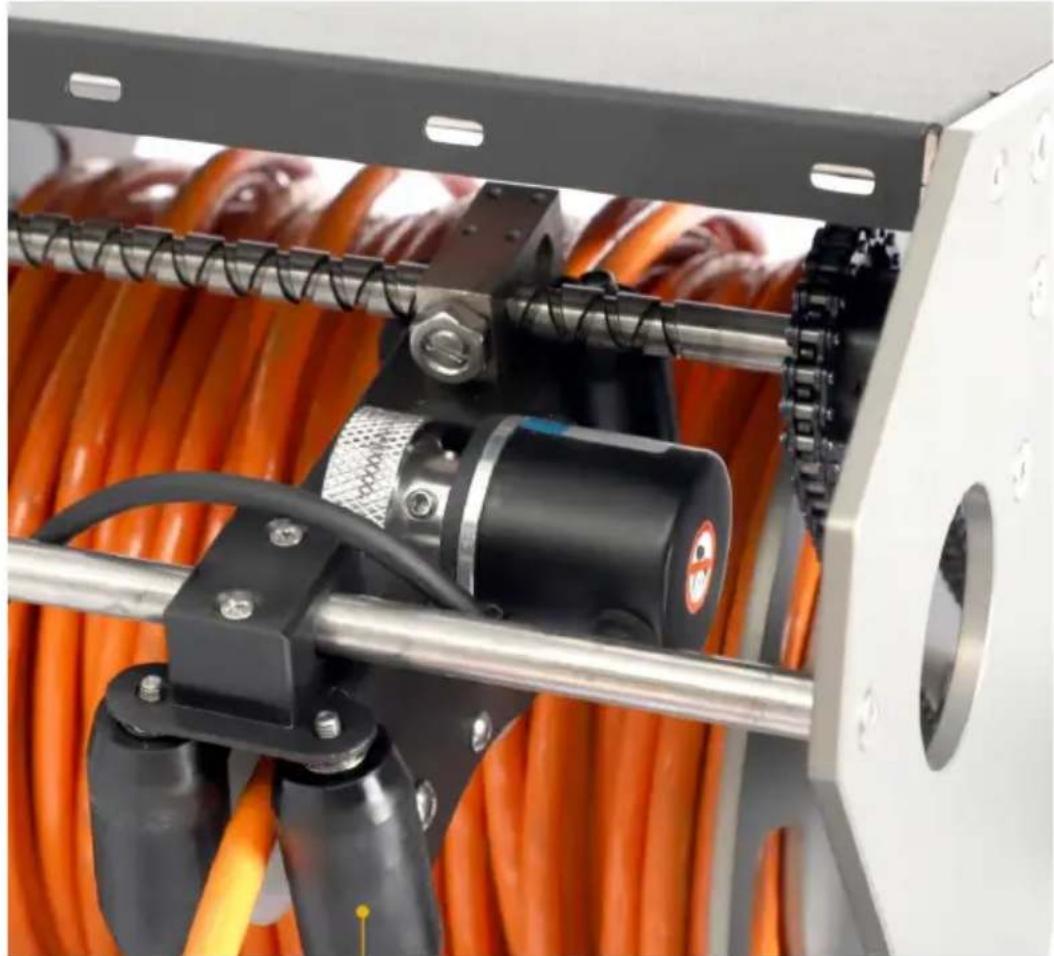

Clean up cable rolling bearing timely to keep it clean and smooth

Close-up of a mechanical device with orange cables and a black-and-white motor, no visible text or symbols.

cable rolling

Fault Analysis and Troubleshooting

Fault Analysis	Cause of the Fault and Precautions
No Power	1. Check whether power is correctly connected.2. Check whether the main switch indicator is steady on or whether the plug is in good contact.3. Whether the emergency stop button is locked.
The robot can wa no image	1. Check whether the interface is locked.2. Switch cameras and check whether they have in
No Meter Measurement Number Display or big measurement Error	1. Check whether the meter counter wheel and cal in good contact, and whether there is dirt blocking meter counter wheel.2. Restart device and tablet.
Remote Control Failure	1. Check whether the computer WIFI connection is 2. Restart the computer and reconnect the WIFI.
The Tail Joint of robot Cannot be Inserted	1. Check whether the joint vacancy is one to one 2. Check whether the plug at the end of the vehi deformed.
Note	If the fault cannot be solved, do not disassemble yourself.Please contact after-sales maintenance personnel.

Care and Maintenance

1. Daily maintenance and care: The machine must be kept clean and tidy, a shall not be placed in places with volatile or corrosive substances. Personnel be appointed for daily maintenance and cleaning after each use. The storage place must be kept dry. Desiccant can be used if necessary.
2. Maintenance cycle: quality and measurement inspection(maintenance) once a year, measurement qualified should be unified stored.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DÉTECTION DE CANALISATIONS MUNICIPALES

ROBOT

MODÈLE : WR030-120, WR030-60

Affordable. Reliable. Home Improvement.

PIPELINE MUNICIPAL

ROBOT DE DÉTECTION

Two industrial robotic devices: a wheeled robot with orange cable and a multi-rotor device with orange cable inside, both shown without any visible text or symbols.

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

Close-up of a hand holding a metallic connector with four small brown dots on its body (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors, attached to a wheeled vehicle wheel (no visible text or symbols)

Connector l'alimentation (exemple)

Close-up of a black 3D printer with orange cable and plug, placed on a white surface (no text or symbols visible)

Levage de la caméra

Two views of a robotic vehicle: left shows hand operating a mechanical device, right shows hand holding a small wheeled vehicle (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable connected to a motor-like device (no text or symbols visible)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red ribbon inserted, showing internal components (no visible text or symbols)

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a labeled section 'Figure 2' (no readable text or symbols on the tool itself)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on wet pavement, no visible text or symbols

Two industrial robotic devices: a wheeled robot and a handheld device with orange cable inside a black enclosure (no visible text or symbols)

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange internal components and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical plug with a terminal terminal, isolated on white background (no text or symbols)

Power cable

Attention

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITED. A/S YH Consulting Limited, bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

MODELL: WR030-120, WR030-60

Affordable. Reliable. Home Improvement.

STÄDTISCHE PIPELINE

Erkennungsroboter

Two industrial robotic devices: a wheeled robot with orange cable and a multi-rotor device with orange cable inside, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

3D model of a toy car with two wheels and a pointed tip, displayed against a solid blue background (no text or symbols on the vehicle itself)

Close-up of a hand holding a metallic connector with four pins, alongside a close-up of a mechanical cable with orange filament (no text or symbols visible)

Close-up of a black 3D printer with orange cable and white power plug, no visible text or symbols

Two views of a small mechanical device: left shows hand operating a tool, right shows hand holding a small motor or tire (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable with a switch, both marked with red prohibition signs (no readable text or symbols)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red decorative element, no visible text or symbols.

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no text or symbols on the main subject)

Close-up of a mechanical tool with circular holes and a labeled section 'Figure 2' (no readable text or symbols on the tool itself)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Kabel einziehen:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on wet pavement, no visible text or symbols

Produktgröße

Product Size

Paketliste

Two industrial robotic devices: a wheeled vehicle and a digital display unit with orange cable, both without visible text or symbols.

Side view of a small wheeled robotic vehicle with articulated arm and wheels (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange fiber and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical plug with a terminal terminal (no text or symbols visible)

Power cable

Aufmerksamkeit

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITED. C/O YH Consulting Limited, Büro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG-Vertreter

Affordable. Reliable. Home Improvement.

MODELLO: WR030-120, WR030-60

Affordable. Reliable. Home Improvement.

Two industrial robotic devices: a wheeled robot and a multi-wheeled device with orange cable, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

Close-up of a hand holding a metallic connector with four pins, alongside a close-up of a mechanical cable with orange filament (no text or symbols visible)

Close-up of a white electrical plug with black socket connected to a black 3D printer, with orange cables and red connectors visible (no text or symbols)

Sollevamento della

Two views of a robotic vehicle: left shows hand operating a mechanical device, right shows hand holding a small wheeled vehicle (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable with a switch, both marked with red prohibition signs (no readable text or symbols)

Two-panel image showing a device with red components and a green indicator light, no visible text or symbols.

Turn on the power switch 2 (the indicator light is on)

Two-panel image showing a mechanical device on a metal plate, with highlighted components and an orange arrow indicating a specific feature (no text or symbols present)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Cavo di ritrazione:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on wet pavement, emitting mist (no text or symbols visible)

Two industrial robotic devices: a wheeled robot and a handheld device with orange cable inside a black enclosure (no visible text or symbols)

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange wiring and mechanical components (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical plug with a terminal terminal, isolated on white background (no text or symbols)

Power cable

Attenzione

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANTE DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited

Ufficio 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

MODELO: WR030-120, WR030-60

Affordable. Reliable. Home Improvement.

GASODUCTO MUNICIPAL

ROBOT DE DETECCIÓN

Two industrial robotic devices: a wheeled robot and a multi-wheeled device with orange cable, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

1. Ingrese la contraseña original: 12345678, conéctese a WIFI.

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

Close-up of a hand holding a metallic connector with four pins, alongside a close-up of a mechanical cable with orange filament (no text or symbols visible)

Close-up of a black 3D printer with orange cable and plug, placed on a white surface (no text or symbols visible)

Close-up of a hand operating a mechanical device with tools and components (no visible text or symbols)

Close-up of a hand holding a small mechanical component next to a toy car with a tire (no visible text or symbols)

Person walking outdoors near a robotic device and pump cart, with a red checkmark on the right (no readable text or symbols)

Close-up of a hand holding an orange cable with a screwdriver, next to a mechanical component (no text or symbols visible)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red ribbon inserted, showing internal components (no text or symbols visible)

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a labeled section 'Figure 2' (no readable text or symbols on the tool itself)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Cable retráctil:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on wet pavement, emitting mist (no text or symbols visible)

Tamaño del producto

Product Size

Lista de paquetes

Two industrial robotic devices: a wheeled robot and a handheld device with orange cable inside a black enclosure (no visible text or symbols)

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange internal components and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical plug with a terminal terminal, isolated on white background (no text or symbols)

Power cable

Atención

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITADA. A/C YH Consulting Limited

Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Representante de la CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

DETEKCJA RUROCIĄGÓW KOMUNALNYCH

ROBOT

MODEL: WR030-120, WR030-60

Affordable. Reliable. Home Improvement.

RUROCIĄG KOMUNALNY

ROBOT DETEKCYJNY

Two industrial robotic devices: a wheeled robot with orange cable and a multi-rotor device with orange cable inside, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

Close-up of a hand holding a metallic connector with four small brown dots on its body (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors, attached to a wheeled vehicle wheel (no visible text or symbols)

Close-up of a black 3D printer with orange cable and plug, placed on a white surface (no text or symbols visible)

Two views of a robotic vehicle: left shows hand operating a mechanical device, right shows hand holding a small wheeled vehicle (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable with a switch, both marked with red prohibition signs (no readable text or symbols)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red decorative element inserted, showing internal components (no text or symbols visible)

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a labeled figure 'Figure 2' (no other text or symbols visible)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Zwiń kabel:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on wet pavement, no visible text or symbols

Two industrial robotic devices: a wheeled vehicle and a digital display unit with orange cable, both without visible text or symbols.

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange fiber and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical cable with a terminal plug, isolated on white background (no text or symbols)

Power cable

Uwaga

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

GEMEENTELIJKE LEIDINGDETECTIE ROBOT

MODEL:WR030-120ÿWR030-60

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

GEMEENTELIJKE PIJPLEIDING

DETECTIEROBOT

Two industrial robotic devices: a wheeled robot with orange cable and a multi-rotor device with orange cable inside, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Tablet WIFI-verbinding en -bediening

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

Close-up of a hand holding a metallic connector with four small brown dots on its body (no text or symbols visible)

Close-up of a metallic mechanical component with threaded connectors, attached to a wheeled vehicle wheel (no visible text or symbols)

Close-up of a black 3D printer with orange cable and plug, placed on a white surface (no text or symbols visible)

Om de camera aan de

Two views of a small mechanical device: one showing hand operating a tool, the other showing a handheld device with a tire (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable with a switch, both marked with red prohibition signs (no readable text or symbols)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red decorative element inserted, showing internal components (no text or symbols visible)

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a labeled section 'Figure 2' (no readable text or symbols on the tool itself)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Kabel intrekken:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on a wet pavement, emitting mist (no text or symbols visible)

Productgrootte

Product Size

Pakketlijst

Two industrial robotic devices: a wheeled robot and a handheld device with orange cable inside a black enclosure (no visible text or symbols)

Side view of a wheeled robotic vehicle with four wheels and a mounted arm (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange fiber and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical cable with a terminal plug, isolated on white background (no text or symbols)

Power cable

Aandacht

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITED. T.a.v. YH Consulting Limited

Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

KOMMUNAL RÖRLEDNINGSDETEKTION ROBOT

MODELL: WR030-120, WR030-60

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

KOMMUNAL RÖRLEDNING DETEKTIONSROBOT

Two industrial robotic devices: a wheeled robot with orange cable and a multi-rotor device with orange cable inside, both shown without any visible text or symbols.

Handle Body Wheel Rotating head Front light Front auxiliary light Front camera Lifting bracket

Retract cable brake Release cable handle

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network > More connections > Home screen & wallpaper > WLAN View help More settings PIPE-ROBOT-19 Saved, encrypted (no Internet access) 361EC7-TS3100series Encrypted ChinaNet-dMRQ Encrypted ChinaNet-hYLr Encrypted ChinaNet-ieEq Encrypted ChinaNet-jDJa Encrypted ChinaNet-TZzv

Settings Search Log in to HONOR ID Log in to enjoy Honor services. WLAN TP-LINK_A49D > Bluetooth Off > Mobile network More connections Home screen & wallpaper PIPE-ROBOT-19 Password 12345678 Show advanced options CANCEL CONNECT

3D model of a toy car with wheels and a pointed tip, displayed against a solid blue background (no text or symbols on the vehicle itself)

1. Nyckelfunktioner:


2022-09-09 10:4:53 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟a ㉟b

Close-up of a hand holding a metallic connector with four pins, alongside a close-up of a mechanical cable with orange filament (no text or symbols visible)

Close-up of a black 3D printer with orange cable and plug, placed on a white surface (no text or symbols visible)

Lyftning av främre

Two views of a robotic vehicle: left shows hand operating a mechanical device, right shows hand holding a small wheeled vehicle (no text or symbols visible)

Two-panel image: left shows a person walking with a robotic vehicle; right shows a hand holding an orange cable with a switch, both marked with red prohibition signs (no readable text or symbols)

Close-up of a black industrial machine with red components and a metallic handle (no visible text or symbols)

Close-up of a black electronic device with a green indicator light and red ribbon inserted, showing internal components (no visible text or symbols)

Turn on the power switch 2 (the indicator light is on)

Close-up of a mechanical component with circular holes and a highlighted orange arrow, labeled 'Figure 1' (no readable text or symbols)

Close-up of a mechanical tool with circular holes and a labeled section 'Figure 2' (no readable text or symbols on the tool itself)

Release the cable: Pull the cable out automatically when the device moves forward Can not shake the handle counterclockwise to release the cable as shown

Pull out the cable by hand as shown It will cause the consequences of loose wires as shown

Dra in kabeln:

Close-up of hands operating a mechanical device with orange rotation arrows indicating motion (no text or symbols visible)

Model of a water spray gun on a wet pavement, spraying mist (no text or symbols visible)

Produktstorlek

Product Size

Paketlista

Two industrial robotic devices: a wheeled vehicle and a digital display unit with orange cable, both without visible text or symbols.

Side view of a small wheeled robotic vehicle with articulated arm and wheels (no visible text or symbols)

Metal body with camera

Interior view of an electronic device with orange fiber and wiring (no visible text or symbols)

Metal frame with cable

Simple geometric shape with black and gray diagonal division (no text or symbols)

Display screen

Coiled black electrical plug with a terminal terminal (no text or symbols visible)

Power cable

Uppmärksamhet

Protect PTZ camera:

1. Do not hit the front camera ✗

2. Do not rotate the camera horizontally manually

3. Do not rotate the camera vertically manually

Step 1 turn off the power

Step 2 unplug the cable

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP
