USER MANUAL W1.2×760 Vevor

Affordable. Reliable. Home Improvement.

Bending Machine

MODEL:W1.2×760

MODEL:W1.2×760

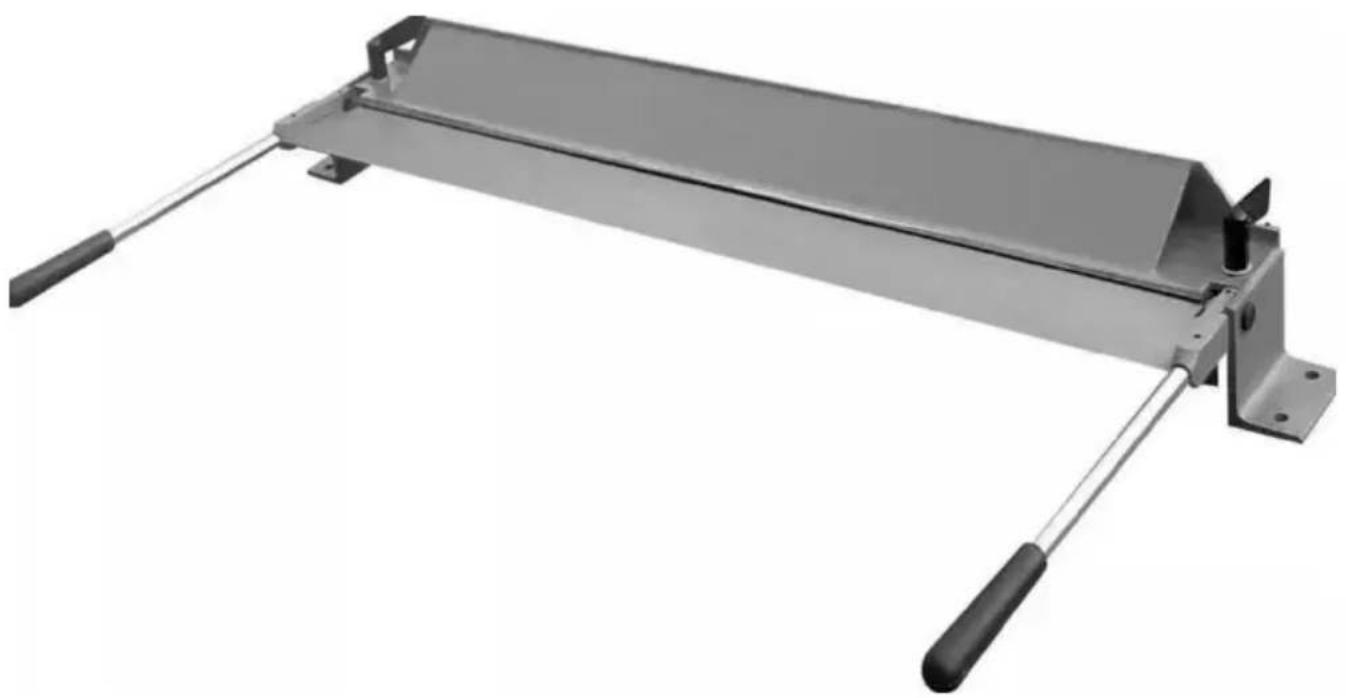

Metal mechanical lever assembly with two black-handled legs and a flat top (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Specifications

Model.	W1.2×760
Maximum Bending Width	30 inches
Maximum Bending Angle	0—135°
Bending Thickness	1.2mm (18 gauge)

Standard accessories :

Jointed arm 2

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice n on the inside of the front cover. Keep the manual and invoice in a dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power to damp or wet locations. Don't expose to rain. Keep work area well lig Do not use electrically powered tools in the presence of flammable g or liquids.

3. Keep children away. Children must never be allowed in the work Do not let them handle machines, tools, or extension cords.

4. Store idle equipment.. When not in use, tools must be stored in location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Do not force tool. It will do the job better and more safety at 1 which it was intended. Do not use inappropriate attachments in an at to exceed the tool capacity.
6. Use the right tool for the job. Do not attempt to force a small attachment to do the work of a large industrial tool. Do not use a t purpose for which it was not intended.
7. Dress properly. Do not wear loose clothing or jewelry as they can caught in moving parts. Protective, electrically non-conductive clothes are non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.
8. Use eye and ear protection. Always wear ISO approved impact of goggles. Wear a full-face shield if you are producing metal filings or chips. Wear an ISO approved dust mask or respirator when working around metal, and chemical dusts and mists.
9. Do not overreach. Keep proper footing and balance at all times. I reach over or across running machine.
10. Maintain tools with care. Keep tools sharp and clean for better safer performance. Follow instructions for lubricating and changing accessories. The handles must be kept clean, dry, and free from oil grease at all times.
11. Stay alert. Watch what you are doing; use common sense. Do I operate any tool when you are tired.

12. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignmen and binding of moving parts; any broken parts or mounting fixtures; a any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified techn

13. Guard against electric shock. Prevent body contact with ground surfaces such as pipes, radiators, ranges, and refrigerator enclosures.

14. Replacement parts and accessories. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. Only use accessories intended for use with this tool. Approved access are available from the distributor.
15. Do not operate tool if under the influence of alcohol or drugs warning labels on prescriptions to determine if your judgment of reflex impaired while taking drugs. If there is any doubt, do not operate the

Note: The warning and instructions contained in this instruction cannot cover all possible conditions and situations that may occur using this product. It must be understood that common sense caution are factors, which cannot be built into this product. The must be supplied by the person who operating this piece of e

Assembly and Operating Instructions

The 30" Mighty Mini Bender requires some minor assembly as descrit below. Please refer to the parts diagram and the parts list shown be when reading this instruction.

1. The Stand (#1) should be secured to a work bench using the mo holes and 4 bolts (3/8" diameter).
2. Each Handle Ball (#7) should be attached to the Handle Lever (#the Handle Levers should be placed into the Pins (#5).
3. To use the Mighty Mini Bender, lower the Handle Lever until the Plate is parallel to the work bench. Position the material to be bent Supporting Plate (#2) and the moving Plate and properly align with the edge to be bent up against the back edge of the Supporting Plate.

4. Place and secure the Pressing Plate (#3) on top of the Supporting with the back edge of Pressing Plate aligned with back edge of Sup-Plate.

5. Raise the two Handle Levers to bend the material to the desired

Warning: When using the Mighty Mini Bender keep fingers clear Supporting Plate and Moving Plate to avoid personal injury.

1. When the Mighty Mini Bender is not in use, it should be covered stored in a dry location.

Parts List

Part #	Description	Qty	picture
1	Handle	2

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
