USER MANUAL T10570 Vevor
Technical Support and E-Warranty Certificate
www.vevor.com/support
TABLE LEGS
MODEL: T10570
We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by it represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us.
You are kindly reminded to verify carefully when you are placing an us if you are actually saving half in comparison with the top major

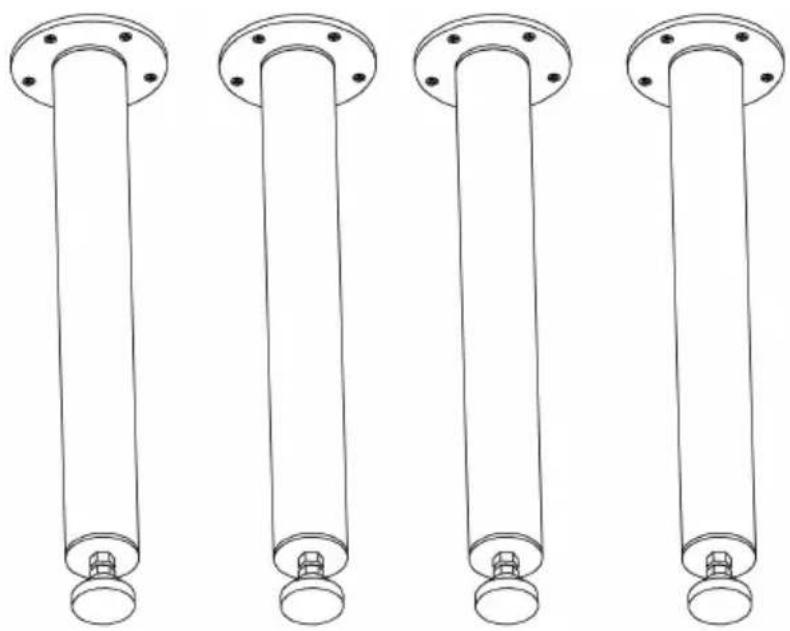

MODEL: T10570
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpret of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software updates product.
SAFE INSTRUCTIONS
CAUTION: Carefully read instructions and procedures for safe operations. Failure to do so can result in injury.
WARNING:
- Before using the table legs, ensure that the table is securely installed to prevent personal injury and accidents.
- When using the table legs, do not overload the handrail to avoid personal injury or accident.
- Do not draw, cut, or use sharp objects on the legs to avoid damage.
- If you need to disassemble the table legs, please follow the reverse steps to disassemble and store it properly.
- This product is not a toy. Do not allow children with this item.
ASSEMBLY PRECAUTIONS
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear ANSI-approved safety goggles and heavy-du work gloves during assembly.
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly
- Do not assemble when tired or under the influer alcohol, drugs or medication.
- Product capabilities apply to properly and complet assembled products only.
- For additional information regarding the parts listed, the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.
- For safety reasons, this hardware is recommended be installed by 2 people.
SAVE THESE INSTRUCTIONS
| Model | T10570-16 | T10570-28 | T10570-30 |
| Height (inch/mm) | 16 / 406.4 | 28 / 711.2 | 30 / 762 |
| Number Of Legs(pcs) | 4 | ||
| Maximum Bearing Capacity (lbs/kg) | 1200/544.3 | ||
| Colour | Black | ||
COMPONENTS

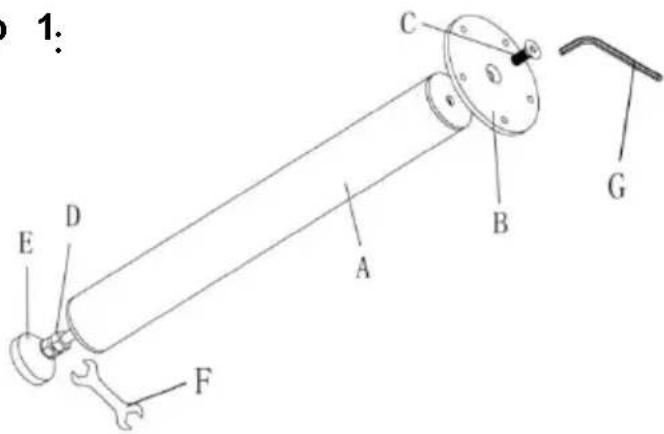

Step 1:


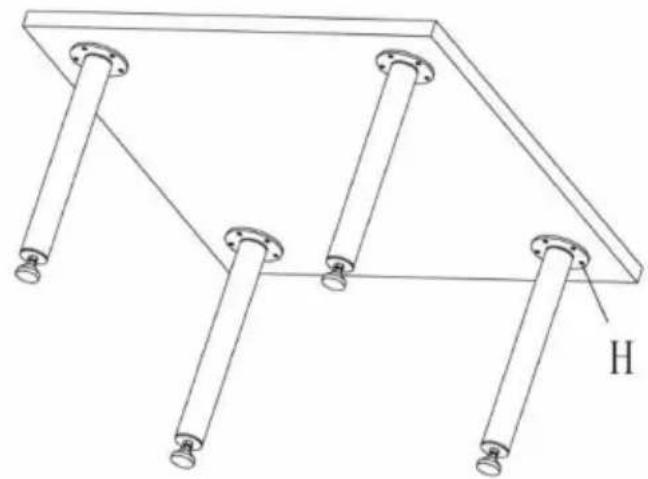

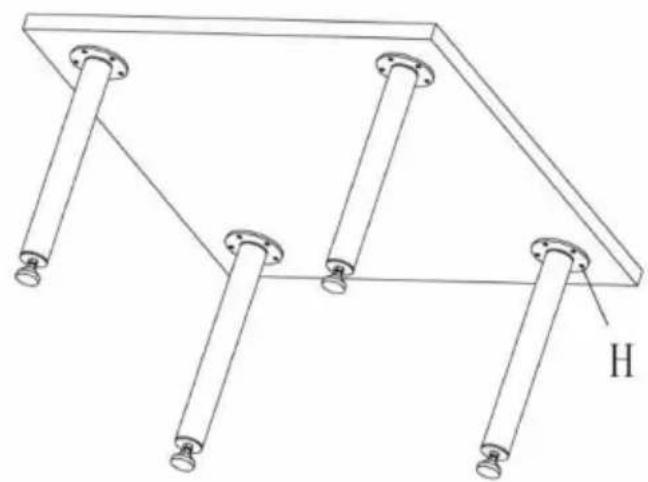

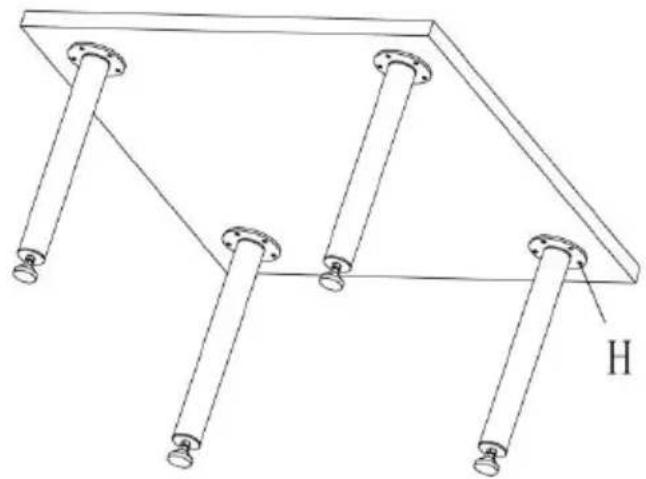

1: C B G A D E FStep2 :
| A | Legs | 4 |
| B | Fixed Plate | 4 |
| C | ScrewsM8*16 | 4 |
| D | Nuts M8 | 4 |
| E | Adjustable Leg | 4 |
| F | Wrench | 1 |
| G | Hex Key | 1 |
| H | ScrewsST3.5*30 | 22 |
Manufacturer:
Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu
803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKE\
STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Sui
250, 9166 Anaheim Place, Rancho Cucamonga,
CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329
Frankfurt am Main.
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited
Office 147, Centurion
House, London Road,
