USER MANUAL TY-DNJ007 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CYCLING DESK

MODEL: TY-DNJ007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CYCLING DESK

MODEL: TY-DNJ007

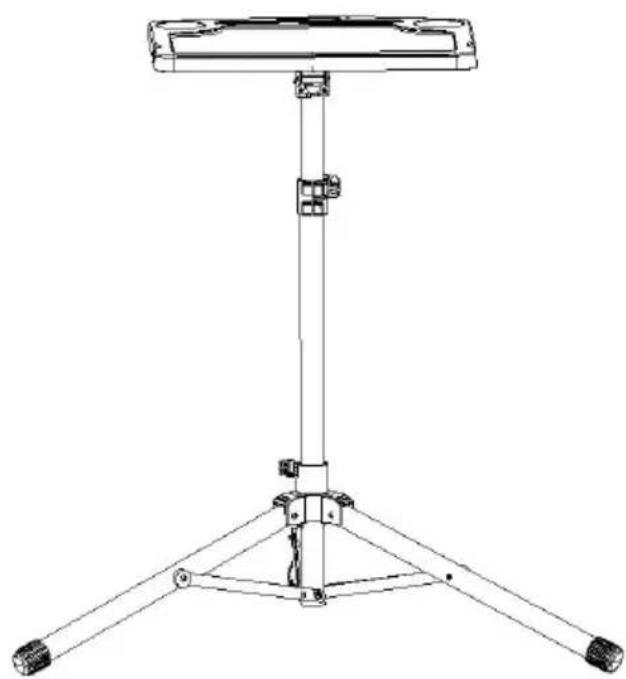

Line drawing of a tripod-mounted scientific instrument with a flat top and three legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

INTRODUCTION

• To avoid injury, please carefully read the instructions and use the product standardized manner.
• When you pass the bike repair stand to another user, please be sure to include the User Manual
• The user manual may be not described the product details and operation steps fully. Please contact us .when you need help or more information.
• The Adjustable Bike Fitness Desks designed to cooperate with the bike trainer to place iphone, ipad, notebook, etc. It can also be used as a makeshift desk, writing board, only for private use, not for commercial us
• Place this product on the ground which is hard and flat. Ensure the instal space is sufficient, to avoid the product hitting the surrounding items.
• Please strictly follow this instruction when assembling or using this product. The seller will not liable for any damage caused by improper assembly (
• Please pay attention to the hand placement for avoid injury, when you adjust the height and fold the product.
  ● The maximum bearing of this item is 20 kg (44lb), please do not put overweight items.

Cautions

• If you find defect of products or missing parts, please contact us immediat
• Please do not left children to climb or use the desk, to prevent injuries by the dump of products.
• Please be sure to lock the brake of the wheel to prevent desktop movement or Desktop items fall When using this product.

Save the instructions.

PRODUCT PAREMETERS

Material of Desktop	ABS
Height of Desktop	33.9"-51.2"/ 860-1300mm
Footing Structure	Tripod
Load Capacity	≤44lbs / 20 Kg
Color	Black

FUNCTION IS INTRODUCED

The Adjustable Bike Fitness Desks designed to provide users with a better ri experience, cooperate with the bike trainer to place iphone,ipad, notebook, etc that you can enjoy both entertainment and office while riding. It can also be as a makeshift desk, writing board. Its main characteristics are as follows:

1. Large table top with non-slip mat. The front and rear double card slots car vertically placed iphone and ipad.
2. The left and right water cup holders are designed to hold water cups or
3. Dual armrest, can be used to wrap and fix the phone power cord, also towel on it.
4. The desktop height can be adjusted as required.
5. Tripod bottom base is more stable.

PART LIST

When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during Do not attempt to assemble or use the product if any part is missin damaged.

No	Part Name	Qty	Picture
A	Table Set	1
B	Inner Telescopic Tube	1
C	Supporting Set	1
D	Screw	2
E	Nut	2
F	Hex Key	2

INSTALLATION INSTRUCTIONS

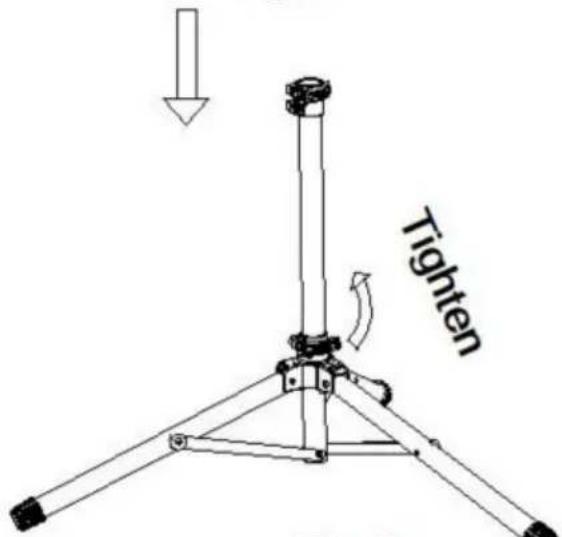

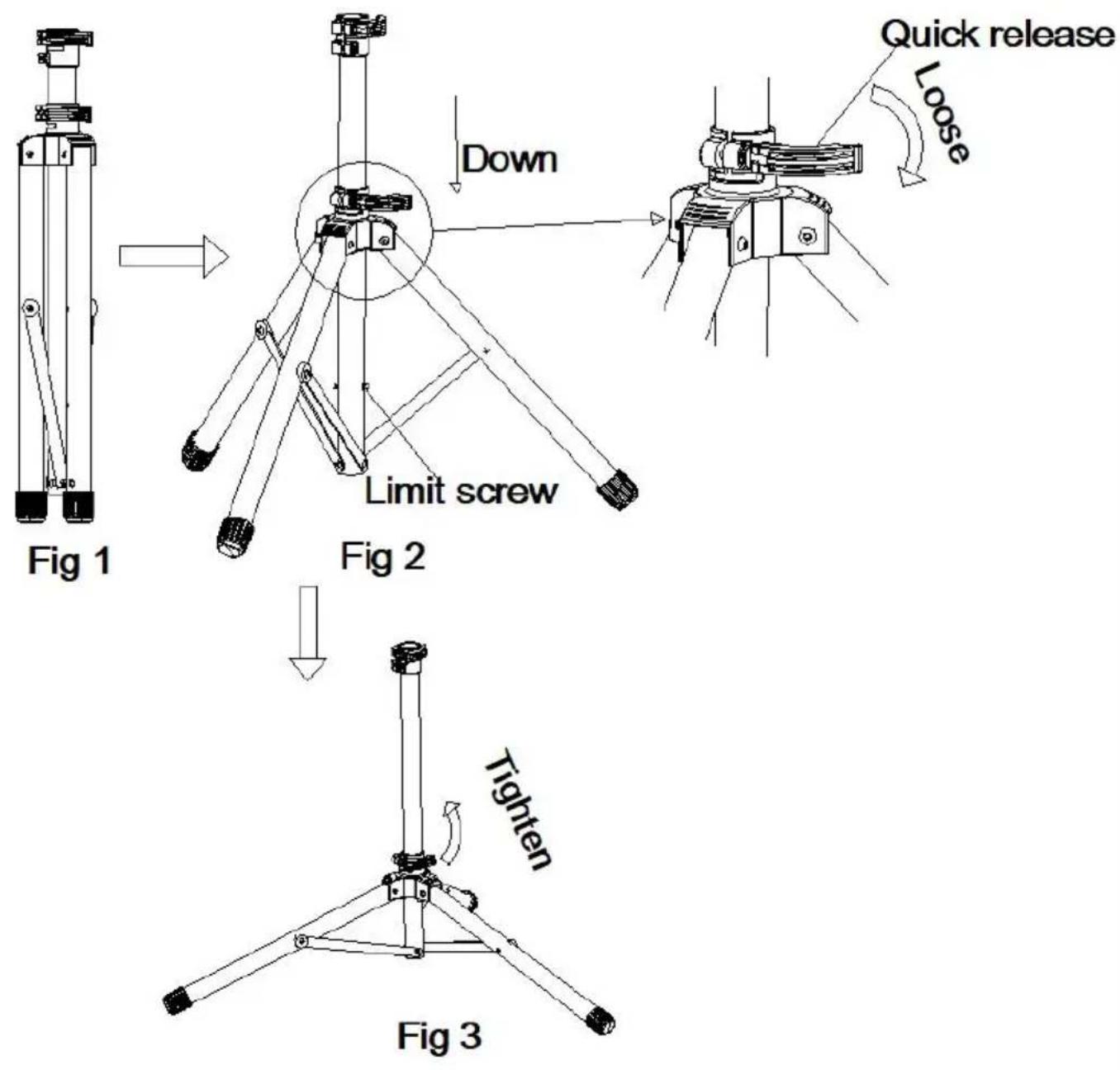

Step 1: Loose the quick release as the Fig 2, open the the supporting feet enough, make the whole plastic joint reach the limit screw, then the the quick release enough. Now, the whole supporting set (P would in its most stable and safe open state (Fig1- Fig 3).

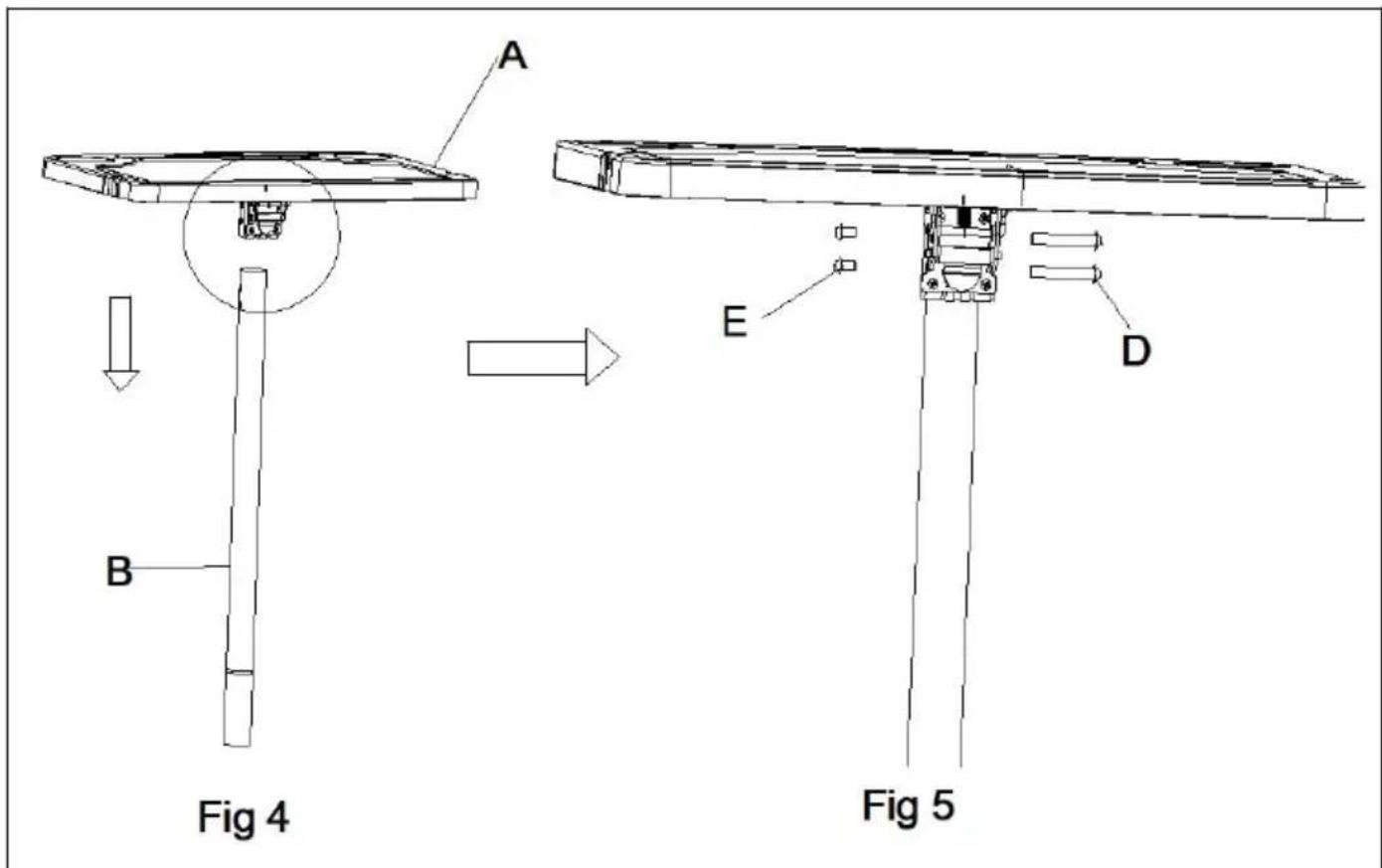

Step 2: Assemble the table set ( Part A ) onto the inner telescopic tube ( Part B ), use the screw & nut ( Part D&E ) and hex keys ( Part F ). Make the screws be tightened enough. ( Fig 4 - Fig 5 ).

Fig 4 Fig 5

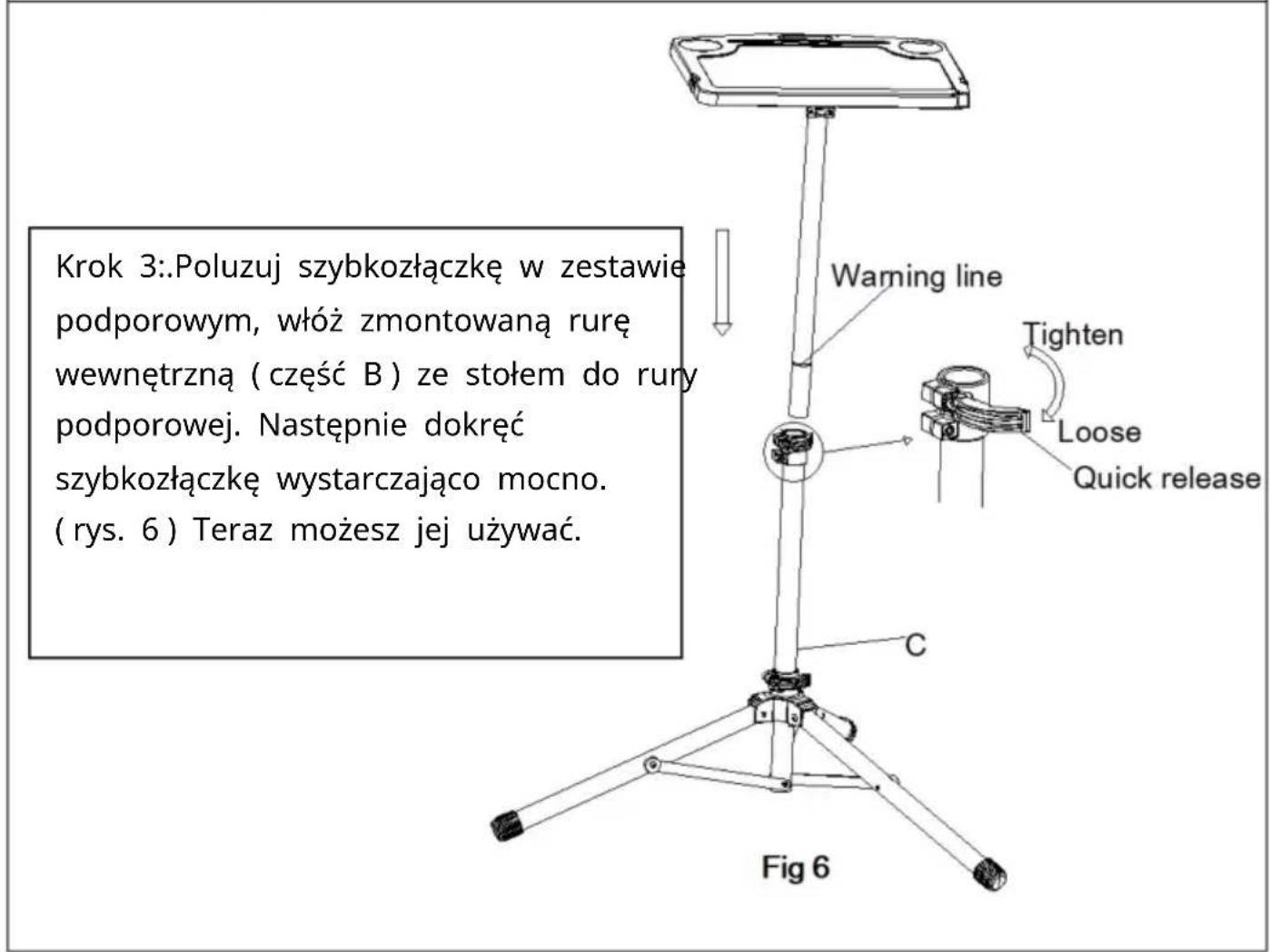

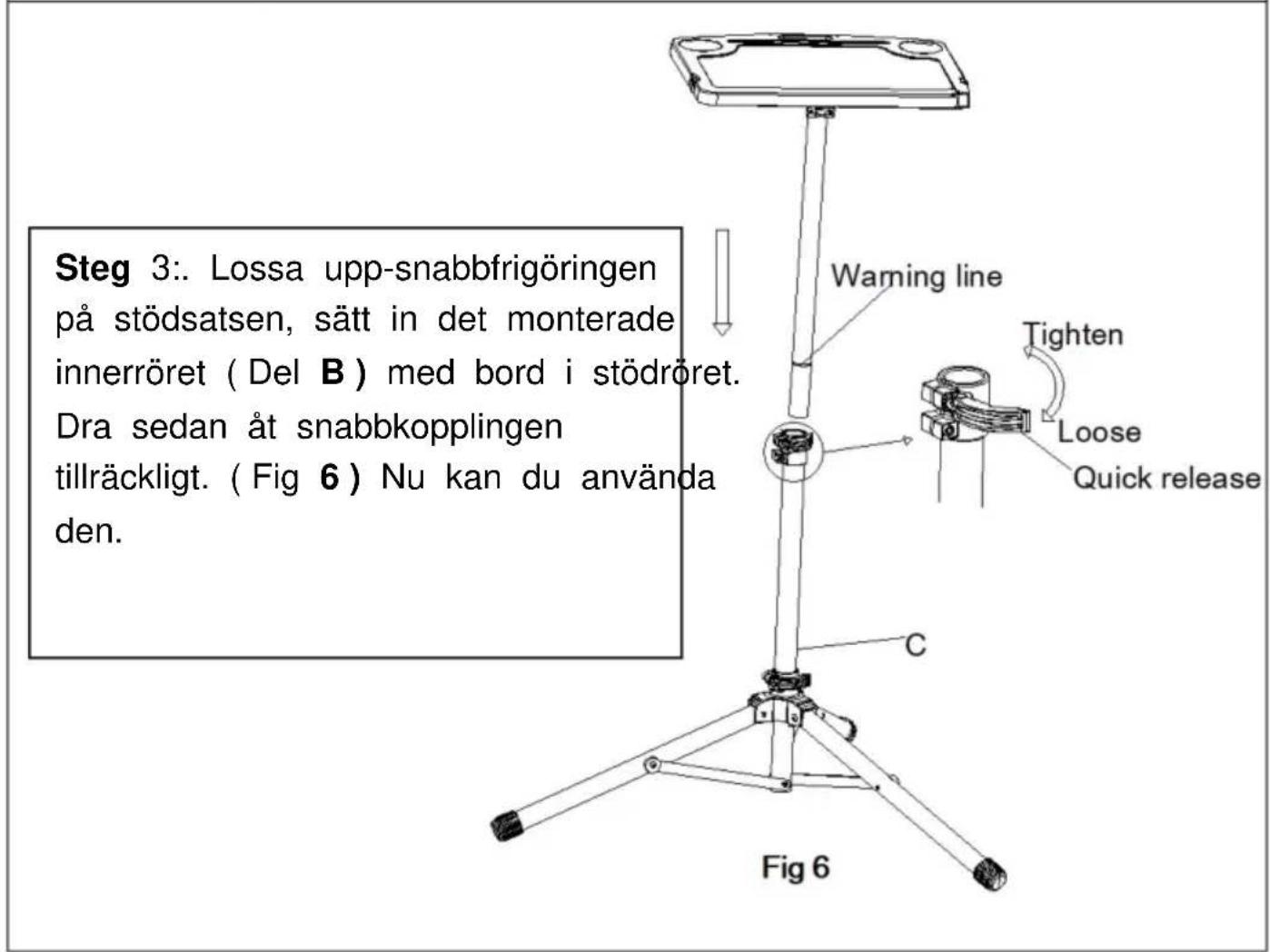

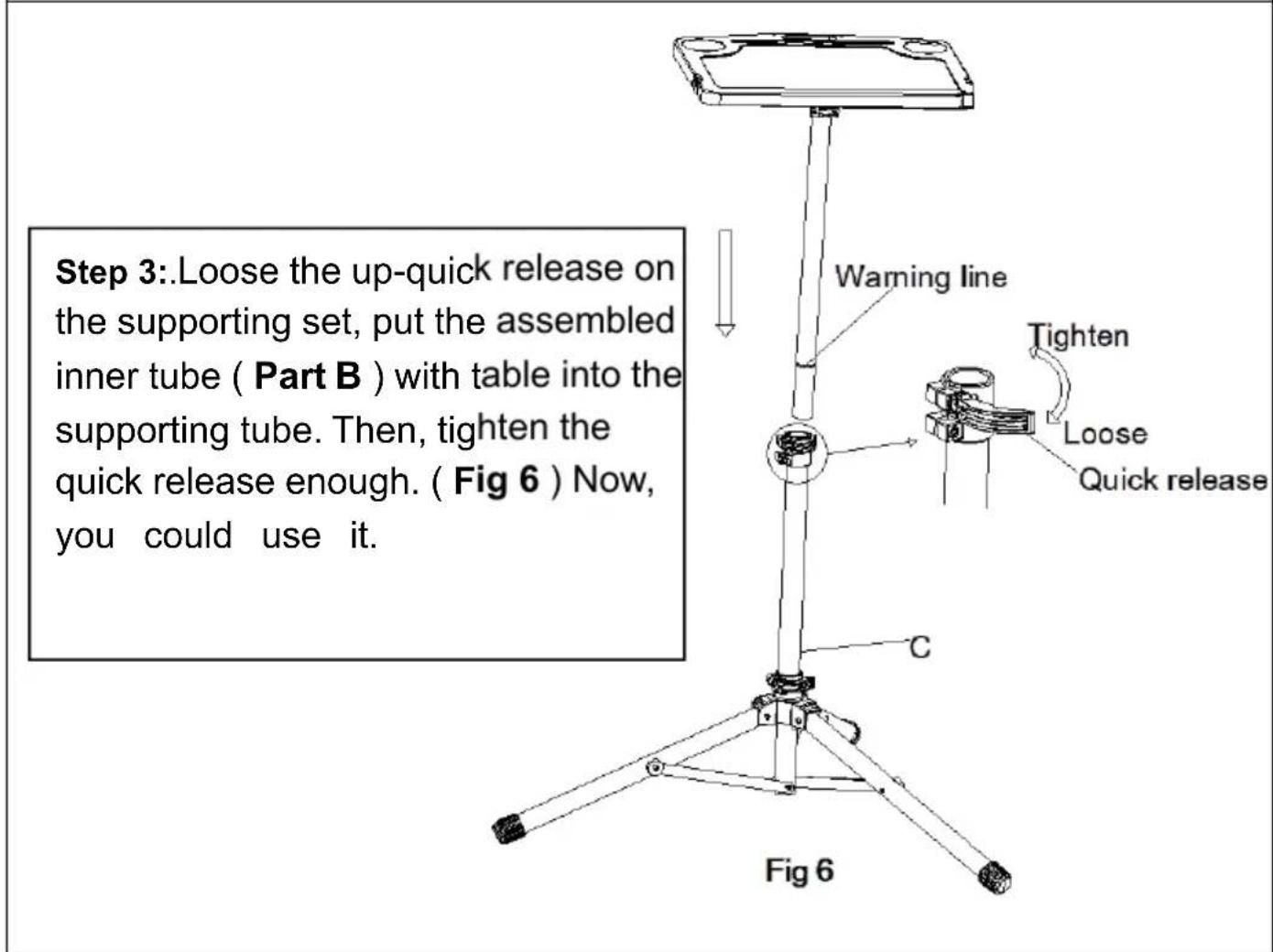

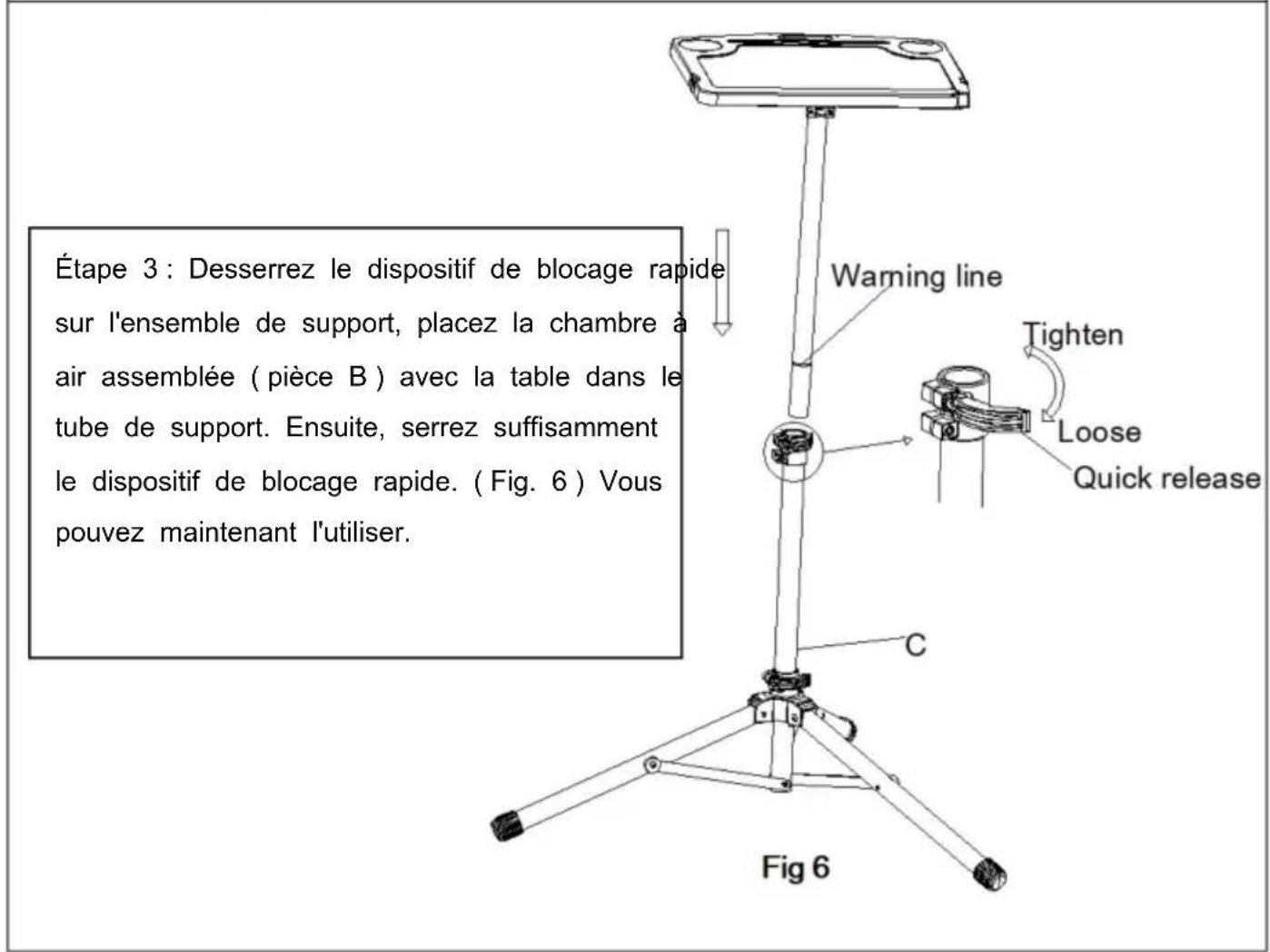

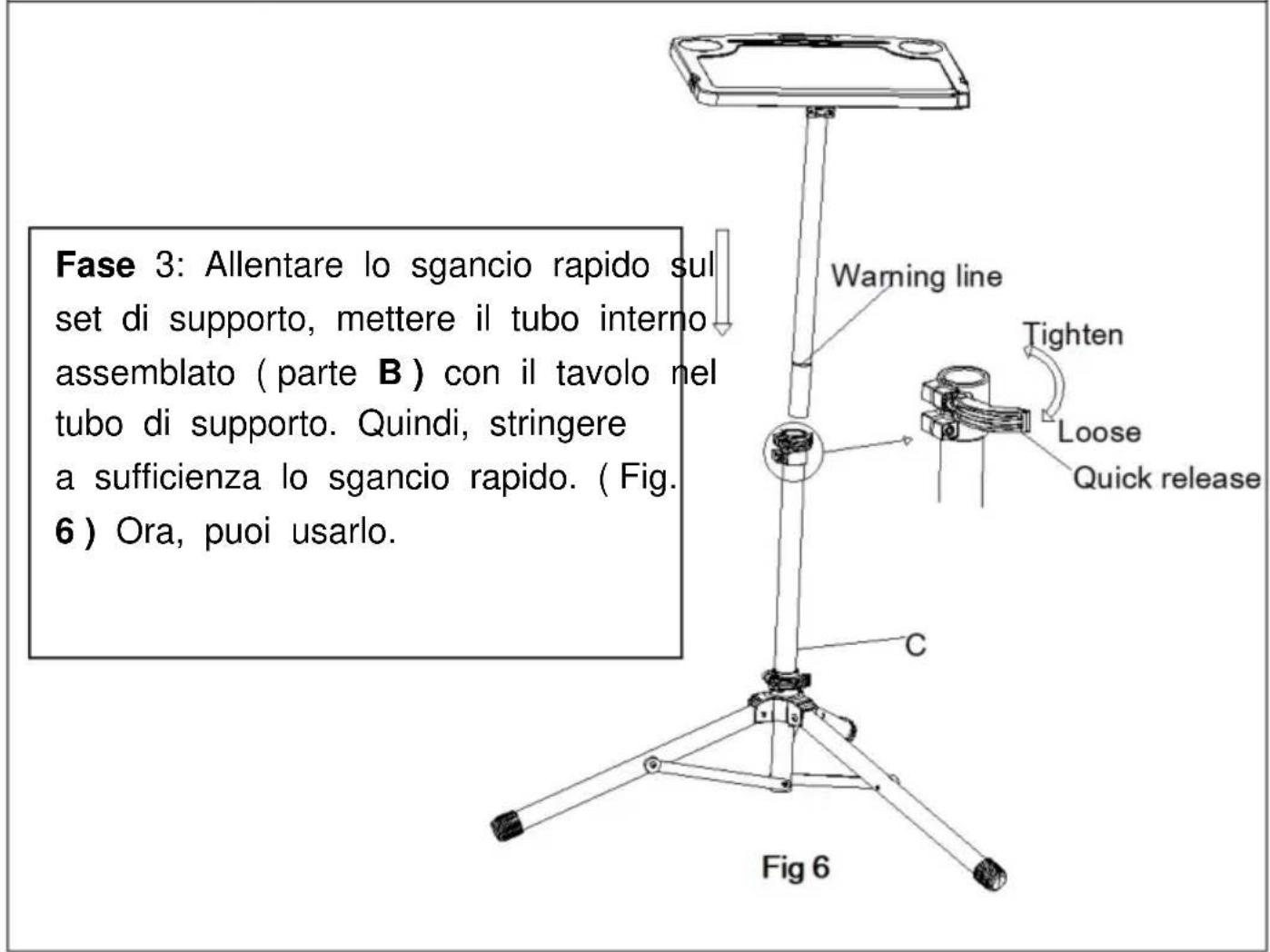

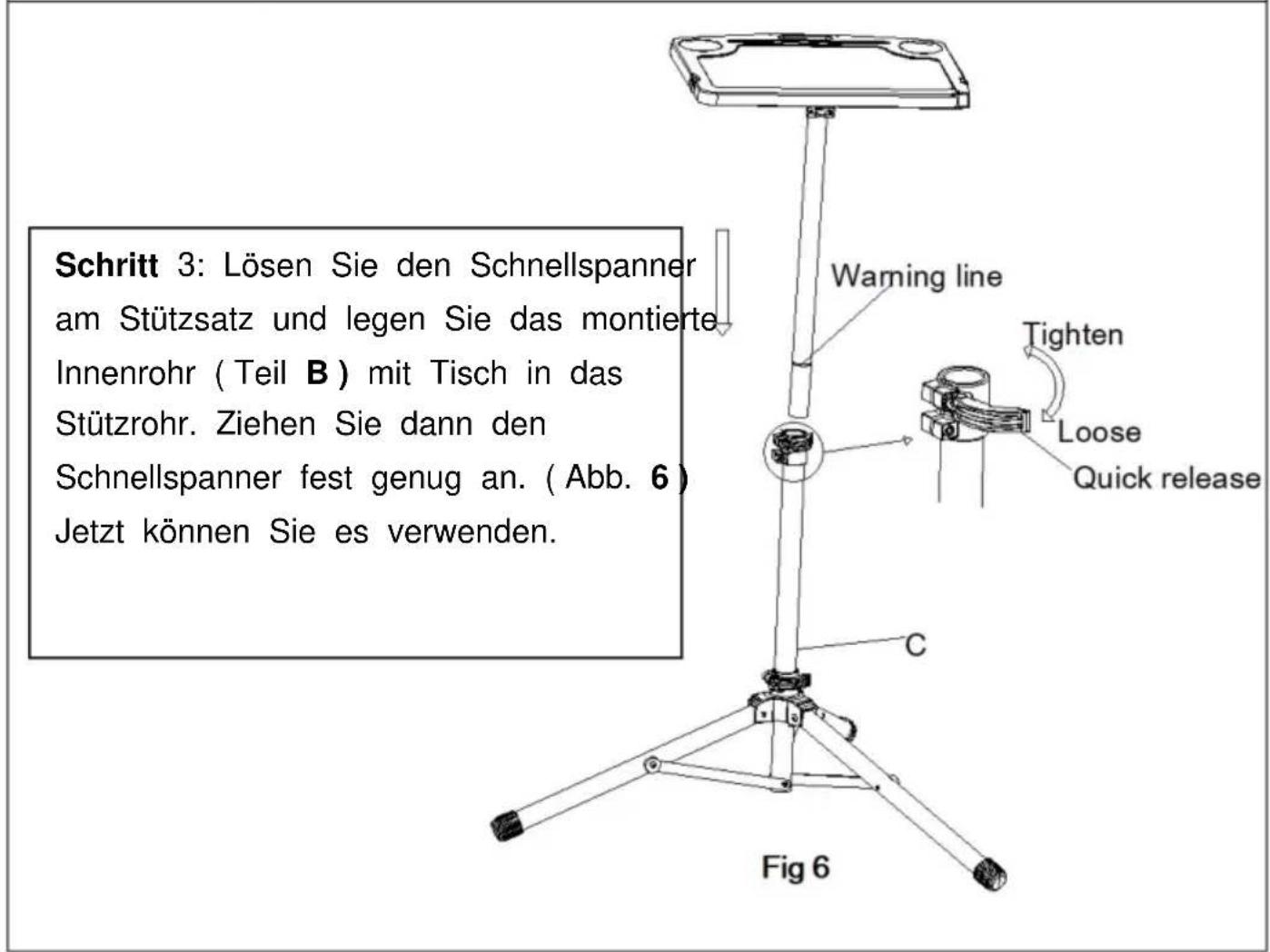

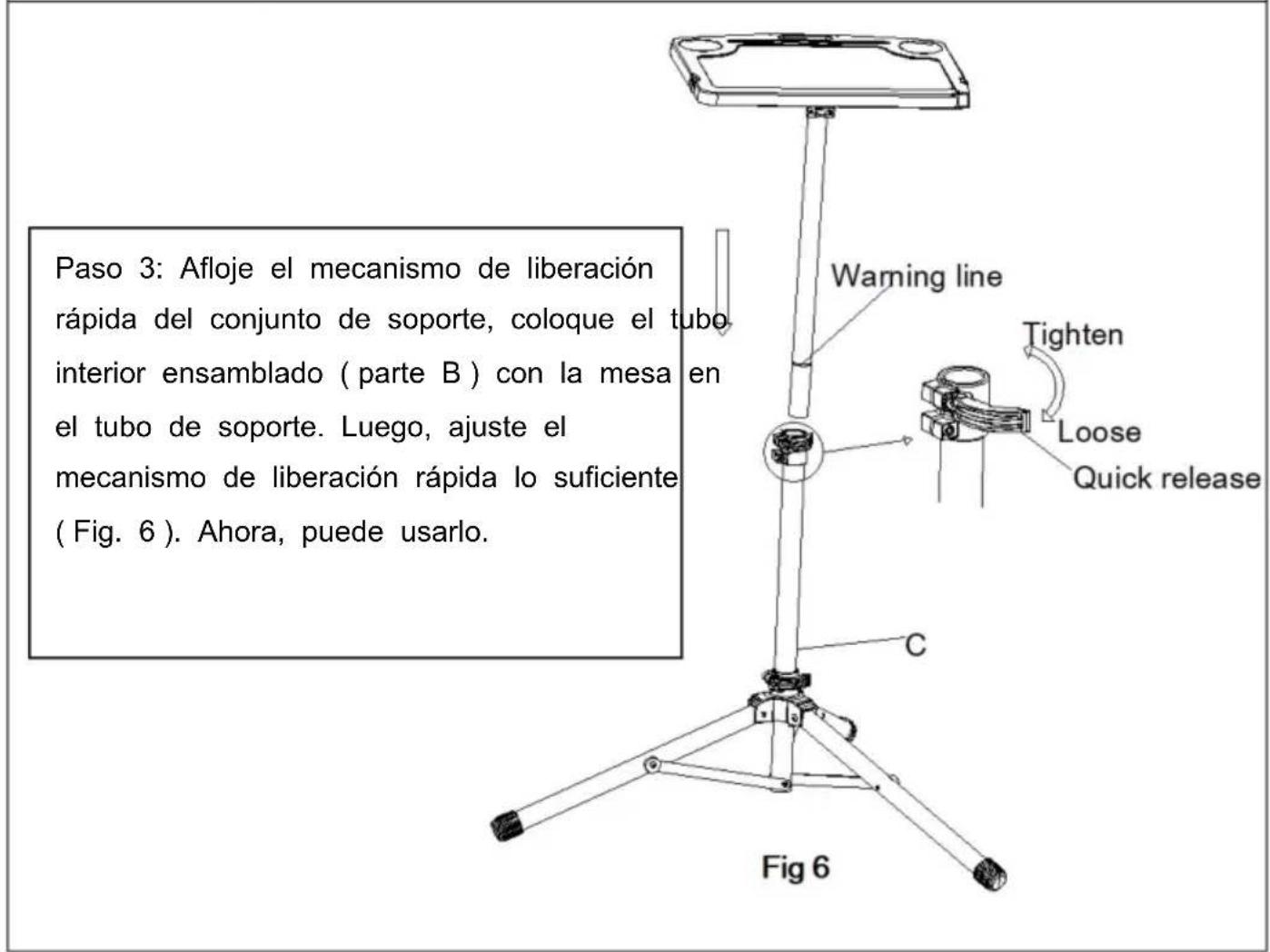

Step 3:.Loose the up-quick release on the supporting set, put the assembled inner tube ( Part B ) with table into the supporting tube. Then, tighten the quick release enough. ( Fig 6 ) Now, you could use it. Warning line Tighten Loose Quick release C Fig 6

Step 4: Loose the up-quick release on the supporting set, put the assembled inner tube (Part B) with table into the supporting to tighten the quick release enough. (Fig 6) Now, you could use

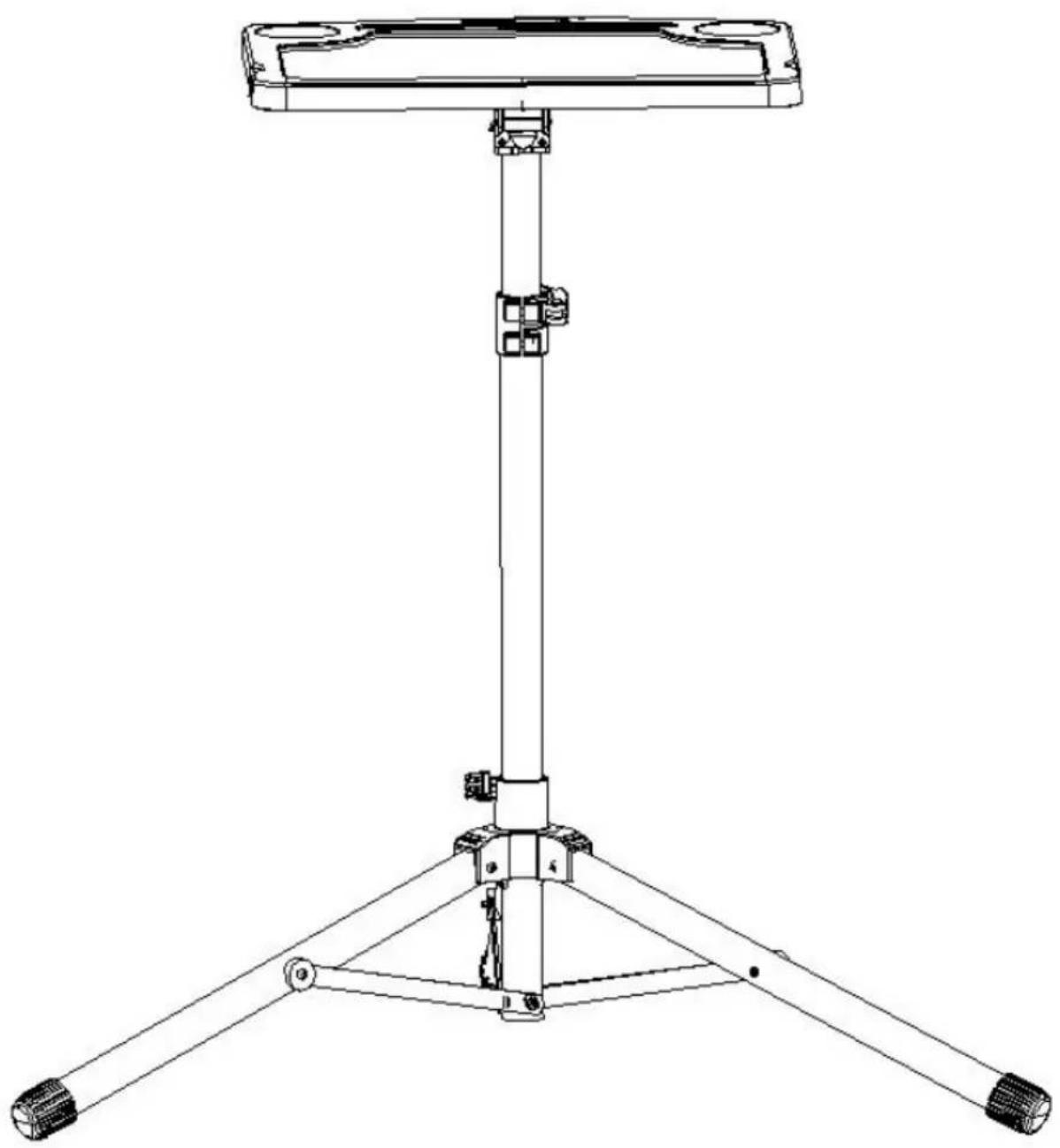

Technical line drawing of a tripod-mounted scientific instrument with three legs and a central support (no text or symbols)

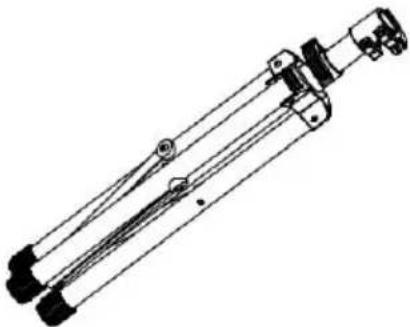

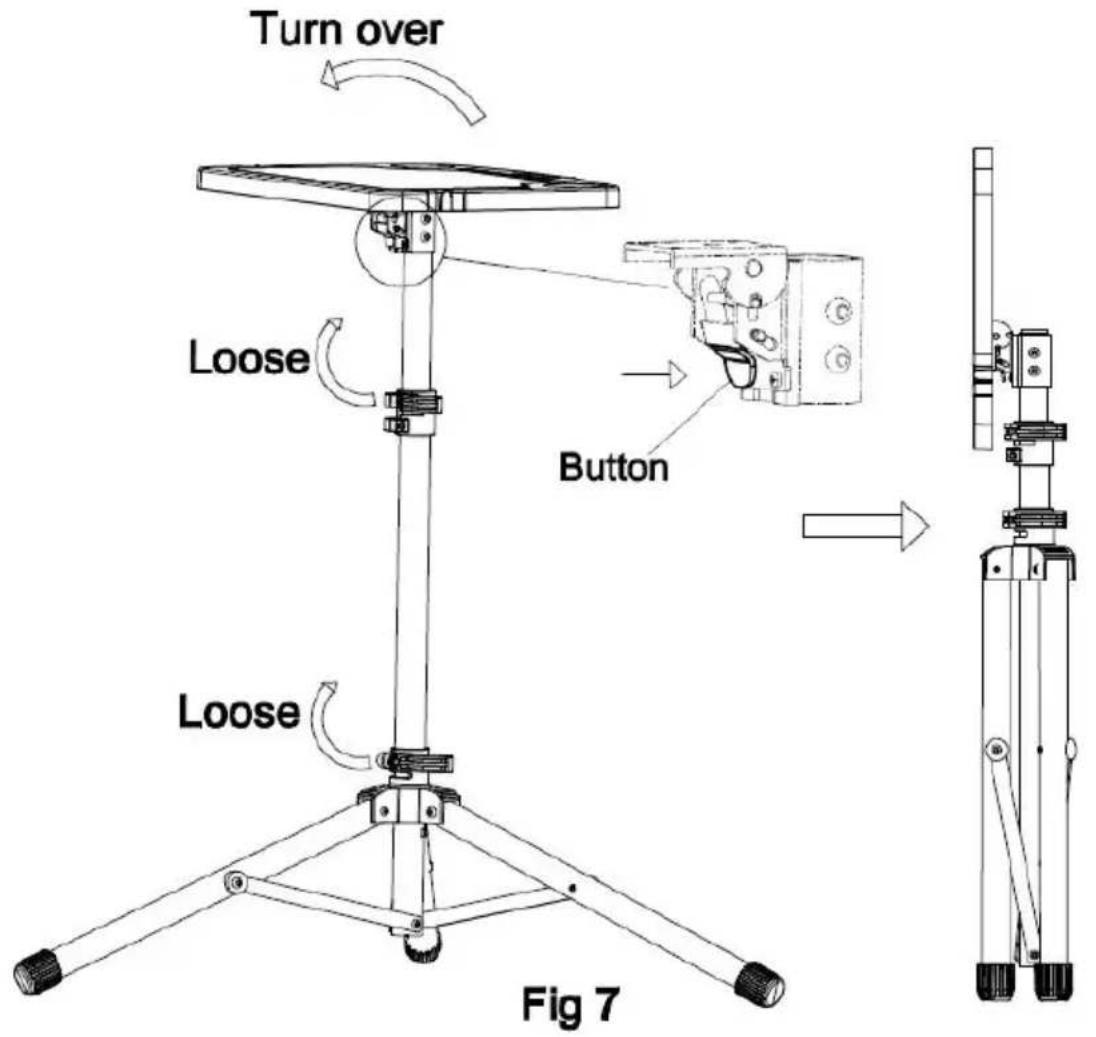

Fold the whole product.

Loose the quick releases, fold the feet and make the inner teles down.

Push the button under the table set, turn over the table face to Please see operations in Fig 7.

Then, the whole product is folded for easy carrying and storage.

Turn over Loose Button Loose Fig 7

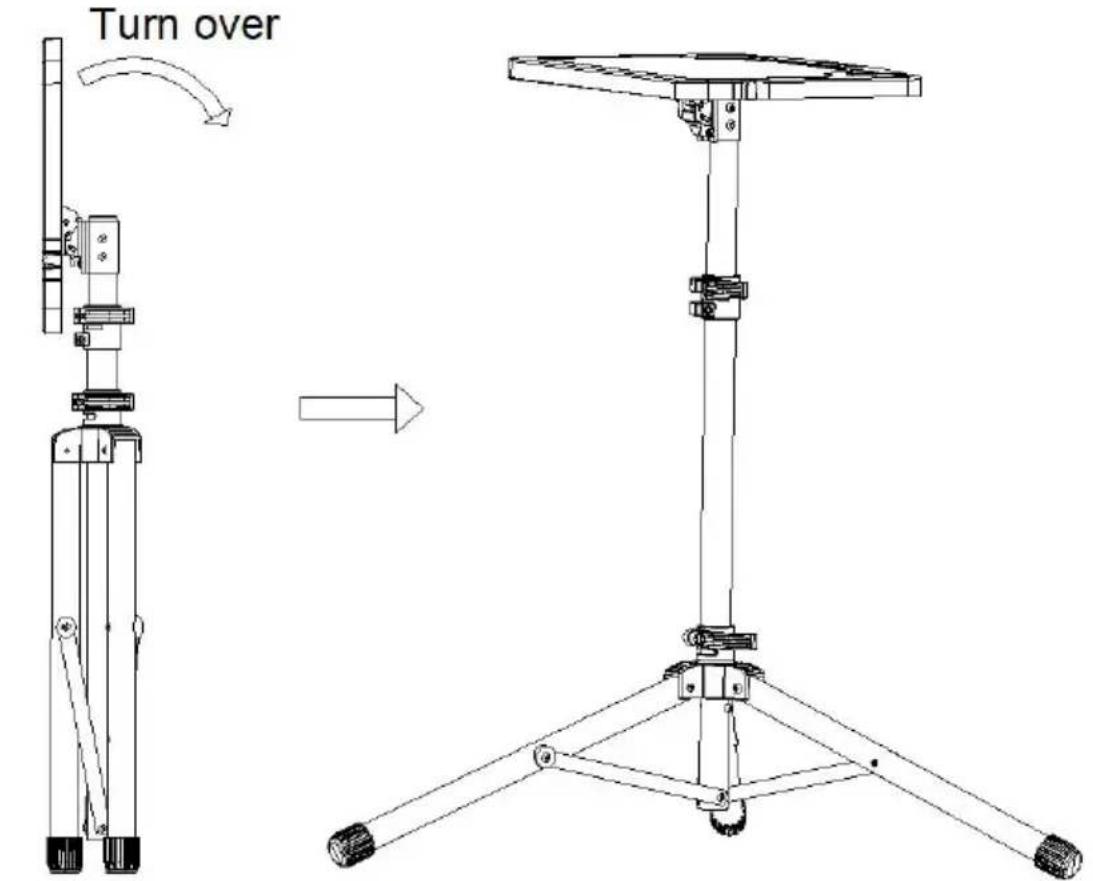

Open the product for usage.

Make the whole frame open enough in stable and safe state, turn table face directly, until hear a “Ding”, tighten the releases enough. Now it’s ready for you. (Fig 8)

Turn over

Fig 8

MAINTENANCE AND STORAGE

1. Do not place any heavy objects on the desktop to avoid damage when s
2. This product need be stored in a clean indoor environment, keep dry, avoid direct sunlight, stay away from fire source, watersource or other dangerous it
3. When cleaning this product, please clean with clean cloth to avoid damage surface appearance. Avoid clean with cleaner, clean powder or other chemical solvent.

Disposal instructions

Please classify recovery the packing bags and waste through the waste center waste disposal company to protect the environment. Please follow relevant law and regulations.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
