USER MANUAL VBPYCE-70 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Pool Heat Pump

Model: VBPYCE-70/VBPYCE-110/VBPYCE-150/VBPYCE-210

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us on represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to all categories of tools offered by us. You are kindly reminded to verify car when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model: VBPYCE-70/VBPYCE-110/VBPYCE-150/VBPYCE-210

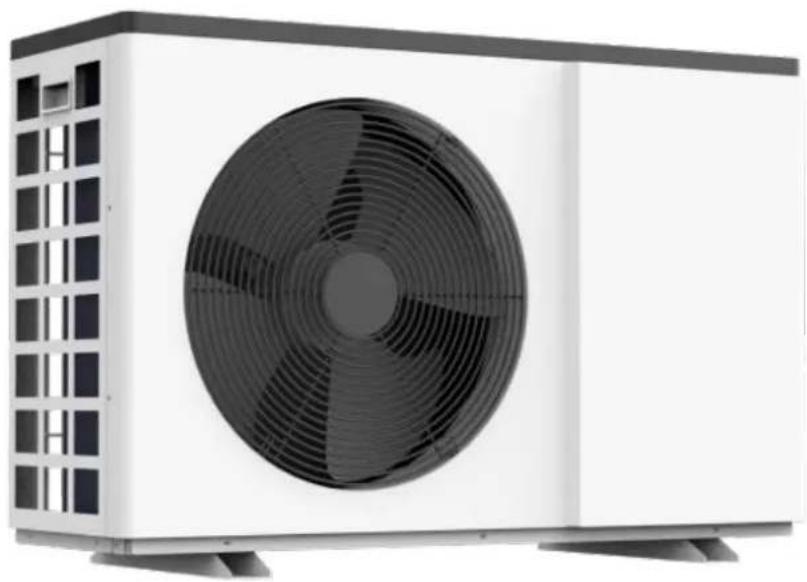

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully by operating. VEVOR reserves a clear interpretation of our user manual. The appe of the product shall be subject to the product you received. Please forgive us won't inform you again if there are any technology or software updates on our

CONTENTS

1.FOREWORD 3

1.1. Read the Manual Before Operation 3
1.2. The Symbol Description of the Device 7
1.3. Statement....7
1.4. Safety Factors 8

2. OVER VIEW OF THE UNIT ....10

2.1. Accessories Supplied With the Unit 10
2.2. Dimensions of the Unit....10
2.3. Main Parts of the Unit ...... - 11 -

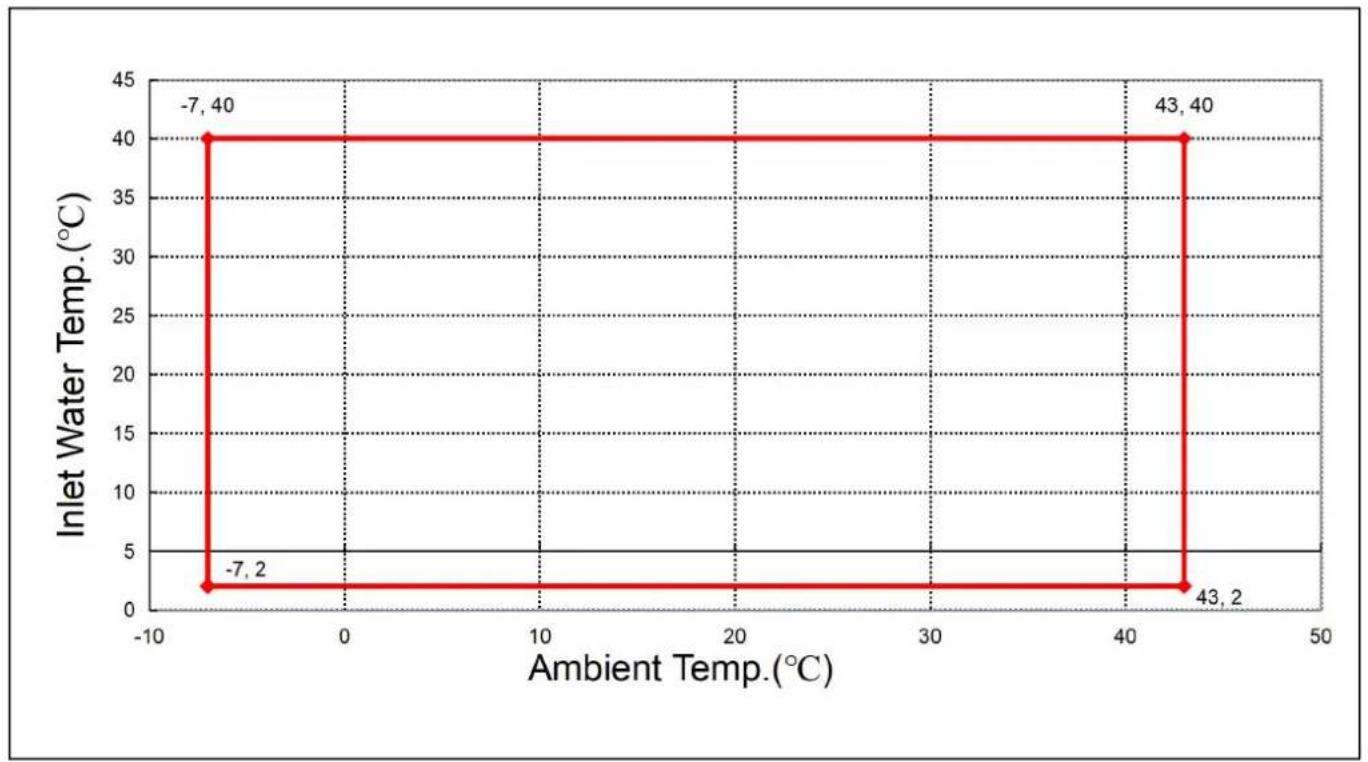

2.4. Operation Range ...... - 15 -
2.5. Parameter of the Unit....- 15 -

3. INSTALLATION AND CONNECTION....- 16 -

3.1. Transportation....- 16 -

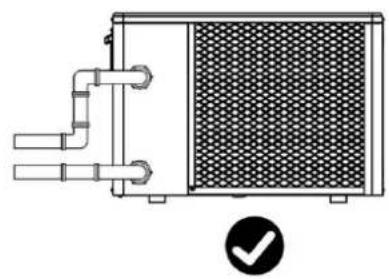

3.2. Notice Before Installation....- 17 -
3.3. Installation Instruction ...... - 17 -
3.4. Trial After Installation.... - 20 -

4. Remoter controller operation guidance ...... 错误！未定义书签。

1.1. Read the Manual Before Operation

WARNING

Do not use means to accelerate the defrosting process or to clean, other than those recommend the manufacturer. The appliance shall be stored in a room without continuously operating ignito sources (for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour.

Initial safety checks shall include:

①That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
②That no live electrical components and wiring are exposed while charging, recovering or purging the system;
③That there is continuity of earth bonding.

Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be completed prior to conducting work on the system

Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flan or vapour being present while the work is being performed.

General work area

All maintenance staff and others working in the local area shall be instructed on the nature being carried out. Work in confined spaces shall be avoided.

Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequate sealed or intrinsically safe.

Presence of fire extinguisher

If any hot work is to be conducted on the refrigerating equipment or any associated parts, fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extir adjacent to the charging area.

No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any work that contains or has contained flammable refrigerant shall use any sources of ignition in manner that it may lead to the risk of fire or explosion. All possible ignition sources, including smoking, should be kept sufficiently far away from the site of installation, repairing, removing disposal, during which flammable refrigerant can possibly be released to the surrounding space.

to work taking place, the area around the equipment is to be surveyed to make sure that flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into conducting any hot work. A degree of ventilation shall continue during the period that the w carried out. The ventilation should safely disperse any released refrigerant and preferably exp externally into the atmosphere.

Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the specification. At all times the manufacturer's maintenance and service guidelines shall be followed in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

①The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
②The ventilation machinery and outlets are operating adequately and are not obstructed;
③If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
④Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
⑤Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Repairs to sealed components

• During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely to have an electrical supply to equipment during servicing, then a permanently operating form detection shall be located at the most critical point to warn of a potentially hazardous situati
• Particular attention shall be paid to the following to ensure that by working on electrical co the casing is not altered in such a way that the level of protection is affected. This shall i damage to cables, excessive number of connections, terminals not made to original specificati damage to seals, incorrect fitting of glands, etc.

Ensure that the apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded to the point that they no longer purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that not exceed the permissible voltage and current permitted for the equipment in use. Intrinsicall components are the only types that can be worked on while live in the presence of a flam atmosphere. The test apparatus shall be at the correct rating.

Replace components only with parts specified by the manufacturer. Other parts may result in ignition of refrigerant in the atmosphere from a leak.

NOTE The use of silicon sealant can inhibit the effectiveness of some types of leak detection

equipment.

Intrinsically safe components do not have to be isolated prior to working on them.

Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp any other adverse environmental effects. The check shall also take into account the effects of continual vibration from sources such as compressors or fans.

Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or d refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be us

Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-area.) Ensure that the detector is not a potential source of ignition and is suitable for the R used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant a calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum confirmed.

Leak detection fluids are suitable for use with most refrigerants but the use of detergents cc chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the cop pipe-work.

If a leak is suspected, all naked flames shall be removed/extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be rec the system, or isolated (by means of shut off valves) in a part of the system remote from Oxygen free nitrogen (OFN) shall then be purged through the system both before and during brazing process.

Removal and evacuation

When breaking into the refrigerant circuit to make repairs – or for any other purpose – con procedures shall be used. However, it is important that best practice is followed since flamm consideration. The following procedure shall be adhered to:

①Remove refrigerant;
②Purge the circuit with inert gas;
③Evacuate;
④Purge again with inert gas;
⑤Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall "flushed" with OFN to render the unit safe. This process may need to be repeated several Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing the working pressure is achieved, then venting to atmosphere, and finally pulling down to a This process shall be repeated until no refrigerant is within the system. When the final OFN used, the system shall be vented down to atmospheric pressure to enable work to take place operation is absolutely vital if brazing operations on the pipework are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there

available.

Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed:

①Ensure that contamination of different refrigerants does not occur when using charging equipment.

Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained. Cylinders shall be kept upright.

②Ensure that the refrigeration system is earthed prior to charging the system with refrigerant

③Label the system when charging is complete (if not already).

④Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of chargi to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with equipment and all its detail. It is recommended good practice that all refrigerants are recovered. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case an required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available the task is commenced.

①Become familiar with the equipment and its operation.

②Isolate system electrically.

③Before attempting the procedure ensure that:

Mechanical handling equipment is available, if required, for handling refrigerant cylinders;

All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person;

Recovery equipment and cylinders conform to the appropriate standards.

④Pump down refrigerant system, if possible.

⑤If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

⑥Make sure that cylinder is situated on the scales before recovery takes place.

⑦Start the recovery machine and operate in accordance with manufacturer's instructions.

⑧Do not overfill cylinders. (No more than 80 % volume liquid charge).

⑨Do not exceed the maximum working pressure of the cylinder, even temporarily.

⑩When the cylinders have been filled correctly and the process completed, make sure that cylinders and the equipment are removed from site promptly and all isolation valves on the are closed off.

⑪Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

Labeling

Equipment shall be labeled stating that it has been decommissioned and emptied of refrigera label shall be dated and signed. Ensure that there are labels on the equipment stating the contains flammable refrigerant.

Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recom good practice that all refrigerants are removed safely. When transferring refrigerant into cylinder ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the corre

number of cylinders for holding the total system charge are available. All cylinders to be used designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders or recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before us recovery machine, check that it is in satisfactory working order, has been properly maintained any associated electrical components are sealed to prevent ignition in the event of a refrigerator release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units an especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated acceptable level to make certain that flammable refrigerant does not remain within the lubrication evacuation process shall be carried out prior to returning the compressor to the suppliers. On heating to the compressor body shall be employed to accelerate this process. When oil is done a system, it shall be carried out safely.

1.2. The Symbol Description of the Device

The precautions listed here are divided into the following types. They are quite important, so follow them carefully.Meanings of DANGER, WARNING, CAUTION and NOTE symbols.

Symbols	Meaning	Description
	WARNING	The symbol shows that this appliance uses a flammable refIf the refrigerant is leaked and exposed to an external is source, there is a risk of fire.
	WARNING	All information marked with this symbol is important and sh viewed carefully.
	WARNING	This symbol shows that there might be an electric shock appliance still connects the power cleaning, examination and
	CAUTION	This symbol shows Anti-freezing protection. It is necessary prevent the freezing of heat exchanger or water pipes, the unit can not be shut off in the ambient temperature lowerAll the water in the unit and plumbing system must be dra the unit will be turned off for a long time.
	CAUTION	This symbol shows that the operation manual should be carefully.
	CAUTION	This symbol shows that a service personnel should be hand equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as operating manual or installation manual.

1.3. Statement

To keep users under safe working condition and property safety, please follow the instruction:

①Wrong operation may result in injury or damage;
②Please install the unit in compliance with local laws, regulations and standards;
③Confirm power voltage and frequency;
④The unit is only used with grounding sockets;
⑤Independent switch must be offered with the unit.

1.4.Safety Factors

The following safety factors need to be considered:

①Please read the following warnings before installation;
②Be sure to check the details that need attention, including safety factors;
③After reading the installation instructions, be sure to save them for future reference.

WARNING

Make sure that the unit is installed safely and reliably.

• If the unit is not secure or not installed, it may cause damage. The minimum support weight required for installation is 21g / mm^2
• If the unit was installed in a closed area or limited space, please consider the size of room and ventilation to prevent suffocation caused by refrigerant leakage.

①Use a specific wire and fasten it to terminal block so that the connection will prevent pressure from being applied to parts.

②Wrong wiring will cause fire.

Please connect power wire accurately according to wiring diagram on the manual to avoid by the unit or fire.

③Be sure to use correct material during installing.

Wrong parts or wrong materials may result in fire, electric shock, or falling of the unit.

④Install on the ground safely, please read installation instructions.

Improper installation may result in fire, electric shock, falling of the unit, or water leaking.

⑤Use professional tools for doing electrical work.
If power supply capacity is insufficient or circuit is not completed, it may cause fire or elect
⑥The unit must have grounding device.
If power supply does not have grounding device, be sure not to connect the unit.
⑦The unit should be only removed and repaired by professional technician.
Improper movement or maintenance of the unit may cause water leakage, electric shock, or Please find a professional technician to do.
⑧Don't unplug or plug power during operation. It may cause fire or electric shock.
⑨Don't touch or operate the unit when your hands are wet. It may cause fire or electric shock.
⑩ Don't place heaters or other electrical appliances near the power wire. It may cause fire or electric shock.
⑪The water must not be poured directly from the unit. Do not let water to permeate into the electrical components.

WARNING

①Do not install the unit in a location where there may be flammable gas.
②If there is flammable gas around the unit, it will cause explosion.

According to the instruction to carry out drainage system and pipeline work. If drainage system pipeline is defective, water leakage will occur. And it should be disposed immediately to prevent household products from getting wet and damage.

③Do not clean the unit while power is on. Turn off power before cleaning the unit. If not it may result in injury from a high-speed fan or electric shock.
④Stop operating the unit once there is a problem or an fault code.

Please turn off power and stop running the unit. Otherwise it may cause electric shock or f
⑤Be careful when the unit is not packed or not installed.
Pay attention to sharp edges and fins of heat exchanger.
⑥After installation or repair, please confirm refrigerant is not leaking.
If refrigerant is not enough, the unit will not work properly.
⑦The installation of external unit must be flat and firm.
Avoid abnormal vibration and noise.
⑧Don't put your fingers into fan and evaporator.
High speed running fan will result in serious injury.
⑨This device is not designed for people who is physically or mentally weak (including children) and who does not have experience and knowledge of heating and cooling system. Unless it is a direction and supervision of professional technician, or has received training on the using of Children must use it under supervision of an adult to ensure that they use the unit safely. is damaged, it must be replaced by a professional technician to avoid danger.

2.OVER VIEW OF THE UNIT

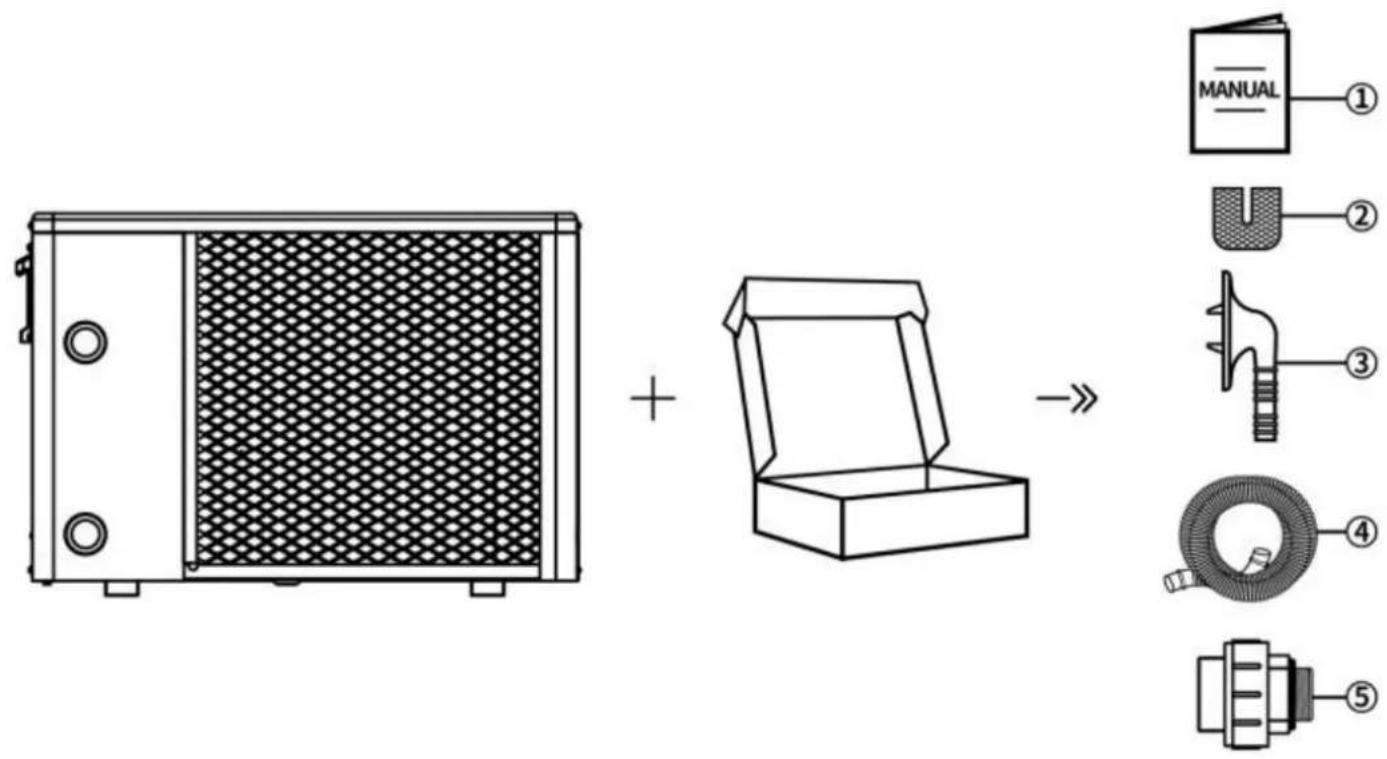

2.1. Accessories Supplied With the Unit

After unpacking, please check if you have all the following components.

Technical diagram showing a door panel and an open box with labeled components including manual switch, U-shaped switch, and coiled spring.

NO.	Components	Quantity	NO.	Components	Quantity
1	User Manual	1	4	Drain Pipe	2
2	Rubber Blanket	4	5	Water Pipe Joint	2
3	Drain Connector	2

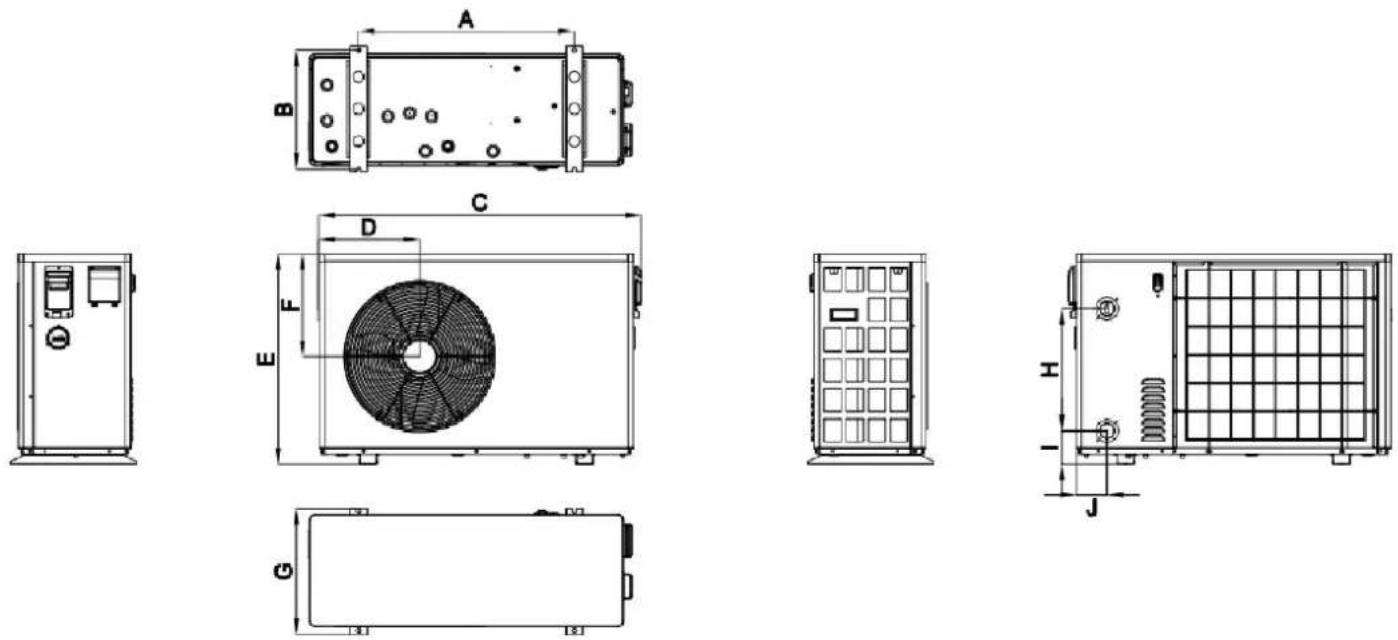

2.2.Dimensions of the Unit

Dimension Unit: (mm)

Model	A	B	C	D	E	F	G	H	I	J
VBPYCE-70	549	339	910	304	618	307	360	320	98	80
VBPYCE-110
VBPYCE-150	671	370	1002	314	654	320	391	380	103	95
VBPYCE-210	720	423	1192	358	775	407	447	470	108	126

2.3.Main Parts of the Unit

2.3.1.VBPYCE-70,VBPYCE-110

① Sheet metal and other structures

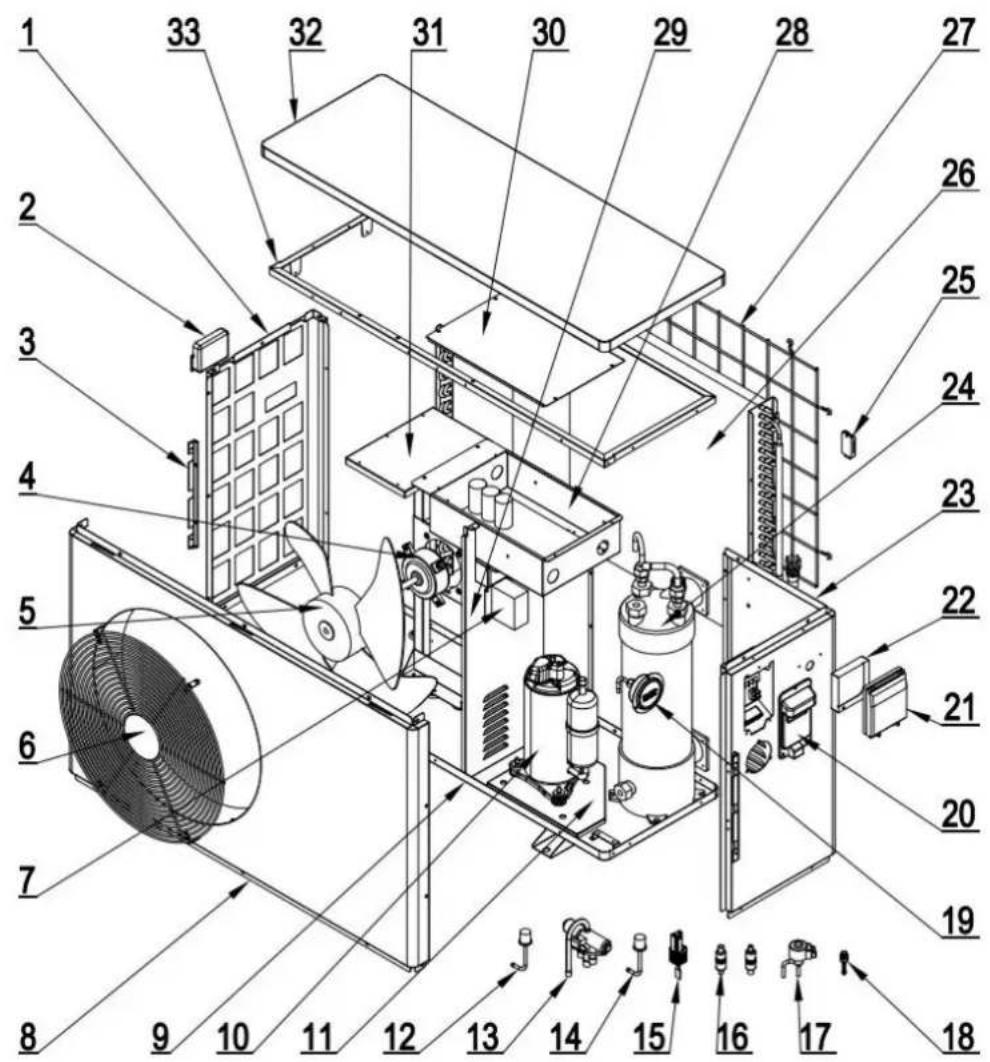

Exploded view diagram of an air conditioning unit with numbered components and airflow indicators

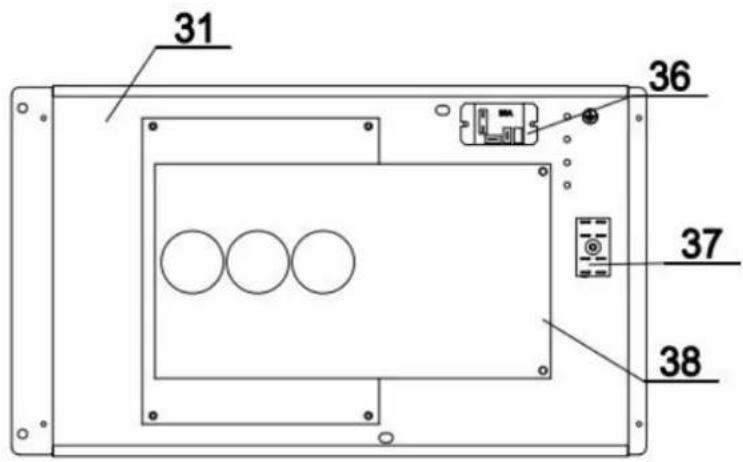

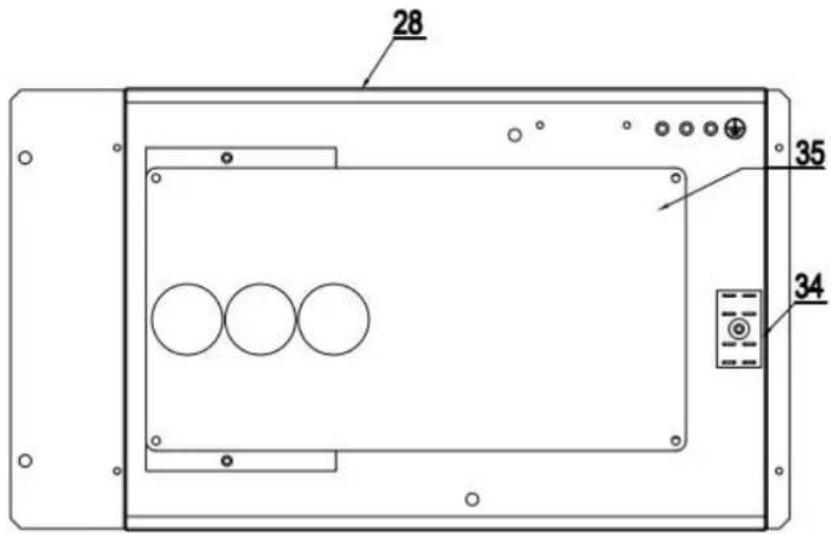

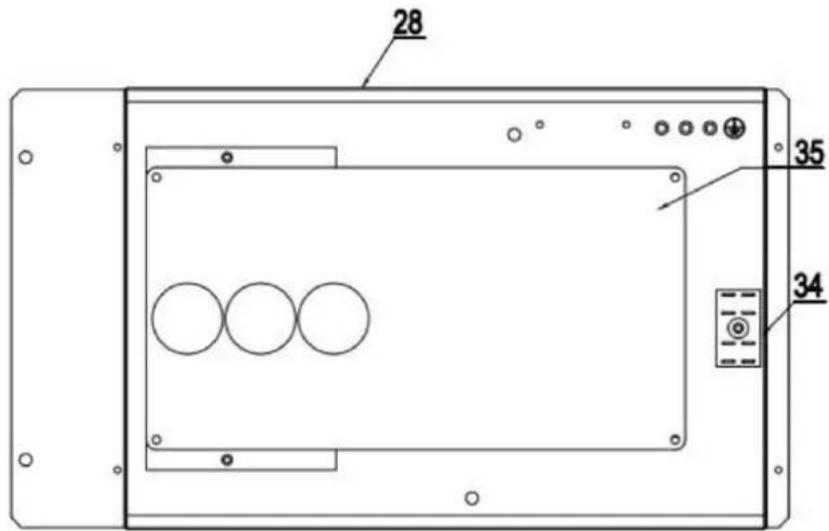

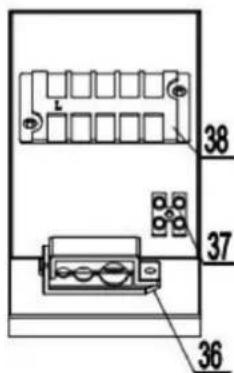

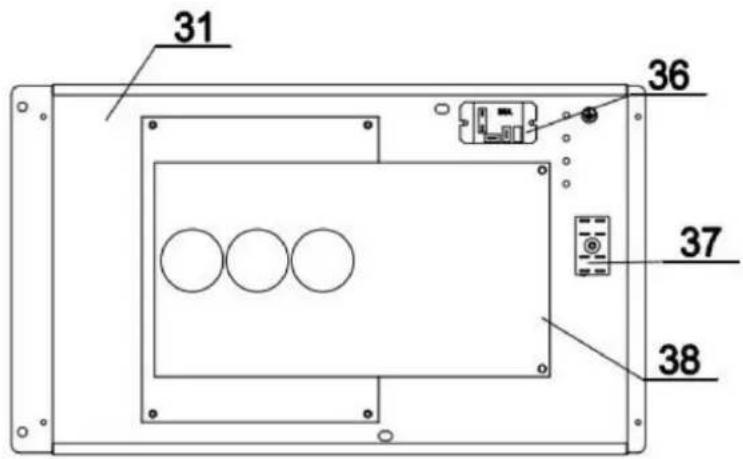

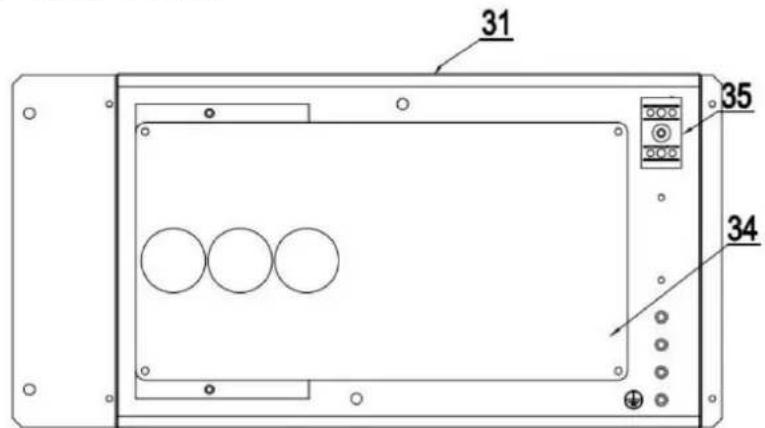

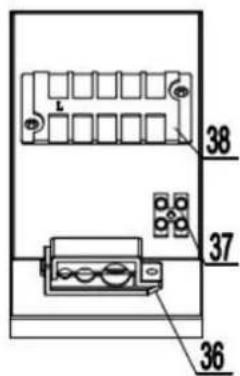

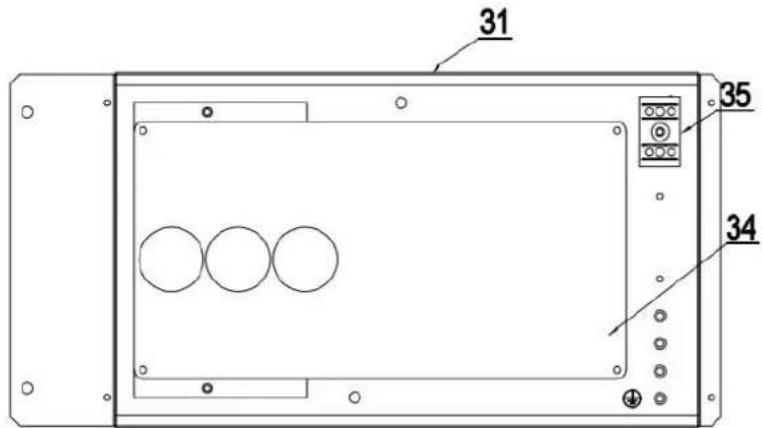

② Electrical System

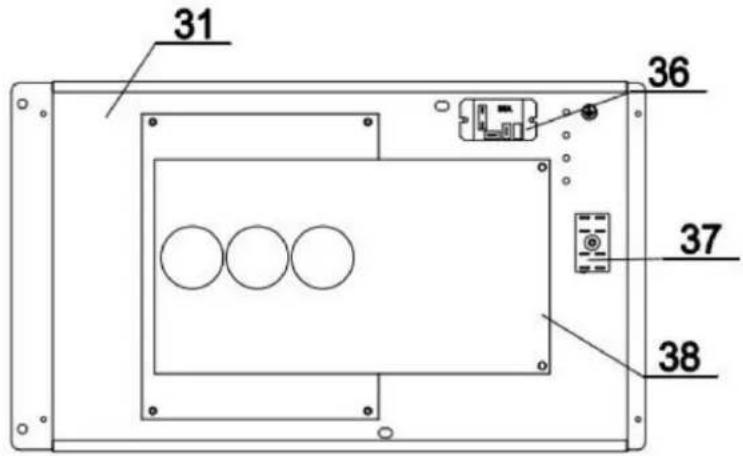

31 35 34

38 37 36

1	Left Plate	14	EEV	27	Evaporator Component
2	Left Handle	15	Water Flow Switch	28	Reactor
3	Side Fixing Plate	16	Low Pressure Switch	29	Roof Assembly
4	Motor	17	Filter	30	Electrical Box Cover
5	Fan Blade	18	Needle Valve	31	Electrical Box Components
6	Fan Guard	19	Pressure Gauge	32	Motor Support
7	Median Septum	20	Right Plate	33	Inner Frame Components
8	Front Plate	21	Wired Controller Box	34	Main Board
9	Chassis	22	Wired Controller	35	2U Terminal
10	Suspension Chassis	23	Right Handle	36	Cable Clip
11	Compressor	24	Titanium Heat Exchanger	37	2-Position Terminal Board
12	High Pressure Switch	25	Ambient Temp Sensor Holder	38	5-Position Terminal Board
13	4-Way Valve	26	Back Net

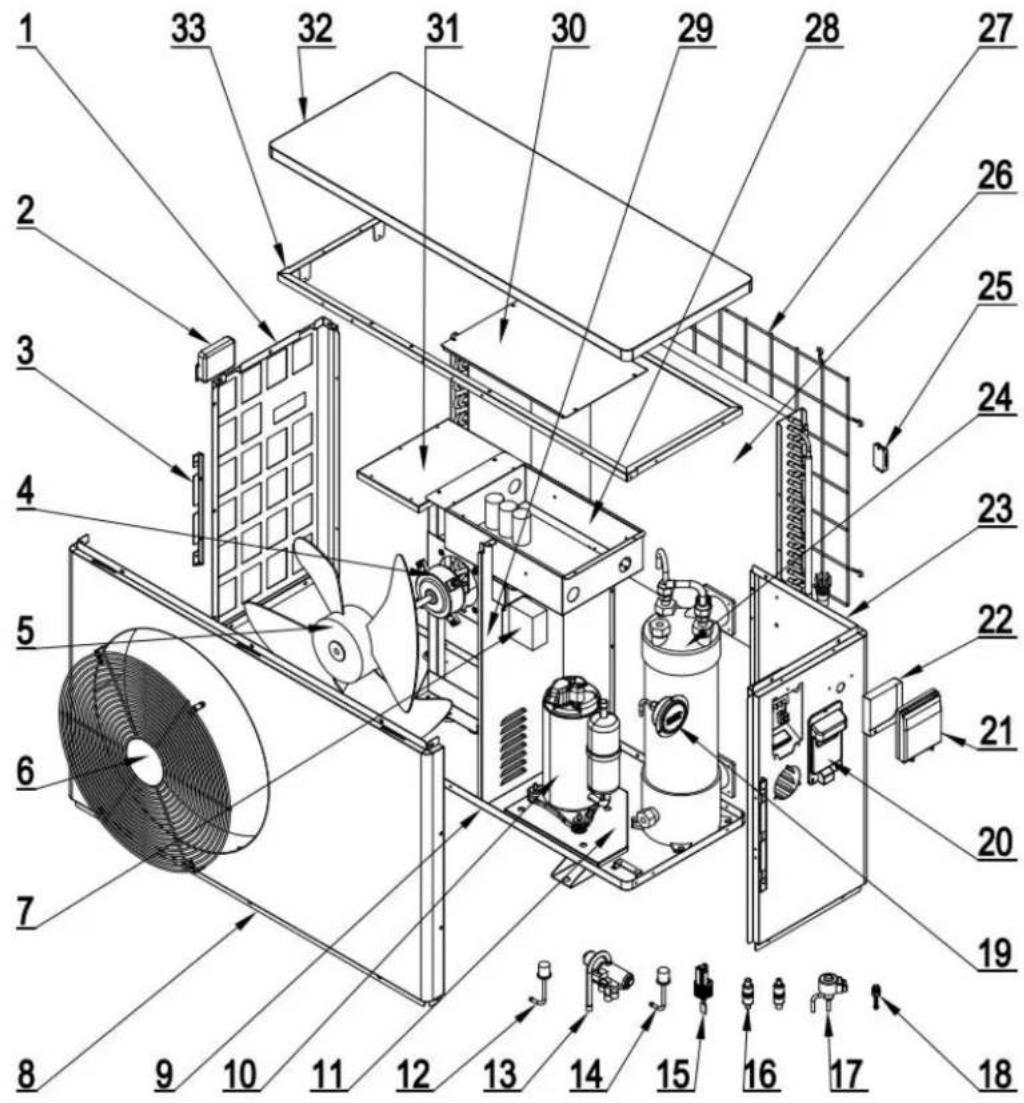

2.3.2.VBPYCE-150

① Sheet metal and other structures

Technical diagram of an air conditioning unit with numbered components and labeled parts

② Electrical System

28 35 34

38 37 36

1	Left Plate	14	Low Pressure Switch	27	Back Net
2	Left Handle	15	Water Flow Switch	28	Electrical Box Components
3	Side Fixing Plate	16	Filter	29	Median Septum
4	Motor	17	EEV	30	Electrical Box Cover
5	Fan Blade	18	Needle Valve	31	Motor Support
6	Fan Guard	19	Pressure Gauge	32	Roof Assembly
7	Reactor	20	Right Handle	33	Inner Frame Components
8	Front Plate	21	Wired Controller Box	34	2U Terminal
9	Chassis	22	Wired Controller	35	Main Board
10	Compressor	23	Right Plate	36	Cable Clip
11	Suspension Chassis	24	Titanium Heat Exchanger	37	2-Position Terminal Board
12	High Pressure Switch	25	Ambient Temp Sensor Holder	38	5-Position Terminal Board
13	4-Way Valve	26	Evaporator Component

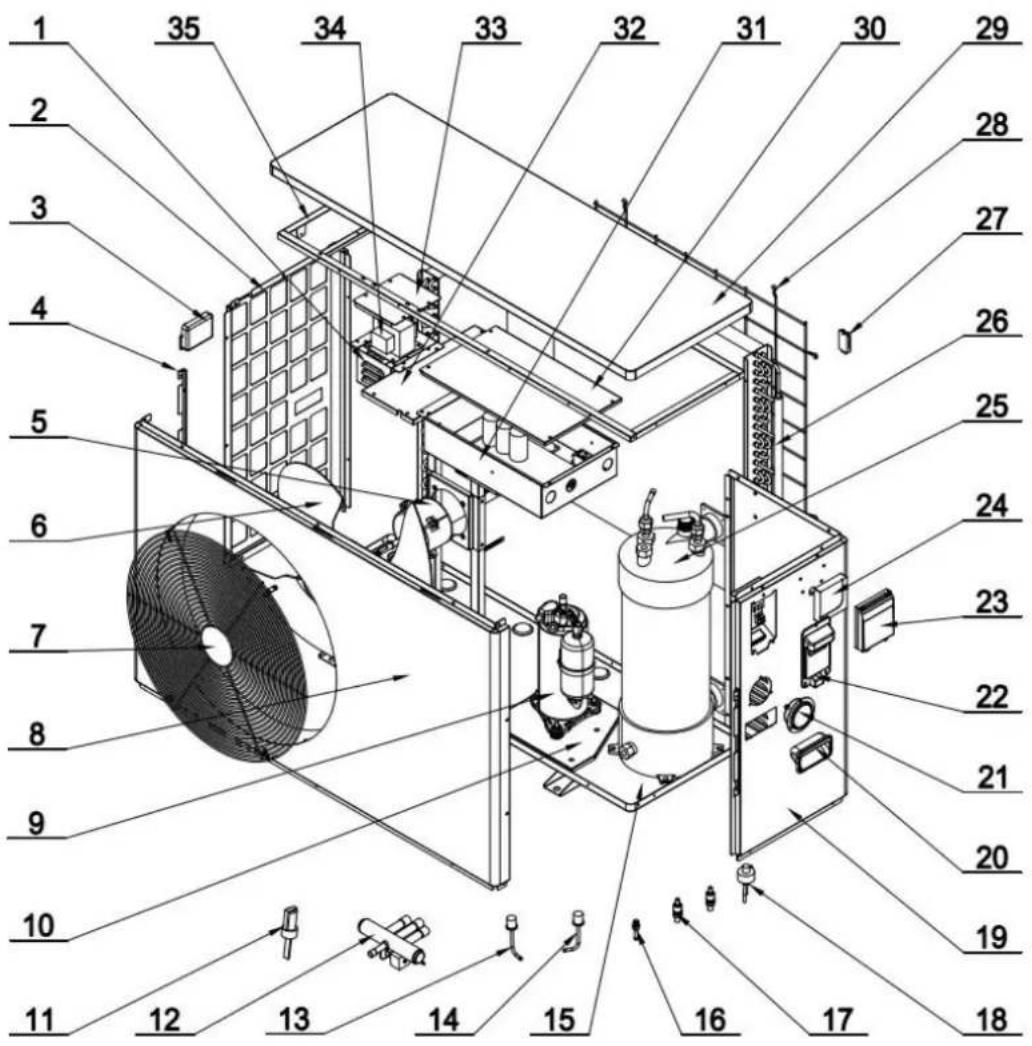

2.3.3.VBPYCE-210

① Sheet metal and other structures

Technical diagram of an air conditioning unit with numbered components and labeled parts

② Electrical System

31 36 37 38

39 40 41

1	Reactor Box	15	Chassis	29	Roof
2	Left Net	16	Needle Valve	30	Electrical Box Cover
3	Left Handle	17	Filter	31	Electrical Box Components
4	Side Fixing Plates	18	EEV	32	Motor Support
5	Motor	19	Right Plate	33	Reactor Box Cover
6	Fan Blades	20	Right Handle	34	Reactor
7	Fan Guard	21	Pressure Gauge	35	Inner Frame Components
8	Front Plate	22	Handle	36	Relay
9	Compressor	23	Wired Controller Box	37	2U Terminal
10	Suspension Chassis	24	Wired Controller	38	Main Control Board
11	Water Flow Switch	25	Titanium Heat Exchanger	39	5-Position Terminal Board
12	4-Way Valve	26	Evaporator	40	2-Position Terminal Board
13	High Pressure Switch	27	Ambient Temp Sensor Holder	41	Cable Clip
14	Low Pressure Switch	28	Fin Net

2.4. Operation Range

- Heating Mode

2.5.Parameter of the Unit

Model:NF-	70PR3-ID	110PR3-ID	150PR3-ID	210PR3-ID
Advised Pool Size (m3)	15~30	25~50	30~60	45~80
[Heating] Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.
Heating capacity(kW)	7.02	11.50	15.25	21.32
Power input (kW)	0.99	1.62	2.33	2.98
COP	7.09	7.11	6.55	7.15
[Heating] Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.
Heating capacity(kW)	5.62	8.02	11.22	15.46
Power input(kW)	1.13	1.59	2.33	3.09
COP	4.98	5.03	4.83	5.00
[Cooling ] Ambient Temperature: (DB/WB)°C/35 Water Inlet/Outlet Temperature: °C 28°C.
Cooling Capacity (kW)	3.91	6.25	8.54	11.58
Power Input (kW)	0.89	1.48	2.04	2.68
EER	4.39	4.22	4.19	4.32
Max Power Input (kW)	1.68	2.81	3.82	5.05
Max Current (A)	7.30	12.23	16.60	21.94
Power Supply	220V-240V~/50Hz
Heating Water Temp. Range(°C)	9-40
Cooling Water Temp. Range(°C)	8-28
Operating range(°C)	-10~43
Refrigerant	R32
Compressor Brand/Type	Mitsubishi
Manometer	Yes(Optional)
Gas Control	EEV
Water Heat Exchanger	Titanium Heat Exchanger
Water Pipe Connection	1-1/2"
Water Pressure Drop (kPa)	15	14	17	19
Water Proof Level	IPX4	IPX4	IPX4	IPX4
Water Flow (m3/h)	3.1	4.9	6.6	9.1
Noise [dB(A)] at 1m	40~52	43~53	44~54	45~56
Net Weight(kg)	44.5	48.5	55.5	76.0
Net Dimensions(L*W*H)mm	910×355×620		1000×400×660	1080×455×775

3.INSTALLATION AND CONNECTION

WARNING:The heat pump must be installed by a professional team. The users are

qualified to install by themselves, otherwise the heat pump might be damaged and risky for safety.

This section is provided for information purposes only and must be checked and adapted if according to the actual installation conditions.

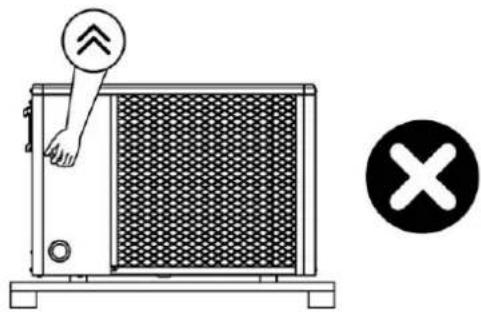

3.1. Transportation

1. When storing or moving the heat pump, the heat pump should be at the upright position

1. When moving the heat pump, do not lift the water union since the titanium heat exchange heat pump will be damaged.

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

3.2. Notice Before Installation

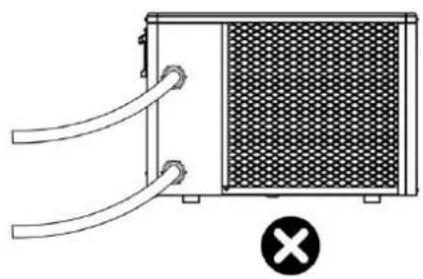

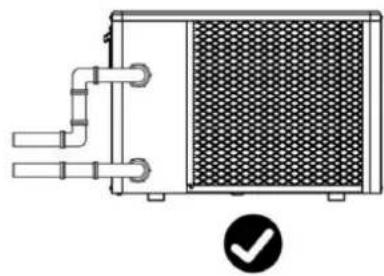

1. The inlet and outlet water unions can't bear the weight of soft pipes. The heat pump must be connected with hard pipes!

Diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked with a black X symbol (no text or labels)

Technical line drawing of a heat exchanger or cooling unit with pipes and a mesh chamber, plus a checkmark icon (no text or symbols)

1. In order to guarantee the heating efficiency, the water pipe length should be ≤10m between pool and the heat pump.

3.

3.3.Installation Instruction

3.3.1 Pre-requirements

Equipment necessary for the installation of your heat pump:

①Power supply cable suitable for the unit's power requirements.

②A By-Pass kit and an assembly of PVC tubing suitable for your installation as well as stripper, PVC adhesive and sandpaper.

③A set of wall plugs and expansion screws suitable to attach the unit to your support.

④We recommend that you connect the unit to your installation by means of flexible PVC pipes in order to reduce the transmission of vibrations.

⑤Suitable fastening studs may be used to raise the unit.

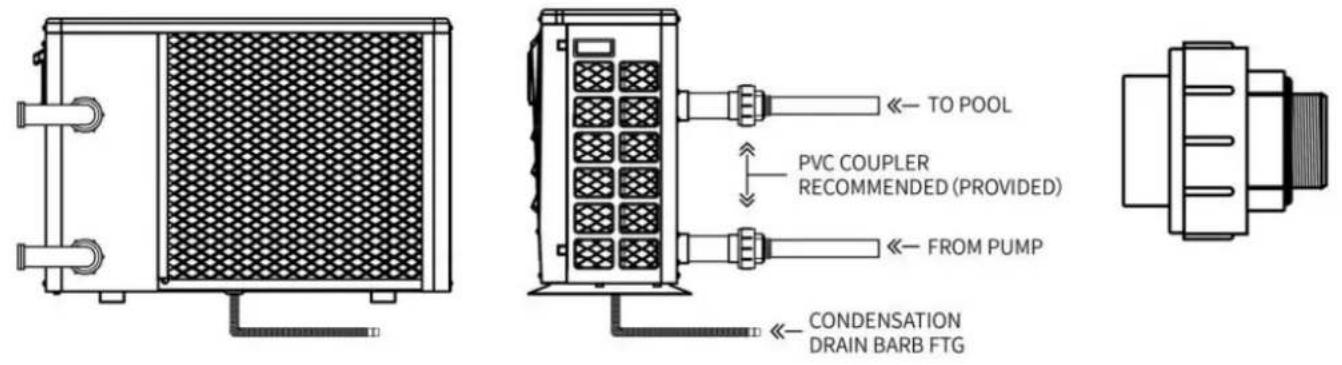

3.3.2 Heat Pump Installation

①The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid; the bracket must be strong enough and anti-rust treated;

②The heat pump needs a water pump (Supplied by the user). The recommended pump specification-flux: refer to Technical Parameter, Max. lift ≥10m;

③When the heat pump is running, there will be condensation water discharged from the bottle please pay attention to it. Please insert the drainage tube(accessory) into the hole and clip connect a pipe to drain off the condensation water.Install the heat pump, raising it at least solid water-resistant pads, then connect the drainage pipe to the opening located under the

3.3.3 Location and Space

Please comply with the following rules concerning the choice of heat pump location.

①The unit's future location must be easily accessible for convenient operation and maintenance
②It must be installed on the ground, fixed ideally on a level concrete floor. Ensure that the floor is sufficiently stable and can support the weight of the unit.
③A water drainage device must be provided close to the unit in order to protect the area where it is installed.
④If necessary, the unit may be raised by using suitable mounting pads designed to support its weight.
⑤Check that the unit is properly ventilated, that the air outlet is not facing the windows of neighbouring buildings and that the exhaust air cannot return. In addition, provide sufficient sp around the unit for servicing and maintenance operations.
⑥The unit must not be installed in an area exposed to oil, flammable gases, corrosive prod sulphur compounds or close to high frequency equipment.
⑦To prevent mud splashes, do not install the unit near a road or track.
⑧To avoid causing nuisance to neighbors, make sure the unit is installed so that it is positioned towards the area that is least sensitive to noise.
⑨Keep the unit as much as possible out of the reach of children.

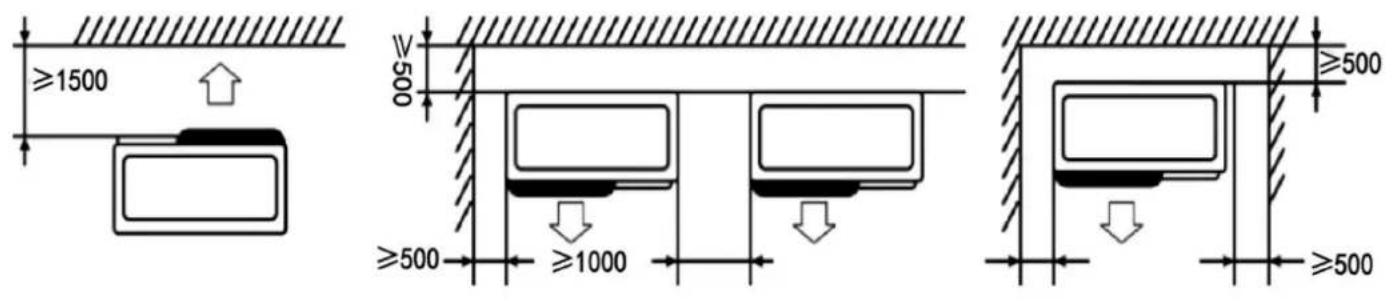

⑩Installation space:

Unit: mm

Do not put anything less than one meter in front of the heat pump.

Leave 500 mm of empty space on the sides and back of the heat pump and free ventilation. Do not leave any obstacles above or in front of the device!

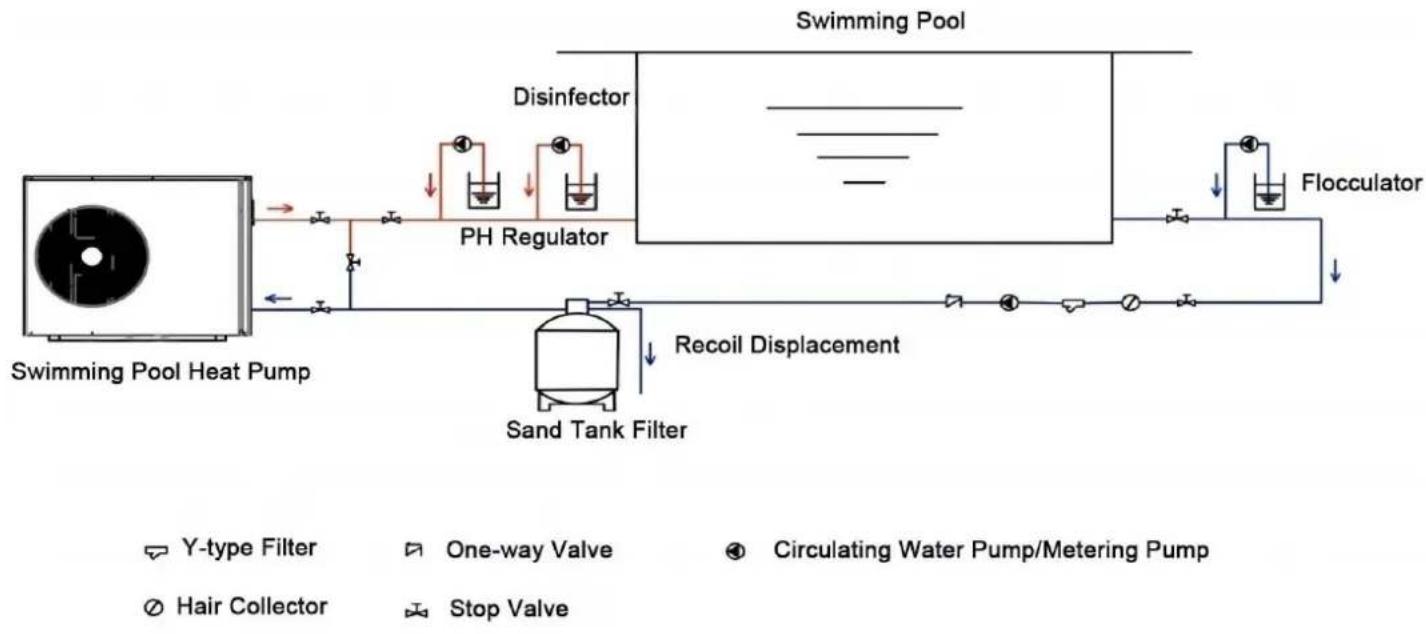

3.3.4 Installation Layout

Notice: The filter must be cleaned regularly to ensure that water in the system is clean and blocking of filter. It is necessary that drainage valve is fixed on the lower water pipe. If the running during winter months, please disconnect power supply and let out drain water from

through drainage valve. If ambient temperature of running unit is below 0^ C, please keep water pump running.

The installation diagram is shown in the following figure:

No.	Item	Quantity	No.	Item	Quantity
1	Swimming Pump Heat Pump	1	7	PH Regulator	1
2	Y-Type Filter	1	8	Sand Tank Filter	1
3	One-Way Valve	1	9	Flocculator	1
4	Circulating Water Pump	1	10	Disinfector	1
5	Hair Collector	1	11	Metering Pump	3
6	Stop Valve	7

3.3.5 Electrical Installation

To function safely and maintain the integrity of your electrical system, the unit must be conr general electricity supply in accordance with the following regulations:

①Upstream, the general electricity supply must be protected by a 30mA differential switch.
②The heat pump must be connected to a suitable D-curve circuit breaker in accordance with current standards and regulations in the country where the system is installed.
③The electricity supply cable must be adapted to match the unit's rated power and the length of wiring required by the installation. The cable must be suitable for outdoor use.
④For a three-phase system, it is essential to connect the phases in the correct sequence. If phases are inverted, the heat pump's compressor will not work.
⑤In places open to the public, it is mandatory to install an emergency stop button close to the heat pump.

Model	Power Supply Wires
	Electricity Supply	Cable Diameter	Specification
VBPYCE-70	220-240V~50Hz/60Hz	3G 1.5mm ^2	14AWG
VBPYCE-110	220-240V~50Hz/60Hz	3G 1.5mm ^2	14AWG
VBPYCE-150	220-240V~50Hz/60Hz	3G 2.5mm ^2	12AWG
VBPYCE-210	220-240V~50Hz/60Hz	3G 2.5mm ^2	12AWG

3.3.6 Electrical Connection

WARNING: Power supply of ice bath chiller must be disconnected before any operation. Please comply with the following instructions to connect the ice bath chiller.

Step 1: Prepare a socket

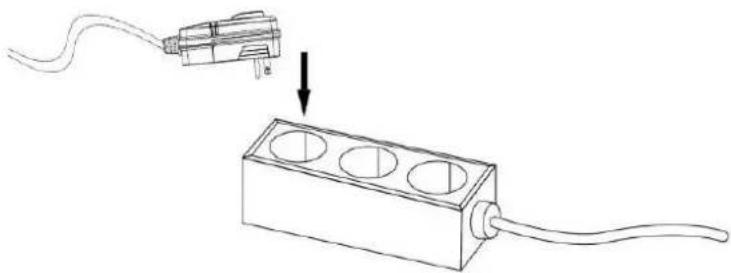

Step 2: Insert the plug into the socket as the following picture shows

Ensure that all electrical equipment is properly grounded.

Diagram showing a plug inserted into a rectangular block with three circular holes, connected to a cable (no text or symbols present)

Plug Power Supply
220-240V\~/50Hz

3.4.Trial After Installation

WARNING: Please check all the wiring carefully before turning on the heat pump.

3.4.1. Inspection Before Trial Running

Before running test, confirm below items and write √ in block;

□	Correct unit installation
□	Power supply voltage is the same as unit rated voltage
□	Correct piping and wiring
□	Air inlet & outlet port of unit is unblocked
□	Drainage and venting is unblocked and no water leaking
□	Leakage protector is working
□	Piping insulation is working
□	Ground wire is connected correctly

Step 1: Running test can begin after completing all installation;

Step 2: All wiring and piping should be connected well and carefully checked, then fill water before power is switched on;

Step 3: Emptying all air within pipes and water tank, press "on-off" button on control panel to

unit at setting temperature;

Step 4: Items need to be checked during running test:

①During the first running, unit current is normal or not;
②Each function button on control panel is normal or not;
③Display screen is normal or not;
④Are there any leakage in the whole heating circulation system;
⑤Condensate drain is normal or not;
⑥Are there any abnormal sound or vibration during running?

4. Controller Operation Guidance

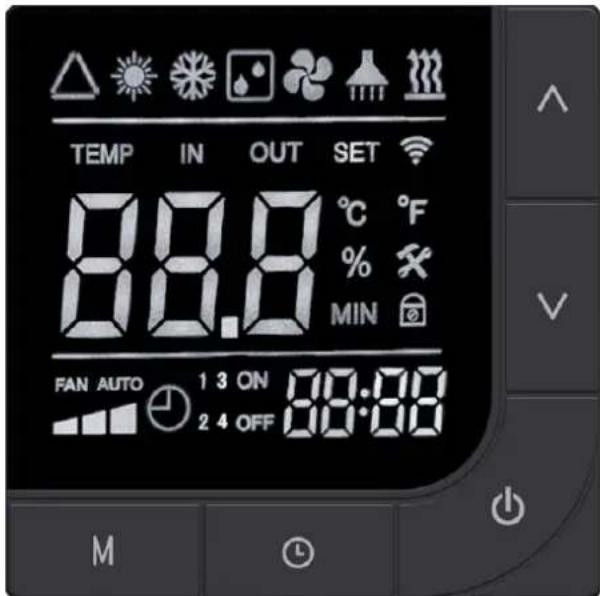

4.1.Display

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Basic Icons

Icon	Meaning	Icon	Meaning
	Automatic Mode		Blower Icon
	Heating Mode		Fault Icon
	Refrigeration Mode		Lock Key Indicator
	Defrost Symbol		Electric Heating Symbol
	Silent Mode		powerful Mode
	Intelligent Mode		WiFi Icon

4.2.Key Instructions

	Power	Short press: toggle power on/off status, exit the current interface, return main interface
		Press and hold for 3 seconds: lock/unlock the button
	Up	Short press: Enter the set temperature state in the power-on state and the current value
		Press and hold for 3 seconds: manually turn on/off the electric heating
	Down	Short press: Enter the temperature setting state when the device is tu and decrease the current value
		Press and hold for 3 seconds: Enter the crew parameter status q
	Mode	Short press: Press the mode key when the device is turned on to sw automatic/cooling/heating modes
		Press and hold for 3 seconds: Switch frequency mode, mute/intelligent/ mode
	Alarm	Short press: Enter clock settings
		Press and hold for 3 seconds: Enter the scheduled on/off setting in

4.3. Combination Key Instruction

Button operation	Operation duration	Function Description
	3 seconds	Enter forced defrost under the main interface
	3 seconds	Switch between Fahrenheit and Celsius under the r interface
	5 seconds	Enter password input state
	3 seconds	Restore factory settings
	3 seconds	Enter default network configuration
	3 seconds	Enter compatible network configuration

4.4.Operation Function Instruction

NO.	Item	Operation Way
1	Key Lock	Long press the " key on the main interface for 3 second lock/unlock the button.
2	On/Off	In unlock state, tap on the main interface" " to switch between status; in shutdown state, display water temperature, unit, and o startup state, display water temperature, unit, clock, operating mo frequency mode
3	Temperature Setting	Press the " or " button while the device is powered enter the temperature setting interface. The displayed set tempe will blink. Modify the current set temperature by pressing the " " button. If no operation is made within 30 seconds for the button is briefly pressed, the current set temperature will be sa exited.
4	Mode Switch	While powered on, press the " " key to switch the operating automatic → cooling → heating.
5	Frequency Mode Switch	While powered on, press and hold the " " key for 3 seconds the operating frequency mode, mute → intelligent → strong n
6	Clock Setting	Press the " button to enter the clock setting state. The position blinks first, indicating that the current hour value can be using the " and " keys. Pressing the " key once increas the hour by 1, and pressing the " " key once decreases the you hold down the " " key or the " " key for a long time, th automatically increase or decrease. After setting the hour value, the " key again; at this point, the minute position blinks, inc that the current minute value can be adjusted using the " "" " After setting the minute value, press the " " key again to e
7	Timer On/Off Setting	Press and hold the " " key for 3 seconds to enter the timer Enter the timer selection, at this time, the "timer on 1" clock "I and you can set the hour by using the " " and " " keys; pr "key again to switch to the clock "minute", and you can minute by using the " " and " " keys; press the " " key aga switch to the "timer off 1" setting: the clock "hour" blinks, and the hour by using the " " and " " keys; press the " " key ag switch to the clock "minute", and you can set the minute by "and "keys; set other time periods in the same way, a time periods for timer settings;Press to exit or confirm.Return to the main interface, the current set timing period w displayed;Cancel the timing setting:Under the scheduled startup setting, pr the key can cancel/enable the scheduled startup function
8	Forced Defrost	Long press the " key and " " key for 3 seconds while in startup mode to enter the forced defrost mode. When entering the defrost icon will flash and display " ".
9	Switch Temperature Units	When the device is turned off, long press the " " and " " o main interface for 3 seconds to switch between Celsius and Fa
10	Status Query	Under the main interface, press and hold the " " key for 3 se enter the crew status parameter query. Use the " " and " " k browse parameters, and press the " " key to exit parameter qu the status query interface, if there is no key operation for cons seconds, the status query interface will automatically exit and re the main interface.
11	Restore Factory Parameters	While in shutdown state, press and hold the " " key + " " "key + key for 3 seconds to restore the factory settings line control. At this time, the buzzer will sound twice continuous parameter values will revert to the default settings.

4.5.Trouble Shooting

Fault code and solution

When a fault occurs, the main interface flashes the corresponding fault code, and when null codes appear, they flash alternately.

Error Code	Error Description	Remark
E03	Water flow protection
E04	Winter anti-freezing
E05	High pressure fault
E06	Low pressure fault
E09	Communication fault between main board and display
E10	Communication failure of the variable frequency module (Alarm the communication between the outer board and the driver b disconnected)
E12	High exhaust temperature protection
E15	Water Inlet Temperature fault
E16	External pipe temperature fault
E18	Exhaust Temperature fault
E19	Direct current fan failure
E20	Variable frequency module abnormal protection
E21	Environmental temperature failure
E22	DC fan 2 failure
E23	Low refrigerant outlet temperature protection
E27	Leakage temperature fault
E28	CT Overcurrent Protection
E29	Return Air Temperature Fault
E32	Overheat protection of heating water outflow temperature/Protec against excessive difference in Inlet and outlet water tempera
E33	Outdoor coil high temperature protection
E42	Internal tube temperature failure

E20 fault will simultaneously display the following fault numbers, switching fault codes every 3 seconds; fault numbers 1 to 128 are displayed first.

When fault numbers 1 to 128 do not occur, fault numbers 257 to 384 will be displayed. If faults of equal priority occur simultaneously, the fault numbers will be added together. For e> fault numbers 16 and 32 occur simultaneously, 48 will be displayed.

Code	Name	Description	Processing Opinion
1	IPM overcurrent	IPM module issue	Replace the variable frequenc module
2	Press machine synchronization anomaly	Press machine failure	Replace Press Machine
4	Reserved	--	--
8	Press machine phase failure	Press machine wiring broken, poor contact	Check the press input line
16	Low DC bus voltage	Low input voltage, PFC modu failure	Check input voltage, replace module
32	DC bus voltage hi	Input voltage too high, PFC module failure	Replace the variable frequenc module
64	Excessive heat sin temperature	Host fan failure, air duct block	Check the fan, air duct
128	Heat sink temperature fault	Blower fan sensor short circuit open circuit fault	Replace the variable frequenc module
257	Communication failure	The frequency conversion modu has not received the comman from the main controller	Check the communication connections of the main cont and variable frequency module
258	AC input phase missing	Input phase missing (valid fo three-phase module)	Check input line
260	AC input overcurrent	Input three-phase imbalance (valid for three-phase module)	Check the input three-phase phase voltage
264	Low AC input voltage	Input voltage too low	Check input voltage
272	High-pressure failure	High-pressure failure (reserved)
288	Overheating IPM temperature	Host fan failure, air duct block	Check the fan, air duct
320	Excessive peak current of press machine	The current of the compressor too high, the driver and the p are not matched	Replace the inverter module
384	Overtemperature of PFC module	Overheating of PFC module	Check the PFC module

5.MAINTENANCE AND WINTERZING

5.1.Maintenance

WARNING:Before undertaking maintenance work on the unit, ensure that you have

disconnected the electrical power supply.

Cleaning

a. The heat pump's casing must be cleaned with a damp cloth. The use of detergents or of

household products could damage the surface of the casing and affect its properties.

b. The evaporator at the rear of the heat pump must be carefully cleaned with a vacuum cl soft brush attachment.

Annual maintenance

The following operations must be undertaken by a qualified person at least once a year.

a. Carry out safety checks.

b. Check the integrity of the electrical wiring.

c. Check the earthing connections.

d.Monitor the state of the pressure gauge and the presence of refrigerant.

5.2.Disassembly Guidelines

Tools:

①Phillips screwdriver

②Wrench

③Flat-blade screwdriver

5.2.1 VBPYCE-70, VBPYCE-110

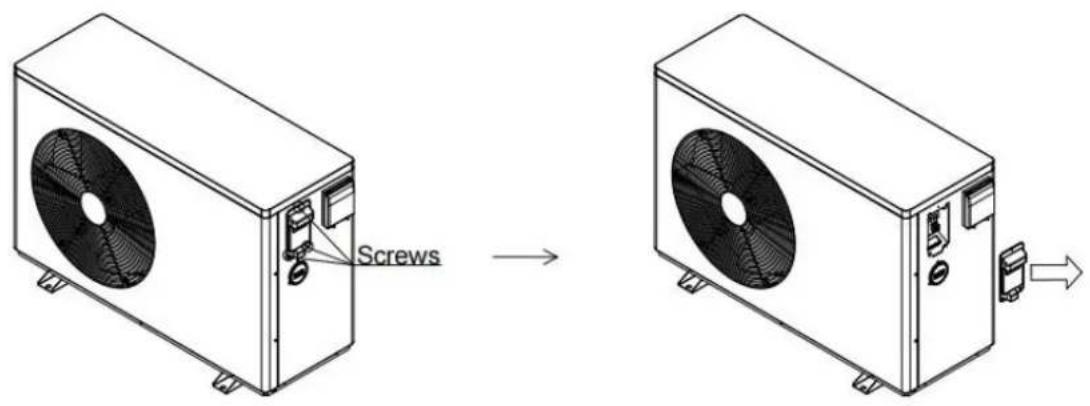

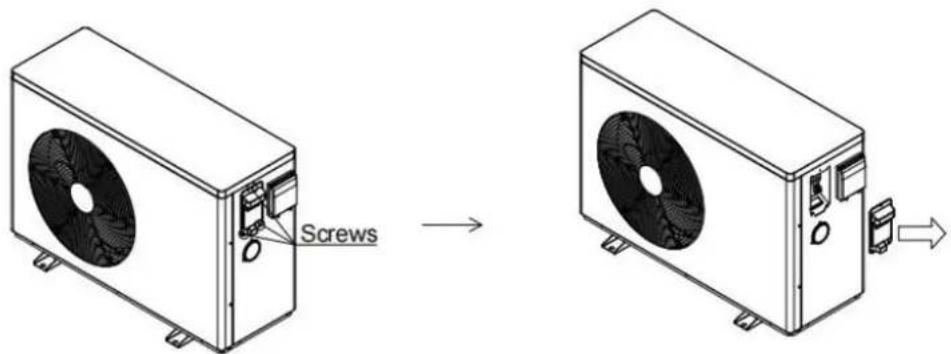

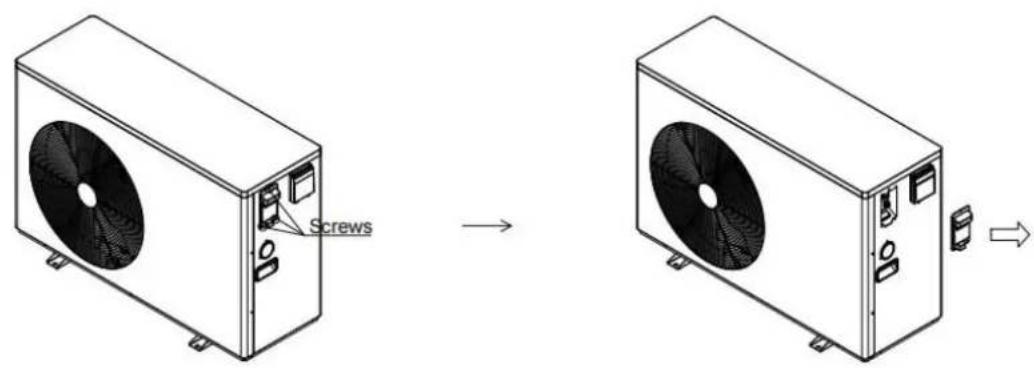

Step 1: Remove the terminal box cover

①Remove the screws on the terminal box cover

②Take out the junction box cover towards the arrow

Screws

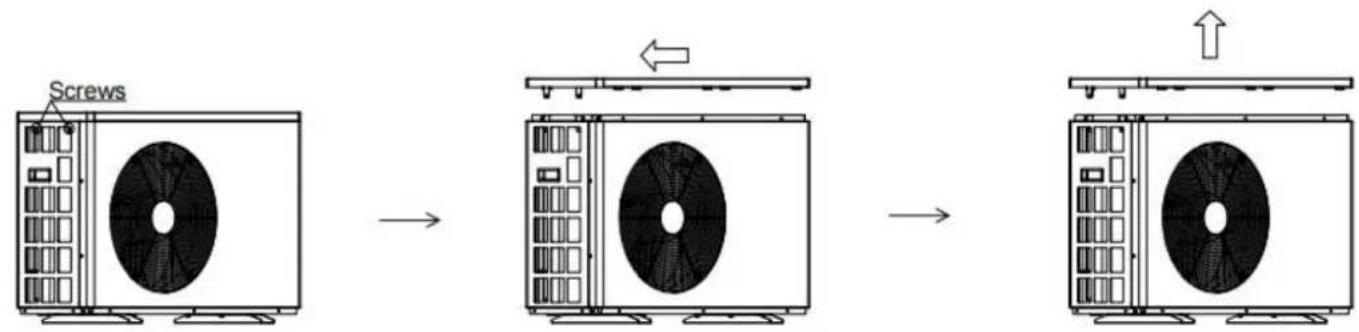

Step 2: Remove the top cover

①Remove the top cover screw
②Push the top cover in the direction of the arrow
③Take out the top cover towards the arrow

Screws

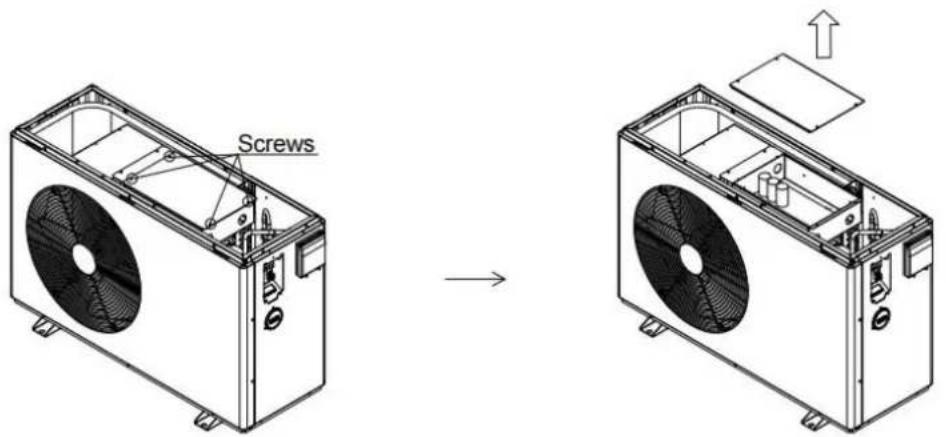

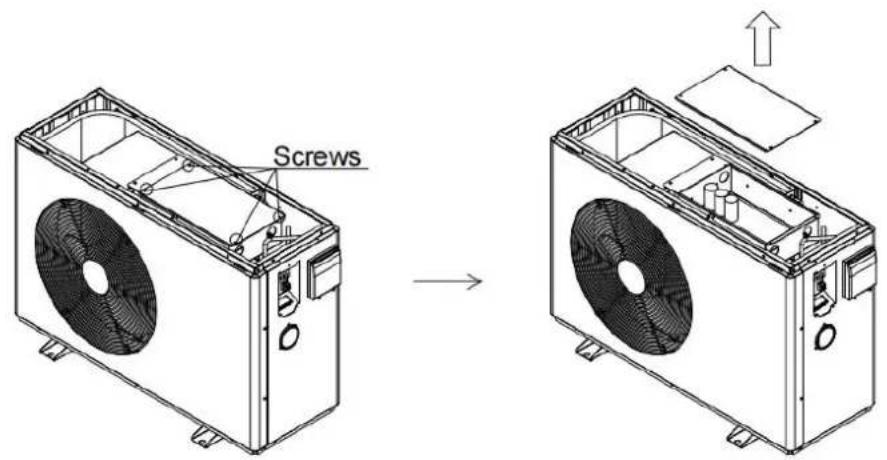

Step 3: Remove the electrical box cover

①Remove the screws on the electrical box cover
②Take out the electrical box cover in the direction of the arrow

Screws

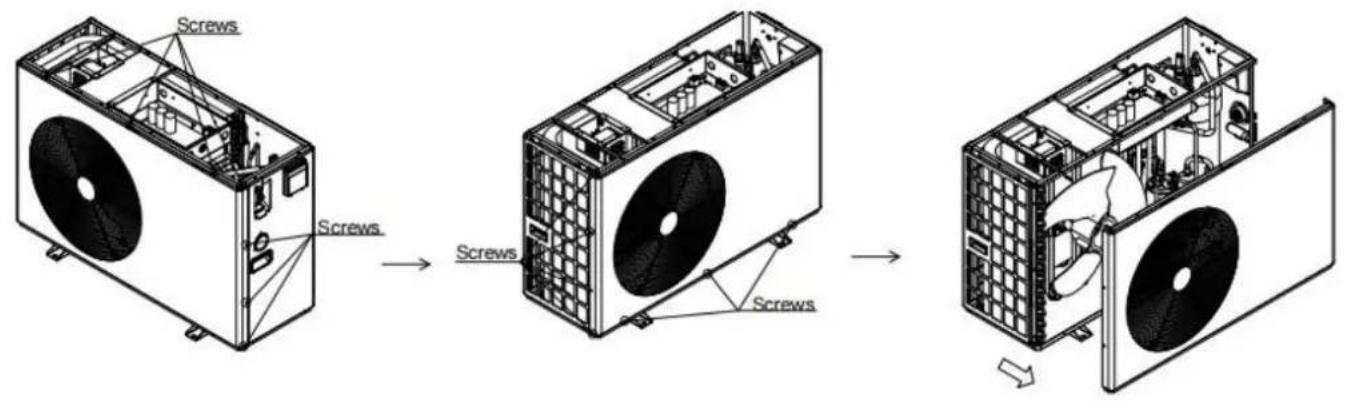

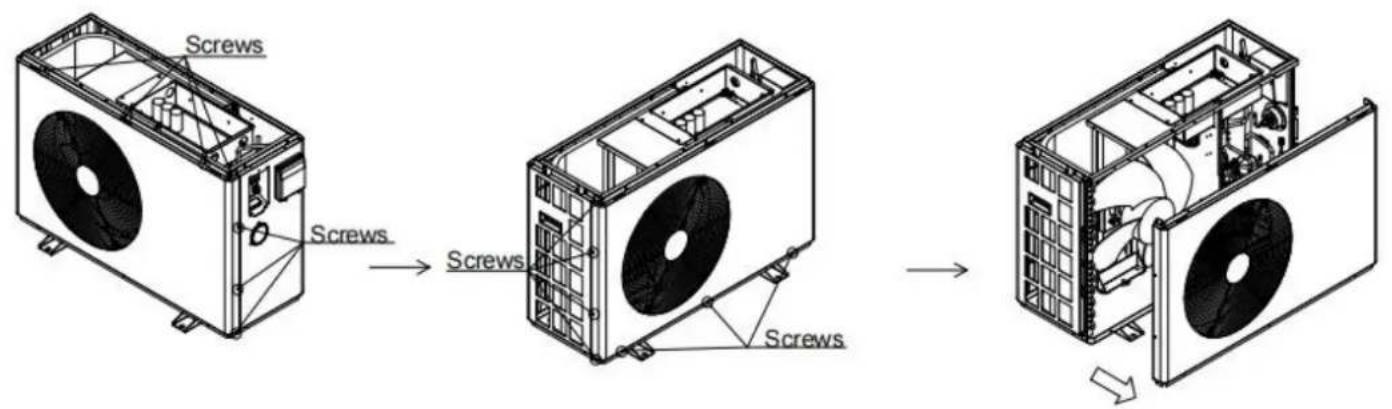

Step 4: Remove the front panel

①Remove the screws from the front panel
②Take out the front panel in the direction of the arrow

Screws Screws Screws Screws

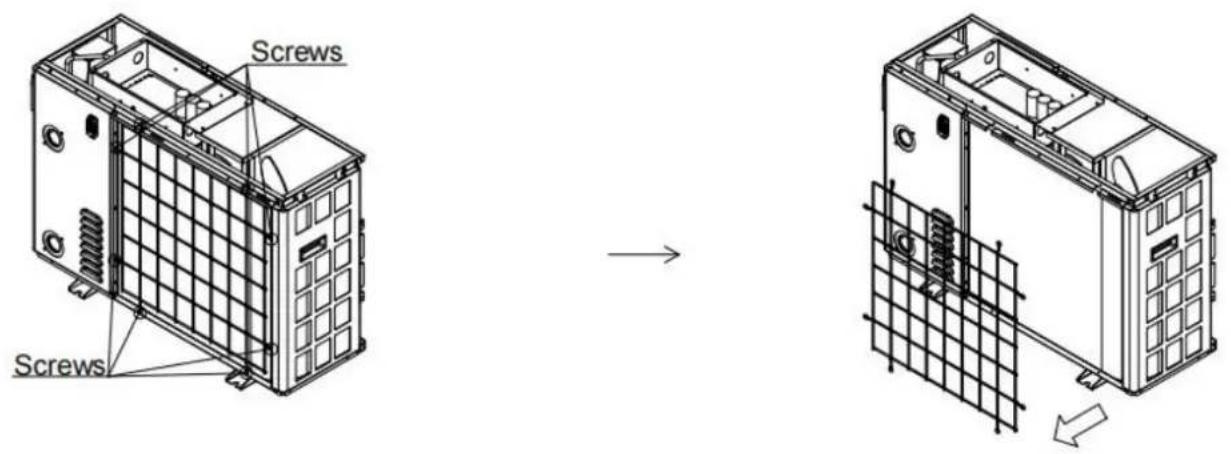

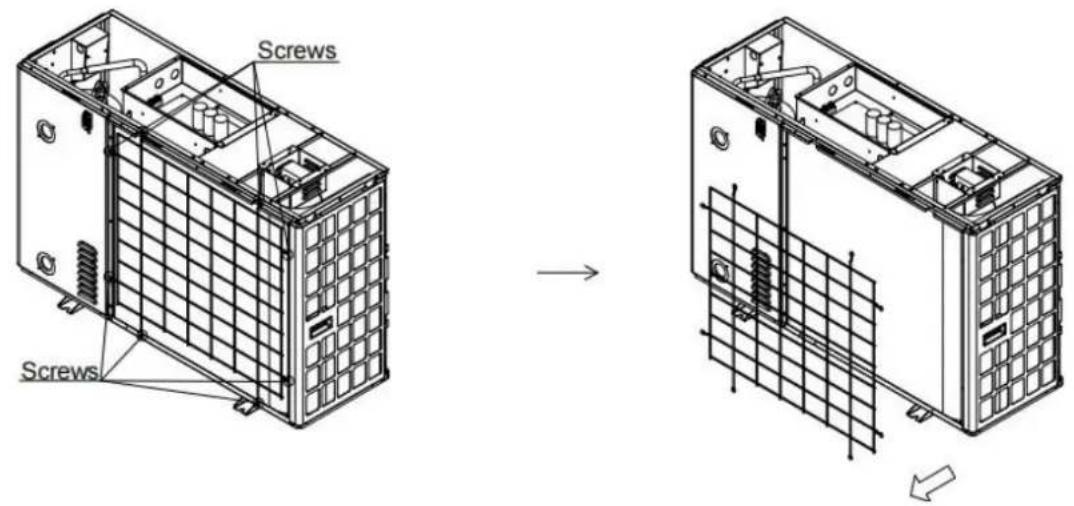

Step 5: Remove the rear cover

①Remove the screws holding the rear cover in place
②Pull the rear cover out of the way, following the arrow direction

Screws Screws

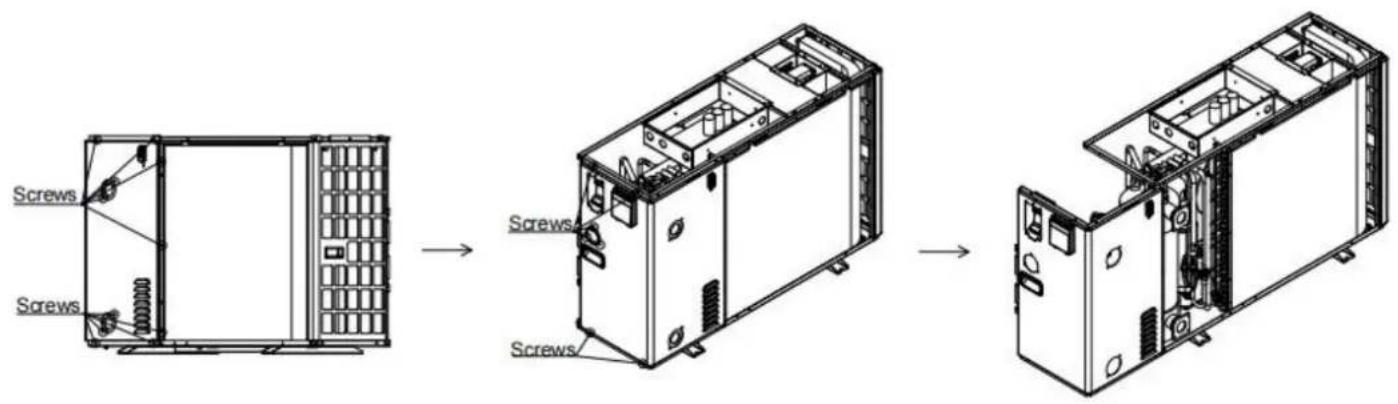

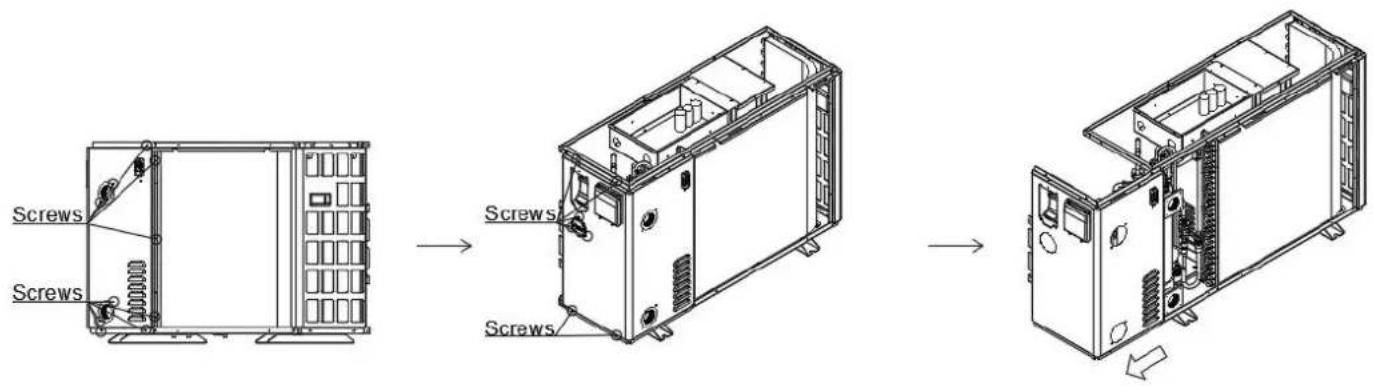

Step 6: Remove the right panel

①Remove the screw on the nozzle joint
②Remove the screws from the pressure gauge and right panel
③Take out the right board in the direction of the arrow

Screws Screws Screws Screws Screws Screws

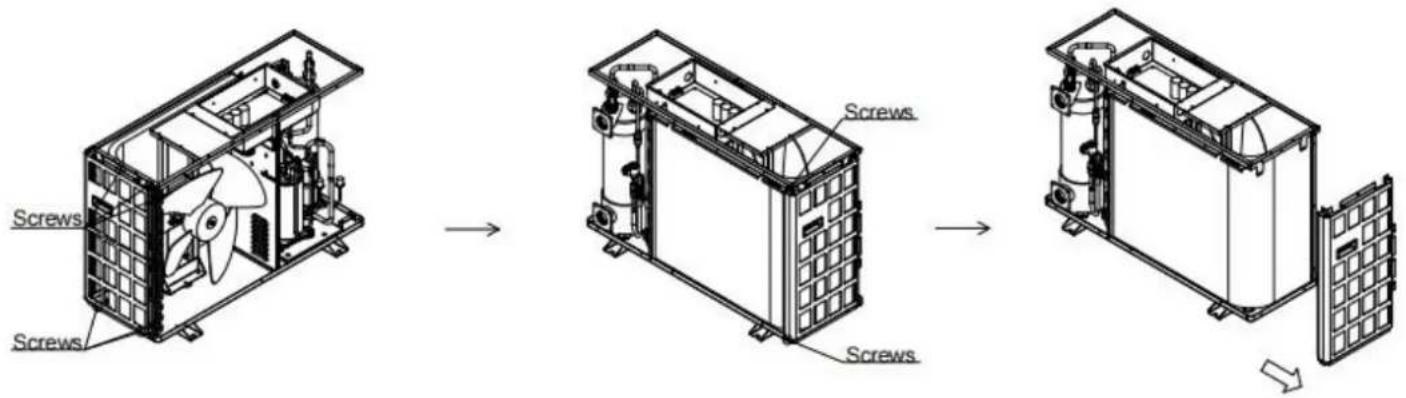

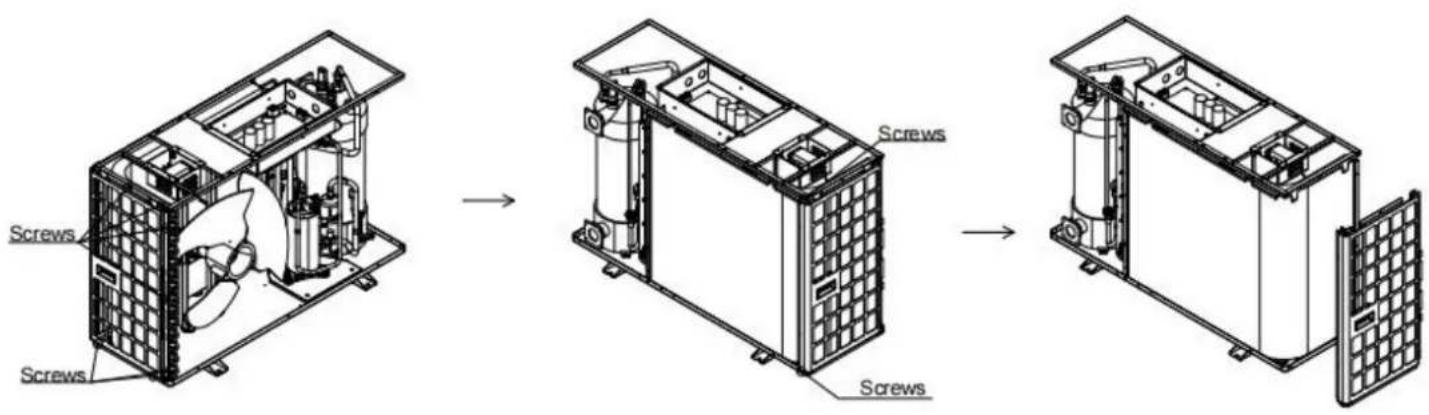

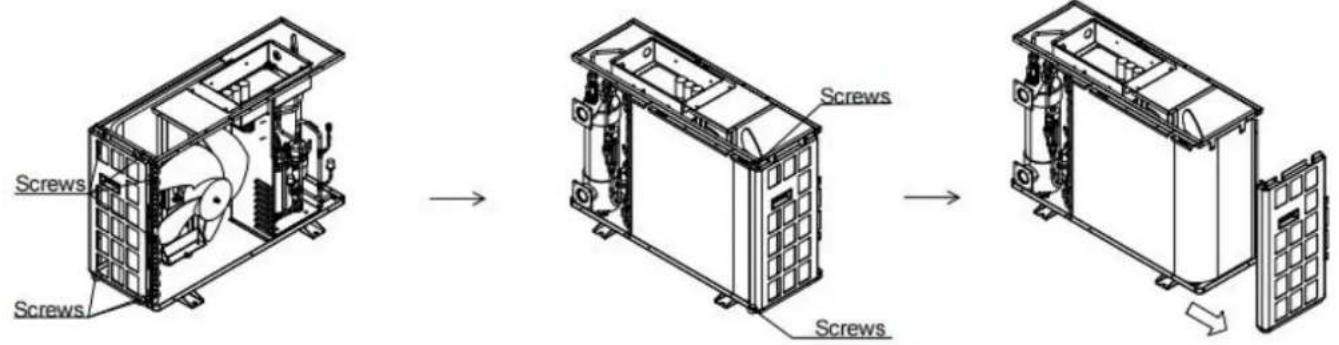

Step 7: Remove the left panel

①Remove the screws from the left panel
②Take out the left panel in the direction of the arrow

Screws Screws Screws Screws

5.2.2 VBPYCE-150

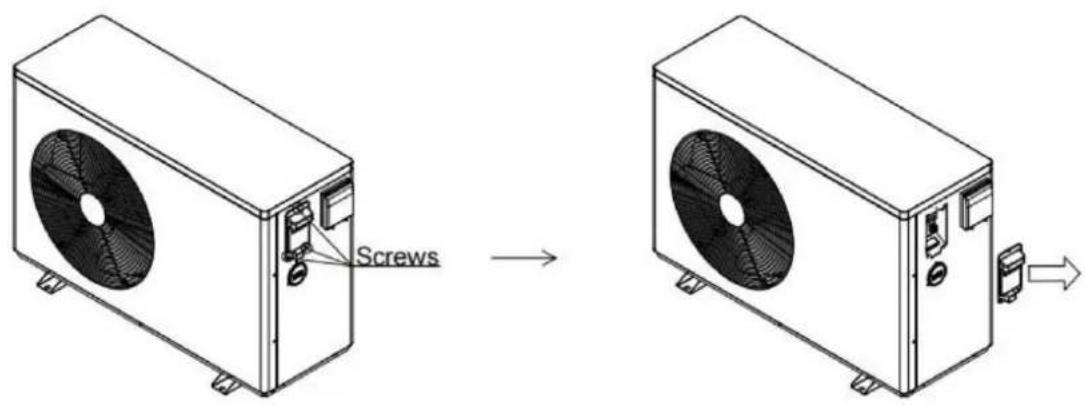

Step 1: Remove the terminal box cover

①Remove the screws on the terminal box cover
②Take out the junction box cover towards the arrow

Screws

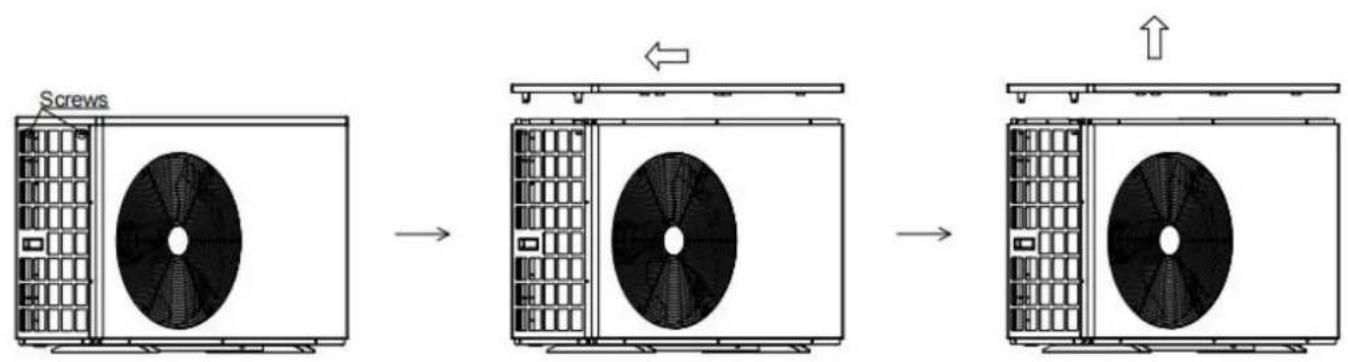

Step 2: Remove the top cover

①Remove the top cover screw
②Push the top cover in the direction of the arrow
③Take out the top cover towards the arrow

Screws

Step 3: Remove the electrical box cover

①Remove the screws on the electrical box cover
②Take out the electrical box cover in the direction of the arrow

Screws

Step 4: Remove the front panel

①Remove the screws from the front panel
②Take out the front panel in the direction of the arrow

Screws Screws Screws Screws

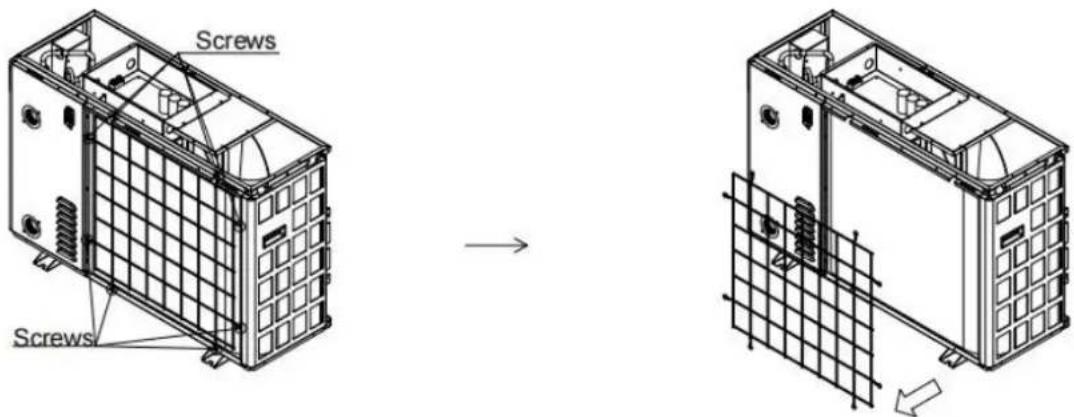

Step 5: Remove the rear cover

①Remove the screws holding the rear cover in place
②Pull the rear cover out of the way, following the arrow direction

Screws Screws

Step 6: Remove the right panel

①Remove the screw on the nozzle joint
②Remove the screws from the pressure gauge and right panel
③Take out the right board in the direction of the arrow

Screws Screws Screws Screws

Step 7: Remove the left panel

①Remove the screws from the left panel
②Take out the left panel in the direction of the arrow

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

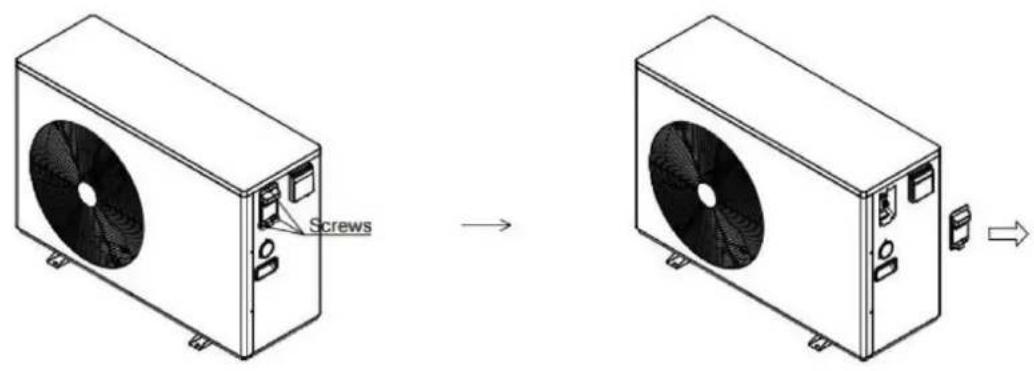

Step 1: Remove the terminal box cover

①Remove the screws on the terminal box cover
②Take out the junction box cover towards the arrow

Screws

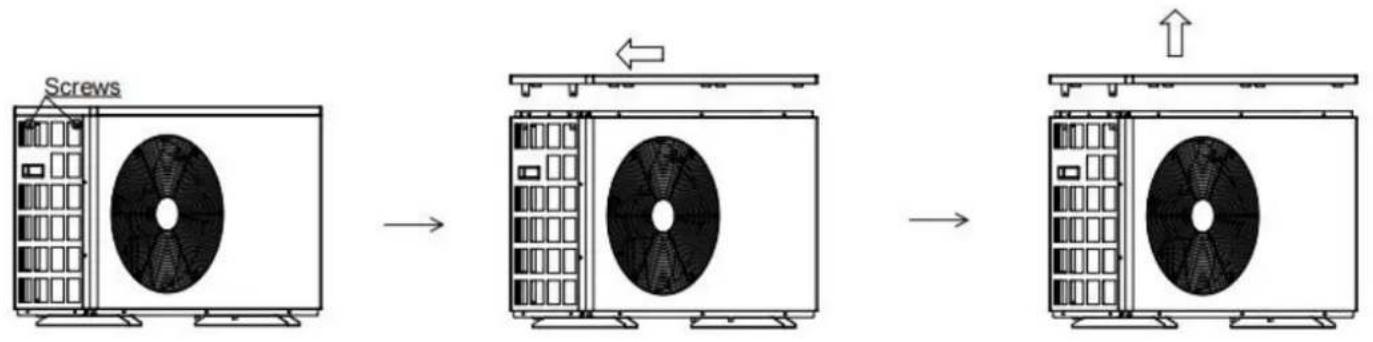

Step 2: Remove the top cover

①Remove the top cover screw
②Push the top cover in the direction of the arrow
③Take out the top cover towards the arrow

Screws → ← → ↑

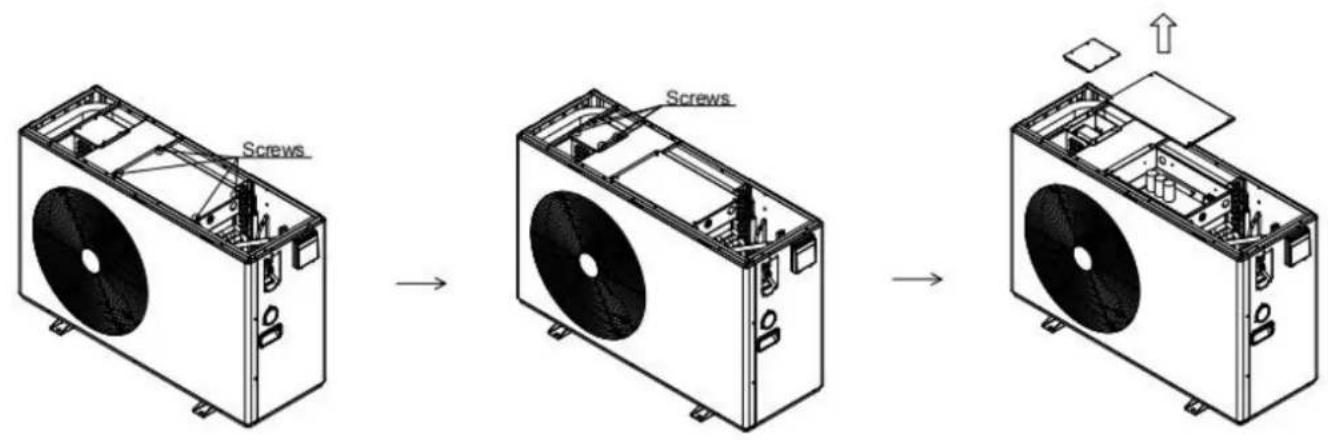

Step 3: Remove the electrical box cover

①Remove the screws on the electrical box cover
②Remove the screws on the cover of the reactor box
③Take out the electrical box cover in the direction of the arrow

Screws Screws

Step 4: Remove the front panel

①Remove the screws from the front panel
②Take out the front panel in the direction of the arrow

Screws Screws Screws Screws

Step 5: Remove the rear cover

①Remove the screws holding the rear cover in place
②Pull the rear cover out of the way, following the arrow direction

Screws Screws

Step 6: Remove the right panel

①Remove the screw on the nozzle joint
②Remove the screws from the pressure gauge and right panel
③Take out the right board in the direction of the arrow

Screws Screws Screws Screws

Step 7: Remove the left panel

①Remove the screws from the left panel
②Take out the left panel in the direction of the arrow

Screws Screws Screws Screws

5.3 Winterizing

"CUT OFF" power supply of the heater before cleaning, examination and repairing

In winter season when you don't swim:

a. Cut off power supply to prevent any machine damage.
b. Drain water clear of the machine.

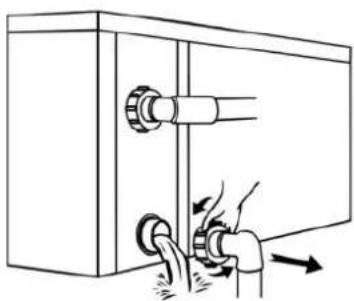

Diagram of a mechanical valve assembly with two ports and directional arrows indicating flow or movement (no text or symbols)

!! Important:

Unscrew the water nozzle of inlet pipe to let the water flow out. When the water in machir winter season, the titanium heat exchanger may be damaged.

c. Cover the machine body when not in use.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

R32 NEW REFRIGERANT GAS

BESOIN D'AIDE? CONTACTEZ-NOUS!

Machine Translated by Google

Machine Translated by Google

équipement.

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh panel and open box, alongside five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150 95	671 370 1002	314 654	320 391	380	103 720	423 1192	358	775 407	447
VBPYCE-210	470 108 126

Technical diagram of an industrial fan assembly with numbered components for identification

Système électrique

31 35 34

38 37 36

Machine Translated by Google

Technical diagram of an industrial fan assembly with numbered components for identification

Système électrique

28 35 34

38 37 36

Technical diagram of an air conditioning unit with numbered components for identification

Système électrique

31 36 37 38

39 40 41

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled tubing and a grid-patterned chamber, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

④ Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

Line drawing of a plug inserted into a rectangular socket with three circular holes, showing a downward arrow (no text or symbols)

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.3 Hivernage

Diagram of a hand pressing down on a wall-mounted pipe fitting into a cabinet (no text or symbols)

!! Important:

www.vevor.com/support

Pool-Wärmepumpe

Modell: VBPYCE-70/VBPYCE-110/VBPYCE-150/VBPYCE-210

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

Machine Translated by Google

Ausrüstung.

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh panel and open box, alongside five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150 95	671 3	70	1002	314	65	4	320	3	91	380	103	720	423	11	92	358	775	407	447
VBPYCE-210	470	1	08	126

Technical diagram of an industrial fan assembly with numbered components for identification

Machine Translated by Google

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical diagram of an air conditioning unit with numbered components for identification

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram of a heat exchanger with directional arrow and checkmark symbols (no text or labels)

Diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

④ Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

Line drawing of a plug-in socket connected to a rectangular block with three circular holes (no text or symbols)

Steckernetzteil

220-240V\~/50Hz

Machine Translated by Google

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.3 Überwinterung

Diagram of a hand pressing down on a wall-mounted pipe fitting into a cabinet (no text or symbols)

!! Wichtig:

www.vevor.com/support

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh pattern, a box open, and five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150	671	370	1002	314	654	320	391	380	103	720	423	1192	358	775	4957
VBPYCE-210	447	470	108	126

Technical diagram of an industrial fan assembly with numbered components for identification

Machine Translated by Google

Exploded view diagram of an industrial fan assembly with numbered components for identification

Technical diagram of an air conditioning unit with numbered components for identification

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled tubing and a grid-patterned chamber, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

④ Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

Line drawing of a plug-in socket connected to a rectangular block with three circular holes (no text or symbols)

Machine Translated by Google

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Icone di base

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws → ← → ↑

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.3 Svernamento

Diagram of a hand pressing down on a pipe fitting into a cabinet (no text or symbols)

!! Importante:

www.vevor.com/support

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

Machine Translated by Google

Machine Translated by Google

equipo.

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh pattern, a box, and five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150	671	370	1002	314	654	320	391	380	103	720	423	1192	358	775	40795
VBPYCE-210	447	470	108	126

Technical diagram of an industrial fan assembly with numbered components for identification

Sistema eléctrico

31 35 34

38 37 36

Machine Translated by Google

Technical diagram of an air conditioning unit with numbered components and labeled parts

Sistema eléctrico

28 35 34

38 37 36

Technical diagram of an air conditioning unit with numbered components for identification

Sistema eléctrico

31 36 37 38

39 40 41

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled pipes and a mesh panel, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

④ Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

Line drawing of a plug inserted into a rectangular socket with three circular holes, showing a downward arrow (no text or symbols)

Machine Translated by Google

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Iconos básicos

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

Diagram of a mechanical assembly with two pipes and directional arrows indicating movement (no text or symbols)

!! Importante:

www.vevor.com/support

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Machine Translated by Google

Machine Translated by Google

sprzę t.

Machine Translated by Google

dostę pny.

Procedury ładowania

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh panel and open box, alongside five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150 95	671	370	1002	314	654	320	391	380	103	720	423	1192	358	775	407
VBPYCE-210	447	470	108	126

Technical diagram of an industrial fan assembly with numbered components for identification

Machine Translated by Google

Technical diagram of an industrial fan assembly with numbered components for identification

Technical diagram of an air conditioning unit with numbered components for identification

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled tubing and a grid-patterned chamber, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

Line drawing of a plug inserted into a rectangular socket with three circular holes, showing a downward arrow (no text or symbols)

Zasilacz wtykowy

220-240 V\~/50 Hz

Machine Translated by Google

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Podstawowe ikony

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.3 Zimowanie

Diagram of a hand turning a valve into a cabinet with arrows indicating motion (no text or symbols)

!! Ważny:

www.vevor.com/support

Zwembad warmtepomp

Model: VBPYCE-70/VBPYCE-110/VBPYCE-150/VBPYCE-210

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

HULP NODIG? NEEM CONTACT MET ONS OP!

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Technical diagram showing a device with mesh panel and open box, alongside five labeled parts including manual switch and coiled spring.

Machine Translated by Google

VBPYCE-150 95	671	370	1002	314	654	320	391	380	103	720	423	1192	358	775	407
VBPYCE-210	447	470	108	126

Technical diagram of an industrial fan assembly with numbered components for identification

ÿ Elektrisch systeem

31 35 34

38 37 36

Machine Translated by Google

Technical diagram of an air conditioning unit with numbered components and labeled parts

ÿ Elektrisch systeem

28 35 34

38 37 36

Technical diagram of an air conditioning unit with numbered components for identification

ÿ Elektrisch systeem

31 36 37 38

39 40 41

1	Reactordoos	15	Chassis	29	Dak
2	Linkernet	16	Naaldventiel	30	Elektrische doosdeksel
3	Linker handvat	17	Filter	31	Elektrische doos Componenten
4	Zijbevestigingsplaten	18	EEV	32	Motorondersteuning
5	Motor	19	Rechter plaat	33	Reactorkastdeksel
6	Ventilatorbladen	20	Rechter handvat	34	Reactor

Machine Translated by Google

Machine Translated by Google

Verwarmingsvermogen (kW)	5,62	8,02	11.22	15.46
Opgenomen vermogen (kW)	1,13	1,59	2.33	3.09
COP	4,98	5,03	4.83	5,00
[Koeling] Omgevingstemperatuur: (DB/WB) 35 /-; Waterinlaat-/uitlaattemperatuur: 30 /28 .
Koelvermogen (kW) 8,54 Opgenomen	3,91 vermogen (kW)	2,04	6.25
	0,89	1.48		11.58
	4.39	4.22	4.19	2.68
Maximaal opgenomen vermogen (kW)	1.68	2.81	3,82	4.32
Maximale stroom (A)	7.30	12.23	16,60	5.05
Voeding	220V-240V~/50Hz
Verwarmingswatertemperatuurbereik ( )	9-40
Koelwatertemperatuurbereik ( )	8-28
Bedrijfsbereik ( )	-10~43
Koelmiddel	R32
Compressor Merk/Type	Mitsubishi
Manometer	Ja (optioneel)
Gascontrole	EEV
Waterwarmtewisselaar	Titanium warmtewisselaar
Waterleidingaansluiting	1-1/2"
Waterdrukverlies (kPa)	15	14	17	19
Waterdichtheidsniveau	IPX4	IPX4	IPX4	IPX4
Waterstroom (m3/u)	3.1	4,9	6.6	9.1
Geluid [dB(A)] op 1m	40~52	43~53	44~54	45~56
Nettogewicht (kg)	44.5	48,5	55.5	76.0
Netto afmetingen (L*B*H) mm	910×355×620		1000×400×660	1080×455×775

3. INSTALLATIE EN AANSLUITING

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled tubing and a grid-patterned chamber, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

Machine Translated by Google

Line drawing of a plug inserted into a rectangular socket with three circular holes, showing a downward arrow (no text or symbols)

Stekkervoeding

220-240V\~/50Hz

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

Diagram of a hand pressing down on a pipe fitting into a cabinet (no text or symbols)

!! Belangrijk:

www.vevor.com/support

Poolvärmepump

Modell: VBPYCE-70/VBPYCE-110/VBPYCE-150/VBPYCE-210

Exterior view of a white industrial air conditioning unit with a black fan blade (no text or symbols visible)

Warning sign depicting a flame symbol in yellow and black on a white background

R32 NEW REFRIGERANT GAS

BEHÖVER HJÄLP? KONTAKTA OSS!

Machine Translated by Google

utrustning.

Machine Translated by Google

Technical diagram showing a device with mesh pattern, a box open, and five labeled parts including manual switch and coiled spring.

Technical diagram of an industrial fan assembly with numbered components for identification

ÿ Elsystem

31 35 34

38 37 36

Machine Translated by Google

Technical diagram of an air conditioning unit with numbered components and labeled parts

ÿ Elsystem

28 35 34

38 37 36

Technical diagram of an air conditioning unit with numbered components for identification

ÿ Elsystem

31 36 37 38

39 40 41

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Diagram showing a hand pressing down on a grid-patterned device with an arrow icon and a cross symbol indicating cancellation or error.

Diagram of a heat exchanger or cooling unit with coiled pipes and a mesh panel, marked with a black X symbol (no text or labels)

Technical diagram of a heat exchanger or cooling unit with pipes and a mesh chamber, marked by a checkmark (no text or symbols present)

④ Circulating Water Pump/Metering Pump

∅ Hair Collector

Stop Valve

3.3.5 Elinstallation

Line drawing of a plug inserted into a rectangular block with three circular holes, showing a downward arrow (no text or symbols)

3.4. Test after installation

*VARNING: Kontrollera alla ledningar noggrant innan du slår på värmepumpen.

Machine Translated by Google

TEMP IN OUT SET 88.8 °C °F % MIN FAN AUTO 1 3 ON 00:00 2 4 OFF M

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Machine Translated by Google

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.2 VBPYCE-150

Steg 1: Ta bort kopplingslådans lock yTa bort skruvarna på kopplingsboxens lock yTa ut kopplingsboxens lock mot pilen

Screws

Steg 2: Ta bort topplocket yTa

Screws Screws Screws Screws

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.2.3 VBPYCE-210-PI

Steg 1: Ta bort kopplingslådans lock

ÿTa bort skruvarna på kopplingsboxens lock ÿTa

ut kopplingsboxens lock mot pilen

Screws

Steg 2: Ta bort topplocket yTa
bort topplockets skruv ÿ Skjut
topplocket i pilens riktning ÿTa ut topplocket mot pilen

Screws → ← → ↑

Screws Screws

Screws Screws Screws Screws

Steg 5: Ta bort den bakre luckan

Screws Screws

Screws Screws Screws Screws

Screws Screws Screws Screws

5.3 Vinterställ

Diagram of a hand turning a valve into a cabinet with arrows indicating motion (no text or symbols)

!! Viktig:
