Product Type	Tennis Ball Launcher Machine
Brand	Vevor
Model	TS-06
Rated Voltage	12 V DC
Ball Capacity	150 balls
Ball Speed	20 to 125 km/h (±10 km/h)
Oscillation Interval	2 to 10 seconds
Battery Life	4 to 5 hours (normal use); ≥ 2 hours (speed 5, continuous)
Charging Time	4 to 5 hours
Approximate Weight	15 kg
Approximate Dimensions	40 × 40 × 40 cm
Connectivity	Bluetooth (standard range)
Control	Mobile App "Tennismash Remote" (iOS/Android)
Main Functions	Speed adjustment, left-right and vertical oscillation, programmable shots (manual mode)
Power Supply	Built-in rechargeable lithium-ion battery
Maintenance	Vacuum the inside to remove lint; wipe the outside with a mild detergent; clean the wheels after each use
Safety	Use only on tennis court; stay more than 7 meters from the net; do not use in rain; supervise children
Included Spare Parts	Spare fuse (2 pieces), charger
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - TS-06 Vevor

What is the battery life?

The battery life is approximately 4 to 5 hours in normal use (moderate speed) and at least 2 hours at speed setting 5 continuously.

How to charge the battery?

Use the provided charger. Plug it into the machine and a wall outlet. The charger indicator is red during charging and turns green once fully charged. Charging time is approximately 4 to 5 hours.

How to pair the machine via Bluetooth with my phone?

Turn on the machine. On your phone, enable Bluetooth and search for devices. Select TenniSmash06 (or TenniSmash08). If prompted, enter the PIN code 1234 (ignored on iPhone). Open the 'Tennismash Remote' app, tap the Bluetooth icon and choose the paired machine.

What to do if a ball gets stuck in the machine?

Immediately cut off the power to avoid blowing a fuse. Check where the ball is stuck, especially between the two shooting wheels. Use your fingers or a long object (pen, stick) to dislodge the ball. Avoid using wet or overly worn balls to prevent jams.

How to replace a blown fuse?

Unplug the machine. Locate the fuse holder (often on the side). Remove the blown fuse and replace it with an identical spare fuse provided. Close the fuse holder.

Can I use other balls than standard tennis balls?

No, only official tennis balls or specific training balls (orange or green balls for children) are recommended. Red balls are too large and wet balls can cause jams.

How to adjust the speed and direction of the shots?

Via the mobile app, you can adjust the speed (from 20 to 125 km/h) and oscillation (left-right and vertical) to change the landing point. In manual mode, the TS-06 machine allows free adjustment of all court positions.

What to do if the machine does not turn on?

First check that the battery is charged. If the power indicator does not light up, it may be due to battery protection (triggered by excessive current). Turn off the machine, charge it for 5 minutes to unlock the battery. If the problem persists, check the fuse.

What are the important safety precautions?

Use the machine only on a tennis court. Never stand in front of the machine, even when paused. Keep a distance of at least 7 meters from the net. Do not use in rain. Supervise children and pets. Do not leave the machine unattended while operating.

How to clean and maintain the machine?

Vacuum the inside of the machine to remove lint. Wipe the outside with a mild detergent and a damp cloth, without getting water inside. Clean the shooting wheels after each use to prevent ball residue.

USER MANUAL TS-06 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Tennis Ball Machine

MODEL: TS-06/TS-08/TS-06M/TS-08M

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: TS-06/TS-08/TS-06M/TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This product is of protection class III.
	CORRECT DISPOSALThis product is subject to the provision of european Dir 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrical electronic devices.

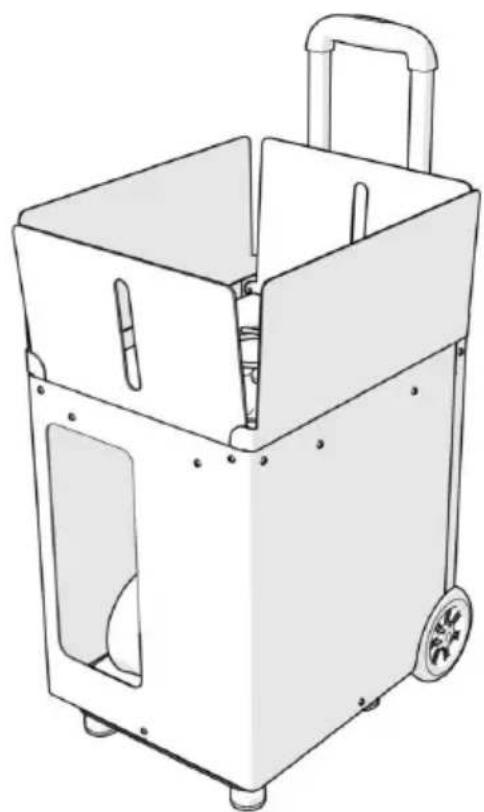

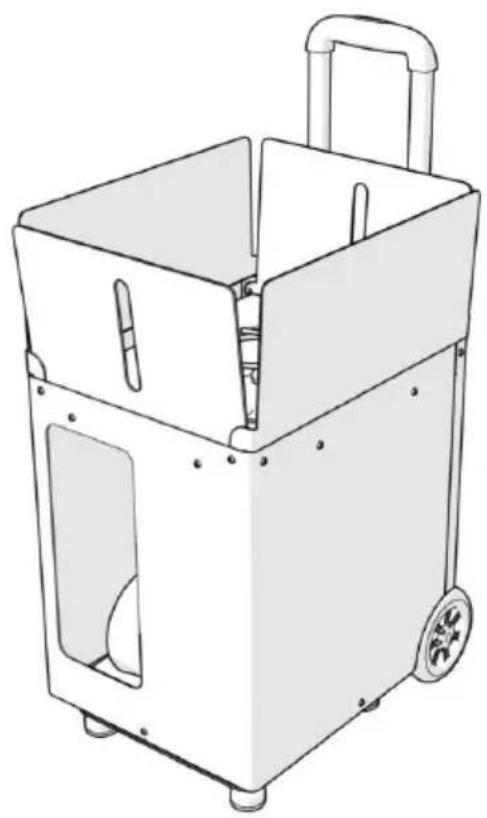

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to follow the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, and maintenance. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Care and common sense are not built into this product, since we believe users will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assembly needs to follow these instructions. Incorrect assembly can create a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is equipment, not a toy, and it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated use.
10. Do not use it for commercial purposes.
11. Do not clean it with any abrasive material.
12. Never leave it unattended while in use.
13. Pet urine and feces can damage the product, please keep away.
14. Do not place the product on or near hot air, electric burners or

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls. People or pets hanging on the product will cause injury or death.

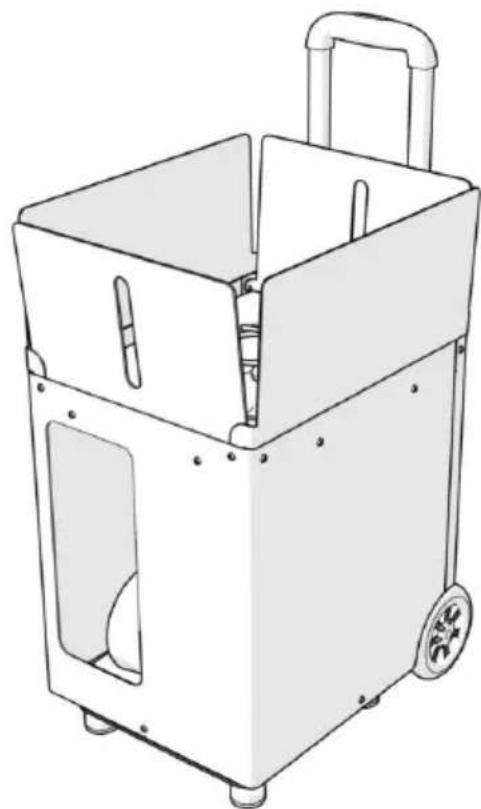

Model: TS-06/TS-08

PRODUCT DETAILS

Model No.	TS-08/TS-06/TS-06M/TS-08M
Rated Voltage(V)	DC12
Ball Capacity(Pcs)	TS-08/TS-06:150 & TS-06M/TS-08M:100
Speed ( Km/h )	20 ~ 125±10
Feed rate (second)	2 ~ 10
Battery Life ( Hour )	4-5 hours (normal use);≥2 hours (Set 5 gears, continuous service)

PACKING LIST

Tennis Ball Machine	1pcs
Charger	1pcs
User Manual	1pcs
Fuse (back-up)	2pcs

CAUTION

This machine was designed to be used on a tennis court and in normal circumstances. Only tennis balls must be used; no other balls should be ejected from the machine. Never stand in front of the machine unless you are on the other side of the net (more than 7 meters (8 yards) away). Even when the machine is paused, never stand in front of it, as balls can be ejected at any time. Children should be supervised at all times and taught never to stand in front of the machine.

Do not use the machine in the rain and avoid using wet balls. We recommend the use of pressureless balls to give your machine the best performance. Using a combination of new and old balls will give inconsistent results.

Step 1: Install the software

1. Android OS

Download and install the mobile APP software

Download link:

Search for “tennismash remote” in the app store to install the APP software.

Step 2: Turn on the switch

Step 3: Mobile phone and machine Bluetooth match, set up and run

software.

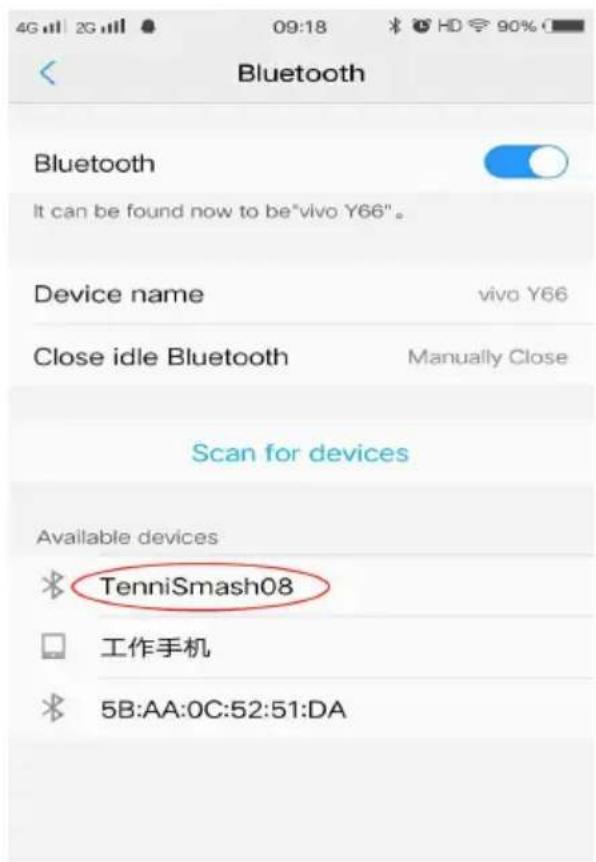

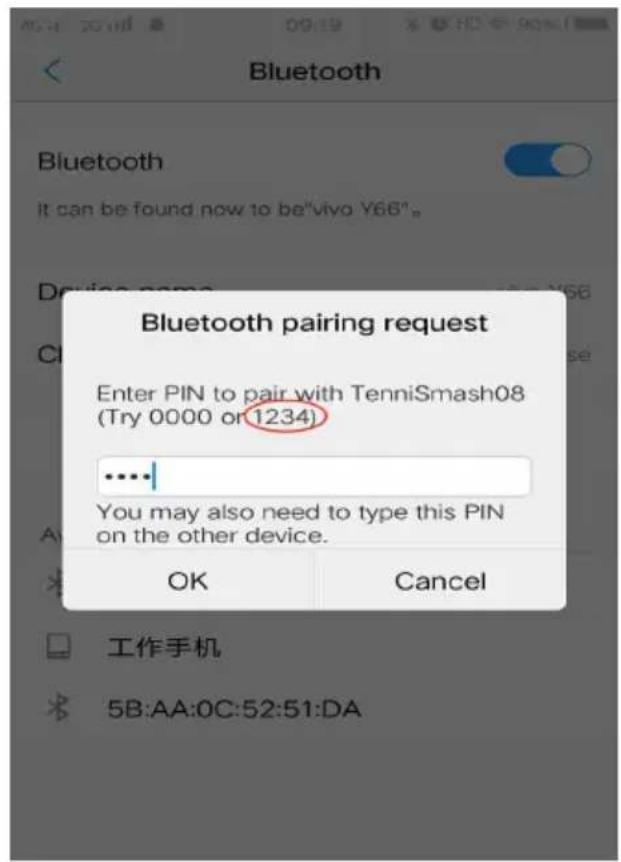

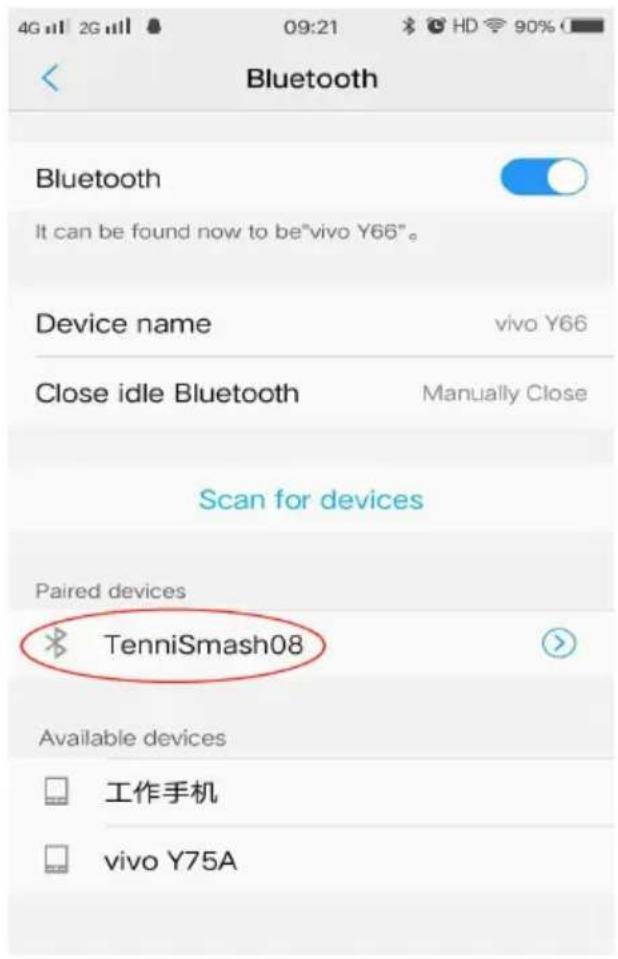

From the mobile phone settings, go into the Bluetooth settings, scan for devices (TenniSmash08 or TenniSmash06). Input PIN Code: 1234 (iPhone users skip this step.)

Paired Connection Successful

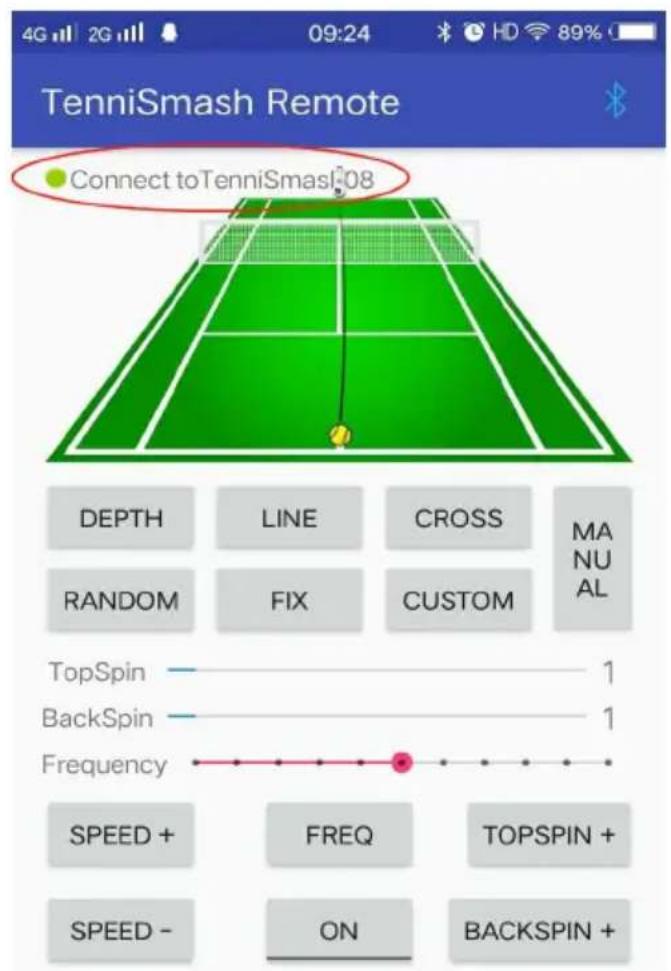

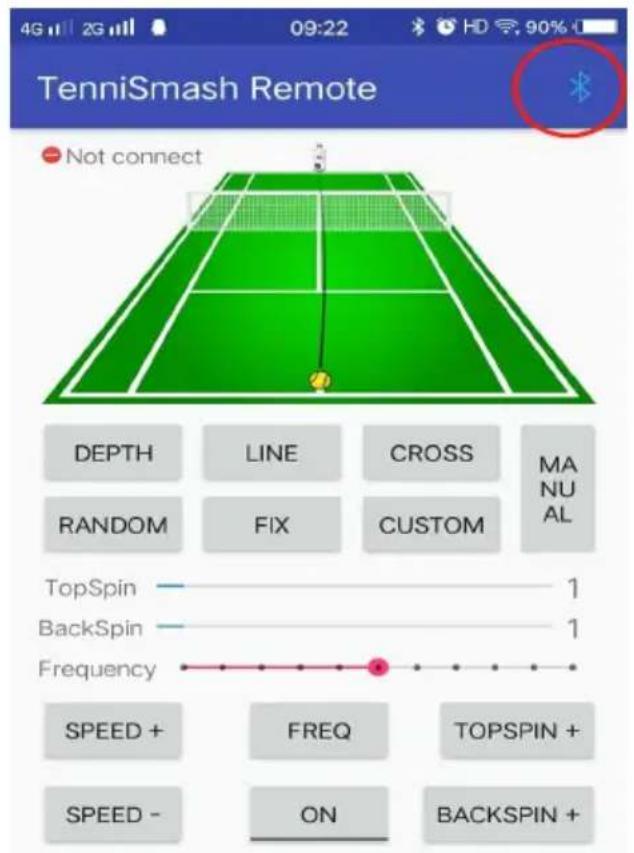

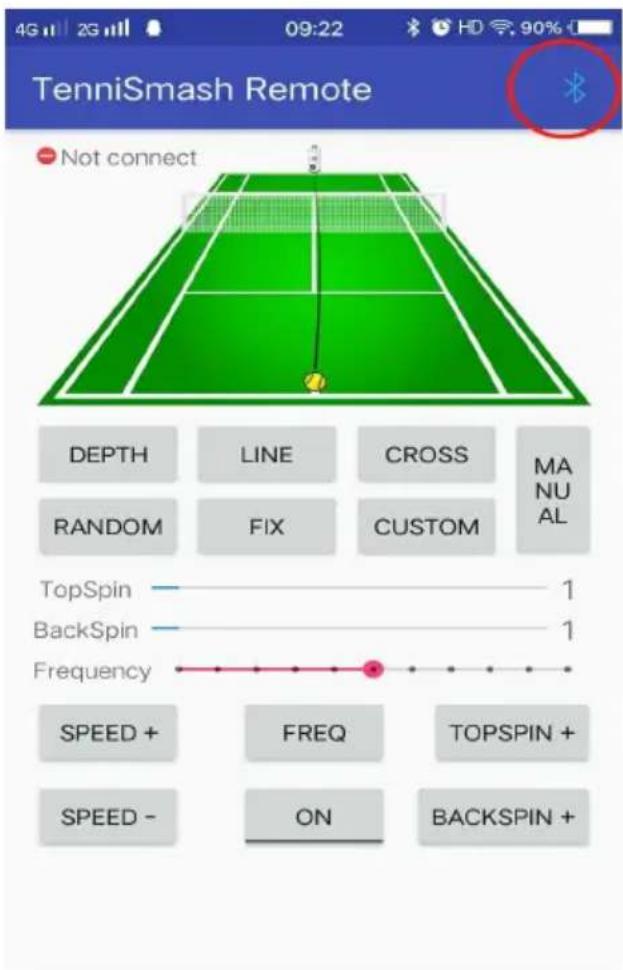

Run the App, click on the Bluetooth icon, and select the machine that has been paired.

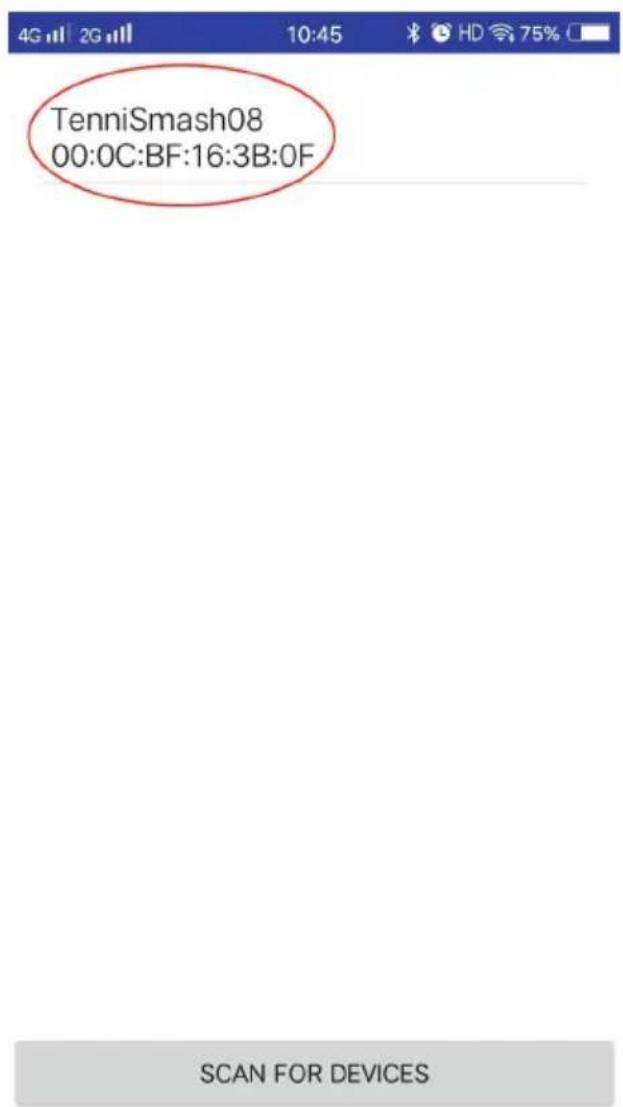

Then select the machine (TenniSmash08 or TenniSmash06)

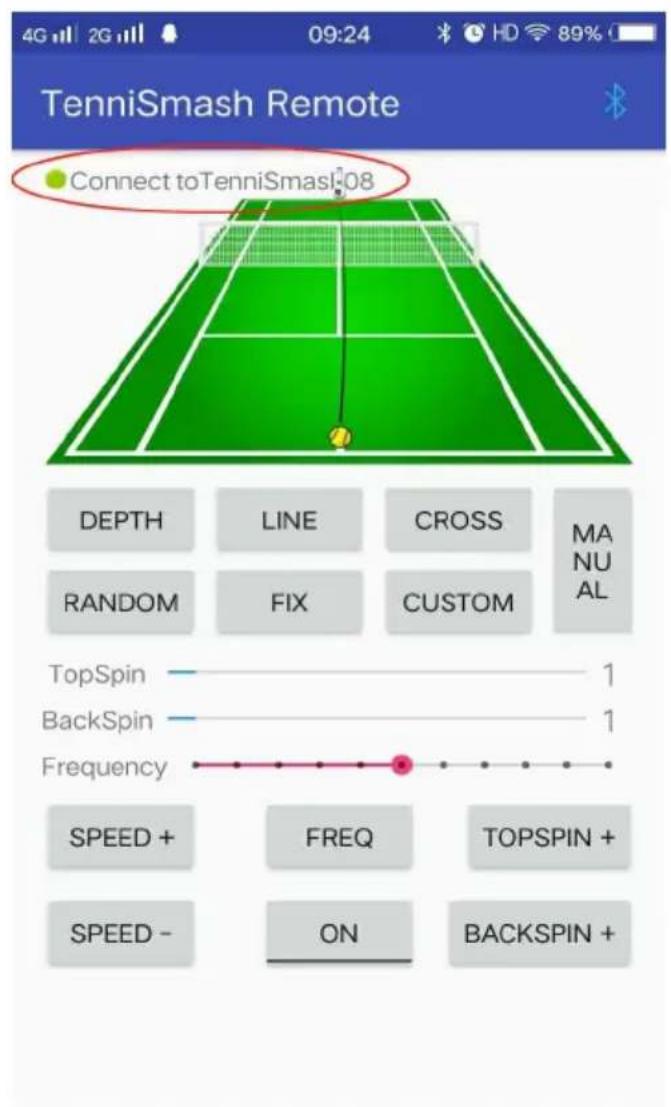

When the connection to TenniSmash08 (TenniSmash06) is displayed on the

Upper left corner, the connection is successful.

Click "ON" to run the machine.

* If the mobile phone can't find the machine through Bluetooth or there is a problem with Bluetooth pairing, you can try restarting the mobile phone and the machine.

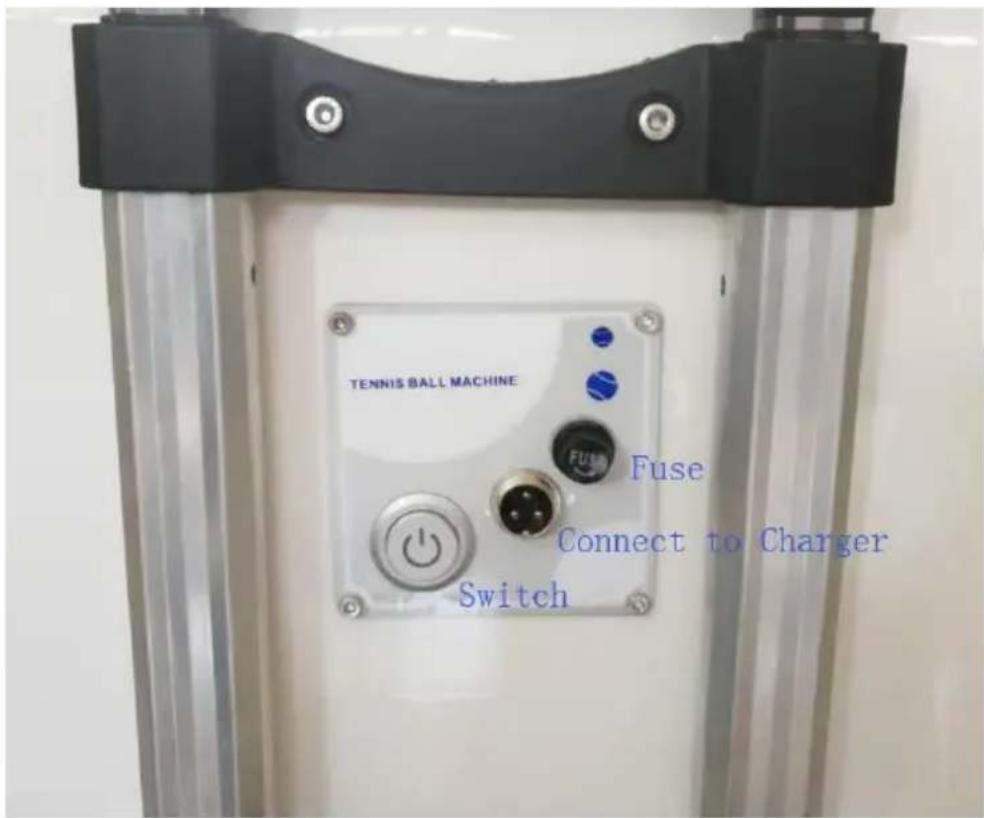

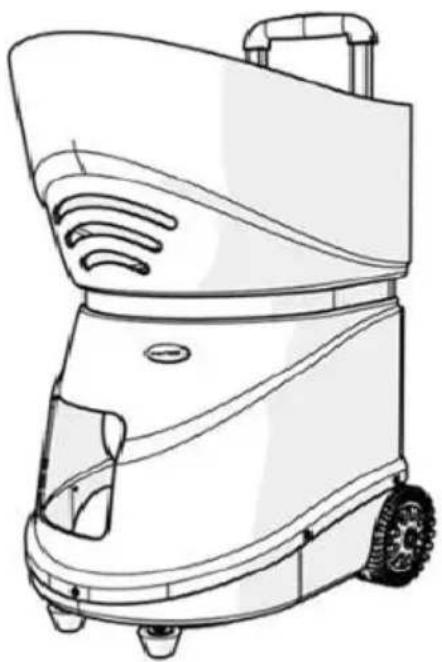

Operation panel diagram

CHARGING BATTERIES

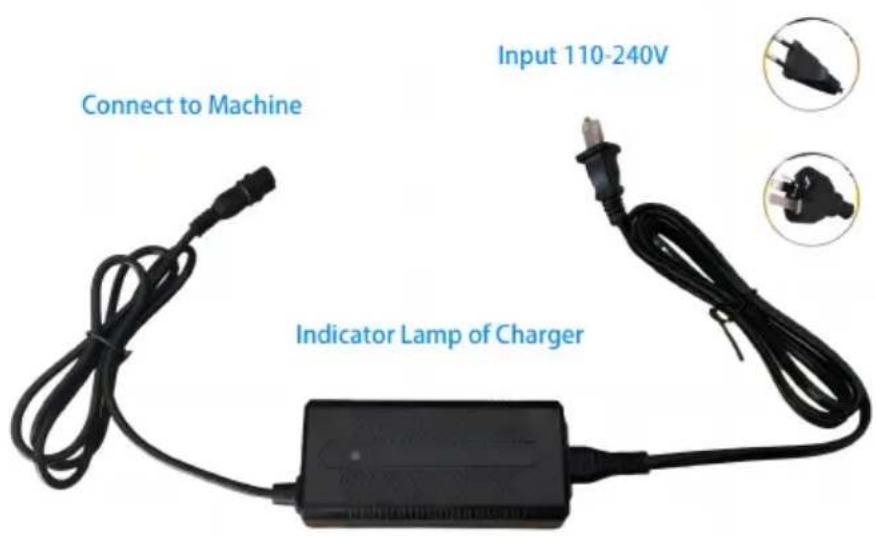

This product is equipped with an 8AH large capacity lithium battery. The battery is fully charged after the normal working time is about 4~5 hours.

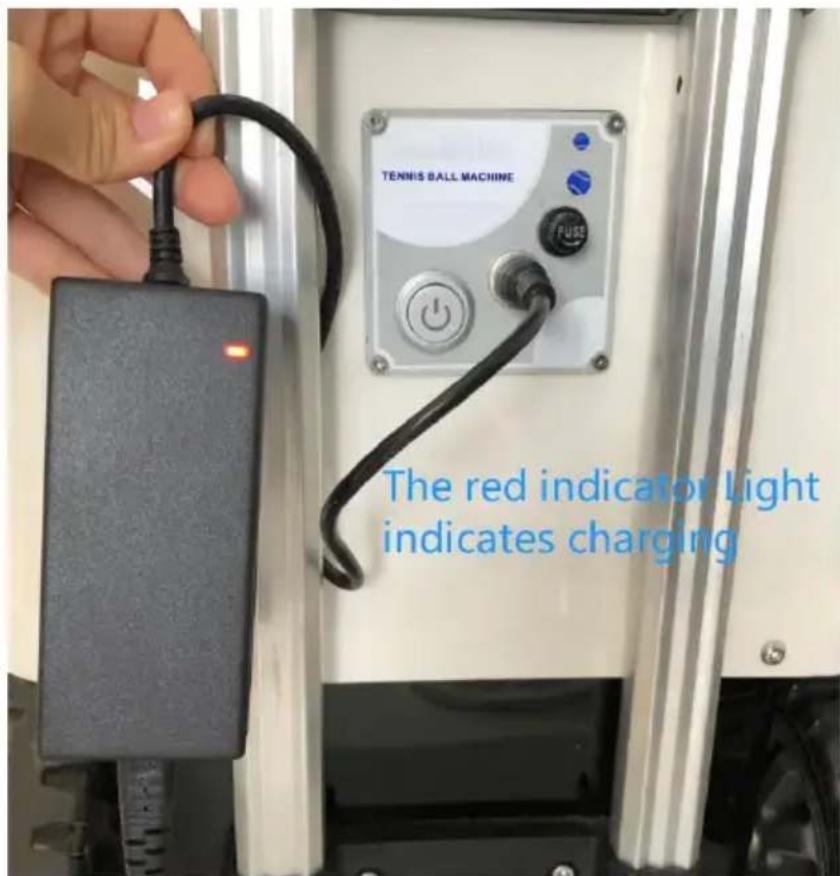

Please charge before use. While charging, the charger indicator is

displayed in red, and fully charged turns green. When the battery is exhausted, the charging time is about 8 hours.

STEPS

1. Place the ball machine in the right place on the tennis court; fasten the ball-loading frame back on the serve machine.
2. Adjust the direction of the ball.
3. Adjust the ball speed and mode.
4. Enjoy the Tennis

MAINTENANCE

You can vacuum out the inside of your machine to remove ball residue. The outside of the machine can be wiped down with a mild detergent. However, please be careful not to get water inside the machine. The throwing wheels should be wiped down after every use to prevent a buildup of residue from the balls.

Troubleshooting

1. When the power button is pressed and the power is off, follow the steps below:

A) Check that the battery is charging.

B) Check if the fuse is blown.

1. Press the power button, the power light does not light, may be due to excessive current, battery start protection.

If the battery protection lock occurs, the switch indicator light does not light. Please turn off your machine, charge the battery for 5 minutes to reset the battery.

1. Clearing Ball Jams

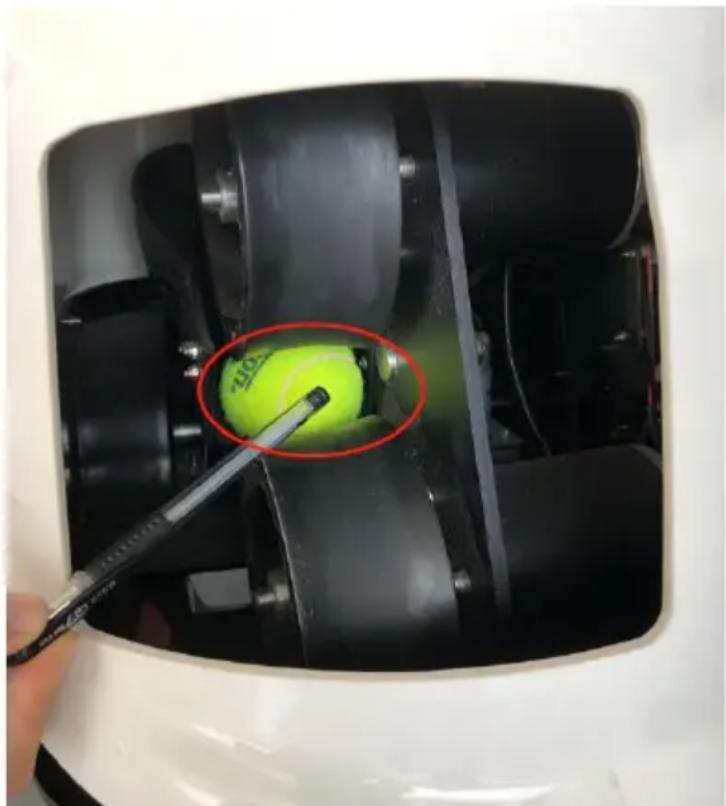

If you find that a ball gets stuck behind the two throwing wheels, the machine may shut down to prevent damage to the circuit board. Please turn the machine off and clear the ball jam.

1. Does the battery of the new machine have electricity?

Generally, the stored power of the new battery is less than 30%.

leaves the factory. When you get the machine, the battery is almost empty. If you need to try the machine or play ball, you should charge the battery to avoid inconvenience caused by no power. After the battery is fully charged, the normal working time is about 6 hours. If the battery is completely drained, the charging time is about 8 hours.

First, check whether the fuse tube is burnt out. If the fuse tube is burnt out, you need to take out our spare fuse tube at the side of the battery and replace it; If the fuse tube is in good condition, we need to check whether the battery is charged. The charger indicator light is green when standard, red when charging, and green when full.

First, check whether the fuse tube is burnt out. If the fuse tube is burnt out, you need to take out the spare fuse tube located at the side of the battery and replace it. If the fuse tube is in good condition, we need to check whether the battery is charged. The charger indicator light is green when standard, red when charging, and green when full.

Note: check whether our charger and socket are successfully connected. If the socket is loose, the charger will display green, creating the illusion that charging has been completed.

6. Burn the fuse when the machine is started.

First check whether there is a ball stuck in the machine; then you can adjust the speed to the minimum and restart.

1. The ball missed the net

Set the ball speed above 6 and place the machine at the midpoint of the court.

8. Can children's balls be used?

You can use two kinds of children's balls: orange ball and green ball. The yellow ball can't be used because it's too big.

9. How to deal with ball jamming?

Turn off the power immediately to prevent the fuse from burning out; then locate where the ball is stuck and empty the ball in the machine in time. If the ball is between the two wheels and it is difficult to take it out directly, we can use hands, pens, sticks, and other things to move the ball to the chassis and then take it out. During the use of the serve machine, avoid using wet balls or airless balls to avoid ball jamming.

1. In the manual mode of TS08 and TS06, the mobile phone screen is not displayed when it is adjusted up, down, left, and right.

The software interface is not displayed. You can observe the change of the position of the serving wheel. The adjustment is set circularly: adjust the serving wheel up and down to reach the highest point, then down, reach the lowest, and then up. The left and right adjustment is also that the serving wheel reaches the left and then right, and the wheel reaches the right and then left.

1. Other fault conditions:

If you cannot personally troubleshoot, or if any of the above problems occur, please call our customer service hotline for further processing.

1. Differences between TS-06 and TS-08

TS-06 can adjust any landing point of the tennis court through the mobile app, with left-right swing and vertical swing functions.

TS-08 is remotely controlled by the mobile app. It has 6 fixed landing points and various kinds of ball delivery lines. It can compile and set a combined ball line with landing points, and can define up to 20 landing points for circular ball delivery.

It can be switched to TS06 mode (manual mode) to cover all functions of TS06.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329

Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-06M / TS-08M

PRODUCT DETAILS

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered will actually save you half in comparison with the top major brands. Please verify carefully when placing an order with us.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-06M / TS-08M

PRODUCT DETAILS

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames. Surrey. TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

PRODUCT DETAILS

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half compared to the top major brands.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-06M / TS-08M

PRODUCT DETAILS

Model nr.

TS-08 / TS-06 / TS-06M/TS-08M

Nominal voltage

(V)

DC12

Pairing successful

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: TS-0 6/ TS-0 8 / TS -0 6M/ TS-0 8M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-0 6M/ TS-0 8M

PRODUCT DETAILS

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

check

the charger and

If the outlet

will

display

which

illusion of

the charge

is complete.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-06M / TS-08M

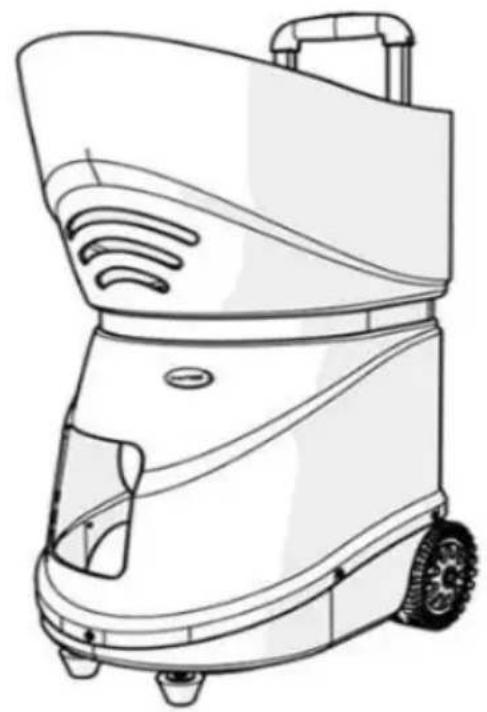

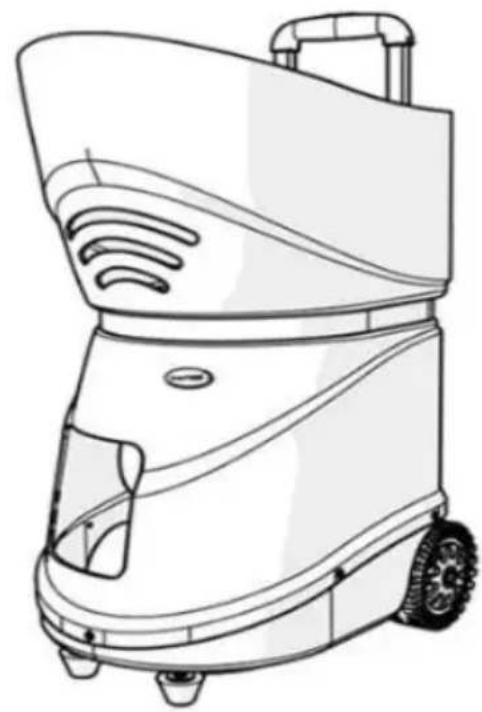

PRODUCT DETAILS

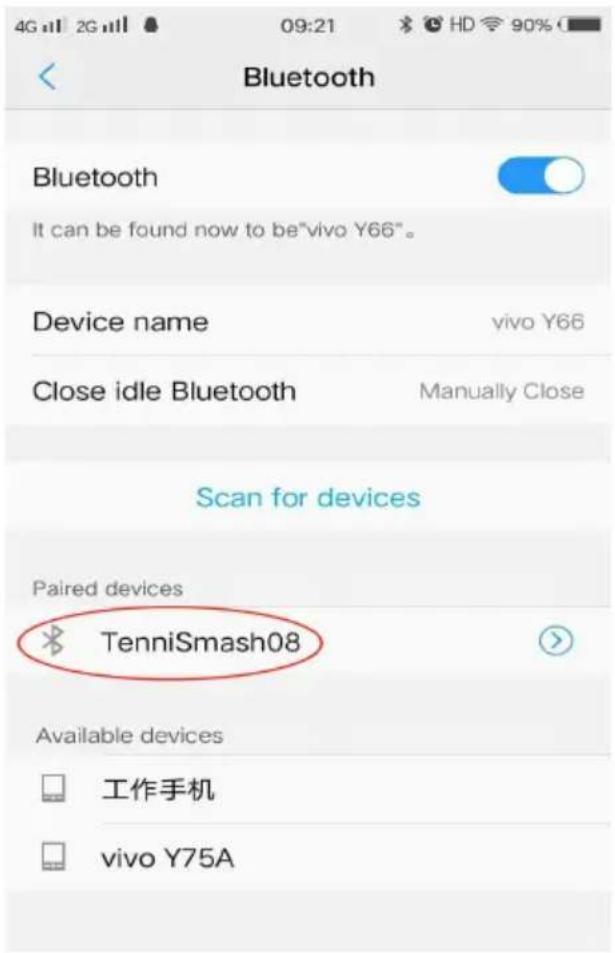

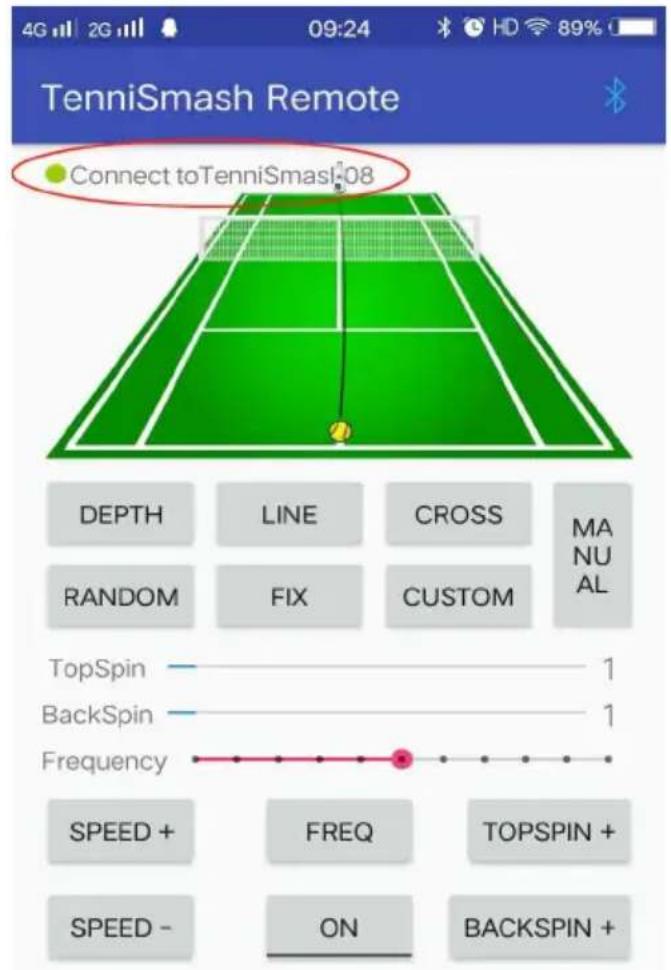

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: TS-06 / TS-08 / TS-06M / TS-08M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Model: TS-06M / TS-08M

PRODUCT DETAILS

SCAN FOR DEVICES

CHARGING BATTERIES

STEPS

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
