SSX110 - Ice machine Vevor - Free user manual and instructions

Product Type	Professional ice machine
Brand	Vevor
Model	SSX110
Power Supply	220-240 V ~ 50 Hz (estimated)
Power	Approx 1000 W (requires regulator >1000 W)
Refrigerant	R290 (flammable)
Ice Production	Approx 15 kg/24h (estimated)
Storage Bin Capacity	Approx 5 kg (estimated)
Dimensions (L x W x H)	Approx 38 x 45 x 70 cm (estimated)
Weight	Approx 30 kg (estimated)
Cooling Type	Air-cooled
Required Water Pressure	0.13 - 0.55 MPa
Operating Ambient Temperature	10 °C to 32 °C
Max Relative Humidity	80% (at 31 °C, decreasing linearly)
Main Functions	Automatic ice making, automatic defrost, automatic bin full stop, programmable timer, built-in cleaning
Adjustments	Ice cube thickness (adjustable from -7 to +15 min)
Display	Digital tubes (temperature, time)
Exterior Material	Stainless steel (likely)
Regular Maintenance	Daily (scoop, door), weekly (bin), monthly (pump), quarterly (condenser) cleaning
Safety	Mandatory grounding, high voltage protection, automatic shut-off when bin full
Warranty	1 year (parts and labor, excluding plastic)

Frequently Asked Questions - SSX110 Vevor

What to do if the machine does not make ice?

First check the power supply and water inlet. Ensure the ice bin deflector closes properly. Refer to the fault table: possible causes include blown fuse, faulty power switch, or insufficient water pressure. If the problem persists, contact after-sales service.

How to clean the ice machine?

Clean the ice scoop and door daily. Each week, clean the inside of the storage bin. Every month, disassemble and clean the water pump. Every 2 months, clean the ice grids, floating ball, and sink. Every 3 months, clean the air-cooled condenser with a soft brush or vacuum.
Important: Always unplug the appliance before cleaning. Use warm water and mild detergent. For descaling, use vinegar or citric acid.

What does alarm E1 on the display mean?

Alarm E1 indicates an ambient temperature sensor fault. Replace the sensor. If alarms E1 and E2 appear simultaneously, replace both sensors (ambient and air return) and ensure adequate ventilation around the machine.

Why is the produced ice too thin or incomplete?

Possible causes are: water level too low in the tank, insufficient water pressure (must be between 0.13 and 0.55 MPa), faulty inlet valve, or blocked lines. Also check that the water filter is not clogged and that the ambient temperature is within the recommended range (10 °C to 32 °C).

How to adjust the ice cube thickness?

Press the '+' button for 3 seconds until the temperature flashes. Use the '+' or '-' buttons to adjust the making time: each increment of one minute increases thickness (max +15 min), each decrement decreases it (min -7 min). The new setting applies to the next batch.

Can I use tap water directly?

It is recommended to use filtered drinking water at normal temperature. Water pressure must be between 0.13 and 0.55 MPa. If the water is hard, install a filter to reduce scale. Only connect to a drinking water source.

Why does the machine stop 3 minutes after starting?

This is likely due to high voltage protection. Possible causes: ambient temperature too high, dirty condenser filter, or faulty fan motor. Clean the condenser and ensure good ventilation. If the problem persists, contact a technician.

How to install the water filter?

Connect the filter inlet to the drinking water tap and the outlet to the machine's inlet pipe (panel inlet). Ensure the filter is mounted with the inlet and outlet indicators. If the machine is not supplied with a filter, purchase a compatible one.

What to do in case of water leakage?

First check the water tank: if the floating ball is too high or defective, adjust or replace it. Also inspect the inlet valve: if it does not close tightly, clean or replace it. Ensure hoses are properly connected and not damaged.

How to manually defrost the machine?

In standby mode, press and hold the power/defrost button for 3 seconds to enter defrost state. The machine will heat the evaporator to release ice cubes. The defrost cycle lasts about 1.5 minutes. If excessive ice buildup occurs, unplug the device for 10 minutes, then plug it back in.

USER MANUAL SSX110 Vevor

ICE MACHINE

MODEL: SSX65C, SSX160V, SSX200V

SSX265V, SSX360V, SSX440V

SSX80, SSX90, SSX100

SSX110, SSX120, SSX130

SSX140, SSX300, SSX440

VEVOR

ICE MACHINE

MODEL: SSX65C, SSX160V, SSX200V, SSX265V, SSX360V, SSX440V, SSX80, SSX90, SSX100, SSX110, SSX120, SSX130, SSX140, SSX300, SSX440

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

The warning diagram and operation safety instruction

Prohibition mark	Warning mark	Beware of fire	Dangerous voltage
Indicates a prohibited act that could cause fatal injury or serious injury	Indicates matters that may cause personal injury or damage to items	Indicates that the material used is a combustible material, beware of fire	Indicates a high-voltage electric danger zone, beware of high-voltage electricity

Note: Be sure to keep this manual in a location that users can

access at any time.

Safe operation precautions.

Caution	After receiving the goods, you have to let the com lubricating oil settle for 24 hours to start the use, it will easily damage the compressor.
	Do not use the ice machine in the open air. Whe machine is wet by rain, it may cause electric leaf electric shock.
	Never place this ice machine in a wet location or subject to splashing water. Damage to the insulation ice machine may cause electric leakage or electric
	Never spray water directly onto the ice machine. A machine may cause electric shock or short circu
⊗	Be sure not to put volatile or flammable substance the ice machine. Storage of such materials may cause explosion or fire.
△	The ice machine should only be installed by qua engineers or maintenance personnel. Installing the machine by yourself may cause gas or liquid lead electric shock or fire.
⊗	Never disassemble, repair, or modify the ice machine such work is performed by unqualified personnel, in cause fire or personal injury due to work failure.
⊗	Never ground the ice machine through a gas pipe mains, telephone line or lightning rod. This is cons unsafe to ground.
⊗	Never insert metal materials such as iron pins or v the vents, passage holes or exhaust ports for air c in the tank. This may result in electric shock or injury due to accidental operation of moving par
△	Be sure to place the ice machine firmly on a sol the floor is not strong enough or not placed proper cause damage due to the ice machine being turned down or overturned.
⊗	Be sure to use the dedicated power supply specif the nameplate of this ice machine. Using a branch may cause a fire.
⊗	Be sure to insert the power plug firmly into the o removing the dust. A dusty socket or improperly inserted may cause
⊗	Use a grounded outlet to prevent electric shock. unlikely event that there is no grounded outlet, grounding device must be assembled by a qualif engineering technician. The socket should be in an accessible position after installation.
⊗	If there is any abnormal temperature or alarm in the any reason, you must immediately transfer the conthe box to a safe place to avoid your loss.
⊗	This appliance contains flammable materials and mu disposed of and recycled by qualified personnel agencies.
⊗	Do not use mechanical equipment or other mean speed up the defrosting process except as recommended by the manufactu
△	Do not damage the refrigeration circuit.
△	Except for the type recommended by the manufactu appliance must not be used in the food storage ro appliance.
△	Use the new hose assembly that comes with the a and the old hose assembly cannot be reused.
△	When handling toxic, hazardous or radioactive mate use this ice machine in a safe place. Improper us adversely affect your health and the environmen
!	The disposal of the ice machine should be done special person. Never throw the ice machine away it be natural. This may cause the child to be shu the ice machine.
!	There are no obstructions around the appliance or embedded structure, keeping the ventilation open.
!	Unplug the power cord before cleaning, maintaining inspecting the ice machine to prevent electric sho personal injury.
!	Some models use flammable refrigerants and flamm foaming agents, beware of fire, (the product has a of fire mark). When an abnormality occurs in the product, it must be repaired by qualified personnel institutions.
!	This appliance contains a flammable blowing age cyclopentane, which must be disposed of and recyc qualified personnel and institutions.
!	Children should be supervised to ensure that children not play with the machine.
!	When the ice machine malfunctions, unplug the pc cord. Continued abnormal operation may result in e shock or fire.

Electrical safety matters

1. The working voltage of the ice maker should be consistent with the rated voltage. If the voltage is not in this range, please purchase a regulator above 1000W. 2. Be sure to connect the ground wire and ground it safely. The ground wire should not be connected to the water pipe or gas pipe.
2. In order to protect the compressor, do not start the ice machine again within 10 minutes after power off or shutdown.
3. Please do not connect other electrical appliances to the same socket. 5. If the power cord is damaged, in order to avoid danger, it must be replaced by a person arranged by the manufacturer or a qualified professional.
4. The electrical control system has a voltage of more than 36V. Do not open or touch it when in use. If repair is needed, please contact the manufacturer or have relevant qualified technical personnel to deal with it.

WARNING: Do not operate the ice machine in an environment where a gas leak occurs. Because the spark caused by the opening and closing of the plug or the temperature can cause a fire, the air source should be cut off and the window opened to allow air to circulate.

Installation Precautions

Requirements for handling and moving conditions:

When transporting, the cabinet should be kept as straight as possible, the inclination should not exceed 45 degrees at most. Do not invert or lay horizontally.

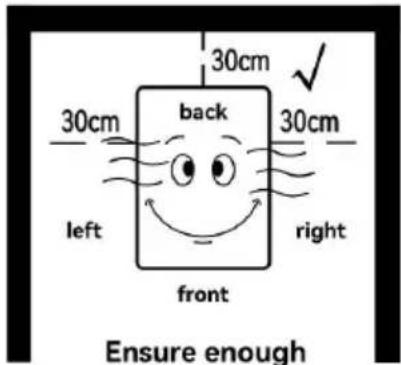

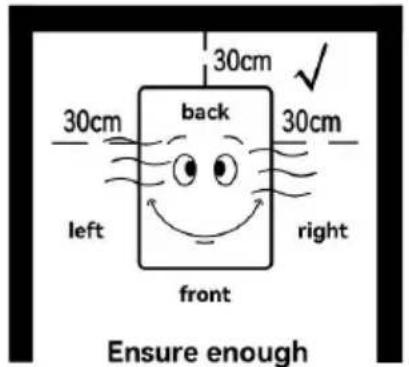

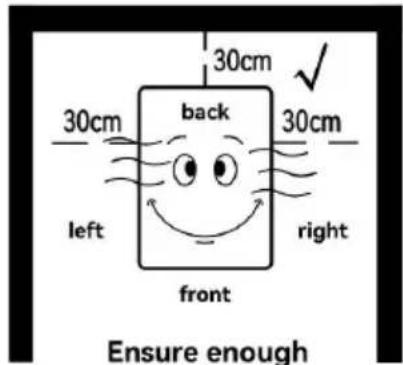

To operate the ice machine properly and get the best performance, place the ice machine in the following conditions:

1. Solid and flat ground

Place the ice machine on a solid, level surface to avoid excessive vibration and noise.

2. Keep away from the heat source

Avoid placing the ice machine near hot equipment such as gas stoves. Heating the ice machine can cause a decrease in cooling efficiency.

3. Avoid direct sunlight

If the ice machine is installed in direct sunlight, it may cause abnormal operation and may shorten the working life of the ice machine.

4. Dry area

Avoid placing the ice machine in a wet area, for example, near a sink or a fan.

Be careful	After receiving the goods, you have to let the compressor's lubricating oil settle for 24 hours to use, otherwise it will easily damage the compres
!	If the ice machine is placed in a wet area, a switch must be installed and the ice machine is grounded. Install the disconnect switch on the pow For further information, consult the ice machine ret electrical technician.
Caution
!	Always use a plug with a grounding structure and the ice machine to prevent electric shock during
!	Replacing a grounding terminal with a water pipe provide proper grounding protection in many situat as plastic pipes are often used in plumbing.
!	Never ground the ice machine through a gas pipe is very dangerous.

Never ground the ice machine using a telephone line lightning protector, because if lightning strikes, a large current will be generated, making grounding very dangerous.

1. Nothing should fall onto the ice machine.
2. Installation and operating instructions shall be provided with cautionary statements concerning the handling, moving, and use of the ice maker to avoid either damaging the refrigerant tubing or increasing the risk of a leak.
3. The installation and operating instructions shall indicate that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.
4. The installation instructions shall indicate that the ice maker is to be installed in accordance with the safety standard for Refrigeration systems, ASHRAE 15. In addition, the instructions shall indicate that the ice maker shall not be installed in corridors or hallways of public buildings.

Environmental conditions:

This equipment is designed in accordance with the following conditions:

1. Indoor use. 2. The altitude is not higher than 2000 meters. 3. The ambient temperature is in the range of 10°C to 32°C. 4. When the temperature is not higher than 31°C, the maximum relative humidity is 80%, and the maximum relative humidity decreases linearly with increasing temperature. 5. The main power supply voltage fluctuation does not exceed ±10% of rated voltage.

1. In accordance with the equipment installation level (overvoltage level) and transient overvoltage.

This appliance is used for similar purposes such as:

-- a kitchen area in a store, office, or other workplace; - farmhouses as well as hotels, motels, and residential environments; - bed and breakfast environments.

Catering industry and similar non-retail applications. This appliance is not intended for general household use.

Correct operation

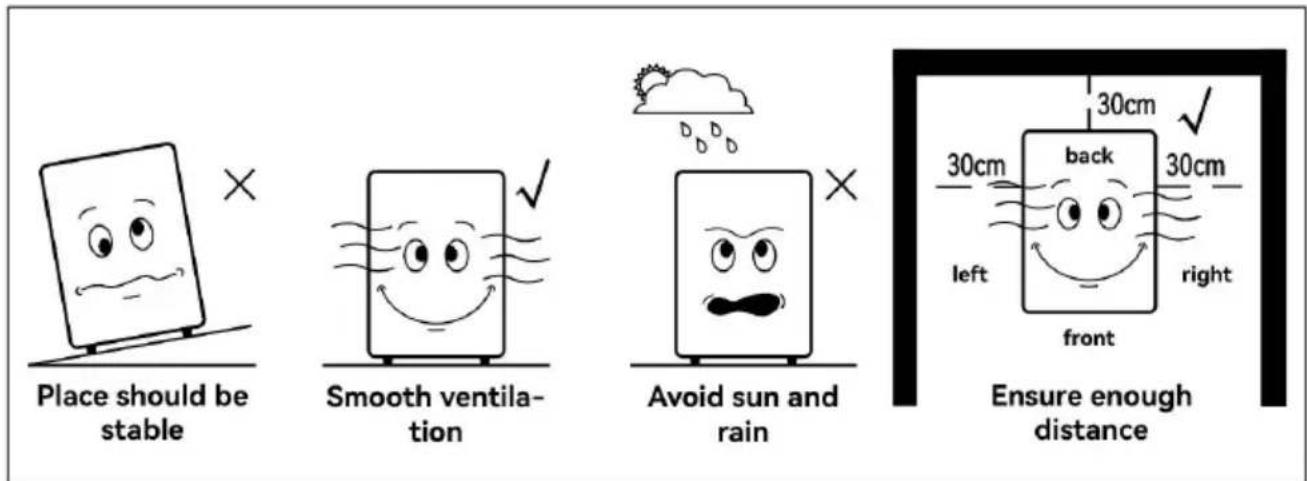

When using for the first time and during continuous operation, please follow the rules below.

1. Connect the ice maker to a dedicated socket (the power supply is compatible with well-known brands).
2. The ice machine needs to run for a long time to stabilize the temperature in the ice storage room, and minimize the number of door openings during this period.
3. The ice machine is surrounded by a cooling system for cooling the system. It is forbidden to block the items.
4. After completing the inspection of the operation of the ice machine, turn on the power of the ice machine and let the machine start making ice.
5. Use an independent water source for the ice machine and check it regularly to prevent low water pressure, fluctuations, or filter clogging.
6. Do not store any debris in the ice storage room, or freeze or store food in the ice storage room, and keep the ice shovel clean.
7. When the ice storage bucket is plasticized, it should be opened and closed gently. Do not drop the door. After the ice is finished, please close the sliding door of the ice storage bin.
8. The ice machine should be kept away from heat sources. It is strictly

forbidden to use in high temperature or low temperature environments. Avoid direct sunlight, so as not to affect the heat dissipation of the machine.

• Do not directly wash the surface of the ice machine by splashing. Otherwise, it may cause short circuit or electric leakage.
• After using the ice machine for a period of time, if it is left unused for a while, it should be energized every 4 months for 4 to 6 hours.

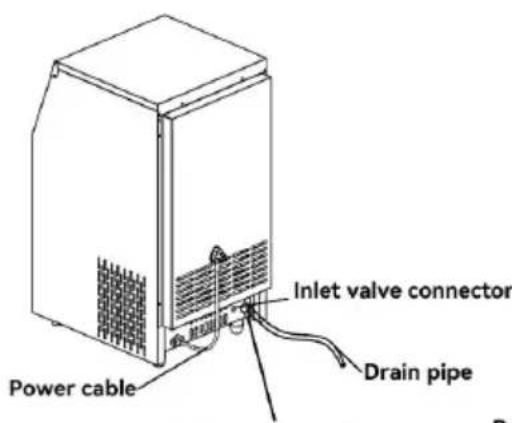

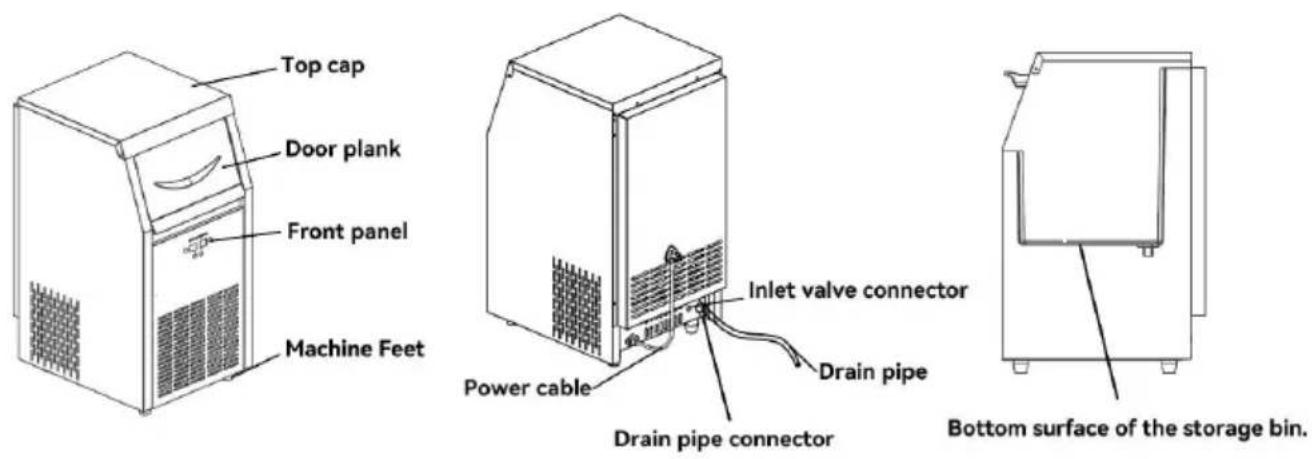

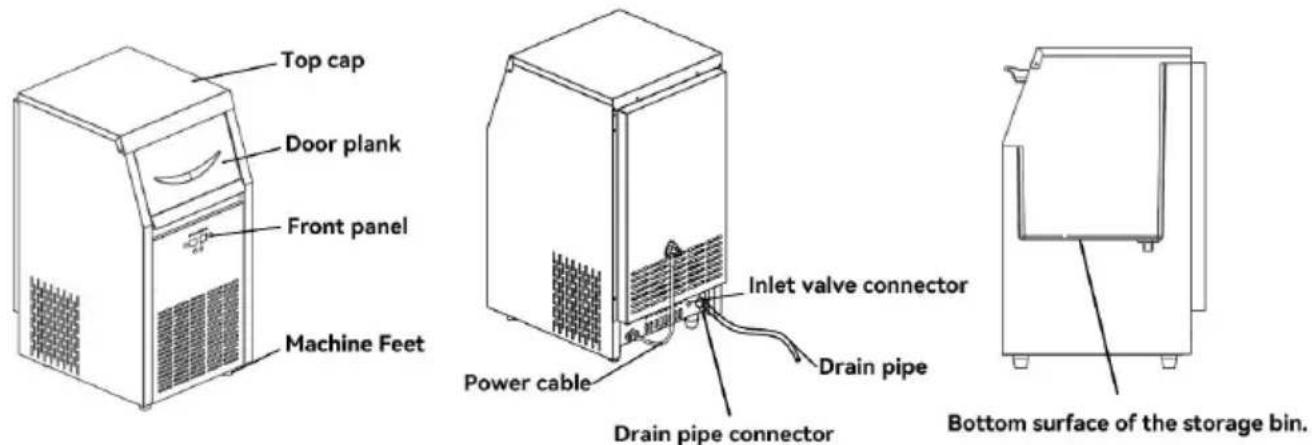

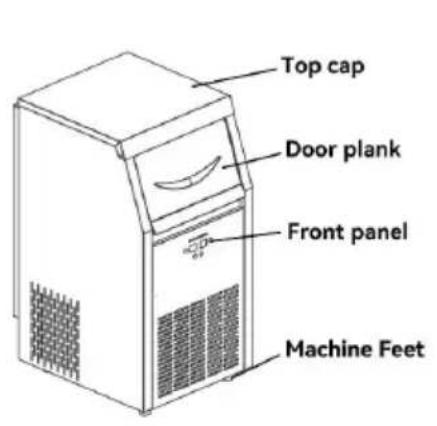

Installation instructions

Due to continuous product updates and classification changes, the machine you receive may not exactly match the pictures and manual. We appreciate your understanding. We will continue to improve our products.

1. Use filtered drinking water at room temperature to make ice.
2. The water supply pressure should be maintained between 130-55 Pa. If the water pressure is too high, please install a pressure relief valve. Do not subject the hose to high pressure.

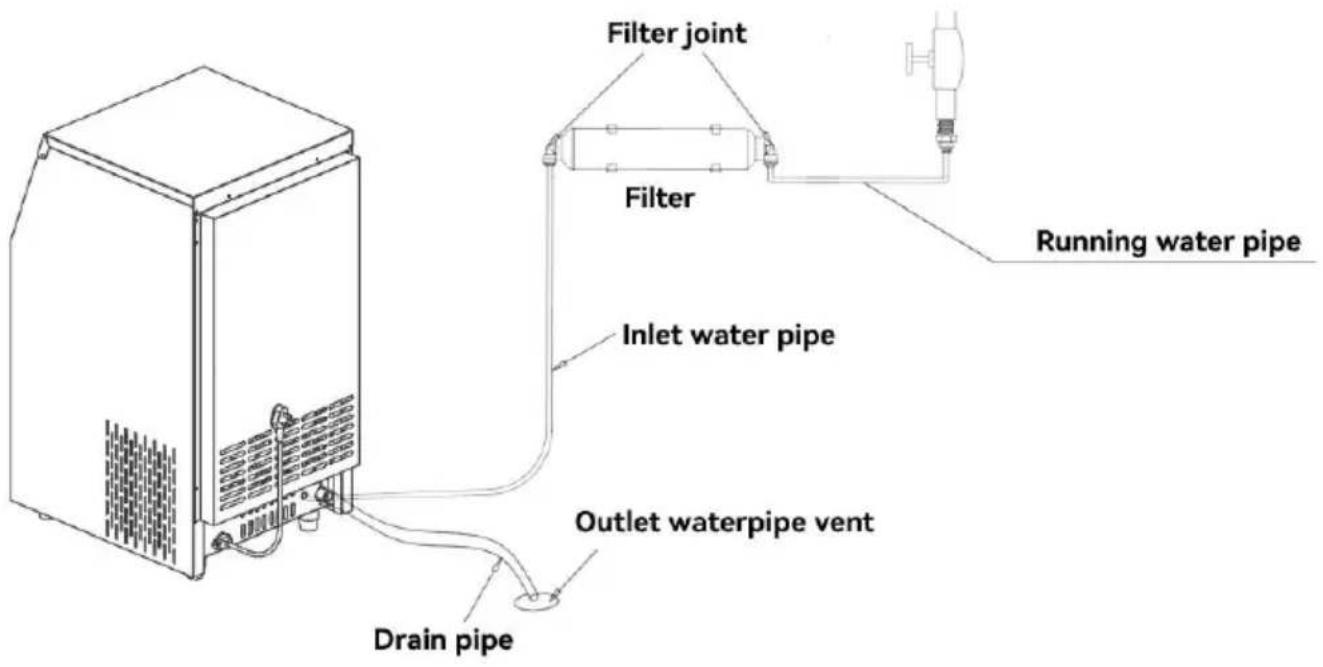

3. Connect the external branch hose of the machine to the tap water filter. The filter has indicators for the outlet and inlet. 4. Connect the filter's inlet to the drinking water tap.

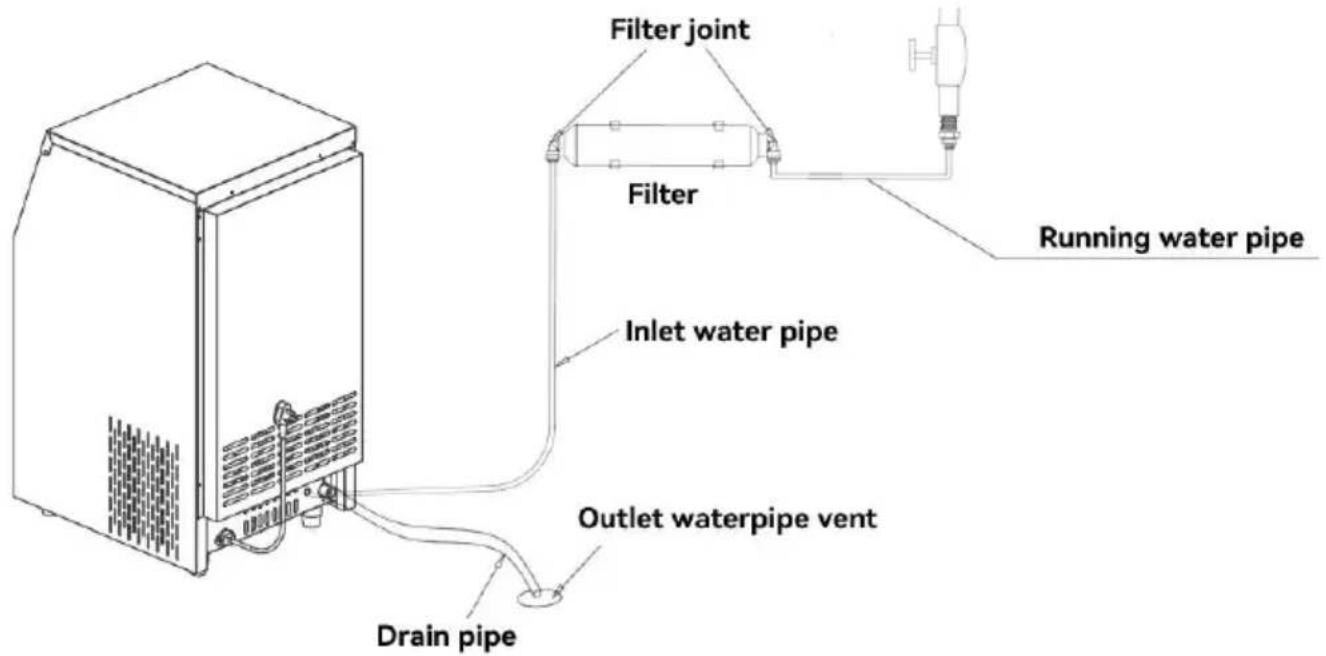

4. To ensure proper drainage, the drainage pipeline must be positioned below the bottom surface of the machine. The drainage pipe of a machine with a drainage pump must be lower than the bottom surface of the storage bin.

Warning

Only connect to drinking water.

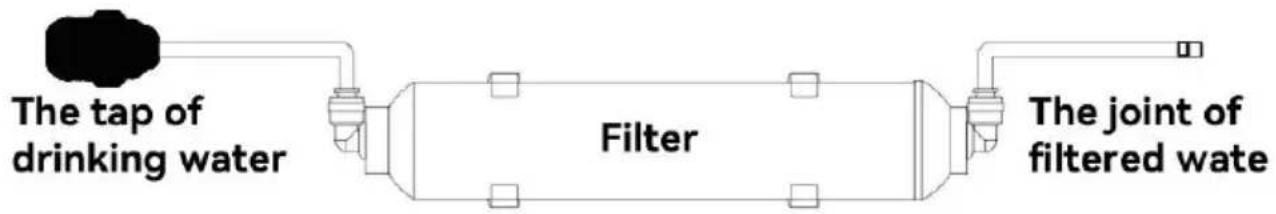

All-in-one installation

※ If the ice machine does not come with a filter, customers need to purchase one separately.

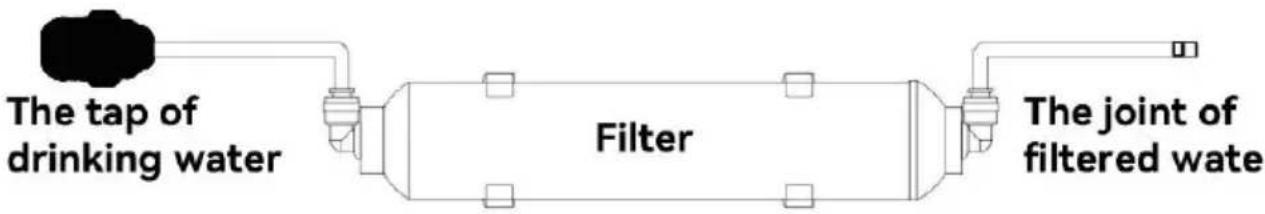

Filter installation instructions.

Filter installation instructions

Filter installation instructions

Quick filter installation instructions

Pipeline and joint installation

(1) 1. Remove the blue clip

2. Make the orifice flat, insert the pipe stopper firmly, and ensure the orifice connects the inside seal firmly.

3. Fix the blue clip on.

4. Finished installation.

Operating Instructions

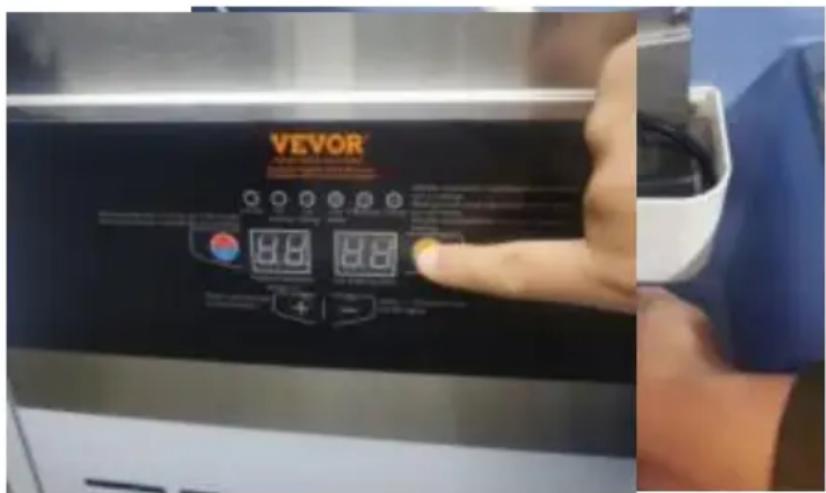

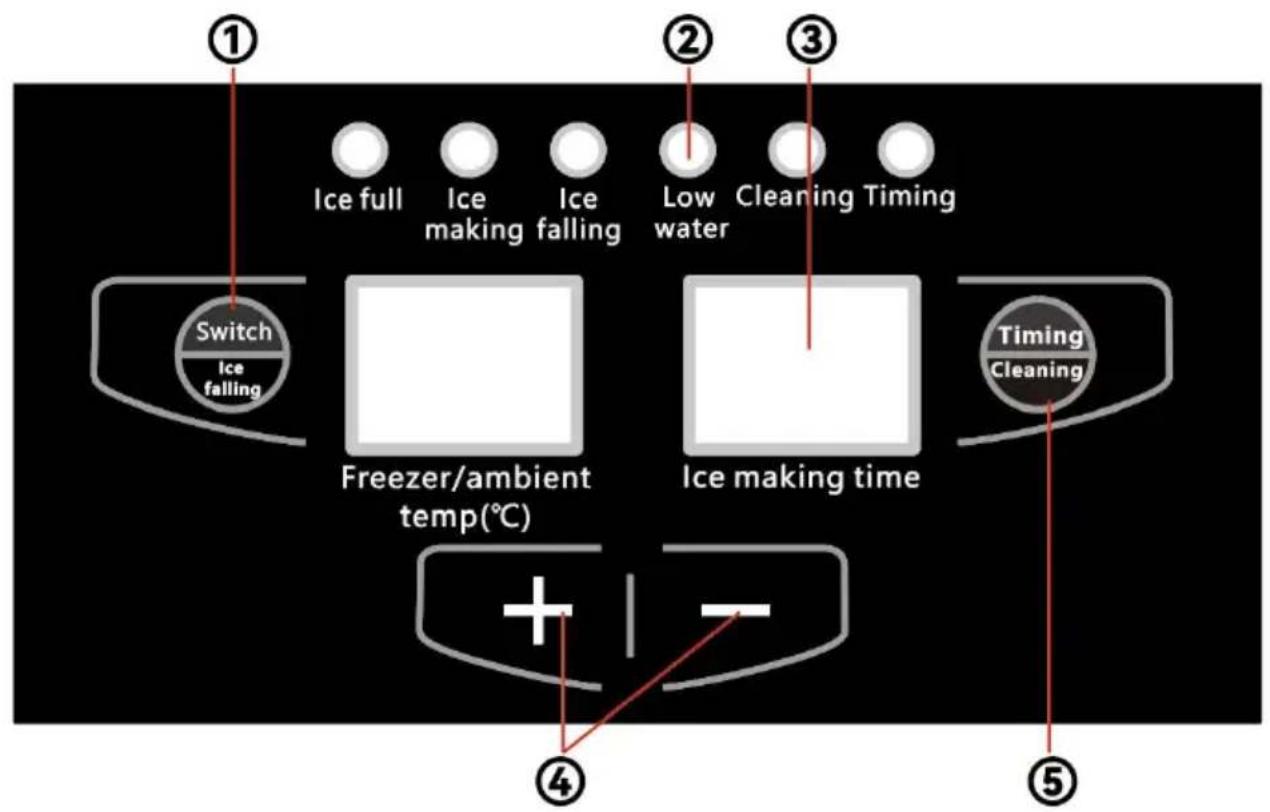

Function description of the four-button digital tube operation panel.

1. Power switch and deicing key: After power on, click to enter the ice-making state; click to enter the deicing state during the ice-making process; in the ice-making and de-icing state, press and hold for seconds to enter the shutdown state. 2. LED light: Represents the state of the machine. 3. Digital display tube

The left digital tube displays the ambient temperature and return temperature; the digital tube on the right shows the timing switch and ice-making time.

4. +/- button: Adjust the thickness of the ice cube in the working mode; in timing off or timing on and off, adjust the timing switch time; long press the "-" button for 3 seconds to turn on or off the light. 5. Cleaning and timing button

In standby mode, press the key continuously for 3 seconds to enter the cleaning mode; press this button when starting up the countdown of the scheduled shutdown, and then click to schedule shutdown; press this button in the standby state to countdown of the scheduled power-on, and then click to cancel scheduled power-on; the displayed time unit is hour.

Button Operation Instructions

Operation process

1. Plug in the power, click the ice machine switch button, and the ice machine starts to run.
2. Open the water inlet solenoid valve to enter the water. After the level rises, the floating ball floats up. When the water level reaches the requirement, the water inlet valve is closed, and the cleaning program runs. After the cleaning is completed, it will automatically enter the ice-making cycle.
3. When the thickness of the ice cube reaches the set thickness, the deicing program starts, the solenoid valve starts to work, the water stops working, the heat enters the evaporator, and the ice cube falls in about 1.5 minutes. When the ice cube falls, the ice falling baffle flips open the reed switch; when the reed switch closes again, the machine goes back into the ice-making process.
4. The compressor does not stop during the entire ice-making and de-icing process.
5. When the ice bucket is full of ice and the magnetic reed switch closes automatically, the machine will automatically stop working. When

enough ice cubes are removed and the magnetic reed switch closes again, the machine will start up with a delay of 3 minutes and re-enter the ice making process.

Ice Cube Thickness Adjustment

1. Press and hold the "+" button for 3 seconds until the displayed temperature starts flashing. Then, press the "+" or "-" button to adjust the thickness of the ice cubes. Pressing the "+" button will display the number of minutes, with each increment of 1 minute adding to the current ice-making time, up to a maximum of 15 minutes. Each decrement of 1 minute reduces the ice-making time, with a minimum reduction of -7 minutes. Increasing the ice-making time will result in thicker ice cubes, while decreasing it will make the cubes thinner.
2. Once the ice-making time has been adjusted, the new ice-making time will apply to the next batch of ice after the current batch has finished.

Click the blue light switch to turn it on, otherwise turn it off. - Scheduled power-on function

1. In the standby state, press the preset timing key to execute the 1 power-on function, the timing LED light is on, and the displayed number is the remaining power-on time, and the unit is hour.
2. In the timing power-on state, click + or - to adjust the remaining power-on time.
3. After executing the scheduled power-on, click the scheduled reservation button to cancel the scheduled power-on.

Ice full function

1. When the ice bucket is full of ice and the ice baffle cannot be closed automatically, the machine will stop working automatically.
2. When the ice cubes are used up, the ice baffle will reset, and the machine will automatically start up after a delay of 3 minutes. If the maker stops due to fluctuations in voltage and water pressure, and does not make ice or de-ice, please first unplug the power for 5

minutes, turn on the power to test the machine. Due to the change in temperature and ambient temperature, ice may sometimes appear in the sink. If the ice is severe, please unplug the power for 10 minutes and turn on the power again.

3. When not in any setting interface, force the drainage pump to work for a few seconds and then end (including standby and startup) by continuously pressing the "-" button twice (effective within 2 seconds). 4. When the machine is powered on, the drainage pump automatically starts for 20 seconds every 15 minutes and then turns off. Note: The machine which is in full ice, ice making, deicing, adding water, lacking water, and short-term cleaning all belong to the startup mode.

Precautions

Please follow the requirements of this manual to maintain your machine in order to increase the reliability and longevity of this ice machine, also maintenance can avoid the over energy consumption.

1. Clean the environment around the ice machine frequently to keep it clean, and do not block the louvers used for ventilation of the ice machine.
2. The shell can be cleaned with a neutral detergent, and then wiped with a soft cloth. If necessary, commercial stainless steel cleaners and polishes can be used.
3. Filters should be checked regularly and replaced with new filters immediately if damaged.
4. The water tank of the ice machine and the interior of the ice storage room can be washed directly with water pipes. Do not use too much pressure, and do not directly flush the water pump and the part above the ice tray to prevent the circuit from being soaked.
5. Maintenance of air-cooled ice machine condenser: Clean the air-cooled condenser once every three months. Use a soft brush or a vacuum with a brush to brush the condenser fins up and down along the direction of the fins to avoid damaging the fins and affecting the cooling effect.

	Any kinds of maintenance are not including to warranty.
	The filter elements should be changed regularly
	Please cut off the waterhead and electricity before clean or check the the machine.
	If there is much dirt and scale in the machine,or of pipes are blocked,please dial the telephone of at service. But, it will cost fees for the door to-door
	The air-cooled condenser warping blade is very sharpen.Be careful of getting hurt when you clear

Safety use guide of ice

Routine maintenance and inspection is especially important if the ice is to be used as edible ice.

If the ice machine has been used for a long time, the ice produced may become entrapped with scale, mold or rust due to temperature, water quality or aging. Therefore, it is important to keep the inside of the refrigerator clean through routine maintenance. If you find foreign matter at the bottom of the refrigerator or in the ice during operation or maintenance, please stop using the ice maker and contact the seller immediately.

1. Ice Scoop (clean once a day)

Soak the ice scoop in warm water (30~ 40°C) containing a disinfectant solution for more than 3 minutes, then rinse with tap water and wipe dry.

1. Refrigerator door (clean once a day)

Since the door of the refrigerator is susceptible to bacterial contamination, make sure to keep it clean by wiping it with a soft cloth with warm water. Refrigerator, ice scoop holder, and case (clean weekly).

Important information

1. To prevent deformation or cracking of plastic parts, avoid contact with pesticides or other oily substances.
2. Thoroughly remove the dirt or dust on the ice scooper fixing frame.

Cleaning of the major components

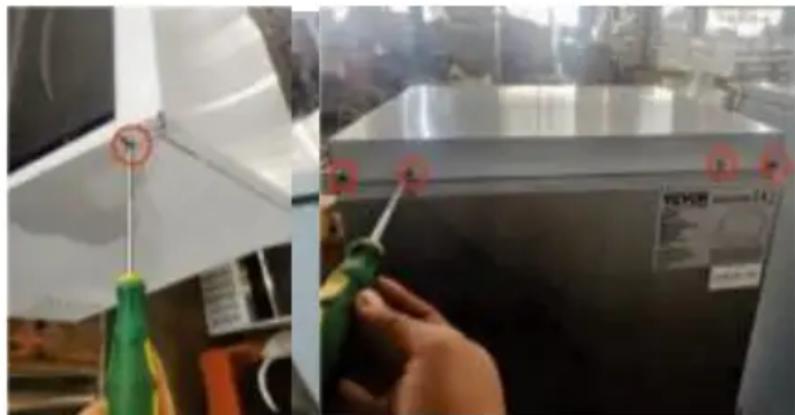

1. Top cover disassembly

There are six screws in front of the top cover of the machine on the right sides and the back. Use a cross screwdriver to remove these six screws counterclockwise, and then gently lift the top cover plate and place it in a suitable position.

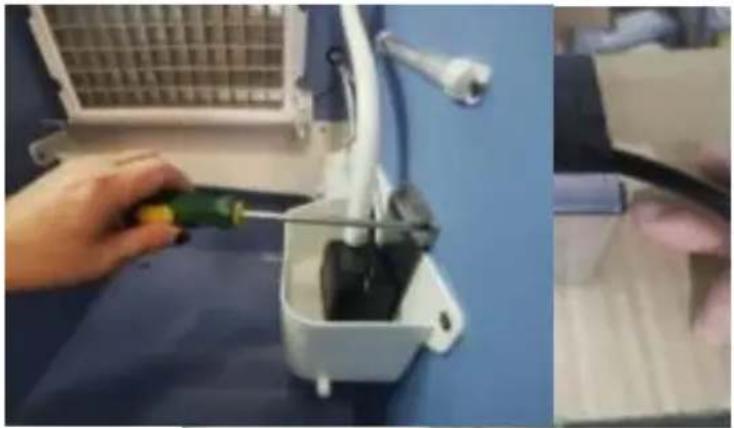

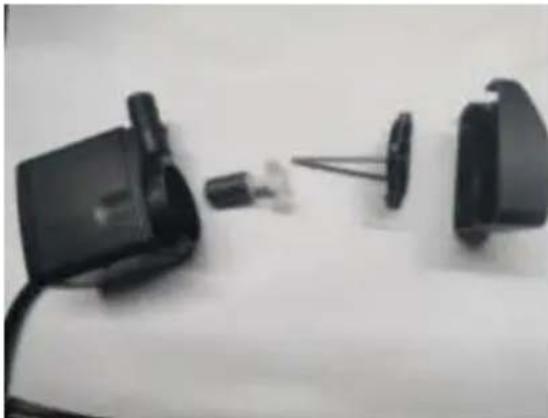

2. Removal and cleaning of water pump (clean every 2 months)

2.1 Remove the two screws above the pump support bracket with a screwdriver, then pull out the pump pumping pipe joint from the pump outlet nozzle, and remove the two screws at the bottom of the pump support with a cross screwdriver.

Figure 1 Figure 2

2.2 Remove the front cover filter (Figure 1), and the filter can be removed directly. 2.3 Rotate the cap counterclockwise and remove the cap (Figure 2). 2.4 After removing the sealing lid, remove the rotor. The rotor is fixed in the proper position by a magnet, and can be removed only by holding the water leaf with a clip or fingernail (Figure 3). 2.5 Clean it up and put the water pump back in again.

Figure 3

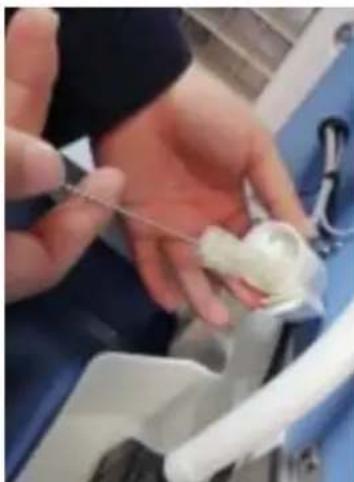

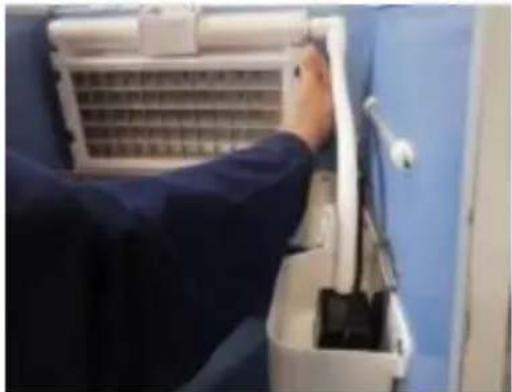

3. Cleaning of ice grids (clean every 2 months)

3.1 Hold the clamp on the water pipe, and then pull off the pump pipe.

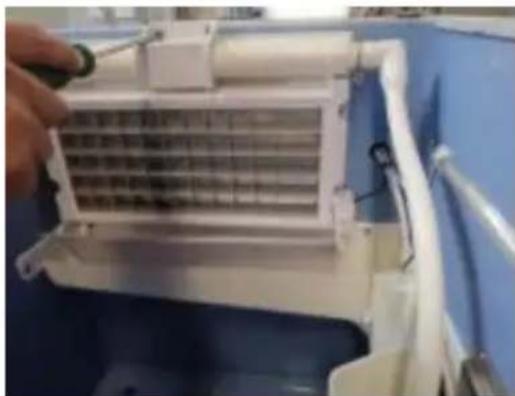

3.2 Remove the two screws on the holder of the pipe with a cross screwdriver, then remove the holder and the pipe.

3.3 Wash the ice lattice surface with a soft brush or sponge dipped in vinegar or scale remover to clean up the scale.

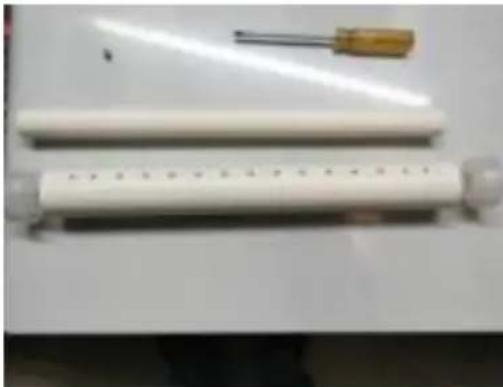

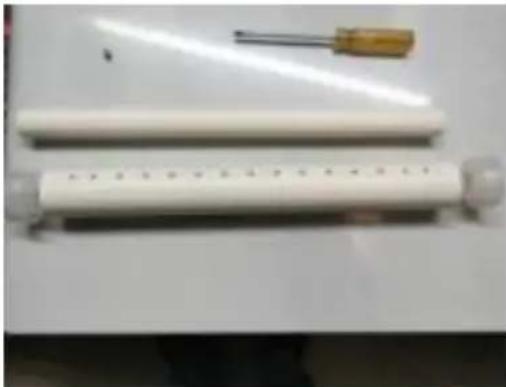

3.4 Use a cross screwdriver to remove the fixing screw on the ice pipe, and then remove the left and right plugs and the shower pipe at the same time. Then clean the inside and outside of the shower pipe with a brush.

3.5 Clean the pump head hose with a brush.

1. Washing the float ball (wash once every 2 months)

Remove the float ball assembly from the sink slot and wash the float assembly with a brush.

5. Cleaning of the sink and the storage refrigerator

5.1 Dip a soft cloth in vinegar or scale remover, wipe the surface of the sink and refrigerator, and clean the surface. 5.2 The sink should be cleaned every 2 months, and the refrigerator should be cleaned once a week.

once a week.

6. Daily cleaning of the waterways

6.1 Mix the right amount of citric acid solution in a clean bucket. Pour the solution into the sink, click the display screen to start cleaning. After cleaning, pull the tank drain plug, and then drain the citric acid solution from the tank.

6.2 Pour an appropriate amount of water into the sink, then press the key, wash for 3-5 minutes, drain the water from the tank, and repeat 4-6 times. 6.3 Ensure that the waterway is cleaned every 7-15 days.

Before contacting after-sales customer service

If the ice maker is operating abnormally, please contact after-sales customer service. However, you need to confirm the following: 1. Whether the water supply is normal or not.

The correct way to check is to loosen the inlet joint (6 branch cone) behind the machine. If it leaks normally when you loosen the joint to the required value, it means normal. Otherwise, there is no water.

1. Confirm whether the machine is electrified or not.

Our ice machines are all fully automatic, so some models do not have an electric switch. You can ask an electric technician to help you check. Mainly, you should pay attention to the socket.

1. The model number and serial number.

There is a nameplate on the front board, and there are model numbers

serial number on the side board.

It will cost fees for the door to door service if caused by the users(for example,no water,no electricity,environment,etc)

To prevent from high-pressure water spraying ,do loosen the joint of the inlet completely when you o waterhead.

Plastic parts are not in including to the warrant

Warranty

1. Our company agrees the warranty of the product within 1 labor cost and the replacement of components are free within warranty.

2. All the plastic parts are not including to the warranty.

3. Our warranty is limited liabilityExcept the machine itself,any joint liability is not in the warranty.

4. The routine maintenance ,cleaning,and all the hitches from the incorrect operation are not in the warranty.

5. All the warranty services should be finished by the machine or related institutes.

Troubleshooting of this series of machines

Fault	Possible cause	Solution
Ice machine does not work	Not connected to the power supply or water supply.	1. Fuses 2. Power switch Cable 4. Water switch 5 Power plug 6. Sockets
	Ice tray baffle remain open	If the ice tray baffle cou open and close automatica
The machine stops 3 minutes after it's turned on	High Voltage Protection	1. High temperature environment 2. Dirty condenser filter 3. Damaged fan motor
The machine car only make one tray of ice every time it is turned on	Ice full or ice tray b remains open	1. If the ice tray baffle o open and close automatica 2. The ice full switch who be falls
Ice could not fa off the ice tray	Dirty Ice Tray	Cleaning and disinfection needs to be done
	Machine not placed a level ground	Adjust the machine to a l ground
	Environment temperature is too lo	Environment temperature should be higher 5 °C
	The ice is too thick	Adjust tee ice thickness parameter to below 0
	Faulty Solenoid valve	Replace the solenoid valve
Ice too thin or complete	Tank water level is low	Check the water level che if there is any leakage
	Inlet valve does not work	Check the inlet valve
	Not enough water pressure	Water pressure must be 0.13 - 0.55Mpa
	Water pipes are blocked	Check the pipes and join for dirt
Ice making is slow	Condenser is dirty	Clean the condenser
	Temperature too high or the ventilation is t	Ambient temperature should not exceed 40 °C, and ensure ventilation
	The float ball in tank too high or there is leakage	Adjust the float ball or replace the water tank
	Water tank leakage	Replace water tank
	Inlet valve could not closed tightly or leakage	Clean or replace the inle valve
	Not enough space around the machine	Provide adequate space
Ice full indicator light is lit up b there is no ice	Faulty ice tray baffle	Check if the ice tray baffl stuck
E1 Alarm	Ambient temperature sensor get broken	Replace ambient temperature sensor
E2 Alarm	Return air temperature sensor get broken	Replace return air temperatuer sensor
E1,E2 Alarm	Ambient temperature sensor and return ai temperature sensor both get broken	1.replace ambient temperature sensor and return air temperature sensor2provide enough space

Circuit diagram

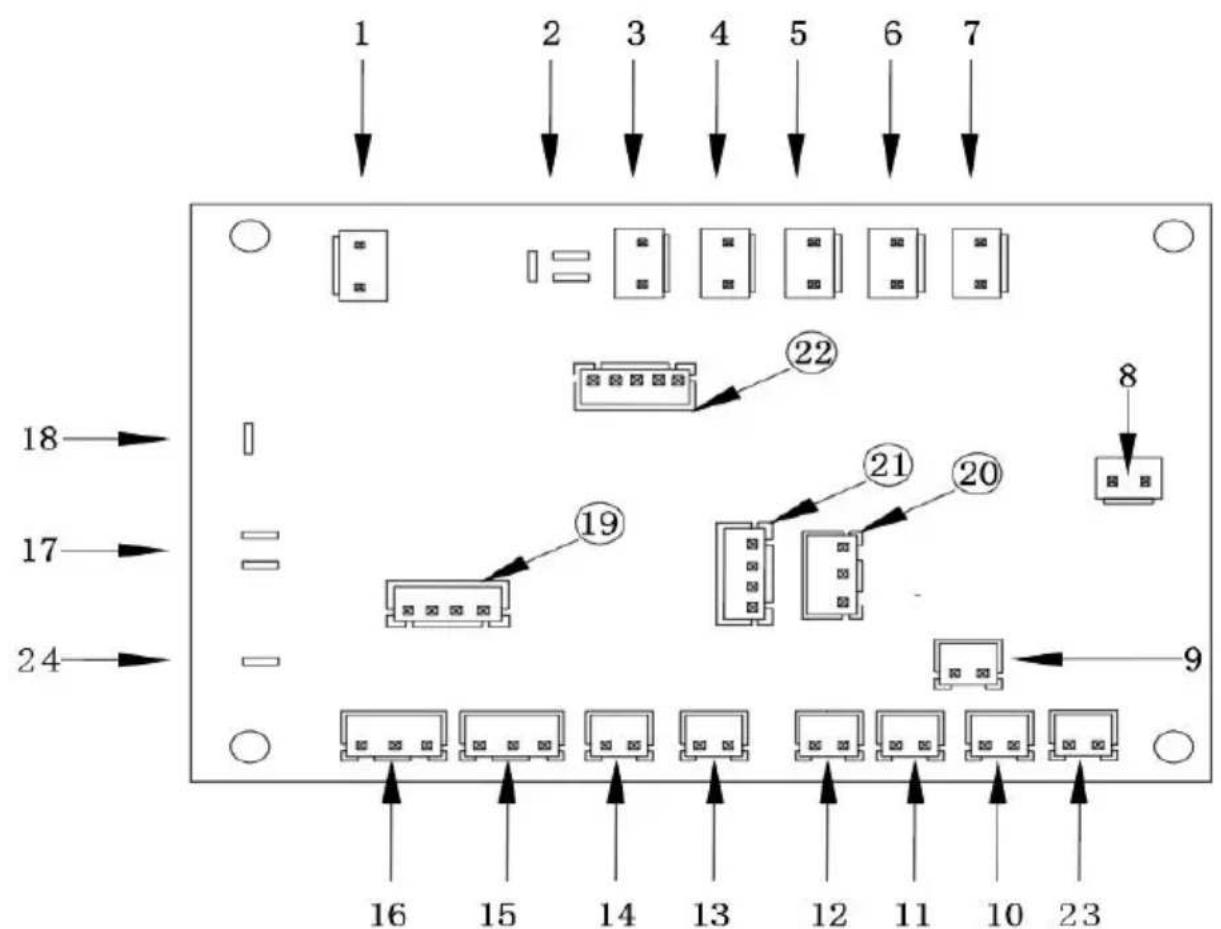

Small ice maker mother board wiring diagram.

1. Elementary Transformer Pavilion
2. Zero line
3. De-icing valve
4. Water pump
5. Fan
6. Inlet valve
7. Drain valve
8. Transformer Secondary
9. Ambient Light
10. Blue light
11. Float
12. Evaporation probe
13. Condensation probe
14. Drainage options
15. Blue light control
16. De-icing detection
17. Connect live wire
18. Compressor live wire
19. Connect to Swift serial port
20. Ice full probe
21. Download port
22. Display screen
23. Direct current fan
24. Connect machine

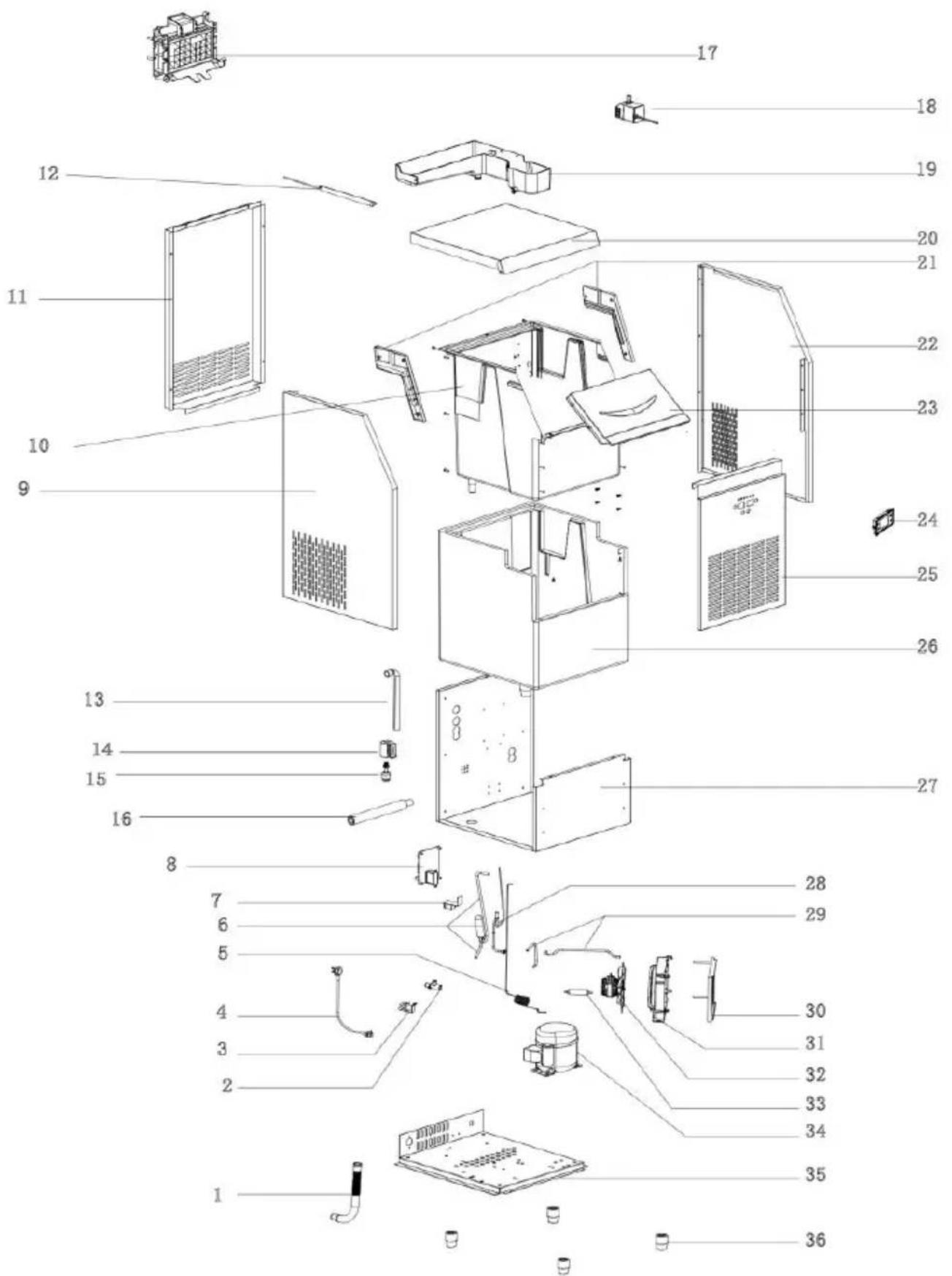

PRODUCT EXPLOSION DIAGRAM

Reference number	Part name	Reference number	Part name
1	Inner tank drain pipe	19	Water tank / Water trough
2	Drain outlet	20	Top cover panel
3	Water inlet valve	21	Left and right slide
4	Power cord	22	Right side panel
5	Capillary tube	23	Door panel
6	Liquid reservoir	24	Display screen
7	Solenoid valve coil	25	Front panel
8	Control board	26	Inner tank foam insulation
9	Left side panel	27	Rear panel
10	Inner tank	28	Solenoid valve
11	Rear air vent cover	29	High-pressure tube
12	Blue light LED	30	Condenser
13	Water pump discharge pipe	31	Fan cover
14	Float cove	32	Fan
15	Float ball	33	Filter
16	Ice tray water supply	34	Compressor
17	Ice tray	35	Base plate
18	Water pump	36	Machine feet

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C SSX160V SSX200V SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

The warning diagram and operation safety instruction

Place should be stable

Smooth ventilation

Avoid sun and rain

Ensure enough distance

Installation instructions

The instruction of quick installation for the filter

The installation for the pipeline and joint

(1) 1. Take off the blue clip

(2) 2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

(3) 3. Fix the blue clip on

(4) 4. Finished installation

Operating Instructions

Cleaning of the major components

Troubleshooting of this series of machines

PRODUCT EXPLODED VIEW

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

The warning diagram and operation safety instruction

Installation instructions

All-in-One-Installation

The instruction of quick installation for the filter

The installation for the pipeline and joint

(1) 1. Take off the blue clip

(2) 2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

(3) 3. Fix the blue clip on

(4) 4. Finished installation

Operating Instructions

Cleaning of the major components

Troubleshooting of this series of machines

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C, SSX160V, SSX200V, SSX265V, SSX360V, SSX440V, SSX80, SSX90, SSX100, SSX110, SSX120, SSX130, SSX140, SSX300, SSX440

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning diagrams and operation safety instructions

Prohibition mark	Warning mark	Beware of fire	Dangerous voltage
Indicates a prohibited act that could cause fatal injury or serious injury	Indicates matters that may cause personal injury or damage to items	Indicates that the material used is a combustible material, beware of fire	Indicates a high-voltage electric danger zone, beware of high-voltage electricity

Note: Be sure to keep this manual in a location that users can

access at any time.

Safe operation precautions.

Caution	After receiving the goods, you have to let the com lubricating oil settle for 24 hours to start the use, it will easily damage the compressor.
	Do not use the ice machine in the open air. Whe machine is wet by rain, it may cause electric leaf electric shock.
	Never place this ice machine in a wet location or subject to splashing water. Damage to the insulation ice machine may cause electric leakage or electric
	Never spray water directly onto the ice machine. A machine may cause electric shock or short circu
⊗	Be sure not to put volatile or flammable substance the ice machine. Storage of such materials may cause explosion or fire.
△	The ice machine should only be installed by qua engineers or maintenance personnel. Installing the machine by yourself may cause gas or liquid lead electric shock or fire.
⊗	Never disassemble, repair, or modify the ice machine such work is performed by unqualified personnel, in cause fire or personal injury due to work failure.
⊗	Never ground the ice machine through a gas pipe mains, telephone line or lightning rod. This is cons unsafe to ground.
⊗	Never insert metal materials such as iron pins or v the vents, passage holes or exhaust ports for air c in the tank. This may result in electric shock or injury due to accidental operation of moving par
△	Be sure to place the ice machine firmly on a sol the floor is not strong enough or not placed proper cause damage due to the ice machine being turned down or overturned.
⊗	Be sure to use the dedicated power supply specif the nameplate of this ice machine. Using a branch may cause a fire.
⊗	Be sure to insert the power plug firmly into the o removing the dust. A dusty socket or improperly inserted may cause
⊗	Use a grounded outlet to prevent electric shock. unlikely event that there is no grounded outlet, grounding device must be assembled by a quali engineering technician. The socket should be in an accessible position after installation.
⊗	If there is any abnormal temperature or alarm in the any reason, you must immediately transfer the conthe box to a safe place to avoid your loss
⊗	This appliance contains flammable materials and mu disposed of and recycled by qualified personnel agencies.
⊗	Do not use mechanical equipment or other mean speed up the defrosting process except as recommended by the manufactu
△	Do not damage the refrigeration circuit.
△	Except for the type recommended by the manufactu appliance must not be used in the food storage ro appliance.
△	Use the new hose assembly that comes with the a and the old hose assembly cannot be reused.
△	When handling toxic, hazardous or radioactive mate use this ice machine in a safe place. Improper u adversely affect your health and the environmen
!	The disposal of the ice machine should be done special person. Never throw the ice machine away it be natural. This may cause the child to be shu the ice machine.
!	There are no obstructions around the appliance or embedded structure, keeping the ventilation open.
!	Unplug the power cord before cleaning, maintaining inspecting the ice machine to prevent electric sho personal injury.
!	Some models use flammable refrigerants and flamm foaming agents, beware of fire, (the product has a of fire mark). When an abnormality occurs in the product, it must be repaired by qualified personnel institutions.
!	This appliance contains a flammable blowing age cyclopentane, which must be disposed of and recyc qualified personnel and institutions.
!	Children should be supervised to ensure that children not play with the machine.
!	When the ice machine malfunctions, unplug the pc cord. Continued abnormal operation may result in e shock or fire.

Electrical safety matters

1. The working voltage of the ice maker should be consistent with the nameplate. If the voltage is not in this range, please purchase a regulator above 1000W. 2. Be sure to connect the ground wire and ground it safely. The ground wire should not be connected to the water pipe or gas pipe.
2. In order to protect the compressor, do not start the ice machine again within 10 minutes after power off or shutdown.
3. Please do not connect other electrical appliances to the same socket. 5. If the power cord is damaged, in order to avoid danger, it must be replaced by a person arranged by the manufacturer or a qualified professional.
4. The electrical control system has a voltage of more than 36V. Do not open and touch when used. If you need to repair, please contact the manufacturer or have relevant qualified technical personnel to deal with it.

WARNING: Do not operate the ice machine when a gas leak occurs in the environment in which the ice machine is located. Because the spark caused by the opening and closing of the plug or the temperature can may cause a fire, the air source should be cut off and the window opened to allow air to circulate.

Installation Precautions

Requirements for handling and moving conditions:

When transporting, the cabinet should be kept as upright as possible, with the inclination not exceeding 45 degrees at most. Do not invert or lay it horizontally.

To operate the ice machine properly and get the best performance, place the ice machine in the following conditions:

1. Solid and flat ground

Place the ice machine on a solid, level surface to avoid excessive vibration and noise.

2. Keep away from heat sources

Avoid placing the ice machine near hot equipment such as gas stoves. Heating the ice machine can cause a decrease in cooling efficiency.

3. Avoid direct sunlight

If the ice machine is installed in direct sunlight, it may cause abnormal operation and may shorten the working life of the ice machine.

4. Dry area

Avoid placing the ice machine in a wet area, for example, near a sink or a fan.

Be careful	After receiving the goods, you have to let the compressor's lubricating oil settle for 24 hours to use, otherwise it will easily damage the compres
!	If the ice machine is placed in a wet area, a switch must be installed and the ice machine is grounded. Install the disconnect switch on the pow For further information, consult the ice machine ret electrical technician.
Caution
!	Always use a plug with a grounding structure and the ice machine to prevent electric shock during
!	Replacing a grounding terminal with a water pipe provide proper grounding protection in many situa as plastic pipes are often used in plumbing.
!	Never ground the ice machine through a gas pipe is very dangerous.

Never ground the ice machine using a telephone line or lightning protection system, because if lightning strikes, a large current will be generated, which makes grounding very dangerous.

1. Ensure nothing will fall onto the ice machine.
2. Installation and operating instructions shall be provided with cautionary statements concerning the handling, moving, and use of the ice maker to avoid either damaging the refrigerant tubing or increasing the risk of a leak.
3. The installation and operating instructions shall indicate that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, as to minimize the risk of possible ignition due to incorrect parts or improper service.
4. The installation instructions shall indicate the ice maker is to be installed in accordance with the safety standard for Refrigeration systems, ASHRAE 15. In addition, the instructions shall indicate that the ice maker shall not be installed in corridors or hallways of public buildings.

Environmental conditions:

This equipment is designed in accordance with the following conditions:

1. Indoor use. 2. The altitude is not higher than 2000 meters. 3. The ambient temperature is in the range of 10°C to 32°C. 4. When the temperature is not higher than 31°C, the maximum relative humidity is 80%, and the maximum relative humidity decreases linearly with increasing temperature. 5. The main power supply voltage fluctuation does not exceed ±10% of rated voltage.

1. In accordance with the equipment installation level (overvoltage level) transient overvoltage.

This appliance is used for similar purposes such as:

-- a kitchen area in a store, office or other workplace; - Farmers as well as hotels, motels and residential environments; - Hotel environments;

Catering industry and similar non-retail applications. This appliance is not intended for general household use.

Correct operation

When using for the first time and continuous operation, please follow the rules below.

1. Connect the ice maker to a special socket (the power supply is compatible with the famous brand).
2. The ice machine needs to run for a long time to stabilize the temperature in the ice storage room, and minimize the number of door openings during this period.
3. The ice machine is surrounded by a cooling system for cooling the system. It is forbidden to block the items.
4. After completing the inspection of the operation of the ice machine, turn on the power of the ice machine and let the machine start making ice.
5. Use an independent water source for the ice machine and check it regularly to prevent low water pressure, fluctuations, or filter clogging.
6. Do not store any debris in the ice storage room, or freeze or free food in the ice storage room, and keep the ice shovel clean.
7. When the ice storage bucket is plasticized, it should be lightly opened and closed. Do not drop the door. After the ice is finished, please close the sliding door of the ice storage bin.
8. The ice machine should be kept away from heat sources. It is strictly

forbidden to use in high temperature or low temperature environments, and to avoid direct sunlight, so as not to affect the heat dissipation of the machine.

• Do not directly wash the surface of the ice machine by splashing. Otherwise, it may cause short circuit or electric leakage.
• After using the ice machine for a period of time, if it is left unused, it should be energized every 4 months for 4 to 6 hours.

Installation instructions

Due to the product being updated and classified continuously, the machine you get may not be the same as the picture in the manual. Please give your understanding. We will improve it continuously.

1. It should use filtered drinking water at normal temperature to make ice.
2. The pressure of water supply should be controlled between 30-55 psi. If the water pressure is over high, please install a relief valve. Do not let the hose be under high pressure.
3. Please connect the outside branch hose of the machine to the tap drinking water filter. The filter has a sign to show the outlet and inlet. 4. Connect the inlet of the filter to the tap of the drinking water.
4. To ensure the smooth drainage of the machine, it is important that the drainage pipeline is below the bottom surface of the machine. Drainage pipe of the machine with a drainage pump has to be lower than the bottom surface of the storage bin.

Warning

It's merely permitted to connect to the drinking water

All-in-one installation

Note: If the ice machine does not come with a filter, customers need to purchase one separately.

Filter installation instructions.

Filter installation instructions.

Filter installation instructions.

Quick installation instructions for the filter.

Installation of the pipeline and joint.

1. Remove the blue clip.

2. Flatten the orifice, insert the pipe stopper firmly, and ensure the orifice connects securely with the inner seal.

3. Replace the blue clip.

4. Installation complete.

Operating Instructions

Description of the four-button digital tube operation panel functions.

1. Power switch and defrost key: After power on, press to enter ice-making mode; during ice-making, press to enter defrost mode; in ice-making or defrost mode, press and hold for a few seconds to shut down. 2. LED light: Indicates the machine status. 3. Digital display tube.

The left digital tube displays ambient temperature and return temperature; the right digital tube shows the timing switch and ice-making time.

(4) +/- button;

Adjust the thickness of the ice cube in the working mode; In timing off or timing on and off, adjust the timing switch time; Long press the "-" button for 3 seconds to turn on or off the light.

(5) Cleaning and timing button

In standby mode, press the key continuously for 3 seconds, then it enters the cleaning mode; Press this button when starting up the countdown of the scheduled shutdown, and then click to scheduled shutdown; Press this button in the standby state to countdown of the scheduled power-on, and then click to cancel scheduled power-on; The displayed time unit is hour.

Button Operation Instructions

Operation process

1. Plug in the power, click the ice machine switch button, the ice machine starts to run.
2. Open the water inlet solenoid valve to enter the water. After the level rises, the floating ball floats up. When the water level reaches the requirement, the water inlet valve is closed, and the cleaning program runs. After the cleaning is completed, it will automatically enter the ice making cycle.
3. When the thickness of the ice cube reaches the set thickness, the deicing program starts, the solenoid valve starts to work, the water stops working, the heat enters the evaporator, and the ice cube falls about 1.5 minutes. When the ice cube falls, the ice falling baffle flips open the reed switch, when the reed switch closes again, the machine goes back into the ice making process.
4. The compressor does not stop during the entire ice making and deicing process.
5. When the ice bucket is full of ice and the magnetic reed switch closes automatically, the machine will automatically stop working. When

enough ice cubes are removed and the magnetic reed switch is close again, the machine will start up with a delay of 3 minutes and re-enter the ice making process.

Ice Cube Thickness Adjustment

1. Press and hold the "+" button for 3 seconds until the displayed temperature starts flashing. Then, press the "+" or "-" button to adjust the thickness of the ice cubes. Pressing the "+" button will display the number of minutes, with each increment of 1 minute adding to the current ice-making time, up to a maximum of 15 minutes. Each decrement of 1 minute reduces the ice-making time, with a minimum reduction of -7 minutes. Increasing the ice-making time will result in thicker ice cubes, while decreasing it will make the cubes thinner.
2. Once the ice-making time has been adjusted, the new ice-making will apply to the next batch of ice after the current batch has finished.

Click the blue light switch to turn it on, otherwise turn it off. -Scheduled power-on function

1. In the standby state, press the preset timing key to execute the 1 power-on function, the timing LED light is on, and the displayed number is the remaining power-on time, and the unit is hour.
2. In the timing power-on state, click + or - to adjust the remaining power-on time.
3. After executing the scheduled power-on, click the scheduled reservation button to cancel the scheduled power-on.

Ice full function

1. When the ice bucket is full of ice and the ice baffle cannot be clearly automatically, the machine will stop working automatically.
2. When the ice cubes are used up, the ice baffle will reset, and the machine will automatically start up after a delay of 3 minutes. If the maker stops due to fluctuations in voltage and water pressure, and does not make ice or de-ice, please first unplug the power for 5

minutes, turn on the power to test the machine. Due to the change in temperature and ambient temperature, ice may sometimes appear in the sink. If the ice is severe, please unplug the power for 10 minutes and turn on the power again.

3. When not in any setting interface, force the drainage pump to work for seconds and then end (including standby and startup) by continuously pressing the "-" button twice (effective within 2 seconds). 4. When the machine is powered on, the drainage pump automatically starts for 20 seconds every 15 minutes and then turns off. Note: The machine which is in full ice, ice making, deicing, adding water, lacking water, and short-term cleaning all belong to the startup mode.

Precautions

Please follow the requirements of this manual to maintain your machine in order to increase the reliability and longevity of this ice machine, also maintenance can avoid the over energy consumption.

1. Clean the environment around the ice machine frequently to keep clean, and do not block the louvers used for ventilation of the ice machine.
2. The shell can be cleaned with a neutral detergent, and then wipe with a soft cloth. If necessary, commercial stainless steel cleaners and polishes can be used.
3. Filters should be checked regularly and replaced with new filters immediately if damaged.
4. The water tank of the ice machine and the interior of the ice storage room can be washed directly with water pipes. Do not use too much pressure, and do not directly flush the water pump and the part above the ice tray to prevent the circuit from being soaked.
5. Maintenance of air-cooled ice machine condenser: Clean the air-cooled condenser once every three months. Use a soft brush or a vacuum with a brush to brush the condenser fins up and down along the direction of the fins to avoid damaging the fins and affecting the cooling effect.

	Any kinds of maintenance are not including to warranty.
	The filter elements should be changed regularly
	Please cut off the waterhead and electricity before clean or check the the machine.
	If there is much dirt and scale in the machine,or of pipes are blocked,please dial the telephone of at service. But, it will cost fees for the door to-door
	The air-cooled condenser warping blade is very sharpen.Be careful of getting hurt when you clear

Safety use guide of ice

Routine maintenance and inspection is especially important if the ice is to be used as edible ice.

If the ice machine has been used for a long time, the ice produced may become entrapped with scale, mold, or rust due to temperature, water quality, or aging. Therefore, it is important to keep the inside of the refrigerator clean through routine maintenance. If you find foreign matter at the bottom of the refrigerator or in the ice during operation or maintenance, please stop using the ice maker and contact the seller immediately.

1. Ice Scoop (clean once a day)

Soak the ice scoop in warm water (30~40°C) containing a disinfectant solution for more than 3 minutes, then rinse with tap water and wipe.

1. Refrigerator door (clean once a day)

Since the door of the refrigerator is susceptible to bacterial contamination, make sure to keep it clean by wiping it with a soft cloth with warm water. Refrigerator, ice scoop holder, and case (clean weekly).

Important information

1. To prevent deformation or cracking of plastic parts, avoid contact with pesticides or other oily substances.
2. Thoroughly remove the dirt or dust on the ice scooper fixing frame.

Cleaning of the major components

1. Top cover disassembly

There are six screws on the front, right sides, and back of the top cover of the machine. Use a cross screwdriver to remove these six screws counterclockwise, then gently lift the top cover plate and place it in a suitable position.

2. Removal and cleaning of water pump (clean every 2 months)

2.1 Remove the two screws above the pump support bracket with a screwdriver, then pull out the pump pumping pipe joint from the pump outlet nozzle, and remove the two screws at the bottom of the pump support with a cross screwdriver.

Figure 1 Figure 2

2.2 Remove the front cover filter (Figure 1), and the filter can be removed directly. 2.3 Rotate the cap counterclockwise and remove the cap (Figure 2). 2.4 After removing the sealing lid, remove the rotor. The rotor is fixed in the proper position by a magnet, and can be removed only by holding the water leaf with a clip or fingernail (Figure 3). 2.5 Clean it up and put the water pump back in again.

Figure 3

3. Cleaning of ice grids (clean every 2 months)

3.1 Hold the clamp on the water pipe, and then pull off the pump pipe.

3.2 Remove the two screws on the holder of the pipe with a cross screwdriver, then remove the holder and the pipe.

3.3 Wash the ice lattice surface with a soft brush or sponge dipped in vinegar or scale remover to clean up the scale.

3.4 Use a cross screwdriver to remove the fixing screw on the ice pipe, and then remove the left and right plugs and the shower pipe at the same time. Then clean the inside and outside of the shower pipe with a brush.

3.5 Clean the pump head hose with a brush.

1. 4. Wash of the float ball (wash once every 2 months)

Remove the float ball assembly from the sink slot and wash the float ball assembly with a brush.

5. Cleaning of the sink and the storage refrigerator

5.1 Dip a soft cloth in vinegar or scale remover, wipe the surface of the refrigerator, and clean the surface. 5.2 The sink is cleaned every 2 months, and the refrigerator is cleaned

once a week.

6. Daily cleaning of the waterways

6.1 Mix the right amount of citric acid solution with a clean bucket. Pour the solution into the sink, click the display screen to clear it. After cleaning, pull the tank drain plug, and then drain the citric acid solution in the tank.

6.2 Pour an appropriate amount of water into the sink, then press the key, wash for 3-5 minutes, drain the water in the tank, repeat 4-6 times. 6.3 Ensure that the waterway is cleaned every 7-15 days.

Before consulting with after-sales customer service

If the ice maker is operating abnormally, please contact after-sales customer service. However, you need to confirm the following situation: 1. If the water head is normal or not.

The correct way to check it is to loosen the inlet joint (6 branch cone) behind the machine. If it leaks normally when you loosen the joint to the required value, it means normal. Otherwise, there is no water.

1. Confirm if the machine is electrified or not.

Our ice machines are all fully automatic. So, some models don't have an electric switch. You can ask an electric technician to help you check. Mainly, you should pay attention to the socket.

1. The model number and serial number.

There is a nameplate on the front board, and there are model numbers

and serial numbers on the side board.

It will cost fees for the door to door service if caused by the users(for example,no water,no electricity,environment,etc)

To prevent from high-pressure water spraying ,do loosen the joint of the inlet completely when you o waterhead.

Plastic parts are not in including to the warrant

Warranty

1. Our company agrees the warranty of the product within 1 labor cost and the replacement of components are free within warranty.

2. All the plastic parts are not including to the warranty.

3. Our warranty is limited liabilityExcept the machine itself,any joint liability is not in the warranty.

4. The routine maintenance ,cleaning,and all the hitches from the incorrect operation are not in the warranty.

5. All the warranty services should be finished by the machine or related institutes.

Troubleshooting of this series of machines

Fault	Possible cause	Solution
Ice machine does not work	Not connected to the power supply or water supply.	1. Fuses 2. Power switch Cable 4. Water switch 5 Power plug 6. Sockets
	Ice tray baffle remain open	If the ice tray baffle cou open and close automatica
The machine stops 3 minutes after it's turned on	High Voltage Protection	1. High temperature environment 2. Dirty condenser filter 3. Damaged fan motor
The machine car only make one tray of ice every time it is turned on	Ice full or ice tray b remains open	1. If the ice tray baffle o open and close automatica 2. The ice full switch who be falls
Ice could not fa off the ice tray	Dirty Ice Tray	Cleaning and disinfection needs to be done
	Machine not placed a level ground	Adjust the machine to a l ground
	Environment temperature is too lo	Environment temperature should be higher 5 °C
	The ice is too thick	Adjust tee ice thickness parameter to below 0
	Faulty Solenoid valve	Replace the solenoid valve
Ice too thin or complete	Tank water level is low	Check the water level che if there is any leakage
	Inlet valve does not work	Check the inlet valve
	Not enough water pressure	Water pressure must be 0.13 - 0.55Mpa
	Water pipes are blocked	Check the pipes and join for dirt
Ice making is slow	Condenser is dirty	Clean the condenser
	Temperature too high or the ventilation is t	Ambient temperature should not exceed 40 °C, and ensure ventilation
	The float ball in tank too high or there is leakage	Adjust the float ball or replace the water tank
	Water tank leakage	Replace water tank
	Inlet valve could not closed tightly or leakage	Clean or replace the inle valve
	Not enough space around the machine	Provide adequate space
Ice full indicator light is lit up b there is no ice	Faulty ice tray baffle	Check if the ice tray baffl stuck
E1 Alarm	Ambient temperature sensor get broken	Replace ambient temperature sensor
E2 Alarm	Return air temperature sensor get broken	Replace return air temperatuer sensor
E1,E2 Alarm	Ambient temperature sensor and return ai temperature sensor both get broken	1.replace ambient temperature sensor and return air temperature sensor2provide enough space

Circuit diagram

Small ice maker mother board wiring diagram.

1. Elementary Transformer Pavilion
2. Zero line
3. De-icing valve
4. Water pump
5. Fan
6. Inlet valve
7. Drain valve
8. Transformer Secondary
9. Ambient Light
10. Blue light
11. Float
12. Evaporation probe
13. Condensation probe
14. Drainage options
15. Blue light control
16. De-icing detection
17. Connect live wire
18. Compressor live wire
19. Connect to Swift serial port
20. Ice full probe
21. Download port
22. Display screen
23. Direct current fan
24. Connect machine

PRODUCT EXPLOSION DIAGRAM

Reference number	Part name	Reference number	Part name
1	Inner tank drain pipe	19	Water tank / Water trough
2	Drain outlet	20	Top cover panel
3	Water inlet valve	21	Left and right slide
4	Power cord	22	Right side panel
5	Capillary tube	23	Door panel
6	Liquid reservoir	24	Display screen
7	Solenoid valve coil	25	Front panel
8	Control board	26	Inner tank foam insulation
9	Left side panel	27	Rear panel
10	Inner tank	28	Solenoid valve
11	Rear air vent cover	29	High-pressure tube
12	Blue light LED	30	Condenser
13	Water pump discharge pipe	31	Fan cover
14	Float cove	32	Fan
15	Float ball	33	Filter
16	Ice tray water supply	34	Compressor
17	Ice tray	35	Base plate
18	Water pump	36	Machine feet

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

The warning diagram and operation safety instruction

Installation instructions

The instruction of quick installation for the filter

The installation for the pipeline and joint

(1) 1. Take off the blue clip

2. Make the orifice flat, insert the pipe stopper firmly, and make sure the orifice connects to the inside seal firmly.

3. Fix the blue clip on.

4. Finished installation.

Operating Instructions

Cleaning of the major components

1. Cover disassembly

Troubleshooting of this series of machines

Product Exploded Diagram

Affordable. Reliable. Home Improvement.

Ice Machine

Model: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

The warning diagram and operation safety instructions

Place should be stable

Smooth ventilation

Avoid sun and rain

distance

Installation instructions

The instruction of quick installation for the filter

The installation for the pipeline and joint

(1) 1. Take off the blue clip

(2) 2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

(3) 3. Fix the blue clip on

(4) 4. Finished installation

Operating Instructions

cleaning of the major components

1. To open the top cover for disassembly

Troubleshooting of this series of machines

Affordable. Reliable. Home Improvement.

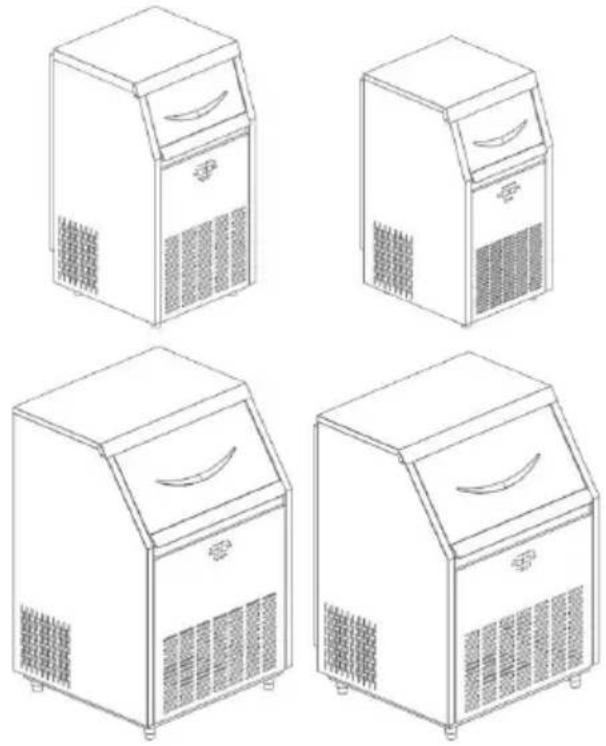

ICE MACHINE

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

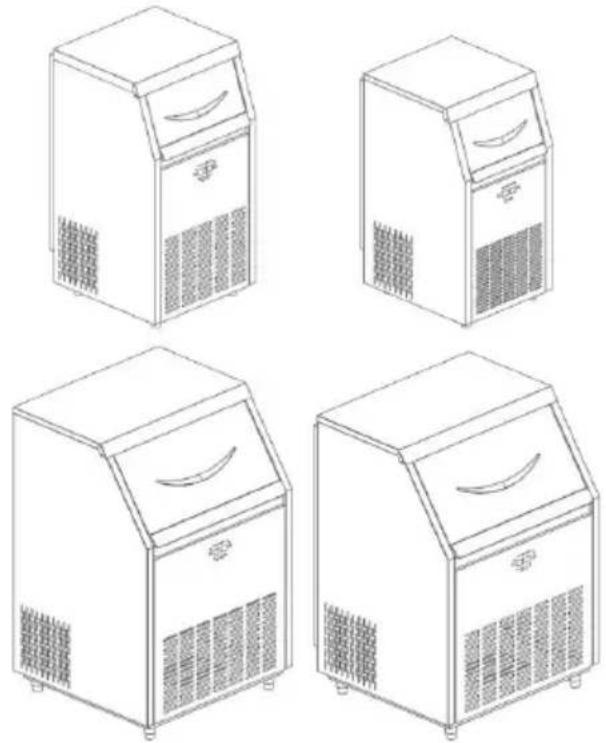

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

Warning diagram and operation safety instructions

Place should be stable

Smooth ventilation

Avoid sun and rain

Ensure enough distance

Installation instructions

Quick installation instructions for the filter

Installation of the pipeline and joint

(1) 1. Take off the blue clip

(2) 2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice connects to the inside seal firmly.

(3) 3. Fix the blue clip on

(4) 4. Finished installation

Operating instructions

Cleaning of the major components

Troubleshooting of this series of machines

ICE MACHINE

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

ICE MACHINE

MODEL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 \ SSX140 \ SSX300 \ SSX440

The warning diagram and operation safety instruction

Installation instructions

Drain pipe connector Bottom surface of the storage bin.

Quick installation instructions for the filter

Installation of the pipeline and joint

(1) 1. Remove the blue clip

(2) 2. Flatten the orifice, insert the pipe stopper firmly, and ensure that the orifice connects securely with the inside seal.

(3) 3. Secure the blue clip

(4) 4. Installation complete

Operating Instructions

Cleaning of the major components

1. Top cover disassembly

Troubleshooting for this series of machines

Product explosion diagram
