LAWN MOWER LIFT

MODEL:SX2800

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SX2800

Technical line drawing of two identical mechanical support structures with vertical supports and horizontal connectors (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soI updates on our product.

GENERAL GUIDELINES & SAFETY

• It is the user's responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product's owner to furnish the instructions to person that borrows or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all are in safe working order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions.
• Please use common sense and practice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
• Do not exceed the rated weight capacity of 880 lbs.
• Always ensure the mower wheels fit properly into the wheel cradles before lifting.
• Secure the mower with tie down straps (sold separately) before lifting.
• Store the lift in a safe, dry place.

SPECIFICATIONS

MAXIMUM CAPACITY	880lbs(400kg)
LIFT RANGE	0-23.6inch(0-600mm)

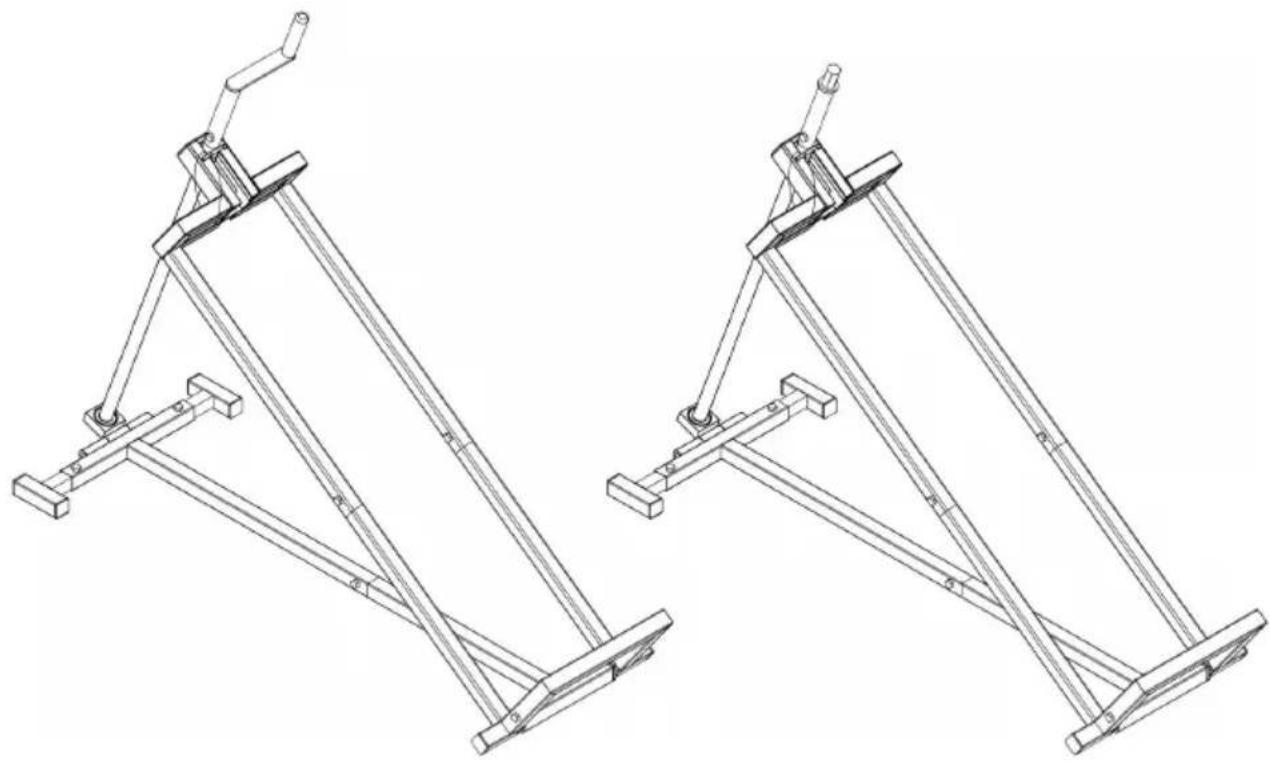

ASSEMBLED PRODUCT

13、14 3 17 2 1

Step 1.

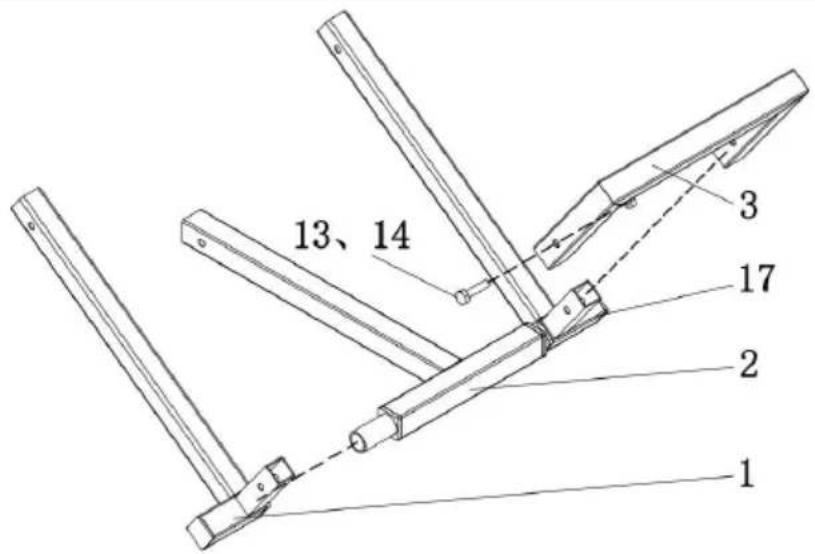

Attach [1] Connecting Pipe 1#, [3] Blocking Tube and [17] Connecting [2] Intermediate Connecting Pipe using [13] Bolt M8x40 and [14] Nut

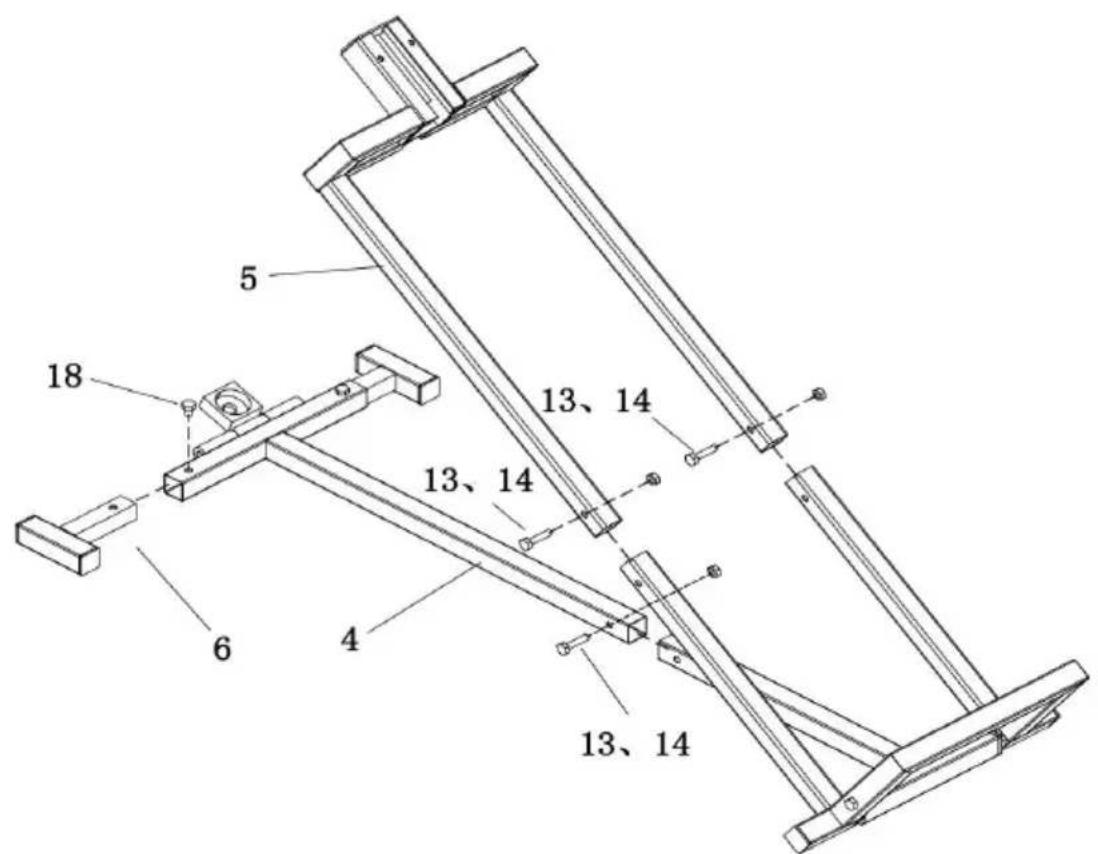

Attach [6] Extension Tube to [4] Blocking Tube using [18] Bolt M8x16. Attach [4] Blocking Tube and [5] Support Tube# to Step 1 Assemble completed component using [13] Bolt M8x40 and [14] Nut M8.

7 10 22 12 11

Step 3.

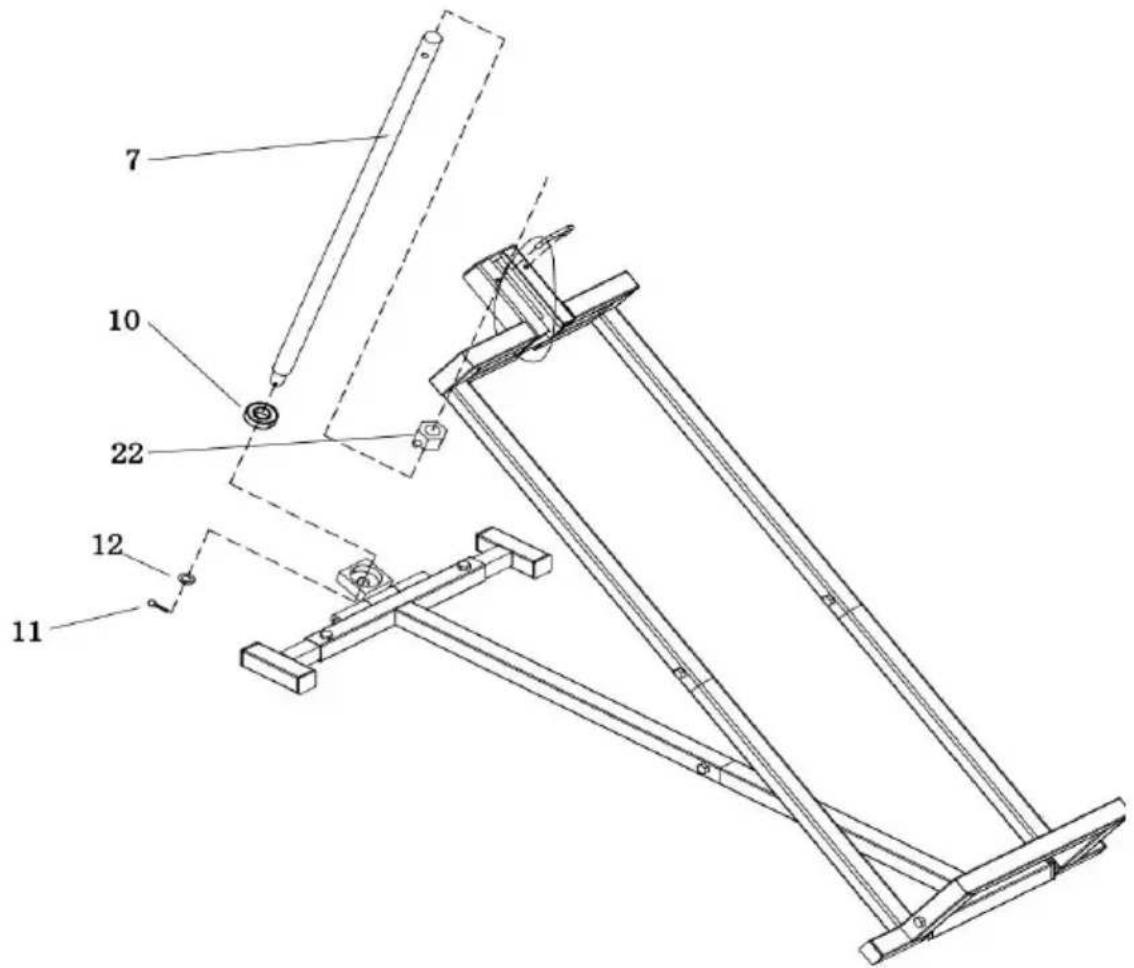

Attach [22] Tr24X6 Nut, [7] Screw, [10] Bearing, [12] Washer and [11] to Step 2 Assemble the completed component.

15、14 9 8 19 20 21

Step 4.

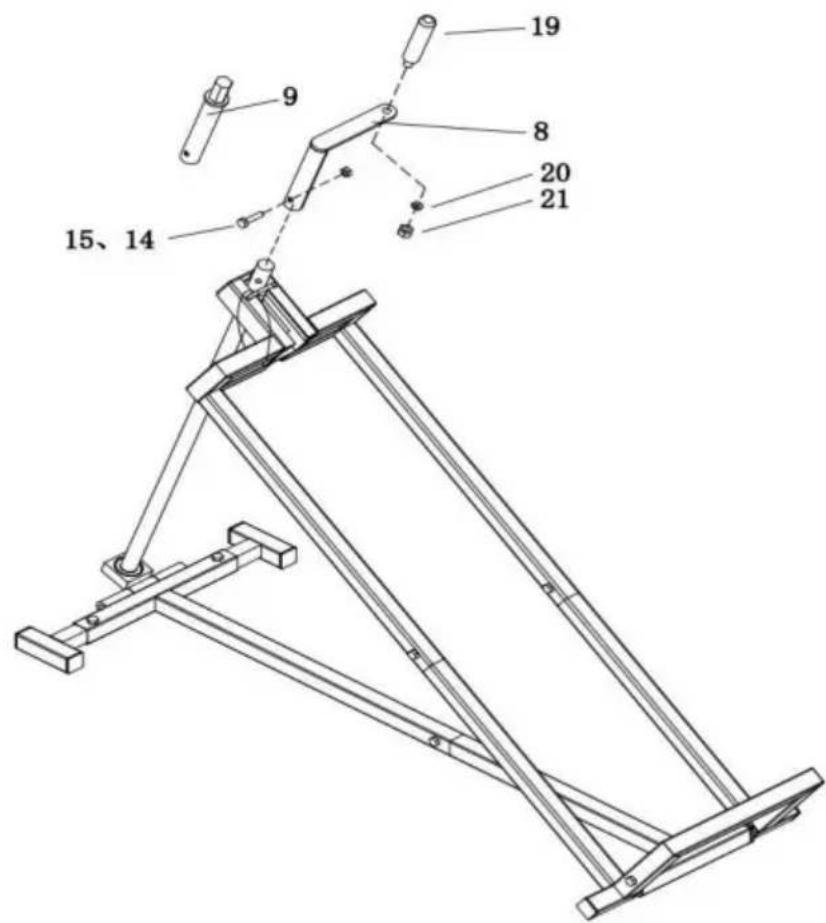

Attach [19] Handle to [8] Shake Handle 1# using [20] Spring Washer Nut M12.

Attach [8] Shake Handle 1# to Step 3 Assemble the completed compo [15] Bolt M8x35 and [14] Nut M8.

LIFTING and LOWERING

Step 1. Use tie-down straps (sold separately) to secure the load.

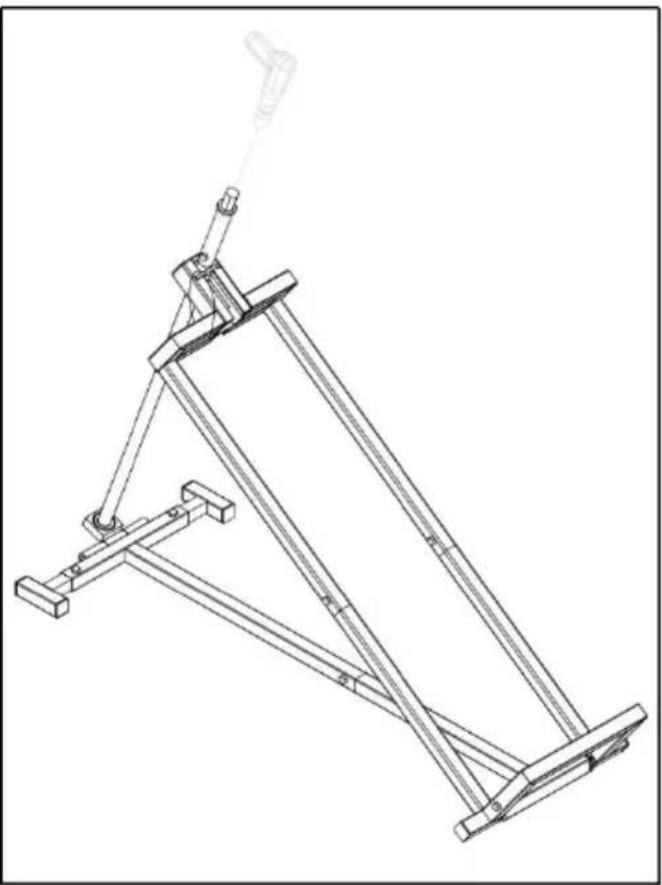

Step 2. Swivel the [19] Handle slowly to raise the lift. When the lift makes contact with the load, make sure the load sits evenly on the lift before raising the load is not evenly distributed on the lift or not secured in place with tie straps, it may fall from the lift, resulting in personal injury and property damage. Step 3. Negative direction swivel the [19] Handle slowly to lower the lift.

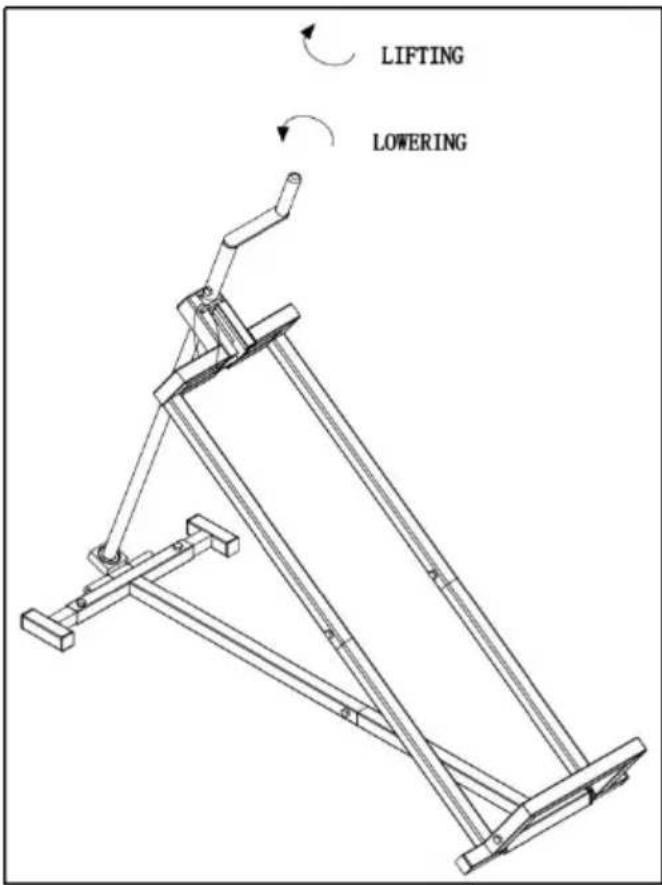

LIFTING LOWERING

Technical line drawing of a mechanical support structure with articulated arms and a vertical rod (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of two identical mechanical frame structures with no text or symbols

BESOIN D'AIDE ? CONTACTEZ-NOUS!

www.vevor.com/support

Technical diagram of a mechanical device with numbered components, likely a ladder or support structure.

LIFTING LOWERING

Technical line drawing of a mechanical support structure with no visible text or symbols

Fabricant: Shanghaimuxinmuyeyouxiangongsi Adresse:
Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD

NSW 2122 Australie

Rancho Cucamonga, CA 91730

REPRÉSENTANT DU ROYAUME-UNI

YH CONSULTING LIMITÉE. C/O YH Consulting Limited

Bureau 147, Centurion House, London Road, Stainesupon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of two identical mechanical frame structures with no text or symbols

Technical diagram of a mechanical device with numbered components, likely a ladder or support structure.

Schritt 3.

LIFTING LOWERING

Technical line drawing of a mechanical support structure with no visible text or symbols

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Vertreter der E0

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of two identical mechanical frame structures with no text or symbols

www.vevor.com/support

Technical diagram of a mechanical device with numbered components, likely a ladder or support structure.

Passaggio 3.

LIFTING LOWERING

Technical line drawing of a mechanical support structure with no visible text or symbols

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francoforte sul Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of two identical mechanical frame structures with no text or symbols

Technical diagram of a mechanical device with numbered components, likely a ladder or support structure.

Paso 3.
Coloque [22] tuerca Tr24X6, [7] tornillo, [10] cojinete, [12] arandela y [11] pasador de chaveta. al Paso 2 Ensamble el componente completo.

15、14 9 8 19 20 21

Paso 4.

Conecte la manija [19] a la manija [8] Agite 1# usando la arandela de resorte [20] y la [21] Tuerca M12.

Conecte [8] Mango batidor 1# al paso 3. Ensamble el componente completo usando [15] Perno M8x35 y [14] Tuerca M8.

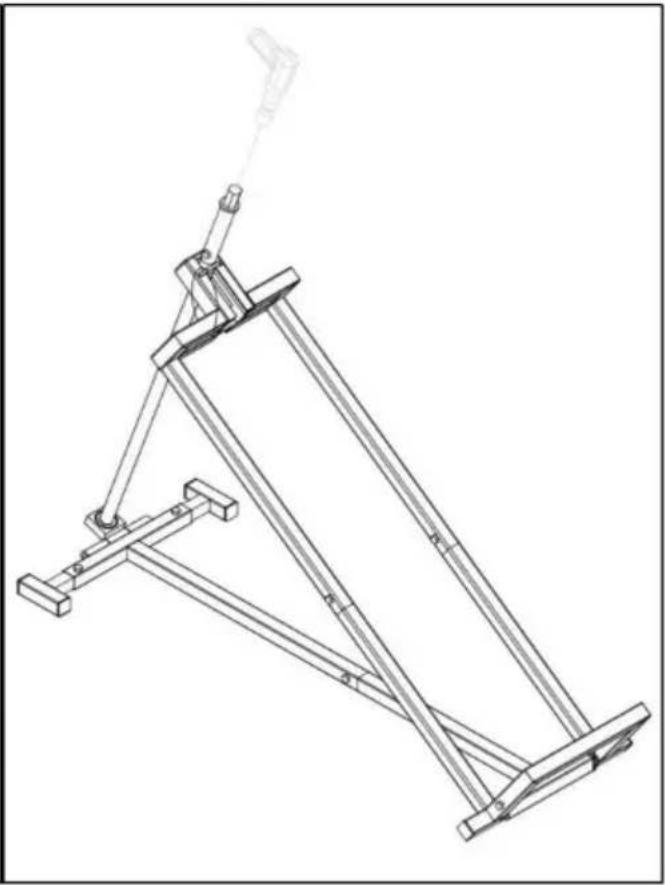

SUBIR Y BAJAR
