USER MANUAL YMCT-2011 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GREENHOUSE SPRING WIRE AND LOCK CHANNEL

MODEL: YMCT-2011

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: YMCT-2011

Illustration of a multi-layered metal frame structure with wavy black insulation pattern below (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

INSTALLATION NOTES

NOTES:

1. The installation can be adjusted according to the actual situation on site.
2. Please select an experienced installation master for installation.
3. The arch rod of this design is assembled by the joint of the shrink-able
4. To ensure the correct assembly, please carefully study the design structure then assemble.
5. When installing, use power screw tools and wear gloves to avoid injuries.
6. Carefully read this installation manual and confirm the quantity of accessories according to the list.

MODEL AND PARAMETERS

Model	YMCT-2011
Product size	30*11*2000mm
Material	Aluminum Alloy
Channel Thickness	1.5mm

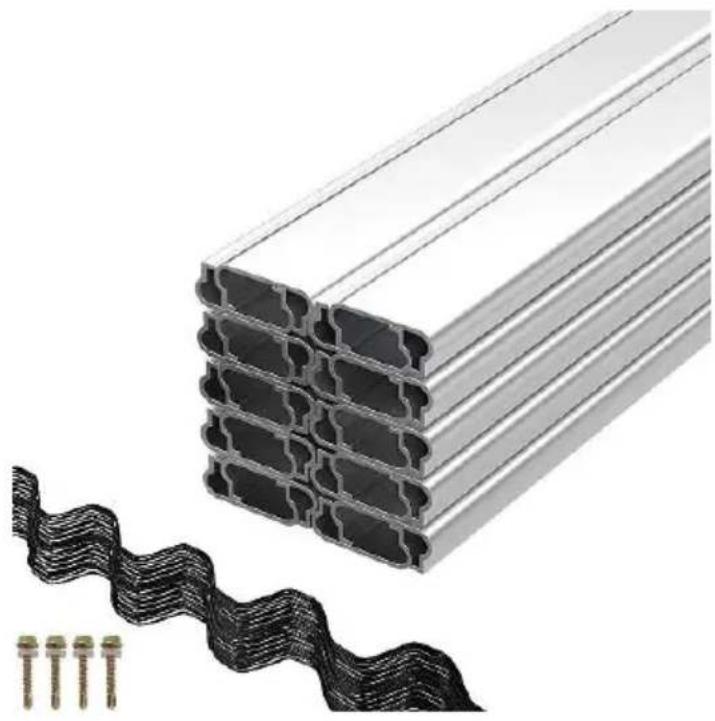

COMPONENTS

Spring Wire		10pcs/20pcs/30pcs/40pcs/50pcs
Lock Channel		10pcs/20pcs/30pcs/40pcs/50pcs
Screws		40pcs/80pcs/120pcs/160pcs/200pcs

ASSEMBLY

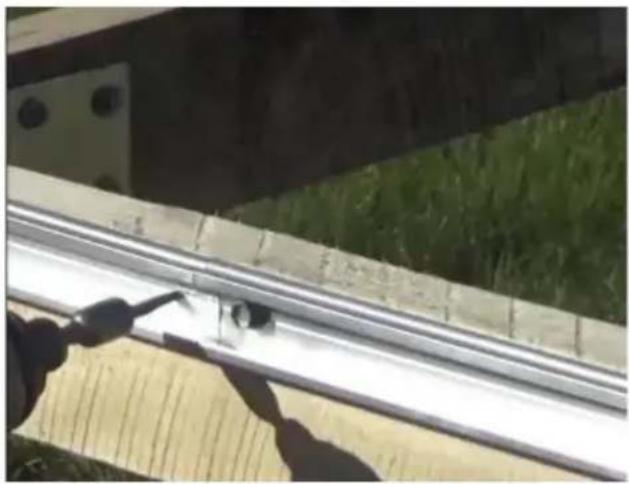

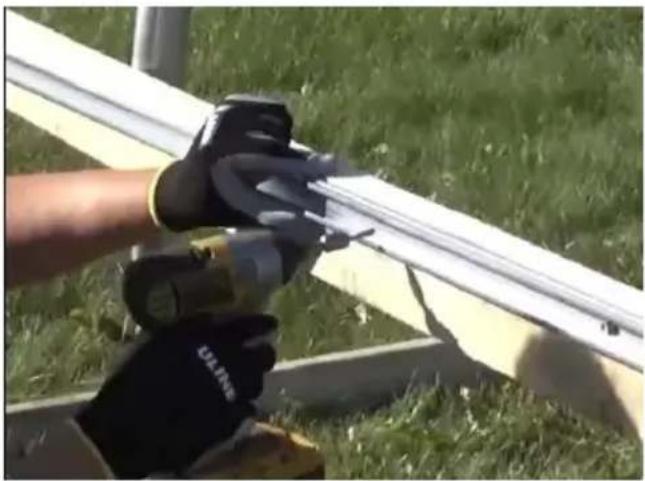

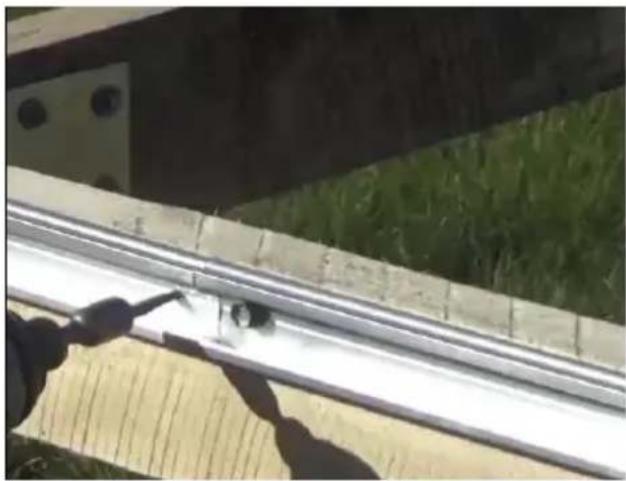

Step 1: Firstly, use a power screw tools to screw the channel in pla

Person in gloves handling white PVC pipes outdoors on grass (no text or symbols visible)

Close-up of a metallic metal beam mounted on a concrete ledge, with grass and a dark wall in the background (no text or symbols visible)

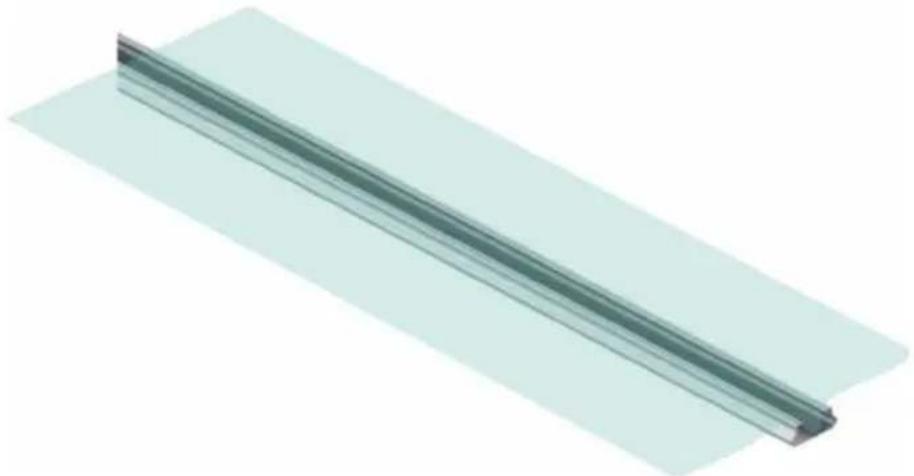

Step 2: Cover the film over the lock channel.

Pure diagram of a diagonal line intersecting a rectangular plane, no text or symbols present

Step 3: Insert one side of the wiggle wire into the inside of the loc channel.

3D diagram of a mechanical component with blue and orange lines, no text or symbols present

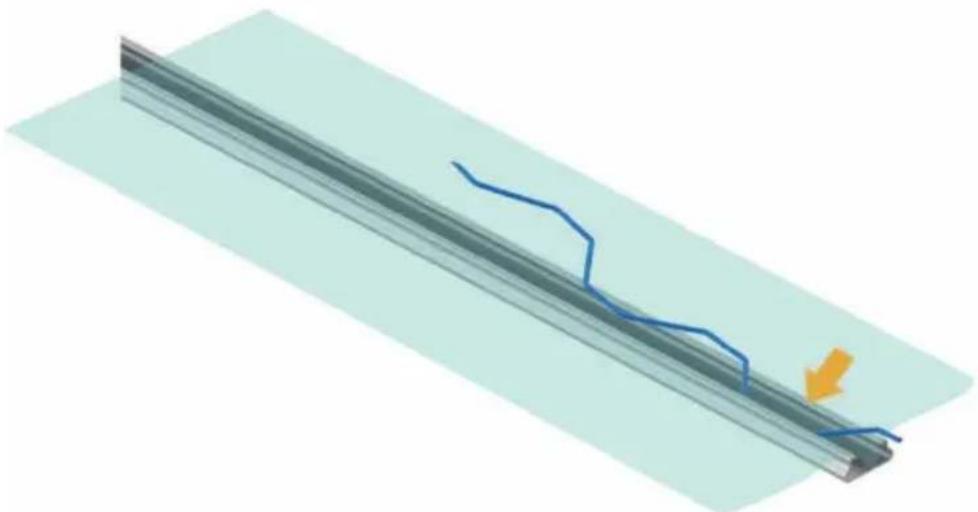

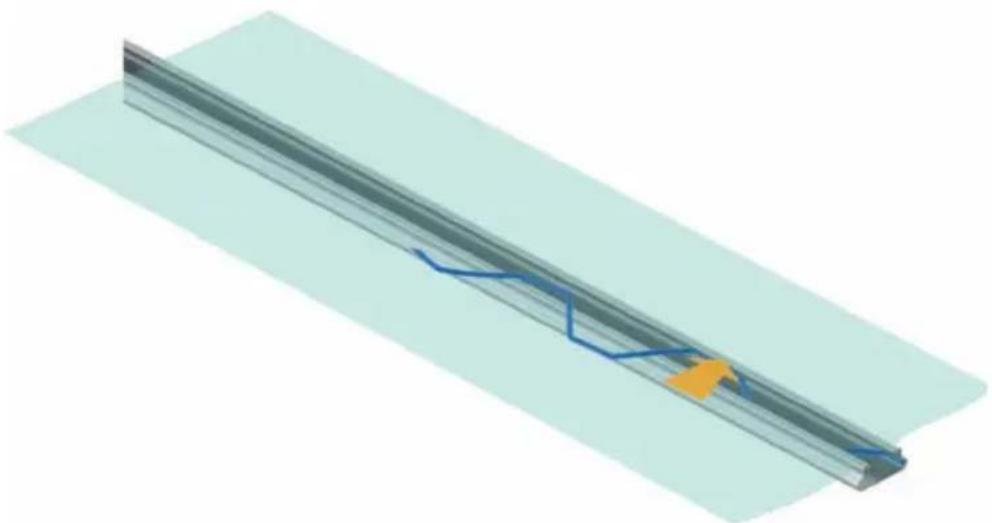

Step 4: Insert another side of the wiggle wire into the inside of the channel.

Isometric view of a diagonal metal beam with a blue zigzag line and a yellow arrow indicating direction (no text or symbols)

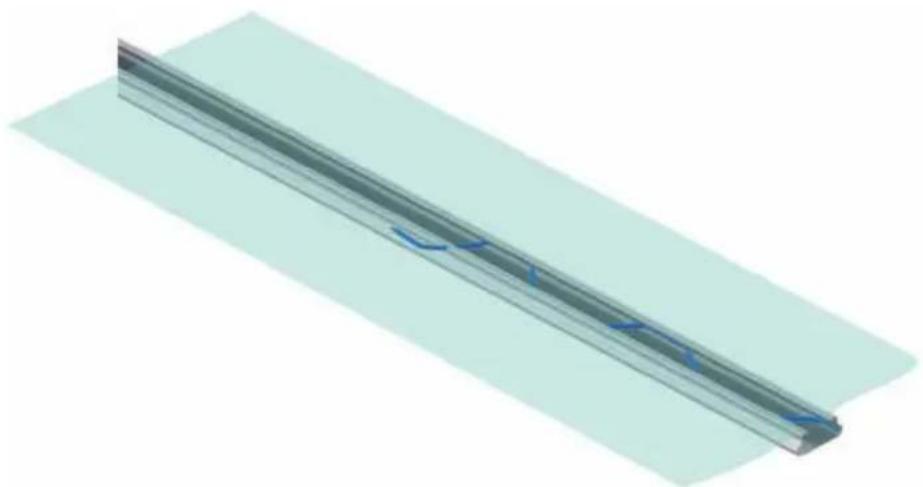

Step 5: Insert the wiggle wire one by one into the lock channel to film.

3D rendering of a long, segmented metal beam with blue wavy markings on its side (no text or symbols)

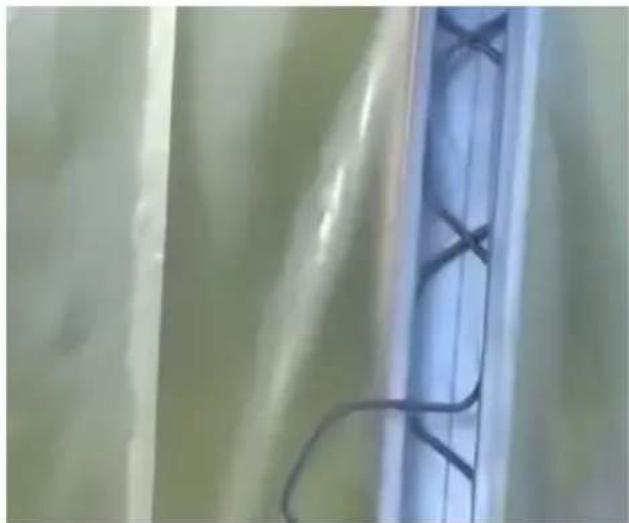

Finally, the installation is complete when the circlip is inserted all the into the channel.

Close-up of a blue fabric with black stitching and visible seams, against a blurred background (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion Hou London Road, Staines-upon-Thames, Surrey, TW18 4A
