Brand	Vevor
Model	QYP66IN
Product Type	Driveway Drag (gardening tool)
Intended Use	Leveling and smoothing gravel on driveways
Working Width	66 inches (1670 mm)
Color	Black
Maximum Load	50 lbs (22.7 kg)
Main Material	Steel
Assembly Required	Yes, user assembly according to instructions
Vehicle Attachment	By tab, hook pin, and hitch pin
Product Weight Capacity	Do not exceed 50 lbs
Safety Precautions	Wear ANSI safety glasses and heavy-duty gloves during assembly
Usage Prohibitions	Do not sit or stand on the item
Operating Environment	Flat, level, hard, and smooth surface
Pre-Use Inspection	Check that no parts are loose or damaged
Cleaning	Clean with a damp cloth after use
Storage	In a dry place, protected from weather
Estimated Net Weight	Approximately 15 kg (33 lb)
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support

Frequently Asked Questions - QYP66IN Vevor

How to assemble the QYP66IN driveway drag?

Assembly is done by connecting the steel bars with the steel angles, then installing the tab, hook pin, and hitch pin, and finally attaching the assembly to the vehicle. Wear safety glasses and heavy-duty gloves during assembly.

What is the maximum weight supported by this tool?

The maximum load is 50 lbs (22.7 kg). Never exceed this limit to avoid risk of injury or damage.

On what type of surface can the QYP66IN be used?

Use it only on a flat, level, hard, and smooth surface that can safely support the loaded drag. Avoid rough or loose terrain.

Can this tool be used with any vehicle?

It is designed to be attached to a vehicle via the tab and pins. Make sure your vehicle has a compatible hitch and that the attachment is secure before use.

Does the tool need to be assembled before first use?

Yes, assembly is required. Follow the step-by-step instructions provided in the manual. Incorrect assembly can create hazards.

How to maintain and clean the driveway drag?

After each use, clean it with a damp cloth to remove dirt and debris. Store it in a dry place to prevent rust. Regularly inspect parts for any signs of wear.

Is it safe to let children play near this tool?

No, this product is not a toy. Do not let children play on or near the drag during use or storage.

What to do if a part is damaged or missing?

Do not use the tool if parts are loose or damaged. Contact technical support at www.vevor.com/support for assistance or replacement parts.

Can I sit or stand on the drag?

No, it is strictly prohibited. Do not sit or stand on this item. It is designed only to be towed behind a vehicle.

Where can I find the user manual in French?

The original user manual is available for free download at notice-facile.com for the Vevor model QYP66IN. You can also visit www.vevor.com/support for technical support.

USER MANUAL QYP66IN Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

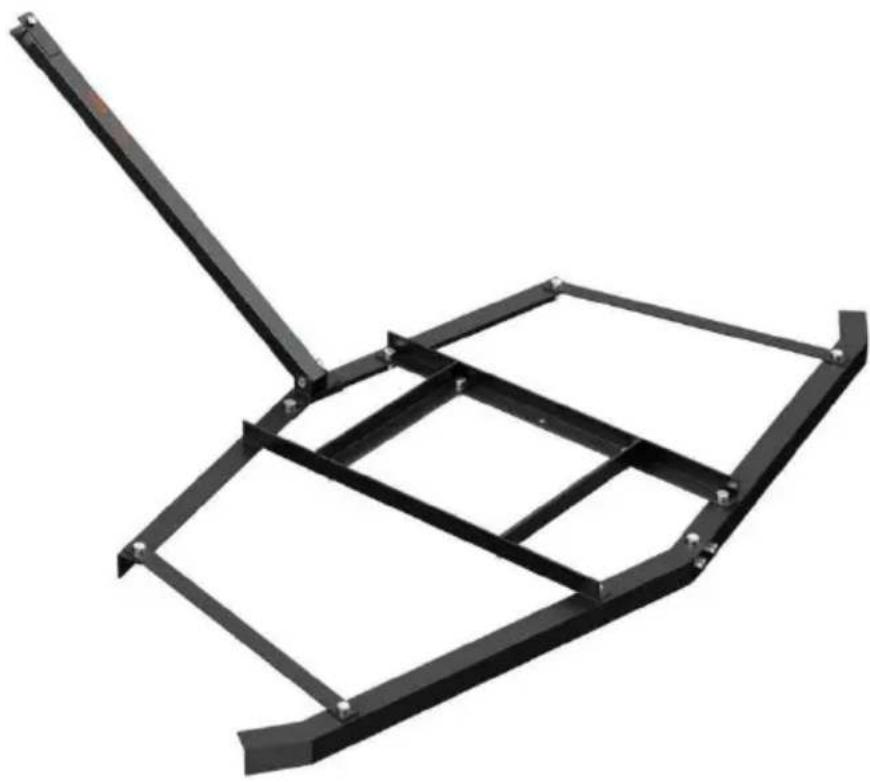

DRIVEWAY DRAG

USER MANUAL

MODEL: QYP74IN/QYP66IN

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DRIVEWAY DRAG

MODEL: QYP74IN/QYP66IN

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

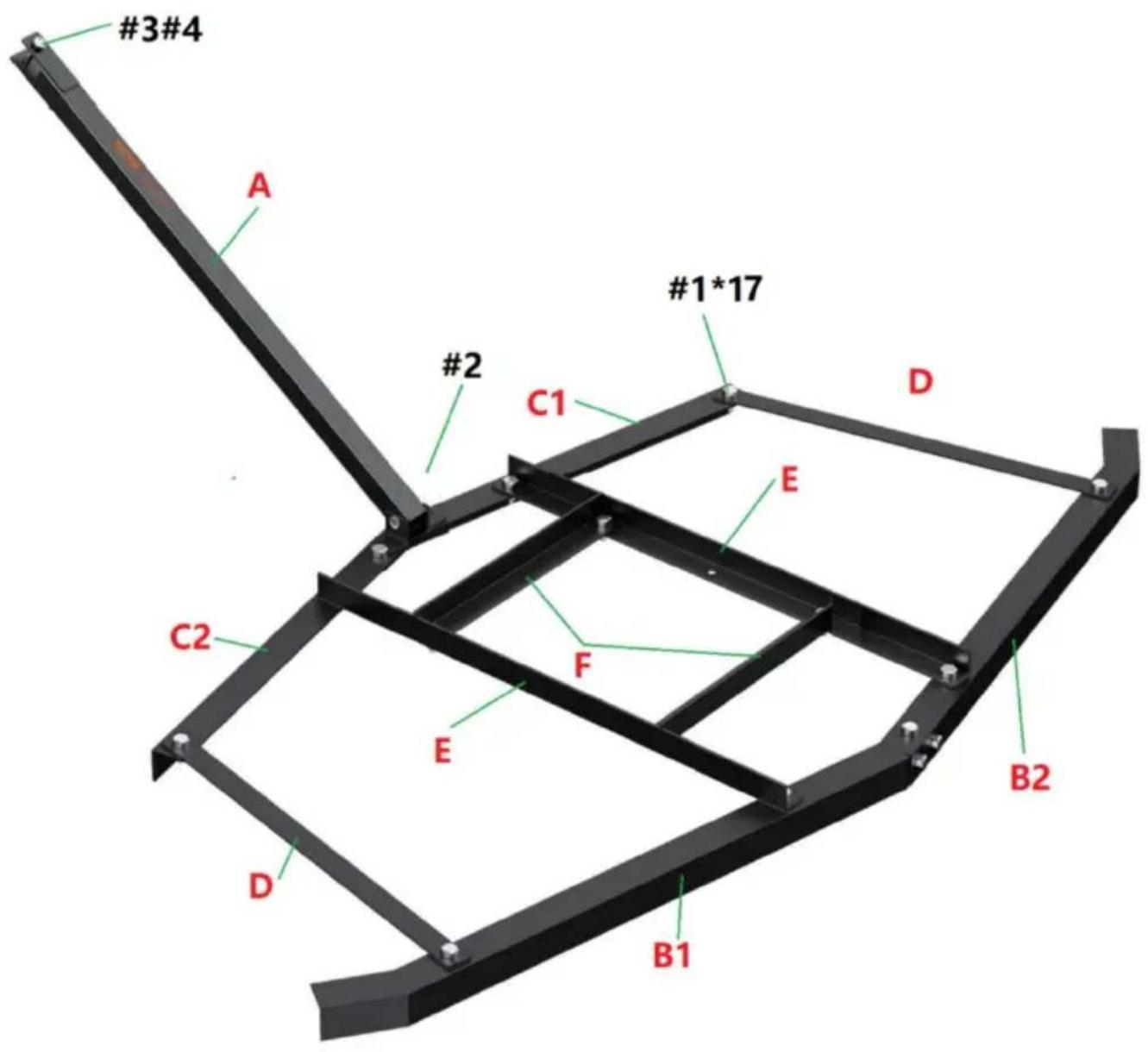

PARTS LIST

1*17

2

3

4

PRODUCT PARAMETERS

Model	QYP74IN
Maximum load	50 LBS
Colour	Black
Working width Size	74inch/1880mm

Model	QYP66IN
Maximum load	50 LBS
Colour	Black
Working width Size	66inch/1670mm

ASSEMBLY STEPS

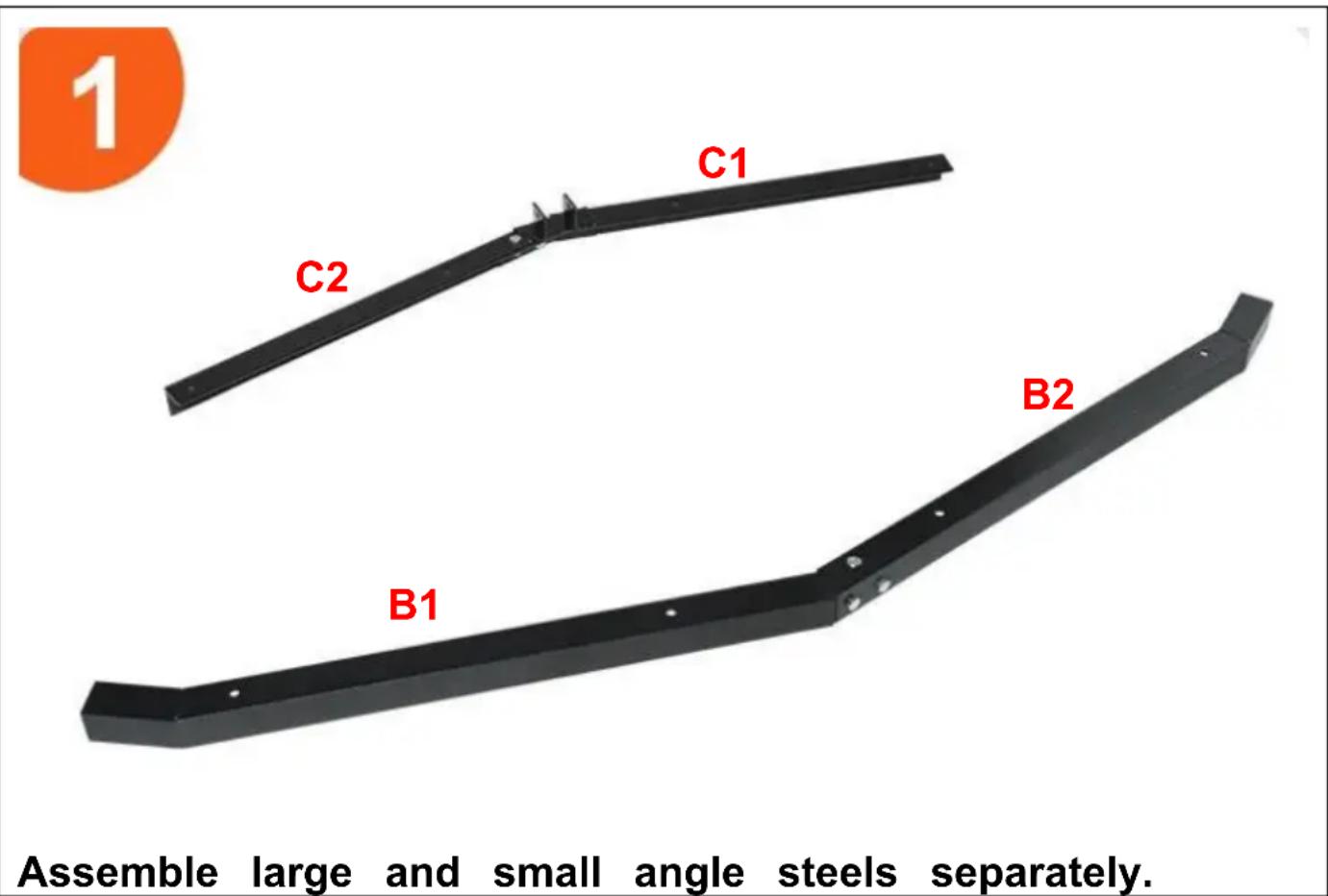

Connect the steel bars with the angle steels.

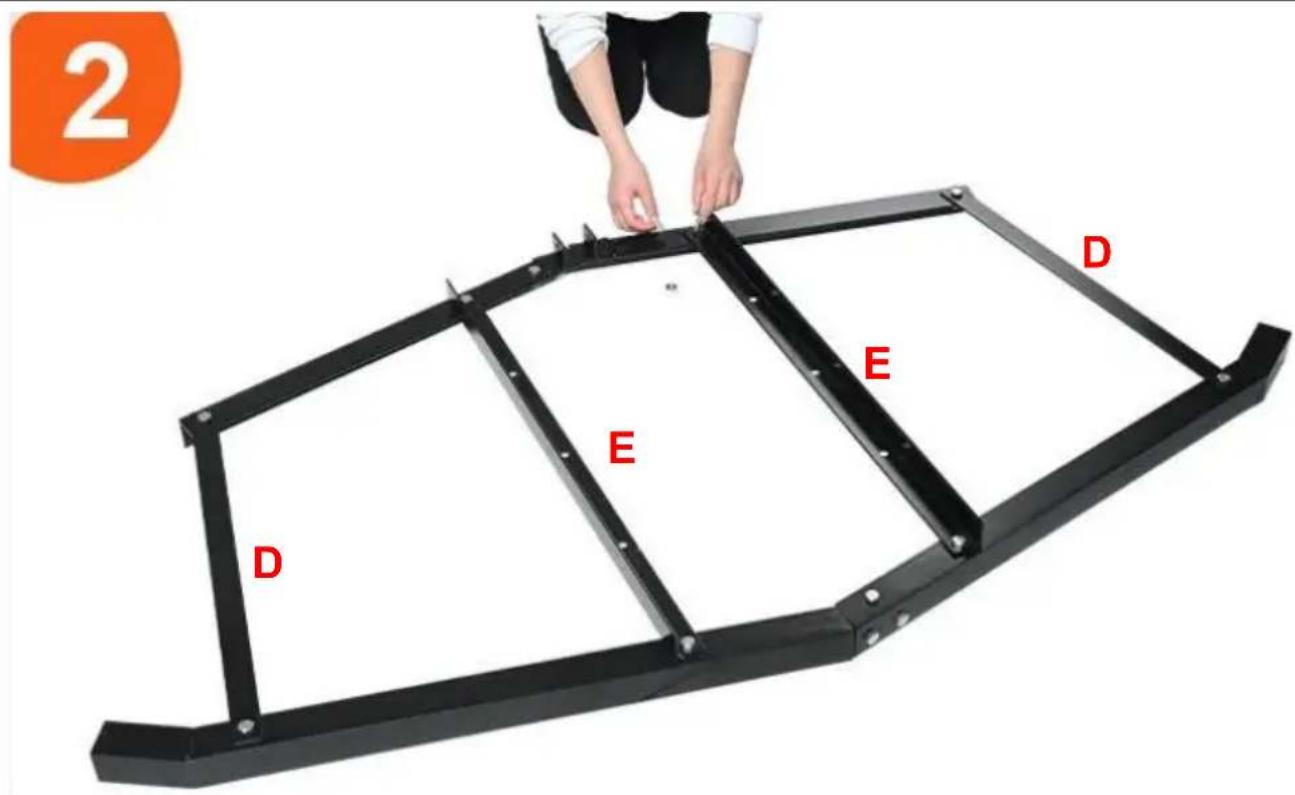

Connect the steel bars with the angle steels.

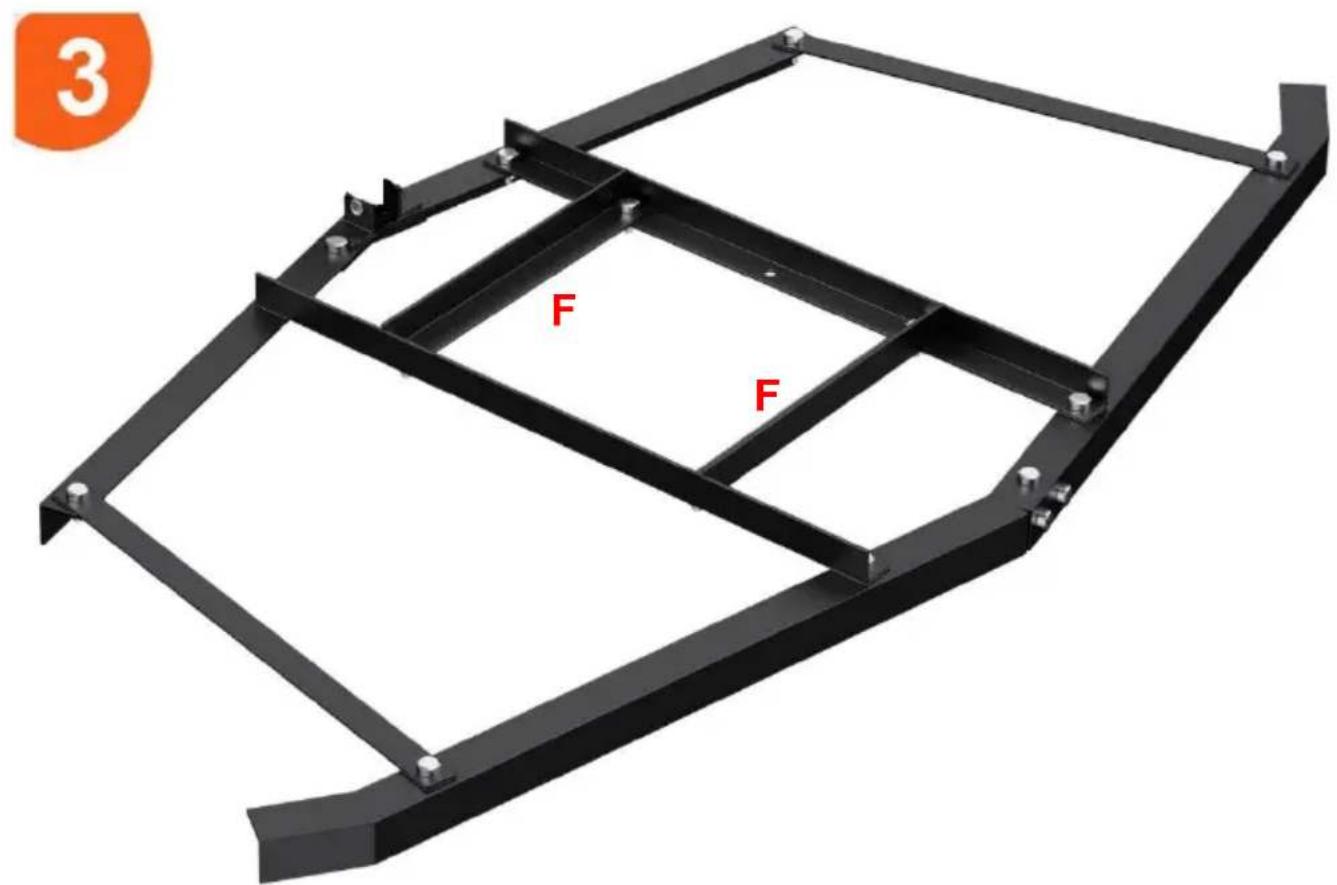

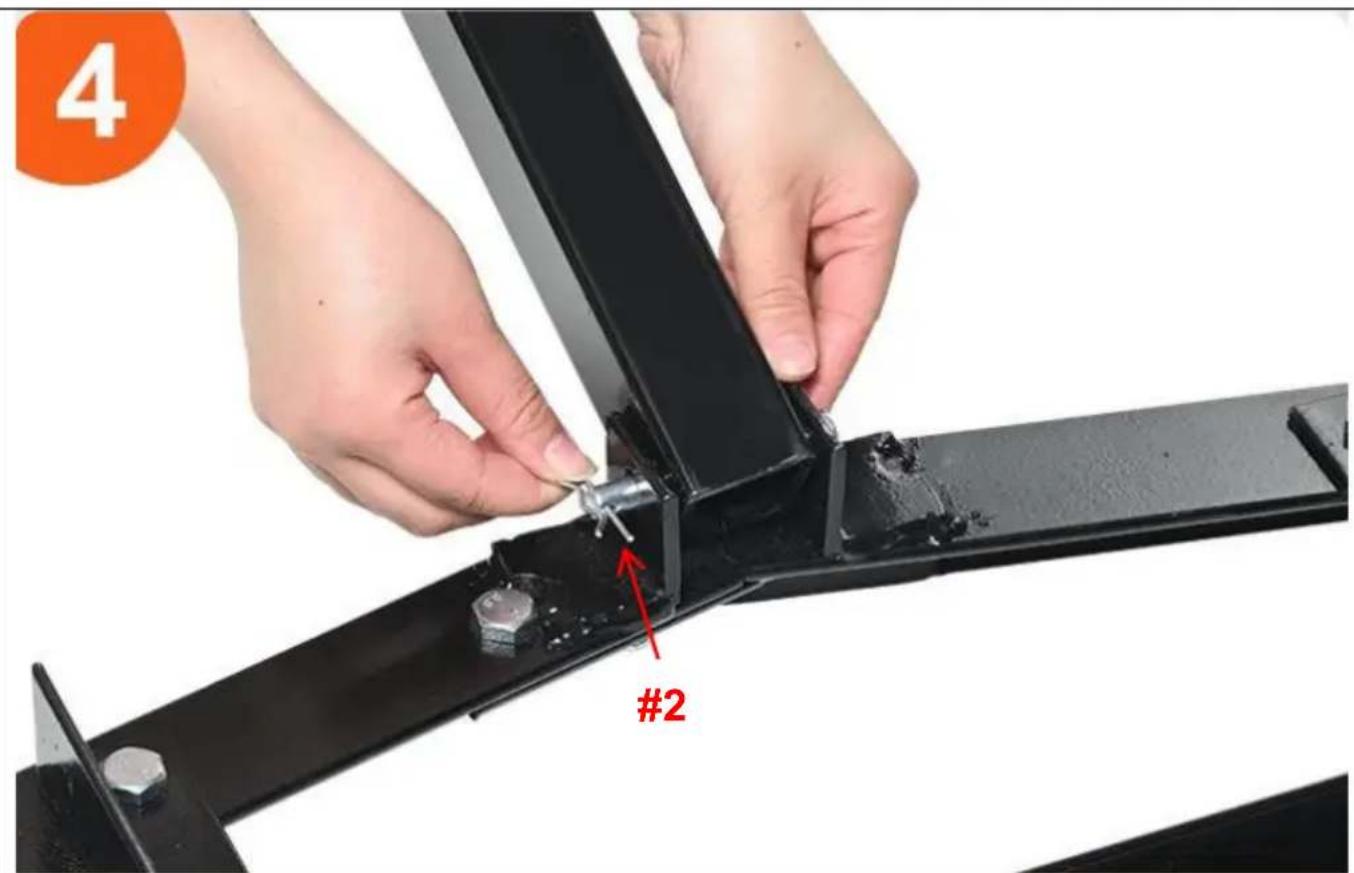

Install the tongue, hook pin, and R-pin.

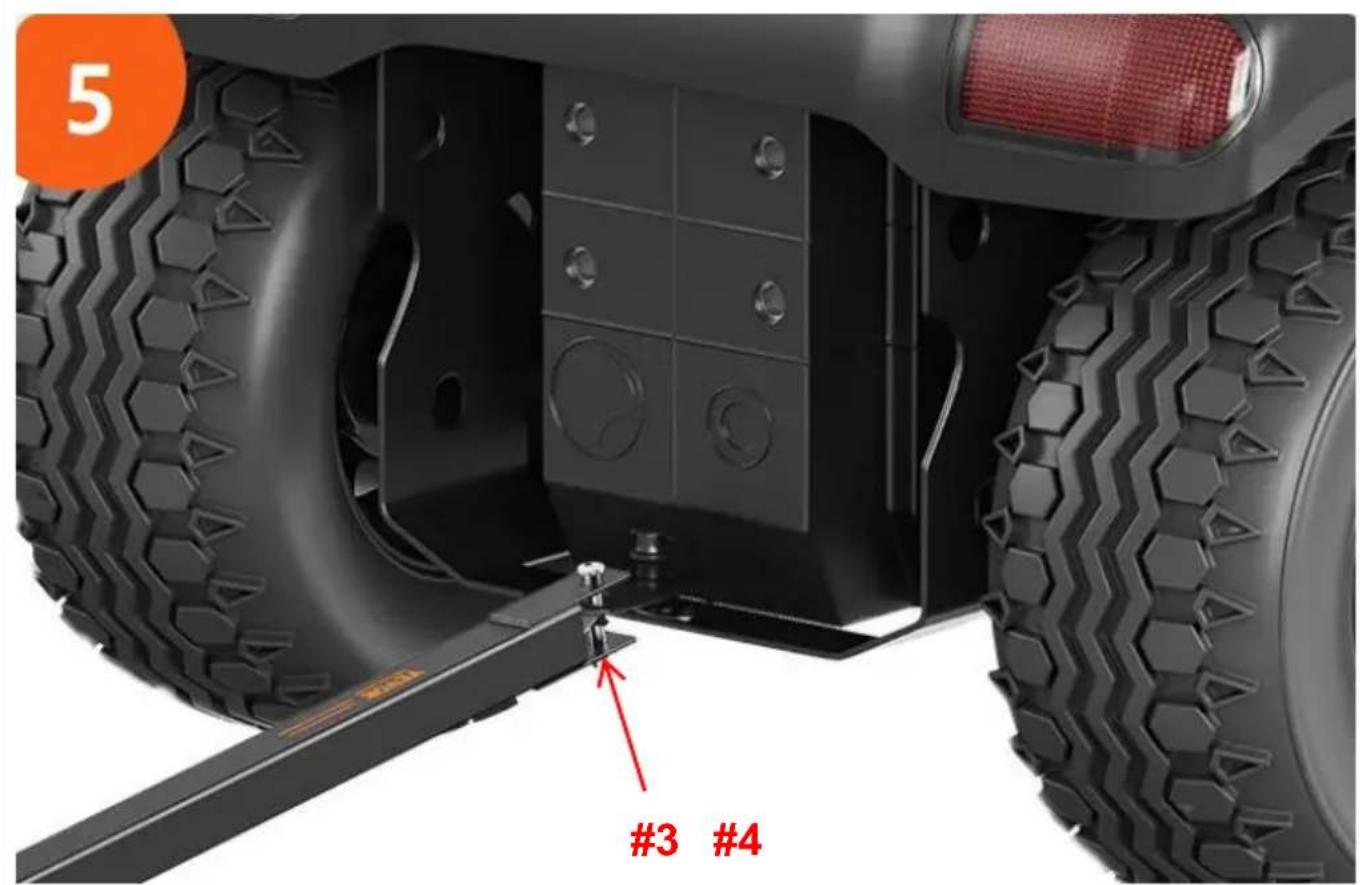

Attach to the vehicle.

POWERFUL CULTIVATION

Supports up to 50 lbs of additional weight.

Product Weight of 48 lbs +

Additional 50 lbs with Fire Bricks = 98 lbs

3 Adjustable Positions

Multiple Adjustment Options

1 Without Crossbars 2 With 1 Crossbar 3 With 2 Crossbars

Suitable for Refractory Bricks: 0-33"

LAND LEVELING/COMPOSTING

Versatile application

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Lu 803 Nong 11 Hao 1602A-1609 Shi, Baoshan Qu, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH Consulting Limited.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
