USER MANUAL SL-T005 Vevor

Affordable. Reliable. Home Improvement.

Sawhorse

Model:SL-T005

VEVOR

Affordable. Reliable. Home Improvement.

Sawhorse

MODEL:SL-T005

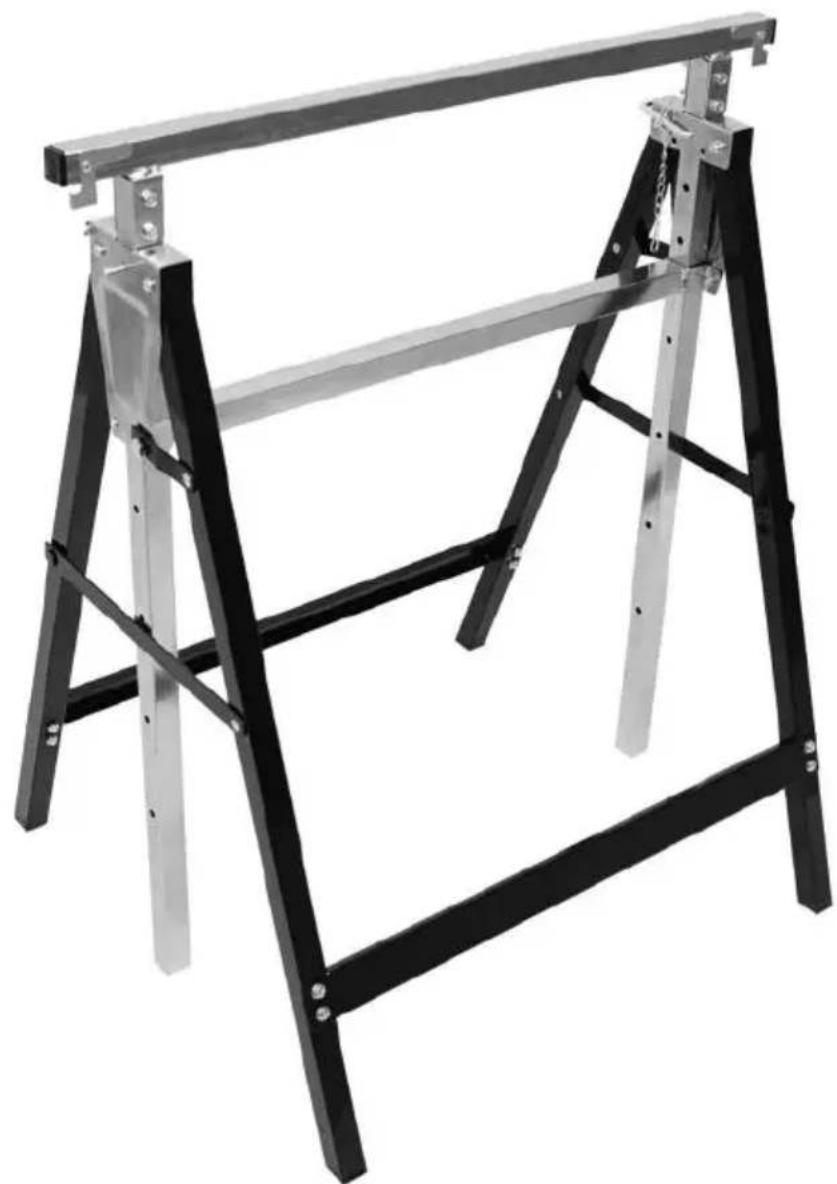

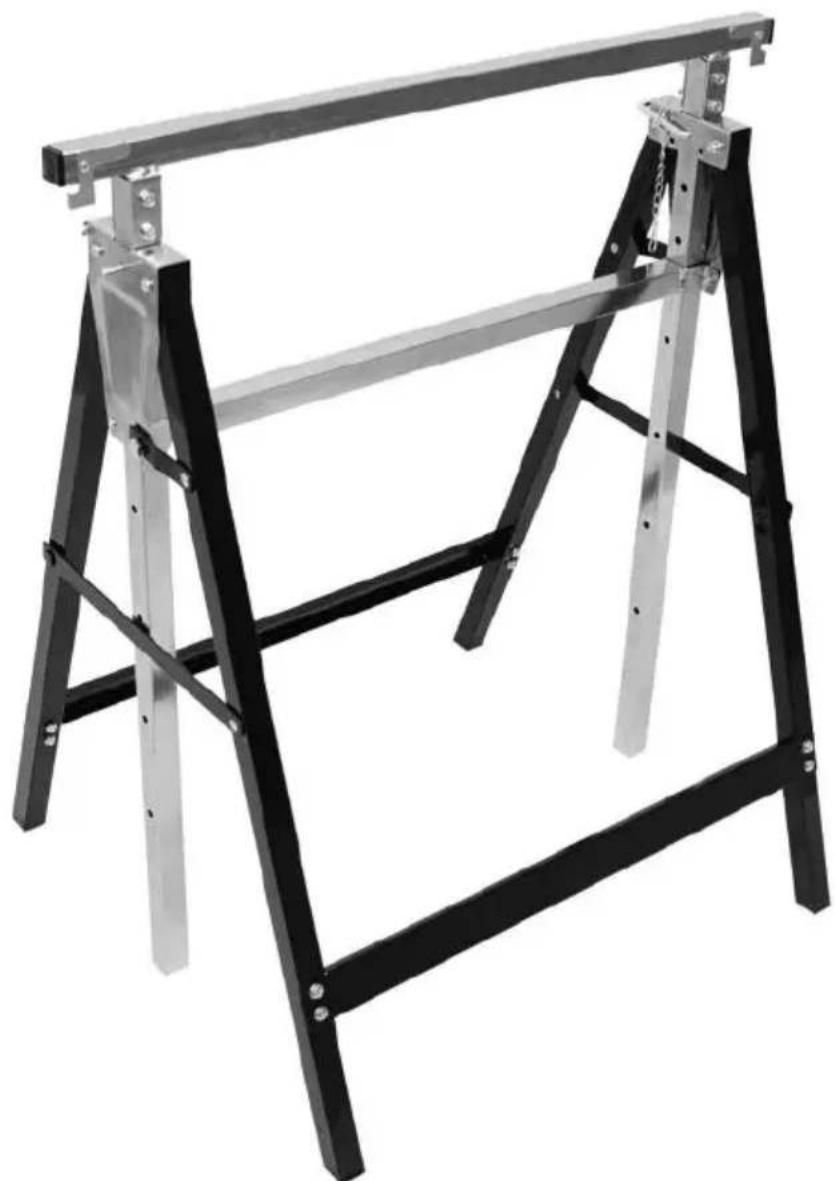

Black metal frame structure with metal supports and support beams (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning-To reduce the risk of injury, user must re-instructions manual carefully.

Warning: It is not allowed to exceed the maxi load-bearing capacity of the product.

ASSEMBLY INSTRUCTIONS

WARNING!

1. For use with wood logs
2. Before use ensure the adjustable height brace is fully locked in pl
3. Check before each use that all bolts and nuts are correctly tighter
4. Place the product only on a dry, stable and firm surface. Please not the product together with the work pieces may tip over when placed slippery, sloped or soft surface.
5. Do not exceed the maximum load of 440 lbs (199.6kg) /piece.
6. Do not exceed the maximum diameter of 26 cm.
7. The product can not be used as a ladder, stairs or a scaffold
8. Never stand on the product or the work pieces placed on it.
9. Keep any part of the body, especially hands clear of the moving p when folding or unfolding the product

10. Do not step on the support bar.

11. Use the product only as described in this instruction manual.F fai to follow instructions could cause property damage and personal injury

Item no. Reference Image. Qty. Item no. Reference Image. Qty.

A1	M6 X 45MM	X8	C2	M5	X8
A2	M6 X 35MM	X16	D		X2
A3	M5 X 17MM	X4	E		X4
A4	M5 X 12MM	X4	F		X2
B1	6 X12X1	X24	G		X4
B2	5 X12X1	X8	H		X4
C1	M6	X24

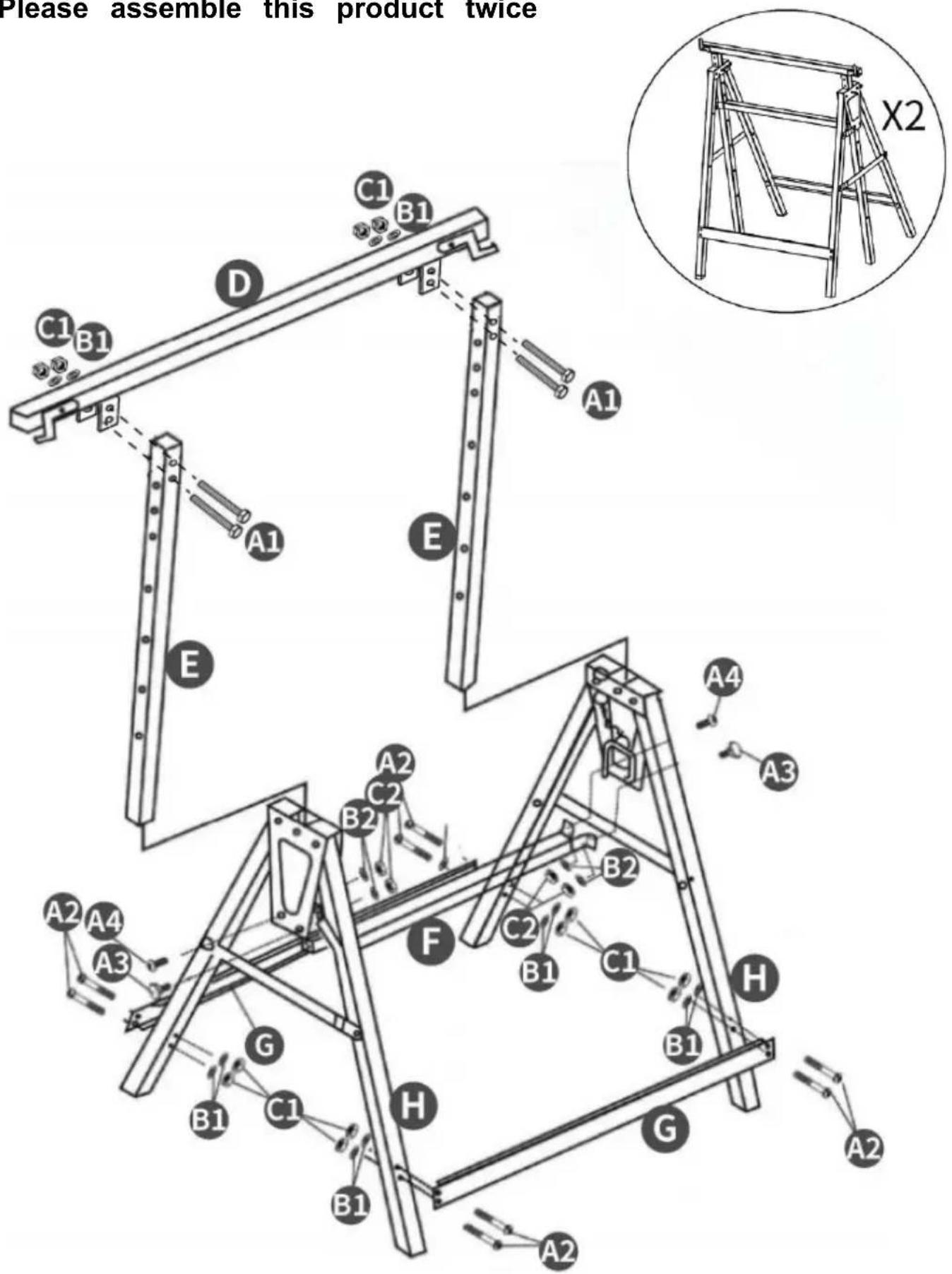

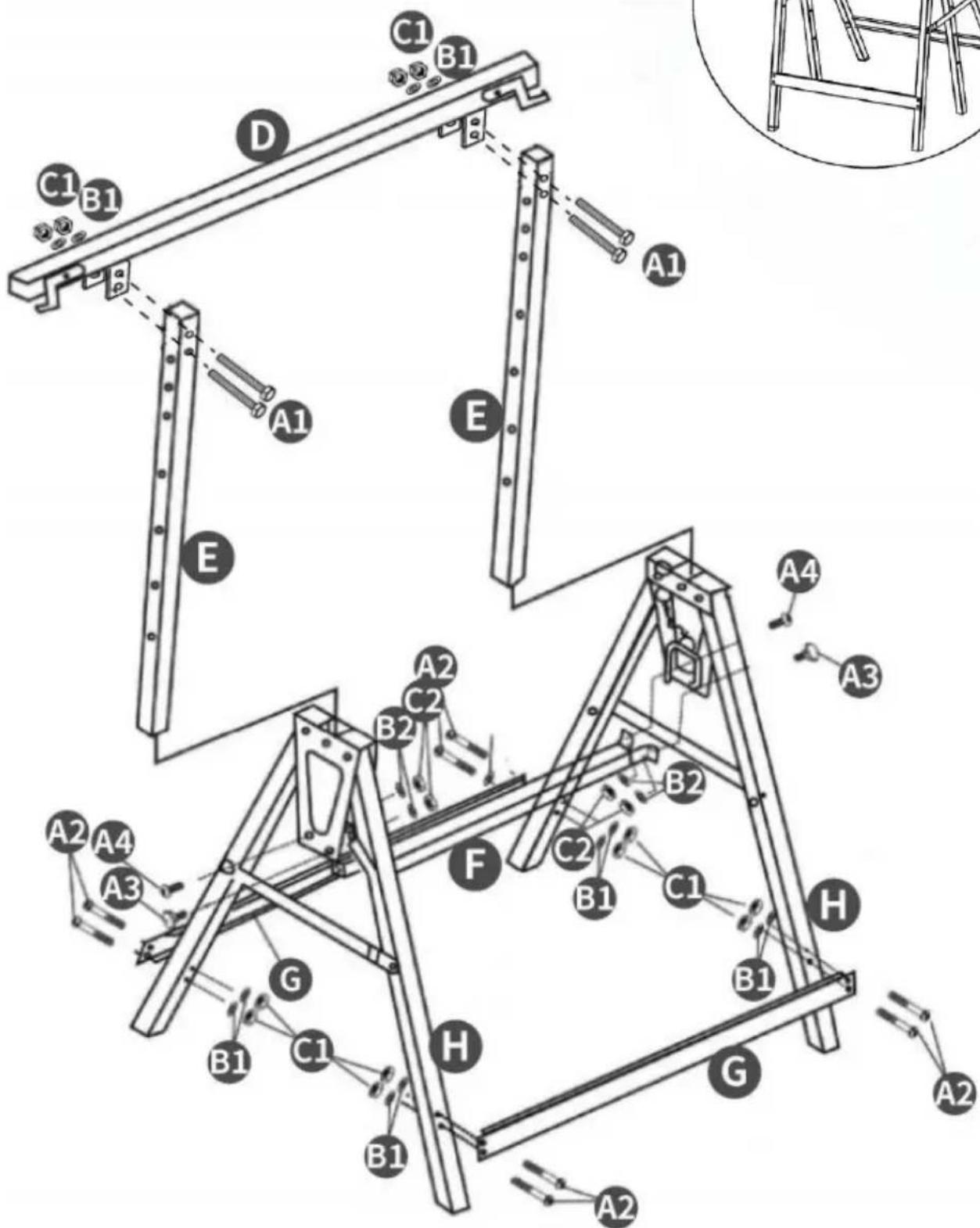

Please assemble this product twice

Please assemble this product twice X2 C1 B1 D C1 B1 A1 E A4 A3 A2 A4 A3 B2 B2 C2 B2 C2 B1 C1 H B1 G H G B1 A2 A2
