Sawhorse

Model:SL-T010

MODEL:SL-T010

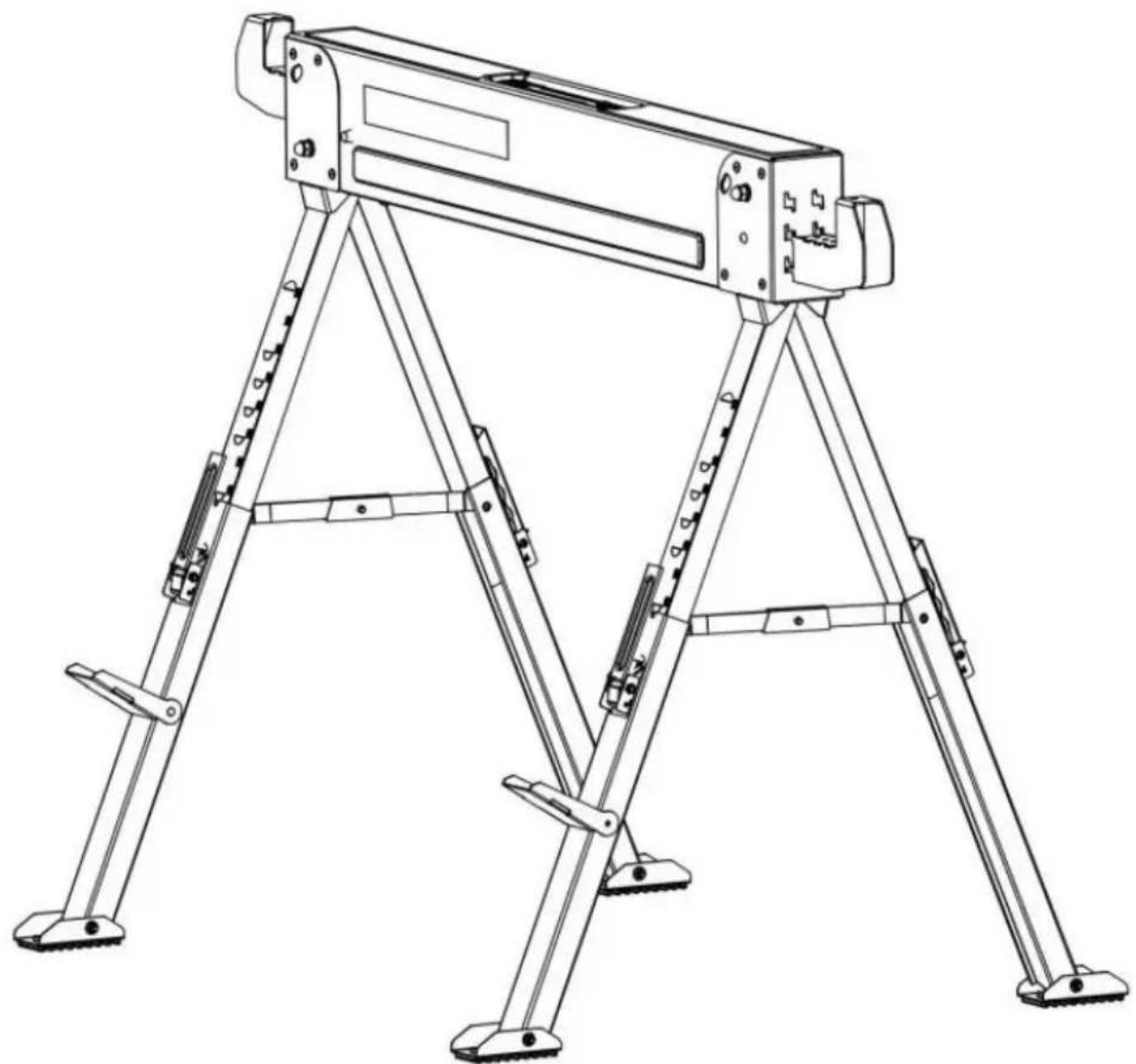

Technical line drawing of a mechanical device with tripod supports and mounting feet (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user man. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning-To reduce the risk of injury, user must re-instructions manual carefully.

Warning: It is not allowed to exceed the maxi load-bearing capacity of the product.

ASSEMBLY INSTRUCTIONS

WARNING!

1. For use with wood logs
2. Before use ensure the adjustable height brace is fully locked in pl
3. Check before each use that all bolts and nuts are correctly tighter
4. Place the product only on a dry, stable and firm surface. Please not the product together with the work pieces may tip over when placed slippery, sloped or soft surface.
5. Do not exceed the maximum load of 1800 lbs (816.5kg) /piece.
6. Do not exceed the maximum diameter of 110 cm.
7. The product can not be used as a ladder, stairs or a scaffold
8. Never stand on the product or the work pieces placed on it.
9. Keep any part of the body, especially hands clear of the moving p when folding or unfolding the product

10. Do not step on the support bar.

11. Use the product only as described in this instruction manual.F fai to follow instructions could cause property damage and personal injury

Usage

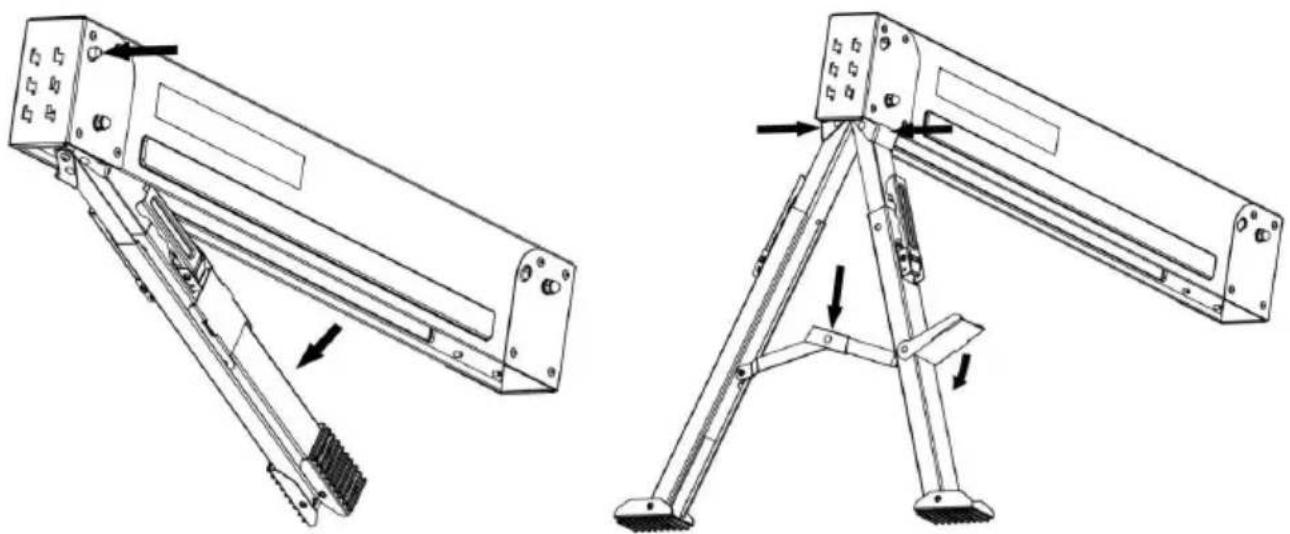

1. To extend the first legs, press(Open 1st)button while supporting legs other hand.

Technical line drawing of two mechanical device assemblies with arrows indicating motion or assembly (no text or symbols present)

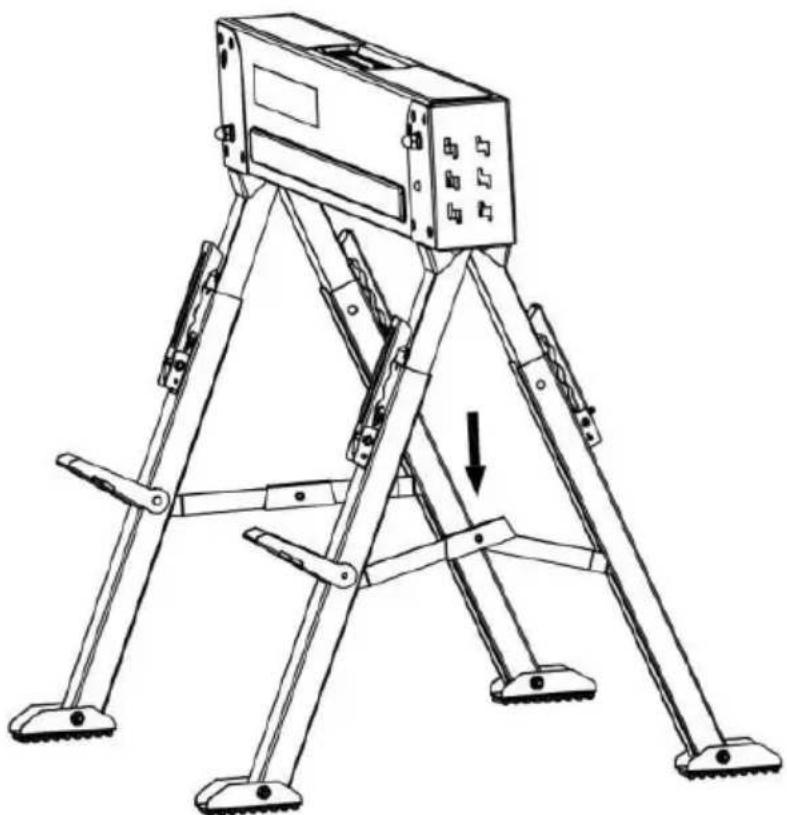

1. Push down leg brace until it is fully locked out.Verify that the top legs lock solidly against the body.

Line drawing of a mechanical device with articulated legs and a control panel, showing no text or symbols

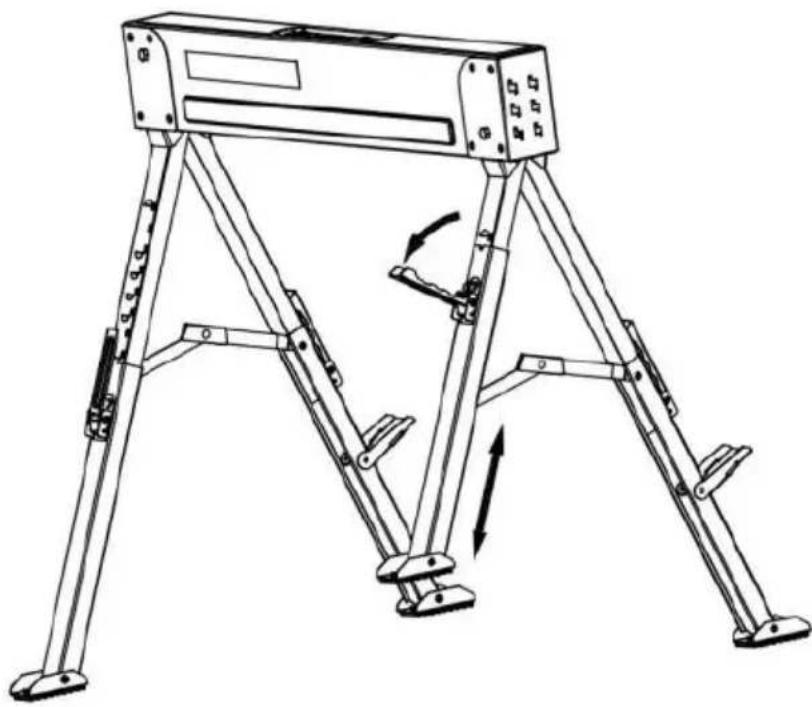

1. Repeat steps 1 and 2 to fold down the second pair of legs.

Technical line drawing of a mechanical device with articulated legs and mounting feet, showing motion arrows (no text or symbols)

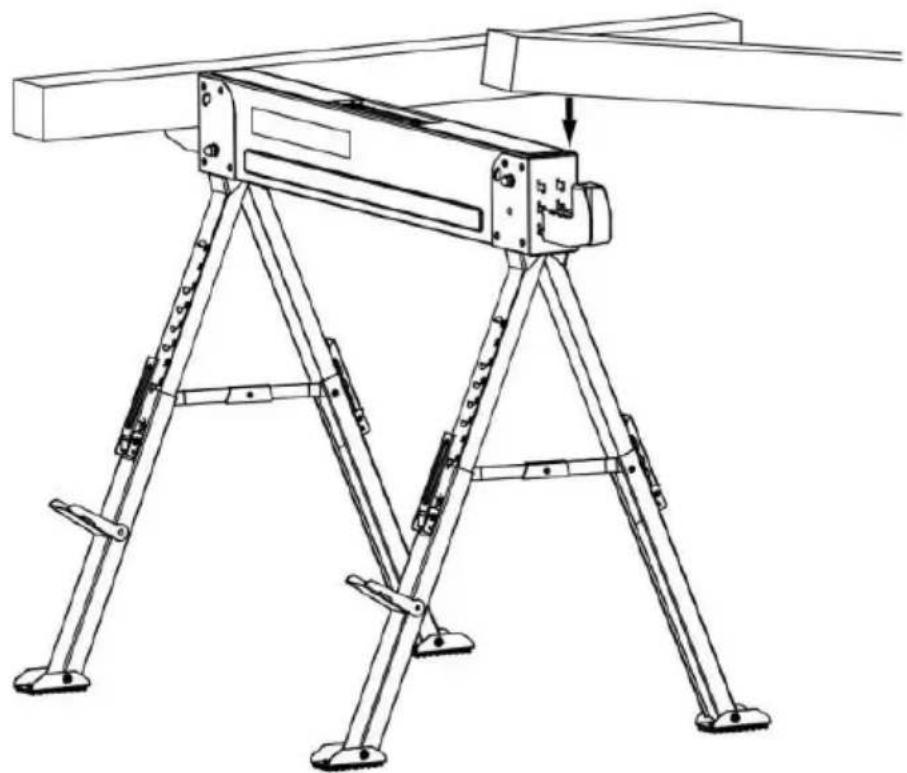

4. Adjustable Legs

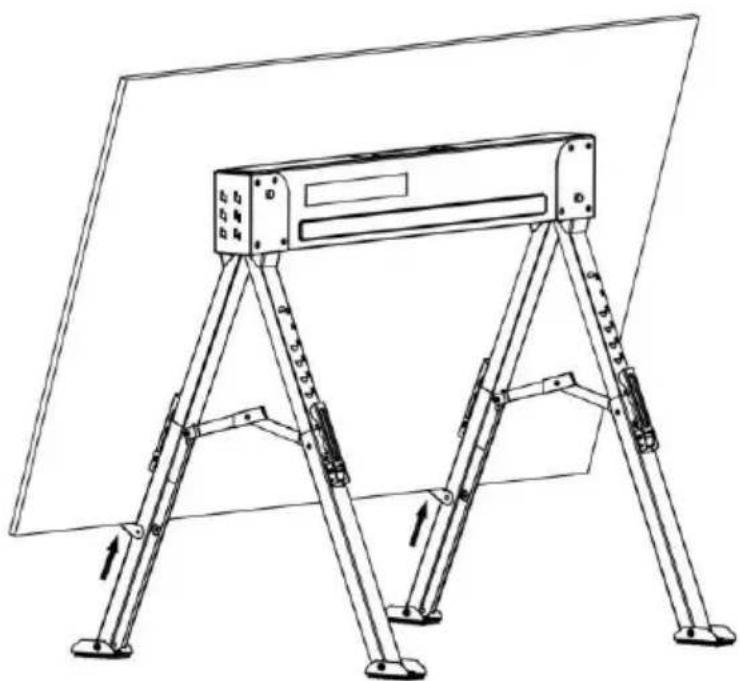

On each leg, pull cam lever to unlock the lower leg. Slide the lower leg up down to the desired height. Make sure the locking tooth is engaged with a corresponding hole in the upper leg. Close the cam lever to lock in place.

Technical line drawing of a mechanical device with supports and mounting base (no text or symbols)

1. Material Supports.Fold out the material support pegs to hold material cutting or storage.

1 2 3 4

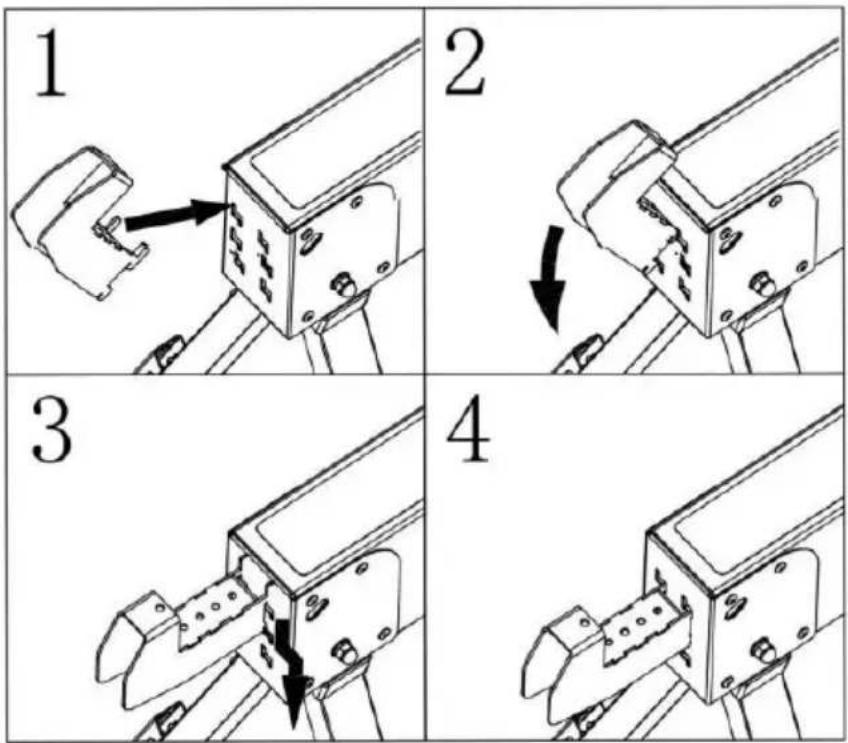

1. According to the using height demand, could install the clamp splice following steps.

Technical line drawing of a mechanical support structure with no visible text or symbols

1. Create a solid jobsite table with 2 sawhorses. Insert two wood crossbeams into the lumber slots, spanning the sawhorses.

2X4

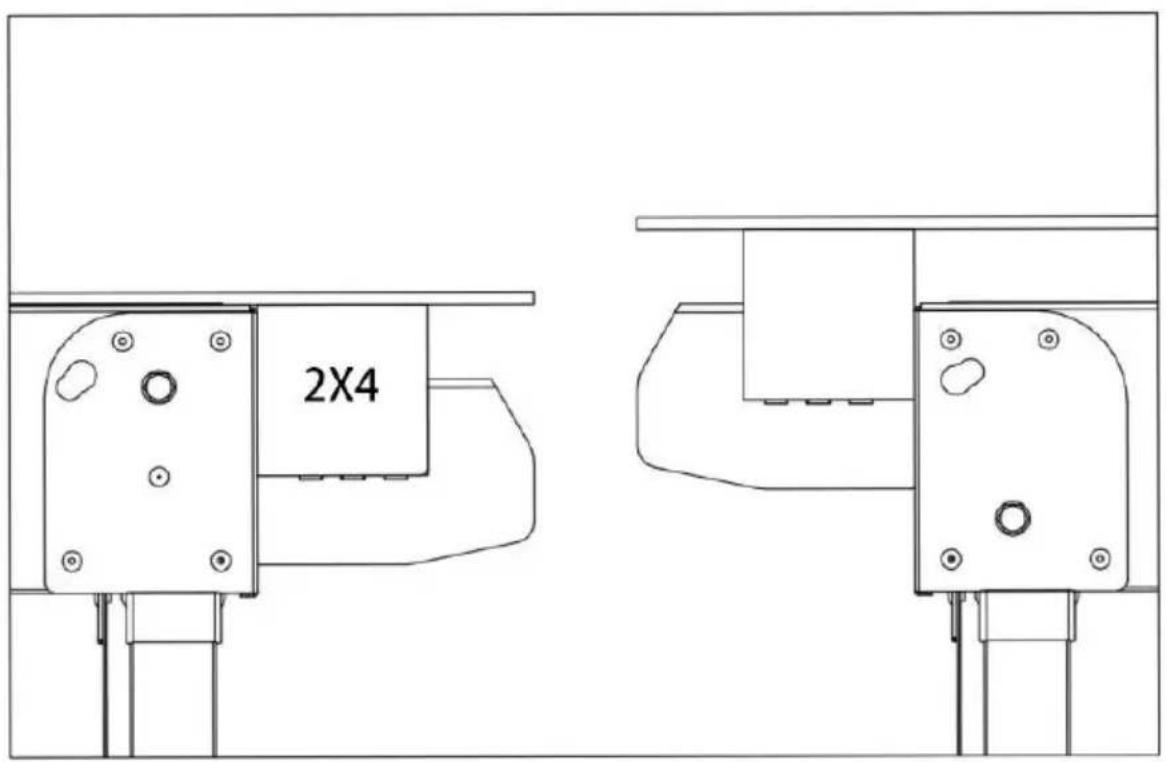

1. Sacrificial 2X4 can be screwed to top of the sawhorse to prevent damage. Flip-down spacers in the slots allow crossbeams to stay level the sacrificial 2X4.

Line drawing of a metal table with support legs and structural supports (no text or symbols)

1. Jobsite Table.

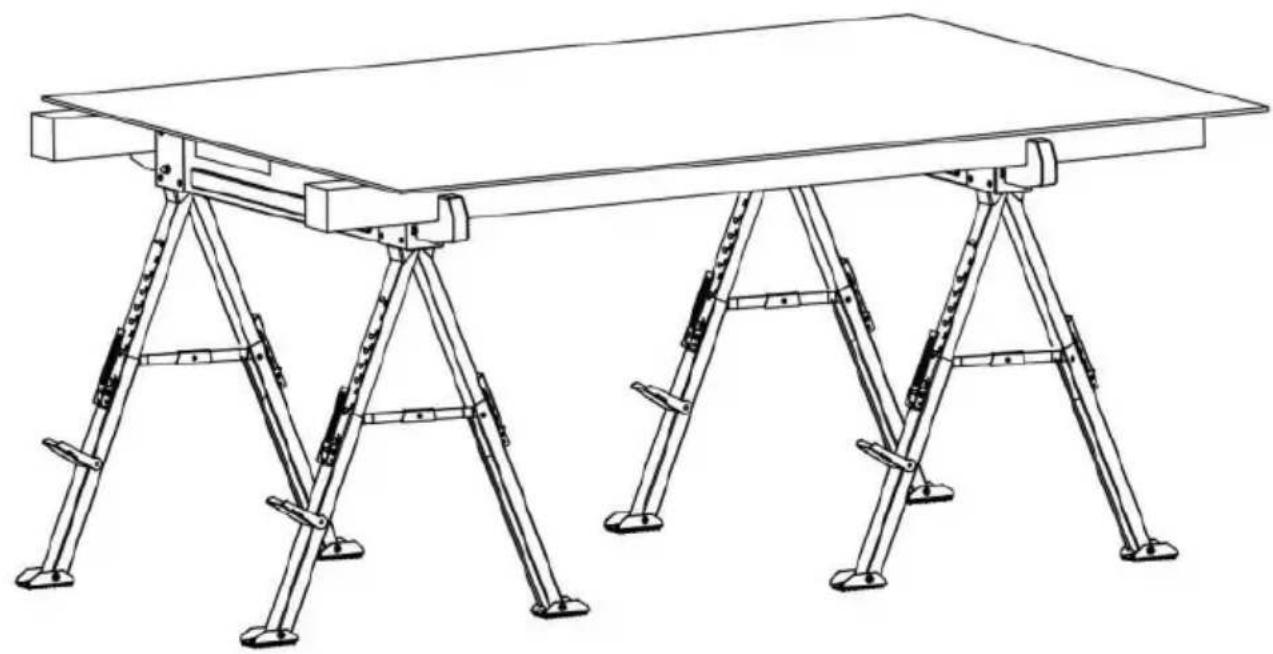

Place a sheet of plywood across the 5X10cm and sawhorses making the plywood if fully supported on all sides.
