Product type	Flexible truck tonneau cover
Brand	Vevor
Model	SRGM1466
Main material	Robust vinyl and aluminum
Package contents	Cover assembly, 2 side rails, Allen key, 6 clamps, 6 foam pads, tailgate bar, front bar with Velcro strip (1.7 m), M5×15 screws (2), M5 nuts (2)
Compatibility	Fits standard truck beds (check dimensions before purchase)
Installation method	Drill-free mounting with clamps and Velcro fastening
Tension system	Adjustable tension plate to eliminate wrinkles
Opening	Rolls up towards the cab with safety straps
Additional features	Secure Velcro fastening, tailgate bar included
Care and cleaning	Clean with a damp cloth and mild detergent
Safety	Keep children and pets away during assembly
Spare parts	Contact Vevor support for replacement parts
Repairability	Repairable with standard parts (screws, clamps)
Warranty	Electronic warranty certificate available at www.vevor.com/support
General information	Made in China. Imported by Sanven Technology Ltd. (USA) and Shunshun GmbH (Germany).

Frequently Asked Questions - SRGM1466 Vevor

How to install the SRGM1466 tonneau cover?

Install by following these steps: wash the truck bed, place the cover on the front rail, slide the side rails, position and tighten the clamps, then secure the Velcro. Tighten the clamps only after everything is positioned.

What tools are needed for assembly?

Only a Phillips screwdriver is required. An Allen key is included in the package.

Is the tonneau cover compatible with all trucks?

It is designed for standard truck beds. Check your truck bed dimensions before purchase to ensure fit.

How to adjust the cover tension?

Loosen the tension plate screws, slide the plate towards the tailgate to the desired line, then retighten. This eliminates wrinkles.

Is the cover water resistant?

Yes, the robust vinyl offers good water resistance, but it is not completely waterproof. It protects against light rain and dust.

How to clean the tonneau cover?

Clean with a damp cloth and mild detergent. Avoid abrasive products that could damage the coating.

Can I roll up the cover without removing it completely?

Yes, roll the cover towards the cab ensuring both sides roll evenly. Secure it with safety straps to the front buckles.

What to do if a part is missing or damaged?

Contact Vevor support at www.vevor.com/support. Do not attempt to assemble the product if parts are missing.

Is there a warranty for this product?

Yes, an electronic warranty certificate is available on the Vevor website. Refer to the manual for more details.

Can the tonneau cover be used in cold weather?

Yes, the vinyl remains flexible at low temperatures, but avoid forcing the roll if the material is frozen.

USER MANUAL SRGM1466 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

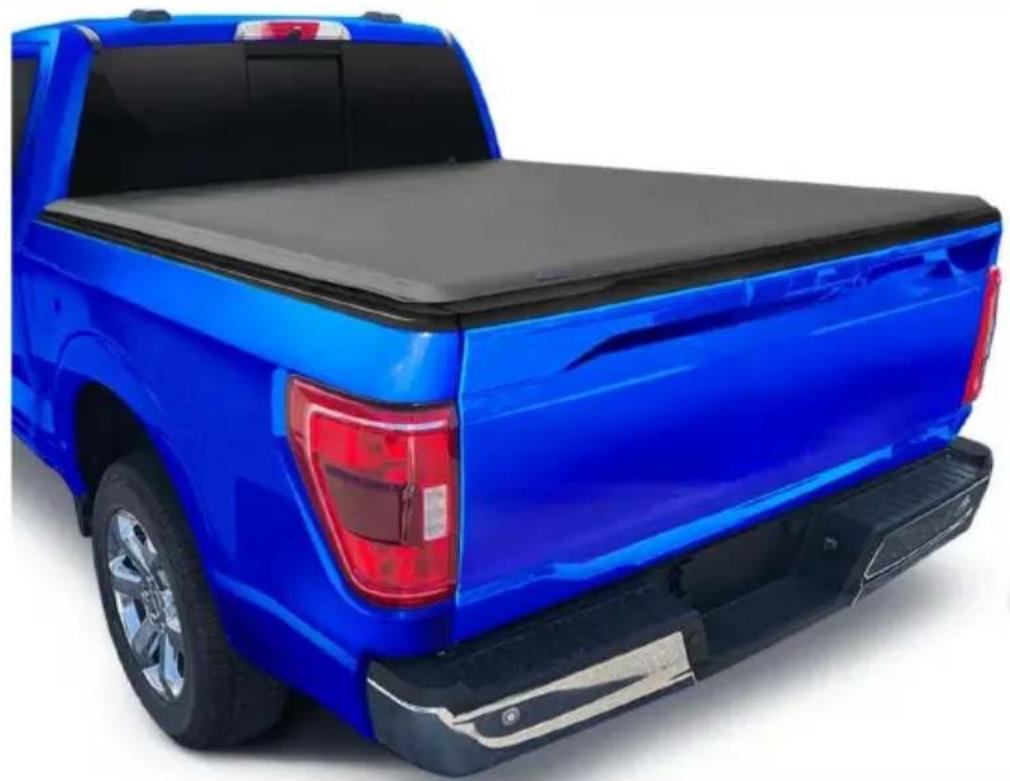

TRUCK TONNEAU COVERS

MODEL :

SRFD0955

SRGM1466

SRDG0264

SRGM1958

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK TONNEAU COVERS

SRFD0955

SRGM1466

SRDG0264

SRGM1958

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

Save the instruction.

PRODUCT PAREMETERS

Model	VEHICLE COMPATIBILITY	Color	Material
SRFD0955	Ford ,F-150, 2015-2020, Short	Black	Vinyl, Aluminum, Stainless Steel
SRGM1466	Silverado / Sierra, 2014-2018/2019-2023, Standard
SRDG0264	Dodge Ram 1500 2500 3500 2019-2023, Standard
SRGM1958	Silverado/Sierra , 2019-2023, Short

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

NAME	Picture	SRFD0955	SRGM1466	SRDG0264	SRGM1958
Cover Assembly		1PCS	1PCS	1PCS	1PCS
Side Rail		2PCS	2PCS	2PCS	2PCS
Allen Wrench		1PCS	1PCS	1PCS	1PCS
Clamp		6PCS	6PCS	6PCS	6PCS
Clamp Foam Pad		6PCS	6PCS	6PCS	6PCS
Tailgate Stick Tap		1PCS	1PCS	1PCS	1PCS
Front Stick Tape(1.7m)		1PCS	1PCS	1PCS	1PCS
Screw M5 ×15		2PCS	2PCS	2PCS	2PCS
Nut M5		2PCS	2PCS	2PCS	2PCS

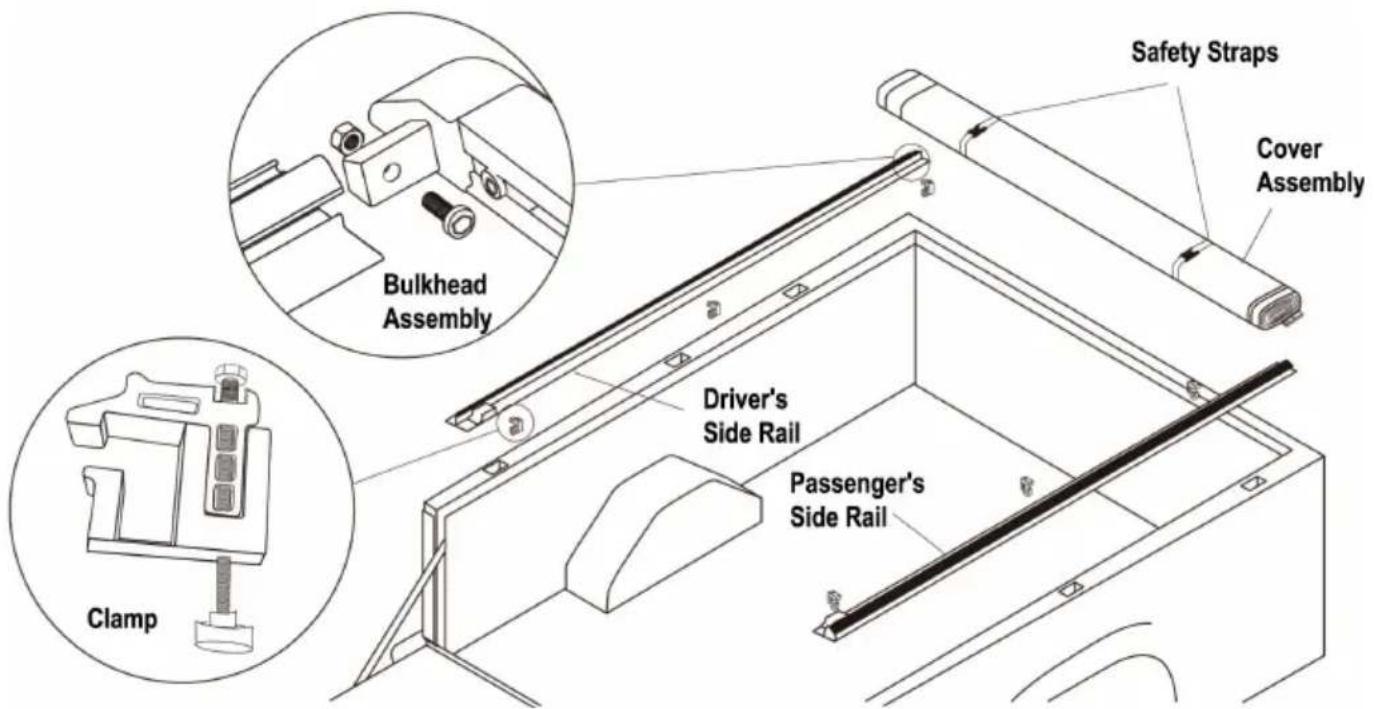

INSTALLATION METHODS

1. Wash truck bed.

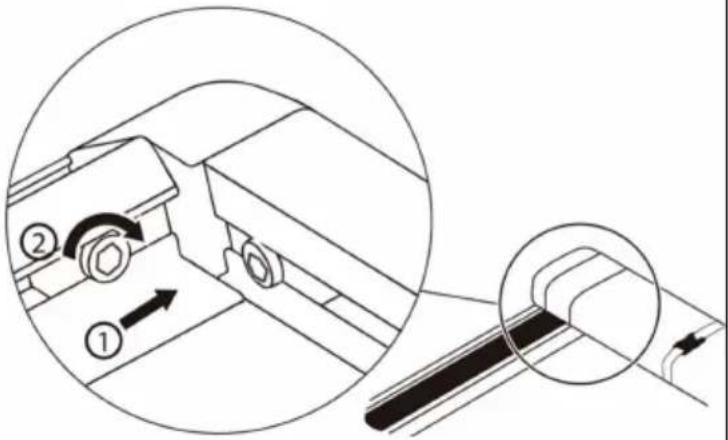

2. Installing the Cover AssemblPlace the cover on the top of tfront rail,slide the driver's side rainto this bulkhead.then tighten thefront bulkhead assembly.Follow thesame procedure to install thepassenger's side rail.

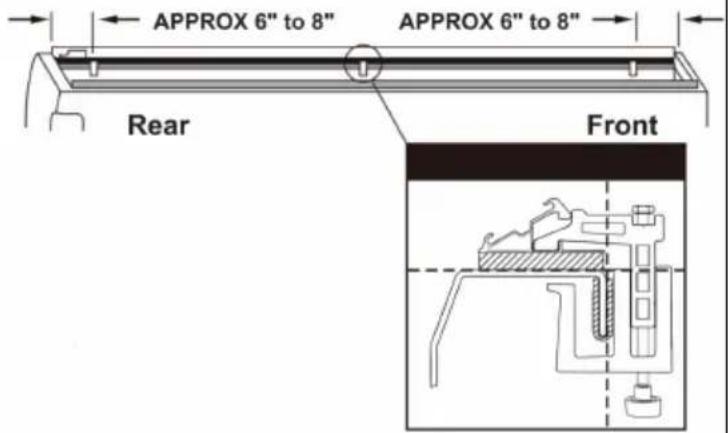

3. Positioning Side RailsPlace the side rail on the top oside rail vertically leveled. Start athe tailgate evenly space 3 clampalong each. Leave approximatelyto 8inches space on each end.

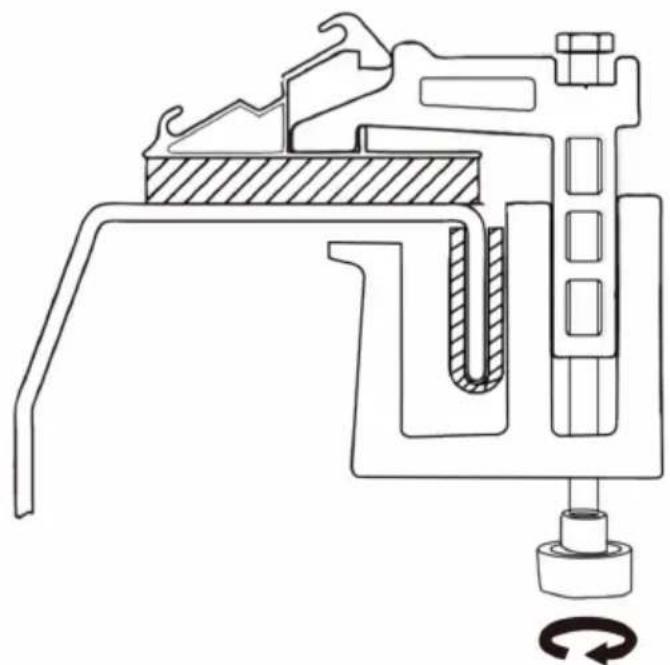

4. Tightening Clamps

Do not tighten clamps until all clamps are in proper position.

Note: Clamps may vary by specific vehicles

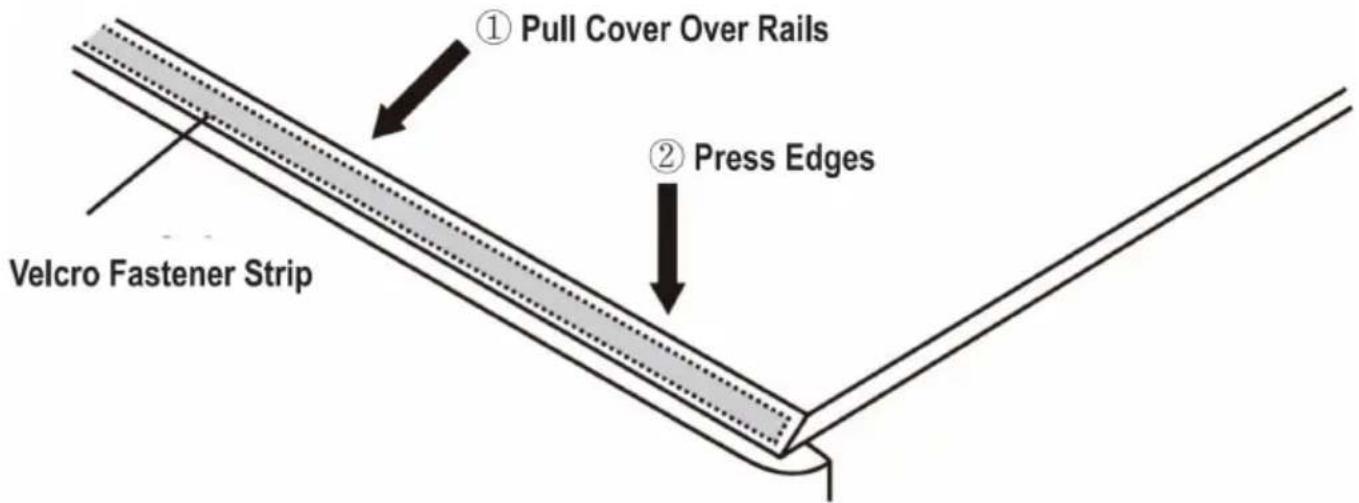

5. Secure Velcro Fastener

Pull the cover over velcro fastener strips on one side of the rail, then dges to fastener. Follow the same procedure on the opposite side.

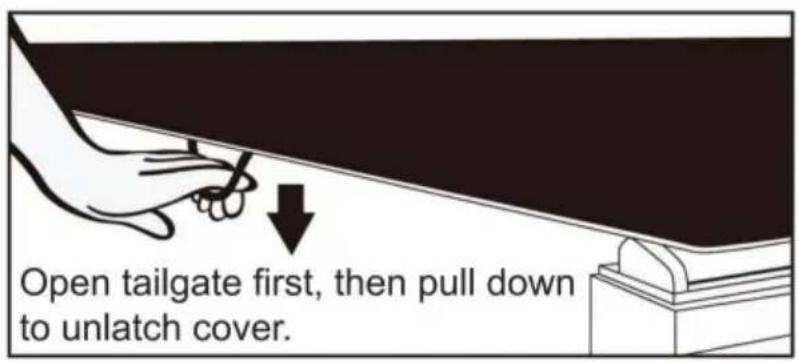

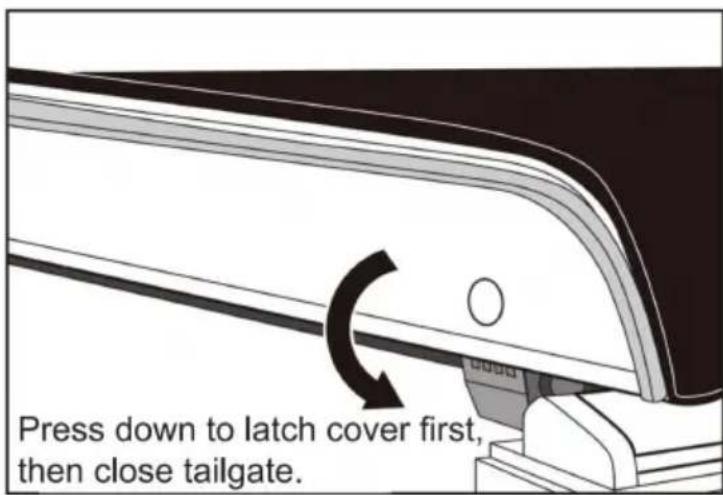

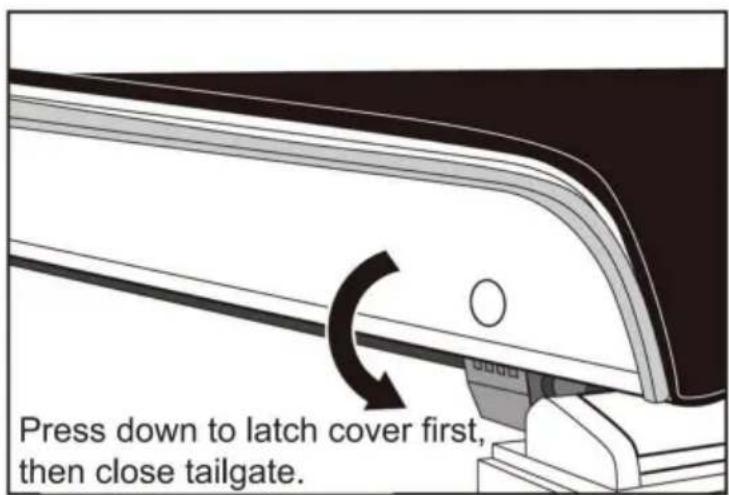

6. Latching and Unlatching your cover

Tension Control System

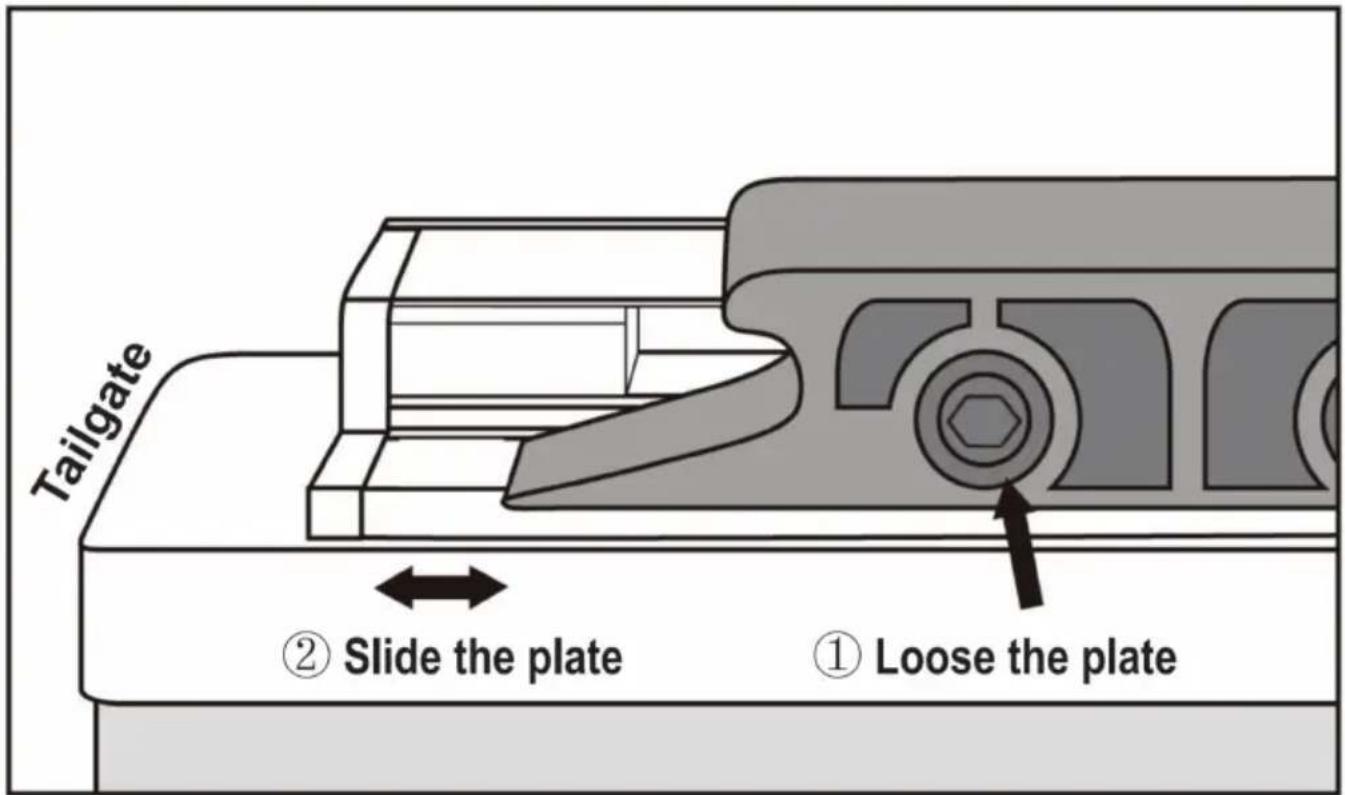

The cover has been set at the factory for moderate tension to keep your core of wrinkles. Depending on weather conditions it may be necessary for you to adjust the tension control on the cover. To adjust the tension control, simply the screws on the tension plate, then slide the tension plate towards the tailgate a right scale line.

Open the Cover

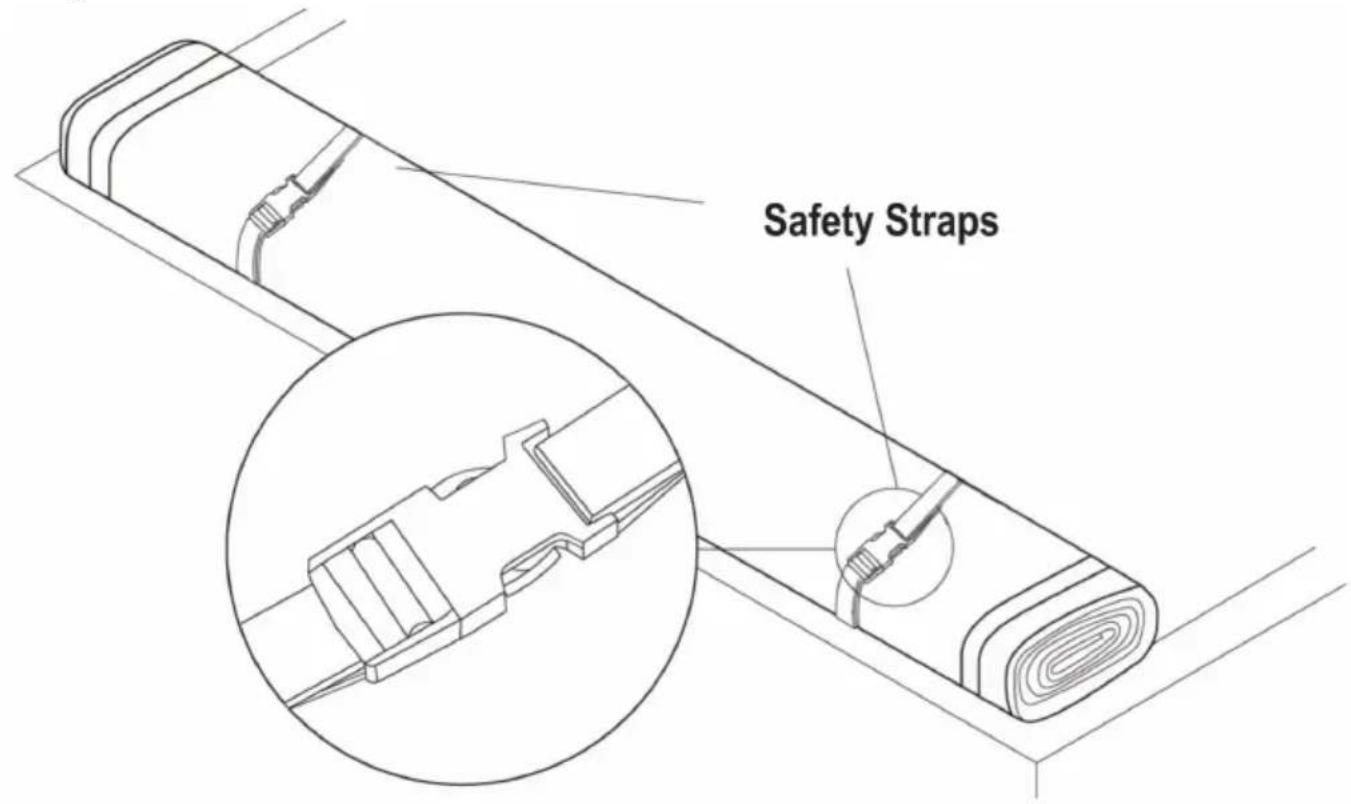

Roll the cover toward the cab making sure both sides of cover rolled evenly. Secure the cover open by hooking the safety straps to the front loops.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

UK

REP

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRFD0955 SRGM1466 SRGM1958 SRDG0264

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Modèle	COMPATIBILITÉ DES VÉHICULES	Couleur	Matériel
SRFD0955	Ford, F-150, 2015-2020, court	Noir	Vinyle, Aluminium, Inoxydable Acier
SRGM1466	Silverado/Sierra, 2014-2018/2019-2023, Norme
SRDG0264	Dodge Ram 1500 2500 3500, 2019-2023, Norme
SRGM1958	Silverado/Sierra, 2019-2023, Court

LISTE DES PIÈCES

Machine Translated by Google

Ouvrez le couvercle

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importé en Australie :

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australie

Rancho Cucamonga, CA91730

REPRÉSENTANT

DU ROYAUME-UNI

Groupe Pooledas Ltd

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Machine Translated by Google

NAME	Bild	SRFD0955	SRGM1466	SRDG0264	SRGM1958
AbdeckungMontage		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Seitenschiene		2 STÜCK	2 STÜCK	2 STÜCK	2 STÜCK
AllenSchlüssel		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Klemme		6 Stück	6 Stück	6 Stück	6 Stück
KlemmeSchaumkissen		6 Stück	6 Stück	6 Stück	6 Stück
HeckklappeStick-Tap		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Vorderer StockKlebeband (1,7 m)		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Schraube M5×15		2 STÜCK	2 STÜCK	2 STÜCK	2 STÜCK
Mutter M5 2 STÜCK		2 STÜCK	2 STÜCK	2 STÜCK

INSTALLATIONSMETHODEN

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Einheit 5 Albert Edward House,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRFD0955 SRGM1466 SRGM1958SRDG0264

SRDG0264SRFD09SBGM1958SRGM146

HO BISOGNO DI AIUTO? CONTATTACI!

Machine Translated by Google

Apri la copertina

Importato in AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRDG0264 SRGM1958SRGM1466SRFD(

SRGM1466 SRGM1958DG0264SRFD0955

Machine Translated by Google

Abre la tapa

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Place,Rancho Cucamonga,CA91730

SRDG0264SRFD0955 SRGM1466 SRGM

SRDG0264SRFD0955 SRGM1958SRGM1466

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Otwórz pokrywę

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj

Import do Australii: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW

2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

TRUCK TONNEAU-HOEZEN

MODEL:

SRDG0264

SRGM1958SRGM146

HULP NODIG? NEEM CONTACT MET ONS OP!

Machine Translated by Google

NAAM	Afbeelding	SRFD0955	SRGM1466	SRDG0264	SRGM1958
OmslagMontage		1 STUK	1 STUK	1 STUK	1 STUK
Zijspoor		2 STUKS	2 STUKS	2 STUKS	2 STUKS
AllenMoersleutel		1 STUK	1 STUK	1 STUK	1 STUK
Klem		6 STUKS	6 STUKS	6 STUKS	6 STUKS
KlemSchuimkussen		6 STUKS	6 STUKS	6 STUKS	6 STUKS
AchterklepStok tik		1 STUK	1 STUK	1 STUK	1 STUK
Voorste stokBand(1,7m)		1 STUK	1 STUK	1 STUK	1 STUK
Schroef M5×15		2 STUKS	2 STUKS	2 STUKS	2 STUKS
Moer M5		2 STUKS	2 STUKS	2 STUKS	2 STUKS

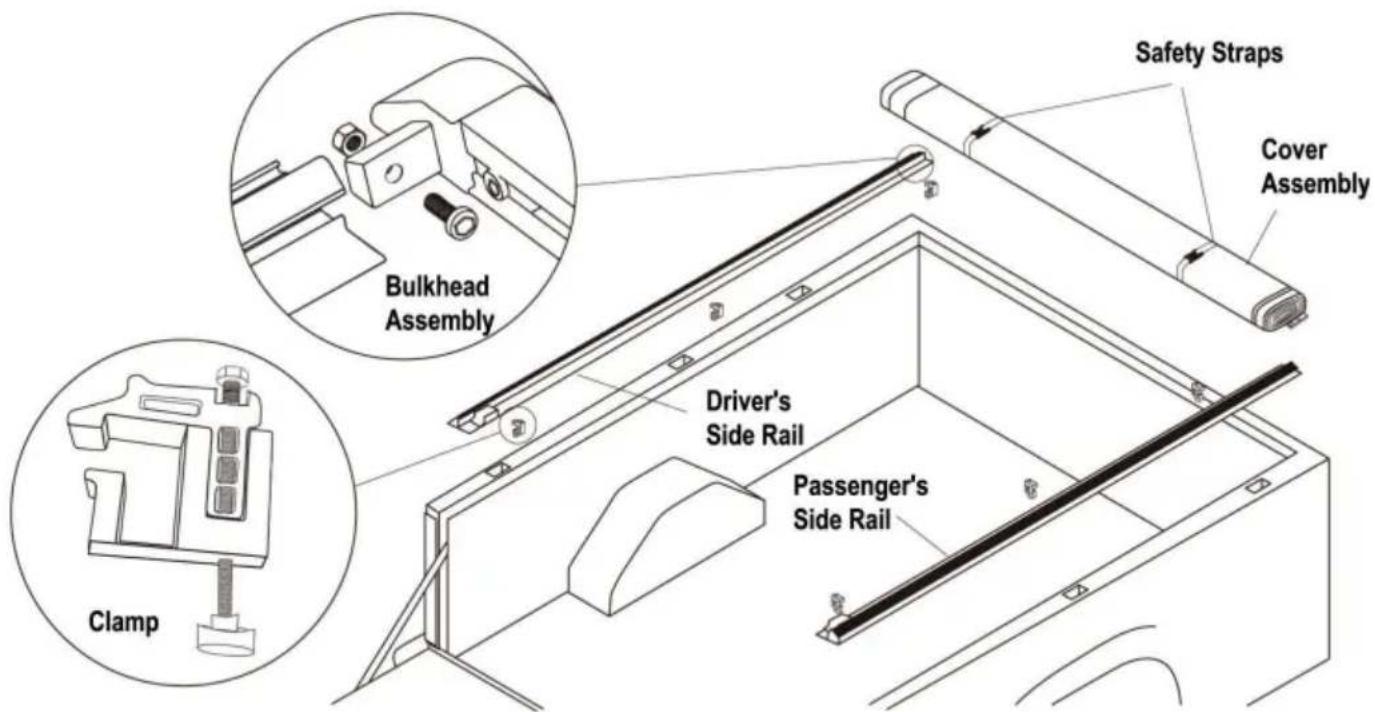

INSTALLATIEMETHODEN
