USER MANUAL SR191522X2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RATTAN ACCENT CABINET USER MANUAL

MODEL NO.: SR191522, SR191522X2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Accent Cabinet

MODEL NO.: SR191522, SR191522X2

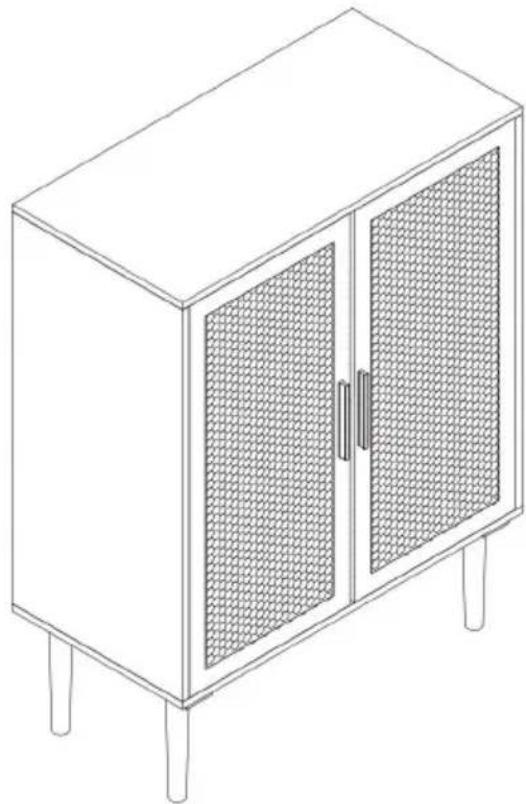

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Accent Cabinet.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Accent Cabinet.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	SR191522		SR191522X2
Color	Black	Wood	Wood
Quantity	1 pcs	1 pcs	2 pcs
Product Dimensions (LxWxH)(mm)	800*375*880		800*375*880 (1pcs size)
Packing Size(LxWxH)(mm)	935*460*170		920*450*300
Net Weight(kg)	About 18		About 36
Gross Weight(kg)	About 20		About 38.8

*Products such as specifications, appearance, and design are subject to modification without prior notice.

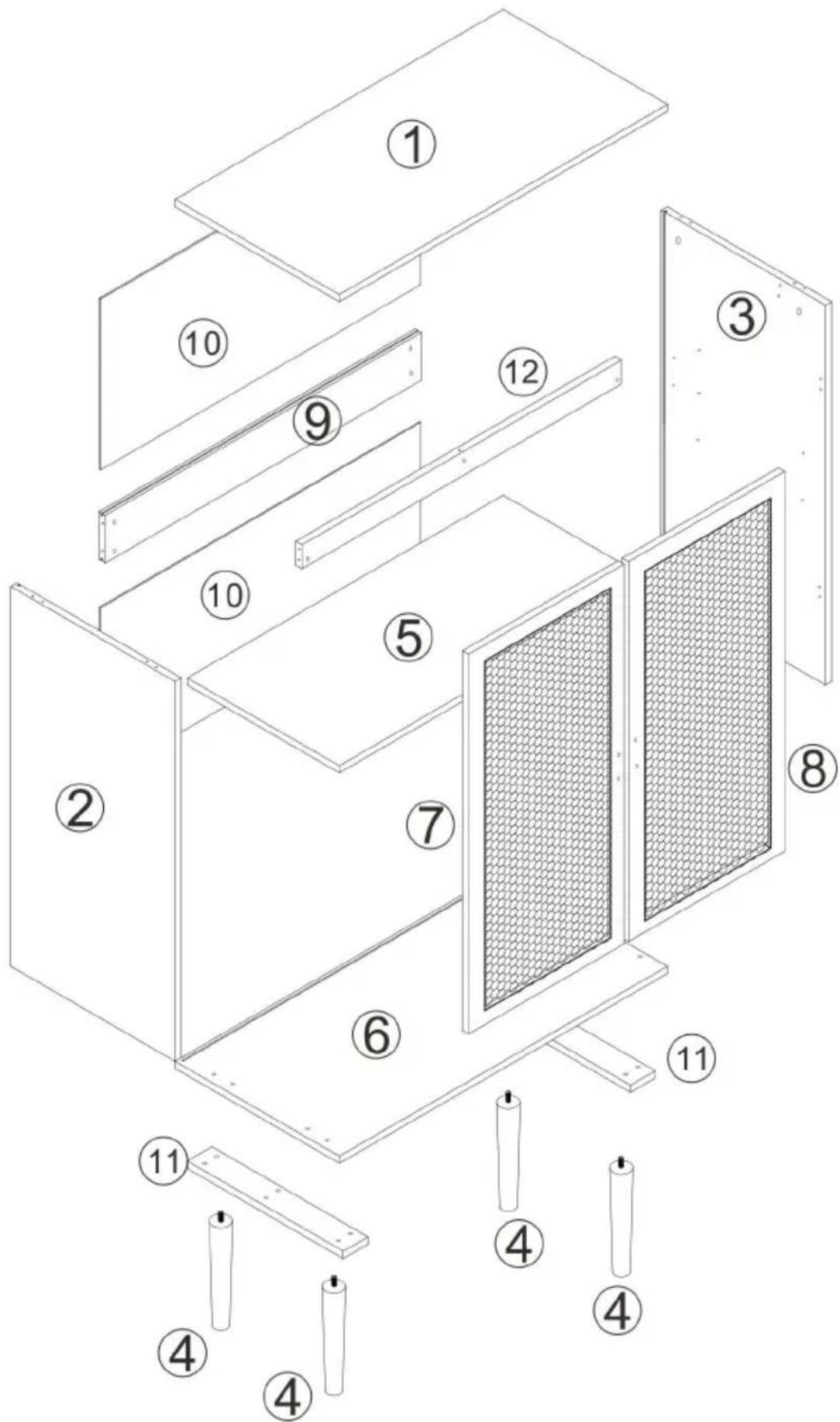

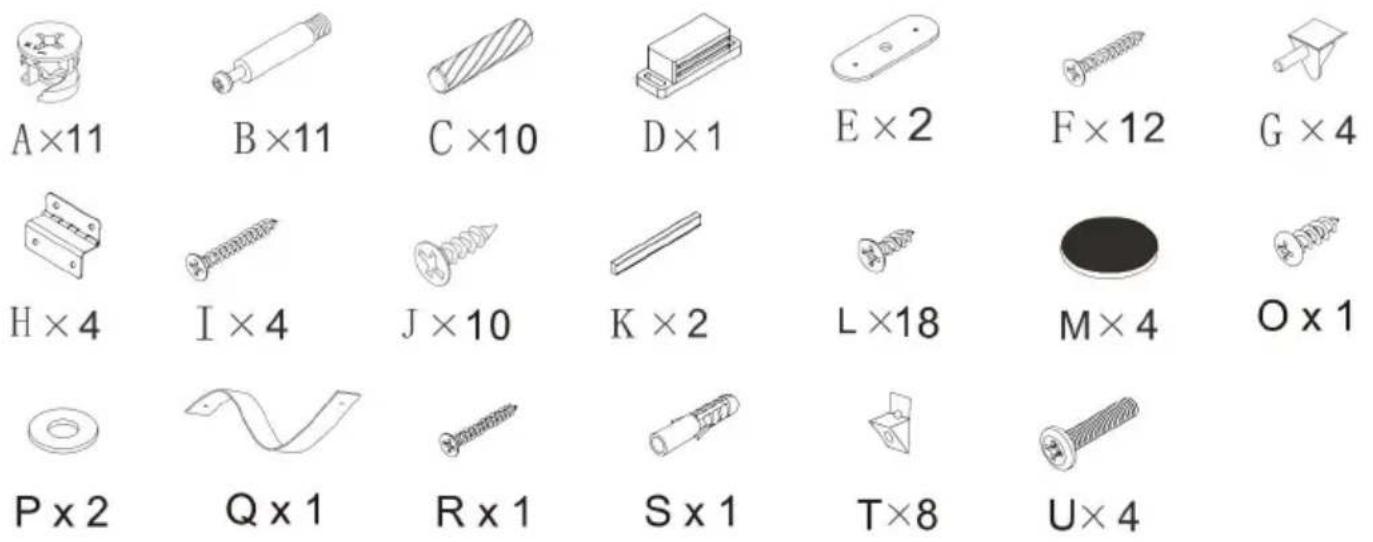

Exploded view diagram of a modular kitchen or storage unit with numbered components for assembly or inspection.

A×11

B×11

C × 10

D×1

E × 2

F×12

G × 4

H × 4

I × 4

J × 10

K × 2

L×18

M × 4

O x 1

P×2

Q × 1

R × 1

S x 1

T×8

U×4

ASSEMBLY STEPS

1	2

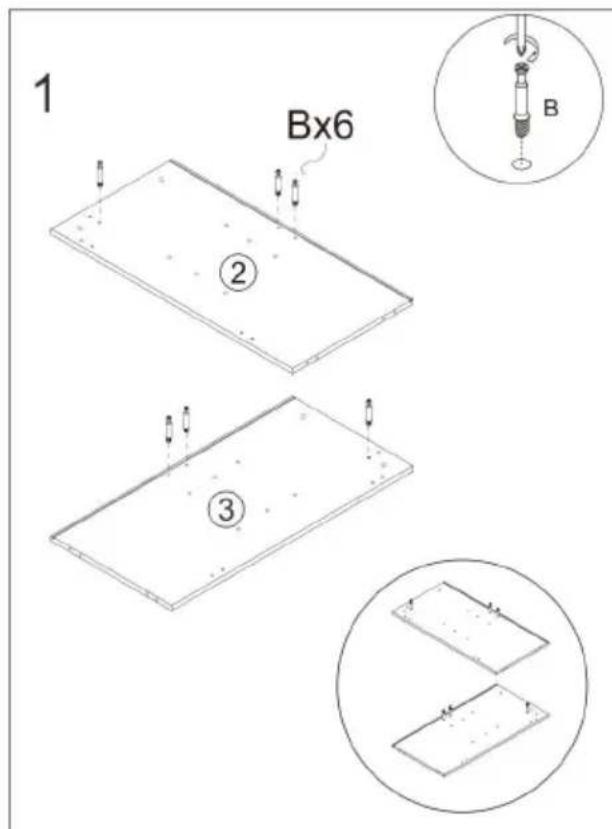

Step1: Fix hardware B to Part 2 and 3.	Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.
3	4

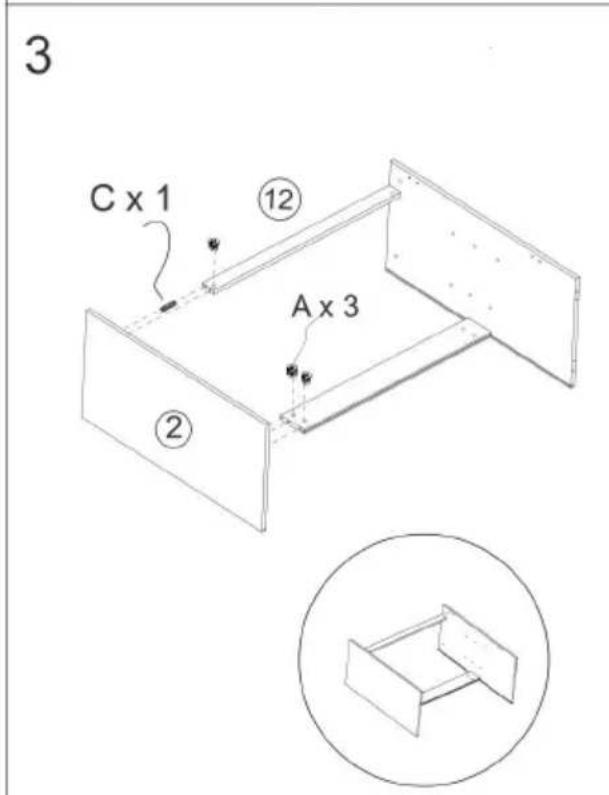

Step3: Connect Part 2 and Part 9 throughhardware B, and tighten them with hardware A.	Step4: Put Part 10 to the groove of Part 2 and 3.Put hardware C to Part 2 and 3 and connectPart 6 to Part 2 and 3 through hardware C.Fix Part 6 to Part 2 and 3 with screw I.

5

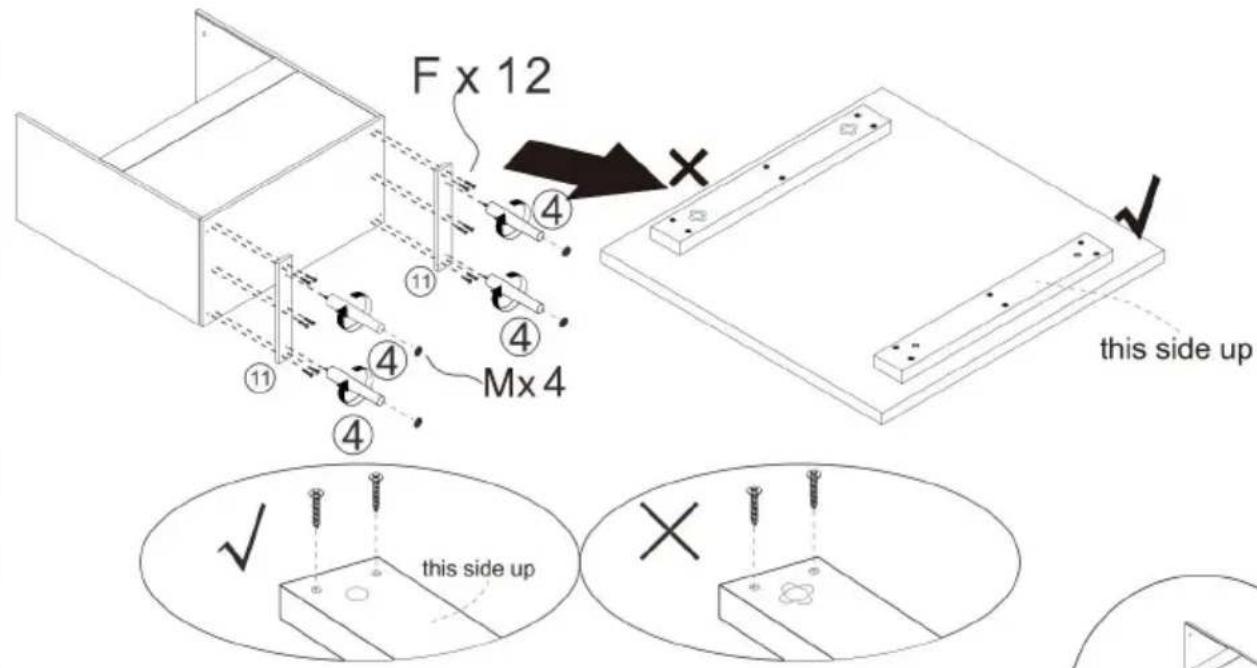

Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal structure (no text or symbols)

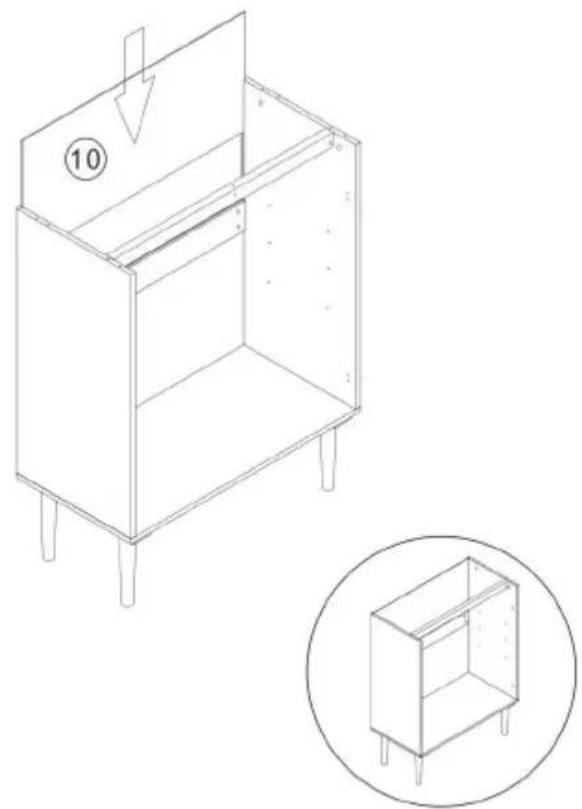

Step6: Put Part 10 to the groove of Part 2 and 3.

7

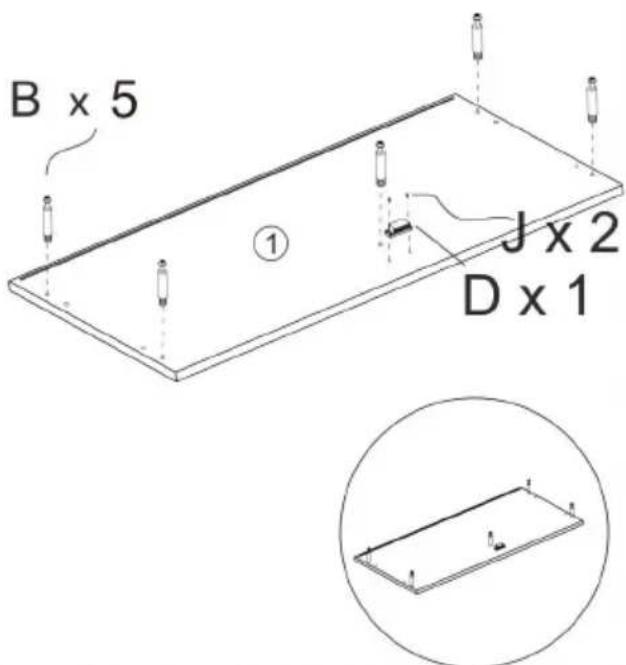

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

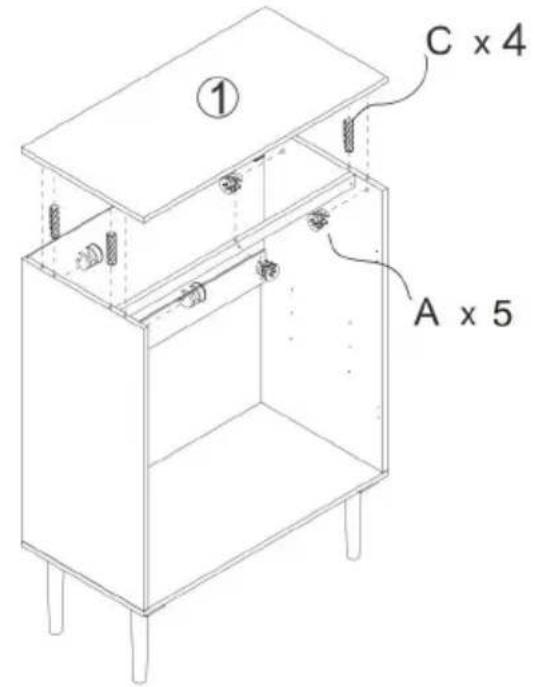

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

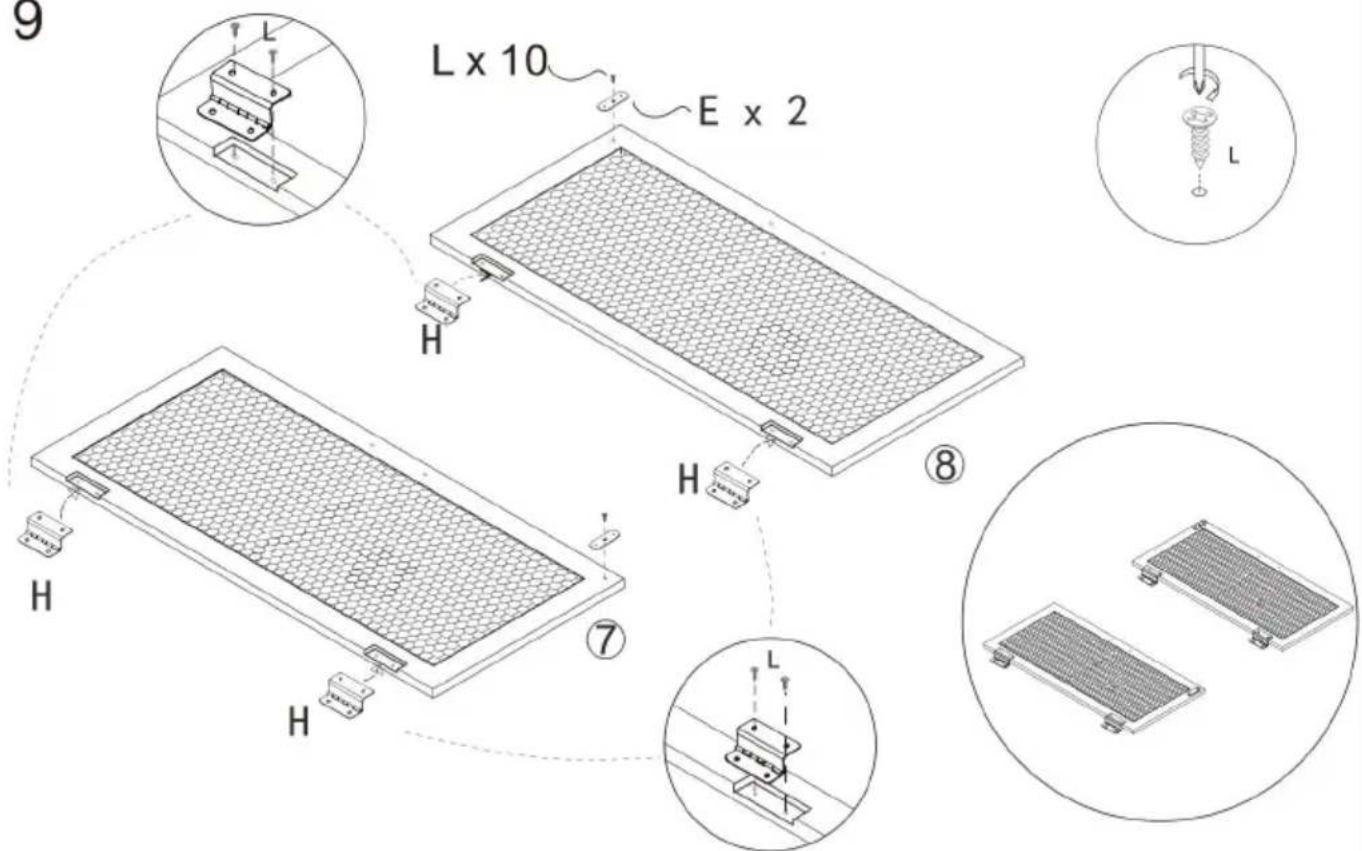

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

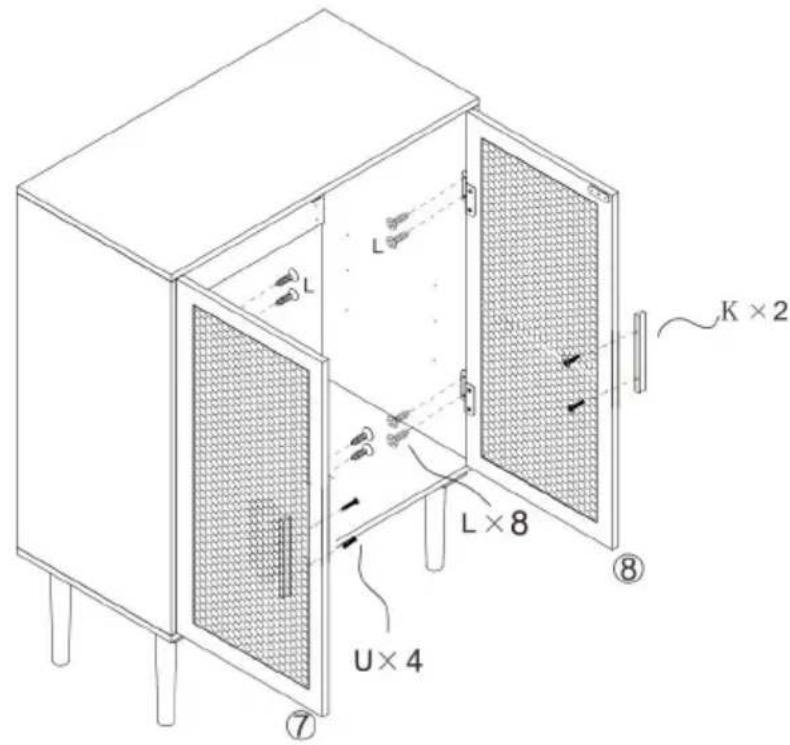

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

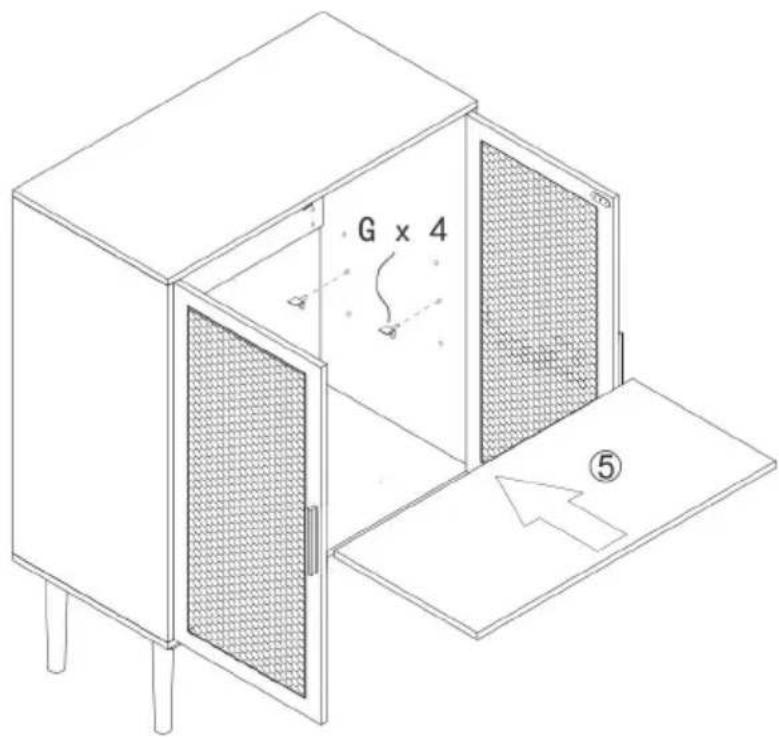

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

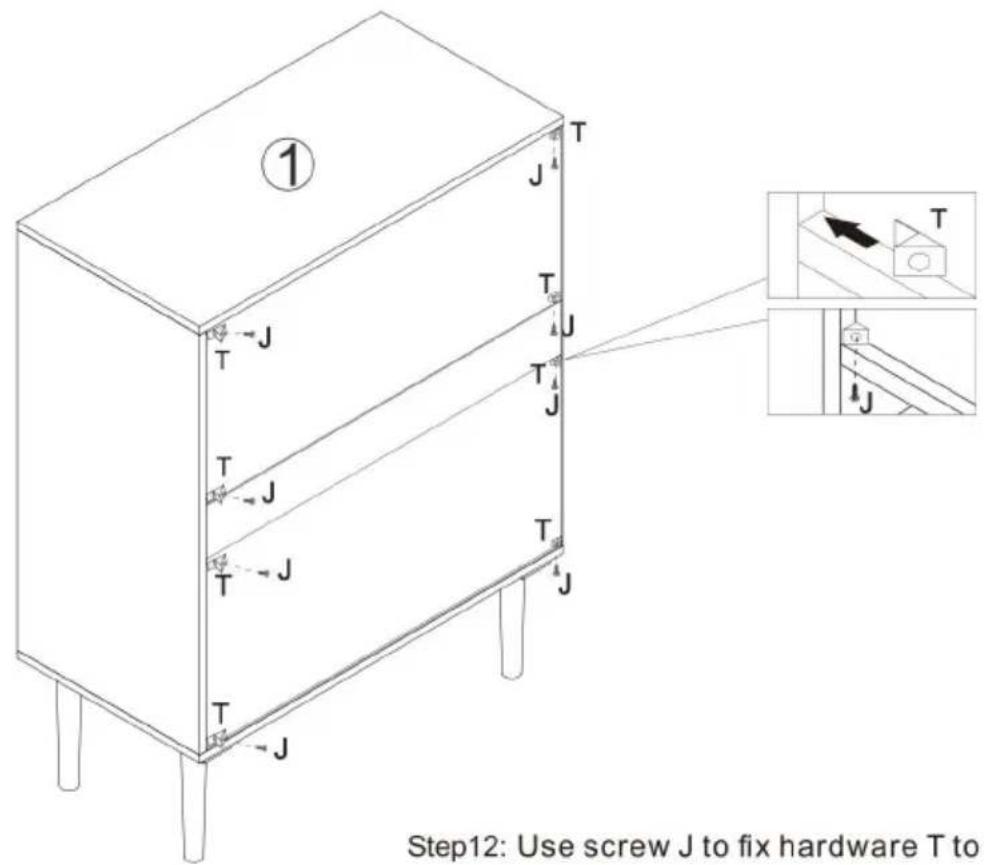

① J T T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Cx1 Panel (Weldinghouse Panel 2)

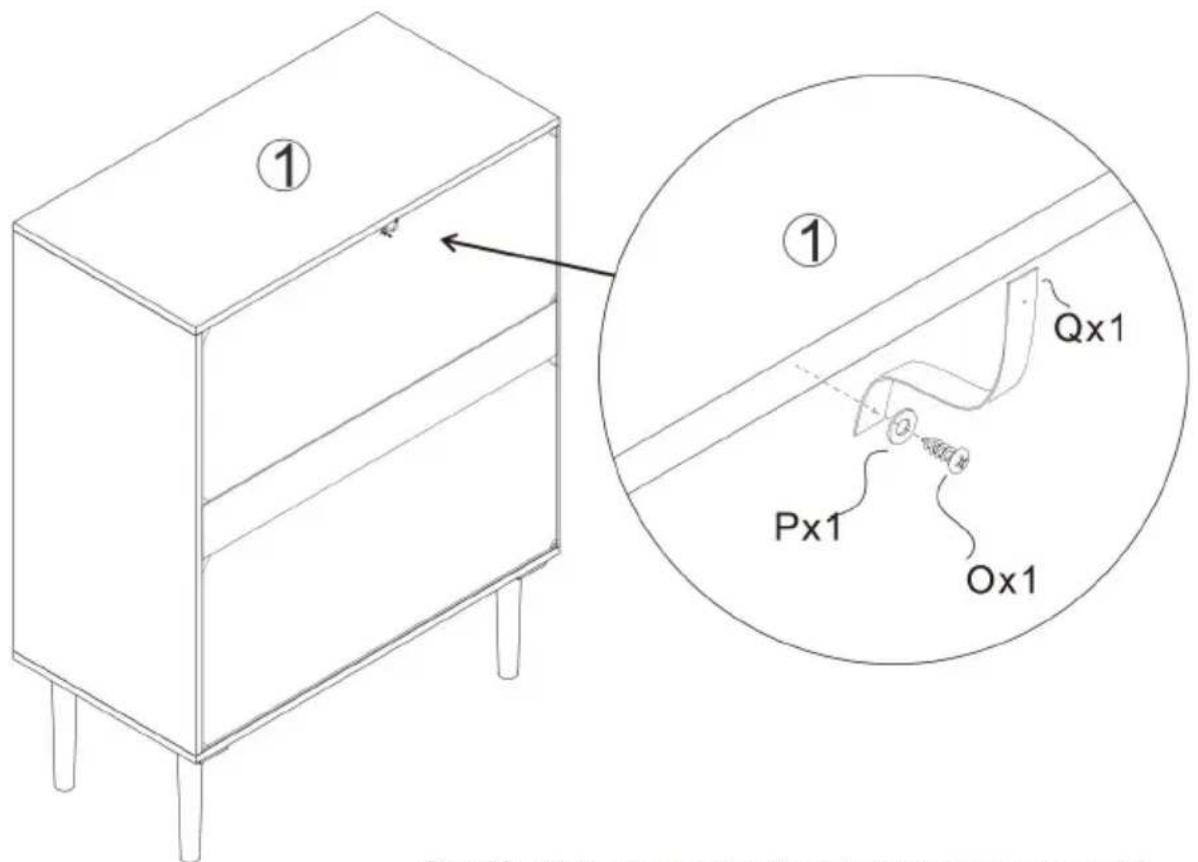

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

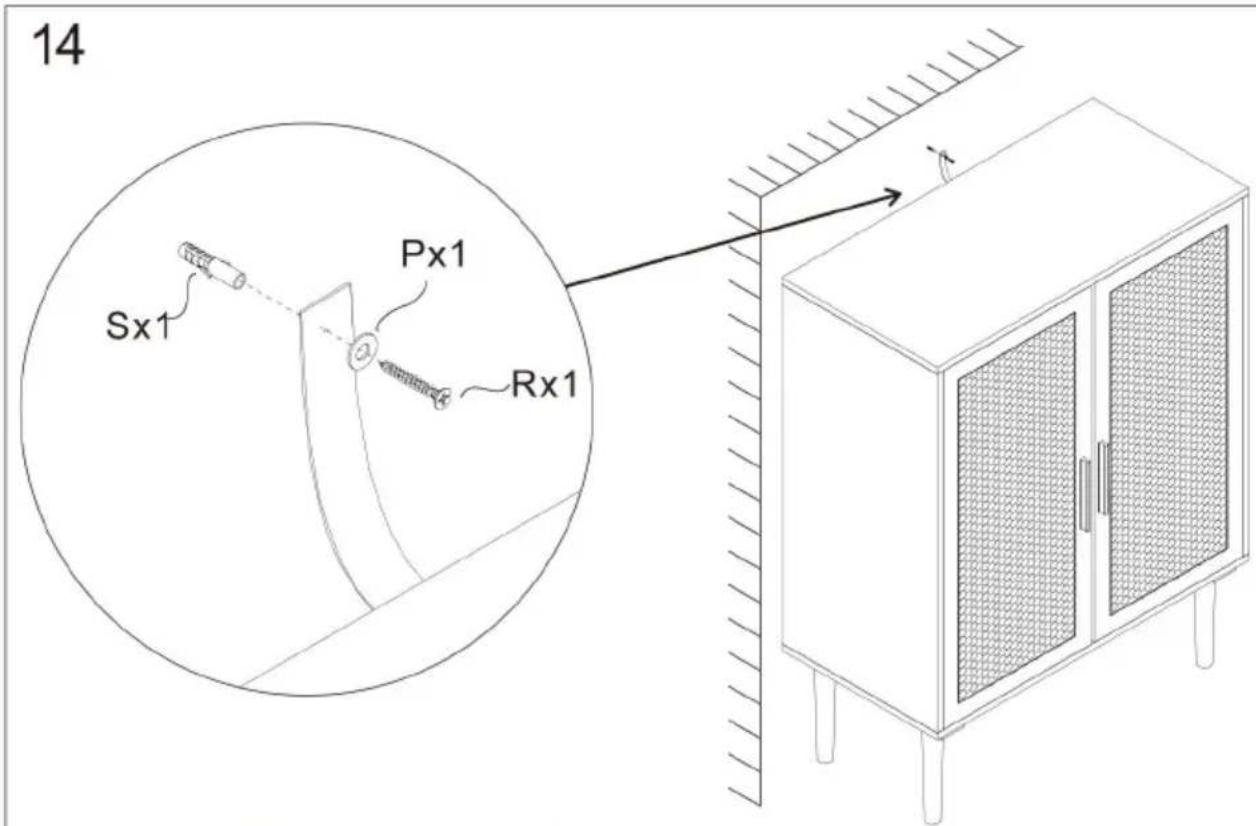

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

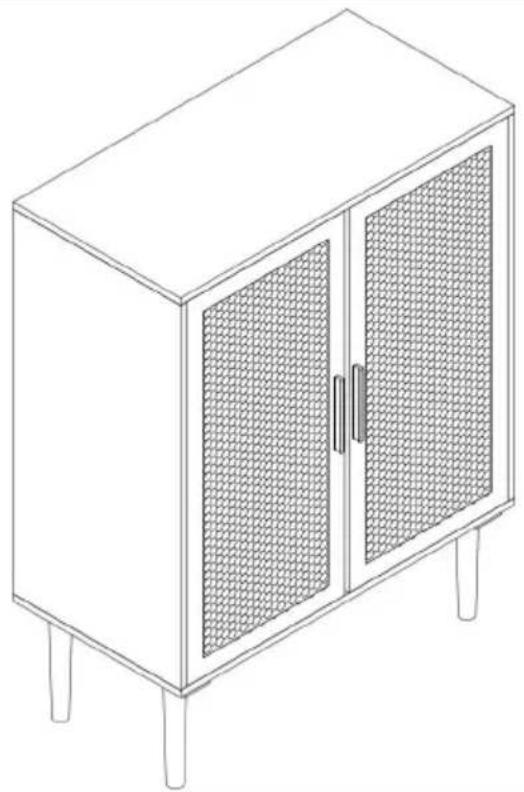

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Exploded view diagram of a modular kitchen or storage unit with numbered components for assembly or inspection.

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

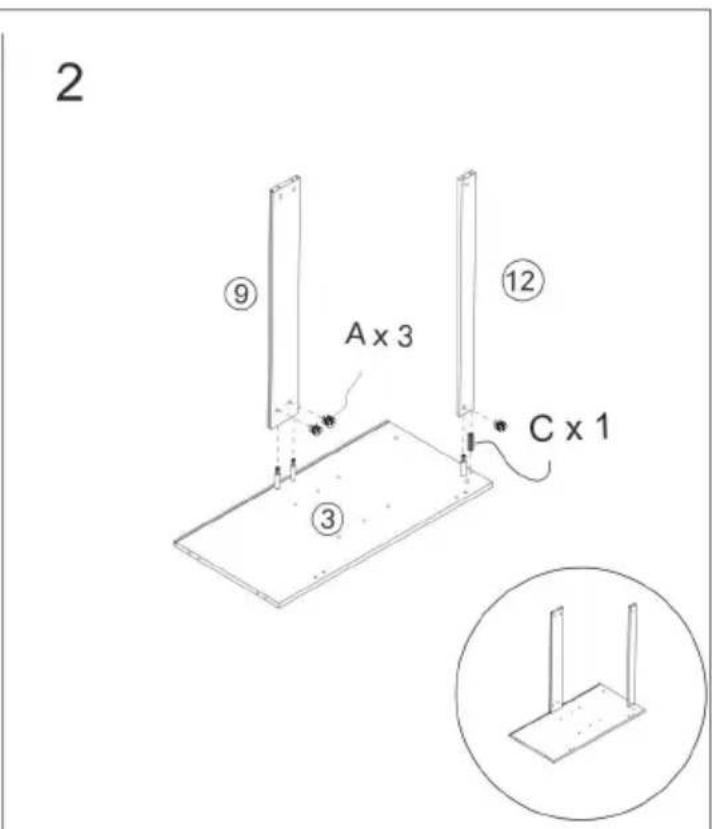

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

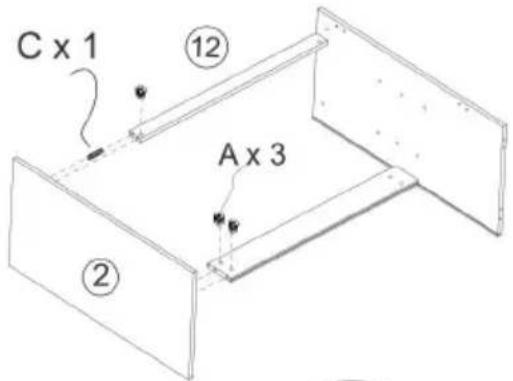

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

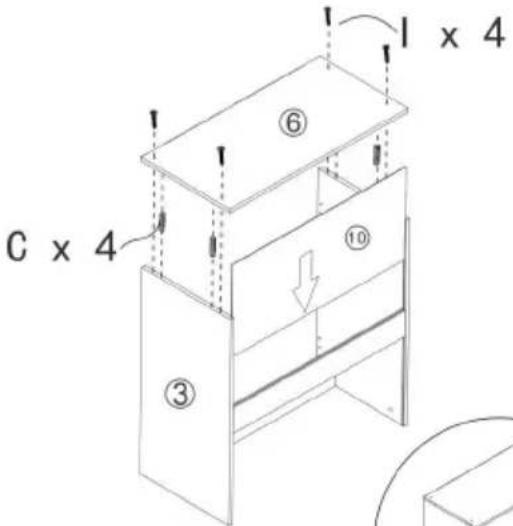

4 C x 4 ③ ⑥ ⑩ I x 4

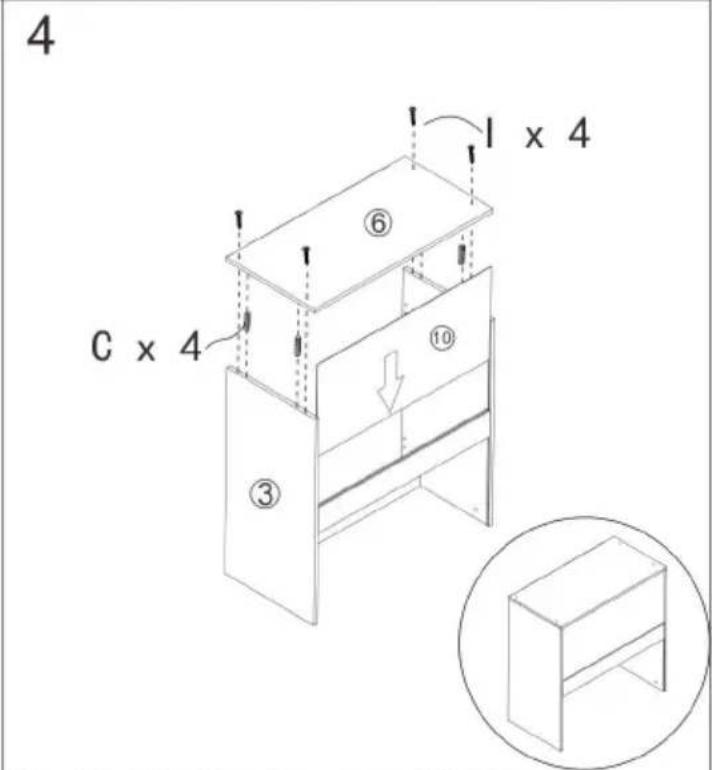

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal structure (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Cx1 Panel (Weldinghouse Panel 2)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

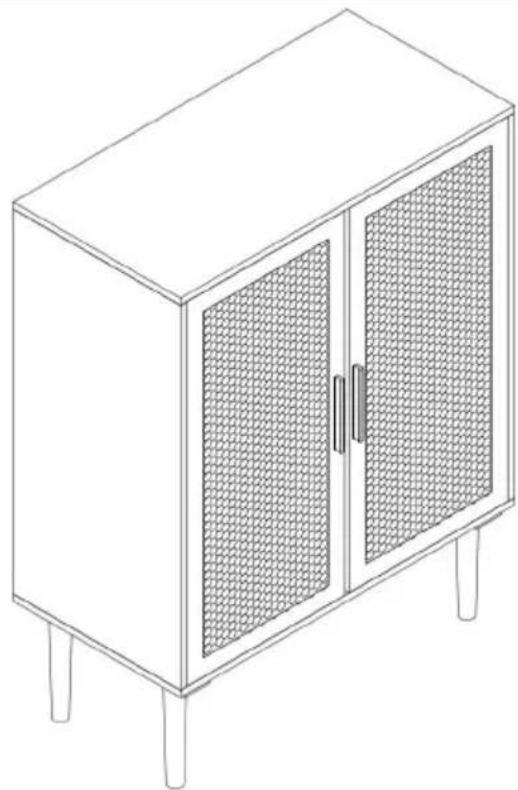

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australie

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

RATTAN-AKZENTSCHRANK

BENUTZERHANDBUCH

MODELLNR.: SR191522, SR191522X2

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Exploded view diagram of a modular kitchen or storage unit with numbered components for assembly or inspection.

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.
2

A x 3 C x 1

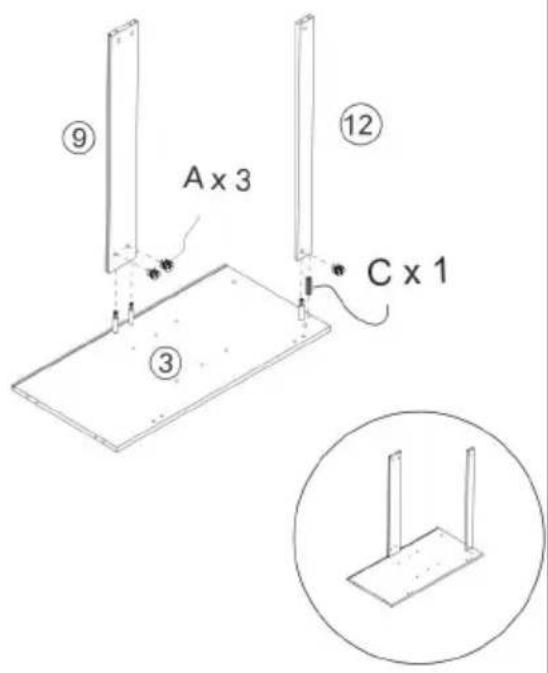

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3

C x 1 ⑫ A x 3 ②

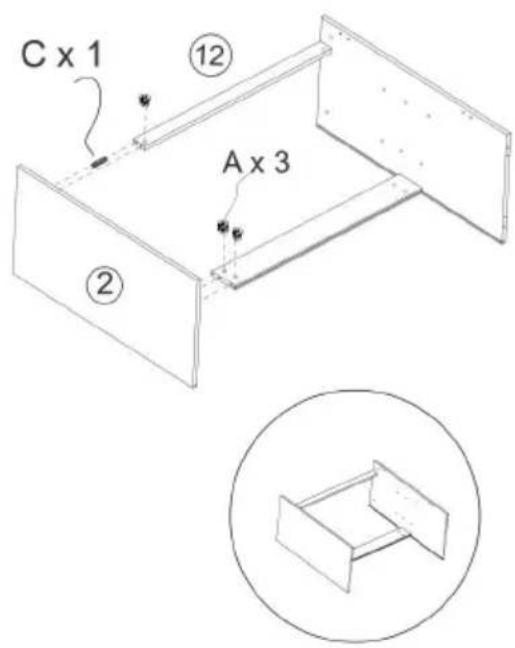

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4

C x 4 ③ ⑥ ⑩ 1 x 4

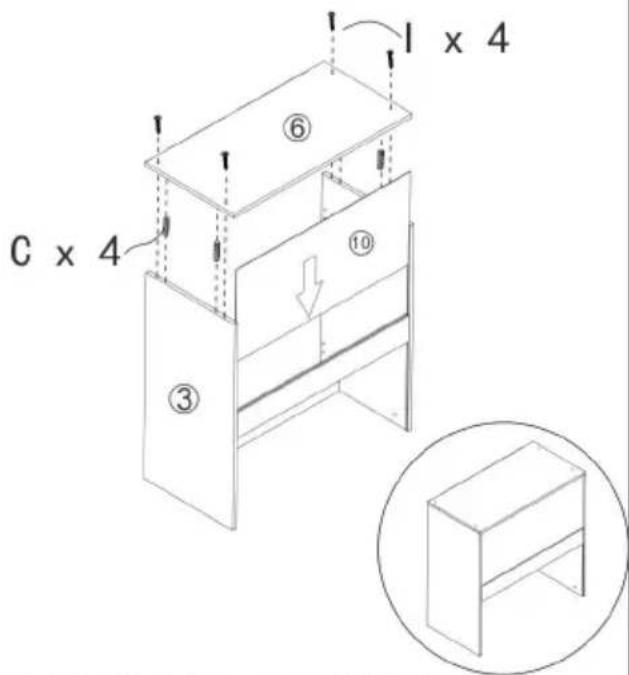

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal structure (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Ox1 (Pulley) (Pulley Box)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Exploded view diagram of a modular kitchen or storage unit with numbered components for assembly or inspection.

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4 C x 4 ③ ⑥ ⑩ I x 4

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal structure (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinning on Box Section (labeled as Panel 2)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Exploded view diagram of a modular kitchen or storage unit with numbered components for assembly or inspection.

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4 C x 4 ③ ⑥ ⑩ I x 4

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal compartments (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Ox1 (Pulley) (Pulley Box)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

SZAFKA AKCENTOWA RATTANOWA INSTRUKCJA OBSŁUGI

NR MODELU: SR191522, SR191522X2

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

Exploded view diagram of a modular kitchen or storage unit with numbered components and labeled parts

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4 C x 4 ③ ⑥ ⑩ I x 4

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal compartments (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Ox1 (Pulley) (Pulley Box)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ROTAN ACCENTKAST

GEBRUIKSAANWIJZING

MODELNUMMER: SR191522, SR191522X2

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Exploded view diagram of a modular kitchen or storage unit with numbered components and labeled parts

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4 C x 4 ③ ⑥ ⑩ I x 4

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal compartments (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑦

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Ox1 (Pulley) (Pulley Box)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ROTTING ACCENT SKÅP

A R MANUAL

MODELLNR: SR191522, SR191522X2

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Exploded view diagram of a modular kitchen or storage unit with numbered components and labeled parts

1 Bx6 ② ③

Step1: Fix hardware B to Part 2 and 3.

2 ⑨ A x 3 ⑬ C x 1 ③

Step2: Connect Part 3 and Part 9/12 through hardware B, and tighten them with hardware A/C.

3 C x 1 ⑫ A x 3 ② ②

Step3: Connect Part 2 and Part 9 through hardware B, and tighten them with hardware A.

4 C x 4 ③ ⑥ ⑩ I x 4

Step4: Put Part 10 to the groove of Part 2 and 3. Put hardware C to Part 2 and 3 and connect Part 6 to Part 2 and 3 through hardware C. Fix Part 6 to Part 2 and 3 with screw I.

5
Please check the direction of the hole which to assemble the leg.

F x 12 Mx 4 this side up this side up

Step5: Fix Part 11 to Part 6 with screw F.
Screw Part 4 to Part 11.
Stick M to four legs.

Isometric line drawing of a mechanical bracket or frame structure (no text or symbols)

6

Technical line drawing of a cabinet with an open lid and side view showing internal structure (no text or symbols)

Step6: Put Part 10 to the groove of Part 2 and 3.

7

B x 5 ① J x 2 D x 1

Step7: Fix hardware B to Part 1.
Fix hardware D to Part 1 with screw J.

8

C x 4 ① A x 5

Diagram showing two labeled mechanical or electrical components with numbered parts and directional arrows indicating motion or movement.

Isometric line drawing of a cabinet with four legs, enclosed in a circle (no text or symbols)

Step8: Put hardware C to Part 2 and 3 and connect Part 1 to Part 2 and 3 through hardware C. Tighten Part 1 to Part 2 and 3 with hardware A.
9

L x 10 E x 2 H H H ⑧ ⑦ H L ⑨

Step9: Fix hardware H to Part 7 and 8 with screw L. Fix hardware E to Part 7 and 8 with screw L.

10

L L×8 U×4 K×2 ⑧ ⑦

Isometric line drawing of a two-story cabinet with doors and ventilation grilles, enclosed in a circular frame (no text or symbols)

Step10: Fix Part 7 and 8 to Part 2 and 3 with screw L. Fix hardware K to Part 7 and 8 with screw U.

11

G x 4 ⑤

Isometric line drawing of a cabinet with two doors and a side panel, enclosed in a circle (no text or symbols)

Step11: Put part 5 to the cabinet. Put hardware G to screw hole on Part 2 and 3.

12

① J T T J T J T J T J T J T J Step12: Use screw J to fix hardware T to

Step12: Use screw J to fix hardware T to the corner.

13

① ① Qx1 Px1 Ox1 Step 10: Pinninghouse Ox1 (Pulley) (Pulley Box)

Step13: Fix hardware Q to Part 1 with hardware P and O.

14 Sx1 Px1 Rx1

Step14: Fix hardware S to the wall. Fix hardware Q to S with hardware P and R.

COMPLETION

Line drawing of a simple cabinet with four legs and two doors, featuring a mesh-patterned door (no text or symbols)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOC NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
