RV 5TH WHEEL STABILIZER JACK

MODEL:RV-5TH-5000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

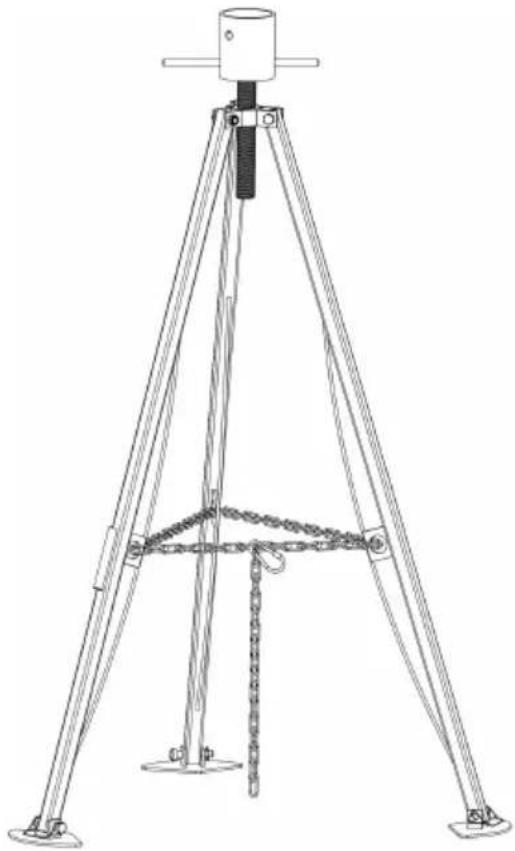

RV 5TH WHEEL STABILIZER JACK

MODEL:RV-5TH-5000

Technical line drawing of a tripod-mounted mechanical structure with chains and supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OPERATING PRINCIPLE

RV 5th Wheel Stabilizer Jack is designed to support the overhang at the fro your 5th wheel trailer. It helps stop your trailer from rocking front to back or side whenever you are moving around inside the trailer. The stabilizer has a maximum 5000 lbs. load capacity and is adjustable from 35 inches to 57 inch and is easy to use.

First, make sure your trailer is parked and level using your trailer's existing jacks. Then move the 5th Wheel Stabilizer under your king pin and rotate the so that one leg points to the front of the trailer. For major height adjustment the tripod legs inward or outward; minor adjustments are made with the prov stabilizing adjusting lever. Adjust the tripod legs so that the hitch cup connect the king pin and use the adjusting rod to tighten the hitch cup against the When completed, you can use a padlock to stop the stabilizer's removal.

PRODUCT PAREMETERS

Model	RV-5TH-5000
Height Range	35 - 57 inch (or 880-1450mm)
Rated Load	2700 lbs (or 1225kg)
Maximum Load	5000 lbs (or 2268kg)

WARNING:

Read carefully and understand all instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious persinjury.

1. Stay alert. Watch what you are doing and use common sense when operate the tool. Do not use the tool while tired or under the influence of drugs alcohol, or medication. A moment of inattention while operating the tool increases the risk of injury to persons.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair, hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, long hair increases the risk of injury to persons as a result of being ca moving parts.
3. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situat
4. Use safety equipment. Wear ANSI-approved safety goggles and heavy-duty work gloves during use.
5. Do not force the tool. Use the correct tool for the application. The correct will do the job better and safer at the rate for which the tool is design
6. Store the tool when it is idle, out of reach of children, and other untrained persons. A tool is dangerous in the hands of untrained users.
7. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool's operation. If damaged, have the serviced before use. Many accidents are caused by poorly maintained to
8. Use only accessories that are identified by the manufacturer for the specific tool model. Use of an accessory not intended for use with the specific model increases the risk of injury to persons.
9. Avoid off-center loads. If the Pump seems unusually hard to operate, immediately stop. Adjust the Ram to eliminate or diminish an off-center load. The Flange Base and Flange Head must only be used together to prevent off-center load.
10. Inspect repair after use. Repairs to structural or frame members must be inspected by a qualified technician to ensure that the structure is still str

enough to safely fulfill its function.

1. Tool service must be performed only by qualified repair personnel.
2. When servicing a tool, use only identical replacement parts. Use only authorized parts.
3. Only qualified and authorized persons are allowed to operate the rv stack jack.
4. Use as intended only. This product is not a toy. Do not allow children with or near this item.

SAVE THESE INSTRUCTIONS

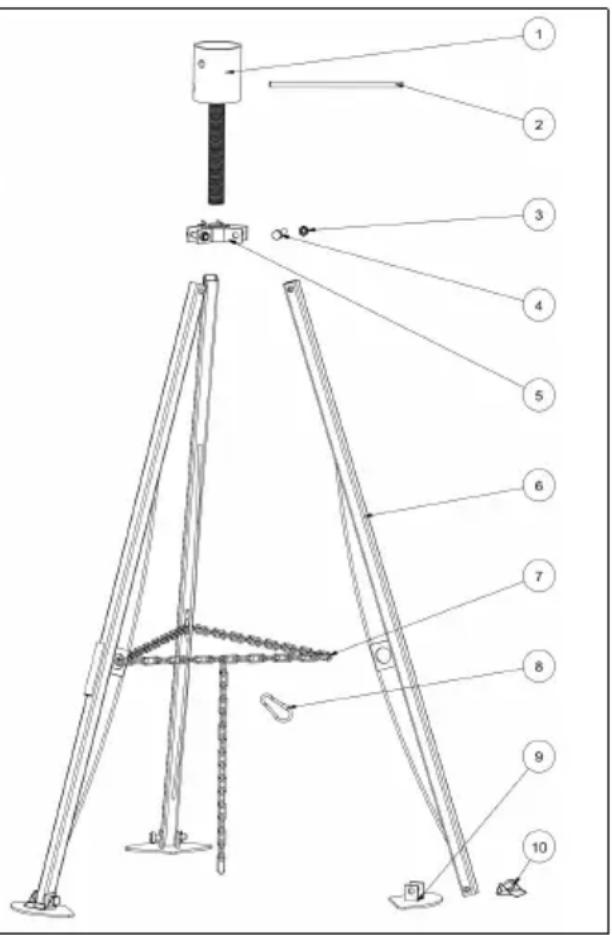

PRODUCT STRUCTURE

NO	PART NAME	QTY
1	Hitch Cup	1
2	King pin	1
3	Nut	3
4	Screw	3
5	Nut Connector	1
6	Leg Brackets	3
7	Chain	1
8	Hook	1
9	Footpad	3
10	Clip	3

Technical diagram of a mechanical device with numbered components for assembly or maintenance reference.

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

ASSEMBLY INSTRUCTIONS

The tripod hardware has been preassembled for your convenience. It is recommended to snug the nuts prior to placing the tripod on the king pin to better stability. Do not tighten completely. Allow the legs to move freely so t tripod can open while being placed in use and can collapse upon removal fr king pin for easy storage. You will need to attach the footpad(s) - clip asse supplied - and the chain.

1. Run the chain (7) through all three leg brackets (6) as pictured below.
2. Keep the chain loose and position the tripod below the king pin of your
3. Lift the cup (1) up over the king pin (2).
4. Tighten and hook the chain to itself.
5. Turn the handle of the cup counterclockwise until the cup is snug against king pin.
6. Two or three additional turns are normally sufficient for stabilization.
7. Your tripod is adjustable from 35" to 57".
8. Your tripod will support and stabilize up to 5,000 pounds.
