RATTAN ACCENT CABINET USER MANUAL

MODEL NO.: KLSB-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Accent Cabinet

MODEL NO.: KLSB-02

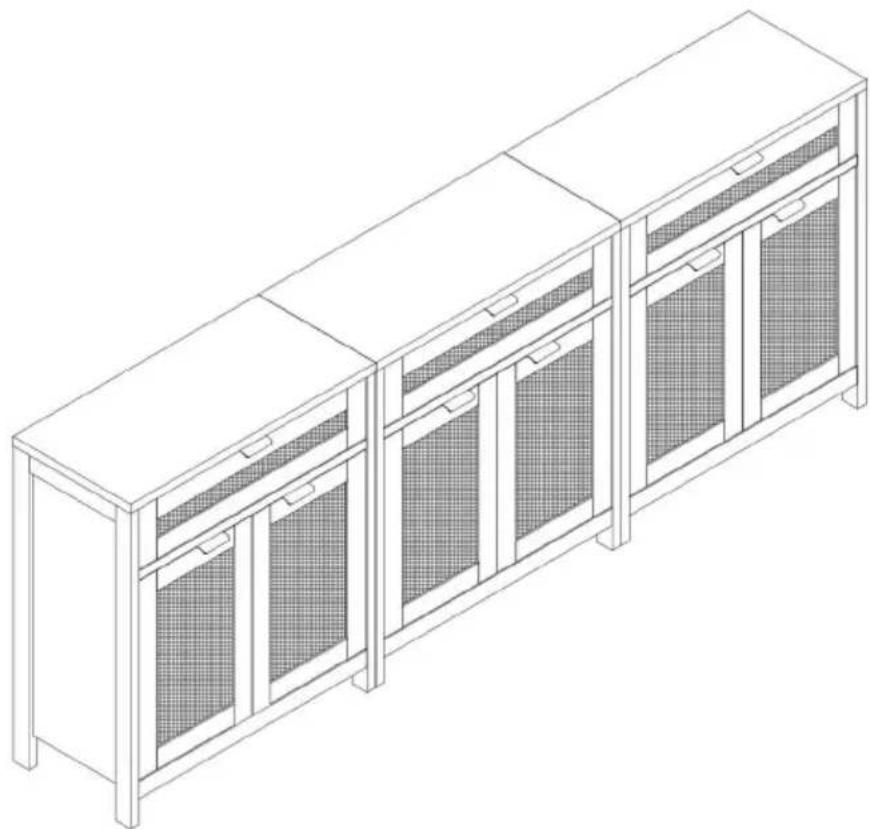

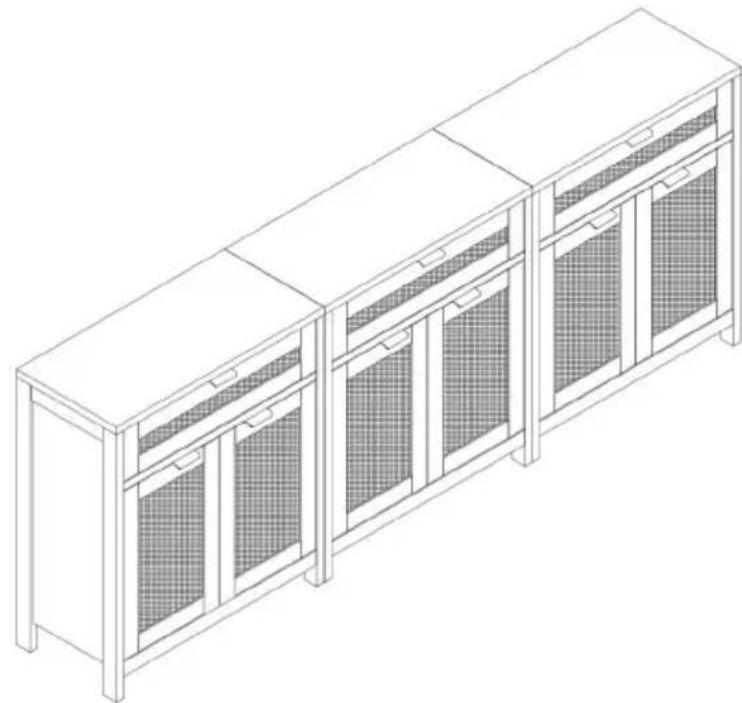

Isometric line drawing of a multi-unit cabinet or rack unit with mesh windows and front panels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Accent Cabinet.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Accent Cabinet.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	KLSB-02
Quantity	3 pcs
Product Dimensions (LxWxH)(mm)	750*360*860 (1pcs size)
Net Weight(kg)	About 69.15

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

A	X117+1	B	X117+1	C	X54	D	X30
[4H40]∅6×32mm		∅15×9.5		∅8×30		∅6×30
E	X54+1	F	X72+1	G	X12	H	X12
[770]∅3×14mm		[TOO2]∅3.5×12mm		∅3.5×35mm		[4601]∅5
I	X6	J	X6	K	X12	L	X117
∅3×14mm		[SWWY]∅3×14mm		[374]3mm		∅20
M	X30	N	X3	O	X9	P	X12
[1485]∅3×14mm		[TTDA]100mm		64mm		[WTAB]
Q	X3
250mmCL

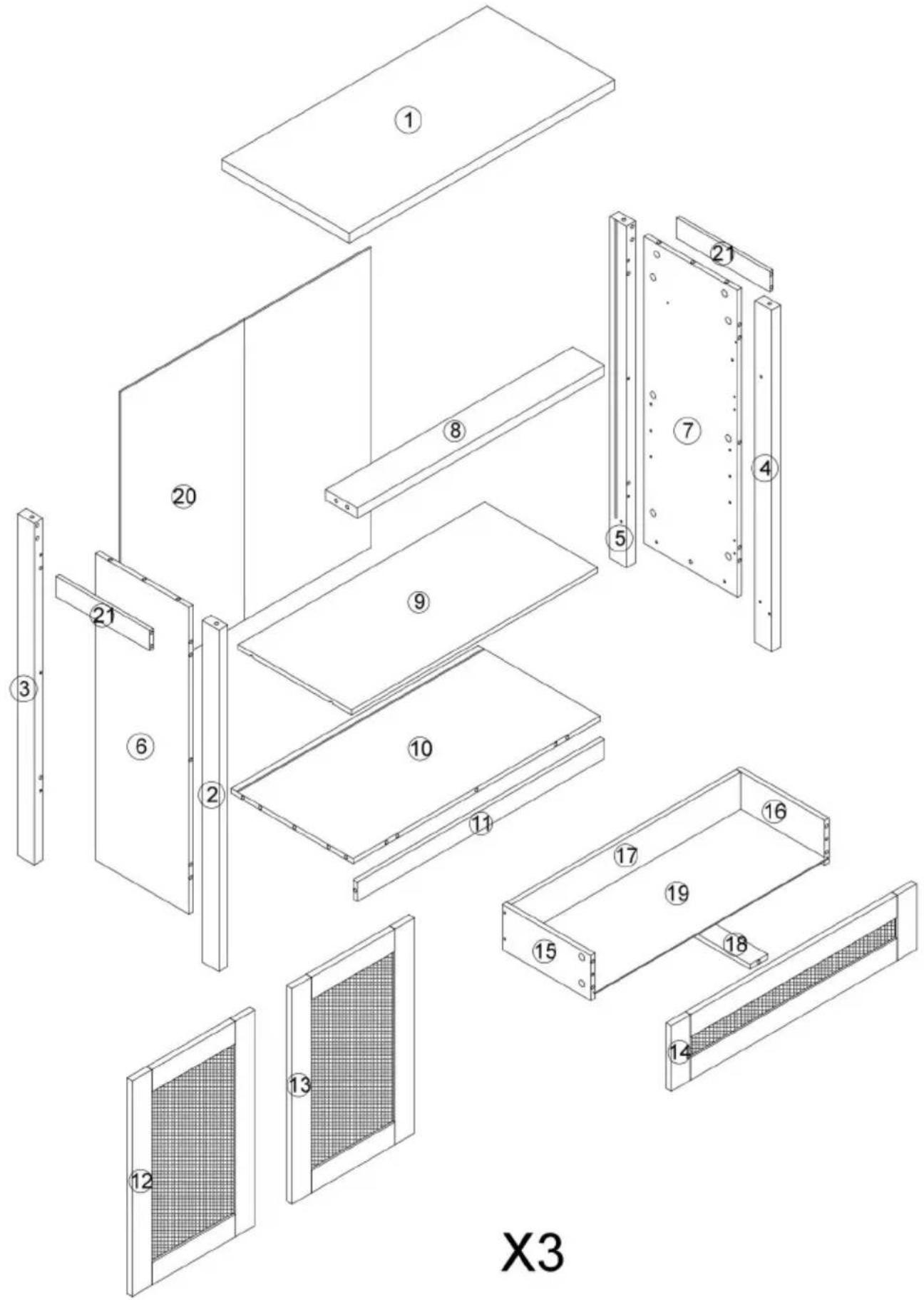

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑸ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ X3

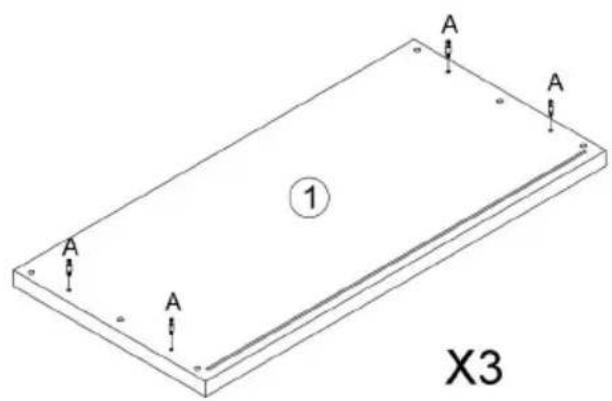

1

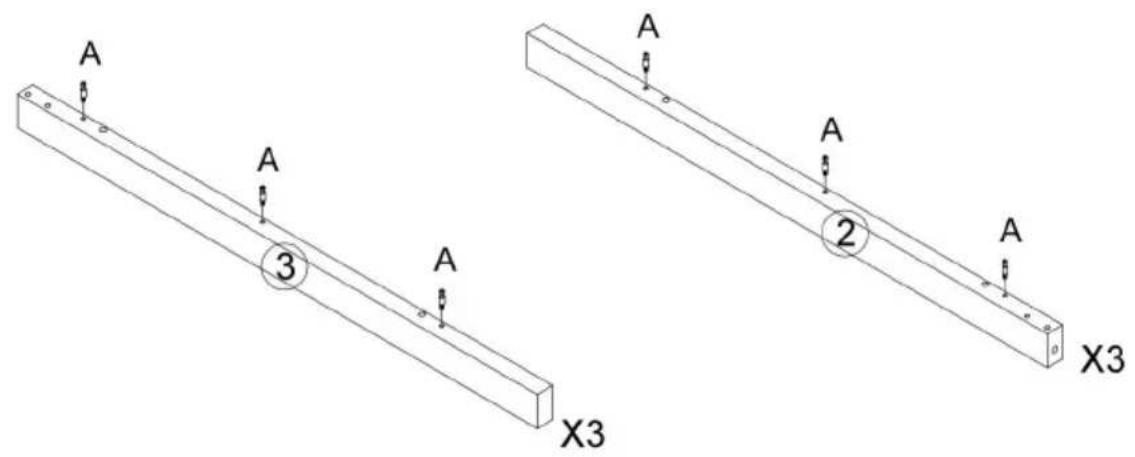

A A A A A A 3 2 X3 X3

A X18 Ø6×32mm

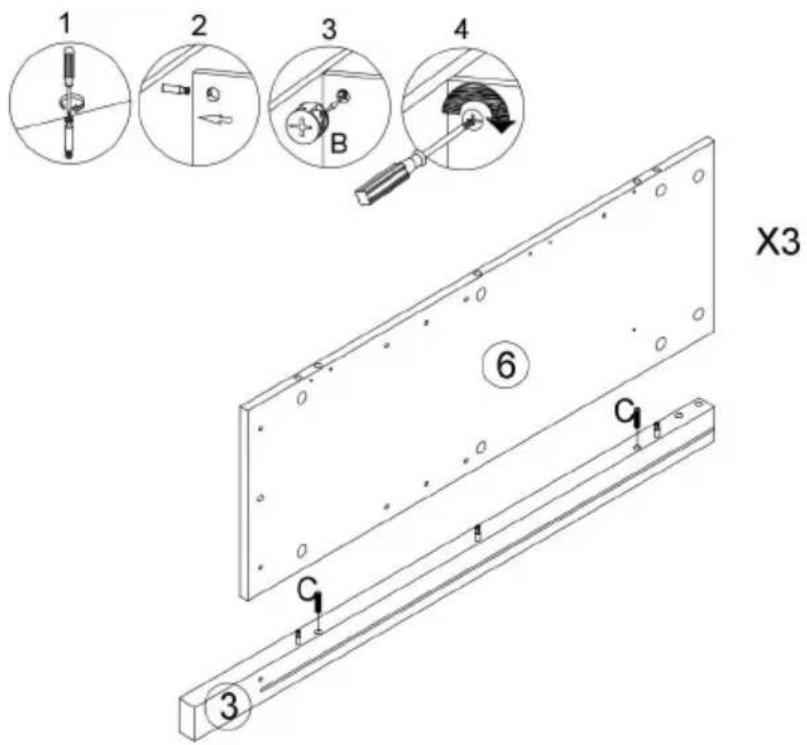

2

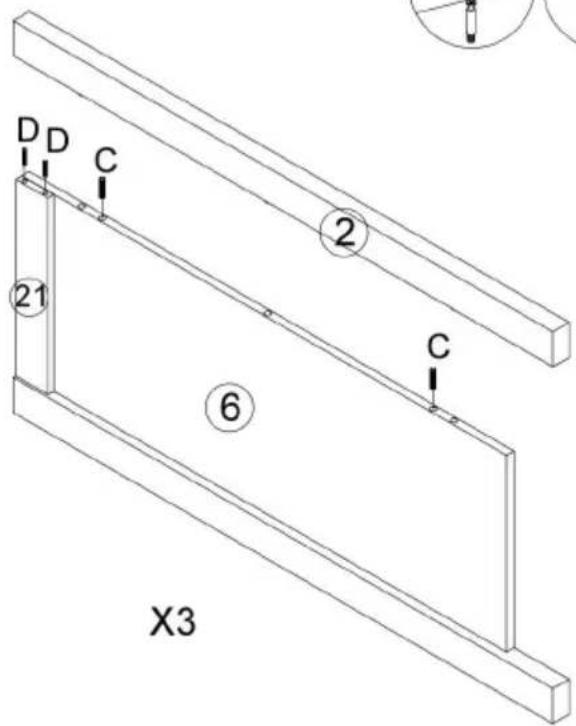

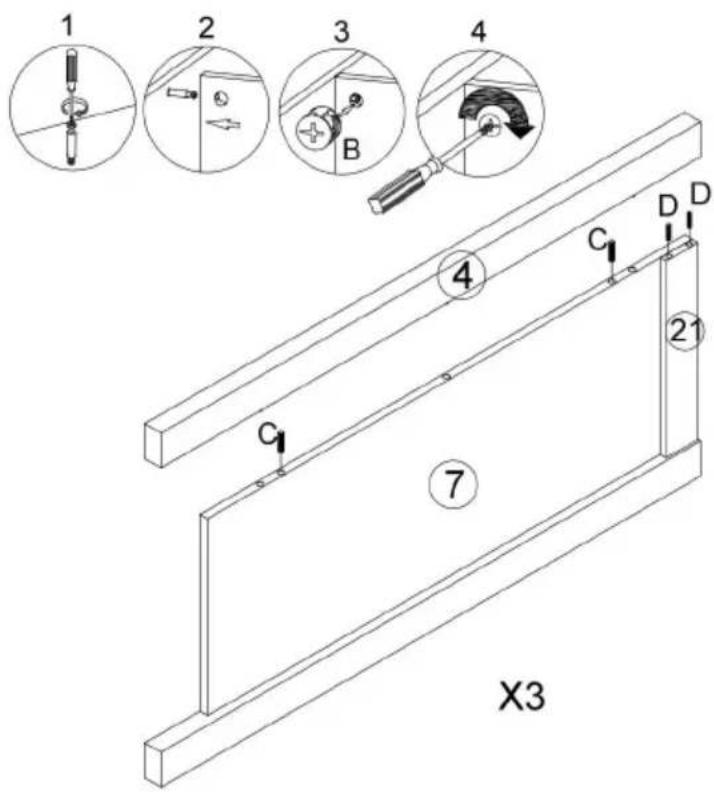

1 2 3 4 B 6 X3 C C 3

B	X9
C	X6

3

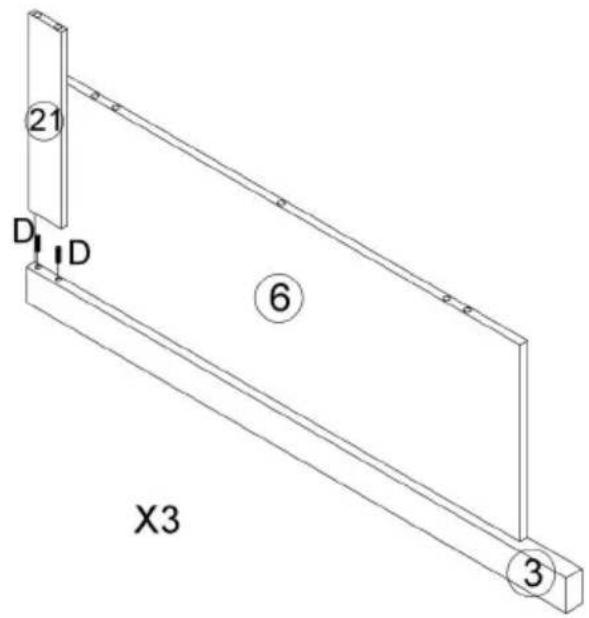

21 D D 6 X3 3

D | X6 Ø6×30

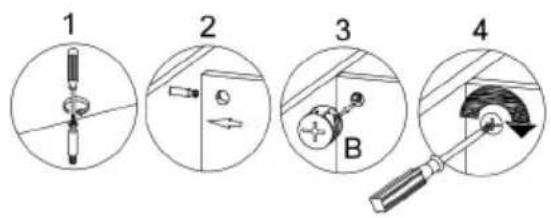

4

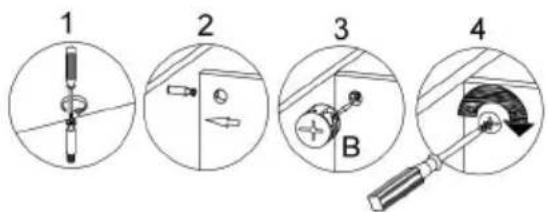

1 2 3 B 4

D D C 21 ⑥ C X3

B	X9
C	X6
D	X6

5

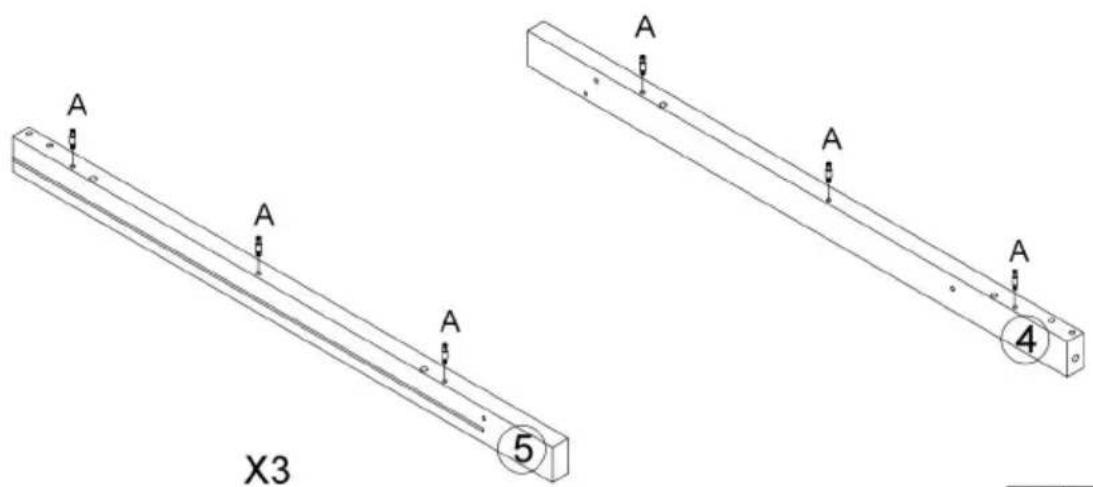

A A A A A A A 4 X3 5

A X18 Ø6×32mm

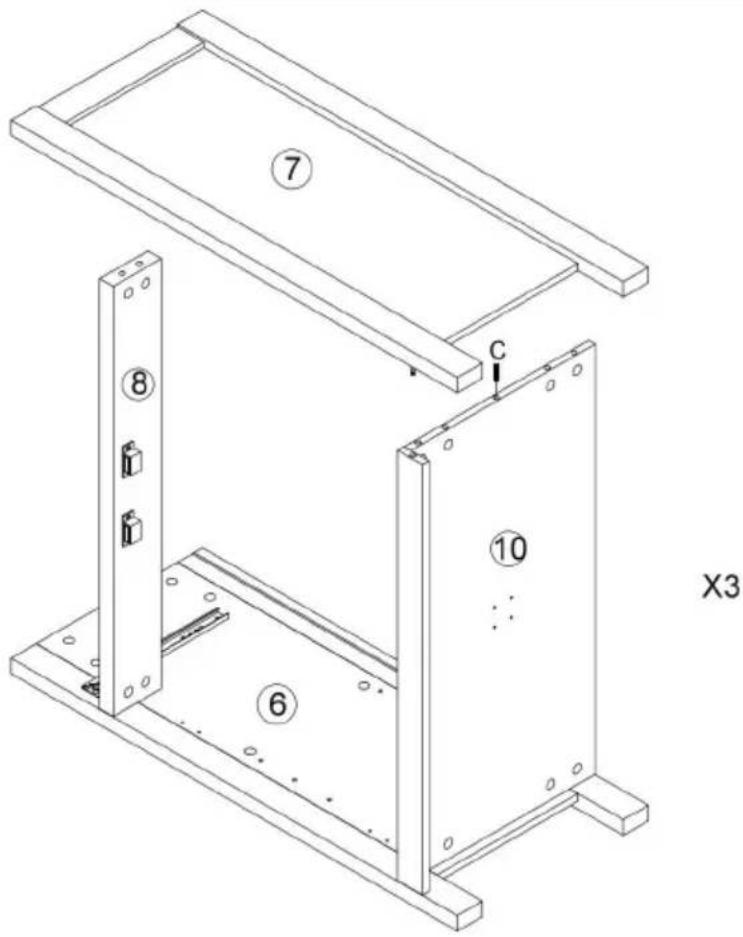

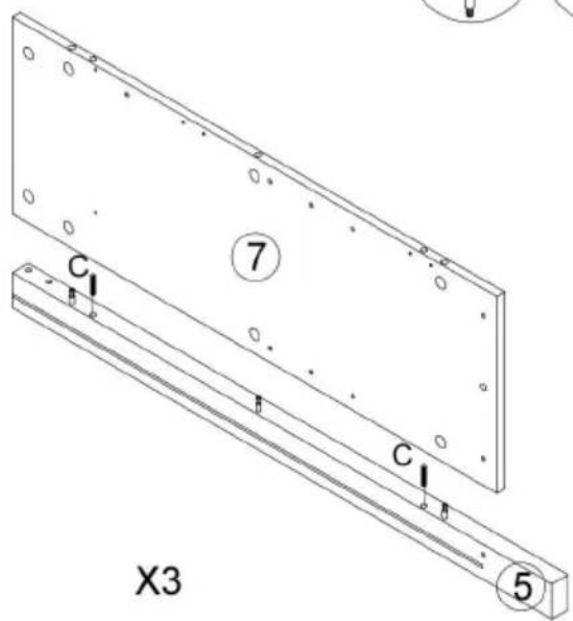

6

1 2 3 B 4

7 C C X3 5

B X9 Ø15×9.5 C X6 Ø8×30

7

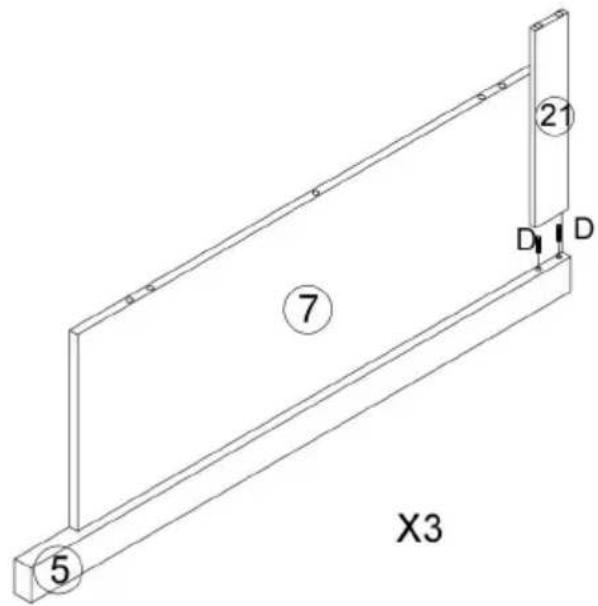

21 7 D D X3 5

D | X6 Ø6×30

8

1 2 3 4 B C D C D 21 7 X3

B	X9
C	X6
D	X6

9

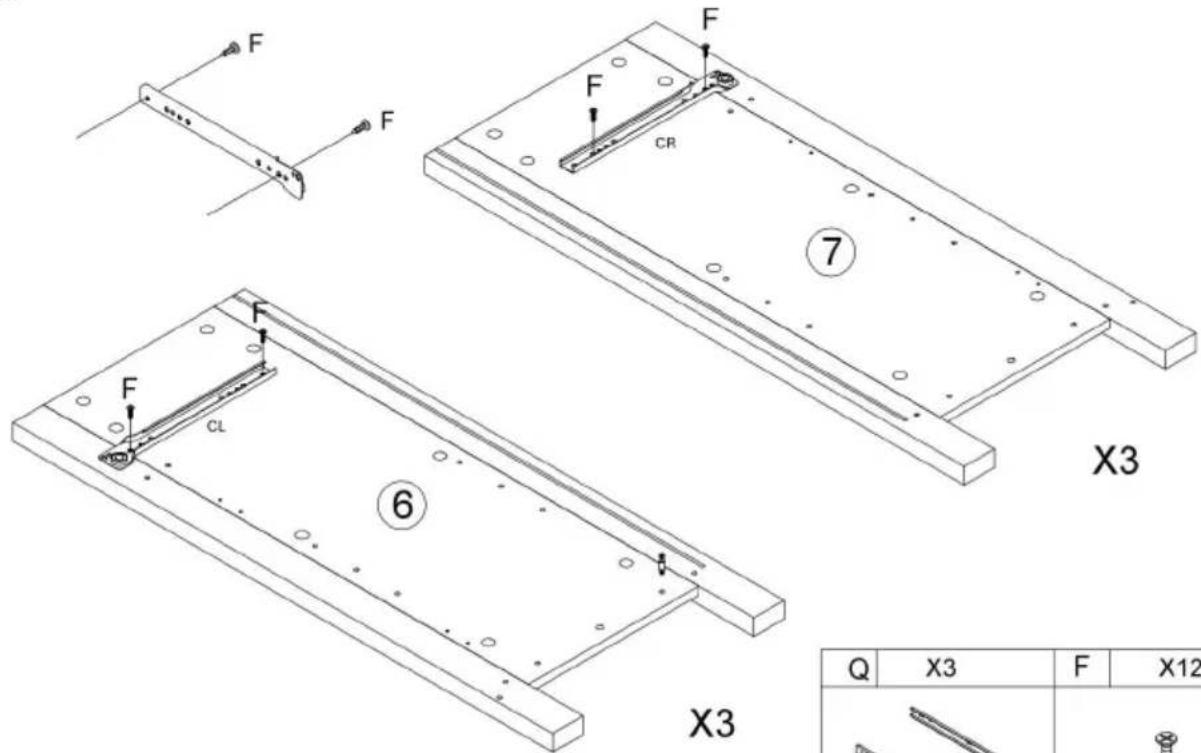

F F F CR ⑦ F F CL ⑥ X3 X3 Q X3 F X12

Q	X3	F	X12

10

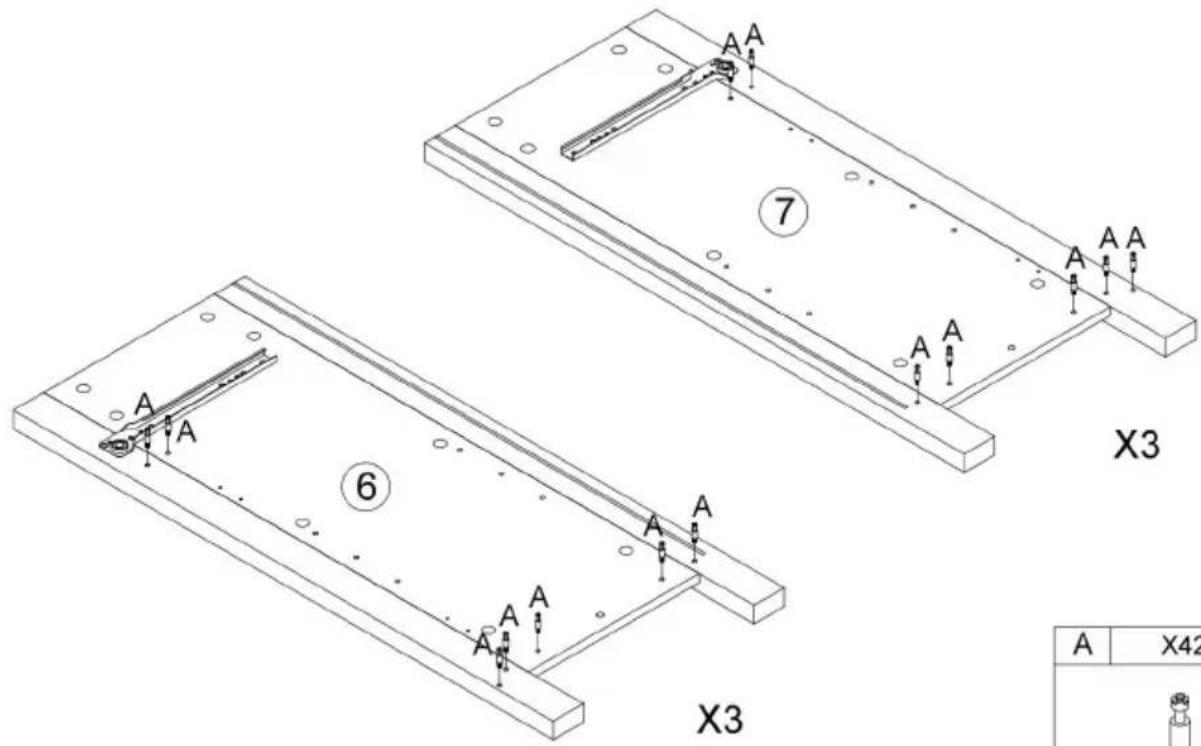

A A A A A A A A A A A ⑦ X3 ⑥ X3 A X42

A	X42

11

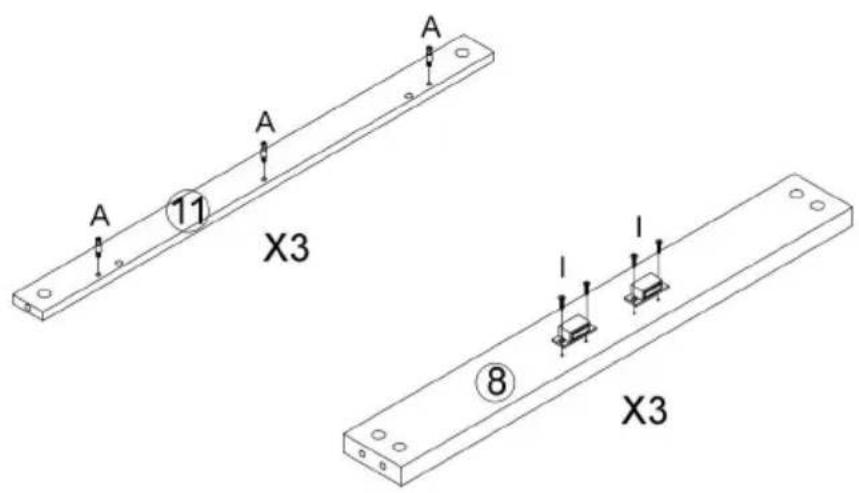

A 11 X3 A I I 8 X3

I	X6
3 × 14mm
A	X9
6 × 32mm

∅3×14mm
A | X9
∅6×32mm

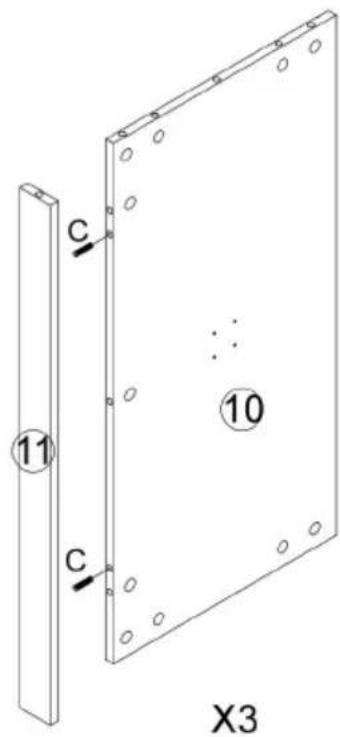

12

1 2 3 4

C 11 C 10 X3

B	X9
∅15×9.5
C	X6
∅8×30

∅15×9.5
∅8×30

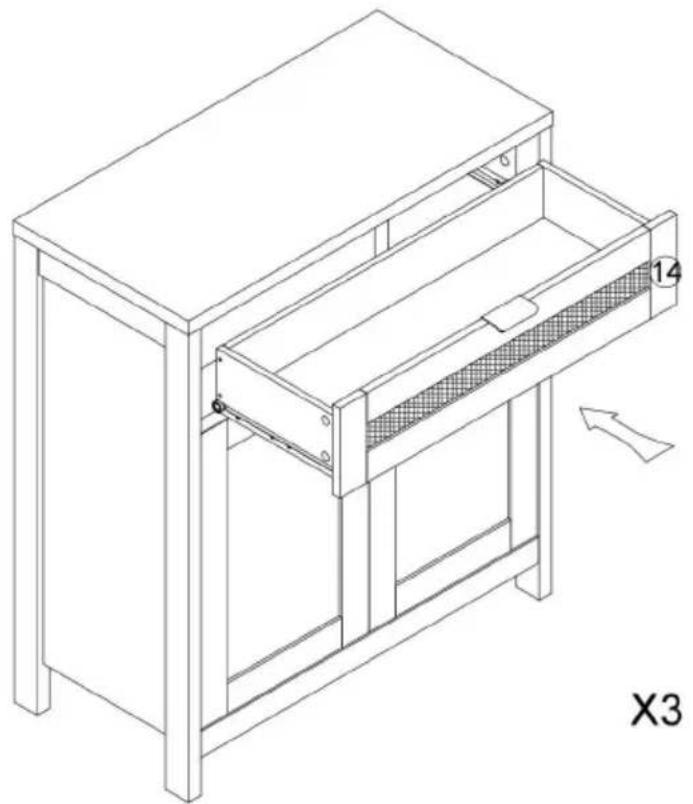

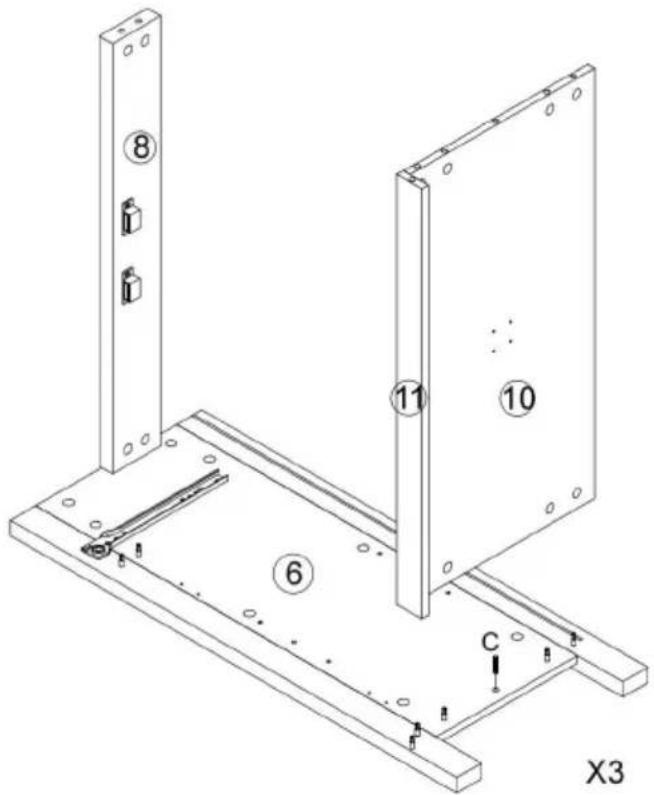

13

Diagram showing four steps of a tool or device operation with labeled parts and directional arrows

⑧ ⑥ ⑪ ⑩ C X3

B | X21 Ø15×9.5 C | X3 Ø8×30

14

Diagram showing four steps of a tool or device operation: initial setup, folding, disassembly, and final assembly.

⑦ ⑧ C ⑩ X3 ⑥ ...

B | X21 Ø15×9.5 C | X3 Ø8×30

15

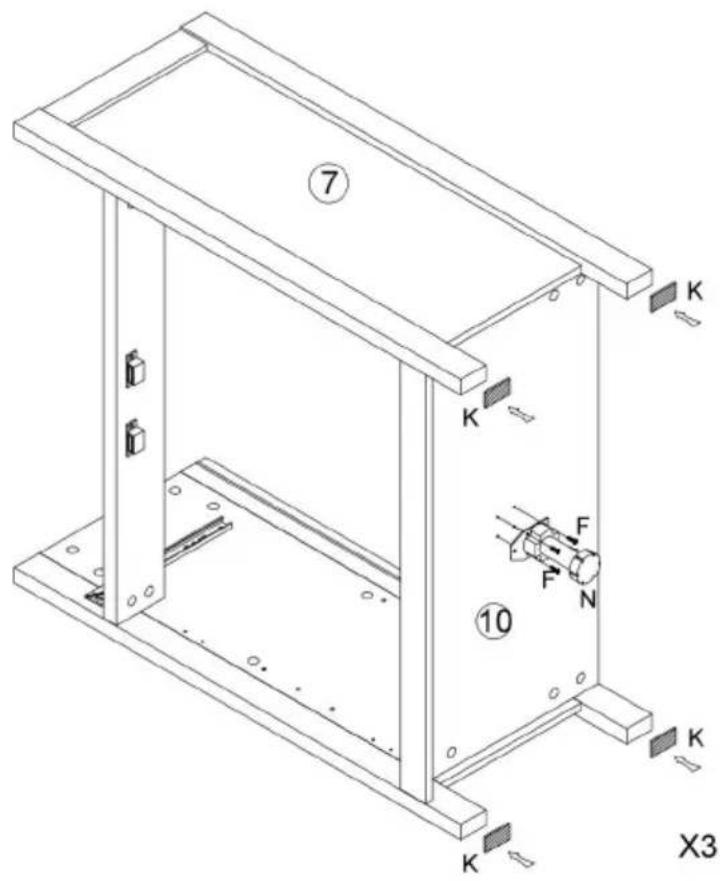

⑦ K K F F N ⑩ K K X3

K	X12
F	X12
N	X3

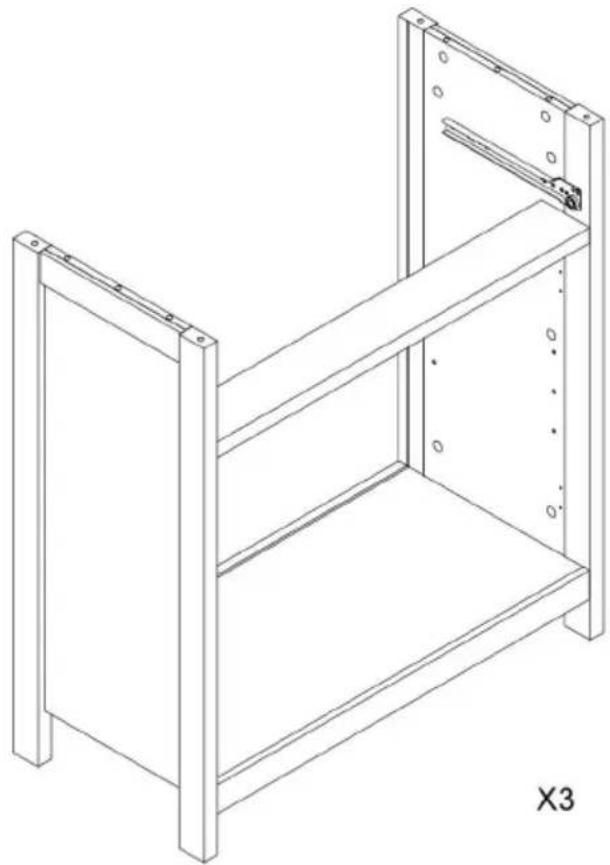

16

Isometric line drawing of a two-tiered metal shelf assembly (no text or symbols)

17

Technical line drawing of a two-level cabinet or shelf unit with labeled components (no text or symbols beyond labels)

18

Isometric view of a rectangular plate with labeled points A and numbered circle (no text or symbols beyond labels)

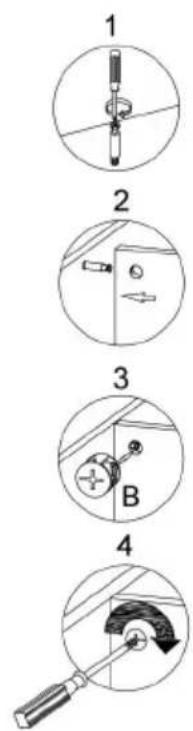

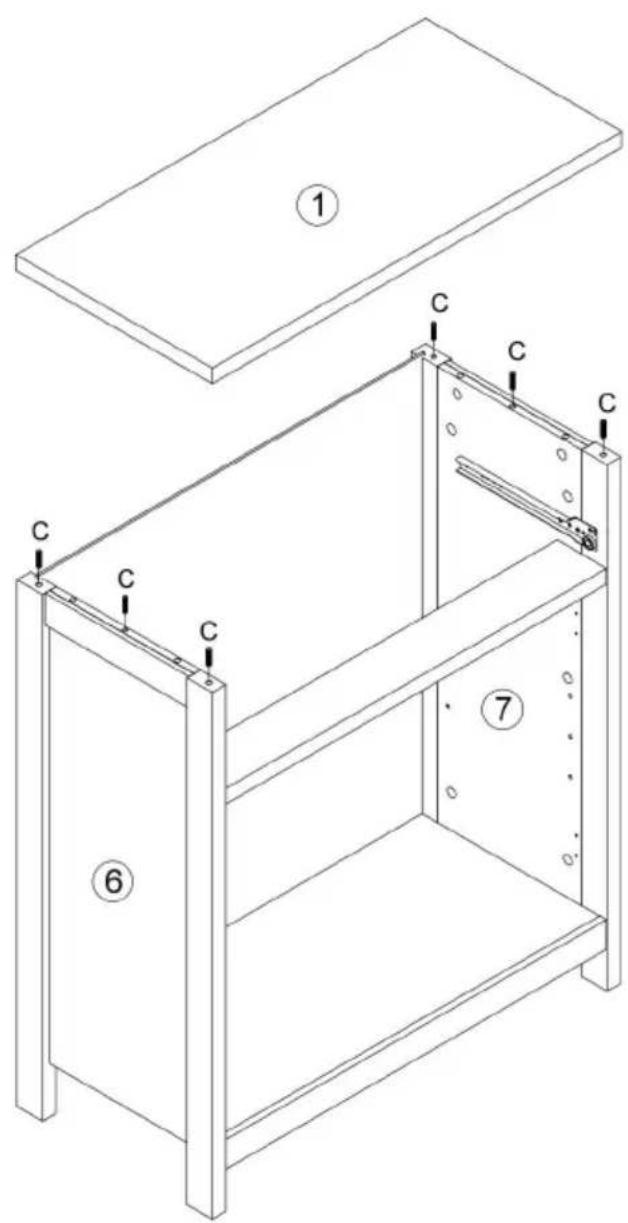

19

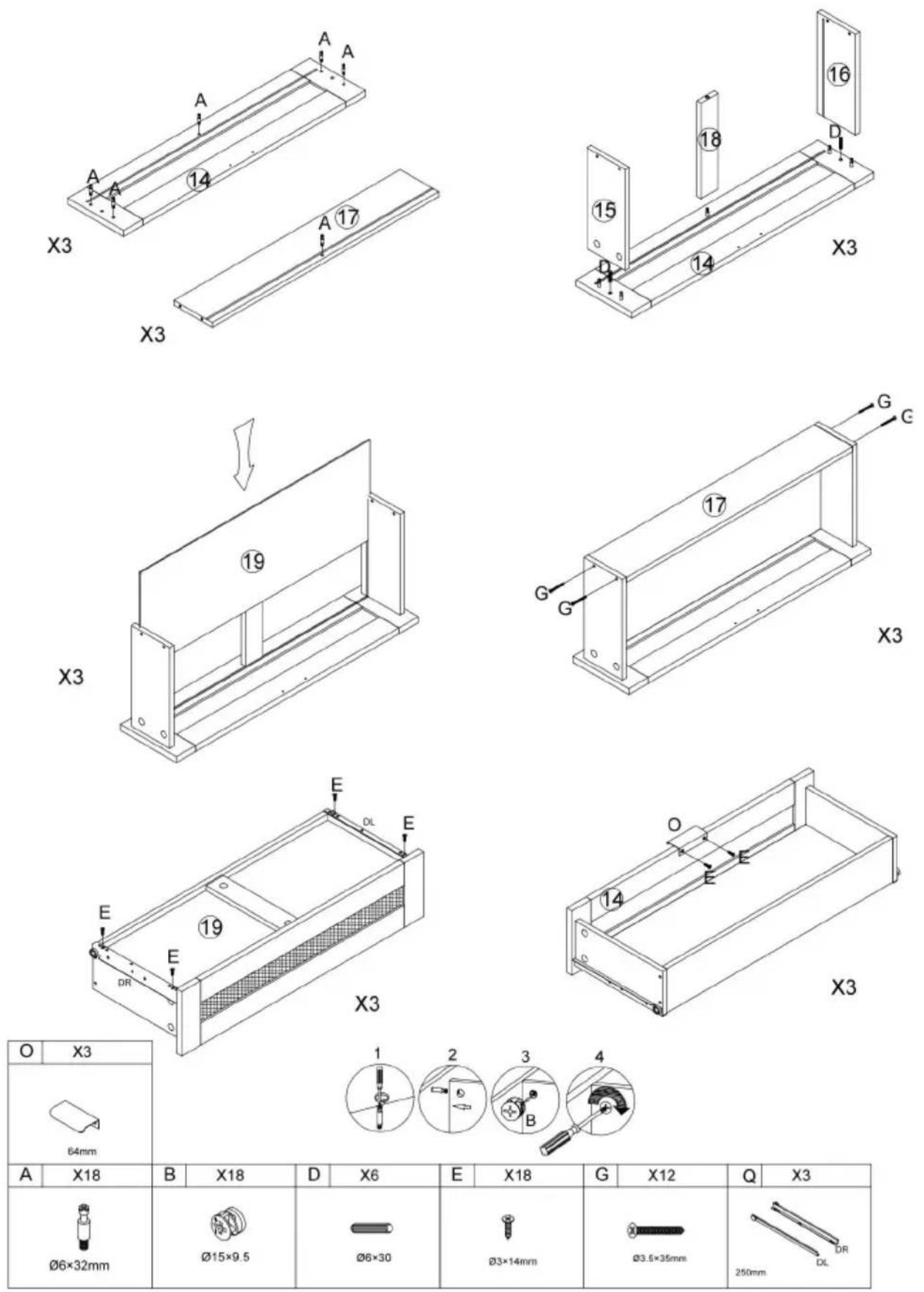

1 2 3 4

Technical diagram of a two-tiered storage cabinet with labeled components and mounting points

X3

B | X12 Ø15×9.5 C | X18 Ø8×30

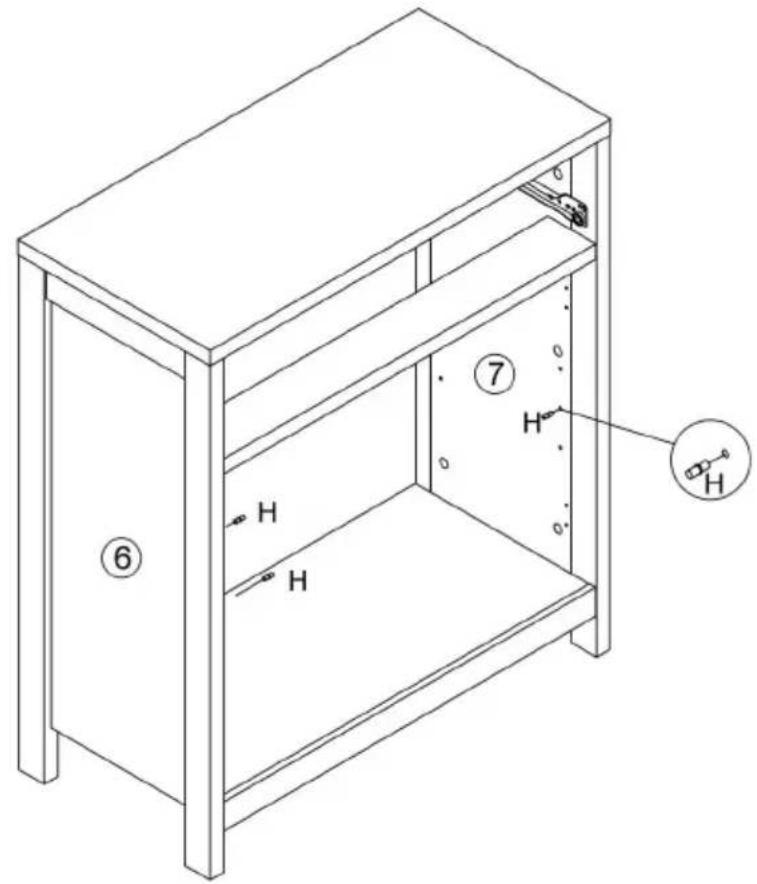

20

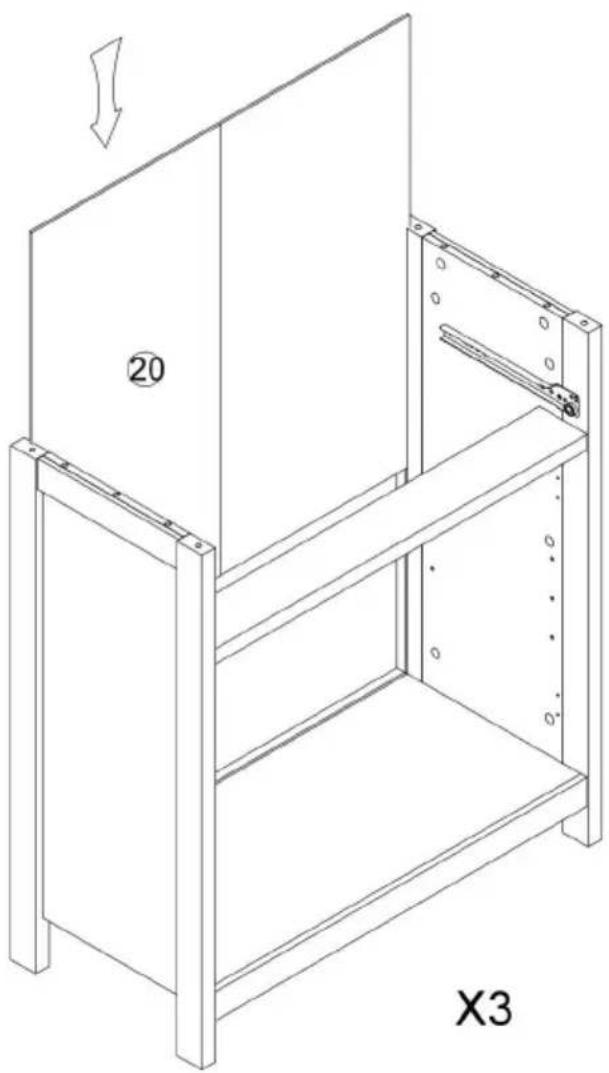

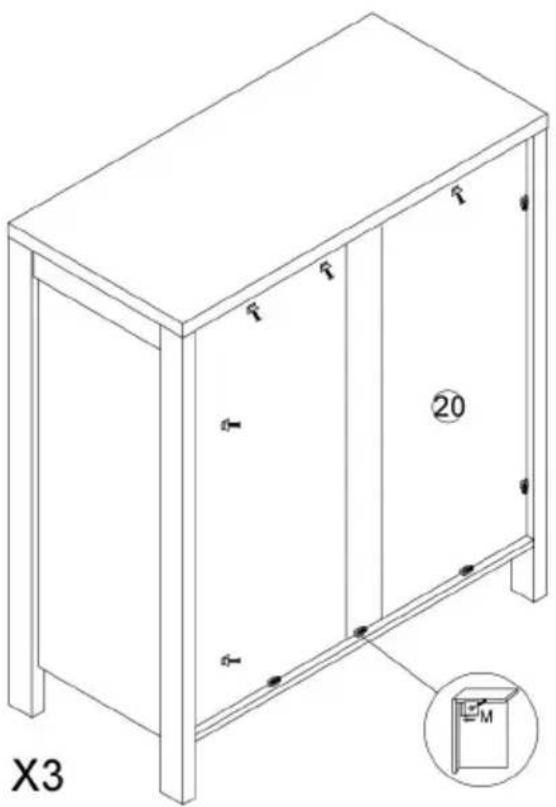

Technical diagram of a cabinet with labeled components and internal features, including numbered parts 6 and 7.

X3

H X12 Ø5

21

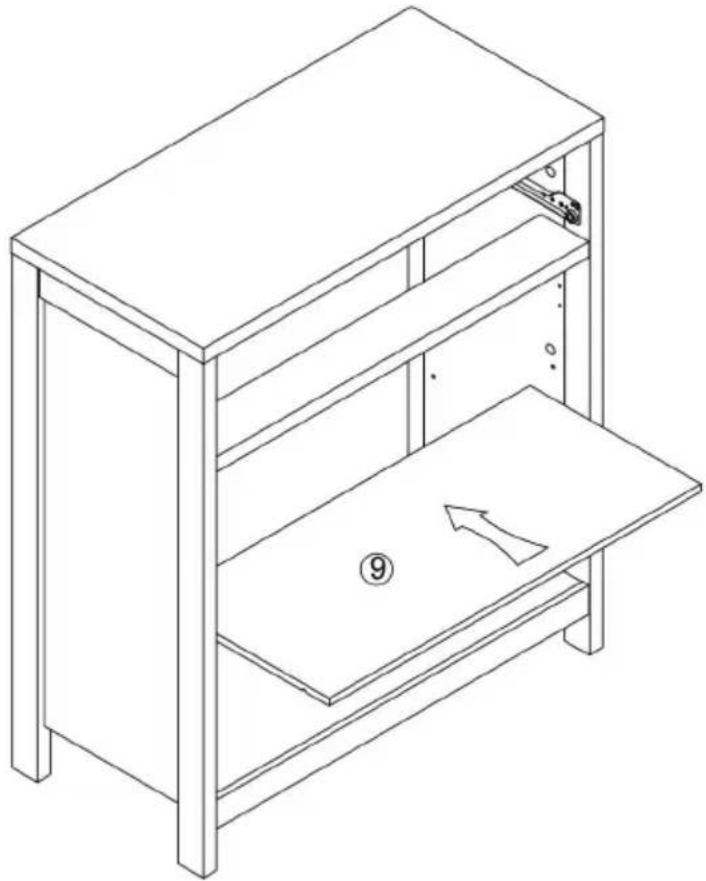

Line drawing of a two-tiered cabinet or shelf with an open lid and a numbered label (⑨) on the base, showing no text or symbols.

X3

22

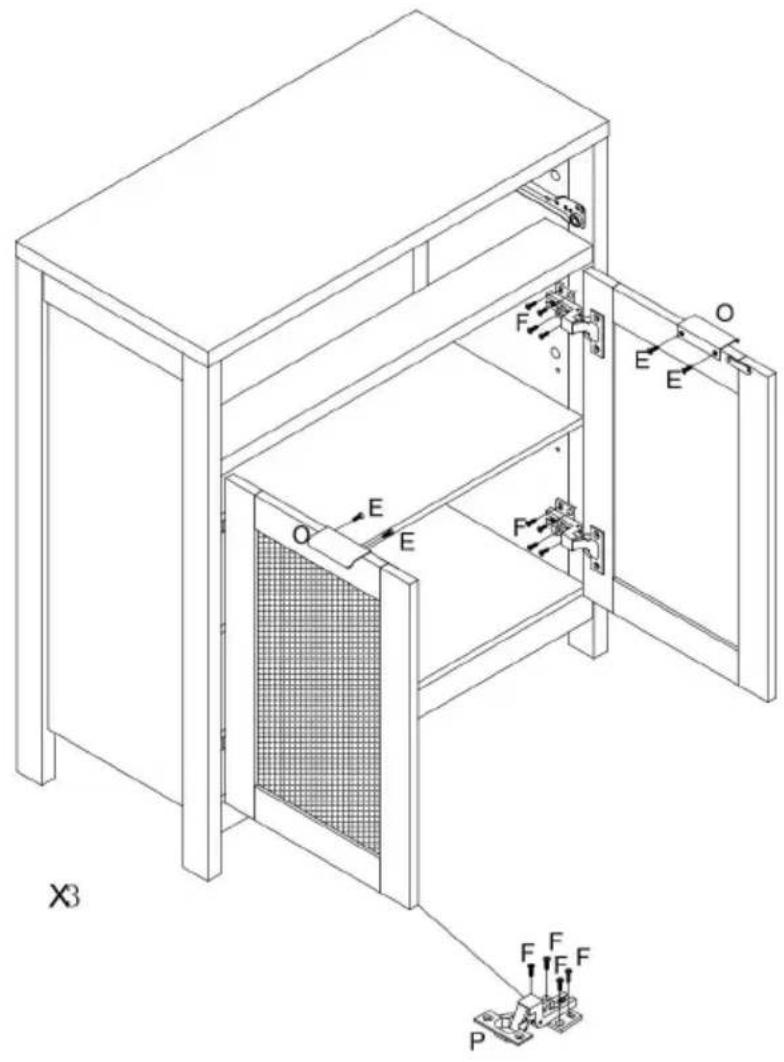

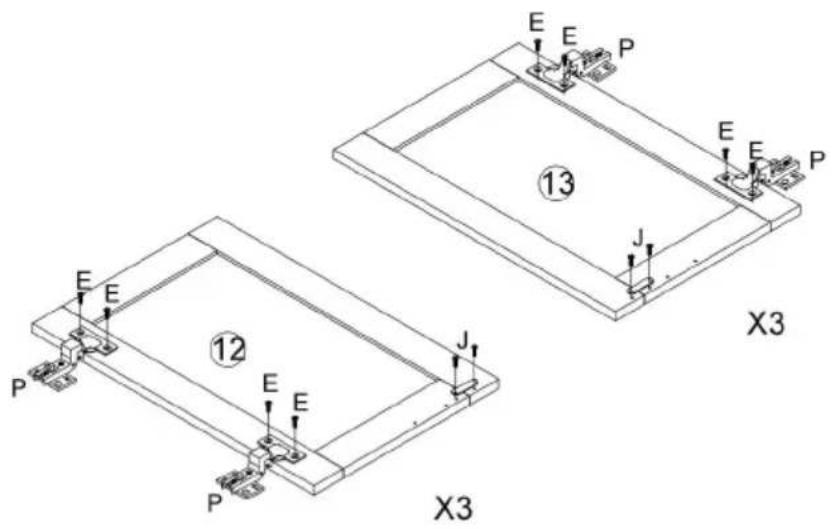

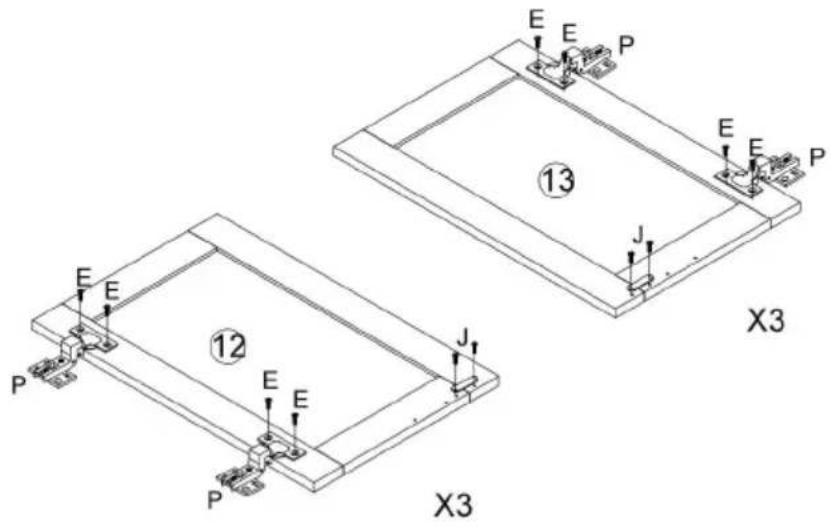

E E P E E P ⑬ J E E P ⑫ J X3 X3

J	X6
E	X24
P	X12

23

X3 P F F F E E O E E Q E

F	X48
O	X6
E	X12

24

A	X18	B	X18	D	X6	E	X18	G	X12	Q	X3
∅6×32mm		∅15×9.5		∅6×30		∅3×14mm		∅3.5×35mm		250mm

25

Line drawing of a cabinet with handle and side panel, no text or symbols present

26

Isometric line drawing of a cabinet with labeled parts and a magnified inset showing a door-like object (no text or symbols present)

M X30 Ø3×14mm

27

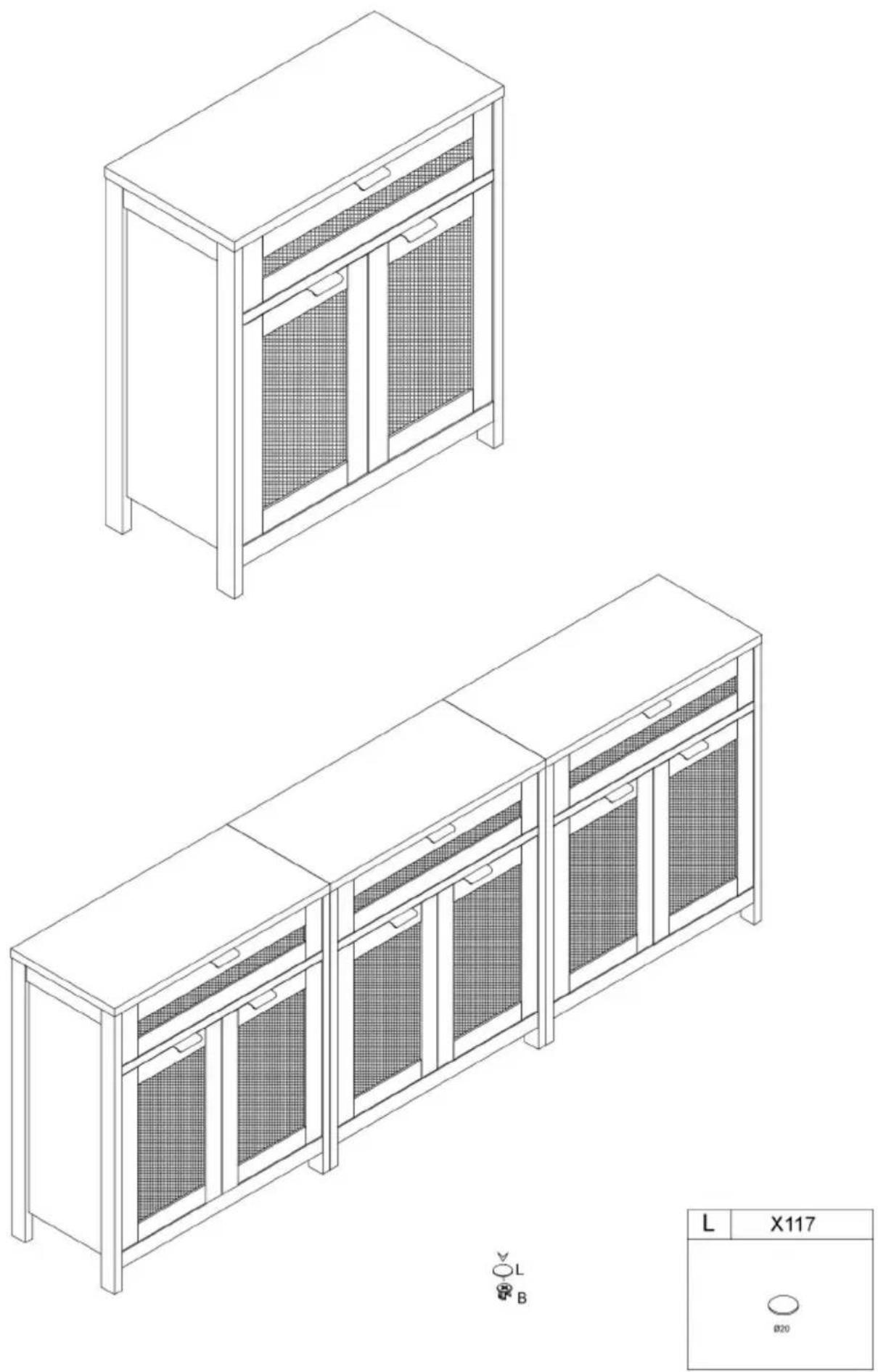

L B
