This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EU. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices.
	Indoor Use Only

Warming Tips

To ensure that this product will not be scratched during transportation protective film is attached to the surface of the machine. Please tear protective films before use!

1. Instructions for use:

1. Must be safely grounded before use!
2. The voltage used must be consistent with the rated voltage
3. The power indicator light is always on when the machine is powe

4. When you need to turn on the heat preservation function, turn on heating switch on the control panel. When the heating temperature reaches about 65^ , the machine will automatically turn off the heating function and the heating lamp will go out. When the temperature drops certain temperature, the heating function will be turned on again, the heating lamp will stay on again, and this cycle will achieve the constant temperature and heat preservation function.

5. During use, if you need lighting, you can turn on the lighting swit the lights will turn on, which can improve the display effect;

6. When finished, the power must be cut off when cleaning to preve accidents;
7. If any abnormality occurs during the process, you should stop using and ask a professional to troubleshoot it before continuing to use it.
8. This product is not suitable for people (including children) with phy sensory or mental disabilities or lack of experience and knowledge.
9. Since the temperature of the equipment is relatively high during operation, do not bring your hands or other parts of the body close surface of the machine to avoid burns or other injuries.

2. Precautions and maintenance:

1. It should be operated by designated personnel and should be prof in the use of machinery and equipment.
2. Be careful when moving the machine. If there is a fault, it must repaired by a professional. Do not knock it.
3. Please do not install and store this equipment in the following loc to avoid malfunction due to misoperation:

3.1 On an unstable table or counter.

3.2 Places where the temperature is too high or too low.

3.3 Places with excessive air volume and excessive dust.

3.4 Places where the power supply voltage is very unstable.

3.5 Where there is no good grounding device.

1. The appliance must not be cleaned with a water spray pipe or in water to prevent electrical leakage.

2. It is strictly prohibited to use liquids that are soluble in baking pa wipe the surface of the insulation cabinet.

3. Special precautions:

6.1 This product is a commercial device and is not suitable for home

6.2 Do not shake or tilt during use

6.3 It cannot be disassembled or modified. Disassembling it without permission may cause serious accidents.

6.4 The power needs to be cut off before cleaning to prevent accide leakage accidents.
6.5 During use, please do not touch the cabinet directly with your hand due to the high temperature. Special tools and high-temperature-resistag gloves are required when handling food.
6.6 It is prohibited to use hard or sharp objects to scratch the glass

3. Normal working environment conditions:

1. The ambient temperature is 5-50°C, and the relative air humidity is more than 90%;
2. Power supply voltage: 110V±10%, frequency: 60±1%HZ. (220V±10%, frequency: 50±1%HZ)

4. Product introduction

1. This product has a novel and unique design, beautiful appearance, four-sided glass see-through, durability, and easy maintenance. It has an optional constant temperature, which can make the temperature uniform and keep the food fresh. There is a slag collecting basin design at bottom, which can reduce the oil deposition of potato chips. It is a s equipment for food display, heat preservation and drying.

5. Symbol description:

In this manual, symbols are used to highlight all important safety instructions and recommendations related to the equipment. To avoid risk of accidents, personal injury, or property damage, follow these instructions with extreme caution.

6. Product specifications

Model	Voltage (V)	Frequency (Hz)	Power (W)	Dimension (mm)
SC-500H	AC110-120	60	1200	380*440*740
	AC220-240	50

7. Product appearance

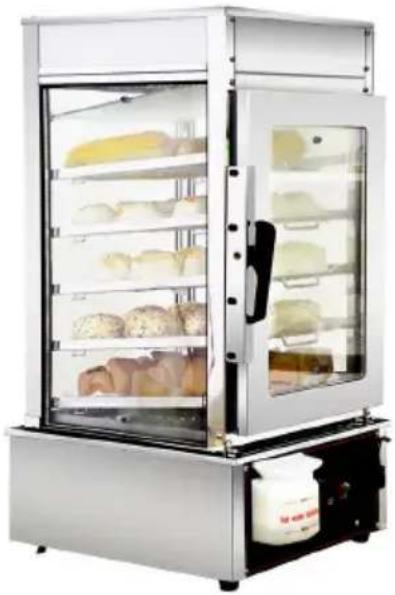

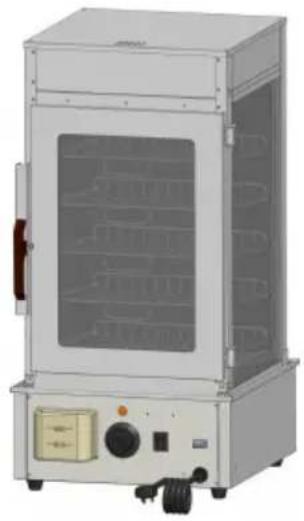

Illustration of a laboratory oven with cooling unit and control panel (no text or symbols)

8. Product structure diagram

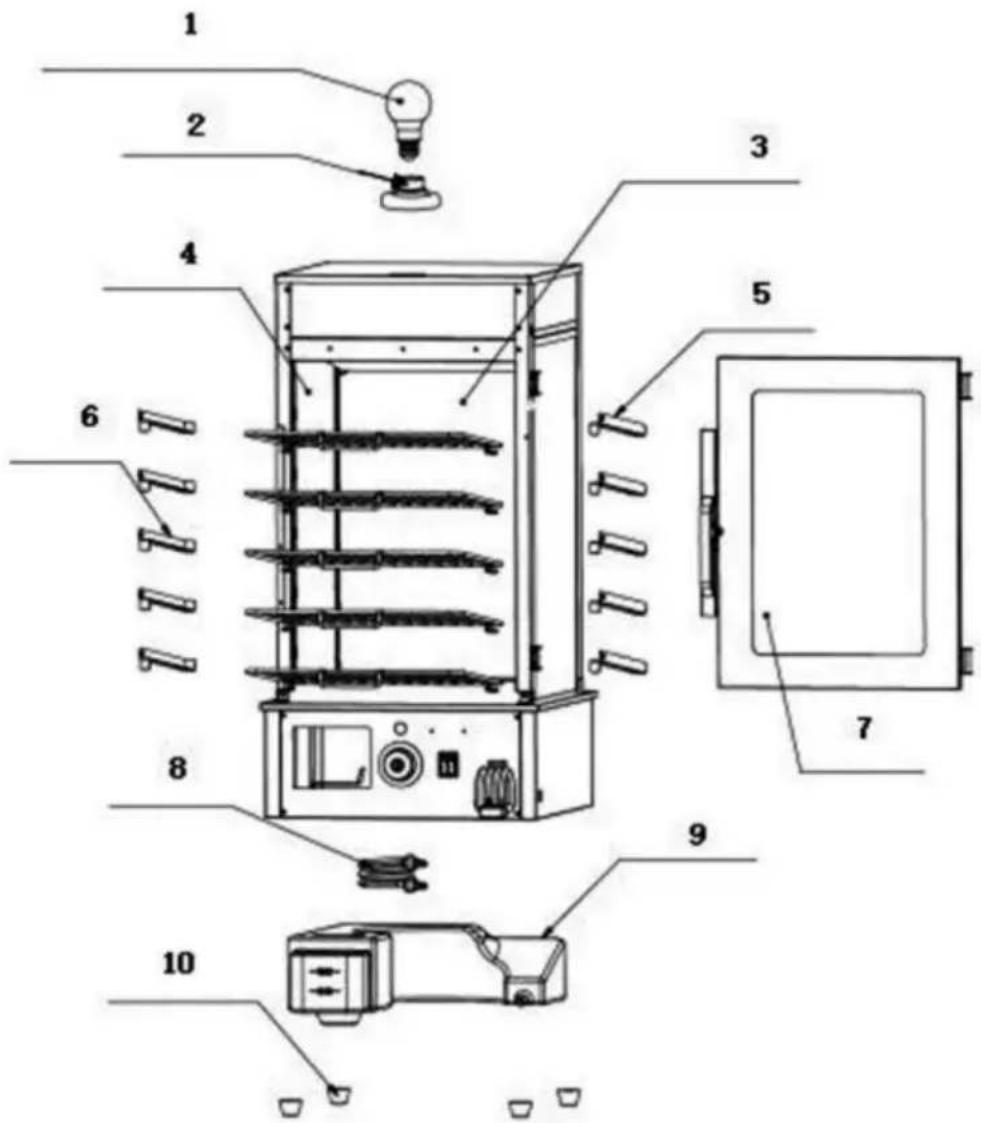

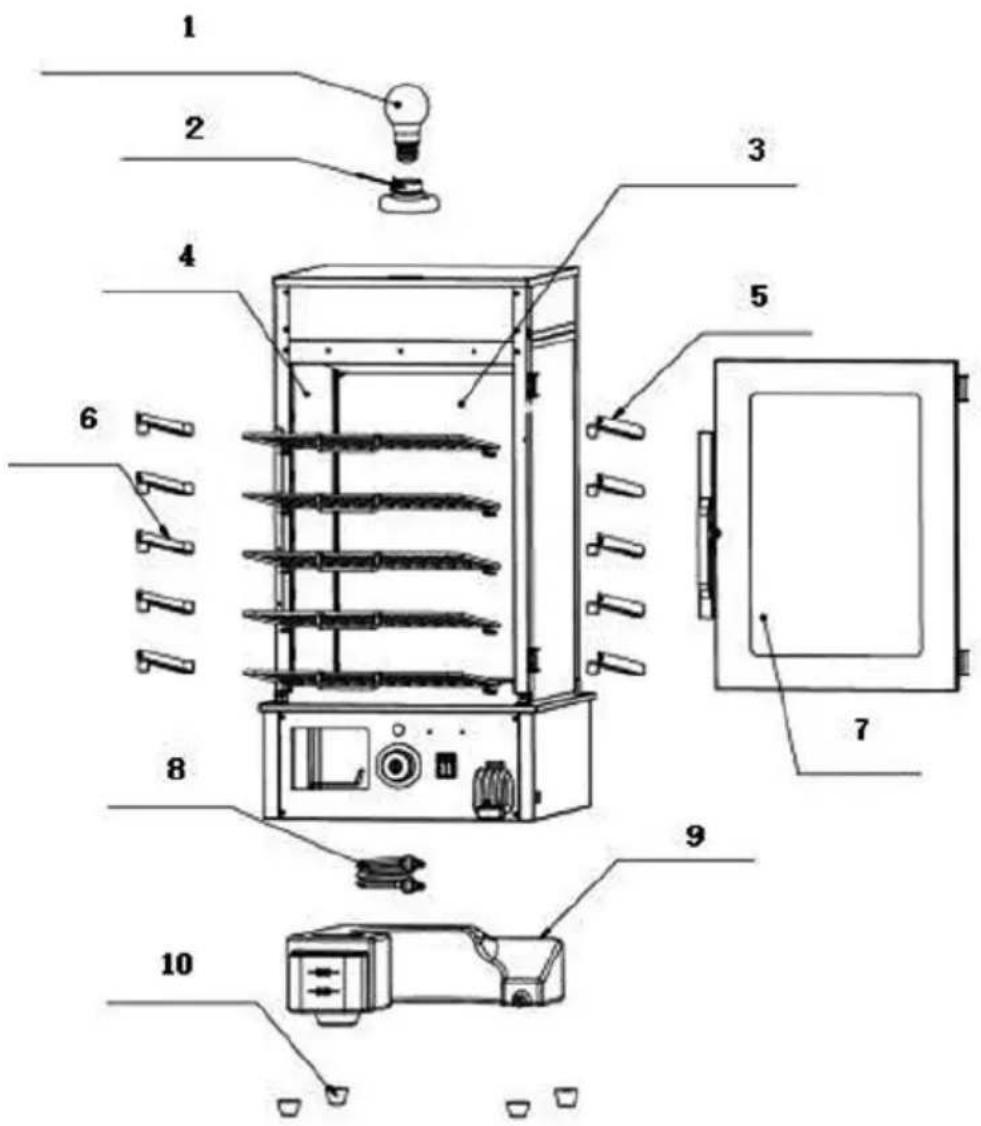

Technical diagram of an industrial oven with numbered components and labeled parts

Note: The location of the electrical components is based on the design that time. Our company reserves the right to change the participating designs. If the design is changed and the instructions are not updated timely manner, we hope for your understanding!

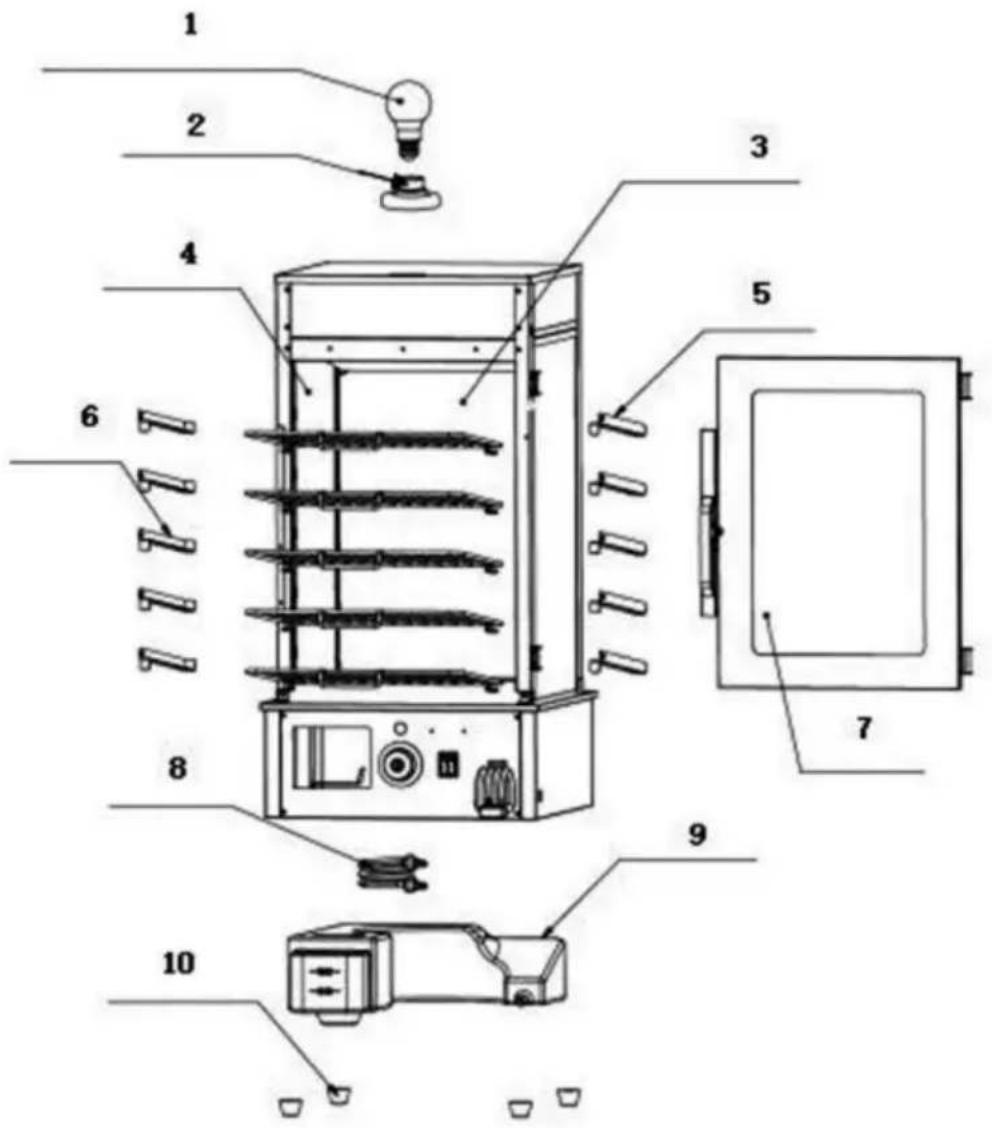

SC-500H bill of materials
No.	Name	Qty	No.	Name	Qty
01	LED light bulb	1	06	Left shelf strip	5
02	Lamp holder	1	07	Door insulated glass	1
03	Rear insulating glass	1	08	Heating pipe	1
04	Side insulated glass	2	09	Plastic water tank	1
05	Right shelf strip	5	10	No.1 machine foot	4

SC-500H Assembly List
No.	Name	Qty
1	Left shelf strip	5pcs
2	Right shelf strip	5pcs
3	Mesh shelf	5pcs
Note: Please check whether the accessories are complete be installation!

SC-500H installation diagram

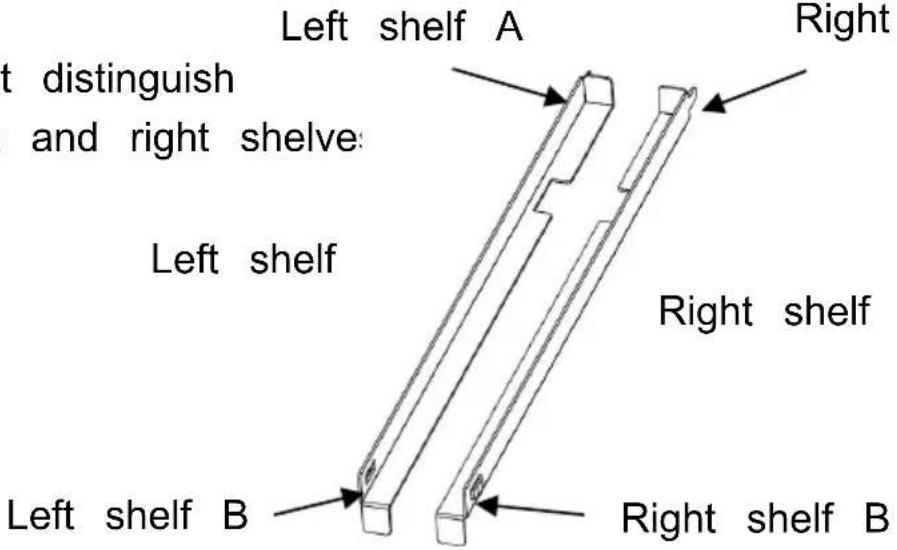

FirsLeft	shelf A
Step 1
2. Insert thhole at endsheft into tton the colu	1. First insert thdownward-slopingclamping strip atend A of the sinto the latch hoof the column.Notice:You need to setthe directionbeforeinstallation!
Step 2

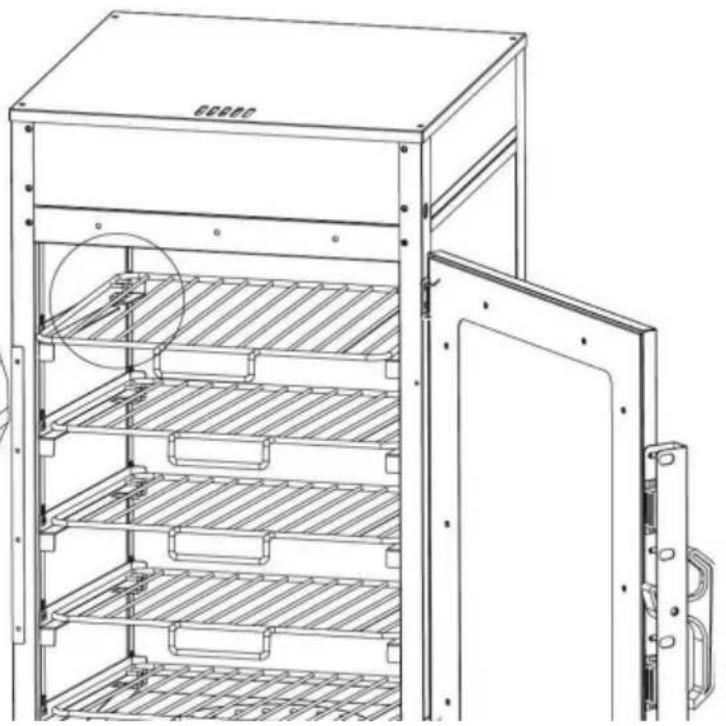

SC-500H installation diagram

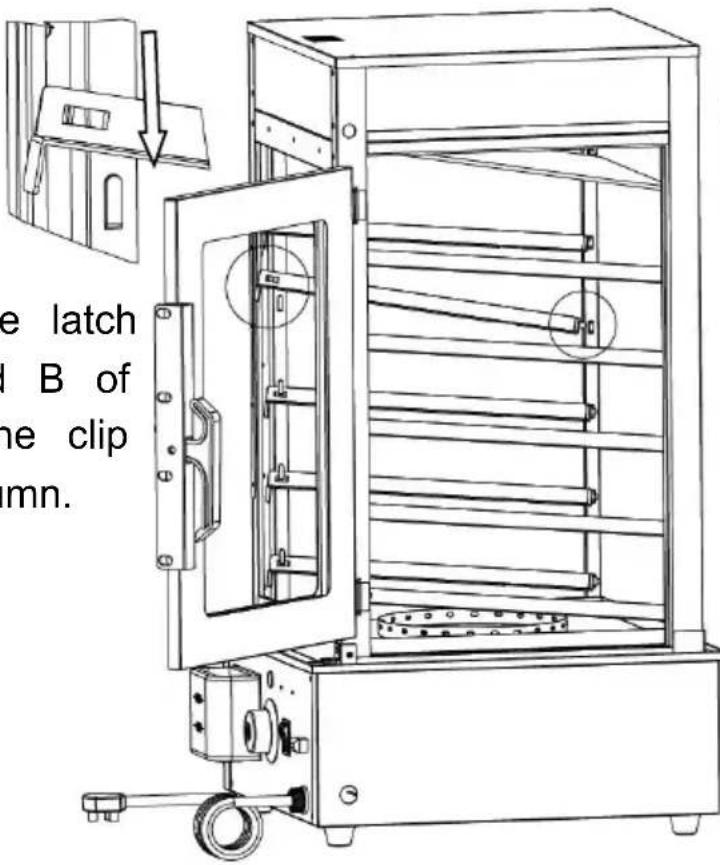

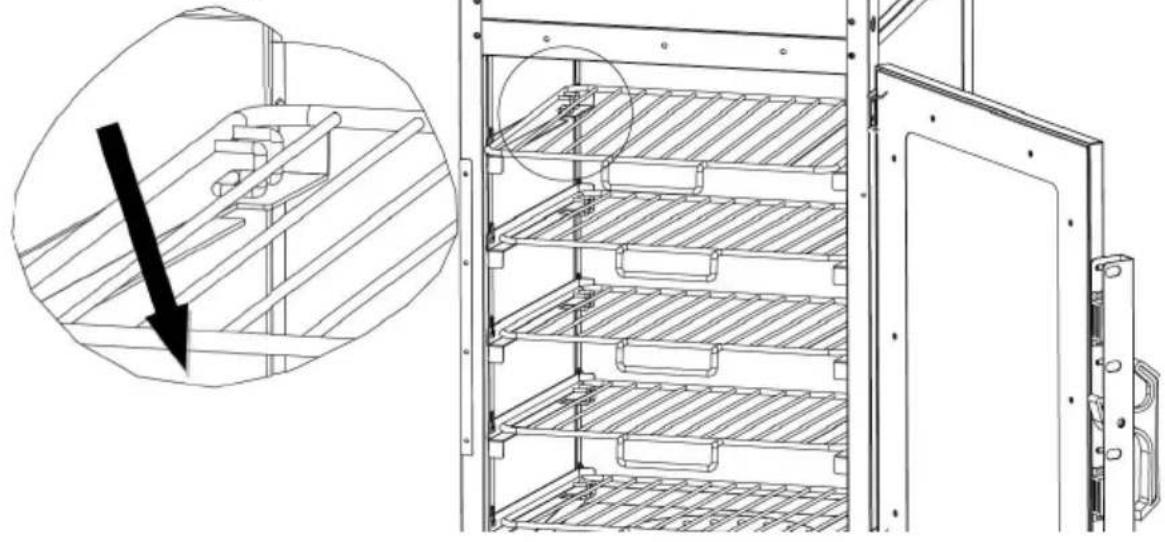

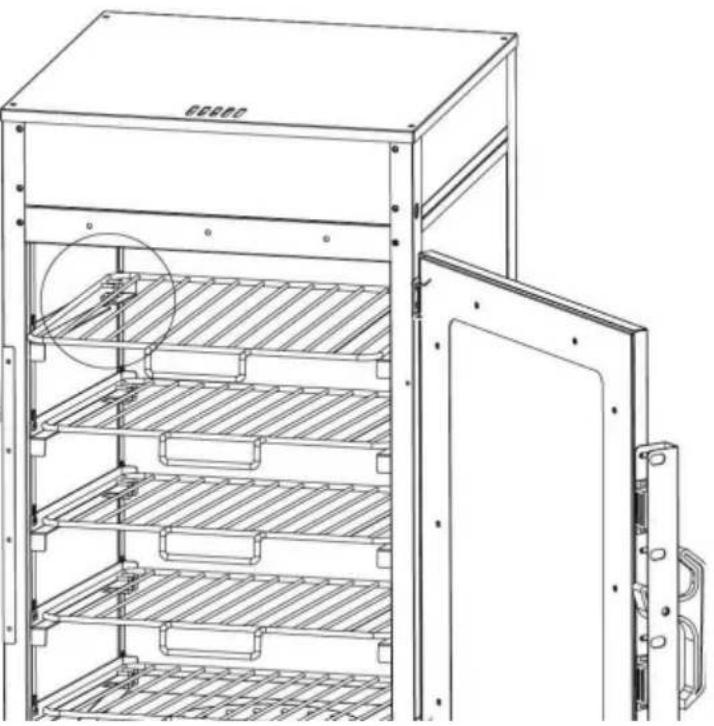

Push the buckle of the shelf net onto the buckle opening of the shelf bar and lower it, and then continue to push the she net all the way in.

Technical line drawing of a multi-level industrial storage unit with a magnified inset showing internal components (no text or symbols)

Step 3

Warm reminder: It is recommended to wear gloves or other protective tools during installation to avoid scratching hands or other parts.

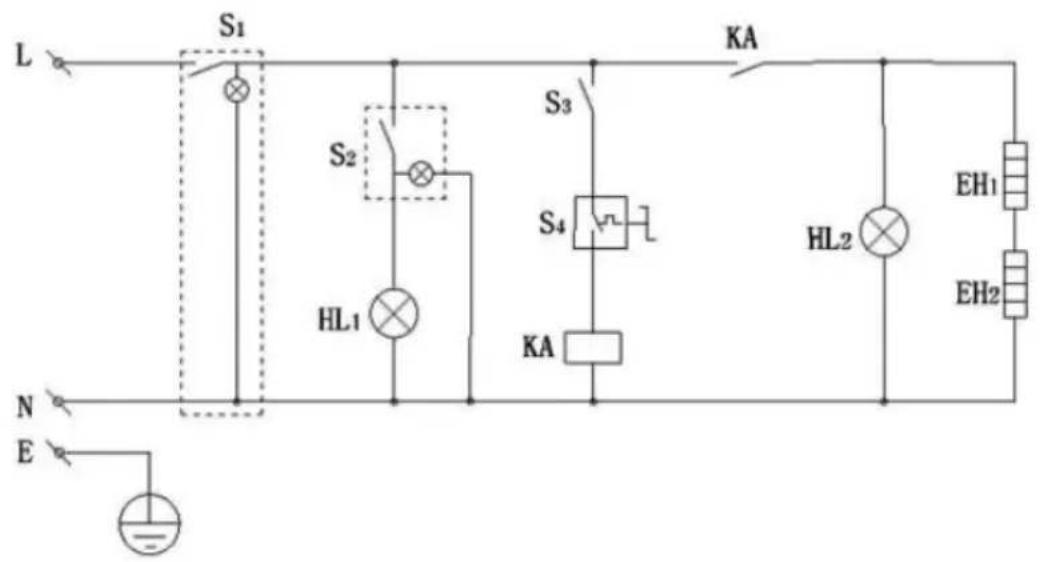

SC-500H circuit diagram

L S1 KA S2 S3 HL1 S4 KA HL2 EH1 EH2 N E

S1—Power switch S2—Lighting switchHL1—Light HL2—Heating indicator lightS3—Water level switch S4—ThermostatEH1—Electric heating plate EH2—Electric heating tubeKA—relay

9.Fault analysis

No.	Fault phenomenon	Reason	Method of exclusion
01	The green and red indicator lights are on the same time and the temperature does not rise.	The electric heating tube wiring is loose and the electric heating tube is burned out.	1Tighten the electric heating pipe wiring bolts.2Replace the electric heating tube
02	The work indicator light stays on and the temperature rise cannot be controlled.	Thermostat failure	1Replace the thermostat
03	The indicator light is d and the temperature control is normal	Indicator light burned out	1Replace the indicator light
04	It cannot automatically keep warm.	Thermostat failure	1Replace the thermostat
05	There is electricity leakage from the casin and my hands feel numb.	The insulation is damp or the inner conductor is in contact with the outer shell.	1Send it to the maintenance department for repair.
06	The light does not light up or flickers	The cable interface is not connected or has poor contact.	1Plug it in tightly
Note: The above problems are only for analysis and reference not deal with them by yourself. Relevant professionals are required to conduct troubleshooting and repairs. In case of safety abnormalities such as leakage, the power supply should be cut off immediately use should be stopped!

Special Note:

All contents of this manual are only for the design at that time. Our company reserves the right to change the participating designs. If the design is changed and the manual is not improved in a timely mann hope that the customer will understand!

Please keep this manual properly

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
