SCL-06 - Spa or hot tub accessory Vevor - Free user manual and instructions

USER MANUAL SCL-06 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HOT TUB COVER LIFT

MODEL:SCL-06

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HOT TUB

COVER LIFT

MODEL:SCL-06

Spa Cover SPA

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLYPRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do stand on the item or use as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the legs.
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	SCL-06
Suitable for Hot Tub (Rectangular)	Length: 1900-2500mm (74.8-98.4")Width: 1750-2450mm (69-96.5")Circular Bead: 150<R<300mm (6"
Material	Aluminum
Color	Black
Maximum Load	25kg / 55lbs

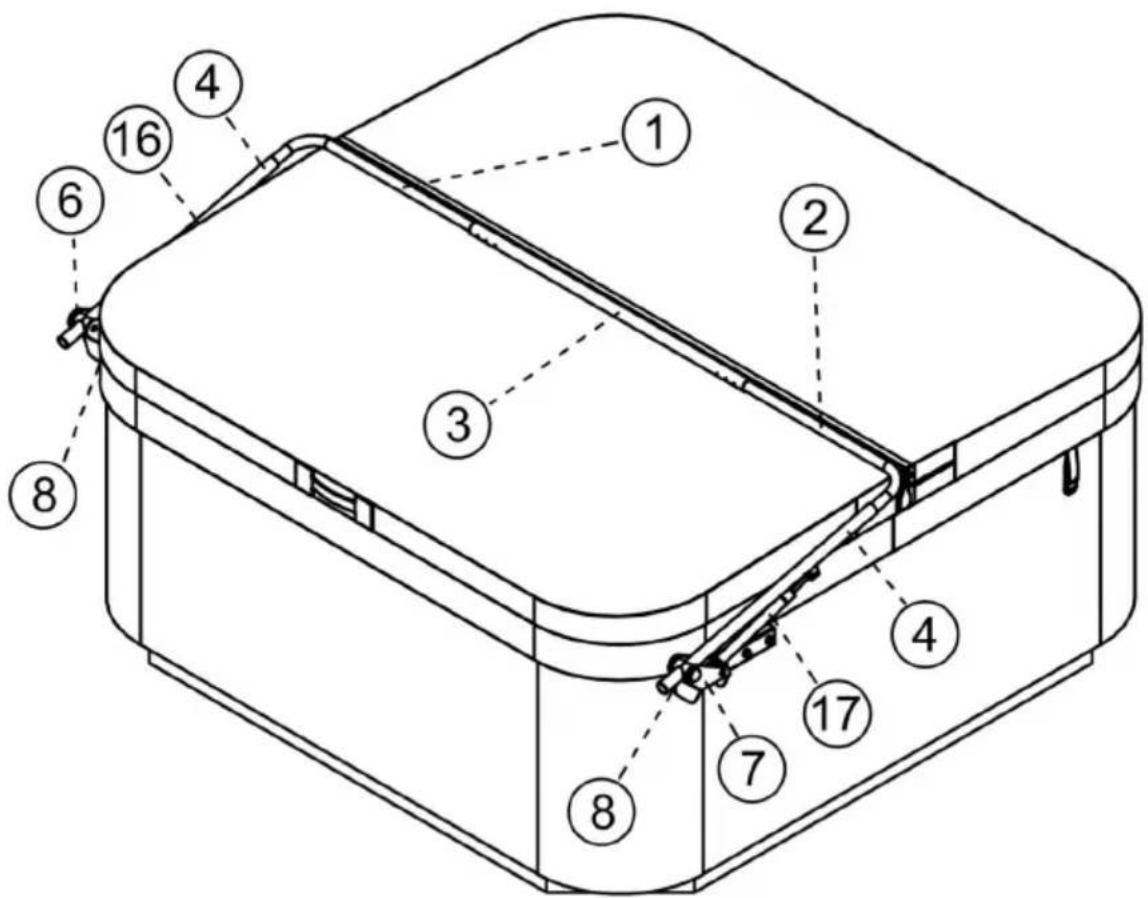

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	QTY		NO	PICTURE	PART NAME	QTY
1		Φ27 Left Elbow	1		2		Φ27 Right Elbow	1
3		Φ32 Straight Tubes A	1		4		Φ32 Straight Tubes B	2
5		Hook	1		6		Left Base	1
7		Right Base	1		8		Fixed Base	2
9		Screw Cap	18+4		10		Mechanical Wires 5X30	20+2
11		Mechanical Wires 5X20	14+2		12		Sleeve	4
13		M10 Nuts	4		14		Machine Wire M10X80	2
15		Gasket M10	4		16		Hydraulic Rod 450N	1
17		Hydraulic Rod 150N	1		18		Machine Wire M8X75	2
19		M8 Nuts	2		20		Machine Wire M10X35	2
21		Gasket M8	10		22		Machine Wire M8X30	8
23		Screw Cap Φ33	2		24		Drill Bit Φ3.2	1
25		Hexagon Wrench	1		26		Cross Mark Head	1
Tip: “+” is extra spare parts .

Technical diagram of a mechanical device with numbered components for identification

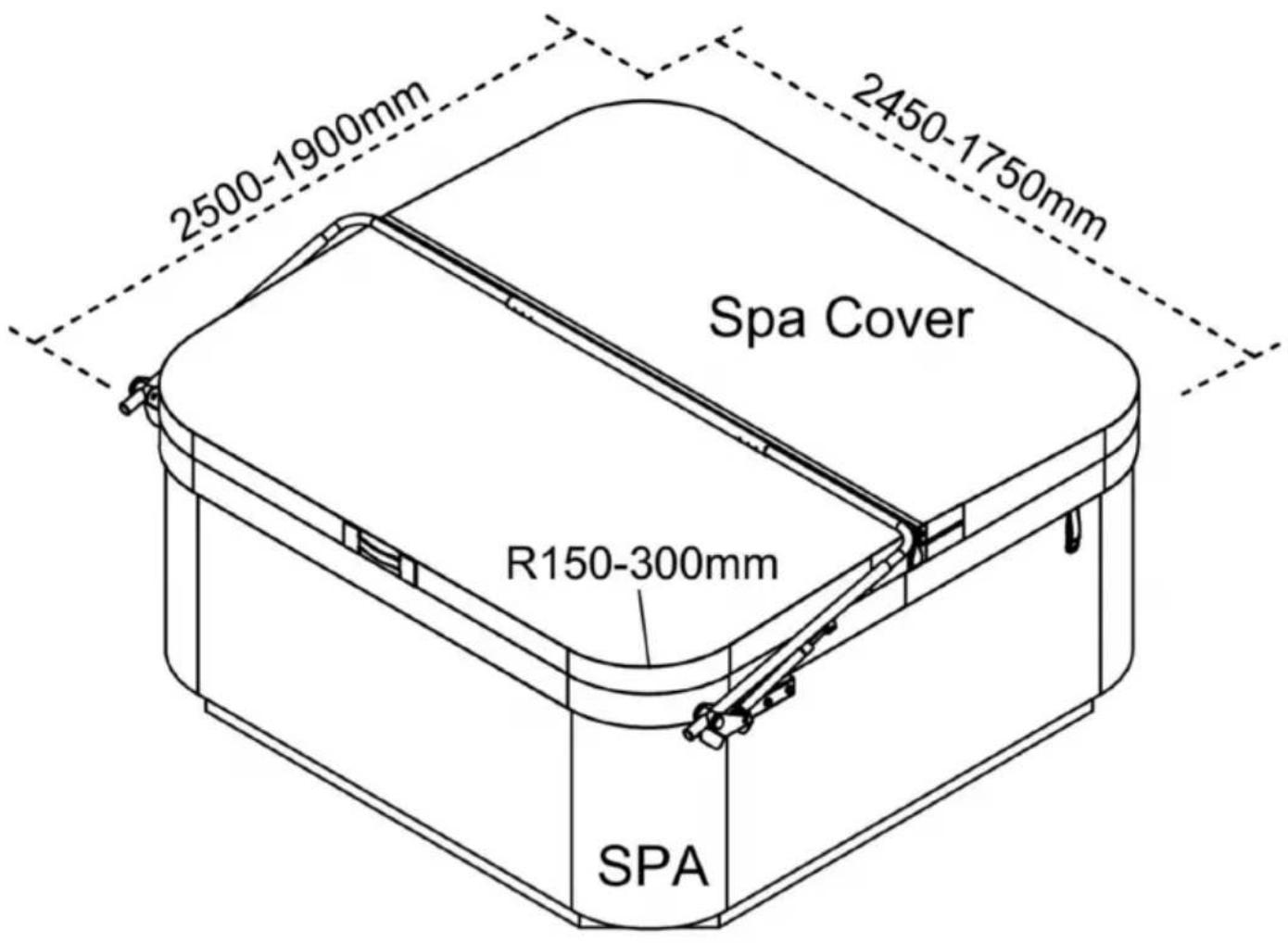

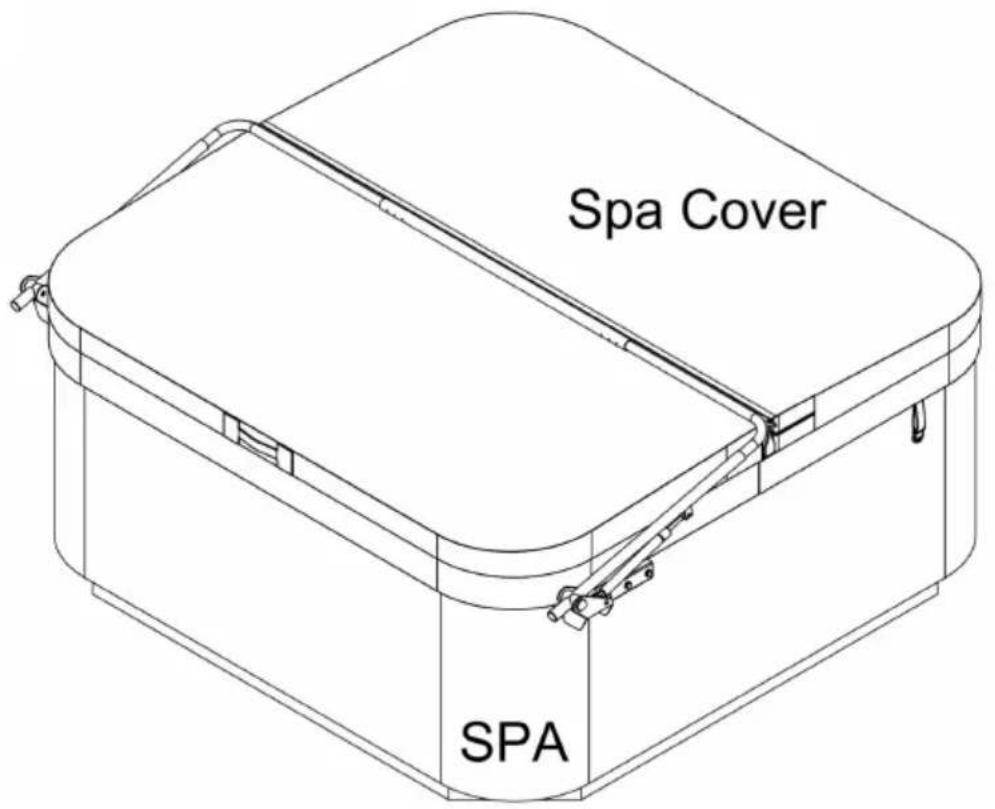

Available dimension:

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

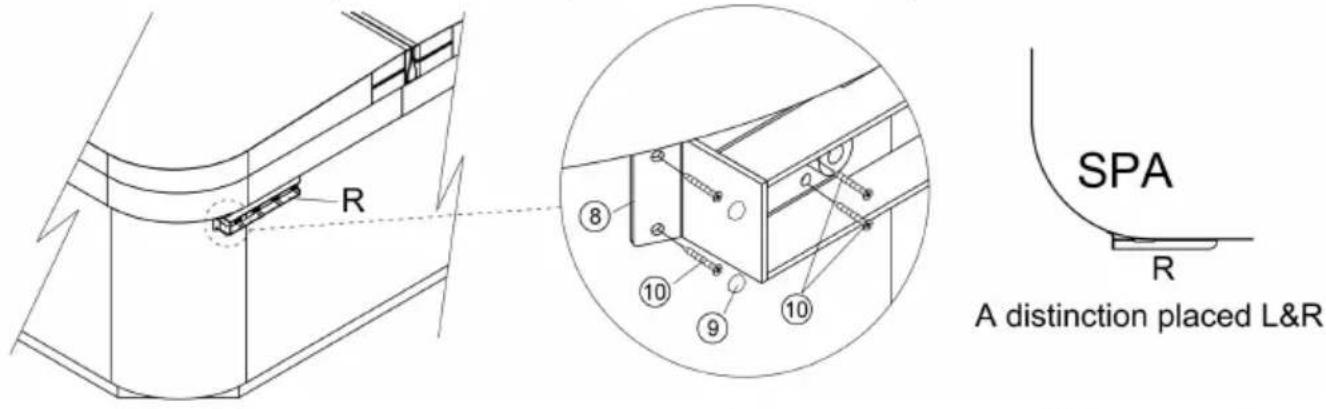

Installation steps 1: Arrange the bottom position and lock s

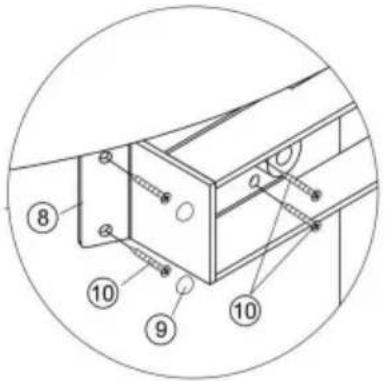

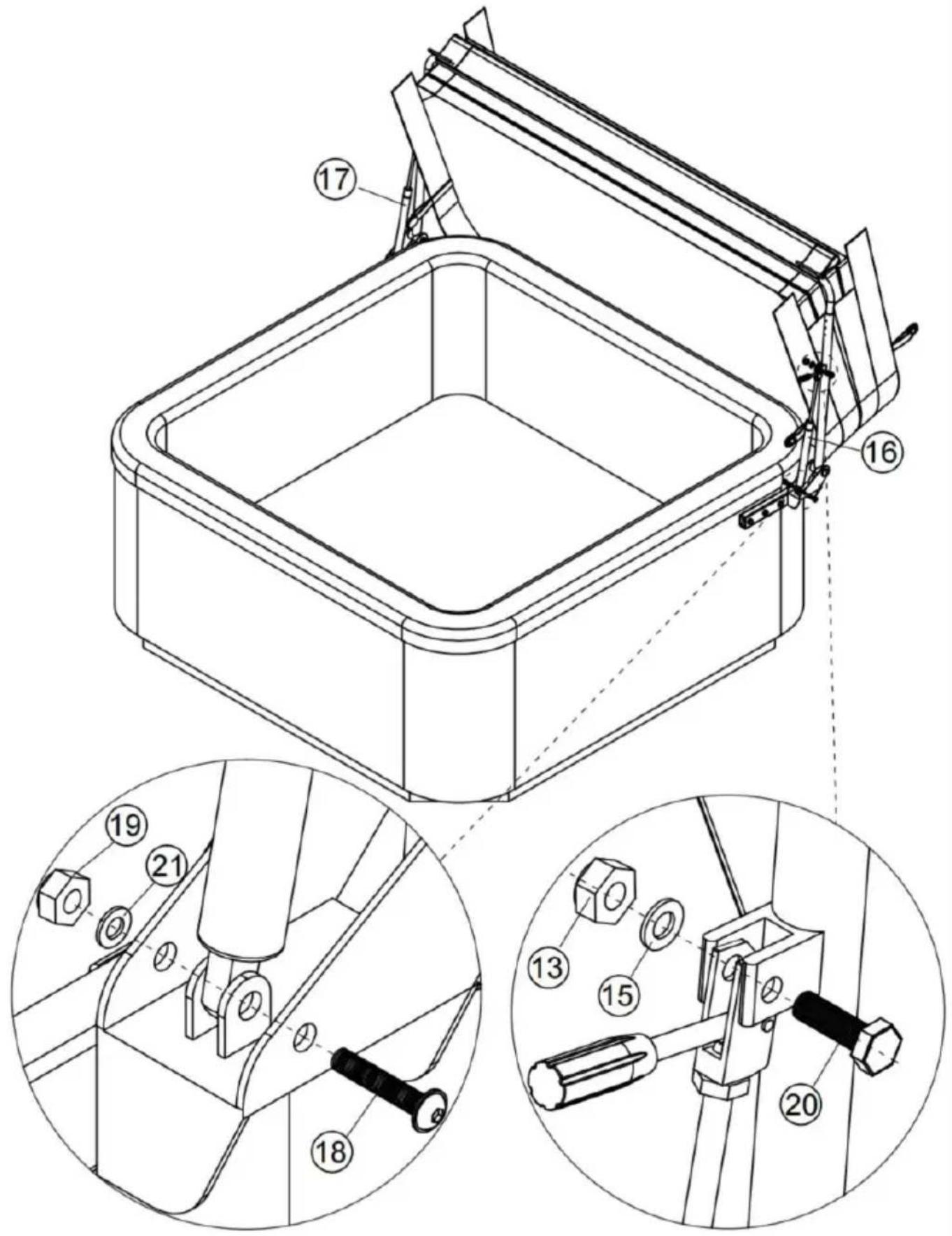

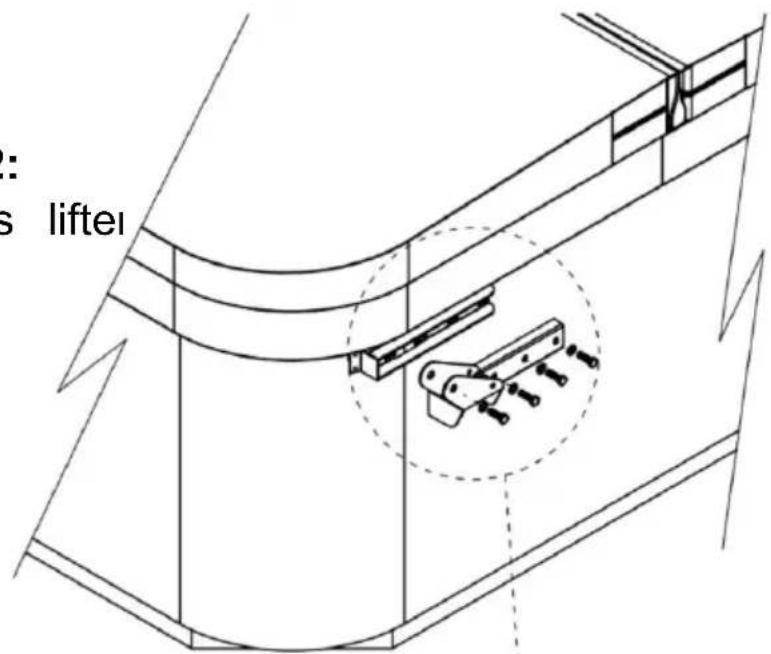

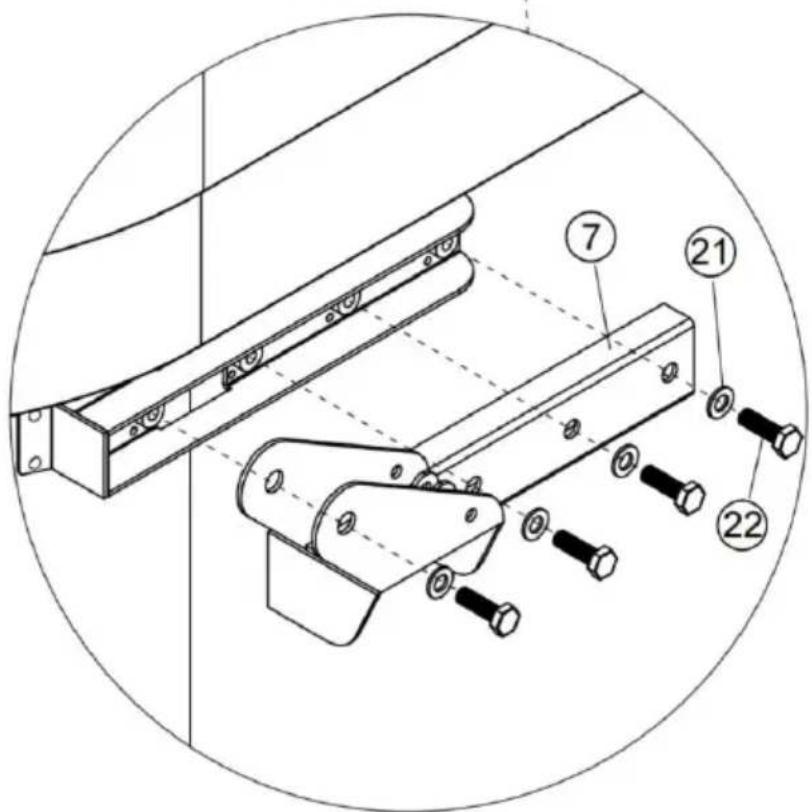

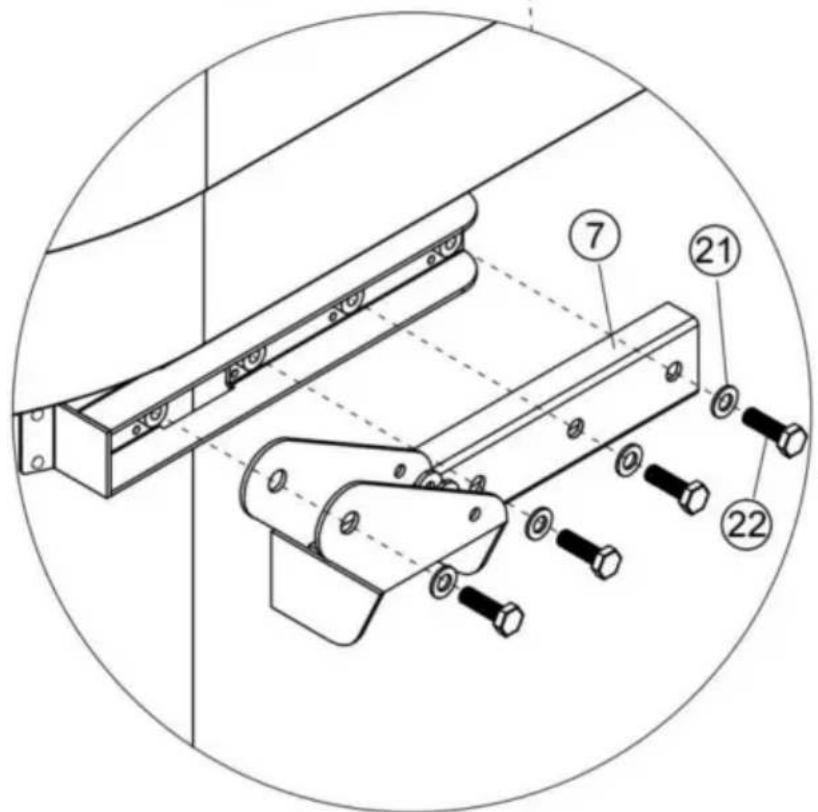

Installation steps 2:

Install the two sides lifteiseparately .

s liftei

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

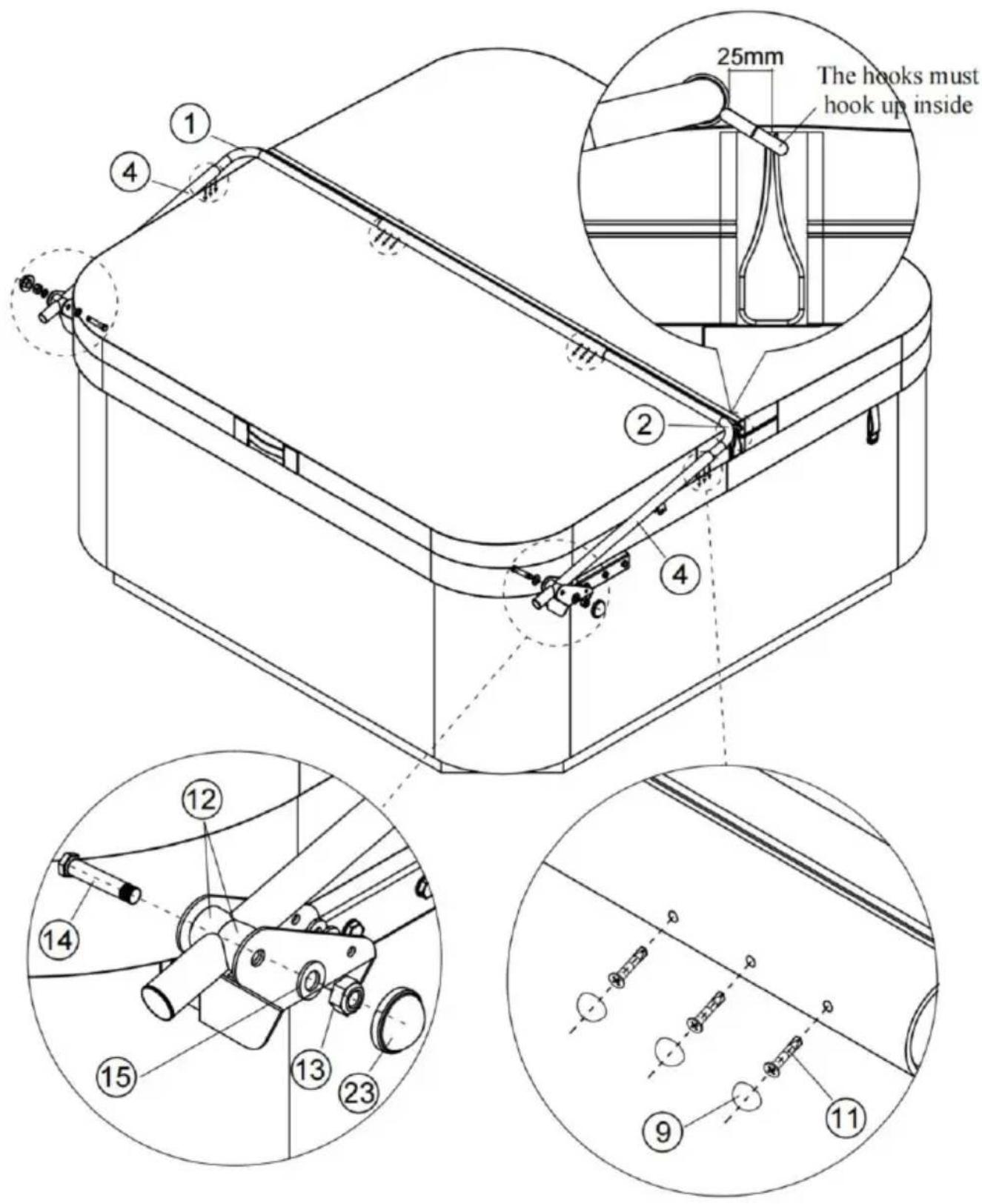

Installation steps 3: Install the round tube, and lock with

25mm The hooks must hook up inside 1 2 4 ① ② ④ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗

Installation steps 4: Install the gas rod attention to distinguish place of L&R.

Technical diagram of a mechanical assembly with numbered components and close-up views of parts labeled 13, 15, 16, 17, 18, 19.

Installation steps 5: Install the hook.

⑤ ⑪ ⑨ operating lever 1 2

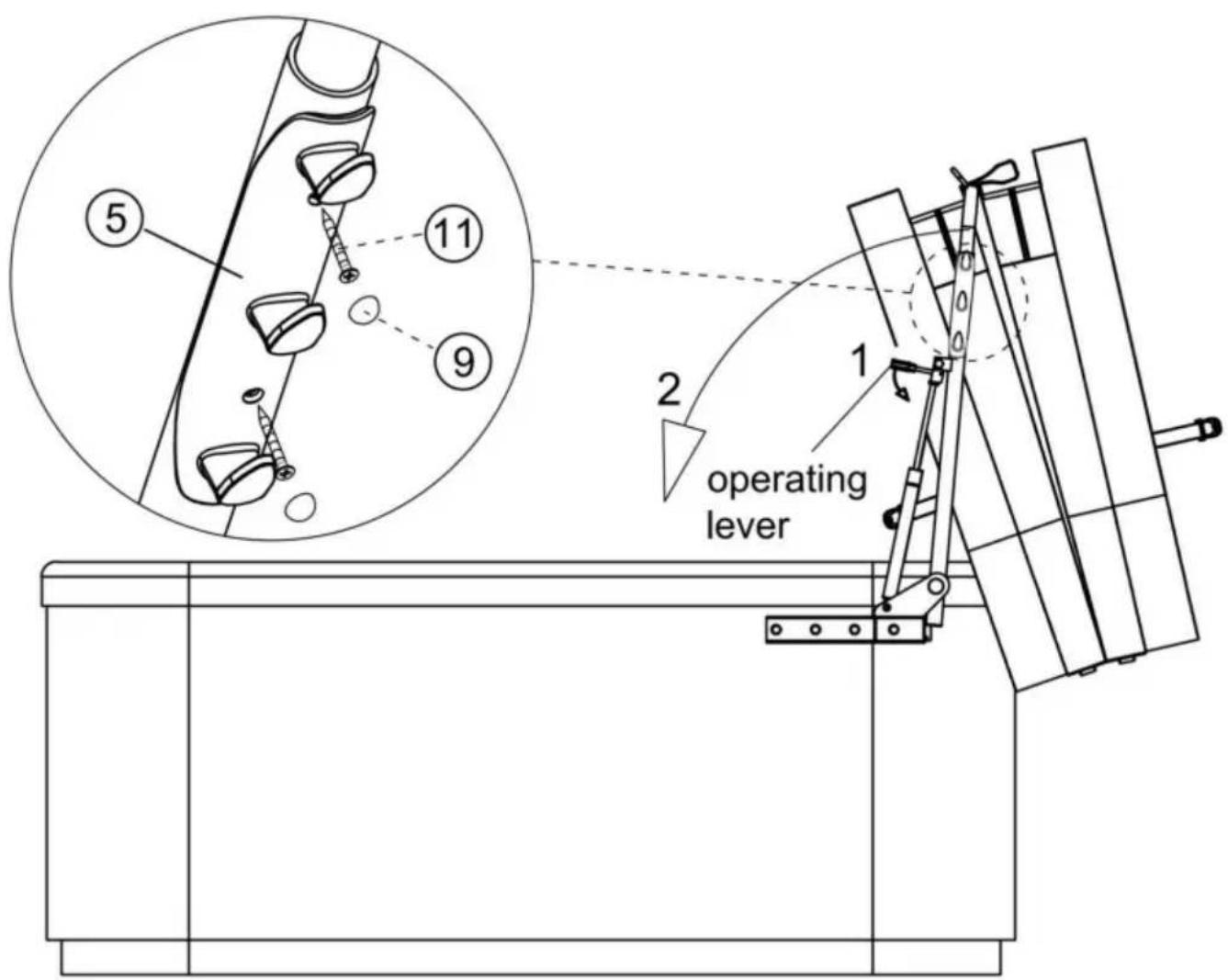

Operation method: This cover lifter with Self-locking positionin function. Each time to operating the spa cover open or clos press the operating lever counterclockwise, otherwise can't op closed the spa cover. (operate as steps 1-2). When the op releases the operating lever, the cover will position at the a which the current lock is opened.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Technical diagram of a mechanical device with numbered components for identification

INSTRUCTIONS D'INSTALLATION ET D'UTILISATION

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical line drawing of a curved structural component with a labeled component 'R' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

SPA R A distinction placed L&R

Technical line drawing of a structural component with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a conveyor or lifting mechanism.

1 2 4 25mm The hooks must hook up inside ② ④ ① ⑫ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

⑤ ⑪ ⑨ operating lever 1 2

Rancho Cucamonga, CA91730

REPRÉSENTANT

DU ROYAUME-UNI

Groupe Pooledas Ltd

Spa Cover SPA

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Technical diagram of a mechanical device with numbered components for identification

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical line drawing of a curved structural component with a labeled component 'R' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

SPA R A distinction placed L&R

Technical diagram showing mechanical assembly with numbered components and a close-up view of the main component.

25mm The hooks must hook up inside ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

⑤ ⑪ ⑨ operating lever 1 2

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

HO BISOGNO DI AIUTO? CONTATTACI!

Technical diagram of a mechanical device with numbered components for identification

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical line drawing of a curved structural component with a labeled component 'R' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

SPA R A distinction placed L&R

Technical diagram showing mechanical assembly with numbered components and a close-up view of the main component.

25mm The hooks must hook up inside ① ② ④ ⑥ ⑦ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

⑤ ⑪ ⑨ operating lever 1 2

Importato in AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli Stati Uniti: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

Technical diagram of a mechanical device with numbered components for identification

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

25mm The hooks must hook up inside ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

⑤ ⑪ ⑨ operating lever 1 2

Spa Cover SPA

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical diagram of a mechanical device with numbered components for identification

INSTRUKCJA MONTAŻU I OBSŁUGI

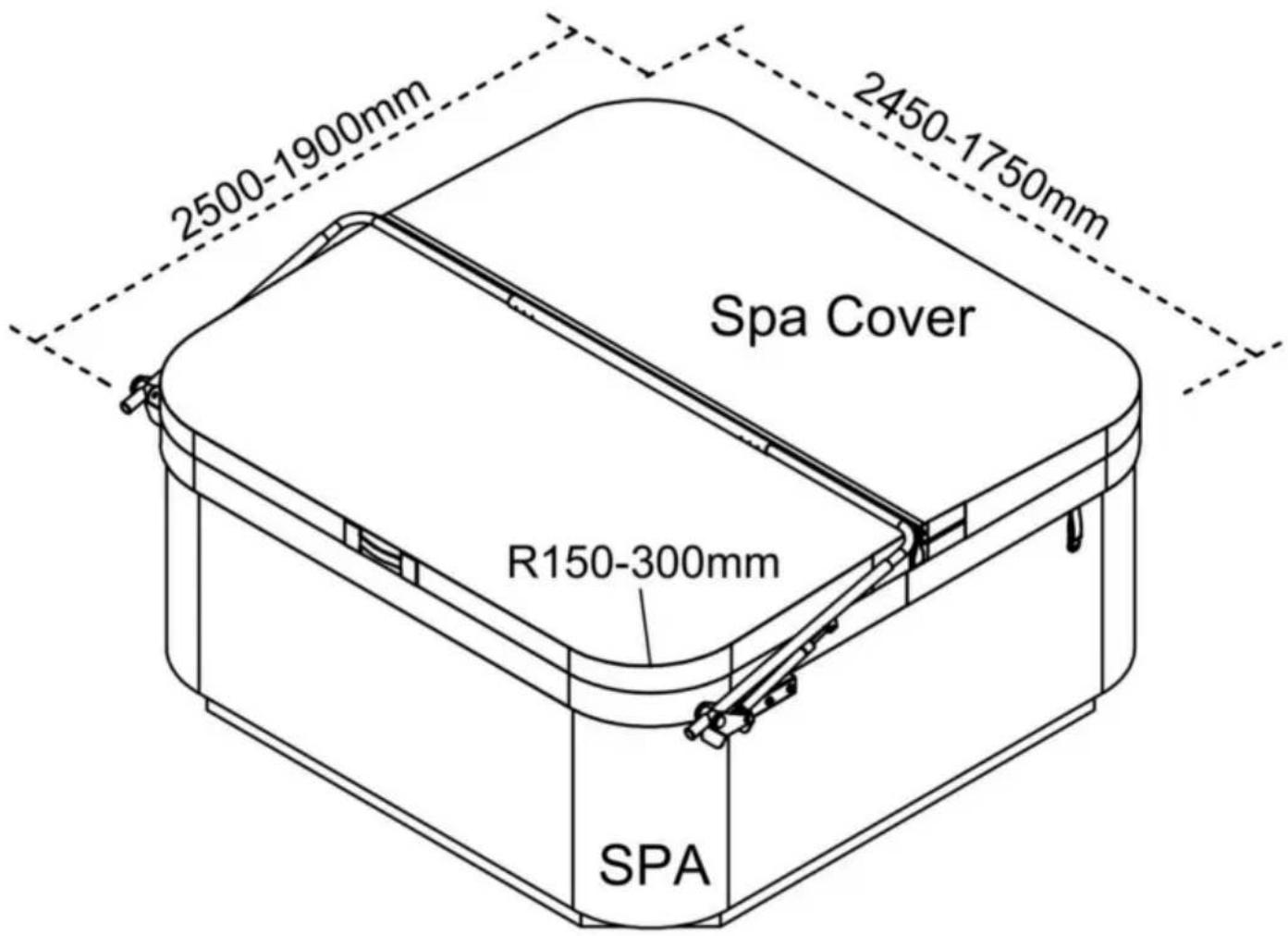

Dostępny wymiar:

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical line drawing of a curved structural component with a labeled component 'R' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

SPA R A distinction placed L&R

Technical diagram showing mechanical assembly with numbered components, including a bracket and a pulley system.

1 2 4 25mm The hooks must hook up inside ② ④ ① ⑫ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰

Technical diagram of a mechanical assembly with numbered components and close-up views of internal parts

⑤ ⑪ ⑨ operating lever 1 2

PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

HOT TUB-DEKSELLIFT

MODEL:SCL-06

Spa Cover SPA

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a mechanical device with numbered components for identification

INSTALLATIE- EN BEDIENINGSINSTRUCTIES

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical line drawing of a curved structural component with a labeled component 'R' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

SPA R A distinction placed L&R

Technical line drawing of a mechanical assembly with a bracket and mounting plate (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a conveyor or lifting mechanism.

25mm The hooks must hook up inside ① ② ④ ⑥ ⑦ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

⑤ ⑪ ⑨ operating lever 1 2

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

BEHÖVS HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Technical diagram of a mechanical device with numbered components for identification

INSTALLATIONS- OCH DRIFTINSTRUKTIONER

Tillgänglig dimension:

2500-1900mm 2450-1750mm Spa Cover R150-300mm SPA

Technical diagram of a mechanical assembly with numbered components, likely a conveyor or lifting mechanism.

25mm The hooks must hook up inside ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Technical diagram of a mechanical assembly with numbered components and close-up views of internal components.

Installationssteg 5: Montera kroken.

⑤ ⑪ ⑨ operating lever 1 2

Enhet 5 Albert Edward House,

The Pavilions Preston, Storbritannien

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Tyskland

[e-mail] +49

1727041930

Tillverkad i Kina
