HOT TUB COVER LIFT

MODEL:SCL-09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HOT TUB

COVER LIFT

MODEL:SCL-09

Spa Cover SPA

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLYPRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do stand on the item or use as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the I
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	SCL-09
Suitable for Hot Tub (Rectangular)	Length: 1900-2500mm (74.8-98.4")Width: 1750-2550mm (69-100.5")Height: 800-1050mm (31.5-41.3")Circular Bead: R<300mm (R<11.8")
Material	Aluminum
Color	Black
Maximum Load	25kg / 55lbs

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

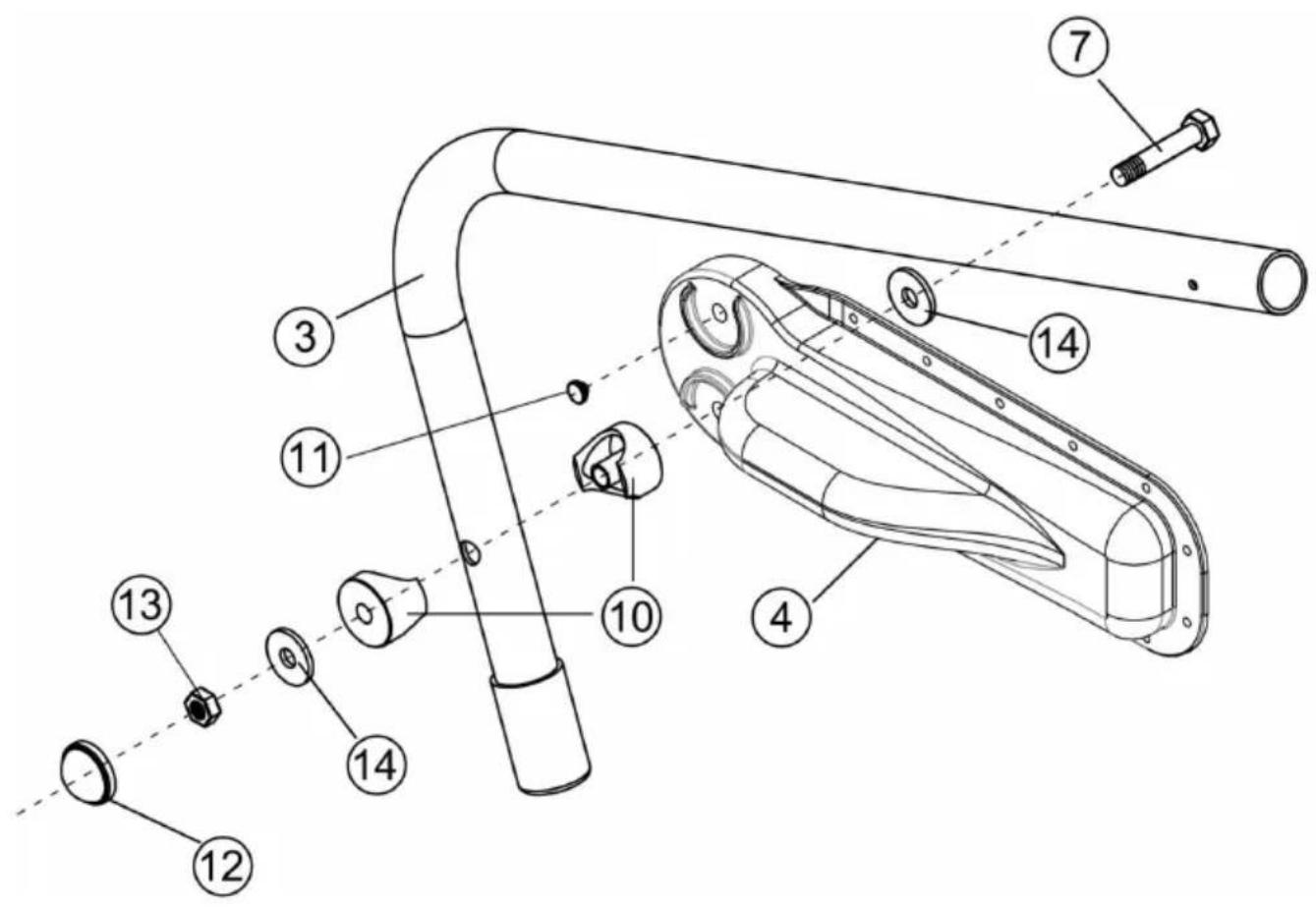

NO	PICTURE	PART NAME	QTY		NO	PICTURE	PART NAME	QTY
1		φ27 With Cotton Elbow	2		2		φ32 Straigh Tubes	1
3		Φ32 Elbow	2		4		Base	2
5		Hook	1		6		Screw Cap	38+4
7		Machine Wire M10X90	2		8		Mechanical Wires 5X30	24+2
9		Mechanical Wires 5X20	14+2		10		Sleeve	4
11		The Lid	2		12		Screw Cap φ33	2
13		M10 Nuts	2		14		Gasket M10	4
15		Cross Mark Head	1		16		Drill Bit φ3	1
Tip: “+” is extra spare parts.

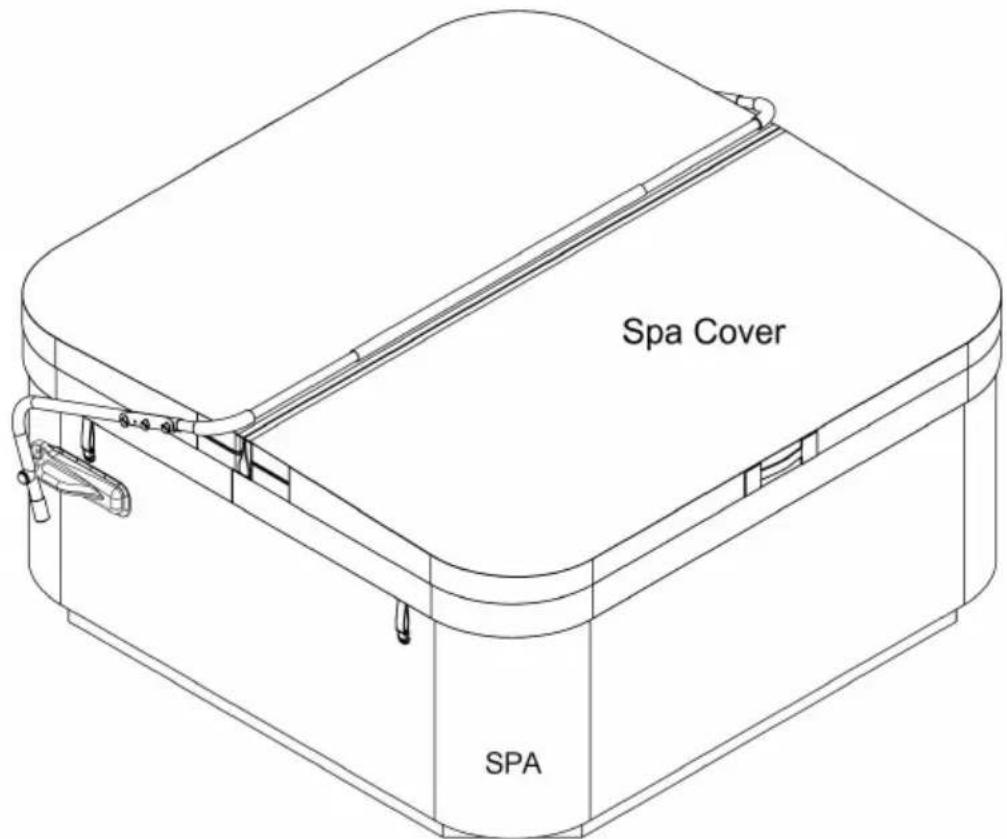

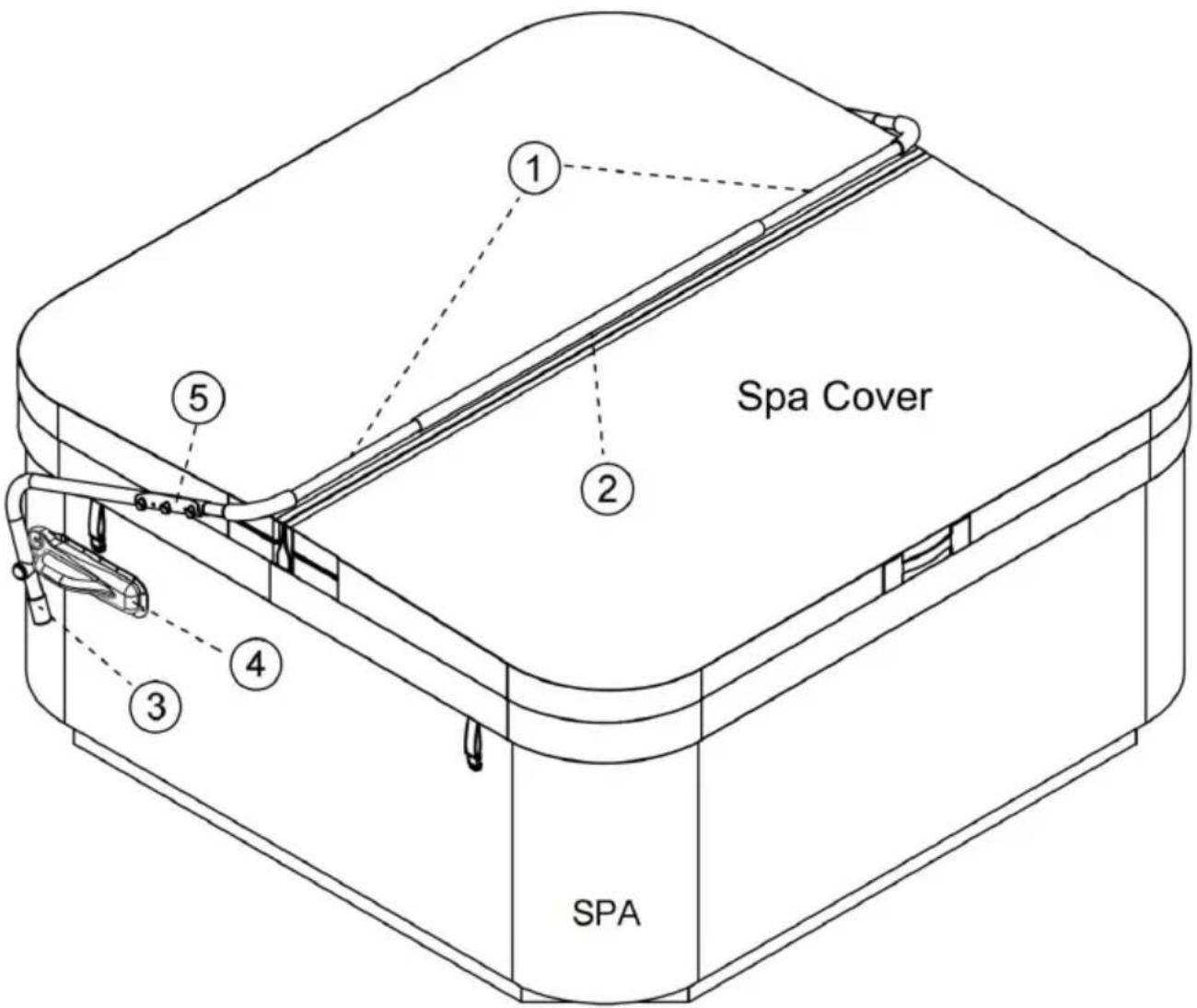

Spa Cover SPA ① ② ③ ④ ⑤

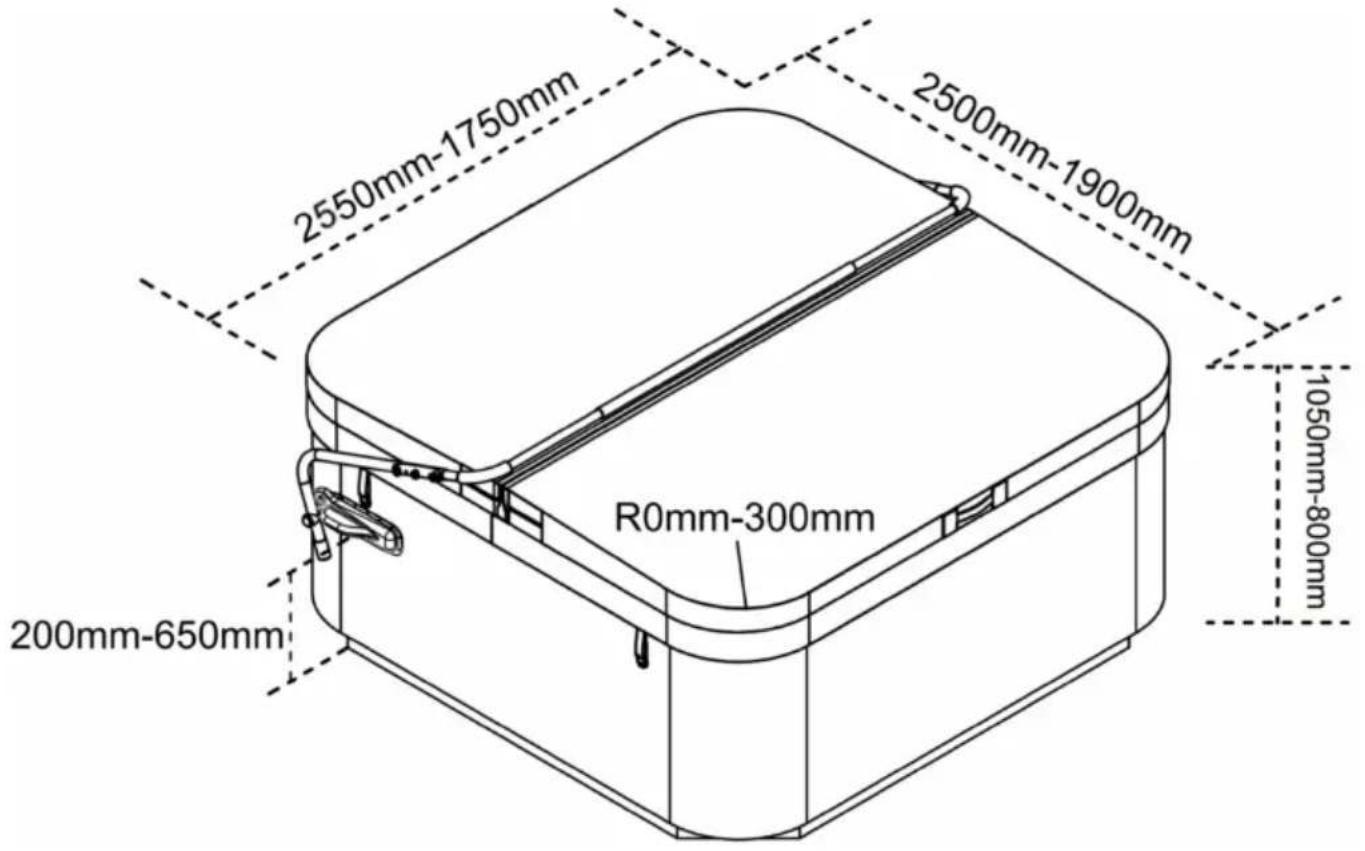

Available dimension:

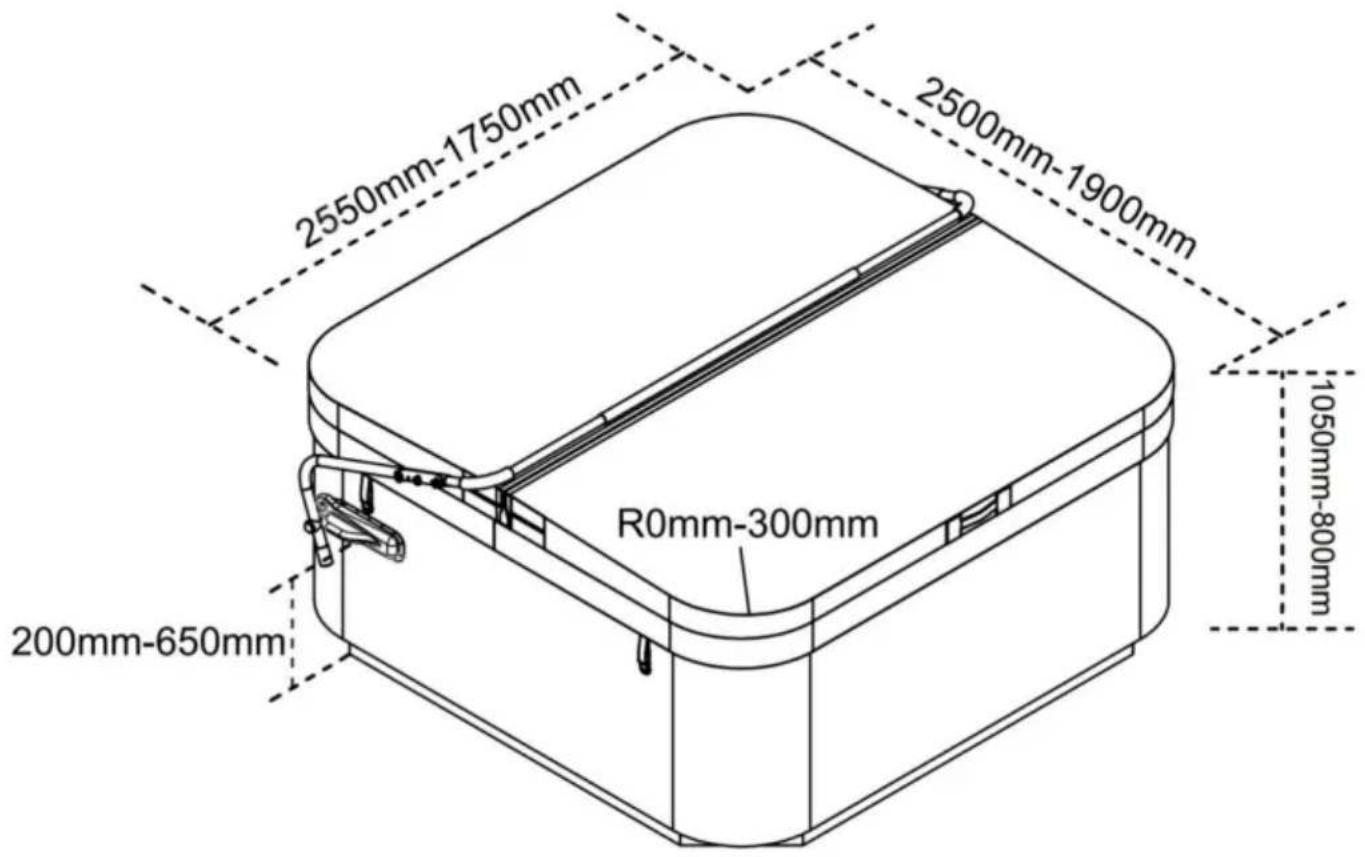

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

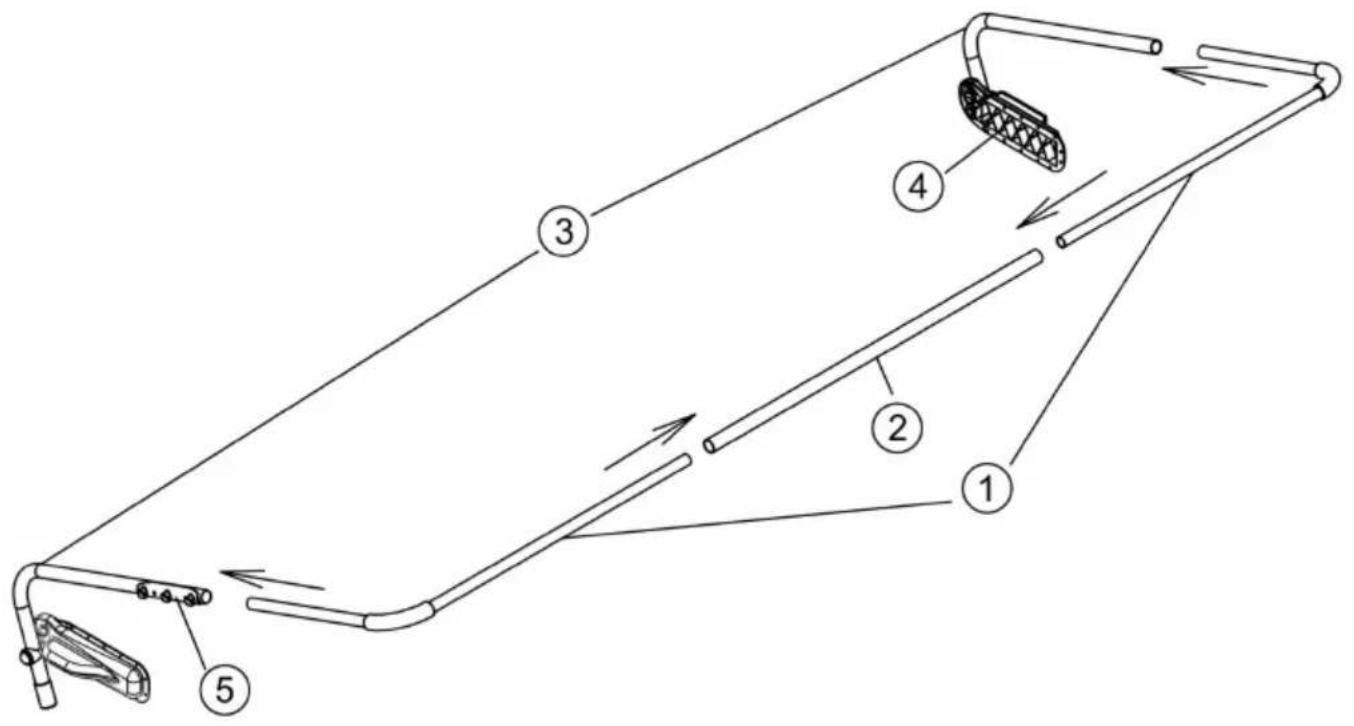

Assembly drawing:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

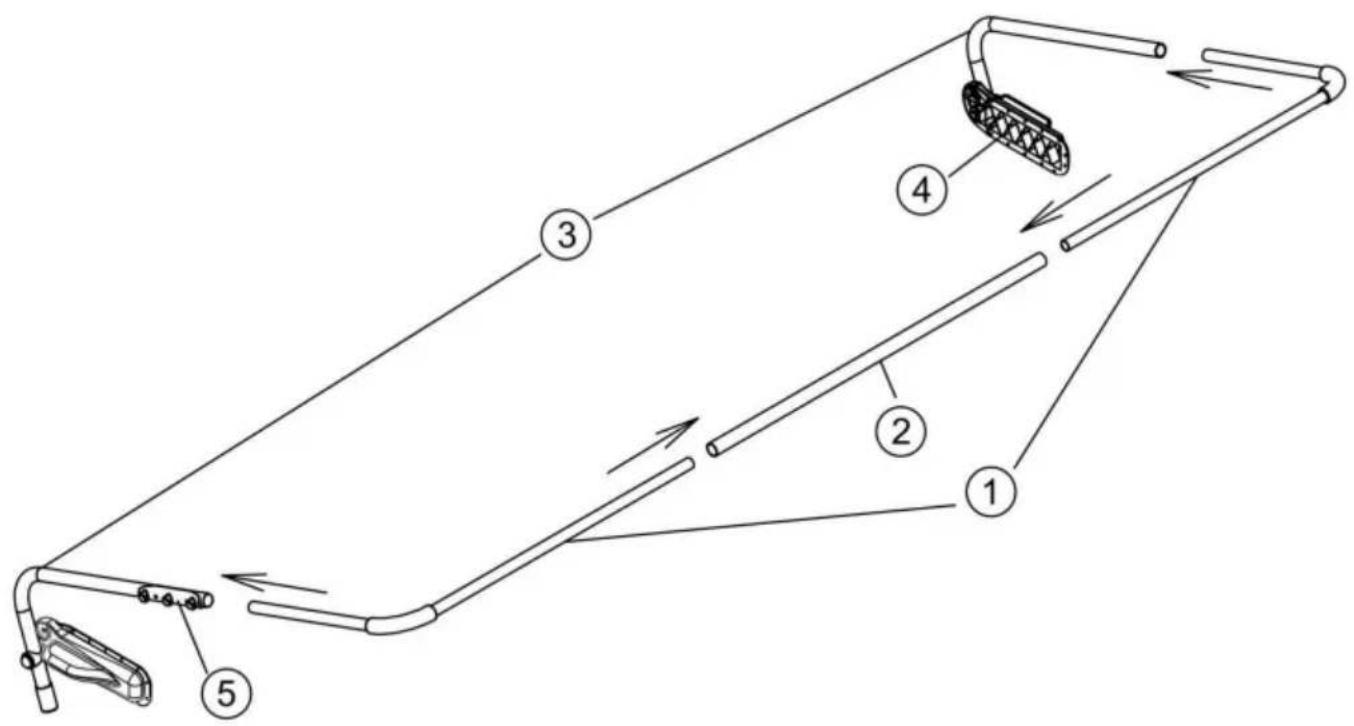

Installation steps 1: Install the stents on both sides respecti

Technical diagram of a mechanical device with numbered components for identification

A distinction placed L&R.

Installation steps 2: Arrange the bottom position and lock

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

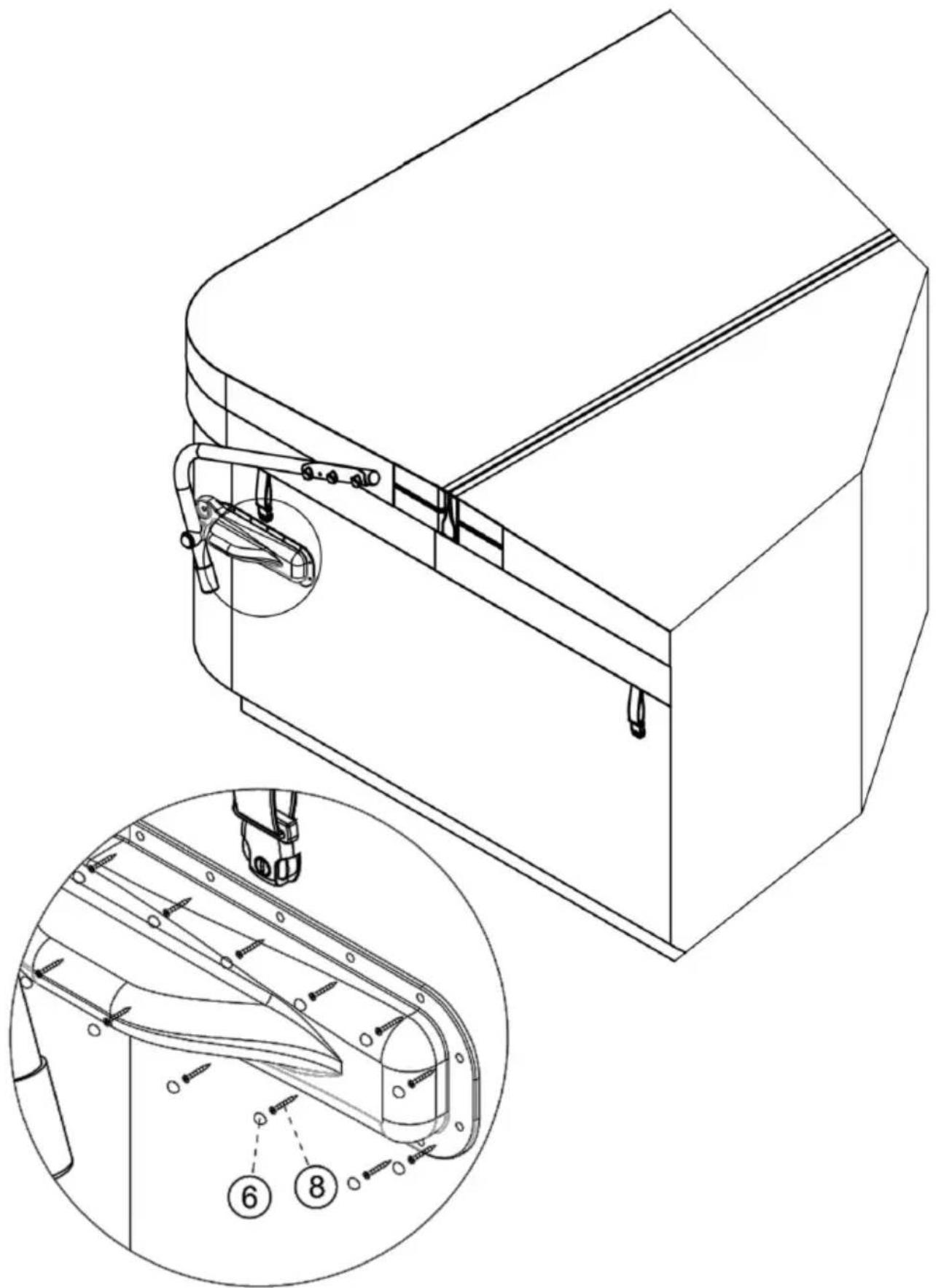

Installation steps 3: Lock the stents onto the spa.

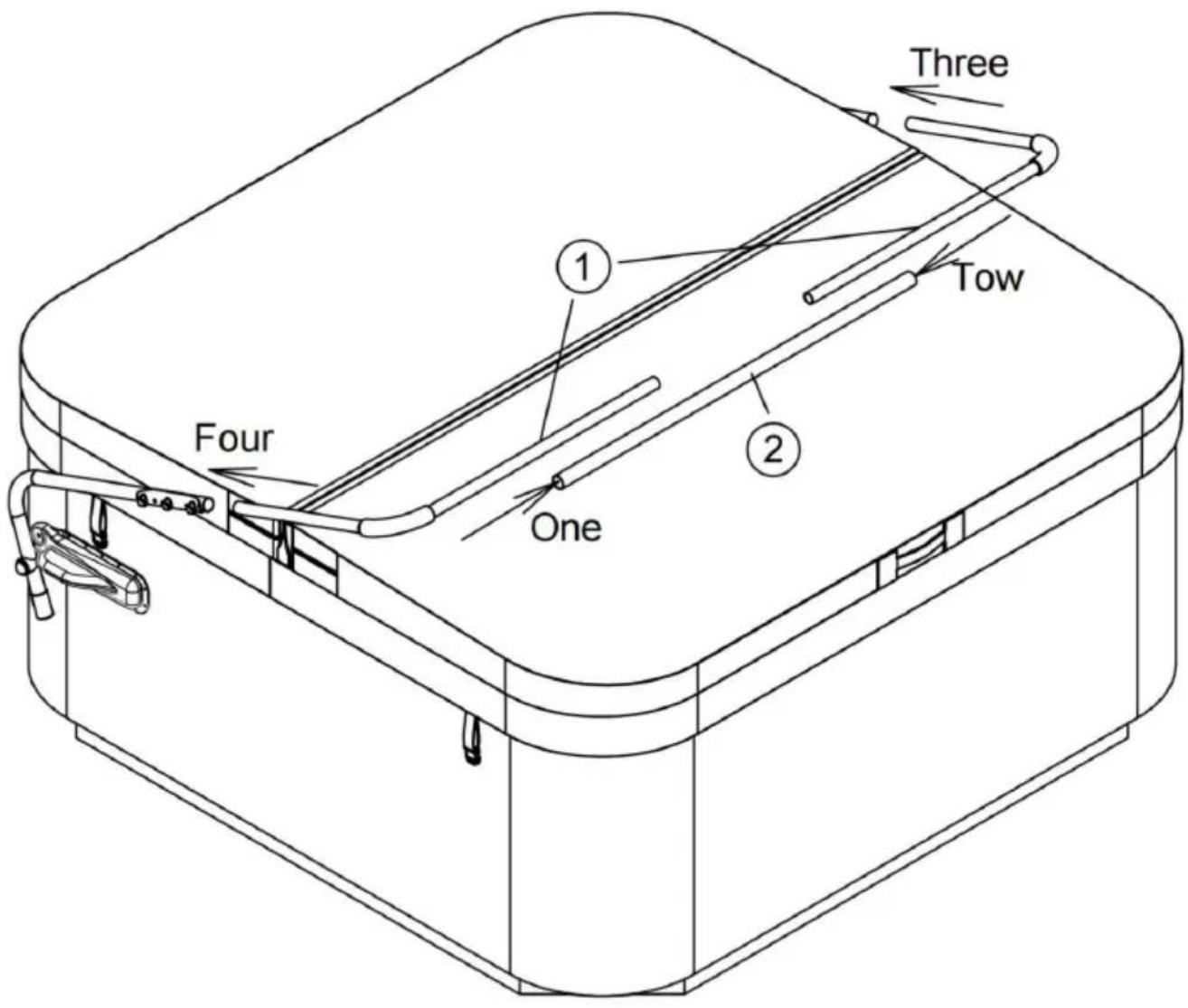

Three Tow One Four ① ②

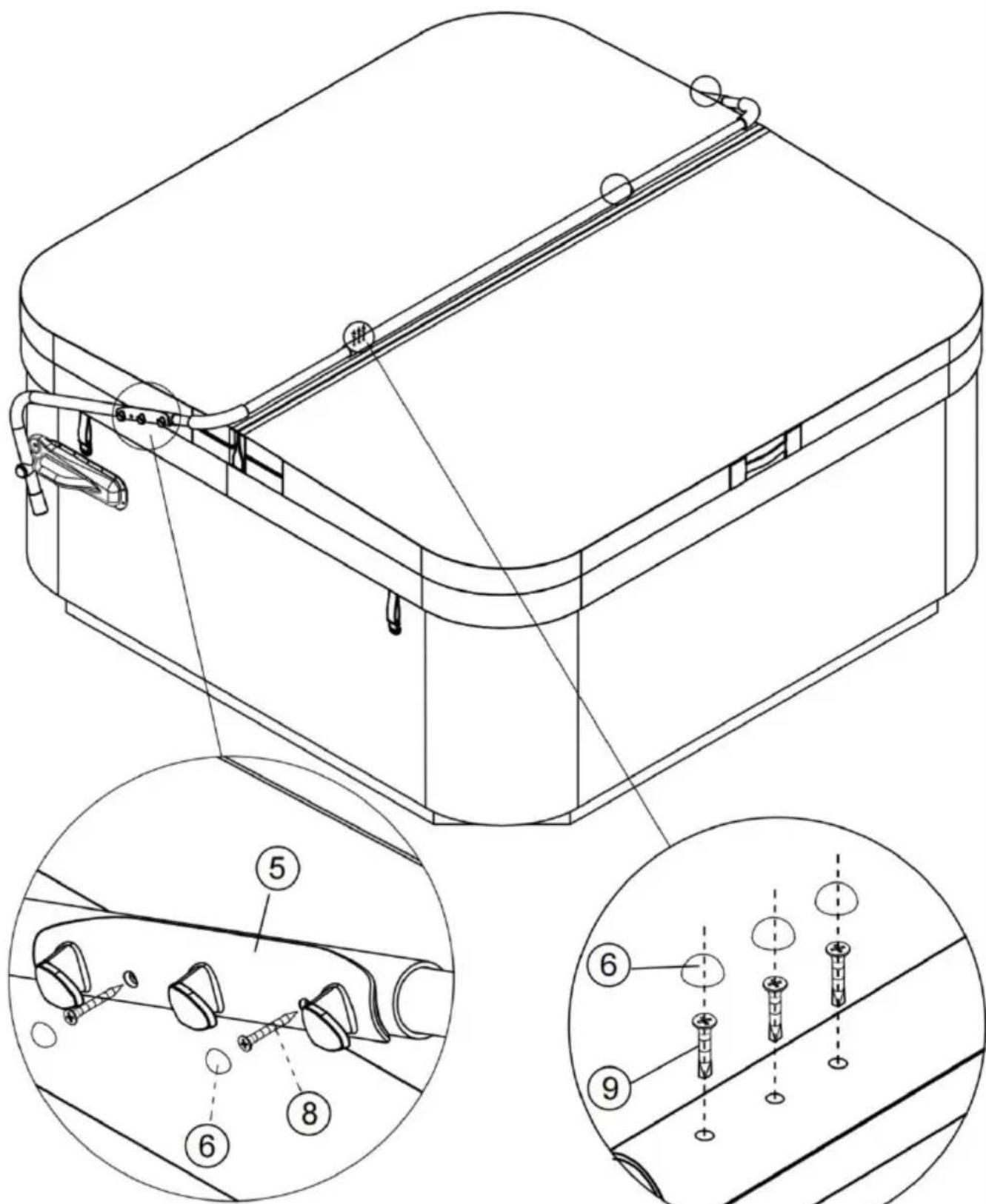

Installation steps 4: Locate the lifter, and lock screws

Technical diagram of a mechanical device with numbered parts and exploded views, showing internal components and assembly steps.

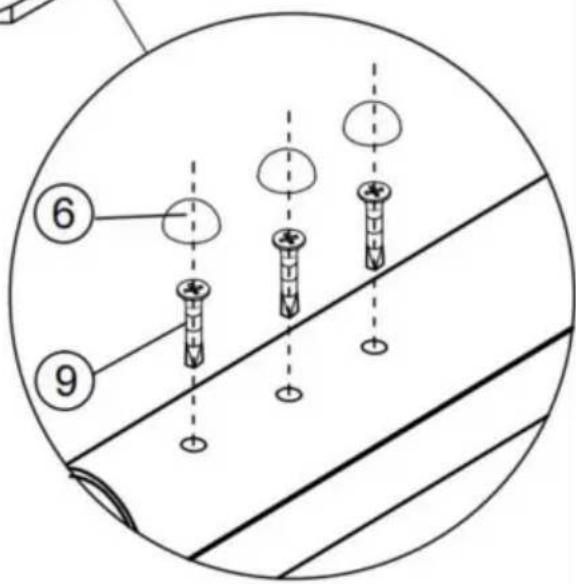

Install the hook

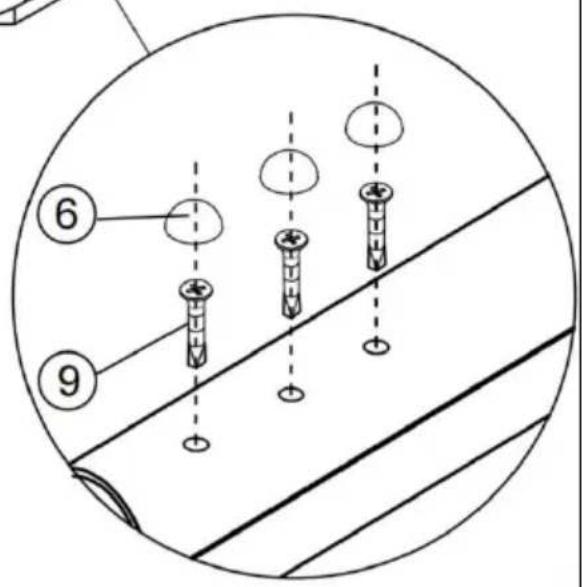

⑥ ⑨

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Spa Cover SPA ① ② ③ ④ ⑤

INSTRUCTIONS D'INSTALLATION ET D'UTILISATION

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Technical diagram of a mechanical device with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importé en AUS :

SIHAO PTY

LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australie

Rancho Cucamonga, CA91730

REPRÉSENTANT

DU ROYAUME-UNI

Groupe Pooledas Ltd

Spa Cover SPA

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Spa Cover SPA ① ② ③ ④ ⑤

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Montagezeichnung:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Einheit 5 Albert Edward House,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

HO BISOGNO DI AIUTO? CONTATTACI!

Spa Cover SPA ① ② ③ ④ ⑤

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Install the hook

Importato in AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli Stati Uniti: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

Spa Cover SPA ① ② ③ ④ ⑤

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Plano de conjunto:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Spa Cover SPA

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Spa Cover SPA ① ② ③ ④ ⑤

INSTRUKCJA MONTAŻU I OBSŁUGI

Dostępny wymiar:

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Rysunek montażowy:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj Import do AUS:SIHAO

PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

HOT TUB-DEKSELLIFT

MODEL:SCL-09

Spa Cover SPA

HULP NODIG? NEEM CONTACT MET ONS OP!

Spa Cover SPA ① ② ③ ④ ⑤

INSTALLATIE- EN BEDIENINGSINSTRUCTIES

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Montage tekening:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Geïmporteerd in

AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australië

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Spa Cover SPA

BEHÖVS HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Spa Cover SPA ① ② ③ ④ ⑤

INSTALLATIONS- OCH DRIFTINSTRUKTIONER

Tillgänglig dimension:

2550mm-1750mm 2500mm-1900mm R0mm-300mm 200mm-650mm 1050mm-800mm

Monteringsritning:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

En distinktion placerade L&R.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Installationssteg 3: Lås stentarna på spabadet.

Three Tow One Four ① ②

Technical diagram of a mechanical device with numbered parts and exploded view, showing internal components and assembly steps.

Install the hook

⑥ ⑨

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Importerad till AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA:Sanven Technology Ltd. Suite 250,9166 Anaheim

Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Enhet 5 Albert Edward House,

The Pavilions Preston, Storbritannien

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Tyskland

[e-mail] +49

1727041930

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
