HOT TUB COVER LIFT

MODEL:SCL-05L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HOT TUB

COVER LIFT

MODEL:SCL-05L

Spa Cover SPA

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLYPRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do stand on the item or use as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the legs.
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	SCL-05L
Suitable for Hot Tub(Rectangular)	Length: 1900-2590mm (75-102")Width: 1450-2350mm (57-92.5")Height: 800-1050mm (31.5-41.3")
Material	Aluminum
Color	Black
Maximum Load	25kg / 55lbs

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	QTY		NO	PICTURE	PART NAME	QTY
1		27 With Cotton Elbow	2		2		32 Straight Tubes	1
3		32 Elbow	2		4		Base	2
5		Machine Wire M10X80	2		6		Sleeve	4
7		M10 Nuts	2		8		Mechanical Wires 5X20	14+2
9		Screw Cap	22+4		10		Mechanical Wires 5X30	8+2
11		Hook	1		12		Gasket M10	2
13		Cross Mark Head	1		14		Drill Bit 3.2	1
Tip: “+” is extra spare parts .

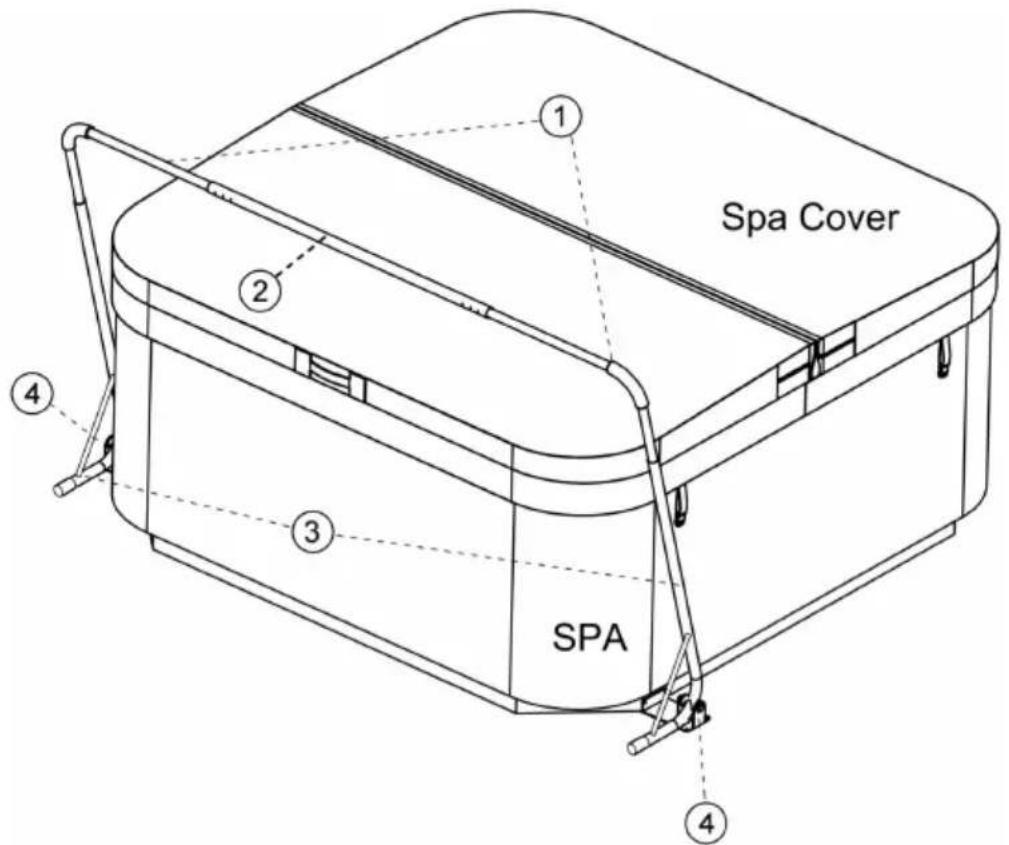

Spa Cover ① ② ③ ④ SPA ④

INSTALLATION AND OPERATION INSTRUCTIONS

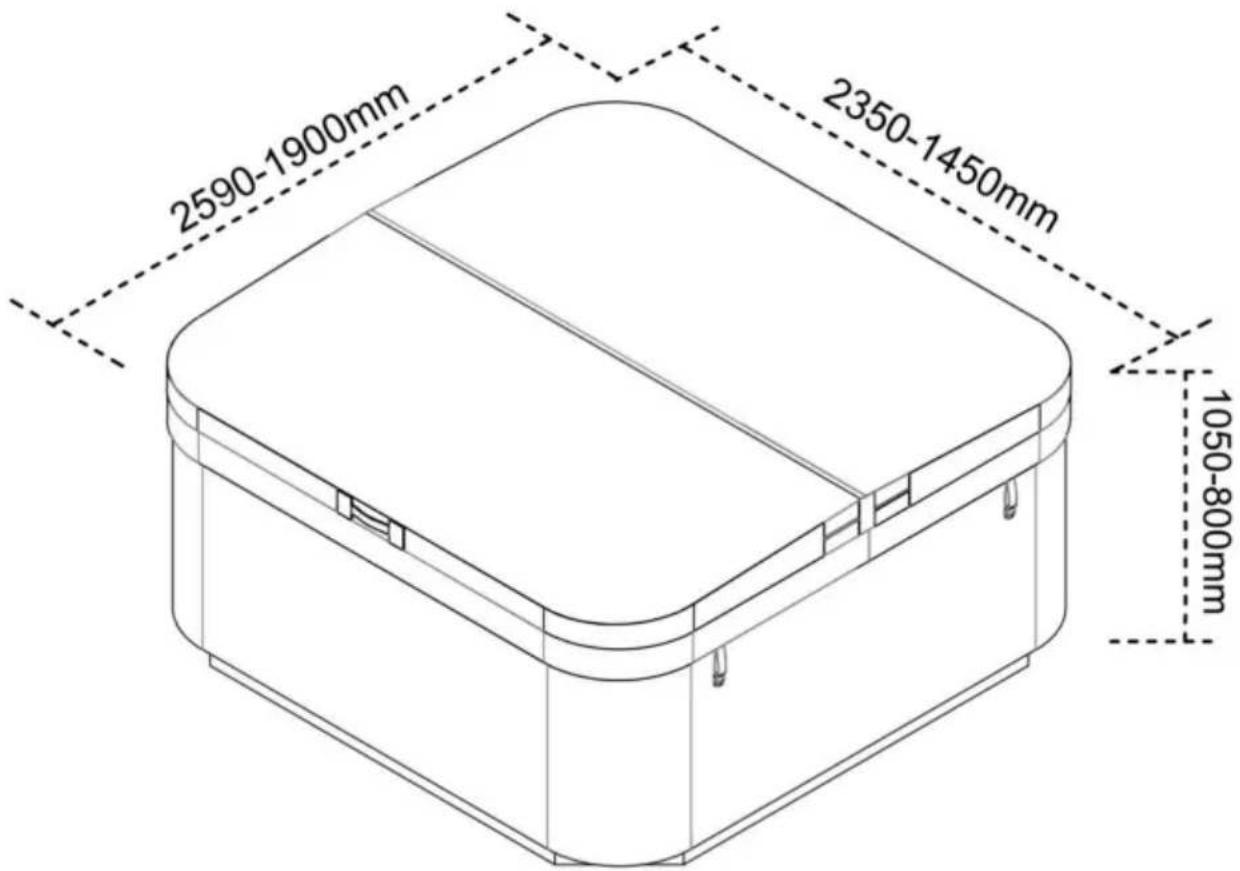

Available dimension:

2590-1900mm 2350-1450mm 1050-800mm

Assembly drawing:

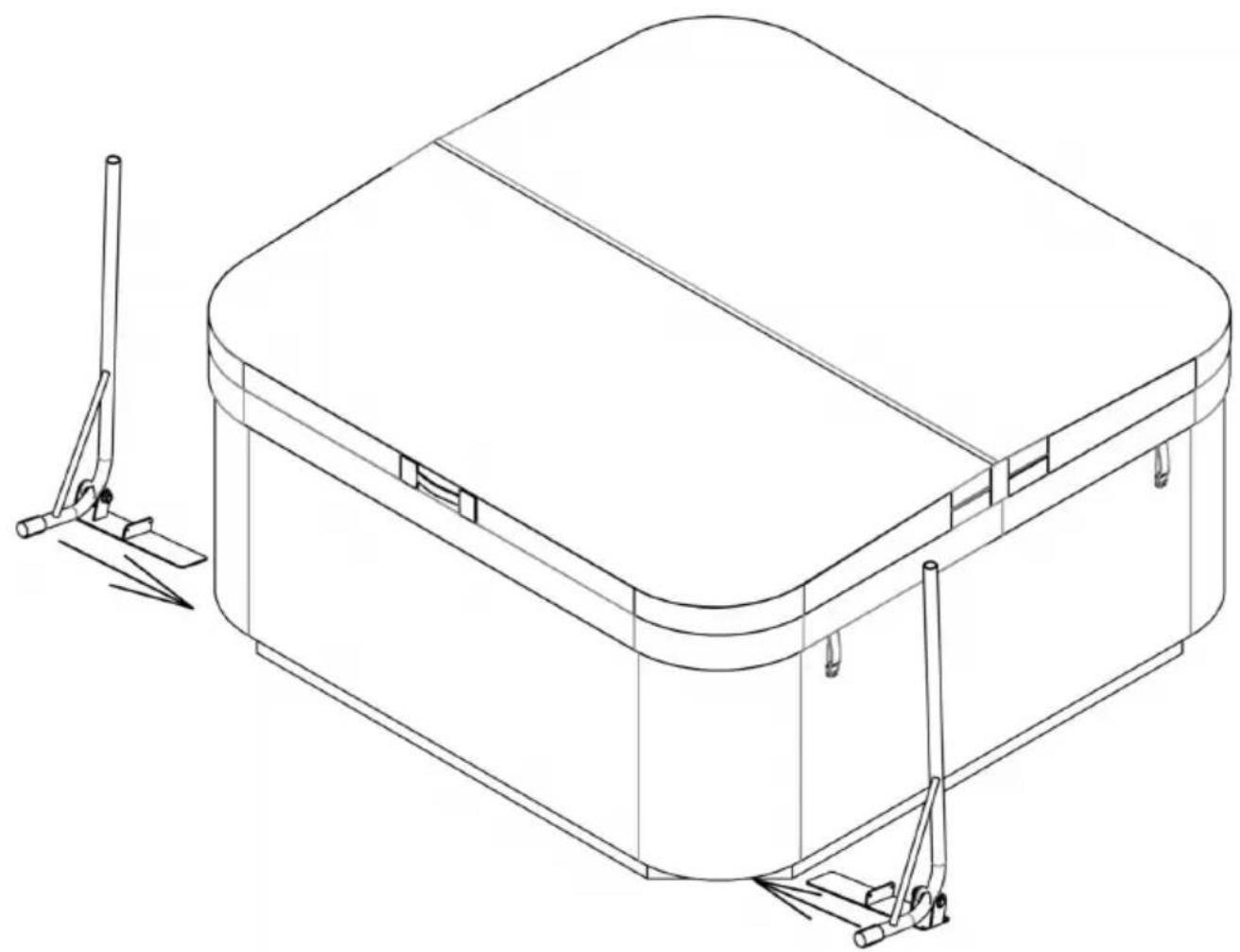

Installation steps 1: Arrange the bottom position .

Technical line drawing of a rectangular mechanical housing with mounting brackets and a side-mounted lever mechanism (no text or symbols)

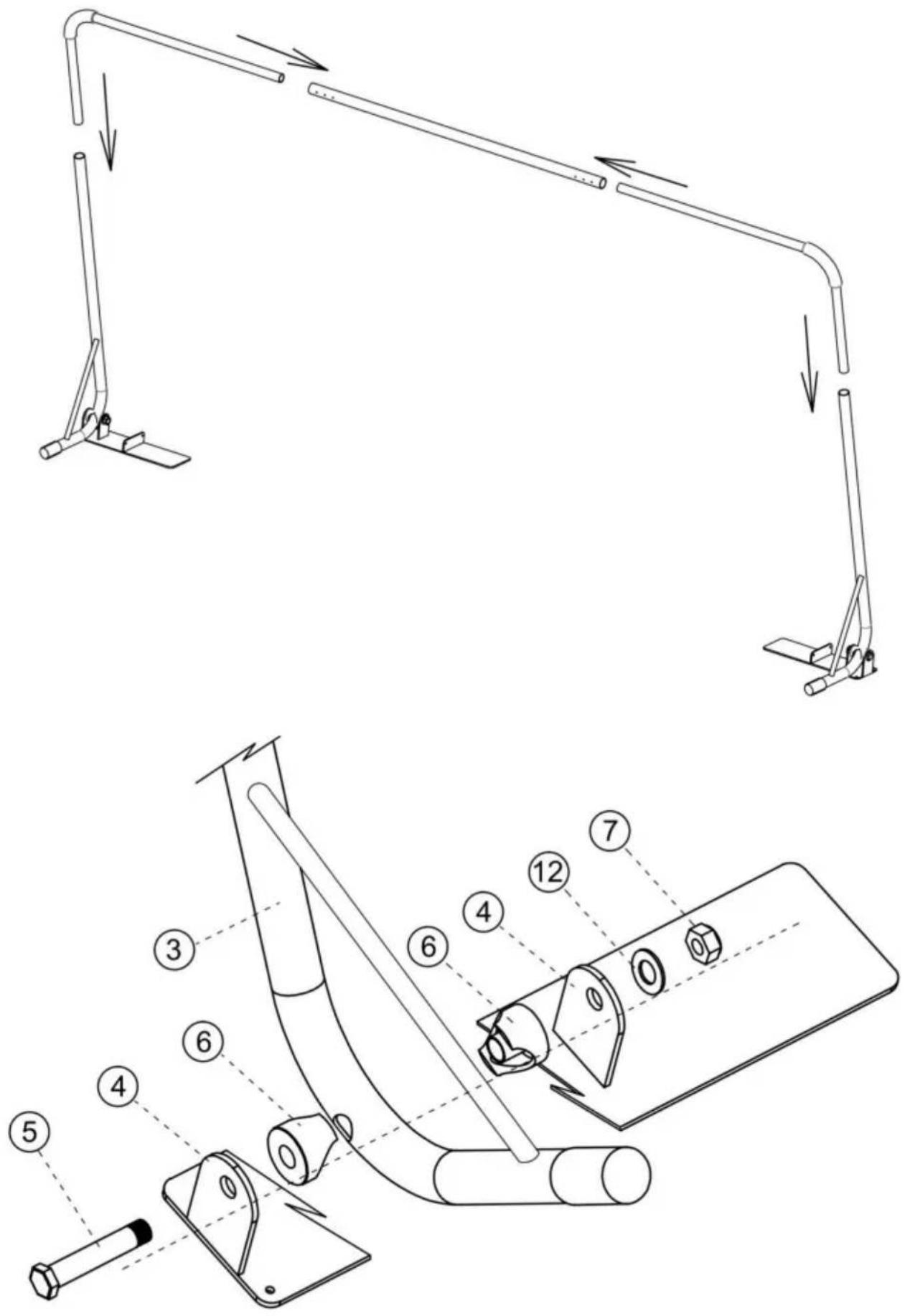

Installation steps 2: Install the stents on both sides respec

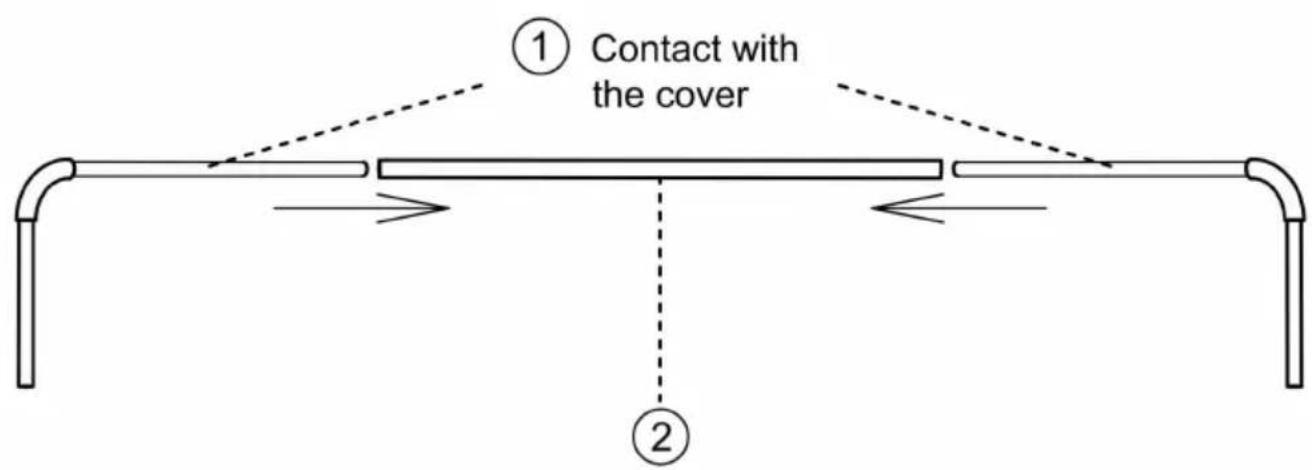

① Contact with the cover ②

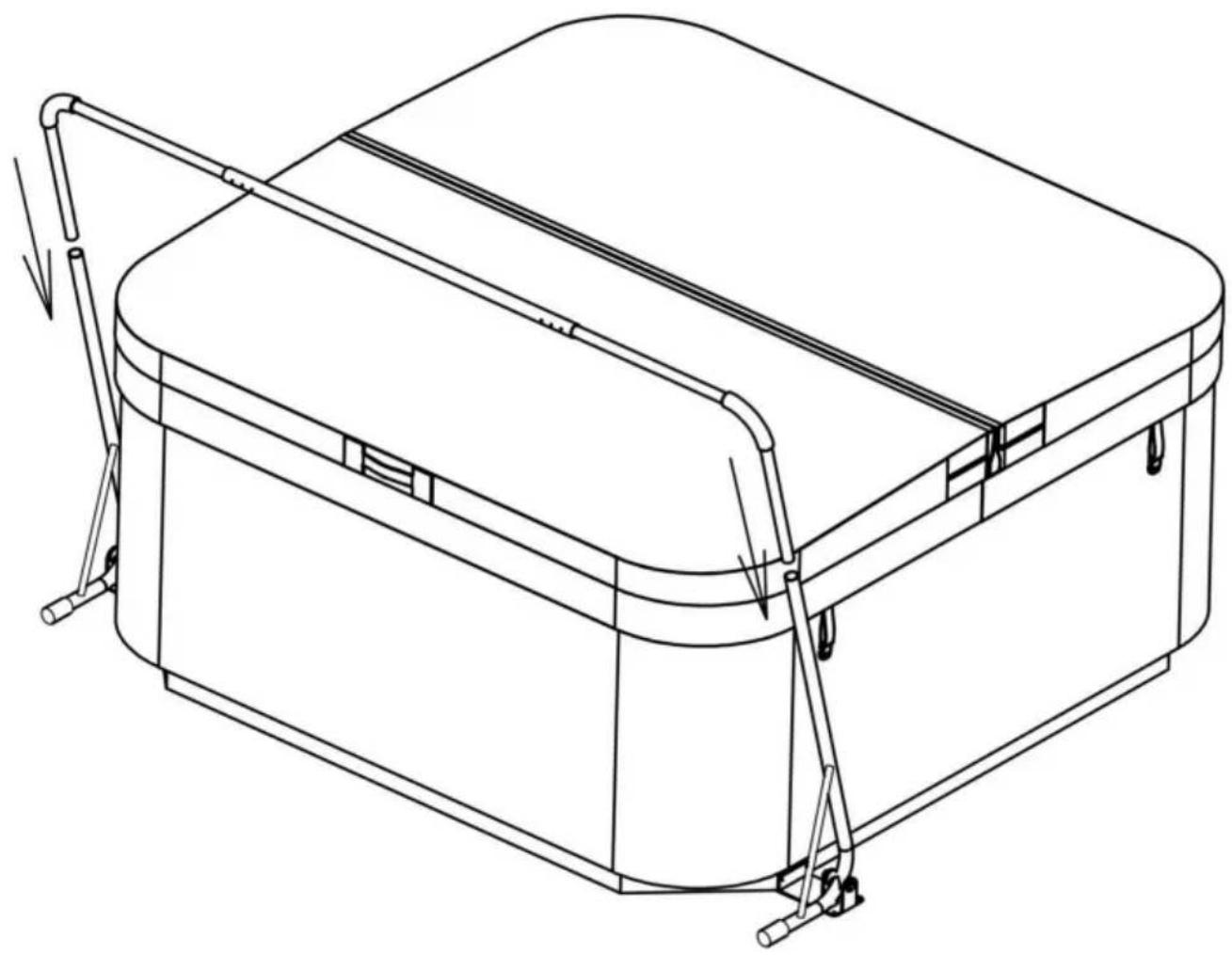

Installation steps 3: Lock the stents onto the spa.

Line drawing of a rectangular container with attached metal rods and a curved top, showing internal structure and mounting points (no text or symbols)

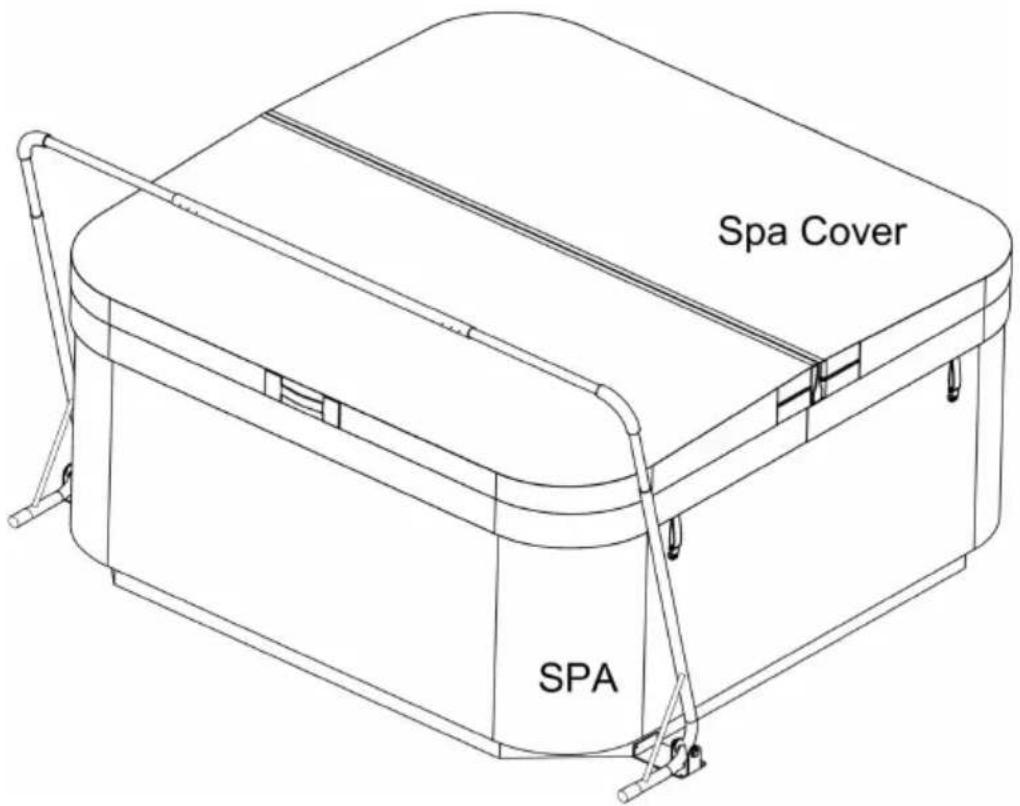

Installation steps 4: Locate the lifter, and lock screws.

Technical diagram of a mechanical device with numbered parts and exploded views, showing internal components and assembly steps.

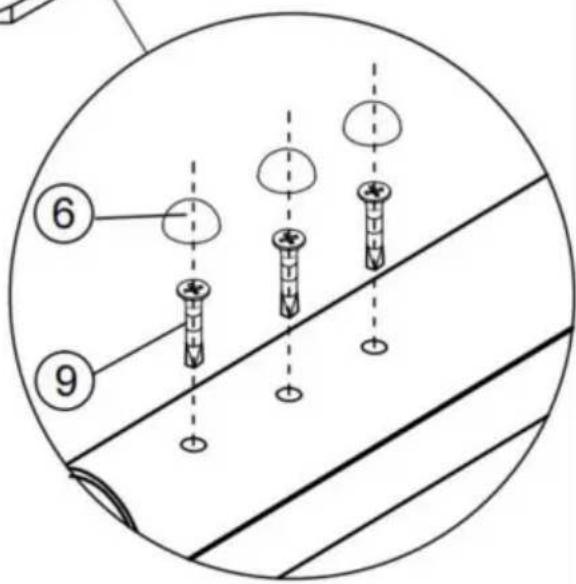

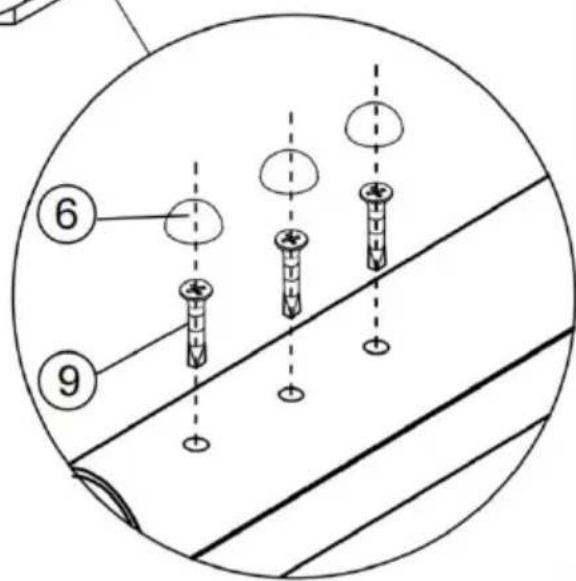

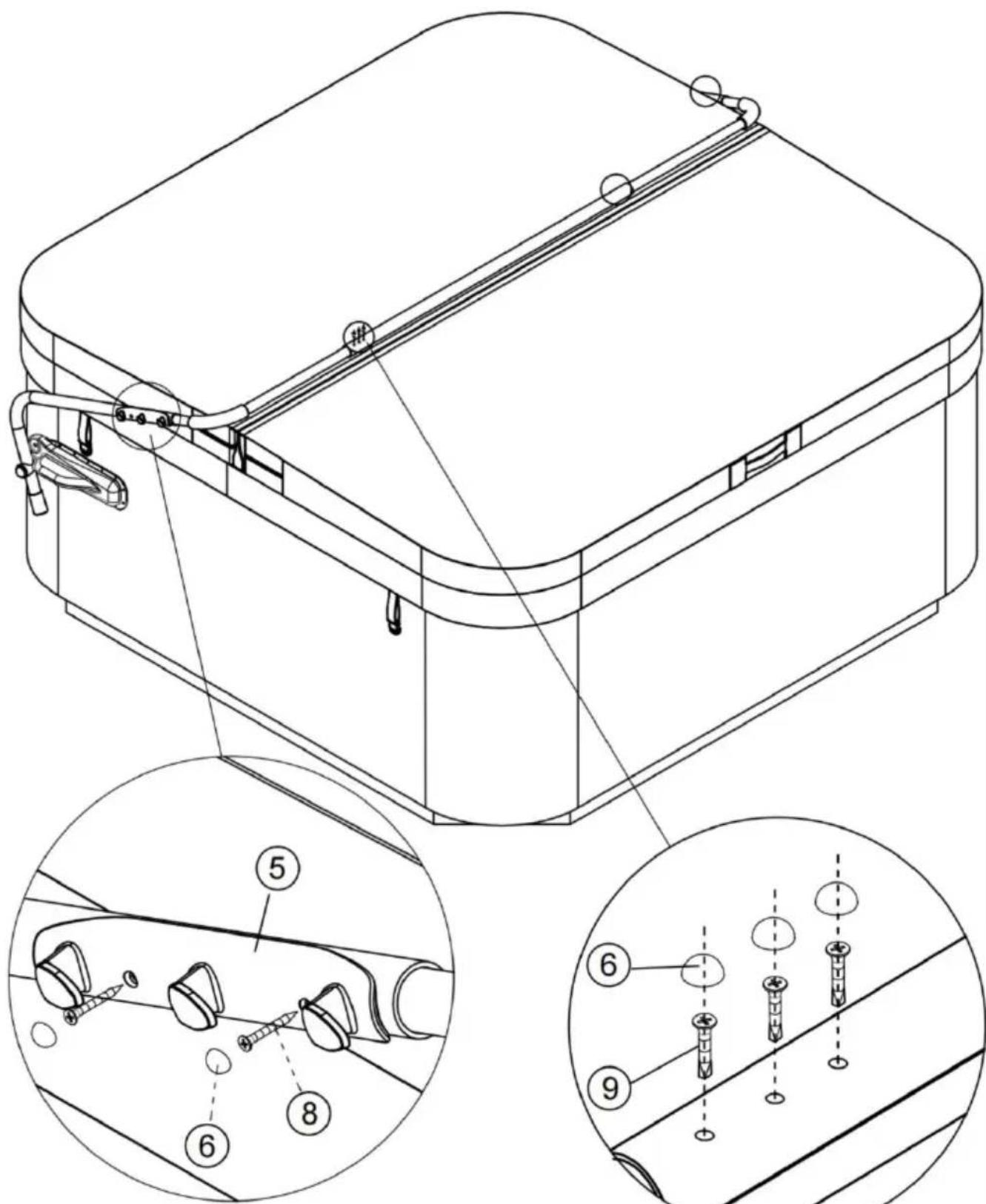

Install the hook

⑥ ⑨

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
