USER MANUAL RF-QJ003 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GUN RACK

USER MANUAL

MODEL:RF-QJ003

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

GUN RACK

MODEL:RF-QJ003

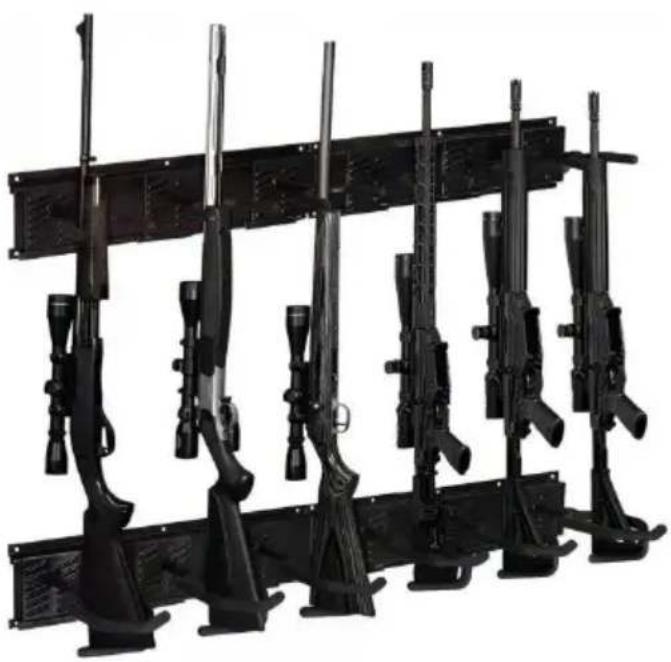

Row of black rifles mounted on metal racks, no visible text or markings

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to

contact us: Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble should be only according to these instructions. Improper assembly can result in hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. The product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely sup the Gun Rack.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. THIS PRODUCT IS NOT A TOY. DO NOT ALLOW CHILDREN TO PLAY WITH OR NEAR THIS ITEM.
3. DO NOT EXCEED WEIGHT CAPACITIES.
4. USE ONLY ON A FLAT, LEVEL, HARD AND SMOOTH SURFACE CAPABLE OF SAFELY SUPPORTING A FULLY LOADED GUN RACK.
5. USE AS INTENDED ONLY.
6. INSPECT BEFORE EVERY USE; DO NOT USE IF PARTS ARE LOOSE OR DAMAGED.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model	RF-QJ003
Safe Loading Weight	180lbs (30 lbs per set)
Product Size	Confirm product installation distance according to gun size
Net Weight	5.00 kg

PARTS LIST

Simple black stick figure with a rectangular head and two legs, labeled 'x6' (no other text or symbols)

Black metal bracket with a grid pattern and the text 'x6' on the side (no other text or symbols)

X40

Dark rectangular object with evenly spaced small holes, no visible text or symbols

X4

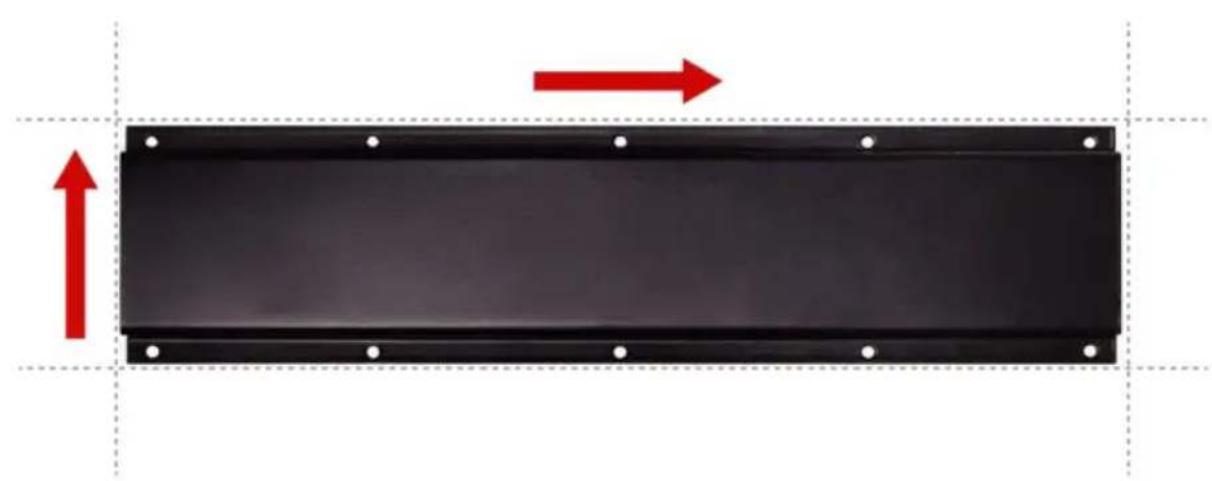

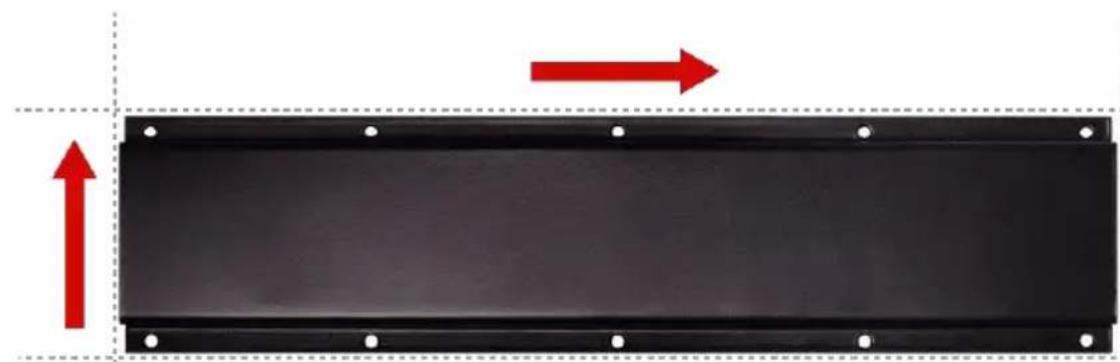

STEP1

Black rectangular plate with eight holes and a red arrow pointing right, no text or symbols present

Make out a horizontal line using a spirit level at your depth on the wall, place the bottom of the rail along the

STEP2

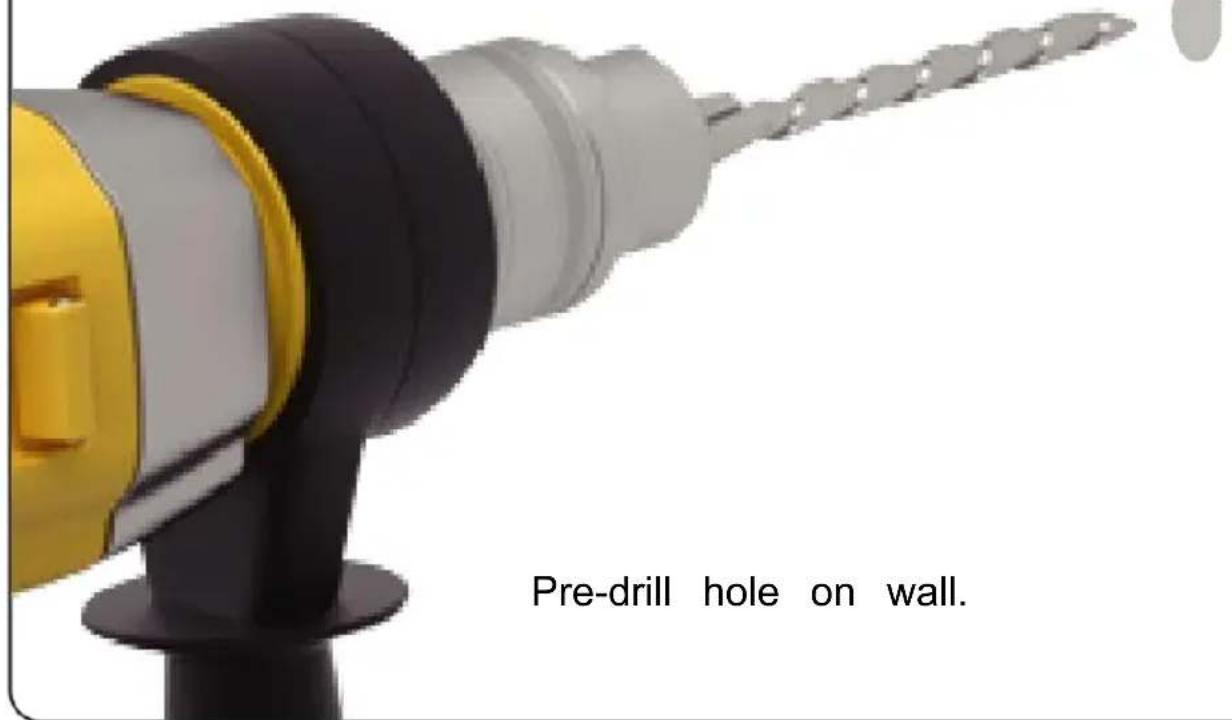

Pre-drill hole on wall.

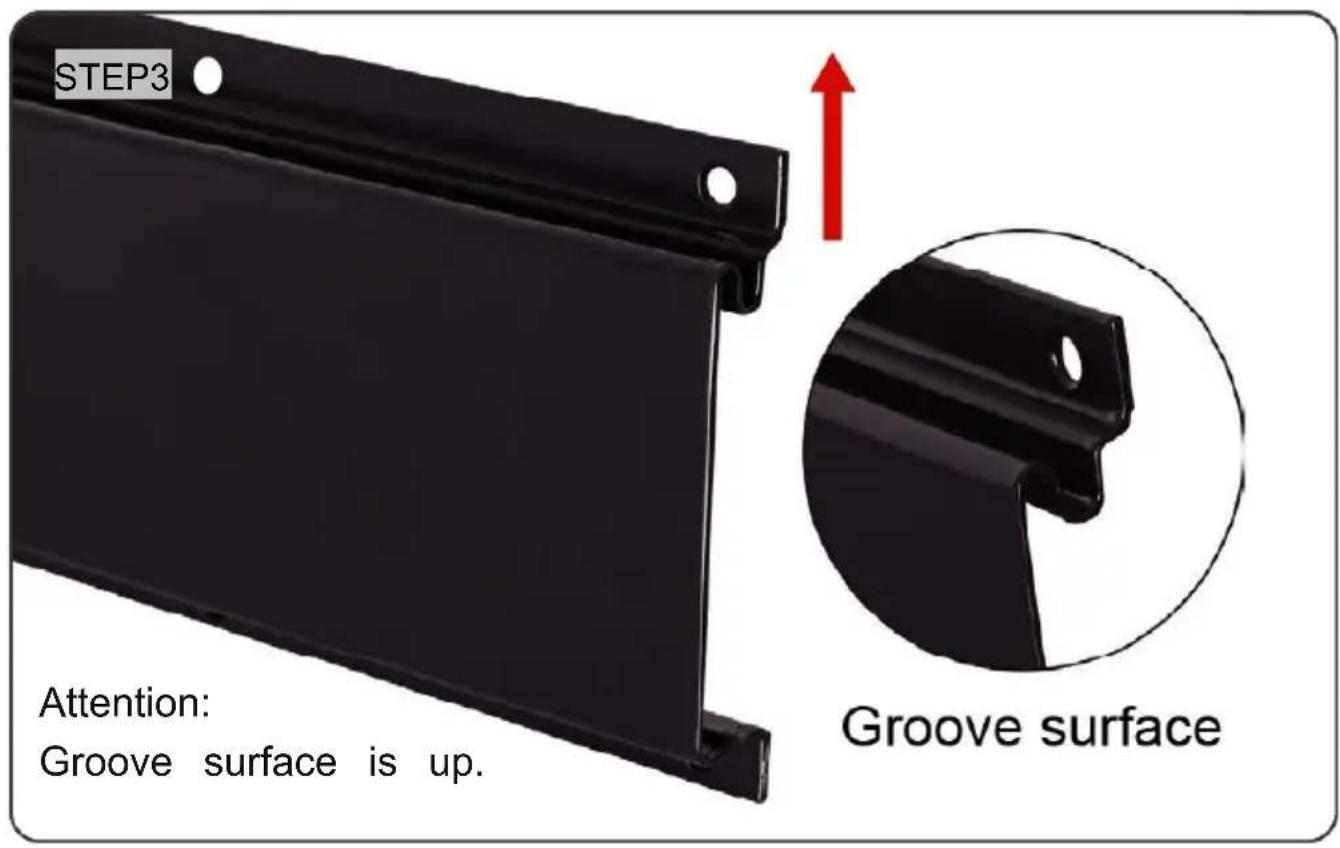

STEP3 Attention: Groove surface is up. Groove surface

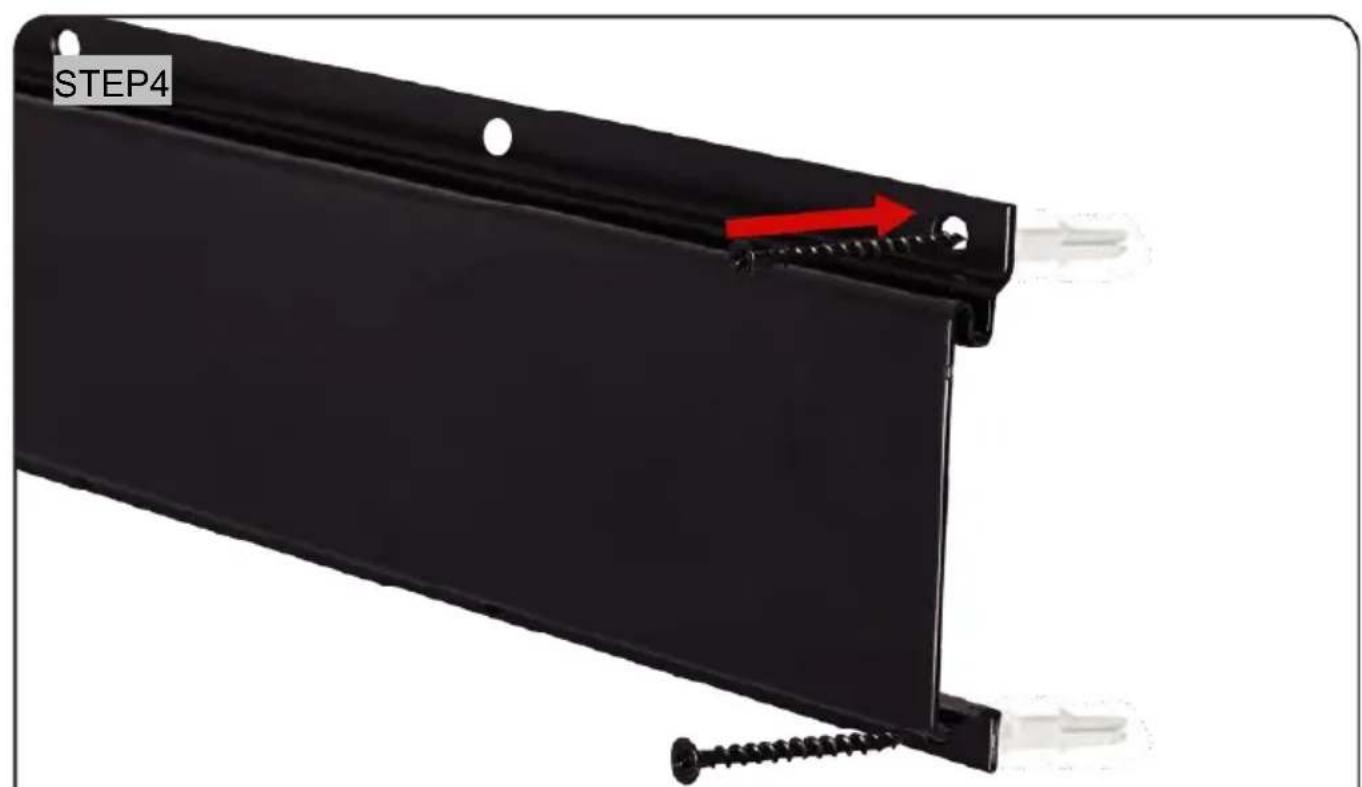

STEP4

Push the wall anchor gently into the pre-drilled hole. Install rail and tighten the screw.

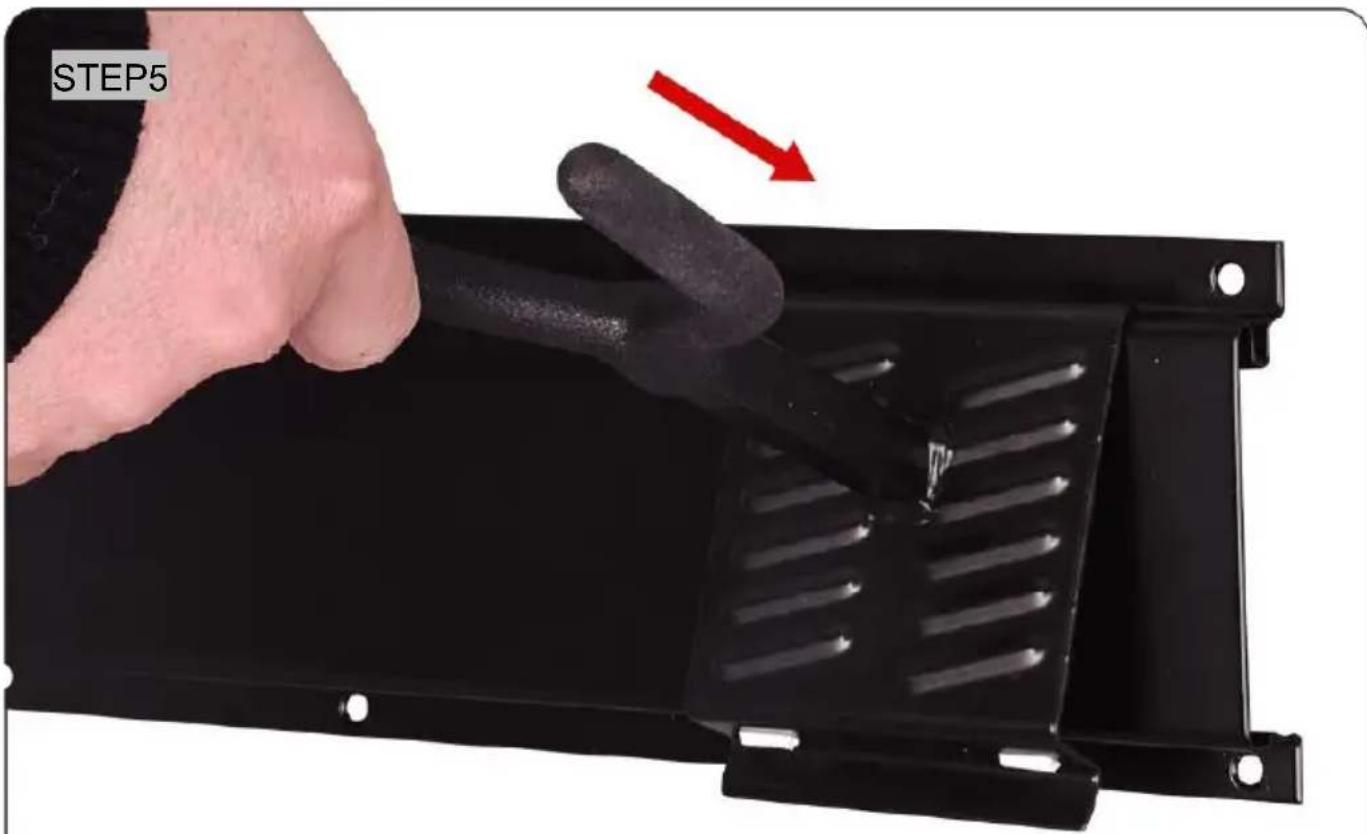

STEP5

Snap your hooks on the rails.(Or slide hooks from the side onto the

Close-up of a black metal component with a curved handle and ventilation slots, labeled 'STEP6' in the top-left corner (no other text or symbols)

The installation is completed.

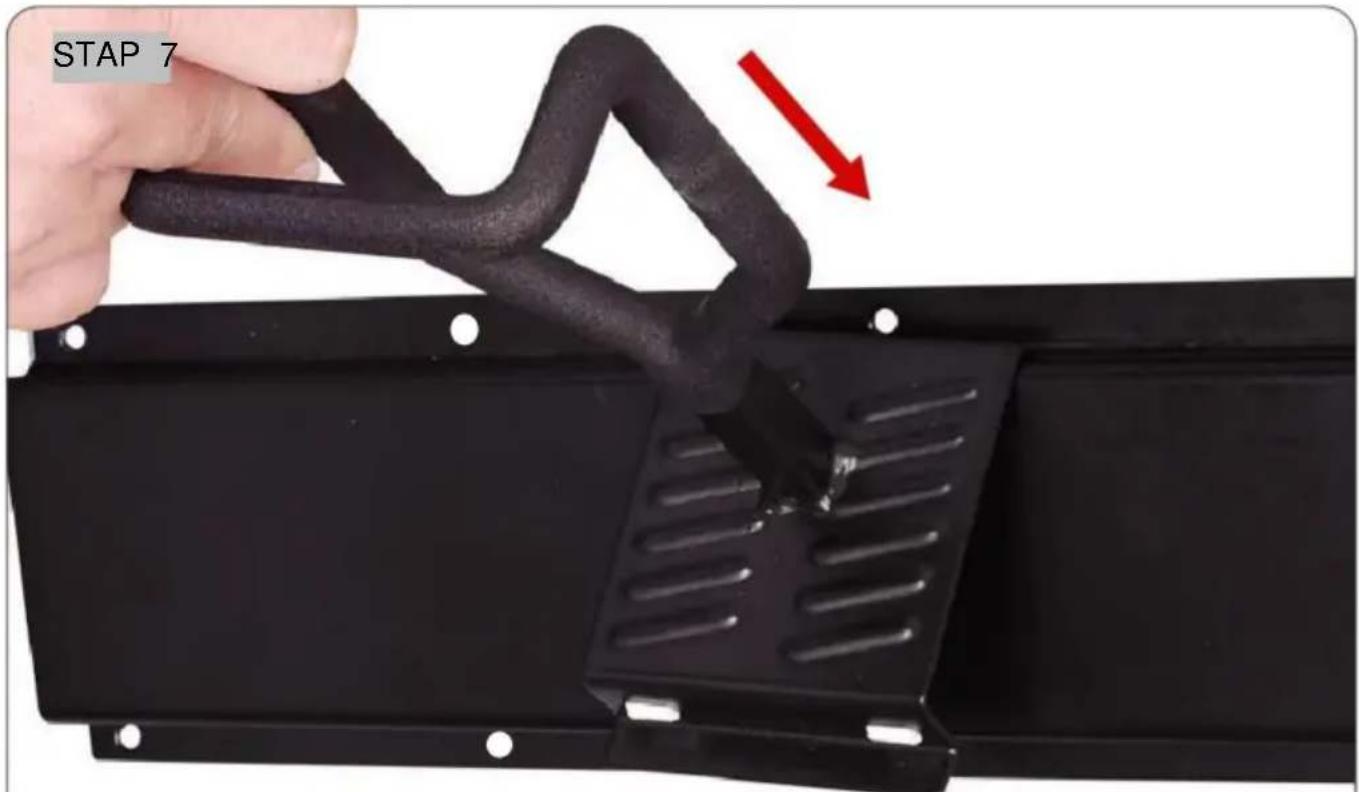

STEP7

Snap your hooks on the rails.(Or slide hooks from the side onto the

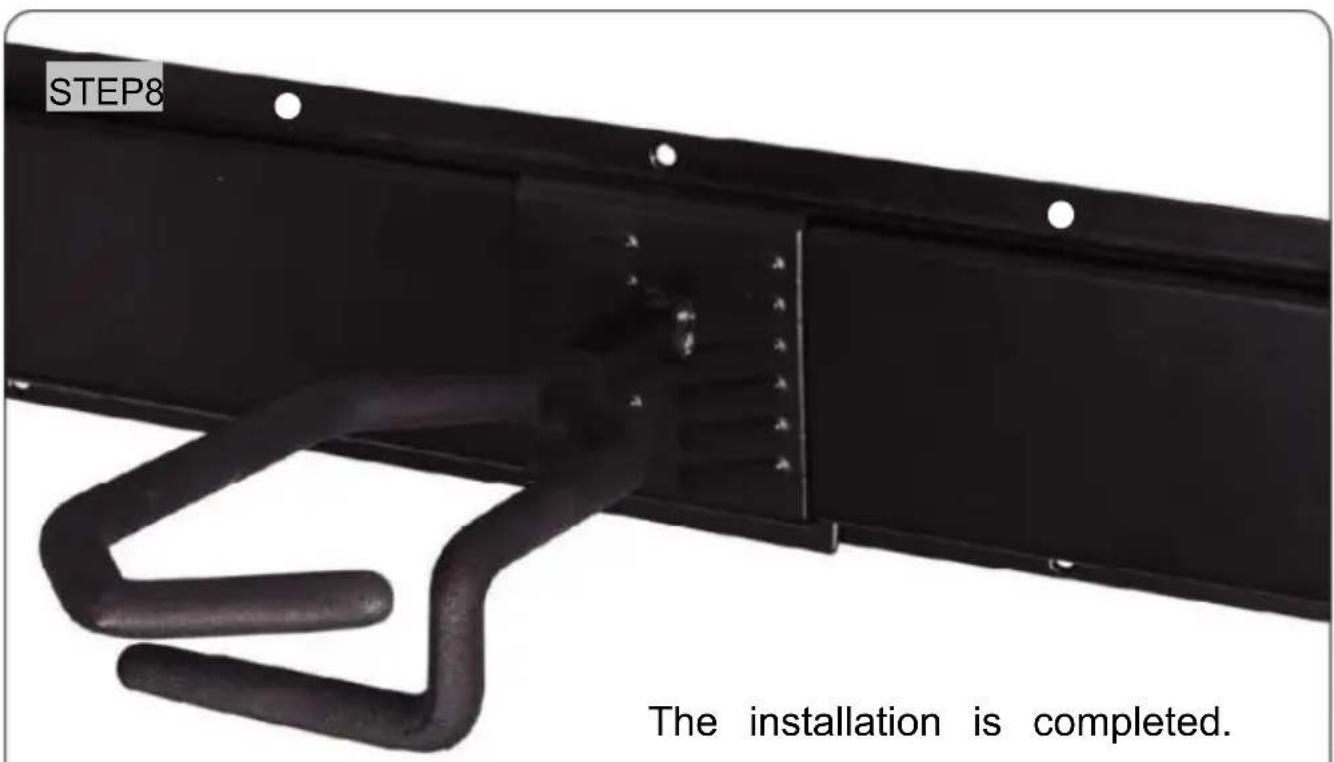

STEP8 The installation is completed.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
