USER MANUAL RV-SOS-5000 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RV SLIDES OUT STABILIZER

MODEL: RV-SOS-5000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

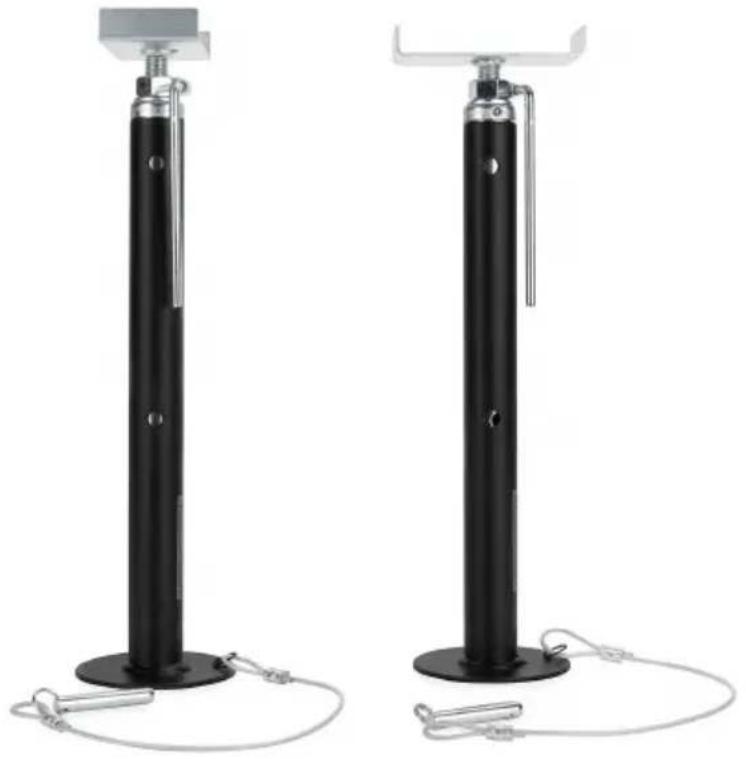

RV SLIDES OU'S STABILIZER

MODEL:RV-SOS-5000

Two black cylindrical devices with attached metal components and wiring, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

PRODUCT DESCRIPTION

RV slides out stabilizer helps protect your RV's slide-out mechanism by providing support to your slide-out room when it is in use for prolonged periods. The universal fit top will support any slide-out rail, and the space-saving handle a tethered pin make the support easy to use and store. The Eaz-Lift Slide Our Support adjusts from 20" to 48", with incremental locked positions, plus a minor adjustment that extends an additional 14 inches. These durable supports are constructed of rust-resistant steel and support up to maximum 5000 lbs. each of two.

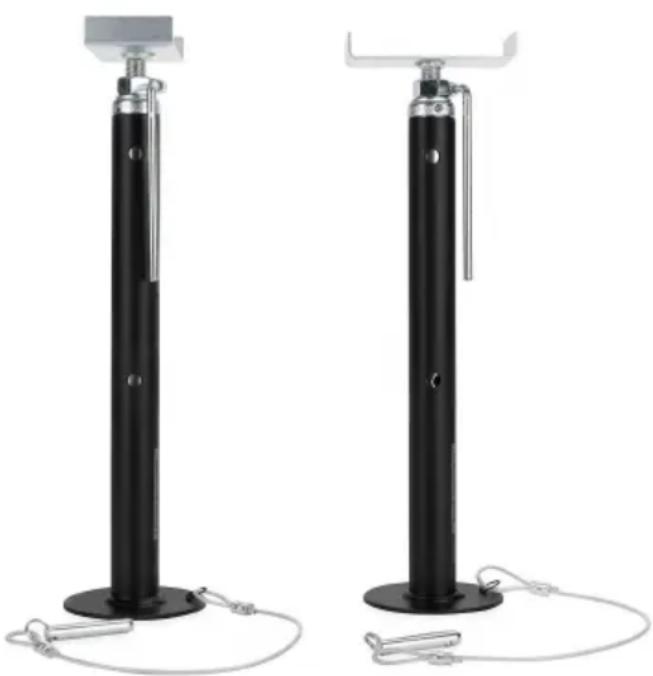

PRODUCT STRUCTURE

Two black cylindrical devices with attached metal components and wiring, no visible text or symbols.

PRODUCT PAREMETERS

Model	RV-SOS-5000
Height Range	20-48 in (or 500-1230mm)
Rated Load	3333 lbs (or 1512kg)
Maximum Load	5000 lbs (or 2268kg)
Quantity Per Box	2 pcs

SAFETY INSTRUCTIONS

WARNING:

Read carefully and understand all instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious person injury.

1. Stay alert. Watch what you are doing and use common sense when operate the tool. Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool increases the risk of injury to persons.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair, hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, long hair increases the risk of injury to persons as a result of being ca moving parts.
3. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situat
4. Use safety equipment. Wear ANSI-approved safety goggles and heavy-duty work gloves during use.
5. Do not force the tool. Use the correct tool for the application. The correct will do the job better and safer at the rate for which the tool is design
6. Store the tool when it is idle, out of reach of children, and other untrained

persons. A tool is dangerous in the hands of untrained users.

1. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool's operation. If damaged, have the serviced before use. Many accidents are caused by poorly maintained to
2. Use only accessories that are identified by the manufacturer for the specific tool model. Use of an accessory not intended for use with the specific model increases the risk of injury to persons.
3. Inspect repair after use. Repairs to structural or frame members must be inspected by a qualified technician to ensure that the structure is still strong enough to safely fulfill its function.
4. Tool service must be performed only by qualified repair personnel.
5. When servicing a tool, use only identical replacement parts. Use only authorized parts.
6. Only qualified and authorized persons are allowed to operate the rv stack jack.
7. Use as intended only. This product is not a toy. Do not allow children with or near this item.

SAVE THESE INSTRUCTIONS

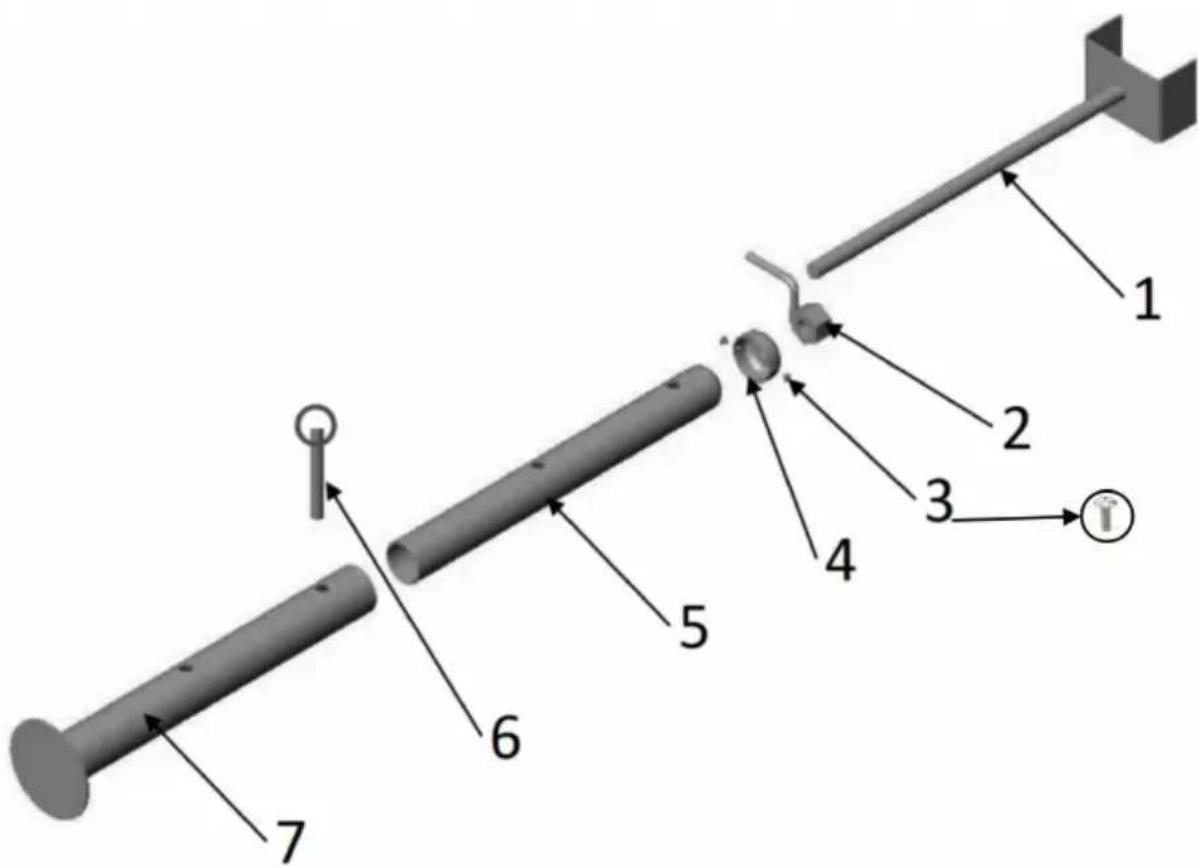

ASSEMBLY PREPARATION

NO	PART NAME	QTY	NO	PART NAME	QTY
1	Screw Head	1	5	Second Sleeve	1
2	Adjusting Nut	1	6	Positioning Pin	1
3	Screw	2	7	First Sleeve	1
4	Protective Cover	1

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

INSTALLATION PRECAUTIONS

1. Not suitable for uneven and easily sunken surfaces;
2. The base and U-shaped support rod can only be used after they are full attached;
3. The overall lifting range is between 20" to 48";
4. The working load-bearing pressure is less than 5,000 lbs;
5. Usage: It can only be applied vertically and cannot be pressed laterally.

PRODUCT ASSEMBLY EXPLODED

a. Place the product in a stable area first.
b. Rotate the adjusting nut (1) handle to the appropriate height.
c. When the height is not enough, pull out the second sleeve (5) and align the hole position to insert the positioning pin (6).
d. Align the screw head (2) with the position to be supported, rotate the nut handle, and lock it before use.

MAINTENANCE

1. Keep the surface of this tool and its accessories free of hydraulic fluid air grease. Use only a mild detergent and a damp cloth when cleaning. Do use a flammable or combustible solvent to clean this tool or its accesso
2. Before each use, examine the general condition of the tool and its accessories. Check for loose components, misalignment, binding of moving parts, broken parts, and any other condition that may affect its safe ope Do not use a damaged tool or its damaged accessories.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black cylindrical devices with metal fittings and wiring, no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

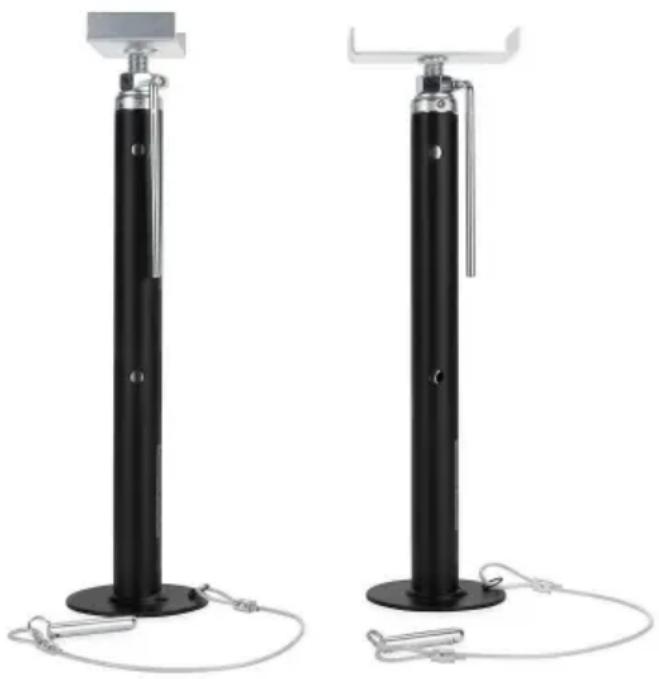

STRUCTURE DU PRODUIT
