USER MANUAL RFS-025 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LINE SCRIBING MACHINE

RFS-025

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RFS-025

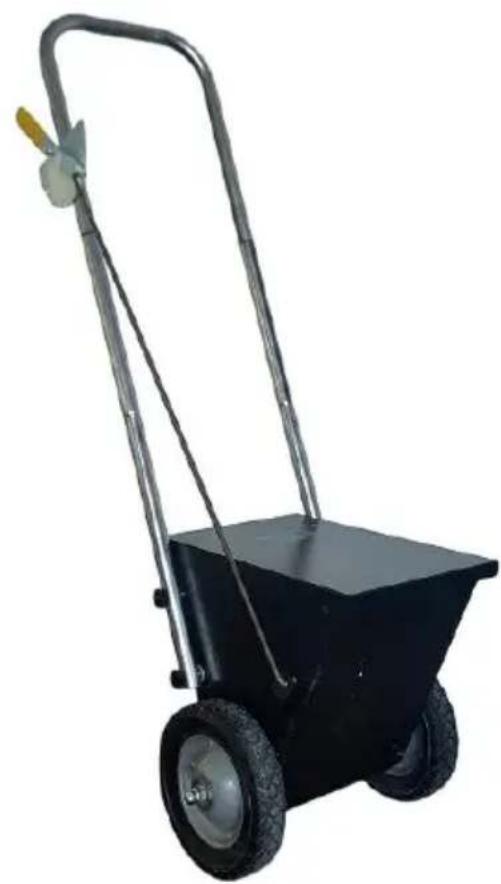

Black manual push cart with metal frame and wheels, no visible text or symbols

(The picture is for reference only; please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read the instructions manual carefully.
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may an accident. To reduce the risk of injury, fire, or electro please always follow the recommendations shown below.

WARNING: To reduce the risk of injury, the user must read th

instructions manual carefully.

1. Use as intended only. The product is not a toy, and it cannot be played by children to prevent children from hurting themselves by mistake.
2. The product cannot be used to injure people maliciously.
3. Keep away from open flame.
4. Keep away from sharp points, blades and other items, so as not to scratch the product.

SAVE THESE INSTRUCTIONS

PART LIST

ITEM	QTY	PIC	ITEM	QTY	PIC
A-User manual	1		J-wheel	2
B-M6x35 screws	4		K-support plate	1
C-gear lever	1		L-armrest (including pre-installed control module)	1
D-split pin	3		M-armrest link	4
E-M4x12 screws	4		N-wheel axle	1
F-cover	1		O-mixer	1
G-short spring	2		P-powder baffle	1
H-gasket	4		Q-main framework	1
I-M12x12 round head nut	2

(The picture is for reference only; please refer to the actual object)

INSTALLATION

STEP1: Install the support plate

Prepare the following items.

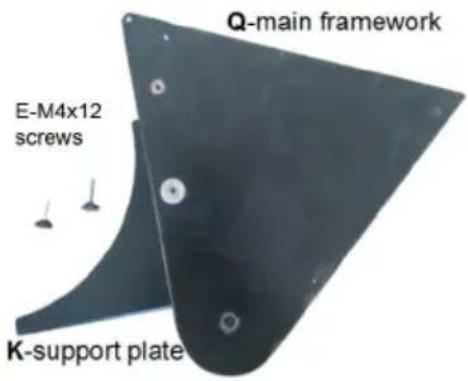

Q-main framework E-M4x12 screws K-support plate

Align the holes of the K-support plate and Q-main framework, and tighten them with E-M4x12 screws.

Hand holding a small object on a dark metal panel, no visible text or symbols

Metallic mechanical component with a black handle and mounting holes (no visible text or symbols)

STEP2: Install the wheels

Prepare the following items.

D-split pin*2	G-short spring*2	H-gasket*4	I-M12x12 round head nut*2	J-wheel*2
N-wheel axle*1	O-mixer*1	P-powder baffle*1	Q-main framework*1

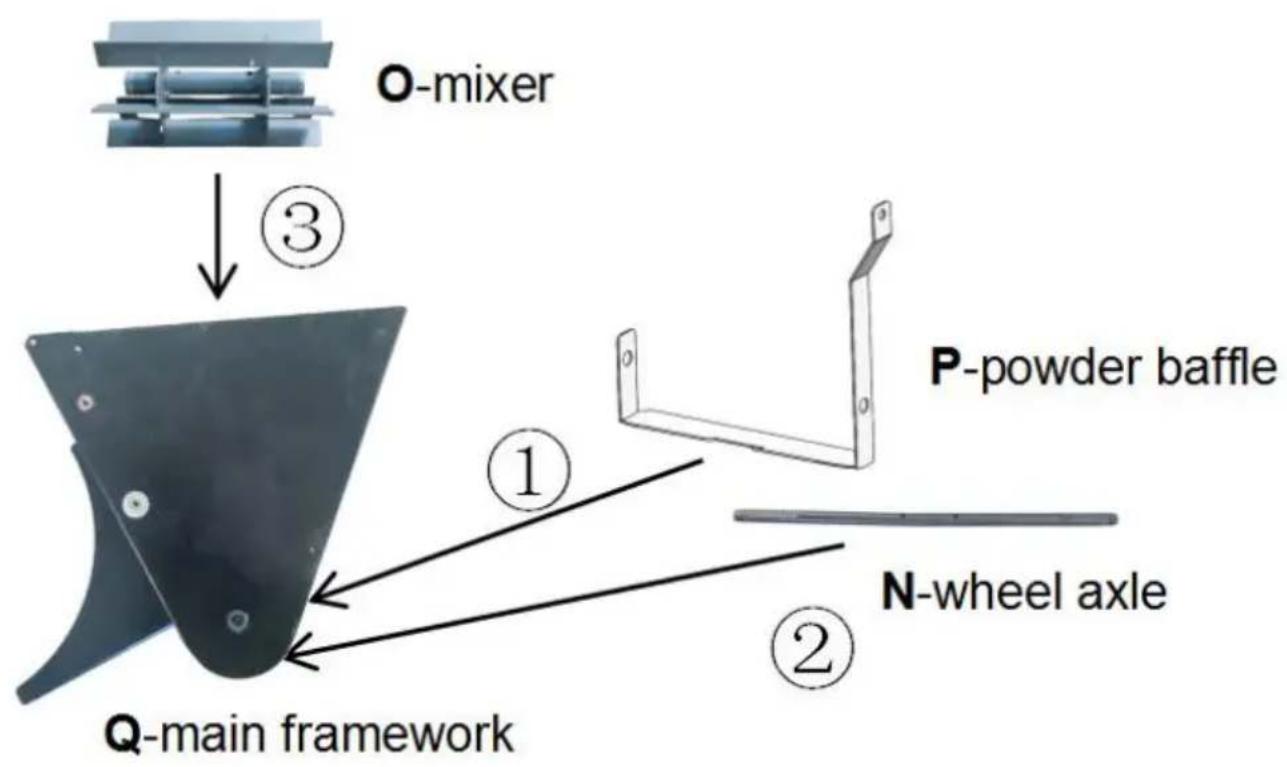

Firstly, align the holes of the P-powder shuffle and Q-main framework. Paying attention to the orientation of the P-powder baffle as shown in the figure. Then thread the N-wheel axle through the P-powder baffle, Q-main framework, and O-mixer in sequence.

O-mixer ③ P-powder baffle ① N-wheel axle ② Q-main framework

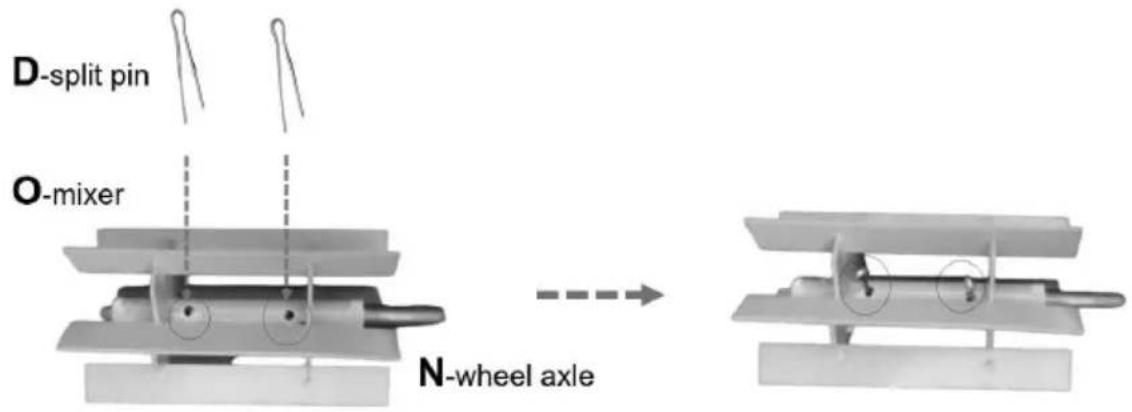

Align the holes of the O-mixer and N-wheel axle, and then insert the D-split pin. Fold the split pin if necessary..

D-split pin O-mixer N-wheel axle

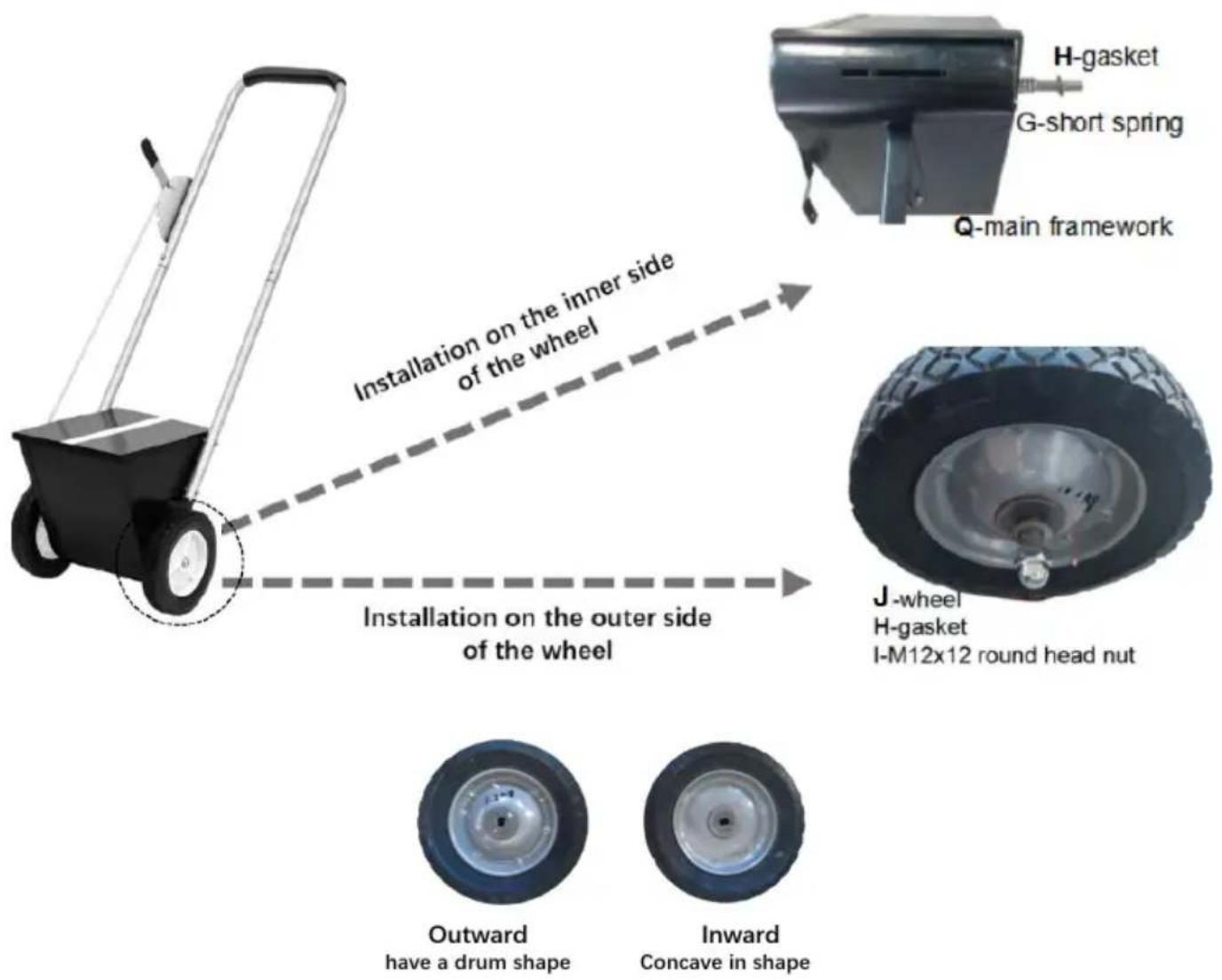

Install one G-short spring, one H-gasket, one J-wheel, and one H-gasket into one side of the N-wheel axle in order, and then lock them with I-M12 nut. Pay attention to the orientation of the J-wheel. Repeat the steps on the other side.

H-gasket G-short spring Q-main framework Installation on the inner side of the wheel Installation on the outer side of the wheel J-wheel H-gasket I-M12x12 round head nut Outward have a drum shape Inward Concave in shape

STEP3: Install the cover

Prepare the following items.

F-cover*1

E-M4x12 screws*2

Top-down view of a black cylindrical vehicle with two large tires (no visible text or symbols)

Installed parts

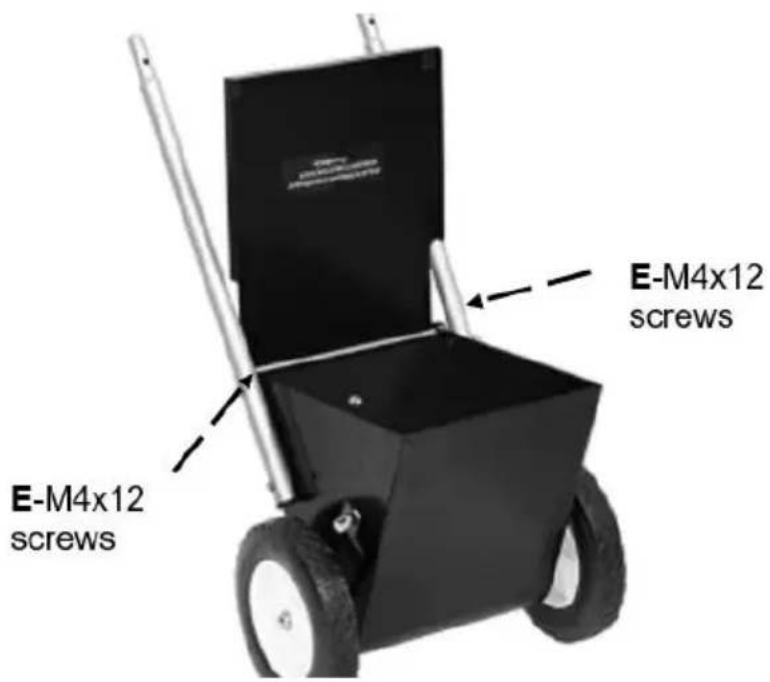

Align the holes on the F-cover and Q-main framework, and tighten them with E-M4x12 screws.

E-M4x12 screws E-M4x12 screws

STEP4: Install the adjustment component Prepare the following items.

Metal mechanical component with curved and straight arms, no visible text or symbols

Four identical mechanical components with black and white shafts, arranged in a row (no text or symbols visible)

L-armrest (including pre-installed control module) B-M6x35 screws*4

M-armrest link*4

C-gear lever*1

D-split pin*1

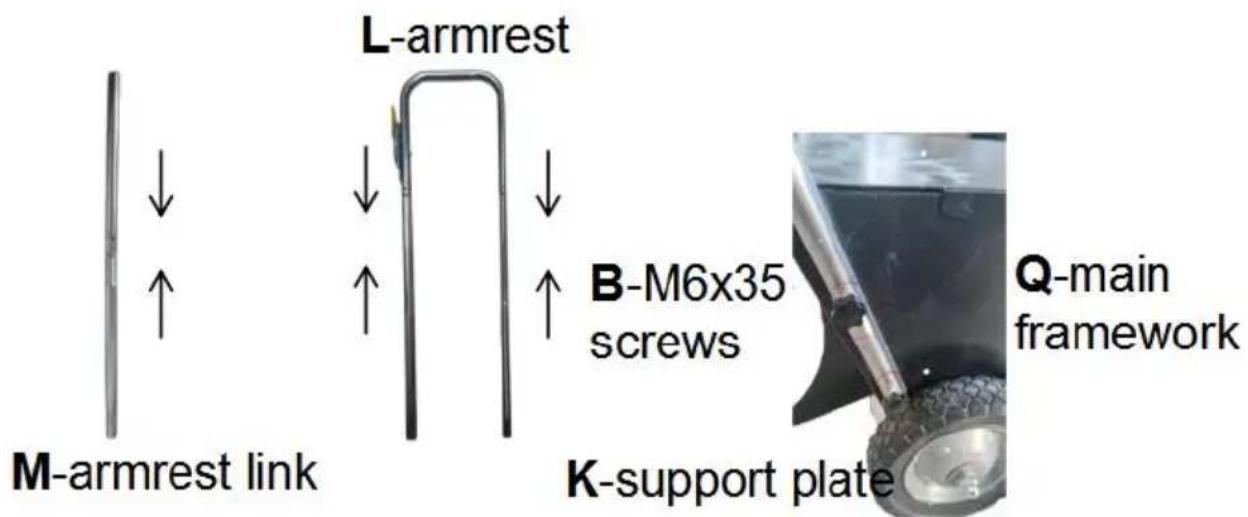

Connect the M-armrest links in pairs and then connect them to the L-armrest. Align the holes of the M-armrest links, K-support pole and Q-main framework, and tighten them with B-M6x35 screws.

M-armrest link L-armrest B-M6x35 screws K-support plate Q-main framework

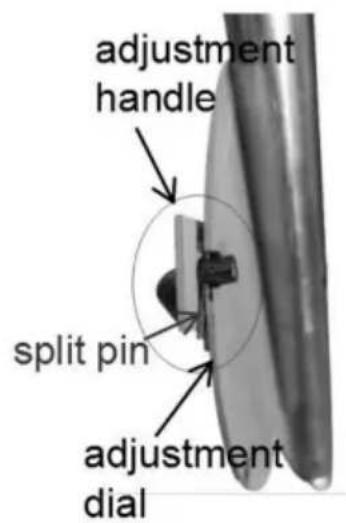

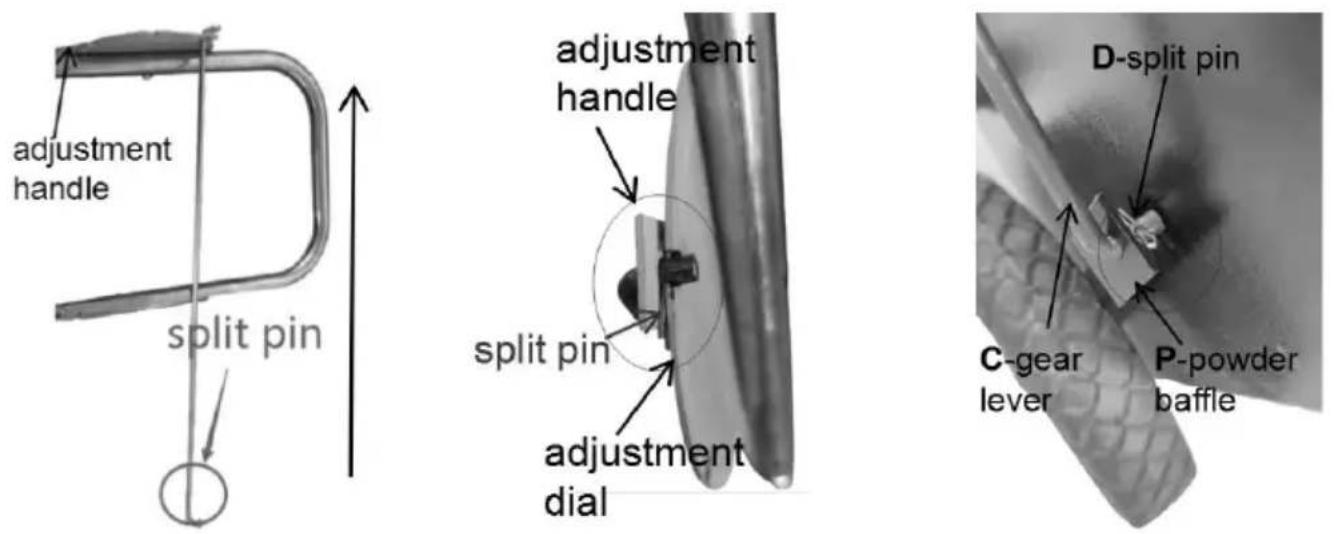

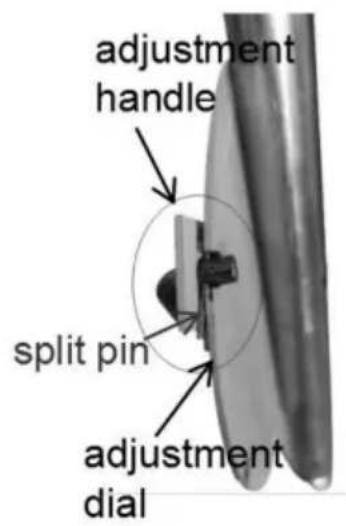

Insert the C-gear lever without a pin into the hole of the adjustment handle, clamp the pin between the adjustment handle and the adjustment dial. Then, the C-gear lever into the hole of the P-powder baffle and fix it with the D-split pin.

adjustment handle split pin adjustment handle split pin adjustment dial D-split pin C-gear lever P-powder baffle

STEP5: Adjust the line width

Three views of a mechanical tool with metal brackets and black caps, shown from different angles (no text or symbols visible)

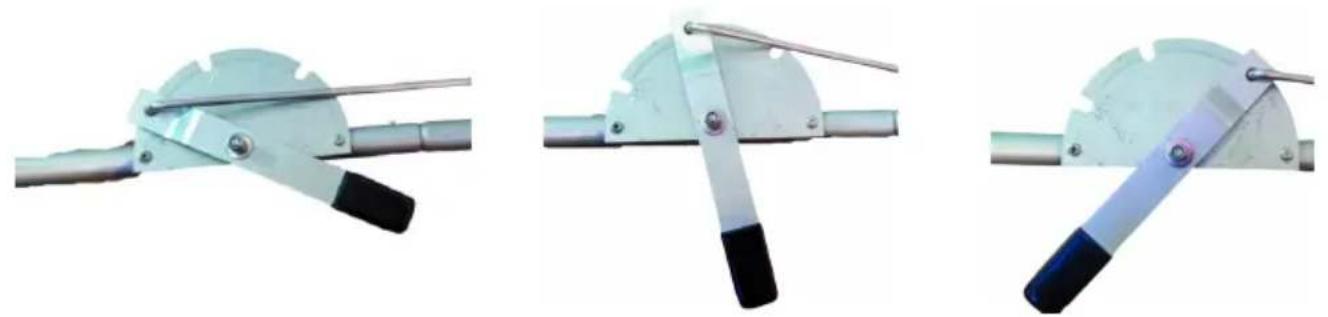

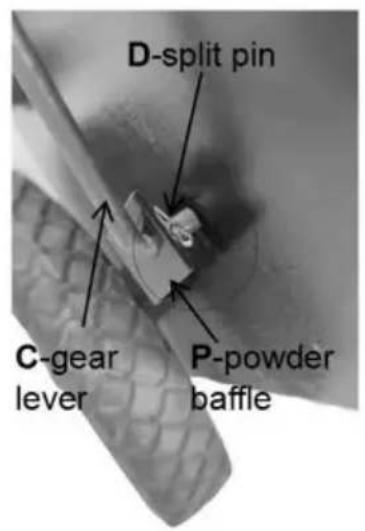

As shown in the figure, there are three gears (off、2"、4") on the adjustment dial.

Insert the gear lever into different positions to obtain the corresponding line,

TIPS

1. Before Line Striping, make sure to clean the ground and keep it down.
2. The effect is related to the forward speed. We recommend a forward speed of 0.15m/s. Adjustments can be made according to the actual situation.
