ROPE-D-102-164 - Climbing rope Vevor - Free user manual and instructions

Product Type	Dynamic Climbing Rope
Brand	Vevor
Model	ROPE-D-102-164 (CORDE-D-102-164)
Standard	EN 892
Rope Type	Single Rope
Diameter	10,2 mm
Length	164 feet (approx. 50 m)
Net Weight	3,4 kg
Color	Blue
Material	Polyamide
Impact Force	8,5 kN
Number of Falls	8
Static Elongation	8,5 %
Dynamic Elongation	35 %
Sheath Slippage	0 %
Sheath Percentage	34 %
Main Functions	Sport climbing, mountaineering, rappelling, top roping
Maintenance	Wash in cold water (max 40°C) with mild detergent, dry in shade
Inspection	Before and after each use, visual and tactile along the entire length
Lifespan	Up to 10 years depending on usage intensity
Operating Temperature	Do not exceed 80°C
Disposal	After a severe fall, sheath wear, chemical contact, doubt
Warranty	Electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - ROPE-D-102-164 Vevor

How to unroll a new rope without kinks?

During first use, open the tie and insert both ends into the cable coils in opposite directions. Unroll the rope, then manually run it through your hands meter by meter two or three times while gently shaking to remove twists.

How to inspect the rope before use?

Run the rope through your hands meter by meter, looking for bulges, hard spots, irregularities or visible damage on the sheath. If you notice thin areas, openings or any sign of damage, replace the rope immediately.

What is the lifespan of this rope?

Maximum lifespan is 10 years with optimal storage. For heavy use, expect 3 months to 1 year; moderate use 2 to 3 years; occasional 4 to 5 years; rare use up to 10 years. Replace after a severe fall or if in doubt.

How to wash the rope?

Wash it in lukewarm water (max 40°C) with a mild detergent (neutral soap) and a synthetic bristle brush. Rinse thoroughly and let dry naturally in the shade, away from any direct heat source.

Can this rope be used for top roping?

Yes, but ensure the rope length is at least twice the length of the pitch. For rappelling safety, always tie the end of the ropes.

What to do if the rope has sustained a fall?

If the rope has stopped a major fall, it must be immediately retired, even if no damage is visible. Internal fibers may be damaged.

How to store the rope?

Store it in a dry, dark, cool place, away from direct sunlight, chemicals and heat. Use a rope bag to protect from dirt and reduce twists.

What accessories are compatible with this rope?

All PPE (harnesses, carabiners, descenders, etc.) must comply with UIAA or EN standards and be suitable for the 10.2 mm diameter. Check that mechanical devices are compatible and test braking before use.

What are the signs of wear to watch for?

Look for excessive sheath slippage, worn or frayed areas, hard spots, or loss of flexibility. Any doubt about safety justifies replacement.

Is this rope certified?

Yes, it complies with EN 892 standard for single rope, with an impact force of 8.5 kN and a capacity of 8 UIAA falls.

USER MANUAL ROPE-D-102-164 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

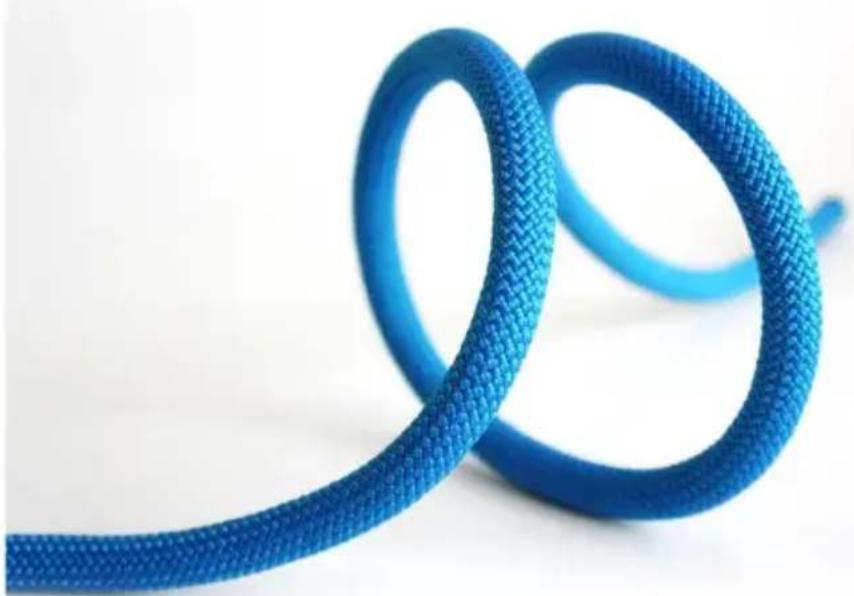

DYNAMIC MOUNTAINEERING ROPE USER MANUAL

MODEL NO.: ROPE-D-102-131, ROPE-D-102-164,

ROPE-D-102-197, ROPE-D-102-23

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL NO.: ROPE-D-102-131, ROPE-D-102-164, ROPE-D-102-197, ROPE-D-102-230

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

Users must read and perfectly understand the information provided by the manufacturer before using the product. The consequences of incorrect selection, misuse, or poor maintenance of equipment could result in damage, serious injury, or death. This product must be used by trained skilled persons only; otherwise, the user must be constantly supervised by such persons, who must guarantee for their safety.

Dynamic ropes are treated with a durable yarn cover. Before using them together with any friction device, check that the combination works effectively and securely to avoid any braking surprises.

INSPECTION

The equipment must be checked for possible damage before and after each use. It must be ensured that the equipment is serviceable and functional. The equipment must be discarded immediately if there is the slightest doubt as to its serviceability.

ACCESSORIES

All safety products and personal equipment that come into direct contact with the rope (e.g. harnesses, carabiners, straps, descenders, and anchor points) should match the diameter and type of rope used, as well as the relevant standards and guidelines. The equipment must also be in good condition, so that the rope cannot be damaged in any way. Beware of carabiners and belay devices that are worn or have sharp edges!

Information
TYPE	Single Rope
Standard	EN 892
Diameter	10.2 mm
Impact Force	8.5 kN
No. of Falls	8
Static Elongation	8.5 %
Dynamic Elongation	35 %
Sheath Slippage	0 %
Sheath Percentage	34%
Weight	63 g/m
Material	PA

TECHNICAL SPECIFICATIONS

Model	ROPE-D-102-131	ROPE-D-102-164	ROPE-D-102-197	ROPE-D-102-230
Color	Blue	Blue	Blue	Blue
Net Weight (kg)	2.8	3.4	4.2	5
Line Supervisor(ft)	131	164	197	230

USE

Before any use, read this notice carefully and then retain it.

This product is a dynamic rope intended for use in climbing. It is used as a link in a safety chain designed to hold a fall.

During a climb it is necessary to take into account the effects of a dynamic fall by using or placing protection points to prevent hitting the ground.

For abseils or top roping from the pitch base check that the rope leads at least twice the pitch length. For enhanced abseil safety knot the ropes.

The various components of the safety chain should conform to UIAA

Standards. (These include the harness, karabiners, tape, slings, anchor, belaying devices, and descenders)

In case of use with a mechanical device, ensure that the diameter of rope and its other characteristics are compatible with the device.

Note: When a rope is new, the braking effectiveness of belay devices may be significantly reduced.

Do not use a karabiner for tying-in if there is the risk of a fall.

When using products that come into contact with the rope, ensure they are intended for this purpose and comply with applicable technical standards. Special attention should be paid to the selection of belaying elements, which must take into account the rope diameter.

When combining this rope with other components, the safety aspects may interfere with each other. This equipment should only be used in connection with parts of personal protective equipment (PPE) bearing the CE symbol to secure individuals against falls from heights. When the rope is used with other PPE systems (e.g., belaying equipment (EN 341), fall arrest systems (EN 363), adjustment equipment (EN 358, EN 353-2), etc.), it must be ensured that these systems are compatible with the rope. Follow instructions for proper use, especially regarding equipment markings indicating rope type and diameter.

● How to use this single rope?

1) Uncoiling for the first time

During the initial use, spread open the rope coil and insert both arms through the rope coils in opposite directions.

After uncoiling the rope, manually run it through your hands meter by meter, repeat the process two or three times, and gently shake it to remove any kinks.

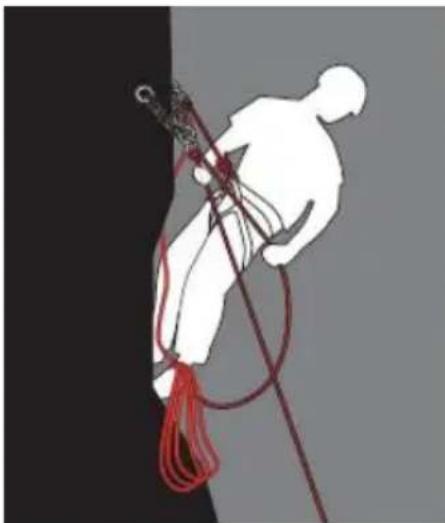

2) Taking in rope

The rope which is taken in should be laid on the cliff side of the anchor point in order to avoid trapping the rope's end between the ring and rock face.

3) Rope management

In environments such as waterfalls, alpine climbs, and windy conditions, it's crucial to ensure that the rope coils do not hang down below the stance.

4) Control

After each use, you should carefully examine your rope. To do this, run the rope through your hands meter by meter and feel for bulges, hard spots, and other irregularities, and look for obvious damage to the sheath. If there are significant physical irregularities, thin or open areas on the sheath, or any other signs of damage, the rope should be replaced.

The rope should not be exposed to liquids, solids, gases, mists, or substances such as acids, bases, and solvents that can deteriorate the rope.

PRECAUTIONS

Before first use, it is essential to unwind the rope to avoid twists and kinking.

The rope must be protected against sharp edges, stone fall, ice axes, crampons, or anything which could cut the internal or external fibers of the rope.

Rubbing together of two ropes through karabiners or maillons induces friction which could result in rupture.

Avoid over-rapid abseiling or lowering which could burn the rope and accelerate sheath wear. The melting temperature of polyamide is 230°C. This temperature may be attained during very rapid descents.

Check karabiners and descenders for burrs or snags that could damage the rope.

It's advisable not to interchange the roles of karabiners. Reserve some exclusively for running the rope through, and use different ones for climbing anchors.

The latter use may score the karabiner, leading to deterioration of any rope running through it.

When affected by water or ice, the rope becomes much more sensitive to abrasion and loses strength. Therefore, extra precautions should be taken in wet or icy conditions.

The temperature in which the rope is used must never exceed 80°C. Finally, always consider the possibility of rescue before and during use in case of difficulties.

CARE AND MAINTENANCE

A rope must not be allowed contact with chemical agents, particularly acids, which may destroy the fibers without visible evidence.

Avoid unnecessary exposure to UV, store the rope in a cool, shaded place away from dampness and direct heat.

It is preferable to use a rope sack for transporting and for laying the rope out at the base of the cliff to protect against dirt and reduce twisting. If the rope is dirty, it may be washed in clear cold water, if necessary with a washing agent designed for delicate textiles, using a brush made with synthetic bristles. Disinfect only using materials that have no effect on synthetic materials used.

If the rope becomes wet, whether due to use or washing, it should dry in a cool, shaded area.

Before and after each use, inspect the rope visually and manually along its entire length.

This product must be inspected periodically and meticulously. If used frequently, it should be inspected every three months. For occasional use, an annual inspection is sufficient.

The rope is personal equipment. During any use away from you, it is subjected to grave damage, which may not be visible.

If the rope is cut into multiple lengths, ensure to repeat and affix the markings to each new end.

CLEANING

Frequently wash the product with lukewarm (max. 40°C) drinking-water where necessary. You can also add some gentle detergent (neutral soap). Rinse and leave to dry naturally away from direct sources of heat. Dry only using materials that have no effect on the synthetic materials used. The rope must not be allowed contact with chemical agents, particularly acids, which may destroy the fibers without visible evidence.

STORAGE AND TRANSPORT

Products should ideally be stored loosely without packaging in a dry and cool environment. Products must be protected from direct sunlight, chemical elements, heat, and mechanical damage. It is preferable to use a rope sack for transporting and for laying the rope out at the base of the climb to protect against dirt and reduce twisting.

RESPONSIBILITY

The company VEVOR INC., or the distributor, will not accept any responsibility for damage, injury, or death resulting from misuse of or modifications to any VEVOR branded product. It is the user's responsibility at all times to ensure that he/she understands the correct and safe use of any equipment supplied by or from VEVOR INC., that he/she uses it for the purposes for which it is designed, and that he/she practices proper safety procedures.

SERVICE LIFE AND DISCARDING

The maximum service life for ropes (unused and stored in optimum conditions) is 10 years. The service life of the product is dependent on the frequency and intensity of use. If all general instructions for the safe use of dynamic ropes are adhered to, the following tentative lifespan data may be recommended:

• Intensive use: 3 months to 1 year.
• Average use: 2 to 3 years.
• Occasional use: 4 to 5 years.
• Rare use: 10 years (maximum duration of use).

Ropes must be discarded immediately under the following circumstances

1. If it has experienced a serious fall.
2. If inspection reveals or even indicates damage to the core.
3. If the sheath is very worn.
4. In the event of extreme sheath slippage.
5. If it has been in contact with any active or dangerous chemicals.
6. If there is the slightest doubt about its security.

WARNING

The various cases of wrong use shown in this notice are not exhaustive; there are innumerable wrong uses possible, and it is not feasible to show all.

This product is designed for climbing and mountaineering only.

Climbing and mountaineering are inherently dangerous.

Special knowledge and training are required to use this product.

This product must only be used by competent and responsible persons or those placed under the direct control of a competent person.

Failure to follow these warnings increases the risk of injury or death.

The use of "second-hand" equipment is strongly discouraged.

You are responsible for your own actions and decisions.
