USER MANUAL ROPE-D-102-197 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

DYNAMIC MOUNTAINEERING ROPE USER MANUAL

MODEL NO.: ROPE-D-102-131, ROPE-D-102-164,

ROPE-D-102-197,ROPE-D-102-23

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL NO.: ROPE-D-102-131, ROPE-D-102-164, ROPE-D-102-197, ROPE-D-102-230

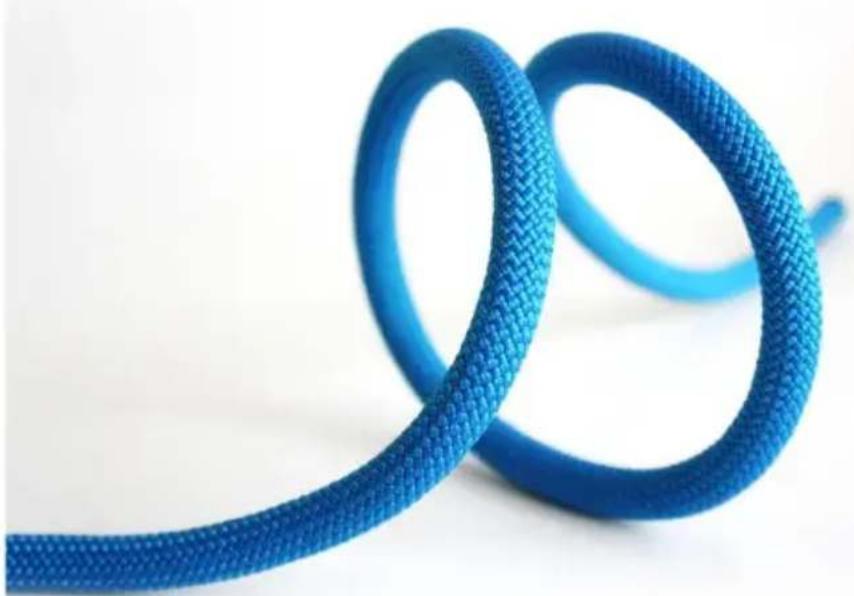

Close-up of a blue knitted rope with textured surface, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

Users must read and perfectly understand the information provided by manufacturer before using the product. The consequences of incorrect selection, misuse or poor maintenance of equipment could result in damage, serious injury or death. This product must be used by trained skilled persons only otherwise the user must be constantly supervised said persons, who must guarantee for their safety.

Dynamic ropes are treated with a durable yarn cover, before using the together with any friction device, check that the combination works effectively and securely to avoid any braking surprises.

INSPECTION

The equipment must be checked for possible damage before and after each use. It must be ensured that the equipment is serviceable and functional. The equipment must be discarded immediately if there is e the slightest doubt as to its serviceability.

ACCESSORIES

All safety products and personal equipment that come into direct contacts with the rope (e.g. harnesses, carabiners, straps, descenders, and anc points) should match the diameter and type of rope used, as well as the relevant standards and guidelines. The equipment must also be in good condition, so that the rope cannot be damaged in any way. Be carabiners and belay devices that are worn or have sharp edges!

Information
TYPE	Single Rope
Standard	EN 892
Diameter	10.2 mm
Impact Force	8.5 kN
No. of Falls	8
Static Elongation	8.5 %
Dynamic Elongation	35 %
Sheath Slippage	0 %
Sheath Percentage	34%
Weight	63 g/m
Material	PA

TECHNICAL SPECIFICATIONS

Model	ROPE-D-102-131	ROPE-D-102-164	ROPE-D-102-197	ROPE-D-102-230
Color	Blue	Blue	Blue	Blue
Net Weight (kg)	2.8	3.4	4.2	5
Line Supervisor(ft)	131	164	197	230

USE

Before any use, read this notice carefully and then retain it.

This product is a dynamic rope intended for use in climbing. It is cause as a link in a safety chain designed to hold a fall.

During a climb it is necessary to take into account the effects of arr dynamic fall by using or placing protection points to prevent hitting th ground.

For abseils or top roping from the pitch base check that the rope leads at least twice the pitch length. For enhanced abseil safety knot the ropes.

The various components of the safety chain should conform to UIAA

Standards. (These include the harness, karabiners, tape, slings, anchor, belaying devices, and descenders)

In case of use with a mechanical device, ensure that the diameter or rope and its other characteristics are compatible with the device.

Note: When a rope is new, the braking effectiveness of belay devices be significantly reduced.

Do not use a karabiner for tying-in if there is the risk of a fall.

When using products that come into contact with the rope, ensure the intended for this purpose and comply with applicable technical standards. Special attention should be paid to the selection of belaying elements which have to take account of the rope diameter.

When combining this rope with other components, the safety aspects the products may interfere with each other. This equipment should on used in connection with parts of personal protective equipment (PPE) bearing the CE symbol to secure individuals against falls from heights the rope is used with other PPE systems (e.g. a seiling equipment (341), fall arrest systems (EN 363), adjustment equipment (EN 358, EN 353-2) etc.), it must be ensured that these systems are compatible with rope. Follow instructions for proper use, especially regarding equipment markings indicating rope type and diameter.

●How to use this single rope?

1) Uncoiling for the first time

Silhouette of a person holding a red cable with flowing cables, against a gray background (no text or symbols)

During the initial use, spread open the rope cord and insert both low arms through the rope coils in opposite directions.

After uncoiling the rope, manually run it through meter by meter, repeat the process two or three times, and gently shake it to remove any 1

2) Taking in rope

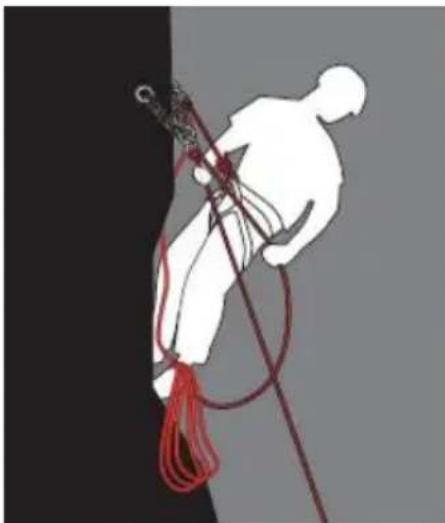

Illustration of a red rope tied with a white ring, showing rope routing (no text or symbols)

The rope which is taken in should be laid on the cliff side of the a point in order to avoid trapping the rope's end between the ring and rock face.

3) Rope management

Silhouette of a person climbing ropes with red tassels against a dark background (no text or symbols)

In environments such as waterfalls, alpine climbs, and windy conditions it's crucial to ensure that the rope coils do not hang down below the stance.

4) Control

Silhouette of a person playing a flute with red ribbons at the base (no text or symbols)

After each use, you should carefully examine your rope. To do this , rope through your hands meter by meter and feel for bulges ,hard s and other irregularities and look for obvious damage to the sheath. If are significant physical irregularities, thin or open areas on the sheath any other signs of damage, the rope should be replaced.

The rope should not be exposed to liquids, solids, gases, mists, or a substances such as acids, bases, and solvents that can deteriorate ro

PRECAUTIONS

Before first use, it is essential to unwind the rope to avoid twists and kinking.

The rope must be protected against sharp edges, stone fall, ice axes, crampons, anything which could cut the internal or external fibers of the rope.

Rubbing together of two ropes through karabiners or maillons induces which could result in rupture.

Avoid over-rapid abseiling or lowering which could burn the rope and accelerate sheath wear. The melting temperature of polyamide°C is 230 This temperature may be attained during very rapid descents.

Check karabiners and descendants for burrs or snags that could damage the rope.

It's advisable not to interchange the roles of karabiners. Reserve some exclusively for running the rope through, and use different ones for cl

anchors. The latter use may score the karabiner, leading to deteriorati any rope running through it.

When affected by water or ice the rope becomes much more sensitive abrasion and loses strength. Therefore, extra precautions should be taken in wet or icy conditions.

The temperature in which the rope is used must never exceed 80 °C. Finally, always consider the possibility of rescue before and during use case of difficulties

CARE AND MAINTENANCE

A rope must not be allowed contact with chemical agents, particularly which may destroy the fibers without visible evidence.

Avoid unnecessary exposure to UV, store the rope in a cool, shaded away from dampness and direct heat.

It is preferable to use a rope sack for transporting and for laying the out at the base of the cliff to protect against dirt and reduce twisting. If the rope is dirty, it may be washed in clear cold water, if necessary washing agent designed for delicate textiles, using a brush made with synthetic bristles. Disinfect only using materials that have no effect on synthetic materials used.

If the rope becomes wet, whether due to use or washing, it should dry in a cool, shaded area.

Before and after each use inspect the rope visually and manually alo entire length.

This product must be inspected periodically and meticulously. If used frequently, it should be inspected every three months. For occasional an annual inspection is sufficient.

The rope is personal equipment. During any use away from you it subjected to grave damage, which may not be visible.

If the rope is cut into multiple lengths, ensure to repeat and affix the markings to each new end.

CLEANING

Frequently wash the product with lukewarm (max. 40°C) drinking-water where necessary, you can also add some gentle detergent (neutral sc Rinse and leave to dry naturally away from direct sources of heat. D only using materials that have no effect on the synthetic materials us rope must not be allowed contact with chemical agents, particularly ad which may destroy the fibers without visible evidence.

STORAGE AND TRANSPORT

Products should ideally be stored loosely without packaging in a dry, and cool environment. Products must be protected from direct sunlight, chemical elements, heat and mechanical damage. It is preferable to u rope sack for transporting and for laying the rope out at the base of to protect against dirt and reduce twisting.

RESPONSIBILITY

The company VEVOR INC., or the distributor, will not accept any responsibility for damage, injury or death resulting from misuse of or modifications to an VEVOR branded product. It is the user's responsibility at all times to ensure that he/she understands the correct and safe to any equipment supplied by or from VEVOR INC., that he/she uses it for the purposes for which it is designed and that he/she practices a proper safety procedures.

SERVICE LIFE AND DISCARDING

The maximum service life for ropes (unused and stored in optimum conditions) is 10 years. The service life of the product is dependent frequency and intensity of use. If all general instructions for the safe dynamic ropes are adhered to, the following tentative lifespan data may be recommended:

• Intensive use: 3 months to 1 year.
• Average use: 2 to 3 years.
• Occasional use: 4 to 5 years.
• Rare use: 10 years (maximum duration of use).

Ropes must be discarded immediately under the following circumstance

1. If it has experienced a serious fall.
2. If inspection reveals or even indicates damage to the core.
3. If the sheath is very worn.
4. In the event of extreme sheath slippage.
5. If it has been in contact with any active or dangerous chemicals.
6. If there is the slightest doubt about its security.

WARNING

The various cases of wrong use shown in this notice are not exhaust there are innumerable wrong uses possible, it is not feasible to show all.

This product is designed for climbing and mountaineering only.

Climbing and mountaineering are inherently dangerous.

Special knowledge and training are required to use this product.

This product must only be used by competent and responsible person those placed under the direct control of a competent person.

Failure to follow these warnings increases the risk of injury or death.

The use of "second-hand" equipment is strongly discouraged.

You are responsible for your own actions and decisions.
