CLIMBING ROPE

USER MANUAL

MODEL NO.: NTE-125-12.7, NTE-150-12.7, NTE-200-12.7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL NO.: NTE-125-12.7, NTE-150-12.7, NTE-200-12.7

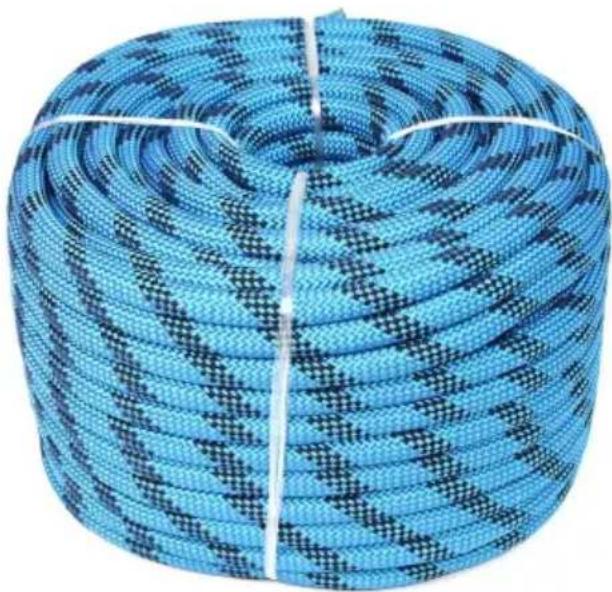

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

GENERAL INFORMATION

Climbing Rope
Trademark	VEVOR®TOUGH TOOLS, HALF PRICE	Reference standards	ASTM F2116 – 01 (201

All instructions attached to the device must be read and understood careful before use. Attention! This sheet contains only the general instructions.

The activities related to the use of this device are potentially dangerous and is reserved exclusively for competent and trained persons or persons directly supervised by competent and trained persons. Before using the device, it is essential to: have received adequate training and instruction and, where required specific training for the use of the devices; be familiar with the device; be in psycho-physical shape. Attention! Consumption of alcohol or psychotropics, including medication that may alter perception, balance and concentration, is to avoid.

2) WARNINGS. Before use: ensure that all equipment is in perfect operating condition, that it is appropriate for the intended use and that all the elements components are compatible with each other and comply with the rules, regular and directives currently in place; check that the system is assembled correctly that the various components work without interfering with one another. Before during use: check the perfect closure of the lever and the associated locking connectors used.

3) Tips for protecting your Ropes

You too can help prolong the lifetime of your products. To succeed in this (several aspects must be taken into account: product usage (intensity, frequency conditions etc.), and also transport, storage, care and maintenance. Taking can all of these aspects helps avoid premature wear of the equipment. Here is a summary of precautions recommended by VEVOR for maintaining your equipment.

3.1) Precautions for use

A rope swells with use and can shrink in length by up to 15 %. Regularly length of your rope. A wet or icy rope is less abrasion-resistant. It is also I control in belay/ rappel devices. Descent a knot at the end of the rope is a necessary precaution in certain situations. Avoid descending too rapidly: there

risk of burns and accelerated wear of the rope. If a rope is cut into several mark the ends with the correct lengths and end markings. Cutting a rope may you responsible for measuring the new lengths and adding new markings. It recommended to follow the UIAA protocol for cutting and measuring your rope to add a margin of 3% to address shrinkage over the life of the rope. The lengths of the rope must each be furnished with a copy of the Instructions in Tie a figure-eight knot (for example) or use a manufactured termination. Use ropes at a maximum ambient temperature of 80°C. Avoid any exposure to above 80°C, or to flame.

Do not walk on the rope, tie into alternate ends of the rope on each pitch creating twists. Avoid descending too fast on a rope as this heats the sheath accelerates wear (rappelling, or lowering a climber on a top rope). During very rapid descents, a rappel device can become hot enough (230 °C) to melt the fibers of the rope. Store your ropes in a proper bag that will protect them in Store ropes in bags, uncoiled. This avoids creating twists. Keep rope away from contact with sharp objects (ice screws, ice axes, crampons). Keep your ropes clean.

In general, take care of your safety gear. Do not leave it lying about anything not throw your gear on the ground. Read the specific recommendations for e product in the Instructions.

3.2) Lifetime

Warning: An unusual event may require you to retire a product after only on. This may involve the type and intensity of use, or the environment in which used: aggressive environments, sharp edges, extreme temperatures, chemicals...

3.3) Storage

Store your equipment in a well-ventilated area out of direct sunlight (UV). Resc a specific place for your equipment. Warning: any contact with harsh or corro substances (e.g. acids) is prohibited. If you have a doubt, retire your equipment. Never store your gear in a damp place where mold can develop (damp clos bags and waterproof containers with moisture inside). For long-distance travel, beware of moisture in containers during transit, in ports or airports, especially salty environments.

3.4) Transport

It is preferable to store your equipment in a pack to protect it. With a backpack care that crampon points or sharp objects don't damage your helmet, ropes, slings. When traveling by truck, train, plane, or boat, the temperatures can be extreme and can degrade the products. For example, never leave your textile equipment or helmets under a window or in the trunk of a car that is exposed direct sunlight. The temperature can be higher than 80 °C. In the trunk of a vehicle, pay attention to your equipment's possible proximity to gas cans, can be used for batteries, or cleaners (risk of leaking). Warning: any contact with chemical products, harsh or corrosive substances (e.g. acids) is prohibited. If you have doubt, retire your equipment.

3.5) Maintenance

After use in a salty environment (seaside), rinse with fresh water. Wash ropes lukewarm soapy water (ph neutral, 30 °C maximum), then rinse thoroughly with fresh tap water. You can wash your rope in a washing machine. Choose the delicate synthetic setting, without spin cycle. Use only household face and body soap. All other cleaning products, for example solvents, stain removers, degreasers, etc. are too strong and are incompatible with nylon. Do not use a pressure water sprayer.

Remove your gear from packs after each activity, even if cleaning isn't necessary. Let all your gear air-dry away from UV sources (ultraviolet rays). Avoid proximal to heat sources such as direct sunlight, wood fires, or a radiator.

4) Additional Information

You must have a rescue plan and the means to rapidly implement it in cas difficulties encountered while using this equipment.

- The anchor point for the system should preferably be located above the t position and should meet the requirements of the EN 795 standard (12 kN minimum strength).

- In a fall-arrest system, it is essential to check the required clearance below user before each use, in order to avoid hitting the ground or an obstacle in a fall. Avoid slack in the rope between the user and the anchor point.

- Make sure that the anchor point is correctly positioned, in order to limit t and the length of a fall.

- A fall-arrest harness is the only device allowable for supporting the body fall-arrest system.

- When using multiple items of equipment, a dangerous situation can arise in which the safety function of an item of equipment can be affected by the safety function of another item of equipment. WARNING: ensure that your products are not rub against abrasive or sharp surfaces.

- Users must be medically fit for activities at height. WARNING: inert susper in a harness can result in serious injury or death.

- The Instructions for Use for each item of equipment used in conjunction with product must be followed.

- The Instructions for Use must be provided to the user of this equipment, i language of the country where the equipment is used.

- Make sure the markings on the product are legible.

TECHNICAL SPECIFICATIONS

Model	NTE-125-12.7	NTE-150-12.7	NTE-200-12.7
Main Material	Dacron	Dacron	Dacron
Color	Blue	Blue	Blue
Net Weight (kg)	4.18	5	6.7
line supervisor(ft)	125	150	200

PERIODIC CHECKING OF PERSONAL PROTECTIVE EQUIPMENT

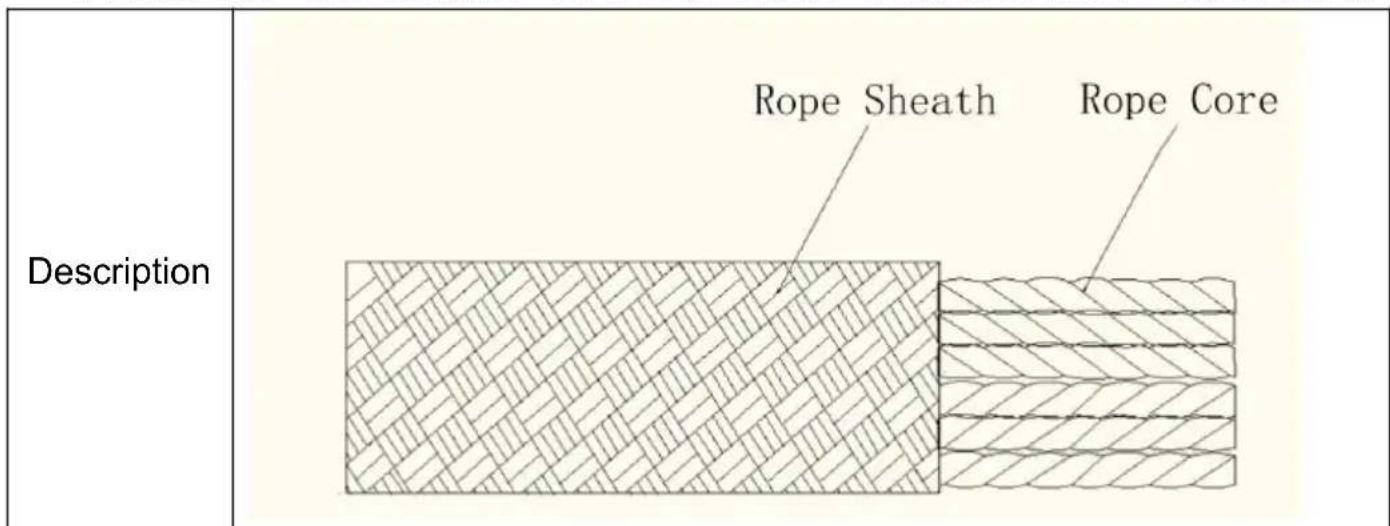

Description Rope Sheath Rope Core

PERIODIC CHECKING OF PERSONAL PROTECTIVE EQUIPMENT GENERAL REMARKS

Carrying out regular periodic checks (at intervals predetermined by the manufacturer) is vital for ensuring the equipment's efficiency and durability and user's safety. The performance of regular periodic inspections is required by ASTM F2116 – 01 (2015) standard and it is therefore mandatory only for some device categories, whose instructions for use will expressly indicate such obligation. Carrying out periodical controls doesn't relieve the user from the obligation to perform the controls before and after each use, nor to require a extraordinary periodic check, in case an outstanding event occurs (ex, a fall, from a low height, a change of user etc.), or in case of doubts about the functioning of the device. Attention! Before first use, the owner/user of PPE has filled in the "device identification sheet" when present in the user's instructions are same, Attention! The Inspector, after having carried out the periodic inspection responsible for the proper functioning of a PPE. The check must be performed at the highest accuracy, without haste and after completing all the necessary steps

Regular periodic checks must be carried out: if the previous use of the device unknown; at least every 12 months, with normal/standard use; in the presence

anomalies found during the inspections before and after each use; except for exceptions, whenever there is a change of user; filling the periodic inspection sheet in; Attention! The periodic inspection sheet also exists in the optimized version for kits or systems of PPE. Attention! Provided that the minimum mandatory frequency for the periodic inspection is 12 months, it can be increased (i.e. 3 months, 6 months etc.) according to the national regulations in force of frequency, intensity and method of use (i.e. heavy use, use in a marine environment, corrosive atmospheres etc.).

The periodic inspection sheet must be filled out: following the specific procedure for each type of device; consulting the photographic material available, where present; consulting the instructions for use of the device; examining the device suitable, tidy and well-lit environment. The photographic material at the end of procedures is accompanied by an explicative caption and by the following symbols:

	The device is in good condition or has only minor damages therefore suitable for use.
	The device has medium/major damages that affect its primary functions and, as a consequence, must be discarded.
	The device has defects that can be solved through lubrication cleaning. If such defects are not solved, the device must be discarded.
	The device has defects.

DEVICE PERIODIC CHECK SHEET
1) Known product history
1.1	Check the existence and the readability of the marking details
1.2	Check that device has not exceeded the storage and/or in-use as stated in the specific instructions for use.
1.3	Check that the device is intact and no parts are missing (check new product).
1.4	Check that the device has not been modified outside the factory serviced in a non-approved centre (check against a new product)
1.5	Any PPE showing unexpected degradation should be quarantined, pending a detailed inspection. The user should:- Provide precise information on the usage conditions.- Report any exceptional event regarding his PPE. (Examples: fa arrest, use or storage at extreme temperatures, modification outs manufacturer's facilities...).
2) Checking the condition of the sheath
2.1	Check the condition of the sheath over the full length of the ro sure there are nocuts, burns, frayed strands, fuzzy areas, or sig chemicals...
3) Checking the condition of the core
3.1	Do a tactile inspection of the core over the full length of the indicated in the drawing. This allows you to detect areas where is damaged (hard spots, swelling, soft or crushed areas...).
4) Checking the condition of the core
4.1	To check the length of your rope, follow the steps below:1. Co uncoil the rope.2. Check the middle mark of the rope. There is way to find the middle of the rope: hold the two rope ends to slide the two strands simultaneously through your hands until the of the rope is reached. If your rope has a middle mark, check accuracy. If the mark is OK, go to the next step. If the mark right place or if there is no middle mark, place a piece of ad at the rope's midpoint to help measure its length.

DEVICE PERIODIC CHECK SHEET
No.	Date	Reasonfor check	Name and signature of the person responsible for checking.	Notes (defects found, repairs performed or other relevant information)	Check results	Date of next check
1		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use
2		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use
3		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use
4		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use
5		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use
6		☐Periodic☐Additional			☐Device fit for use.☐Device unfit for use

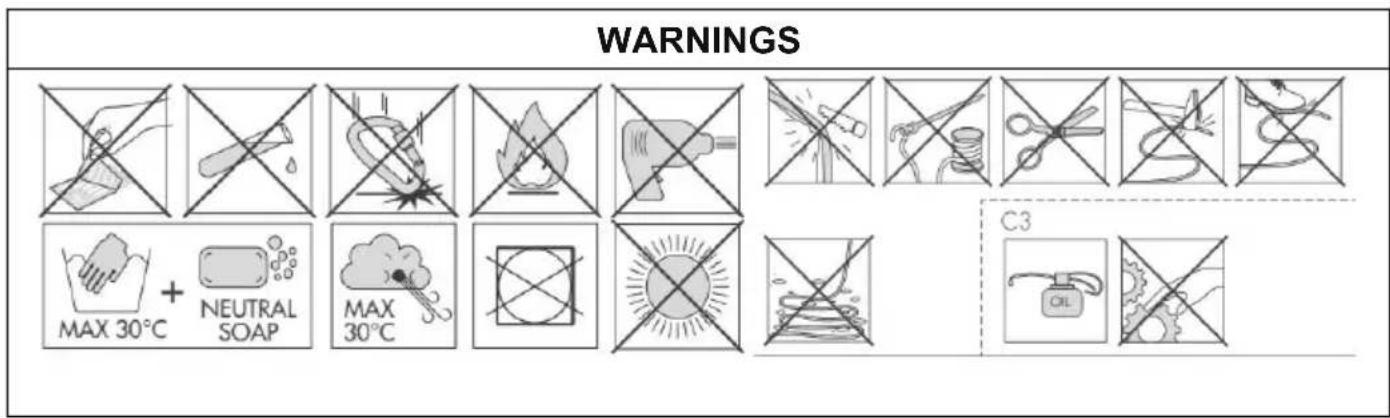

WARNINGS MAX 30°C + NEUTRAL SOAP MAX 30°C C3 OIL

PHOTO APPENDIX

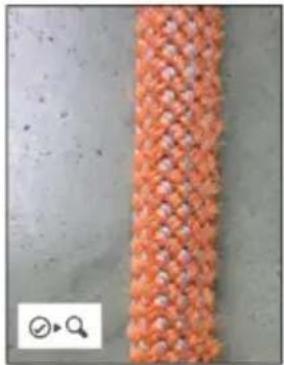

• Fuzzy rope


Close-up of a textured orange fabric with a white patterned edge, placed on a plain surface (no text or symbols visible)

• Fuzzy rope


Close-up of a textured orange fiber or mesh structure against a plain background, with a small icon in the corner (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green threads, no visible text or symbols

• Damaged rope end

Close-up of a coiled cable with patterned ends and a small object at the bottom (no text or symbols visible)

• Cut


Close-up of a transparent cylindrical object with scattered red and black fragments, possibly a container or plastic sheet (no visible text or symbols)

• Cut


Close-up of a textured, golden-brown fiber with small white fragments, possibly a woven or organic material (no text or symbols visible)

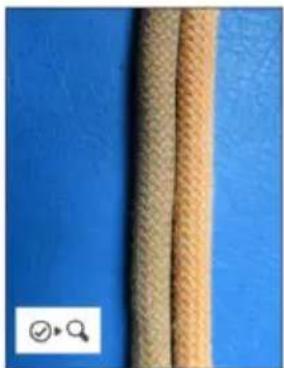

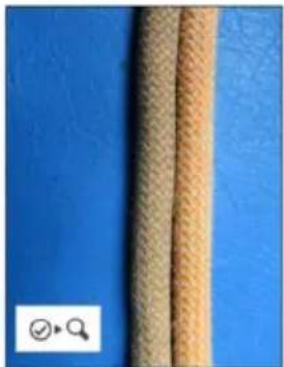

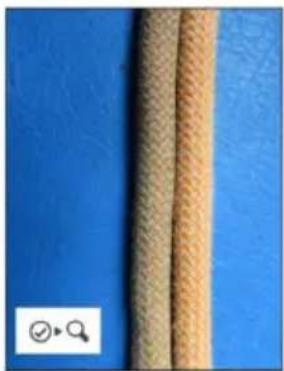

• Discoloration


Close-up of a textured brown fiber against a blue background, with a small icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible corrosion and red discoloration (no text or symbols)

• Illegible marking


Close-up of a damaged cable with exposed copper and orange coating, lying on a concrete surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a pink band and a small mark, against a plain background (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with visible disease or damage, showing signs of infection and a small icon (no text or symbols on the main subject)

• Trace of chemicals


Close-up of a textured vertical strip with a small circular icon and a magnified inset showing a cross symbol (no readable text or labels)

COMPLETION

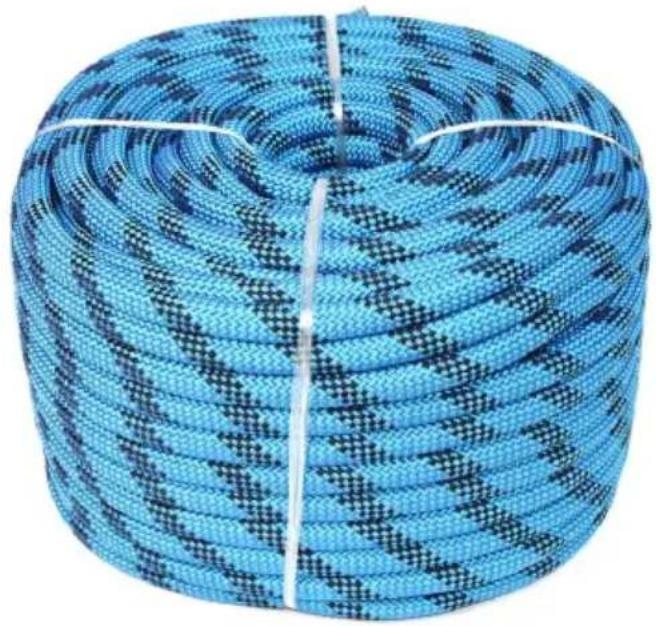

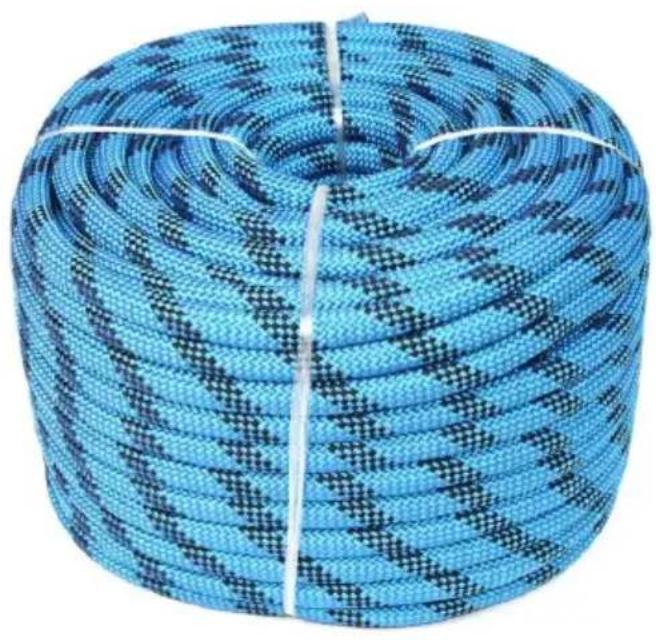

Coiled blue plastic cord with diamond pattern, no text or symbols visible

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Close-up of a textured orange fabric with white spherical indentations, placed on a plain surface (no text or symbols visible)

• Fuzzy rope

Close-up of a textured orange fiber or material with a small circular icon and magnifying glass nearby (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end


Close-up of a coiled cable with red and yellow connectors, no visible text or symbols

• Cut


Close-up of a woven fiber with red and black connectors, no visible text or symbols

• Cut


Close-up of a textured, golden-brown fiber with white foam and small protrusions, next to a small icon with a crossed-out arrow and a magnifying glass (no text or symbols)

• Discoloration


Close-up of a textured beige and brown fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible red and orange markings, no text or symbols present.

• Illegible marking


Close-up of a red and orange textured cable with a small white object attached, placed on a dark surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a purple band and green patterned outer edge, placed on a plain surface (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with visible leaf damage and small circular markers (no text or symbols)

• Trace of chemicals


Close-up of a textured vertical surface with a small circular icon and a trash can symbol nearby (no readable text or symbols)

ACHÈVEMENT

Coiled blue plastic cord with patterned texture, no visible text or symbols

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETESTWC NSW 2122 Australie

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL NR.: NTE-125-12.7, NTE-1 50 -12.7, NTE-2 00 -12.7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Close-up of a textured orange fabric with white spherical indentations, placed on a plain surface (no text or symbols visible)

• Fuzzy rope


Close-up of a textured orange fiber or mesh structure with a small circular icon and magnifying glass nearby (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end

Close-up of a coiled cable with red and yellow connectors, no visible text or symbols

• Cut


Close-up of a textured metallic strip with scattered red and black markings, no visible text or symbols.

• Cut


Close-up of a textured, golden-brown fiber with white foam and small protrusions, next to a small icon with a crossed-out arrow and a magnifying glass (no text or symbols)

• Discoloration

Close-up of a textured beige and brown fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible red and orange markings, no text or symbols present

• Illegible marking


Close-up of a red and orange textured cable with a small white object attached, placed on a dark surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a purple band and green patterned end, lying on a plain surface (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with textured surface and small dark spots, no visible text or symbols

• Trace of chemicals


Close-up of a textured vertical surface with a small circular icon and a trash can symbol nearby (no readable text or symbols)

FERTIGSTELLUNG

Coiled blue plastic cord with patterned texture, no visible text or symbols

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO NUMERO.: NTE-125-12.7, NTE-1 50 -12.7, NTE-2 00 -12.7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

Close-up of a textured orange fabric with a vertical seam, no visible text or symbols

• Fuzzy rope


Close-up of a woven orange mesh material with a small magnifying glass icon nearby (no text or symbols on the material itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end

Close-up of a woven cable with red and black patterned ends, no visible text or symbols

• Cut


Close-up of a coiled cable with plastic components and red/green markings, no visible text or symbols

• Cut


Close-up of a textured, golden-brown fiber with white granular top and small white spots, next to a small circular icon with crossed-out arrow (no text or symbols)

• Discoloration


Close-up of a textured brown and beige fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible corrosion and red marks, no text or symbols present

• Illegible marking


Close-up of a damaged cable with exposed copper and orange coating, lying on a gray surface (no text or symbols visible)

• Illegible marking


Close-up of a woven, textured strip with purple and green bands, possibly a material sample (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with visible soil and dark spots, accompanied by a small icon (no text or symbols)

• Trace of chemicals


Close-up of a textured cylindrical object with a small circular icon and arrow symbol nearby (no readable text or symbols)

COMPLETAMENTO

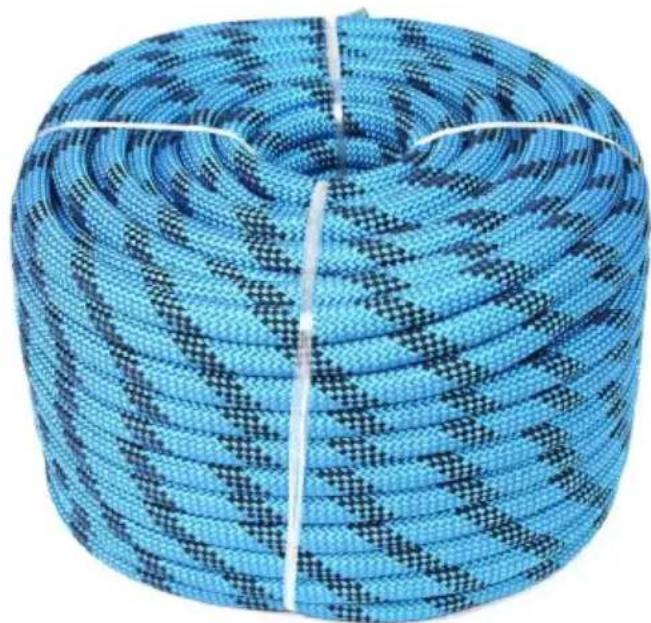

Coiled blue woven material with a white wire, no visible text or symbols

Indirizzo : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

N° DE MODELO.: NTE-125-12,7 , NTE-1 50 -12,7 , NTE-2 00 -12,7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Close-up of a woven orange fabric with a small magnifying glass icon nearby (no text or symbols on the fabric itself)

• Fuzzy rope


Close-up of a textured orange fiber or mesh structure against a plain gray background, with a small icon in the corner (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end


Close-up of a coiled cable with red and yellow patterned bands, no visible text or symbols

• Cut


Close-up of a textured, metallic object with scattered red and black fragments, possibly a material sample or fiber (no visible text or symbols)

• Gut

Close-up of a woven plant stem with visible soil and pestle (no text or symbols)

• Discoloration


Close-up of a woven fiber against a blue background, with a magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible corrosion and red marks, no text or symbols present

• Illegible marking


Close-up of a damaged cable with exposed copper and orange coating, lying on a concrete surface (no text or symbols visible)

• illegible marking


Close-up of a textured, woven material with a purple band and a small mark on the side (no visible text or symbols)

• Trace of chemicals


Close-up of a plant stem with green and gray growth, showing surface texture and small dark spots (no text or symbols visible)

• Trace of chemicals


Close-up of a textured cylindrical object with a small circular symbol and arrow icon on the left (no readable text or symbols)

TERMINACIÓN

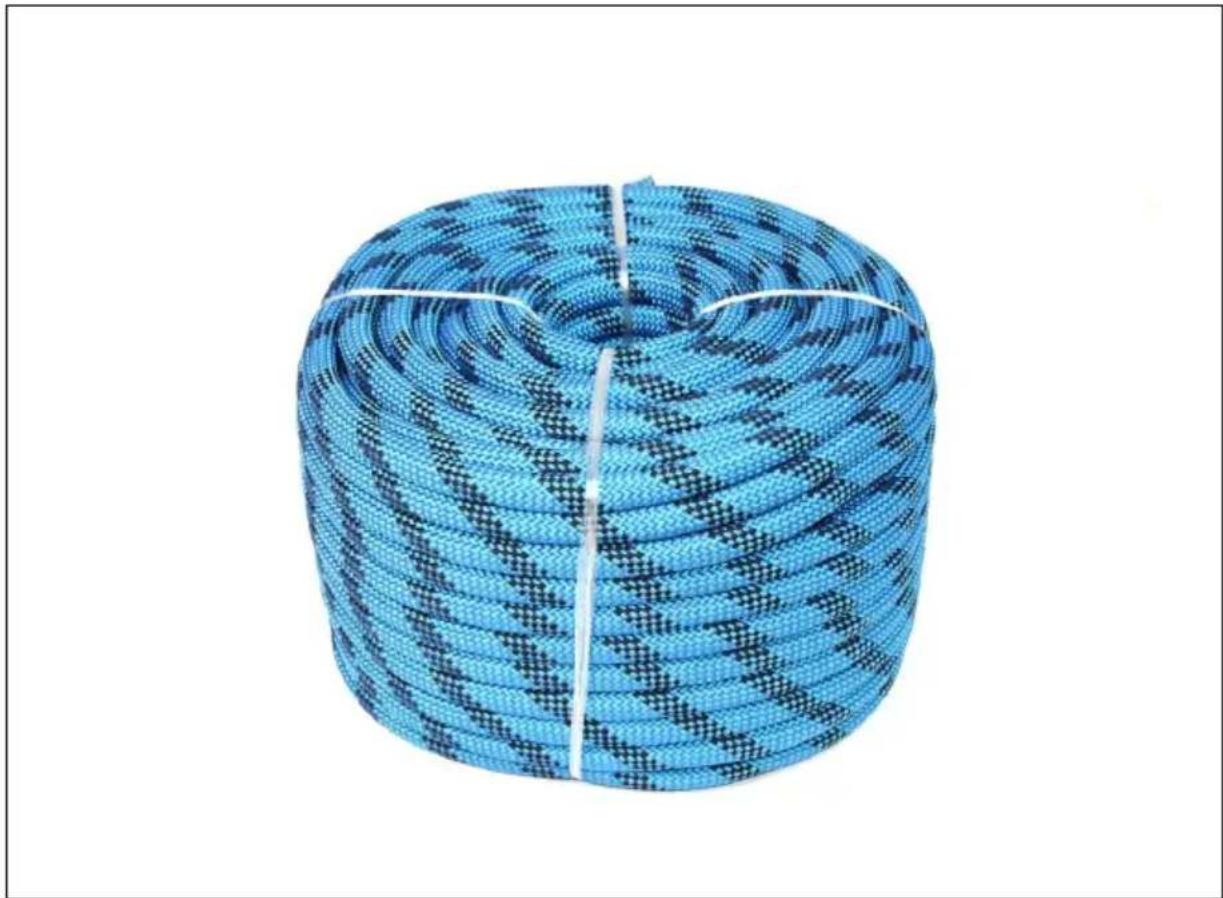

Coiled blue plastic cord with diamond pattern, no text or symbols visible

Dirección : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL NR.: NTE-125-12,7 , NTE-1 50 -12,7 , NTE-2 00 -12,7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

1) TRENING I KONDYCJA FIZYCZNA.

Close-up of a textured orange fabric with white spherical indentations, placed on a plain surface (no text or symbols visible)

• Fuzzy rope

Close-up of a textured orange fiber or material with a small circular icon and magnifying glass nearby (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end


Close-up of a coiled cable with red and yellow connectors, no visible text or symbols

• Cut


Close-up of a textured metallic strip with scattered red and black markings, no visible text or symbols.

• Cut


Close-up of a textured, golden-brown fiber with white foam and small protrusions, next to a small icon with a crossed-out arrow and a magnifying glass (no text or symbols)

• Discoloration


Close-up of a textured beige and brown fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible red and orange markings, no text or symbols present

• Illegible marking


Close-up of a red and orange textured cable with a small white object attached, placed on a dark surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a purple band and green patterned end, placed on a plain surface (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with visible leaf damage and small circular markers (no text or symbols)

• Trace of chemicals


Close-up of a textured vertical surface with a small circular icon and a trash can symbol nearby (no readable text or symbols)

UKOŃCZENIE

Coiled blue plastic cord with patterned texture, no visible text or symbols

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD I 2122 Australia

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim F Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELNR.: NTE-125-12,7 , NTE-1 50 -12,7 , NTE-2 00 -12,7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Close-up of a textured orange fabric with white spherical indentations, placed on a plain surface (no text or symbols visible)

• Fuzzy rope

Close-up of a textured orange fiber or material with a small circular icon and magnifying glass nearby (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end


Close-up of a coiled cable with red and yellow connectors, no visible text or symbols

• Cut


Close-up of a textured metallic strip with scattered red and black markings, no visible text or symbols.

• Cut


Close-up of a textured, golden-brown fiber with white foam and small protrusions, next to a small icon with a crossed-out arrow and a magnifying glass (no text or symbols)

• Discoloration


Close-up of a textured beige and brown fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible red and orange markings, no text or symbols present

• Illegible marking


Close-up of a red and orange textured cable with a small white object attached, placed on a dark surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a purple band and green patterned end, placed on a plain surface (no text or symbols visible)

• Trace of chemicals


Close-up of a plant stem with visible leaf damage and small circular markers (no text or symbols)

• Trace of chemicals


Close-up of a textured vertical surface with a small circular icon and a trash can symbol nearby (no readable text or symbols)

VOLTOOING

Coiled blue plastic cord with patterned texture, no visible text or symbols

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL NR.: NTE-125-12.7, NTE-1 50 -12.7, NTE-2 00 -12.7

Coiled blue plastic cord with patterned texture, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Close-up of a textured orange fabric with white spherical indentations, placed on a plain surface (no text or symbols visible)

• Fuzzy rope

Close-up of a textured orange fiber or mesh structure with a small circular icon and magnifying glass nearby (no text or symbols on the fiber itself)

• Fuzzy area


Close-up of a knitted fabric with blue and green pleats, no visible text or symbols

• Damaged rope end


Close-up of a coiled cable with red and yellow connectors, no visible text or symbols

• Cut


Close-up of a woven fiber with red and black connectors, no visible text or symbols

• Cut


Close-up of a textured, golden-brown fiber with white foam and small protrusions, next to a small icon (no text or symbols)

• Discoloration


Close-up of a textured beige and brown fiber against a blue background, with a small magnifying glass icon in the corner (no text or symbols on the fiber itself)

• Trace of paint


Close-up of a damaged cable with visible red and orange markings, no text or symbols present

• Illegible marking


Close-up of a red and orange textured cable with a small white object attached, placed on a dark surface (no text or symbols visible)

• Illegible marking


Close-up of a woven fabric strip with a purple band and green patterned outer edge, no visible text or symbols

• Trace of chemicals


Close-up of a plant stem with visible nodules and dark spots, no text or symbols present

• Trace of chemicals


Close-up of a textured vertical surface with a small circular icon and a trash can symbol nearby (no readable text or symbols)

KOMPLETTERING

Coiled blue plastic cord with patterned texture, no visible text or symbols

Adress : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOC NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd., Suite 250, 9166 Anahe Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
