USER MANUAL HXTC-3VD Vevor

Affordable. Reliable. Home Improvement.

BOOK CARTS

MODEL: HXTC-3VD

MODEL: HXTC-3VD

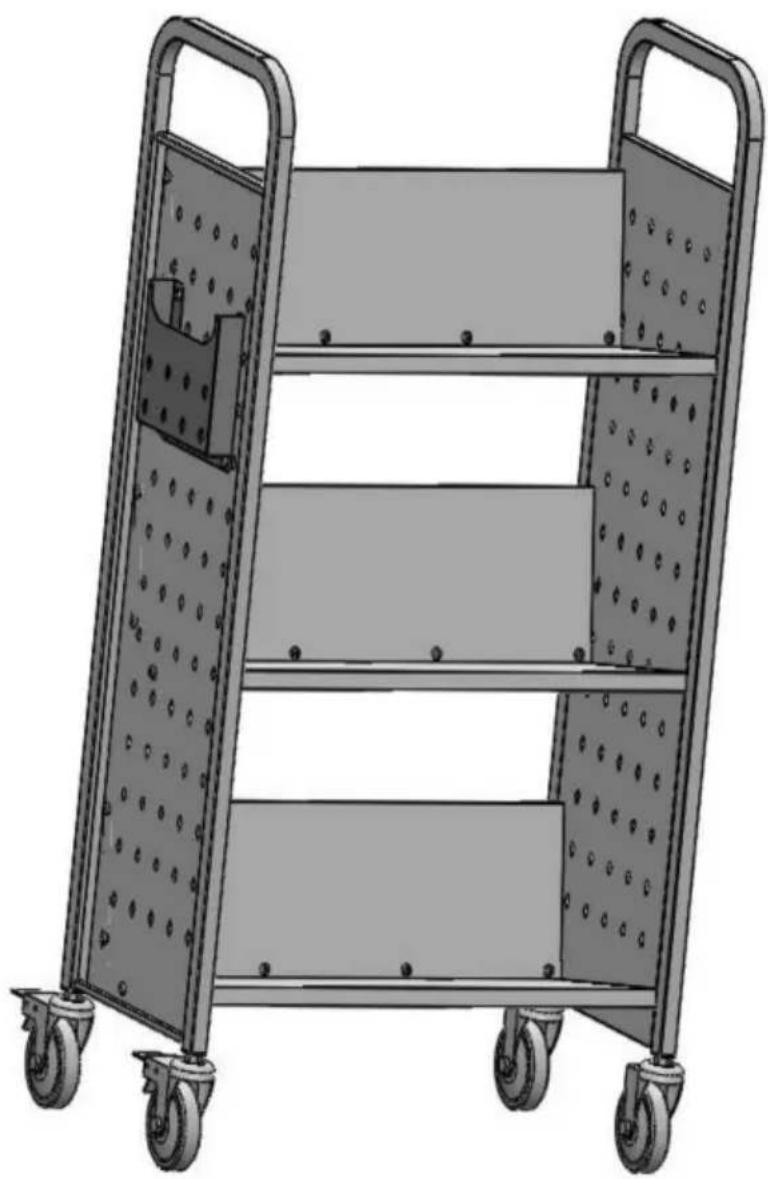

Illustration of a three-tiered metal modular cart with wheels and side handles (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. It is forbidden to carry people under any condition.
2. Keep the product on level surfaces. It is forbidden to load articles uneven and hilly terrains. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
3. Overload is strictly prohibited.
4. Don't move too fast when passing pothole areas.
5. Use the brakes when this product is not being moved. This prevent the product from rolling.
6. Do not alter this product in any manner.
7. Do not lift the product directly with a forklift or tow with any med devices.

MODEL AND PARAMETERS

Model	HXTC-3VD
Shelve Type	V-shaped(Single-sided)
Number of Shelves	3
Max. Capacity	110lbs/per shelf
Material	Steel
Color	Black / White

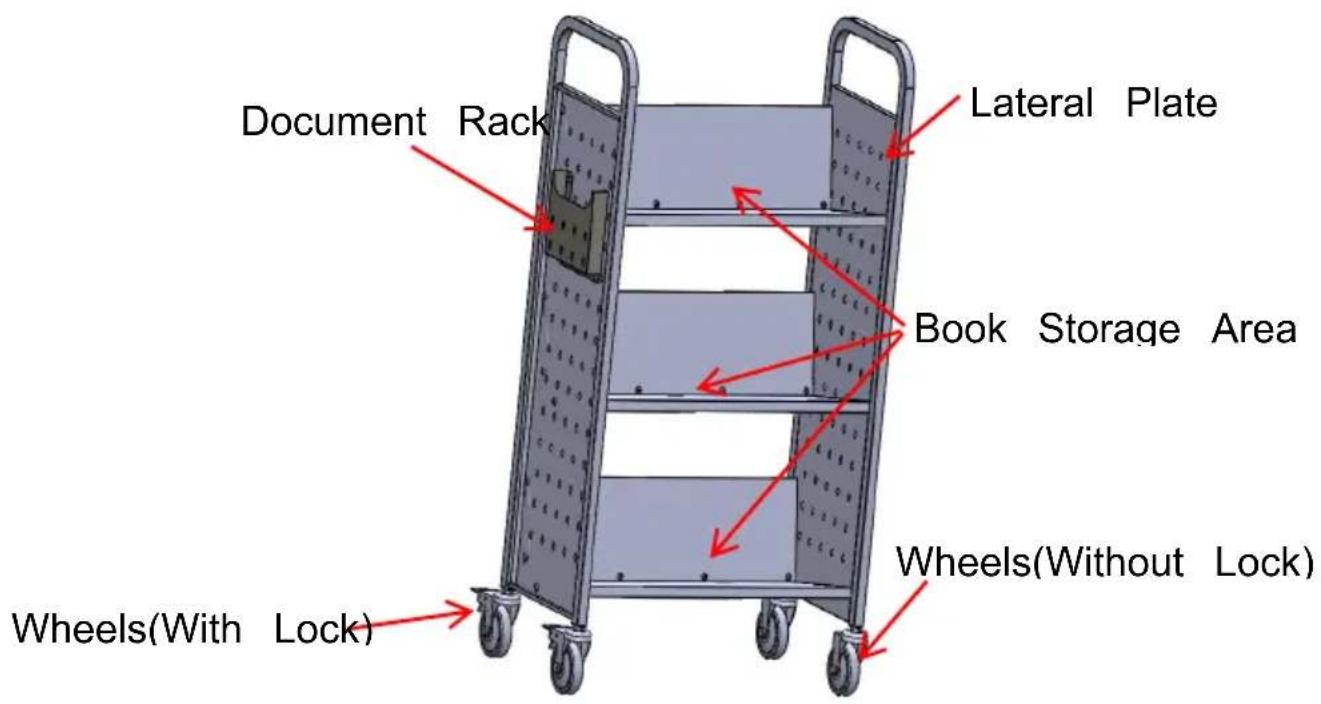

STRUCTURE DIAGRAM

Document Rack Lateral Plate Book Storage Area Wheels(Without Lock) Wheels(With Lock)

PARTS LIST

BOOK CARTS MODEL: HATC-IVD

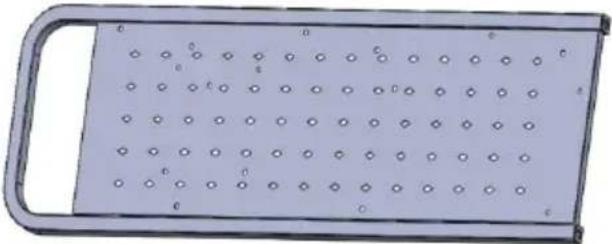

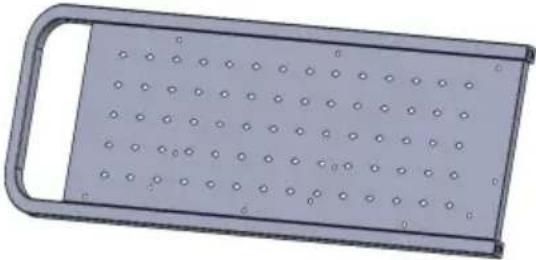

Lateral Plates x1	Lateral Plates x1
Bookshelf Backboards x3	Book Storage Panels x3
Wheels(Without Lock) x2	Wheels(With Lock) x2
Bookends x1	Document Rack x1
Hex key x1	Hat nuts(M6) x16
Bolts(M6*8) x16	Wrenchs(10+19mm) x2
	BOOK CARTS MODEL WTC-NO
Bolts(M6*14) x24	User Manual x1

INSTALLATION

NOTE: This installation is best done by two people.

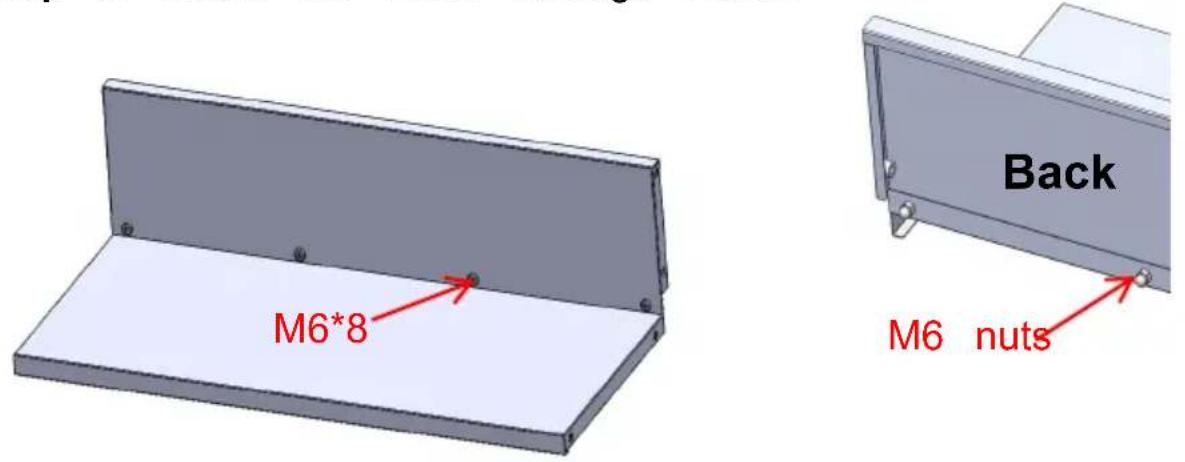

Step 1: Install the Book Storage Panel.

M6*8 Back M6 nuts

NOTE: Please do not tighten the bolts yet.

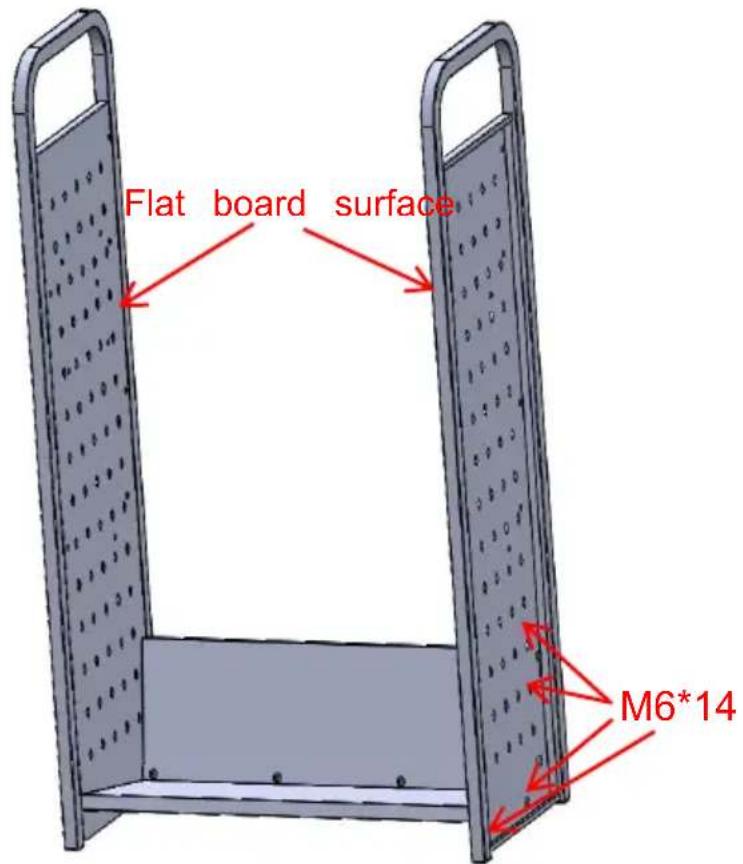

Step 2: Install the Lateral Plates.

Flat board surface M6*14

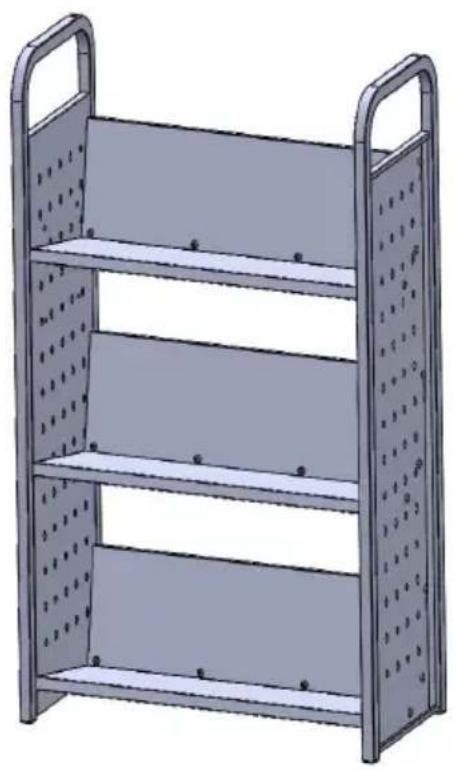

Step 3: After all parts are installed, adjust the angle of the frame and tighten all bolts.

3D rendering of a three-tier metal shelving unit with two handles and perforated panels (no text or symbols)

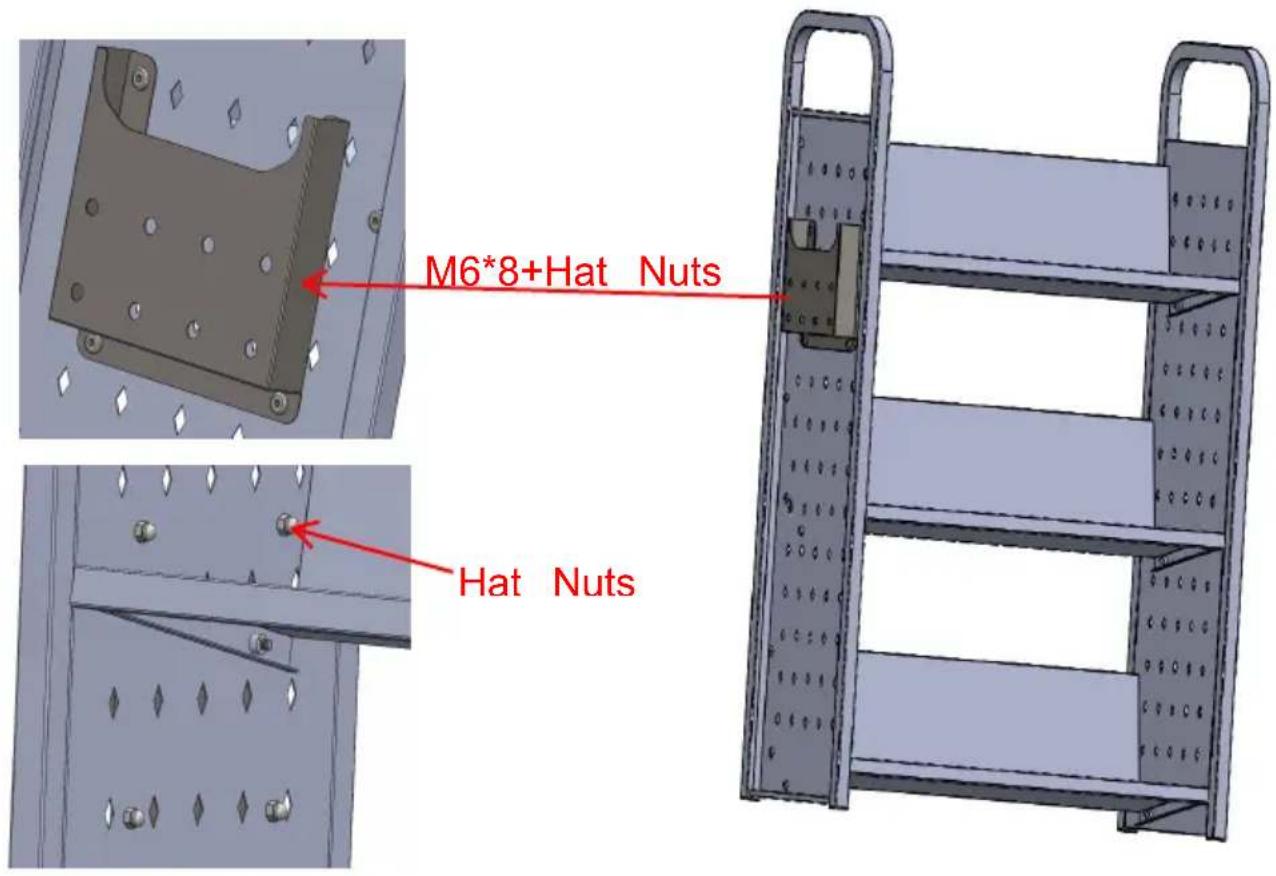

Step 4: Install the Document Rack.

M6*8+Hat Nuts Hat Nuts

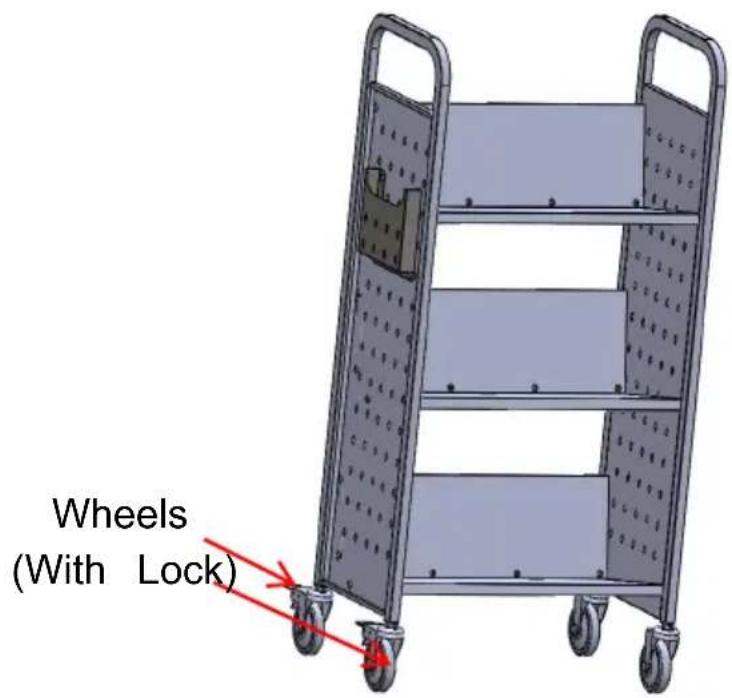

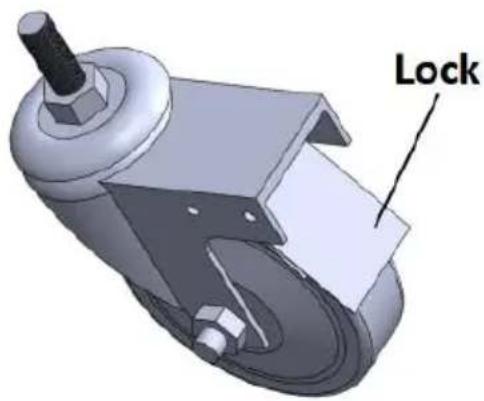

Step 5: Install the four wheels.

Wheels (With Lock)

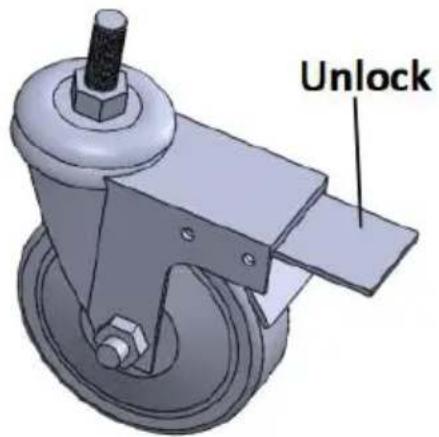

■ To lock the swivel casters with brake, step down the levers.
■ To unlock the swivel casters with brake, pull up the levers.

Unlock

Lock

MAINTENANCE

1. Clean the surface after each use .
   Please check and confirm that the cart is intact before each use.
2. Check that the bolts are tight.
3. Wheel bearings are regularly lubricated with grease.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CHARIOTS À LIVRES

MODÈLE : HXTC-3VD

VEVOR

Affordable. Reliable. Home Improvement.

CHARIOTS À LIVRES

MODÈLE : HXTC-3VD

Illustration of a dual-level metal rack with wheels and perforated panels (no text or symbols)

3D rendering of a three-tier metal shelving unit with handles and perforated panels (no text or symbols)

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. A/S YH Consulting Limited, bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Bücherwagen

MODELL: HXTC-3VD

VEVOR

Affordable. Reliable. Home Improvement.

Bücherwagen

MODELL: HXTC-3VD

Illustration of a three-tiered modular cart with wheels and side handles (no text or symbols)

3D rendering of a three-tier metal shelving unit with two handles and perforated panels (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited,

Büro 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG-Vertreter

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

CARRELLI PORTA LIBRI

MODELLO: HXTC-3VD

MODELLO: HXTC-3VD

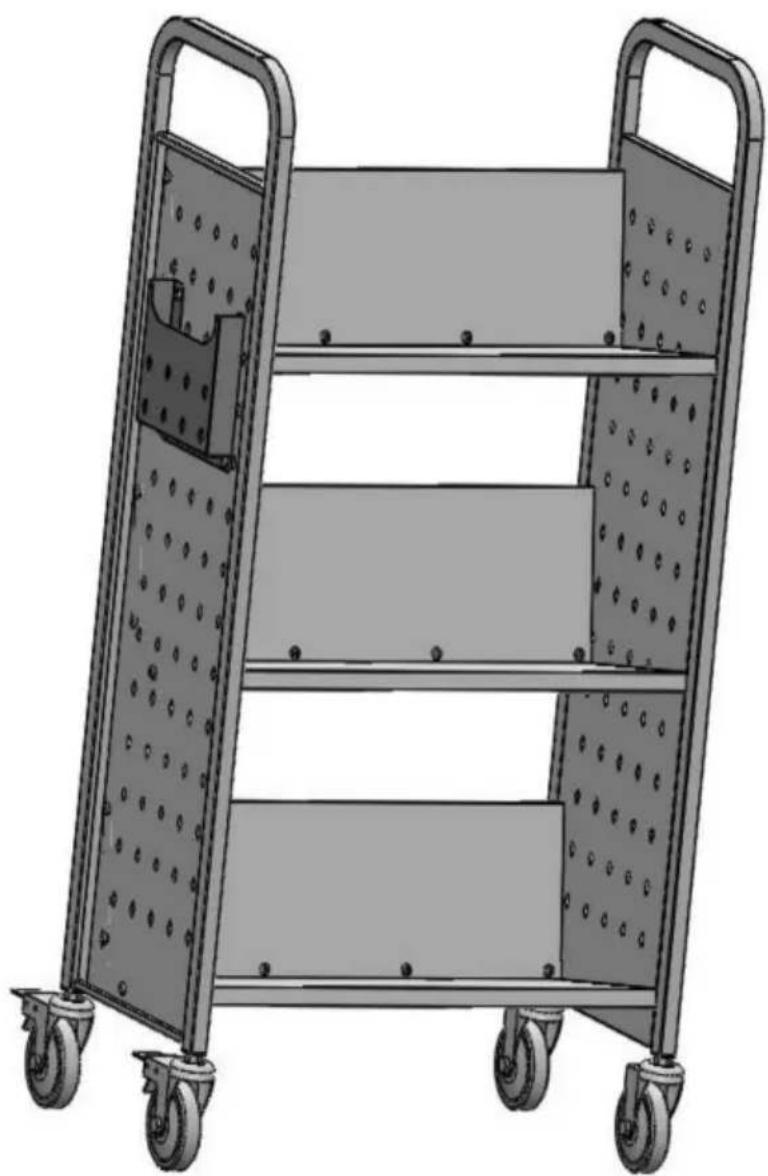

Illustration of a three-tiered modular cart with wheels and side handles (no text or symbols)
