USER MANUAL MR8014-1 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WHEEL DOLLIES

MODEL:MR8014-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

WHEEL DOLLIES

MODEL:MR8014-1

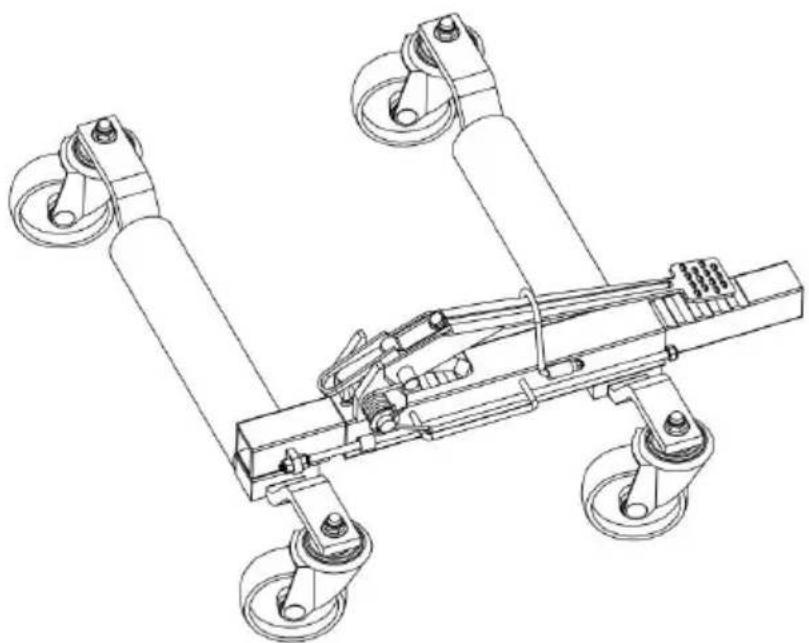

Technical line drawing of a mechanical device with four wheels and a central handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SECURITY & WARNINGS

1. Before use, read manufacturer's instruction manual for the vehicle you will li
2. Do not exceed rated capacity.
3. Use only on hard, level surface.
4. Before moving a load, assure that the load is centered and secured with restraint device
5. No alterations shall be made to this product.
6. Keep clear of load's path while placing on and removing from dollies, and moving.
7. Use as intended only. Do not use for aircraft purposes. Use only in pairs.
8. Inspect before every use; do not use if parts are loose or damaged.
9. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.
10. Assemble only according to these instructions. Improper assembly can create hazards.
11. Keep your work area clean and well lit. Cluttered work areas invite accio
12. Keep bystanders, children, and visitors away while operating Wheel Dolly. Distractions can cause you to lose control.
13. Keep clear of load while lifting and lowering
14. Do not work under vehicle while on Dollies.
15. Lower load slowly.
16. Weight capacity and other product capabilities apply to properly and completely assembled product only.
17. Store idle Wheel Dollies out of reach of children and other untrained per-wheel dollies are dangerous in the hands of untrained users.
18. Wheel Dolly service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
19. When servicing a Wheel Dolly, use only identical replacement parts -refer

attached, product-specific parts list and diagram. Follow instructions in the "Inspection, Maintenance, And Cleaning" section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a 1 of injury.

1. Do not allow anyone in the vehicle while using the Wheel Dolly. Do not the vehicle while it is on Wheel Dollies. Keep all bystanders a safe distance from the vehicle.
2. This product is not a toy. Do not allow children to play with or near the Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact for a replacement.
3. The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors, which cannot be built this product, but must be supplied by the operator.
4. DO NOT operate wheel dollies on inclined surfaces. wheel dollies must be used on level surfaces only. Unanticipated motion will occur as soon as where dollies lifts tire from surface.
5. DO NOT overload wheel dollies beyond the load rating (1500lbs per unit)
6. DO NOT start the vehicle's engine, or drive with wheel dollies in use. w dollies are designed for hand maneuvering of vehicles only.
7. DO NOT use wheel dollies to lift tires wider than 12 inches.
8. DO NOT attempt to push wheel dollies over obstacles. They are designed be used on level and reasonably smooth surfaces only.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	MR8014-1
Maximum Load Capacity	1500lbs
Color	Red
Maximum Tire Width	12"/305 mm
Castor Diameter	4" / 100 mm

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

NO	PICTURE	NAME	QTY
1		Left Aluminum sleeve bracket with wheels	1
2		Right Aluminum sleeve bracket with wheels	1
3		Expansion sleeve component	1
4		M10 Screw	4
5		Spring washer	4
6		Hex key	1

ASSEMBLY STEPS

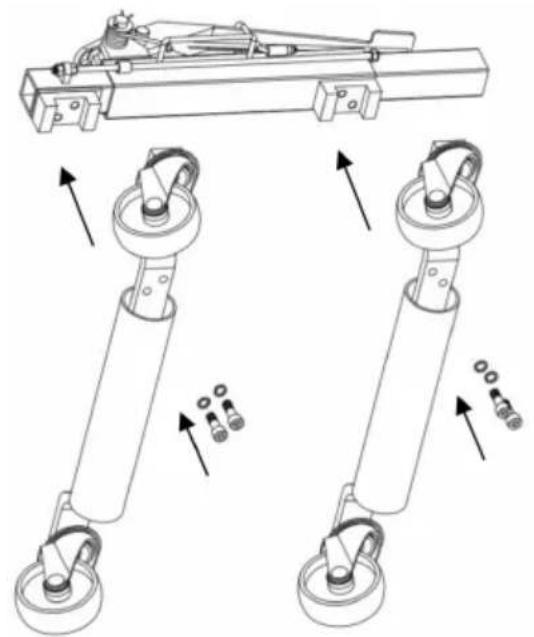

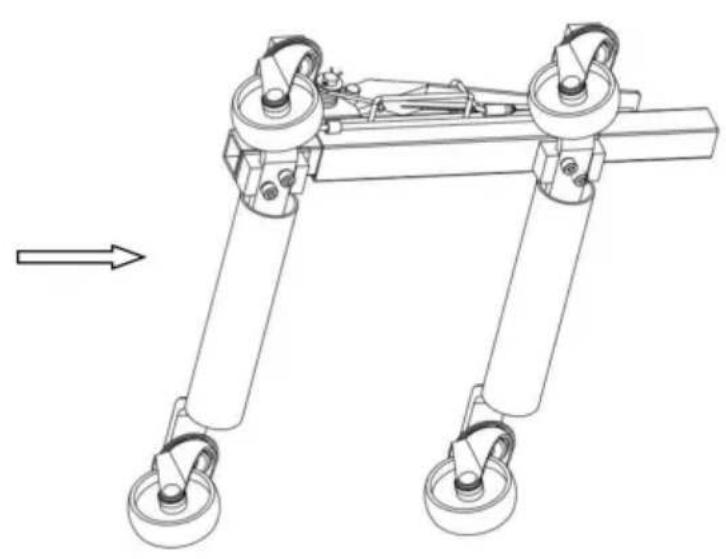

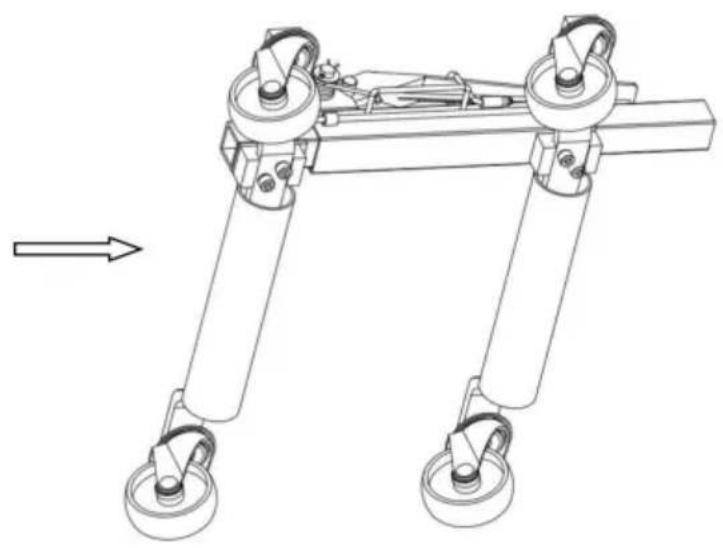

Technical line drawing of mechanical components with no visible text or symbols

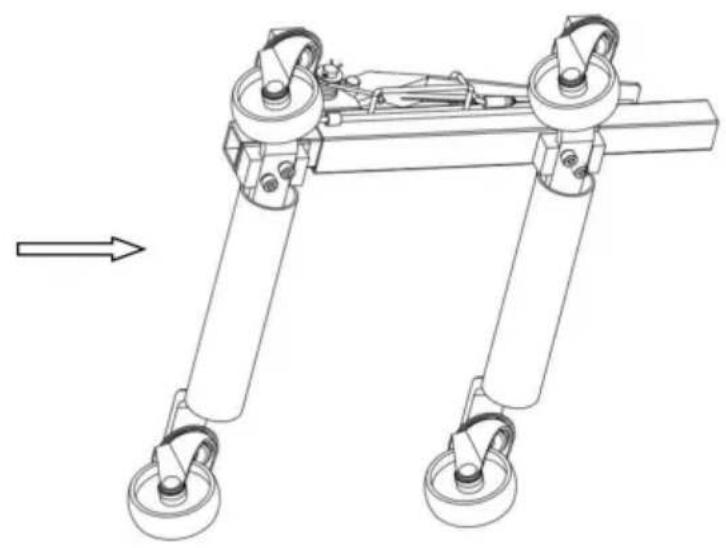

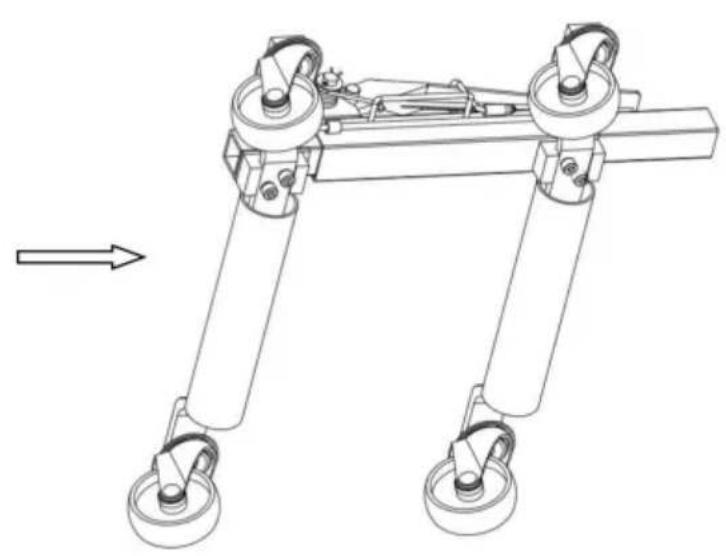

Mechanical linkage diagram showing four articulated arms with joints, one extending upward (no text or symbols)

Tighten and fix the Left Aluminum sleeve bracket with wheels ① and R Aluminum sleeve bracket with wheels ② to the Expansion sleeve component ③ with Screw M10 ④ Spring washer ⑤ As shown in the figure.

INSTRUCTIONS

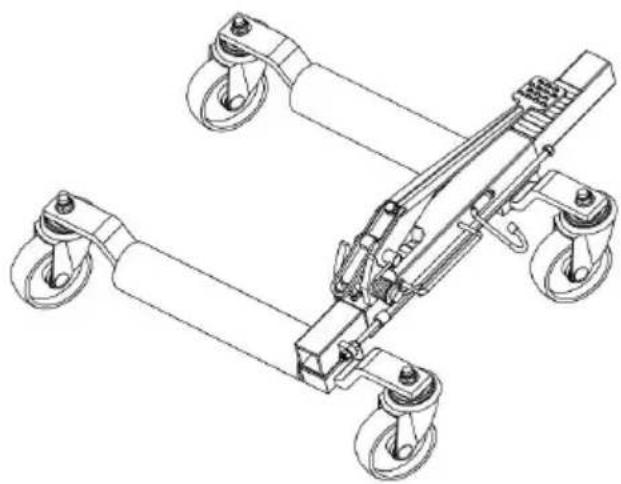

Technical line drawing of a mechanical lifting device with four wheels (no text or symbols)

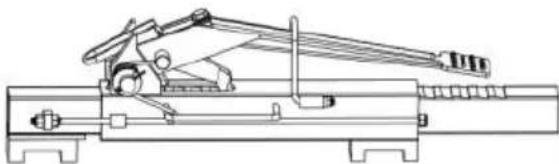

1. release the retaining hook of operating lever.

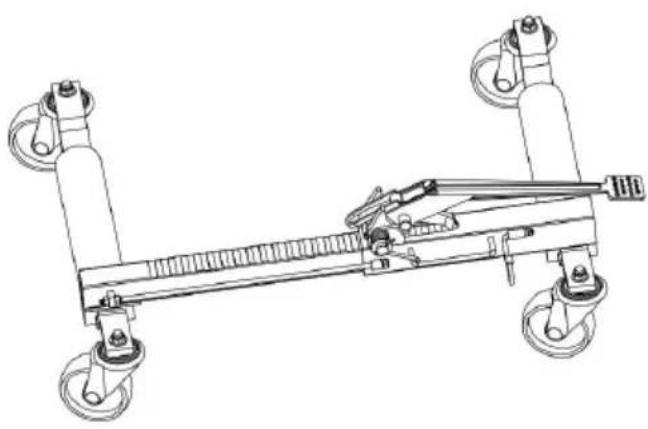

Technical line drawing of a mechanical support system with wheels and a handle (no text or symbols)

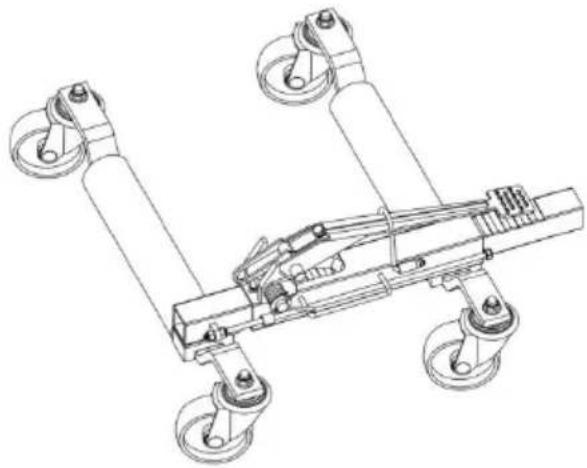

1. Expand the wheel dollies.

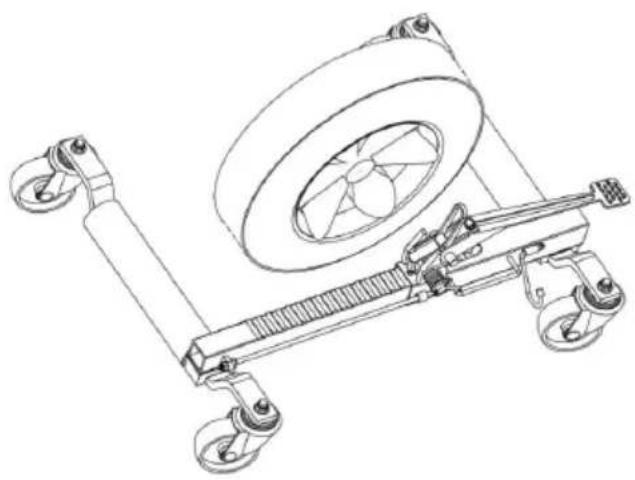

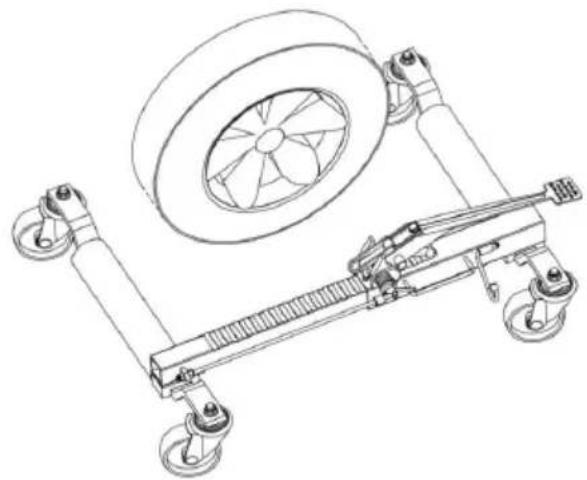

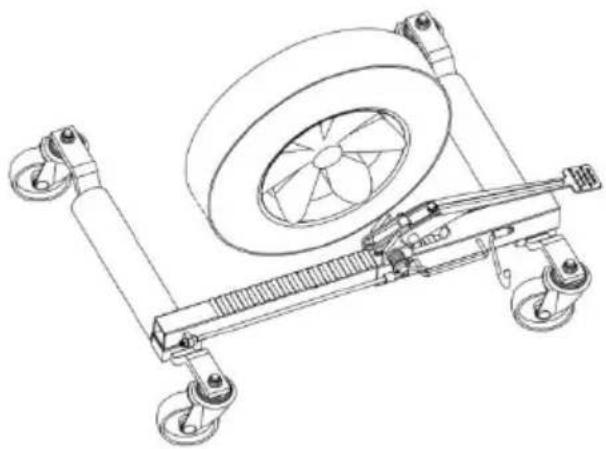

3.Slide the go wheel dollies arou the wheel to be lifted.	4.Move the Lever to the up pos

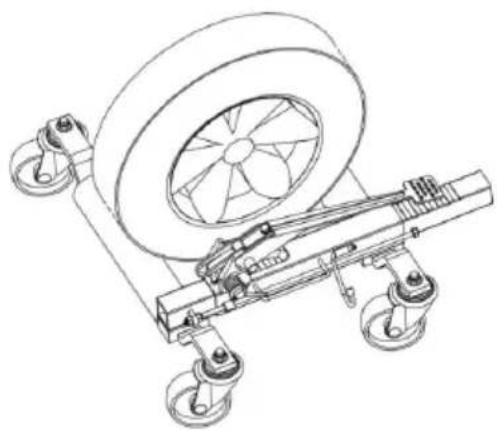

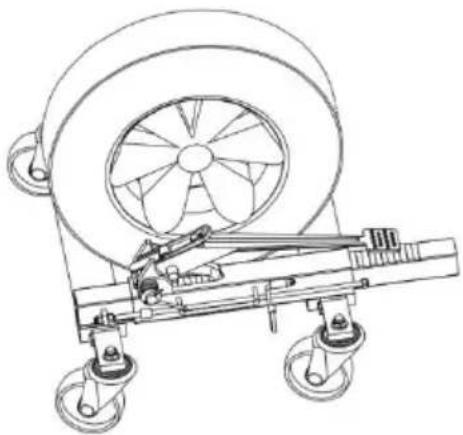

5. pump the Foot Pedal until the is just lifted off the ground.	6.Move the Lever to the down position,then depress and release the Foot Pedal.
7.Once tire is on the ground,spre Arms and remove Dolly.	8.Push arms together,then depre Foot Pedal all the way and sec with Pedal Lock.
